2A9DX-GATEWAYBluetooth Wi-Fi Bridge/Gateway

User Instruction Package Contents User Guidelines of Bluetooth Wi-Fi Bridge/Gateway Package Contents Please refer to the Blusafe Smart Lock user instruction manual forsetup, or follow below steps. · Bluetooth Wi-Fi Bridge/Gateway The Bluetooth Wi-Fi Bridge/Gateway allows you to connect yourBlusafe smart devices to the Wi-Fi, allowing you to benefit from thesmart functionality. When connected via the App, it allows users toadd devices, reset devices, manage entry methods, control thedevice remotely and allows connection to smart home applicationssuch as Amazon Alexa or Google Assistant. · User Guidelines Blue light indicating Bluetooth status Red light indicating Wi-Fi status Setting / Reseting Power Outlet · Cable· Adaptor Plug in the Wi-Fi Bridge/Gateway Press the Setting/Resetting button until the red indication lightflashes, then ensure your device is connected to Bluetooth andopen the Blusafe Smart App Add your Wi-Fi Gateway in the Blusafe Smart App by pressingthe+' in the top right corner, then input your Wi-Fi passwordand make sure your Wi-Fi Gateway is connected with the BlusafeSmart App Make sure your Blusafe smart lock connects to your Blusafe Appfirst, then bind your Wi-Fi Gateway with your Blusafe smart lockby clicking on the Gateway and selecting Add Device' Once your smart lock is added, you will be able to control thelock outside of Bluetooth rang 1. 2. 3. 4. 5. PRODUCT SPECIFICATIONS Product NameBluetooth Wi-Fi Bridge/Gateway Product Model01.W01.002.M Power Input5V == 1A Operating Temperature-10° - 55C Humidity10% - 99% RH Product Size Wireless Protocol 2.4G Wi-Fi Bluetooth 5.0 60 x 60 x 14 mm Product Weight30g NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different. from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCCʼs RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Blusafe Solutions 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Blusafe Solutions Address: 508 Fengming Road, Xiepu, Zhenhai, Ningbo, China Product Name: Bluetooth Wi-Fi Bridge/Gateway FCC ID: 2A9DX-GATEWAY Model(s): 01.W01.002.M, 01.W01.001.M, 05.05.004, 01.WXX.XXX.X(Xstands for 0-9 or A-Z. representing different models via different sales channels) 2.911(d)(5)(i) Equipment Type We, [Blusafe Solutions] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Mary He Date: Aug. 04, 2023 Signature: Title and Company name: PMC / Blusafe Solutions NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Blusafe Solutions 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Blusafe Solutions Address: 508 Fengming Road, Xiepu, Zhenhai, Ningbo, China Product Name: Bluetooth Wi-Fi Bridge/Gateway FCC ID: 2A9DX-GATEWAY Model(s): 01.W01.002.M, 01.W01.001.M, 05.05.004, 01.WXX.XXX.X(Xstands for 0-9 or A-Z. representing different models via different sales channels) 2.911(d)(5)(ii) Applicant filing We, [Blusafe Solutions] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Mary He Date: Aug. 04, 2023 Signature: Title and Company name: PMC / Blusafe Solutions NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Blusafe Solutions Agent Authorization Company: Blusafe Solutions Address: 508 Fengming Road, Xiepu, Zhenhai, Ningbo, China Product Name: Bluetooth Wi-Fi Bridge/Gateway Model Number(s): 01.W01.002.M, 01.W01.001.M, 05.05.004, 01.WXX.XXX.X(Xstands for 0- 9 or A-Z. representing different models via different sales channels) Product Description: Bluetooth Wi-Fi Bridge/Gateway We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Aug. 04, 2023 Name: Mary He Title: PMC Company: Blusafe Solutions

Blusafe Solutions Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Aug. 04, 2023 Subject; Request for Confidentiality FCC ID: 2A9DX-GATEWAY To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software security requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mary He Title: PMC

Blusafe Solutions Model Difference Declaration To Whom It May Concern, We, Blusafe Solutions (Bluetooth Wi-Fi Bridge/Gateway); Trade Mark: , Model Number: 01.W01.002.M, 01.W01.001.M, 05.05.004, 01.WXX.XXX.X(Xstands for 0-9 or A-Z. representing different models via different sales channels); All model’s the function, software and electric circuit are the same, only with model named different. Test sample model: 01.W01.002.M. Please contact me if you have any question. Signature: Date: Aug. 04, 2023 Name: Mary He Title: PMC

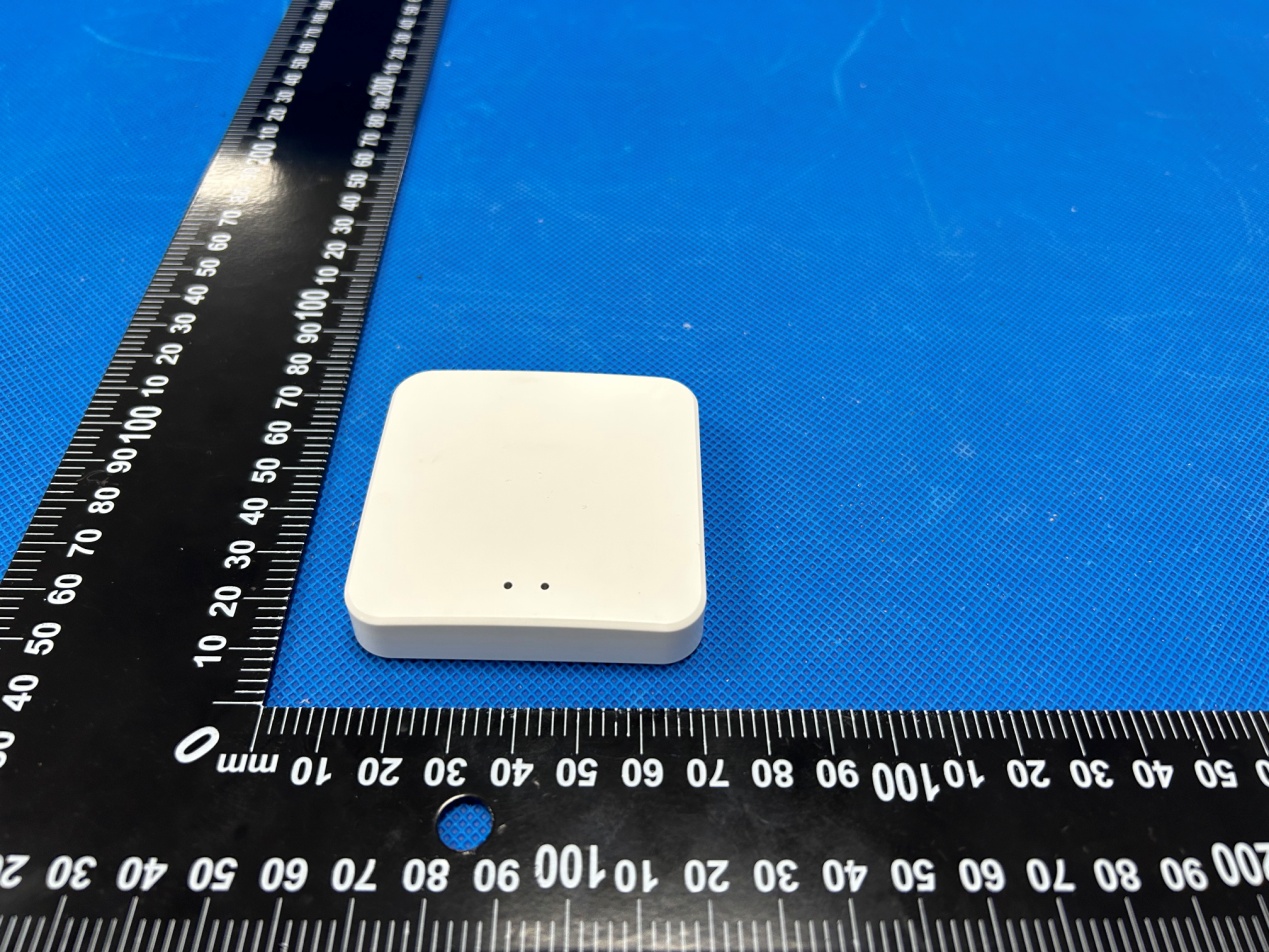

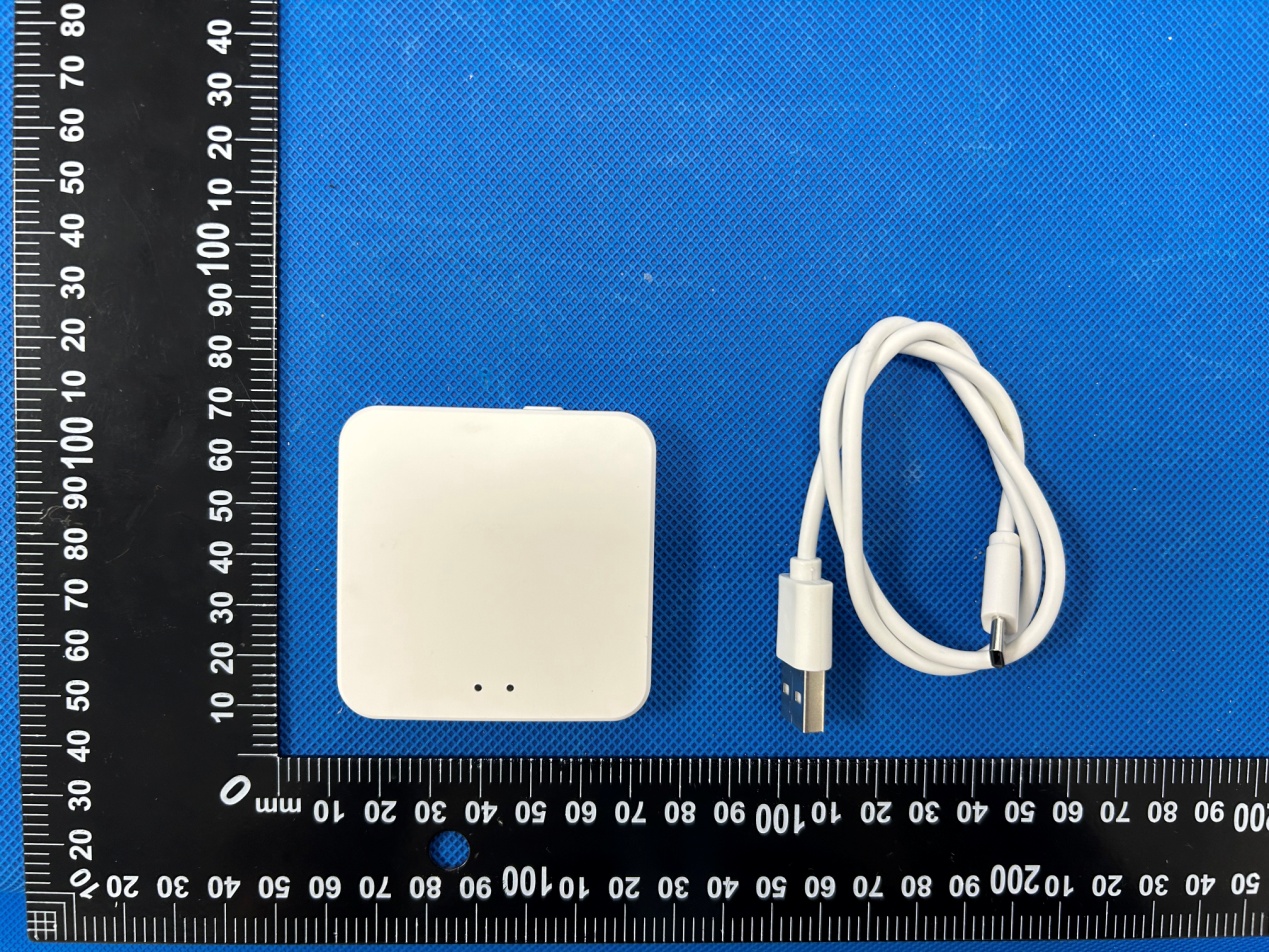

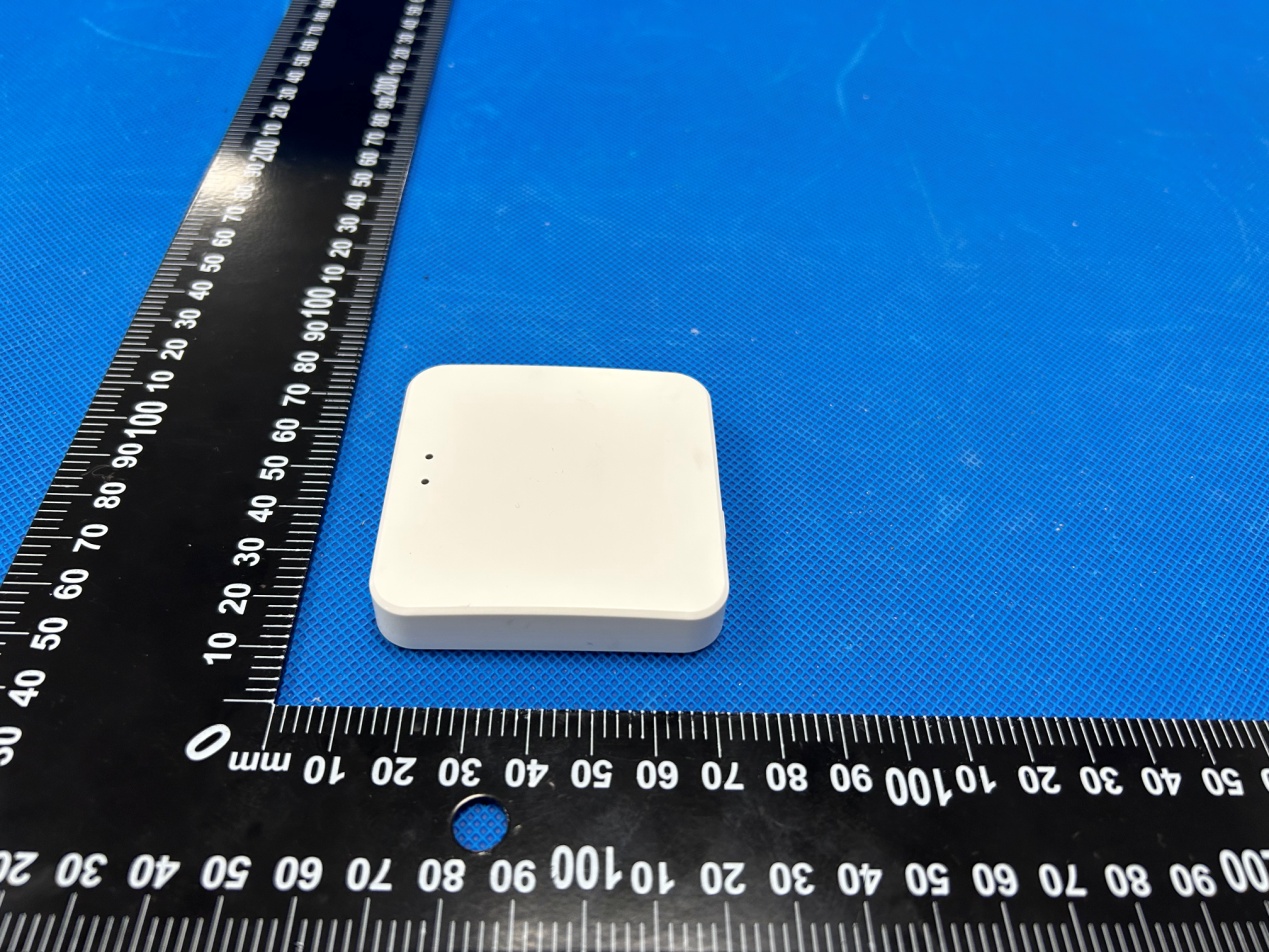

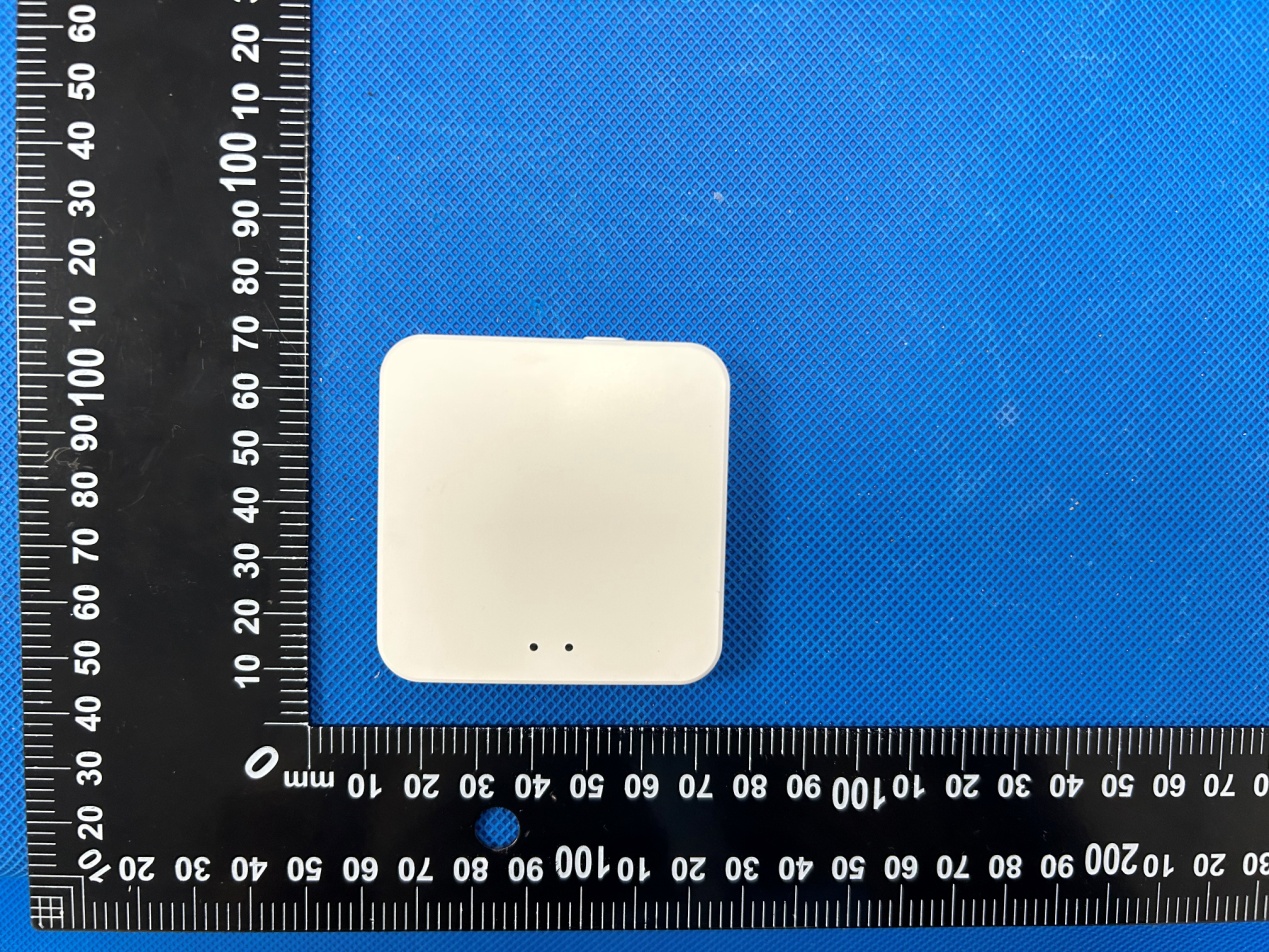

Annex A External Photos Model No.: 01.W01.002.M Page 1 of 4 Model No.: 01.W01.002.M Page 2 of 4 Model No.: 01.W01.002.M Page 3 of 4 Model No.: 01.W01.002.M Page 4 of 4

FCC ID LABEL: Ca: 10mm x 25mm Label Location FCC ID: 2A9DX-GATEWAY

Annex B Internal Photo Model No.: 01.W01.002.M Page 1 of 3 Model No.: 01.W01.002.M Page 2 of 3 Model No.: 01.W01.002.M Page 3 of 3

MPE ESTIMATION FCC ID: 2A9DX-GATEWAY 1,Per FCC Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices, the limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result The certified sample is portable device, when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0306 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End------- Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 2.4g wifi: 2412 19.27 19±1(20) 100.00 1.88 1.54 0.0306 BLE: 2440 4.76 4±1(5) 3.16 1.88 1.54 0.00097 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2307203148-E , antenna gain= 1.88dBi
