2A9EV-HUNTER101Remote control

Hand-held and wall-fixed Emitters available,Single or dual channels are available. Emitters are equipped with wall stickers and connection frame Wall type single channel emitter Hand-held single channel emitter Hand-held dual channel 3M stcker Installation Battery replacement FrameEmitter Wall type dual channel emitter Rotate battery cover , replace the battery Battery Type NO.:CR2032 Remote ControlADD WINDOW Light Open Stop Close Product name : Remote Control Product type : HUNTER101 Frequency : 433.92MHz Channel : Single channel/Double channel Battery : 3V CR2032 Battery life : 2 years (Rated power 210MAH) Distance : 50 m Fixed mode : magnetic suction base Size : 66mm X 33mm X 10mm FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IQC DATE HANGZHOU ADD WINDOW ENERGY SAVING TECHNOLOGY CO.,LTD. TEL：0571-88651857 E-MAIL：[email protected] NET：www.addwj.com Product Quality Certification

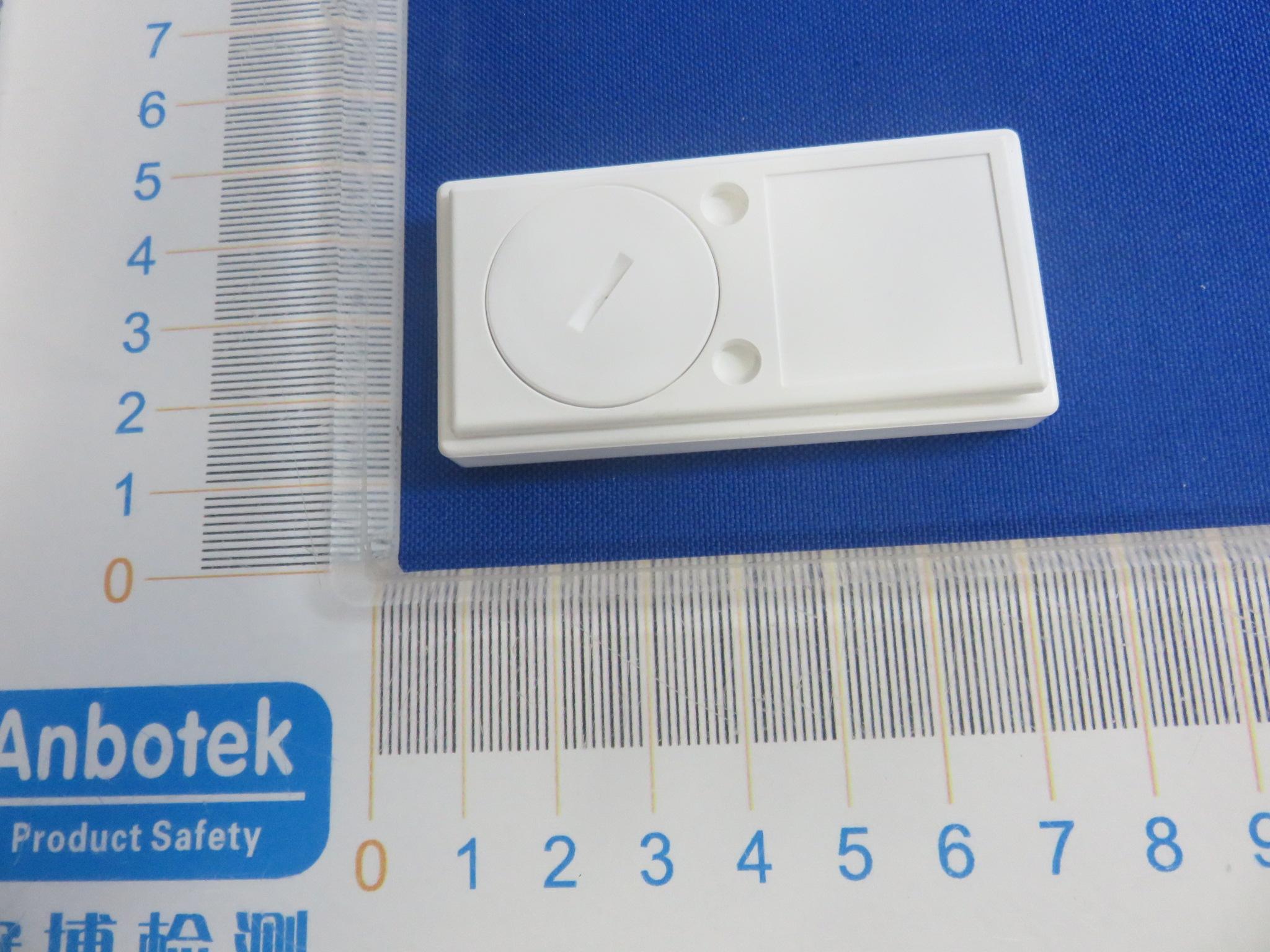

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:Remotecontrol ModelNo.:HUNTER101 FCCID:2A9EV-HUNTER101

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b ANT

version01 HangzhouADDWindowEnergySavingTechnologyCo.LTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:HUNTER101,HUNTER102,HUNTER201,HUNTER202 FCCID:2A9EV-HUNTER101 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:HUNTER101 Typeofantenna:PCBantenna Gainoftheantenna:0dBi Frequencyrange:433.92MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname: HangzhouADDWindowEnergySavingTechnologyCo.LTD Address: Room506,Building2,650YunxiRoad,CangqianStreet,YuhangDistrict, Hangzhou,Zhejiang,China City: Zhejiang ZIP/Postalcode: / Country: China Place: ZhejiangDate:11/23/2022 Signature:

RemoteControlAntennaSpecifications typePCBAntennagain0dBi sizeWidth:0.85mm;Length:105mm;Thickness:1oz Exterior Manufacturer:HangzhouRuiFengElectronicsCo.,Ltd. Address:3rdfloor,No4XianxingRoad,Xianlinstreet,YuhangDistrict,HangzhouCity, ZhejiangProvince,China

FCCID:2A9EV-HUNTER101 RFEXPOSUREEVALUATION EUTSpecification EUT Remotecontrol ModelName HUNTER101,HUNTER102,HUNTER201,HUNTER202 Frequencyband (Operating) WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others(433.92MHz) DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower87.28dBuV/m(-7.978dBm)(0.159mW) Antennagain0dBi EvaluationappliedMPEEvaluation SAREvaluation StandardRequirement PortableDevice Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequency energylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01GeneralRF ExposureGuidanceV6,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR, 16 where ·f(GHz)istheRFchanneltransmitfrequencyinGHz ·PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 ·Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. FCCID:2A9EV-HUNTER101 MeasurementResult Channel Frequency (GHz) MaxOutput power (dBm) Maxtune-up tolerance Outputpower (dBm) Max Outpu t power (dBm) MaxOutput power (mW) Calculation Value (Note1) Threshold Value 0.43392-7.978 -7.978 ± 1 -6.9780.2010.0263.0 EIRP=E-104.8+20logD=87.28-104.8+20log3=-7.978dbm Note1:CalculationValue=[(max.powerofchannel,mW)/(min. testseparationdistance,mm)]·[√f(GHz)]. Foxexample:0.201/5*√0.43392=0.026≤3.0 AccordingtoKDB447498D01V6,thresholdatwhichnoSARrequiredis≤3.0for1-gSAR, separationdistanceis5mm,andnosimultaneousSARmeasurementisrequired. TheSARmeasurementisnotnecessary.

ReportNo.:18220WC20209701FCCID:2A9EV-HUNTER101Page1of24 Code:AB-RF-05-b FCCTestReport ClientName: HangzhouADDWindowEnergySaving TechnologyCo.LTD ClientAddress: Room506,Building2,650YunxiRoad, CangqianStreet,YuhangDistrict,Hangzhou, Zhejiang,China ProductName:Remotecontrol ReportDate:Nov.21,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20209701FCCID:2A9EV-HUNTER101Page2of24 Code:AB-RF-05-b Contents 1.GeneralInformation ............................................................................................................................................5 1.1.ClientInformation ....................................................................................................................................5 1.2.DescriptionofDevice(EUT) ..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest .................................................................................................6 1.4.DescriptionofTestConfiguration ..........................................................................................................6 1.5.DescriptionofTestSetup .......................................................................................................................7 1.6.TestEquipmentList .................................................................................................................................8 1.7.MeasurementUncertainty ......................................................................................................................9 1.8.DescriptionofTestFacility .....................................................................................................................9 2.SummaryofTestResults .................................................................................................................................10 3.ConductedEmissionTest ................................................................................................................................11 3.1.TestStandardandLimit ........................................................................................................................11 3.2.TestSetup ...............................................................................................................................................11 3.3.TestProcedure .......................................................................................................................................11 3.4.TestData .................................................................................................................................................11 4.FieldStrengthofFundamentalandSpuriousEmission .............................................................................12 4.1.TestStandardandLimit ........................................................................................................................12 4.2.TestSetup ...............................................................................................................................................13 4.3.TestProcedure .......................................................................................................................................14 4.4.TestData .................................................................................................................................................14 5.20dBOccupyBandwidthTest .........................................................................................................................19 5.1.TestStandardandLimit ........................................................................................................................19 5.2.TestSetup ...............................................................................................................................................19 5.3.TestProcedure .......................................................................................................................................19 5.4.TestData .................................................................................................................................................19 6.DwellTimeTest .................................................................................................................................................21 6.1.TestStandardandLimit ........................................................................................................................21 6.2.TestSetup ...............................................................................................................................................21 6.3.TestProcedure .......................................................................................................................................21 6.4.TestData .................................................................................................................................................21 7.AntennaRequirement ......................................................................................................................................23 7.1.TestStandardandRequirement .........................................................................................................23 7.2.AntennaConnectedConstruction .......................................................................................................23 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................24 APPENDIXII--EXTERNALPHOTOGRAPH ..................................................................................................24 APPENDIXIII--INTERNALPHOTOGRAPH ...................................................................................................24 ReportNo.:18220WC20209701FCCID:2A9EV-HUNTER101Page3of24 Code:AB-RF-05-b TESTREPORT Applicant:HangzhouADDWindowEnergySavingTechnologyCo.LTD Manufacturer:Hang…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofRadiationEmissionTest
