2A9F9HL3215STGWi-Fi&BLE Intelligent controls module

HL3215STG is an integrated WIFI& Bluetooth BLE dual-mode module，BK7231M_QFN32-- integrated MCU/WLAN MAC/ Baseband/RF single chip scheme. ARM9 32-bit MCU core, 120MHz main frequency, built-in 256KBRAM. •Supports 802.11b/G/N WIFI standard. •Supports 802.11b/ G/N standards, HT-20 •Supports Station, Soft AP, Station+Soft AP •With 20MHz bandwidth, the maximum transmission rate reaches 72.2Mbps •Module built-in onboard antenna (for the antenna part, please refer to the antenna specification) •working voltage：DC 3.3-3.6V， •Supports BLE 5.2standard， •Supports 802.11 b/g/n 1x1 protocol •802.11b: 1, 2, 5.5, 11 •802.11g: 6, 9, 12, 18, 24, 36, 48, 54 •802.11n HT20: MCS0~7 •Supports STA/AP/Direct/Repeaternetwork model •Supports SGI、Green-Field Preamble and A-MPDU •Supports WPA,WPA2,WAPI security regime •Supports 50 MHz SDIO port •On - chip 2M FLASH, can be expanded to 4M, support transparent download Function description HLW3215-TG is a Wi-Fi module used in home appliances, and the first batch of home appliances are dishwasher and oven. The hardware and software architecture based on the module can realize the networking and the control of home appliances. Dishwasher and oven are controlled by the module to achieve their local control functions. They are connected to the cloud server through Wi-Fi and Bluetooth. Users can control the dishwasher and oven through the mobile terminal App to achieve remote control, and can connect to the Hisense Connectlife intelligent platform with intelligent and convenient use experience. In addition, the module supports OTA upgrades and can also assist in OTA upgrades of the MCU plate for dishwashers and ovens. We will retain control over the final installation of the modular such that compliance of the end product is assured. If any hardware modify or RF control software modify will be made by host manufacturer, C2PC or new certificate should be apply to get approval,if those change and modification made by host manufacturer not expressly approved by the party responsible for compliance ,then it is illegal. The host device must be labeled to display the FCC ID of the module “Contains FCC ID: 2A9F9HL3215STG” The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any company of the host device which install the modular with modular approval should perform the test of radiated & conducted emission and spurious emission, etc. according to FCC part 15C : 15.407,15.247 and 15.209 & 15.207 ,15B Class B requirement, Only if the test result comply with FCC part 15C : 15.407,15.247 and 15.209 & 15.207 ,15B Class B requirement，then the host can be sold legally. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement The modular can be installed or integrated in mobile or fix devices . This modular cannot be installed in any portable device if without further certification such as C2PC with SAR. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. IC warning - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. RF warning statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. - French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement Avertissement RF: Cet appareil est conforme à IC l’exposition aux rayonnements limites fixées pour un environnement non contrôlé. Cet …

Text truncated - open the document above for the full version.

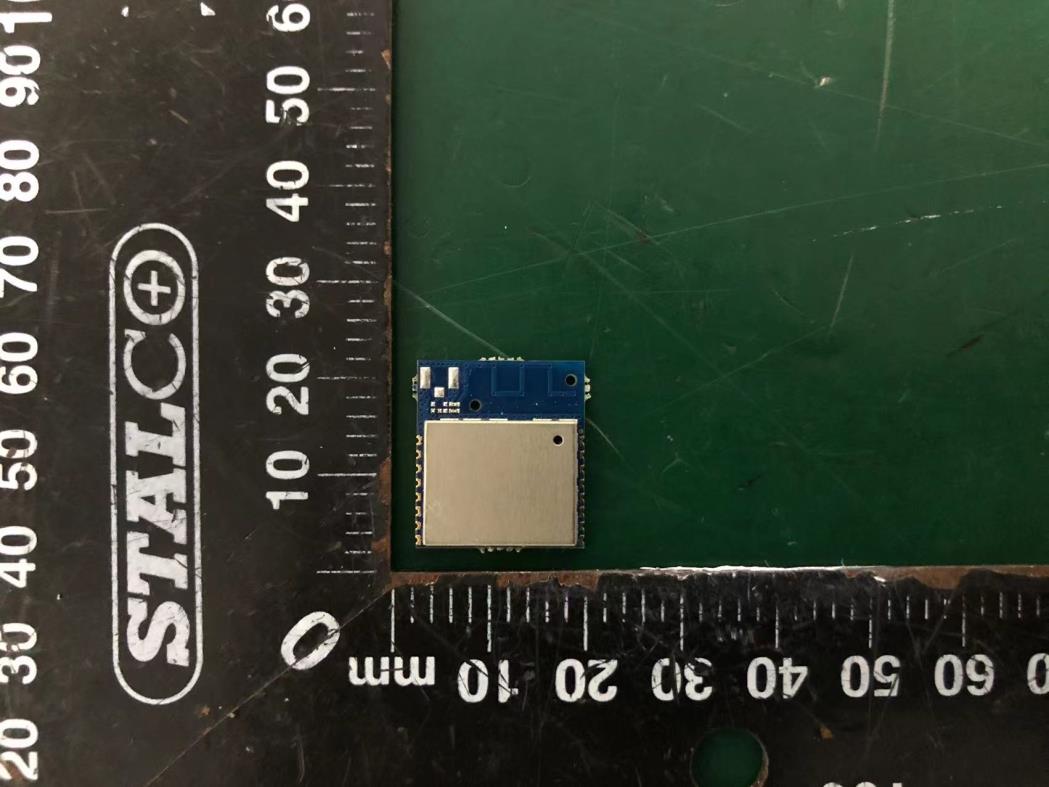

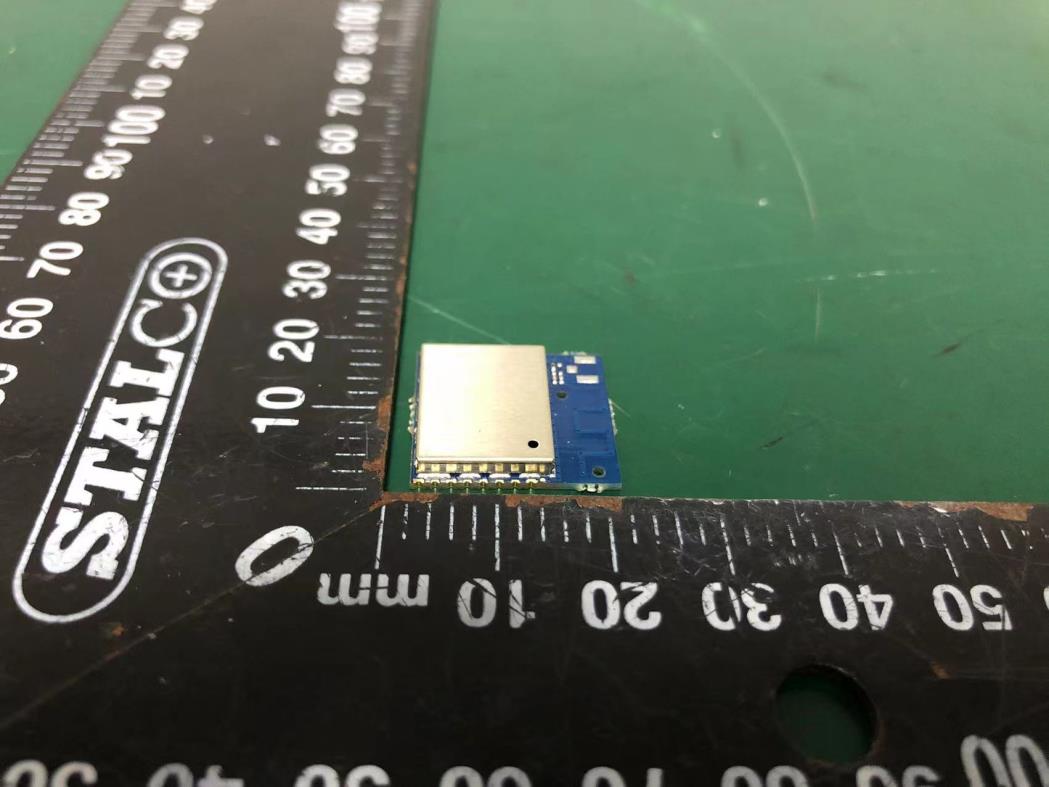

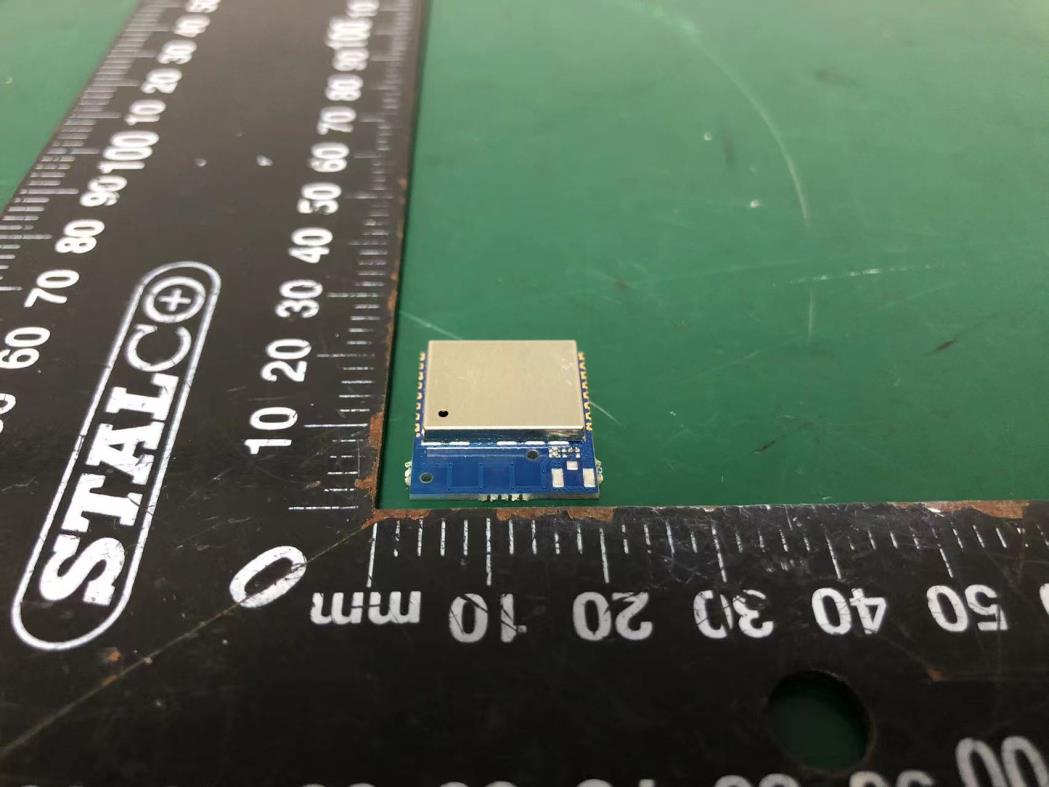

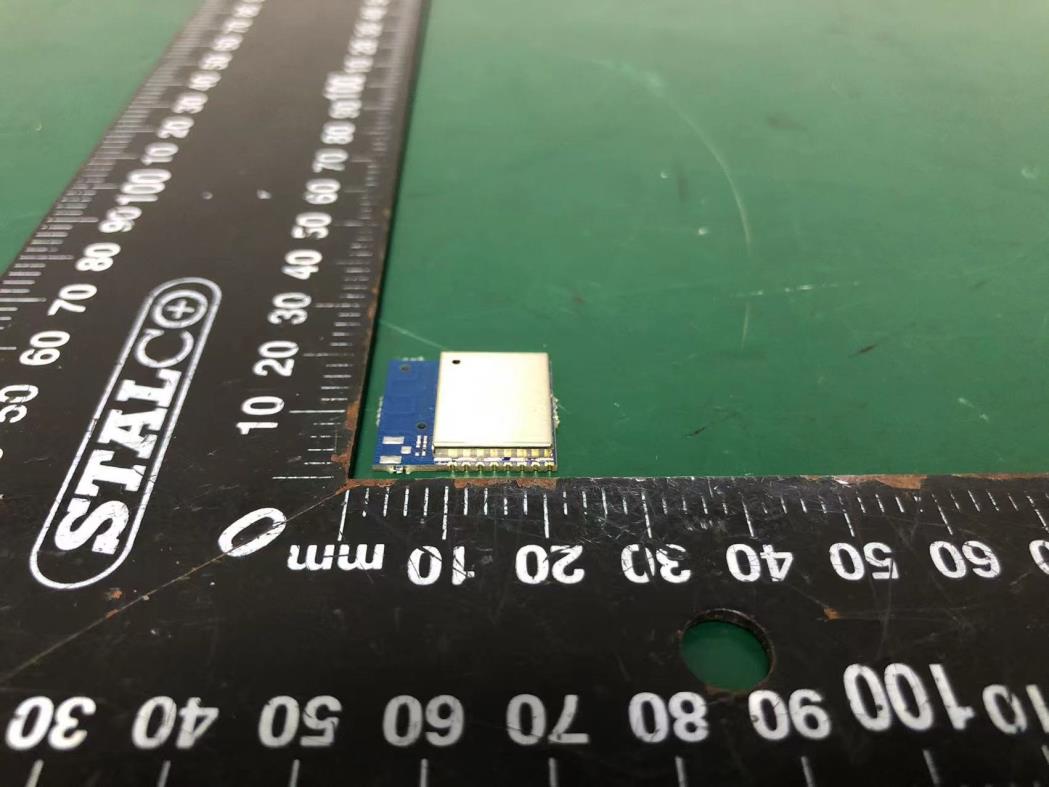

External Photos M/N: HL3215STG External Photos M/N: HL3215STG External Photos M/N: HL3215STG

Label Location

Internal Photos M/N: HL3215STG Antenna

FCC ID: 2A9F9HL3215STG EST Technology Co. ,Ltd Report No. ESTE-R2211040 Page 1 of 5 FCC 47 CFR MPE REPORT Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Wi-Fi&BLE Intelligent controls module Model Number: HL3215STG FCC ID: 2A9F9HL3215STG Applicant: Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Address: Hisense R/D center, #399 SongLing Road,Qingdao, Shandong 266000, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211040 Date of Test: Sep. 30~Nov. 06, 2022 Date of Report: Nov. 07, 2022 FCC ID: 2A9F9HL3215STG EST Technology Co. ,Ltd Report No. ESTE-R2211040 Page 2 of 5 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2A9F9HL3215STG EST Technology Co. ,Ltd Report No. ESTE-R2211040 Page 3 of 5 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2A9F9HL3215STG EST Technology Co. ,Ltd Report No. ESTE-R2211040 Page 4 of 5 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) BLE 2402 6.71 4.688 2440 7.86 6.109 2480 8.81 7.603 IEEE 802.11b 2412 19.29 84.918 2437 19.33 85.704 2462 20.31 107.399 IEEE 802.11g 2412 20.28 106.660 2437 20.53 112.980 2462 21.73 148.936 IEEE 802.11n HT20 2412 20.72 118.032 2437 20.83 121.060 2462 21.82 152.055 FCC ID: 2A9F9HL3215STG EST Technology Co. ,Ltd Report No. ESTE-R2211040 Page 5 of 5 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm ） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi)(Linear) 2.4G Band BLE 8.81 8±1 9 0 1.000 0.0016 1 Complies IEEE 802.11b 20.31 20±121 0 1.000 0.0250 1 Complies IEEE 802.11g 21.73 21±122 0 1.000 0.0315 1 Complies IEEE 802.11n HT20 21.82 21±122 0 1.000 0.0315 1 Complies End of Test Report

FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No.ESTE-R2211038 Page 1 of 51 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Wi-Fi&BLE Intelligent controls module Model Number: HL3215STG FCC ID: 2A9F9HL3215STG Applicant : Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Address: Hisense R/D center, #399 SongLing Road,Qingdao, Shandong 266000, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211038 Date of Test: Sep. 30~Nov. 06, 2022 Date of Report: Nov. 07, 2022 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No.ESTE-R2211038 Page 2 of 51 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ........................................................................................................ 9 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. CONDUCTED BAND EDGE ............................................................................................................. 16 6.1. Limit ..................…

Text truncated - open the document above for the full version.

FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 1 of 84 FCC PART 15C REPORT FOR CERTIFICATION On Behalf of Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Wi-Fi&BLE Intelligent controls module Model Number: HL3215STG FCC ID: 2A9F9HL3215STG Applicant : Hisense Home Appliances Group Co.,Ltd. Qingdao Branch Address: Hisense R/D center, #399 SongLing Road,Qingdao, Shandong 266000, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211039 Date of Test: Sep. 30~Nov. 06, 2022 Date of Report: Nov. 07, 2022 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 2 of 84 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 10 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. CONDUCTED BAND EDGE ............................................................................................................. 16 6.1. Limit ......................…

Text truncated - open the document above for the full version.

FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 61 of 84 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Peak Power[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 19.29 ≤30.00 PASS 2437 19.33 ≤30.00 PASS 2462 20.31 ≤30.00 PASS 11G Ant1 2412 20.28 ≤30.00 PASS 2437 20.53 ≤30.00 PASS 2462 21.73 ≤30.00 PASS 11N20SISO Ant1 2412 20.72 ≤30.00 PASS 2437 20.83 ≤30.00 PASS 2462 21.82 ≤30.00 PASS FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 62 of 84 Test Graphs Peak 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 63 of 84 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 64 of 84 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 65 of 84 Appendix D: Maximum power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3-100kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -6.53 ≤8.00 PASS 2437 -7.06 ≤8.00 PASS 2462 -6.14 ≤8.00 PASS 11G Ant1 2412 -11.63 ≤8.00 PASS 2437 -11.41 ≤8.00 PASS 2462 -10.25 ≤8.00 PASS 11N20SISO Ant1 2412 -11.39 ≤8.00 PASS 2437 -11.65 ≤8.00 PASS 2462 -10.39 ≤8.00 PASS FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 66 of 84 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 67 of 84 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 68 of 84 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 69 of 84 Appendix E: Reference level measurement Test Result Test Mode Antenna Freq (MHz) Max.Point [MHz] Result [dBm] 11B Ant1 2412 2412.59 7.48 2437 2437.60 7.53 2462 2462.59 8.32 11G Ant1 2412 2413.36 1.89 2437 2440.85 2.10 2462 2464.60 3.42 11N20SISO Ant1 2412 2412.11 5.34 2437 2437.11 5.51 2462 2462.11 6.45 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 70 of 84 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 71 of 84 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 72 of 84 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 73 of 84 Appendix F: Band edge measurements Test Result Test Mode Antenna Ch Name Frequency [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 7.48 -35.09 ≤-12.52 PASS High 2462 8.32 -39.63 ≤-11.68 PASS 11G Ant1 Low 2412 1.89 -39.23 ≤-18.11 PASS High 2462 3.42 -39.28 ≤-16.58 PASS 11N20SISO Ant1 Low 2412 5.34 -39.29 ≤-14.66 PASS High 2462 6.45 -40.22 ≤-13.55 PASS FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 74 of 84 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 75 of 84 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 76 of 84 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~26500 7.48 -39.37 ≤-12.52 PASS 2437 30~26500 7.53 -40.68 ≤-12.47 PASS 2462 30~26500 8.32 -40.27 ≤-11.68 PASS 11G Ant1 2412 30~26500 1.89 -42.19 ≤-18.11 PASS 2437 30~26500 2.10 -43.26 ≤-17.9 PASS 2462 30~26500 3.42 -42.17 ≤-16.58 PASS 11N20SISO Ant1 2412 30~26500 5.34 -43.14 ≤-14.66 PASS 2437 30~26500 5.51 -43.36 ≤-14.49 PASS 2462 30~26500 6.45 -43.04 ≤-13.55 PASS FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 77 of 84 Test Graphs 11B_Ant1_2412_30~26500 11B_Ant1_2437_30~26500 11B_Ant1_2462_30~26500 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 78 of 84 11G_Ant1_2412_30~26500 11G_Ant1_2437_30~26500 11G_Ant1_2462_30~26500 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 79 of 84 11N20SISO_Ant1_2412_30~26500 11N20SISO_Ant1_2437_30~26500 11N20SISO_Ant1_2462_30~26500 FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 80 of 84 11. TEST SETUP PHOTO Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 81 of 84 12. EUT PHOTO External Photos M/N: HL3215STG FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 82 of 84 External Photos M/N: HL3215STG FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 83 of 84 External Photos M/N: HL3215STG FCC ID: 2A9F9HL3215STG EST Technology Co., Ltd Report No. ESTE-R2211039 Page 84 of 84 Internal Photos M/N: HL3215STG End of Test Report Wi-Fi Antenna

1 Antenna describe 1. Antenna describe; Antenna plate PCB antenna Make name/model name HLW3215-TG Antenna gain 0dBi Frequency range 2.4GHZ—2.484GHZ Connector type Direct (company name) SHEN ZHEN SHI XINZHONGXIN TECHNOLOG.CO,LTD Address 1st, 2nd, 3rd, A2, A3, Building A1, East Ring Industrial Zone, No. 293, Nanpu Road, Shangliao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong 518125, China 2 2. External view drawing;(UNIT:mm) Picture of antenna 3 4 5

Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
