2A9F9HL3216SEWi-Fi Module

HL3216SE.WM WiFi module is a WiFi module with shell developed based on the BK7231M chip for household appliances and consumer electronics products. It integrates BLE5.2 and WiFi4, runs an RTOS system with 4MB of Nor Flash, and supports multi cloud connections. This module is compatible with 5V-UART communication. ⚫ ARM9 32-bit MCU core, 120MHz main frequency, built-in 256KBRAM ⚫ Supports 802.11b/ g/n standards, HT-20. Supports BLE 5.2standard ⚫ Supports Station, Soft AP, Station+Soft AP ⚫ With 20MHz bandwidth, the maximum transmission rate reaches 72.2Mbps ⚫ Module built-in onboard antenna (for the antenna part, please refer to the antenna specification) ⚫ working voltage：DC3.3V ⚫ Supports WPA,WPA2,WAPI security regime ⚫ Supports 50 MHz SDIO port Application ⚫ Smart home appliances (e.g: Air conditioning, washing machine, refrigerator, oven, etc) ⚫ Intelligent Gateway. ⚫ Smart speaker. Antenna Type Brand/ manufacturer Model No. Max. Antenna Gain PCB Antenna Hisense HL3216SE.WM 0dBi FCC regulatory compliance statement FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure compliance statement This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Labelling Instruction for Host Product Integrator Please notice that if the FCC and IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. For FCC, this exterior label should follow “Contains FCC ID: 2A9F9HL3216SE”. In accordance with FCC KDB guidance 784748 Labeling Guidelines. § 15.19 Labelling requirements shall be complied on end user device. Labelling rules for special device, please refer to §2.925, § 15.19 (a)(5) and relevant KDB publications. For E-label, please refer to §2.935. #Information on test modes and additional testing requirements The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. The module is limited to installation in mobile application, a separate approval is required for all other operating configurations, including portable configurations with respect to §2.1093 and difference antenna configurations. Host product manufacturer is ultimately responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, additional transmitter(s) in the host, etc.). Test software access to different test modes: Wifi Test Tool (V1.7.2) Antenna Change Notice to Host manufacturer The device has an integrated trace antenna.so host manufacturer can not change antenna. #List of applicable FCC Rules This modular transmitter complies with FCC Rules Part 15.247. FCC other Parts, Part 15B Compliance Requirements for Host product manufacturer This modular transmitter is only FCC authorized for the specific rule parts listed on our grant, host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. Host manufacturer in any case shall ensure host product which is installed and operating with the module is in compliant with Part 15B requirements. Please note that For a Class B or Class A digital device or peripheral, the instructions furnished the user manual of the end-user product shall include statement set out in §15.105 Information to the user or such similar statement and place it in a prominent location in the text of host product manual. Original texts as following: For Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. For Class A Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which …

Text truncated - open the document above for the full version.

UNITED STATES DESIGNATED AGENT LETTER Date: 2026/04/03 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Hisense Home Appliances Group Co., Ltd. Qingdao Branch Company Name: HISENSE HOME APPLIANCE USA R&D CENTER INC FRN: 0033106071 FRN: 0035870534 Grantee Code: 2A9F9 Contact Name: Lin Wei Contact Name HENGTONG PIT Address: Hisense R&D center, # 399 SongLing Road Address: 105 SATELLITE BLVD NW STE B Suwanee, GA 30024 United States City/Province/Zip: Qingdao, Shandong, China City/Province/Zip: Suwanee Telephone: 86-15898861530 Telephone: (269)252-8345 Fax: N/A Fax: N/A Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: 2A9F9HL3216SE ATTN: Director of Certification: We, Hisense Home Appliances Group Co., Ltd. Qingdao Branch and HISENSE HOME APPLIANCE USA R&D CENTER INC understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, Hisense Home Appliances Group Co., Ltd. Qingdao Branch and HISENSE HOME APPLIANCE USA R&D CENTER INC acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Lin Wei Name (Printed): HENGTONG PIT Title: Engineer Title: VP of HA R&D Signature: Signature:

Compliance Certification Services (Kunshan) Inc. Page: 1 of 2 External Photos for KSCR2602000383HS Compliance Certification Services (Kunshan) Inc. Page: 2 of 2 EUT Constructional Details (EUT Photos) - End of the Appendix -

Compliance Certification Services (Kunshan) Inc. Page: 1 of 2 Internal Photos for KSCR2602000383HS Compliance Certification Services (Kunshan) Inc. Page: 2 of 2 EUT Constructional Details (EUT Photos) - End of the Appendix -

Report No.: KSCR260200028303 Page: 1 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2602000283AT FCC ID: 2A9F9HL3216SE Applicant: Hisense Home Appliances Group Co., Ltd. Qingdao Branch Address of Applicant: Hisense R&D center, #399 Songling Road, Qingdao, Shandong, 266000, China Manufacturer: Hisense Home Appliances Group Co.,Ltd.Qingdao Branch Address of Manufacturer: Hisense R&D center, #399 Songling Road, Qingdao, Shandong, 266000, China Equipment Under Test (EUT): EUT Name: Wi-Fi Module Model No.: HL3216SE.WM Trade Mark: Hisense Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2026-02-24 Date of Test: 2026-02-25 to 2026-03-24 Date of Issue: 2026-03-25 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR260200028303 Page: 2 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2026-03-25 / Authorized for issue by: Tested By Tommie_Tang/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR260200028303 Page: 3 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Contents Page 1 Cover Page .................................................................................................................................. 1 2 Contents ...................................................................................................................................... 3 3 General Information..................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................ 4 3.2 Technical Specifications ........................................................................................................ 4 3.3 Separation Distance .............................................................................................................. 5 3.4 Test Location ........................................................................................................................ 6 3.5 Test Facility ........................................................................................................................... 6 4 RF Exposure Test Exemptions ................................................................................................... 7 4.1 FCC RF Exposure Test Exemptions for single RF sources .................................................... 7 4.2 RF Exposure Test Exemptions for Simultaneous Transmission.............................................. 9 5 Asurement and Calculation ....................................................................................................... 11 6 Measurement and Calculation .................................................................................................. 11 6.1 Maximum transmit power .................................................................................................... 11 6.2 RF Exposure Calculation ..................................................................................................... 12 Report No.: KSCR260200028303 Page: 4 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3.3V 3.2 Technical Specifications 2.4GHz WiFi Operation Frequency: 802.11b/g/n(HT20: 2412MHz to 2462MHz Modulation Type: 802.11b: DSSS (DBPSK, DQPSK, CCK); 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Number of Channels: 802.11b/g/n(HT20):11 Channel Spacing: 5MHz Antenna Type: PCB Antenna Antenna Gain: 0dBi (Provided by the manufacturer) BLE Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 0dBi (Provided by the manufacturer) Report No.: KSCR260200028303 Page: 5 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. Report No.: KSCR260200028303 Page: 6 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.4 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3. Sample source: sent by customer. 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). • FCC (Designation Number: CN1172) Compliance Certification Services (Kunshan) Inc. has been recognized as an accredited testing laboratory. • ISED (CAB Identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 2324E • VCCI (Member No:1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Volunta…

Text truncated - open the document above for the full version.

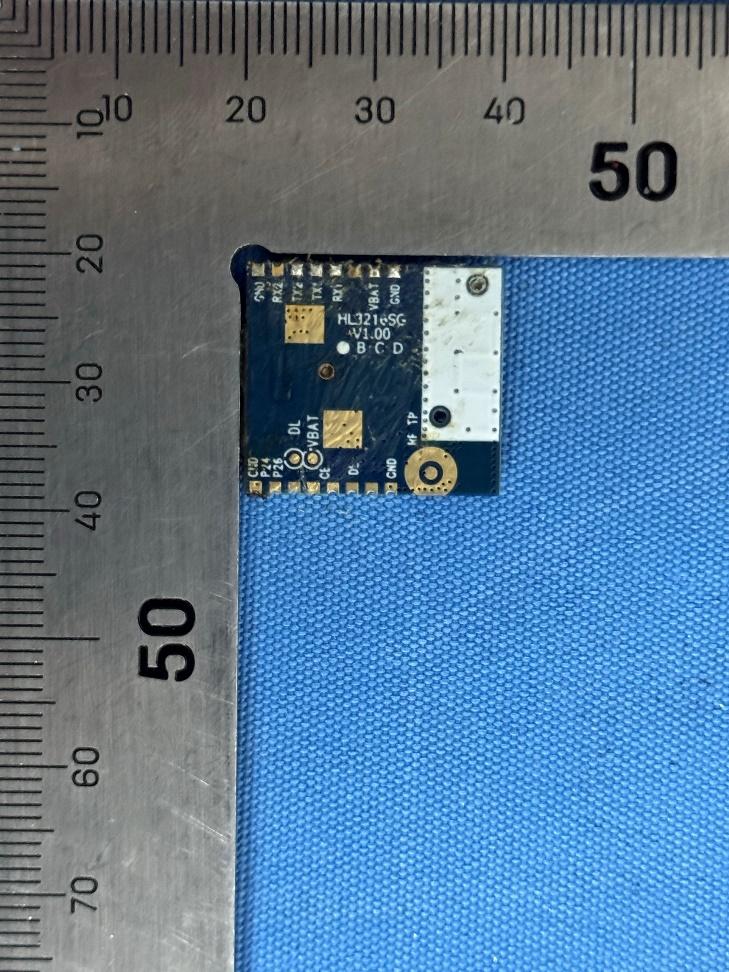

1 Antenna Specification 1. Antenna Information Antenna plate PCB antenna Make name/model name HL3216SE.WM Antenna gain 0dBi Frequency range 2.4GHZ—2.483.5GHZ Connector type Direct Manufacturer Hisense Home Appliances Group Co.,Ltd.Qingdao Branch Address Hisense R&D center, #399 Songling Road, Qingdao, Shandong, 266000, China 2. External view drawing;(UNIT:mm) Picture of antenna 2 3 4
