2A9FI-FWP2113IP Phone

If you are installing the device for the first time, please read this manual in advance and configure it step by step. Reboot the device once you fini sh the configuration is required, including change the network environments, account number and so on. If you need more info, please go to our website (www.fiberme.com) and download the user manual. FWP2113 IP Phone www.fiberme.com IP PhoneHandset Handset Cord Power Adapter StandEthernet CableQuick Installation Guide Packaging list (Optional) Wall mount the phone Connect the handset Connect the stand Fix two appropriate screws on the wall. Leave 1/4 distance from the wall. It allows you to slide the mounting brackets on to the screws. If you are using an external power supply, please connect the power supply, and plug the power supply into the DC 5V supply hub on the back of the phone. Note: Only the power supply from FIBERME is recommended. After the phone is connected the power supply, it will start the intialization process automaticall y. After that, the LCD will display “FIBERME” logo and then the phone will be ready to us e. Note: If the phone does not show any above information on the screen, please re-confirm installation steps and the connections. If it still doesn’t work, please replug the phone. If there still no display on screen, please contact the administrator or service provider. DC5V Power Adapter PC LAN 1 Assembling the phone 2 Starting the phone 3 FIP13G IP Phone 1749 Old Meadow Rd. Suite 401 - McLean, VA 22102, USA FWP2113 IP Phone www.fiberme.com Quick Installation Guide 1749 Old Meadow Rd. Suite 401 - McLean, VA 22102, USA Assembling the phone 2 Starting the phone 3 Step1. Connect the phone to the LAN via the Ethernet port of the phone, connect your PC to the PC port of the phone with Ethernet cable Step2. Step3. Enter the username (Default: admin) and password (Default: admin) in the login page and click Login. Open web browser on your computer, enter the IP address (find the IP address by pressing Menu >My Status) into the address bar, and then press Enter key. 4.3 Connect via wired network Step1. Power on the phone. Step2. Connect the LAN port of phone to the available network adapters (switches or routers) with Ethernet cable. Step3. If there is DHCP server in network, you can find the IP address by pressing Menu >My Status. 4.2 Accessing the web management Input the device's IP address in the address bar of the browser. Then you can login SIP Account configure of the phone. Choose Enable on Line Enable, input SIP Account parameters. 4.4 Connect via Wi-Fi Step1. Press Menu button, then choose Basic Settings >Wi-Fi via ▲ or ▼ button. Step2. Choose “Available Network”. Step3. Use ▲ or ▼ button to select the network and press soft key “Con” to connect with it. Input the password if Wi-Fi authentication is required . Note: If AP is connected, will appear in the status bar on the main interface. Registering your phone 5 Configure information Change “Line Enable” to “Enable” from the dropdown menu In “Display Name” please write the name will be appear on the phone for this line In the “Phone Number” field, please write the extension number. In the “Account” field, please write the extension number In “Password” field, please write the extension password In “SIP Server IP” please add IPPBX IP Address In “SIP Port” please change it if it’s not a default SIP Port “5060” 4.1 Network Settings There are two ways to configure the network settings. DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network settings. e.g., IP address, subnet mask, gateway address and DNS address. Static IP Address: If the phone can’t connect with DHCP server, please configure IP address, subnet mask, gateway address, primary DNS address and secondary DNS address manually. 4 Configuring your phone 5 Registering your phone This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. 7 FCC Compliance Notice 8 Warning FIBERME COMMUNICATIONS LLC 1749 Old Meadow Rd. Suite 401 – McLean, VA 22102, USA WARNING: Please DO NOT power cycle the FWP2113 during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. PRECAUTION…

Text truncated - open the document above for the full version.

QA-FR-170-B Ad d: 1749 Old Meadow Rd. Suite 401-McLean,VA 22102, USA Tel: (703) 228-9737 Email: [email protected] FCC Authorization Date: 2022-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 O akland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , , Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documen ts relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Tam Atteia Title: Regional Manager FIBERME COMMUNICATIONS LLC FIBERME COMMUNICATIONS LLC

QA-FR-171-A Add: 1749 Old Meadow Rd. Suite 401-McLean,VA 22102, USA Tel: (703) 228-9737 Email: [email protected] FCC Confidential Authorization Date: 2022-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A9FI-FWP2113 COMMUNICATIONS LLC) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Tam Atteia Title: Regional Manager FIBERME COMMUNICATIONS LLC In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (FIBERME

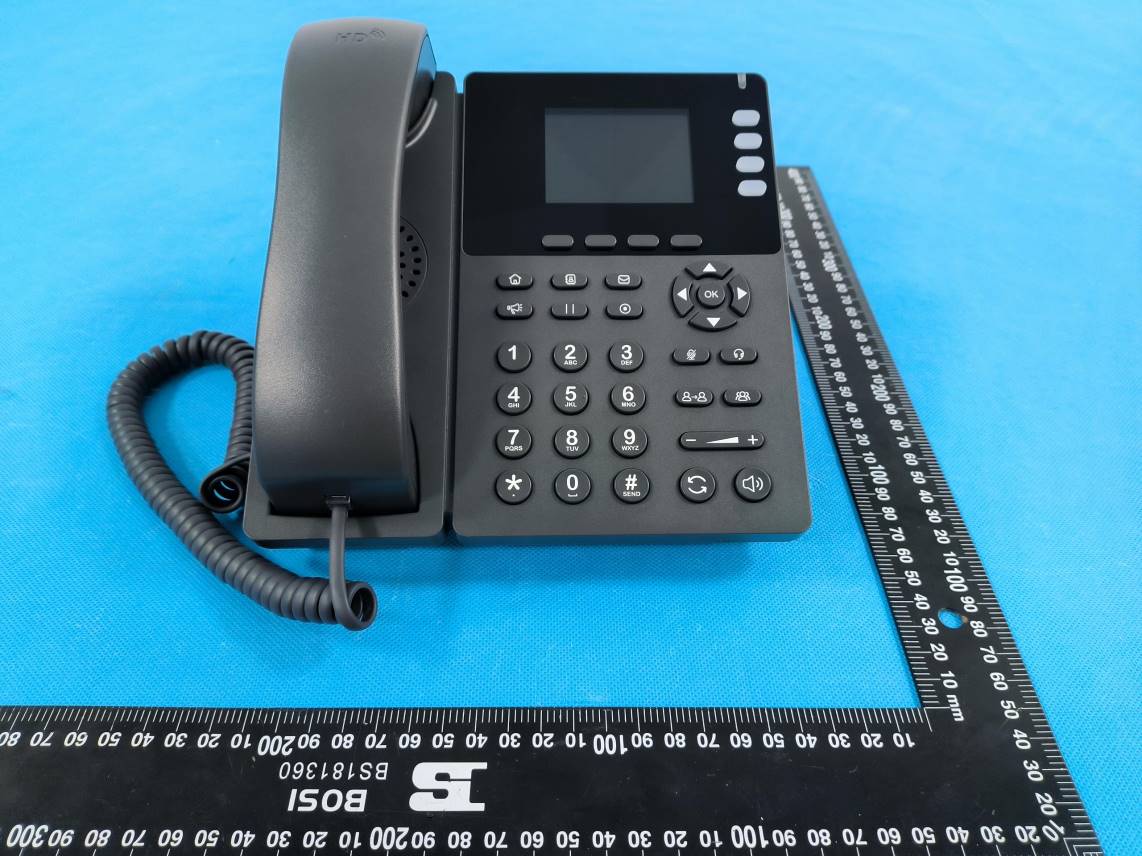

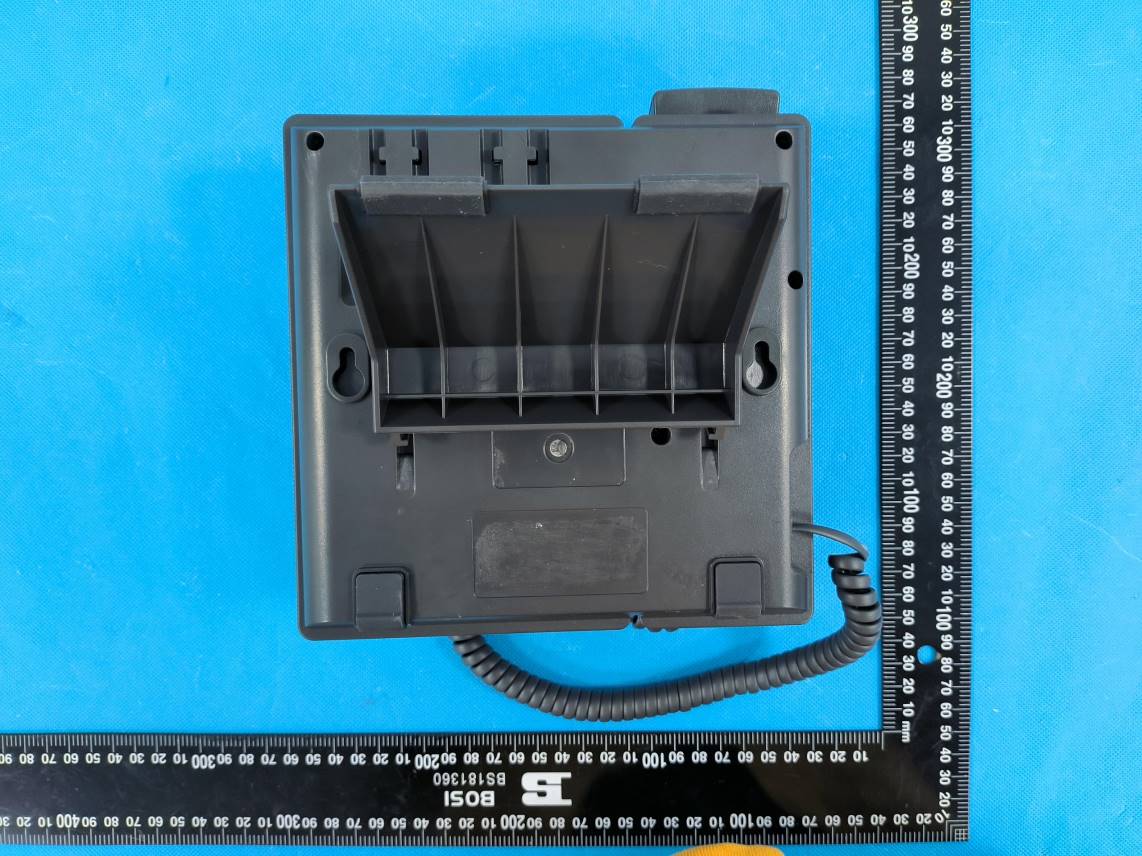

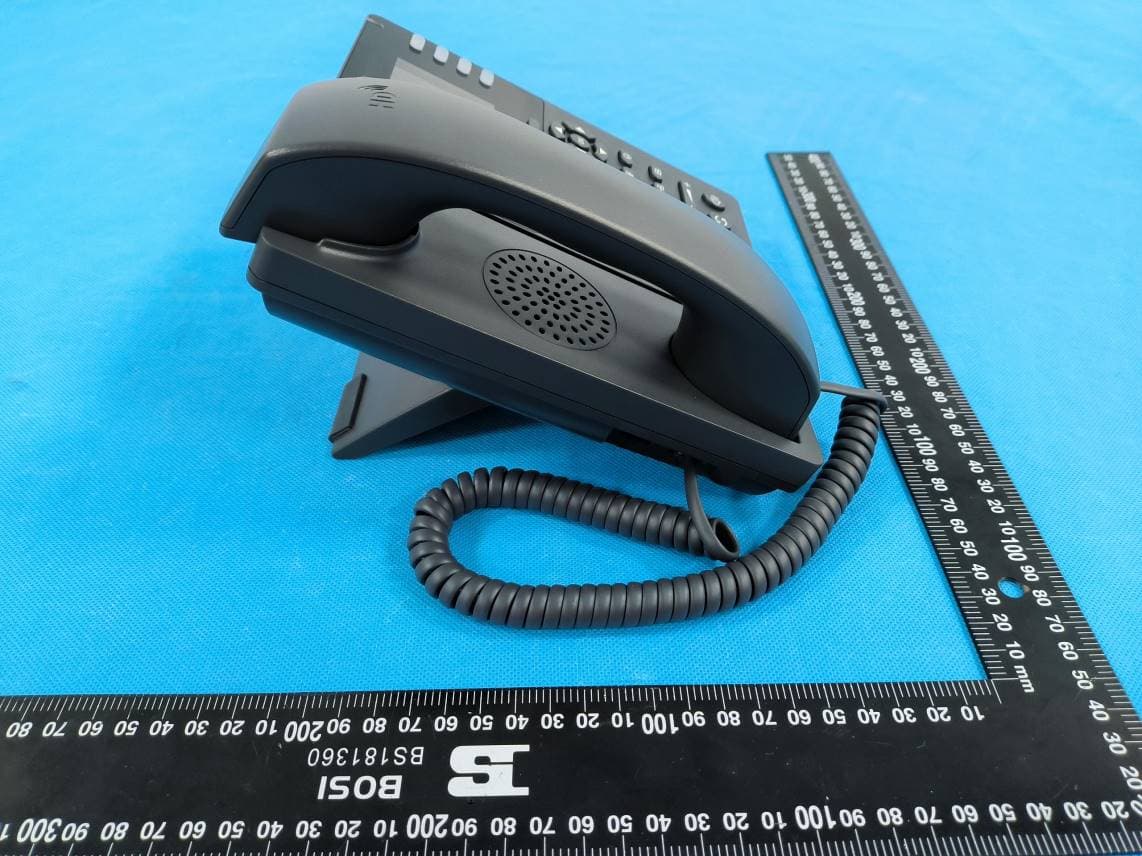

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Port Port Port Chip Chip Chip Chip Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR220941394-00A Page 57 of 57 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §15.247 (i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. 5.2 Procedure According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.3 Measurement Result Radio Frequency (MHz) λ/2 Π (mm) Distance (mm) Exemption ERP (mW) Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP MPE- Based Exemption dBm mW WiFi 2412-2462 19.80 200 768 23 2.33 23.18 207.97 Compliant Note: The Value of Maximum Conducted Power including Tune-up Tolerance was declared by the customer. Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT =====

TEST REPORT Applicant: FIBERME COMMUNICATIONS LLC Address: 1749 Old Meadow Rd., Suite 401 – McLean, VA 22102, USA FCC ID: 2A9FI-FWP2113 Product Name: IP Phone Model Number: FWP2113 Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR220941394-00A Date Of Issue: 2022-12-26 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR220941394-00A Page 2 of 57 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR220941394-00A Page 3 of 57 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 17 3.3.1 Applicable Standard ..............................................................................................................…

Text truncated - open the document above for the full version.

1.Antenna specifications（Unit: mm） 2.Physical drawing of antenna： Add:Rm 207-209, Block B52, Zhongchuang Industrial Park, Nanshan District, Shenzhen, China Ant Model:FIP14 Antenna Gain： 3.39dBi FreqEffiEffiGainGainMaxMin Attenut Attenut (MHz)(%%)(dB)(dBi) (dBd)(dB)(dB)HorVer 240046.38 -3.341.86 -0.291.86 -15.92 54.26 53.54 241045.2 -3.451.45-0.71.45 -15.99 54.3653.6 242045.73-3.41.3 -0.851.3 -15.55 54.59 53.77 243045.68-3.41.01 -1.141.01 -14.28 54.29 53.69 244046.06 -3.371.07 -1.081.07 -13.37 54.37 53.78 245046.08 -3.361.3 -0.851.3 -13.3 54.2453.8 246045.9 -3.381.46 -0.691.46 -13.17 54.24 53.67 247046.02 -3.371.83 -0.321.83 -12.87 54.23 53.62 248047.46 -3.242.330.182.33 -13.49 54.48 53.73 249047.88-3.22.90.752.9 -13.41 54.29 53.63 250047.46 -3.243.391.243.39 -13.73 54.24 53.57 Passive Test For WIFI

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Adapter Power Conducted Emissions Side View Adapter Power Conducted Emissions Front View POE Power Conducted Emissions Side View POE Power Radiated Emission Below 1GHz View Adapter Power Radiated Emission Below 1GHz View POE Power Radiated Emission Above 1GHz View Adapter Power
