2A9FT-Z500-HSmart LTE Module

Xinfa Technology Z500-H intelligent module Product Manual Current version: V0.6 Published: 2023-03-28 pdf.youdao.com 有道文档翻译 Revised Record Version number Revised content Time of publication Redder V0.1 Create 2022-11-03 Bo.wen V0.2 1. Updated Product Overview section content 2. Update RF band information 3. Hardware interface design chapter 2022-12-15 Bo.wen V0.3 1. Updated 3.1.15 RF tuner switch design 2023-01-07 Bo.wen V0.4 1. Update 3.1.1 Motherboard do charging architecture diagram 2. Updated the 3.1.15 RF tuner switch design 3. Added the 3.1.16 SAR sensor design 4. Added the 3.1.17 SAR sensor plus RF tuner switch design 2023-02-03 Bo.wen V0.5 1. Updated 1.1 Product Profile, modified storage configuration 2. Updated major performance parameters of 1.3 modules, modified the description of the SD card interface 3. Updated major performance parameters of 1.3 modules, added description of memory interface 2023-02-17 Bo.wen V0.6 1. Updated 1.1 Module storage specifications and part description 2. Updated description in 2.8.2 Remarks 3. Changed 3.1.1 Description and Sorting. 4. Update product model number to Z500-H 5. Update product picture 2023-03-28 De.Cheng Copyright © Xinfa (Shenzhen) Technology Co., LTD. 2022. All rights reserved. Without the written permission of the Company, no entity or individual may extract, copy, or disseminate the contents of this document in any form. pdf.youdao.com 有道文档翻译 Attention This document may be updated from time to time due to product version upgrades or other reasons. Unless otherwise agreed, this document is intended as a guide only, and all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. catalogue 1. PRODUCT OVERVIEW .........................................................................................5 1.1 Product Overview .............................................................................................................................................. 5 1.2 Key Features ....................................................................................................................................................... 6 1.3 Main module performance parameters ...................................................................................................... 6 1.4RF performance parameters................................................................................................................................. 8 1.5 Product Appearance.......................................................................................................................................... 8 1.6 Structure Size................................................................................................................................................... 9 1.7 Module conduction data................................................................................................................................. 9 1.7.1EU version Conduction data.......................................................................................................................... 9 1.7.2A version conduction data........................................................................................................................11 1.7.3C version conduction data...................................................................................... 错误!未定义书签。 1.7.4 Version J conduction data ................................................................................. 错误!未定义书签。 1.8 Operating and storage temperature ......................................................................................................12 2 HARDWARE INTRODUCTION .............................................................................. 14 2.1 Hardware Architecture .................................................................................................................................14 2.2RF Frequency Band.................................................................................................................................................14 2.2.1EU Band ................................................................................................................................ 错误!未定义书签。 2.2.2A band ..................................................................................................................................................................14 2.2.3 Band C............................................................................................................................ 错误!未定义书签。 2.2.4J band ................................................................................................................................ 错误!未定义书签。 2.2.5GNSS .................................................................................................. operating frequency 15 2.2.6GNSS .......................................................................................................... receiving mode 15 2.2.7RF data transmission rate..........................................................................................................................15 2.3Wi-Fi ............................................................................................... performance indicators 15 2.4Bluetooth ................................................................................. Performance Specifications 17 2.5GNSS............................................................................................................. conduction data 17 2.6 Antenna Specifications...............................................................................................................................17 2.6.1RF Antenna Specifications.....................................................................................................................17 2.6.2 Specifications of GNSS Antennas.................................................................................................17…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Zelus (Shenzhen) Technology Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 4/7/2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A9FT-Z500-H [Zelus (Shenzhen) Technology Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicantsignature) (Applicant printed name) Shengsong qin Rev 1/26/2023 Zelus (Shenzhen) Technology Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 4/7/2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A9FT-Z500-H [Zelus (Shenzhen) Technology Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Shengsong qin

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 4/7/2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：2A9FT-Z500-H Zelus (Shenzhen) Technology Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Zelus (Shenzhen) Technology Ltd. Address: 503, Building No.4, Block No.1, Shenzhen Bay ECO- Technology Park, No.22, Gaoxin Nanhuan Road, Nanshan District, Shenzhen, China Signature: Contact Person: shengsong. qin Tel: 13728621881 Email: [email protected]

Zelus (Shenzhen) Technology Ltd. Agent Authorization Letter (2023-03-30) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Shengsong qin / Manager Date/City: 2023-03-30 / Shenzhen Phone: 13728621881 E-mail: [email protected]

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Request for Modular/Limited Modular Approval Date: April 4, 2023 Subject: Manufacturer‟s Declaration for ■ -Modular Approval ☐ - SplitModular Approval ☐- Limited Modular Approval ☐- Limited Split Modular Approval Confidentiality Request for: ______2A9FT-Z500-H______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ■ - YES ☐ - NO(*) Details: <example – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ■ - YES ☐ - NO(*) Details: <example – Data to the modulation circuit is buffered as described in the operational description provided with the application> 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ■ - YES ☐ - NO(*) Details: <example – The module contains its own power supply regulation. Please refer to schematic filed with this application> 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a „„unique‟‟ antenna coupler (at all connections between the module and the antenna, including the cable). The „„professional installation‟‟ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ■ - YES ☐ - NO(*) Details: <example – The module connects to its antenna using an UFL connector which is considered a non-standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application> 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ■ - YES ☐ - NO(*) Details: <example – The module was tested stand-alone as shown in test setup photographs filed with this application> THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ■ - YES ☐ - NO(*) Details: <example – There is a label on the module as shown in the labeling exhibit filed with this application. Host …

Text truncated - open the document above for the full version.

ZELUS (SHENZHEN) TECHNOLOGY LTD. Short Term Confidentiality Request Letter (2023-03-30) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD21230 RE: Short Term Confidentiality Request For Product: Smart LTE Module Model: Z500-H ,Z500-H(A), Z500-H(EU) FCC ID: 2A9FT-Z500-H To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <ZELUS (SHENZHEN) TECHNOLOGY LTD.>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which <ZELUS (SHENZHEN) TECHNOLOGY LTD. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <ZELUS (SHENZHEN) TECHNOLOGY LTD. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Shengsong qin / Manager Date/City: 2023-03-30 / Shenzhen Phone: 13728621881 E-mail:[email protected]

Zelus (Shenzhen) Technology Ltd. Family models declaration letter. 4/10/2023 We Company: Zelus (Shenzhen) Technology Ltd. Address: 503, Building No.4, Block No.1, Shenzhen Bay ECO-Technology Park, No.22, Gaoxin Nanhuan Road, Nanshan District, Shenzhen, China Product: Smart LTE Module Model Name: Z500-H Family Model: Z500-H(A), Z500-H(EU) All the model are the same circuit and RF module,except the model name. Thanks Sincerely, Signature [Name] Shengsong.Qin [Title] manager [email protected]

ZELUS (SHENZHEN) TECHNOLOGY LTD. Long Term Confidentiality Request Letter (2023-03-30) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Smart LTE Module Model: Z500-H,Z500-H(A), Z500-H(EU) FCC ID: 2A9FT-Z500-H To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Schematic Diagram Block Diagram Part List / BOM List / PCB Layout Operational Description NII software security letter Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Shengsong qin / Manager Date/City: 2023-03-30 / Shenzhen Phone: 13728621881 E-mail:[email protected]

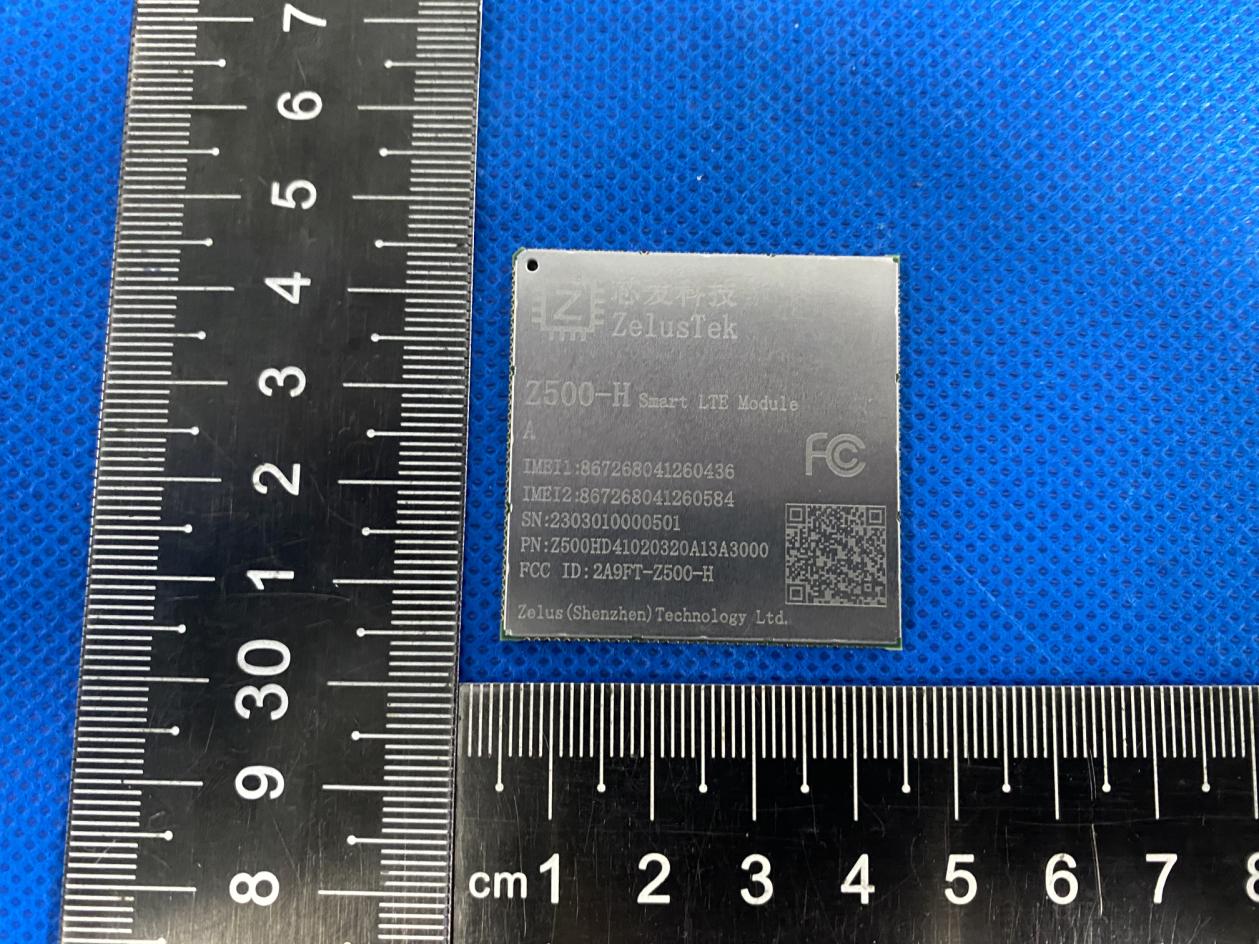

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2

Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 ANT

FCC ID: 2A9FT-Z500-H Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. BT: Measurement Result Operation Frequency: 2402MHz~2480MHz Power density limited: 1mW/ cm 2 Antenna Type: External antenna Antenna gain:3.58dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(3.58/10)=2.28 conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 24028.128±19 7.9433.582.280.00361 24417.797±18 6.3103.582.280.00291 24808.898±19 7.9433.582.280.00361 24027.868±19 7.9433.582.280.00361 24417.268±18 6.3103.582.280.00291 24808.318±19 7.9433.582.280.00361 24027.918±19 7.9433.582.280.00361 24417.278±18 6.3103.582.280.00291 24808.318±19 7.9433.582.280.00361 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 2DH5 3DH5 (mW/cm2 )(mW/cm2) Antenna Gain DH5 Max tune-up power conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402-3.83-3±1-2 0.6313.582.280.00031 2440-3.88-3±1-2 0.6313.582.280.00031 2480-3.81-3±1-2 0.6313.582.280.00031 2402-3.78-3±1-2 0.6313.582.280.00031 2440-3.87-3±1-2 0.6313.582.280.00031 2480-3.81-3±1-2 0.6313.582.280.00031 (mW/cm2 )(mW/cm2) Antenna Gain GFSK(1M） Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) GFSK(2M) 2.4G WIFI: Operation Frequency: WIFI 802.11b/g/n HT20: 2412-2462MHz, WIFI 802.11n HT40:2422-2452MHz Power density limited: 1mW/ cm 2 Antenna Type: External antenna Antenna gain: 3.58dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(3.58/10)=2.28 conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 241218.6718±119 79.4333.582.280.03601 243718.2918±119 79.4333.582.280.03601 246218.9918±119 79.4333.582.280.03601 241215.4715±116 39.8113.582.280.01811 243715.5115±116 39.8113.582.280.01811 246215.5415±116 39.8113.582.280.01811 241213.4413±114 25.1193.582.280.01141 243713.4213±114 25.1193.582.280.01141 246213.4513±114 25.1193.582.280.01141 242213.7713±114 25.1193.582.280.01141 243712.4713±114 25.1193.582.280.01141 245212.5113±114 25.1193.582.280.01141 (mW/cm2 )(mW/cm2) Antenna Gain 802.11b Max tune-up pow er 802.11n(HT 40) Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) 802.11g 802.11n H20 5G WIFI: Operation Frequency: WIFI 802.11a/ac/n(HT20): 5180-5240MHz;5260-5320MHz,5500- 5700MHz,5745-5825MHz;WIFI 802.11ac/n(HT40): 5190-5230MHz;5270-5310MHz,5510- 5670MHz5755-5795MHz; WIFI 802.11ac80:5210-5210MHz;5290-5290MHz;5530-5610MHz; 5775-5775MHz Power density limited: 1mW/cm Antenna Type: External antenna Antenna gain:5.29dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(5.29/10)=3.38 5.2G conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 5180a11.4611±112 15.8495.293.380.01071 5200a11.9511±112 15.8495.293.380.01071 5240a11.5911±112 15.8495.293.380.01071 5180n2010.7811±112 15.8495.293.380.01071 5200n2011.311±112 15.8495.293.380.01071 5240n2010.9711±112 15.8495.293.380.01071 5190n409.3210±111 12.5895.293.380.00851 5230n4010.9310±111 12.5895.293.380.00851 5180ac2011.3411±112 15.8495.293.380.01071 5200ac2011.8311±112 15.8495.293.380.01071 5240ac2011.311±112 15.8495.293.380.01071 5190ac4011.1811±112 15.8495.293.380.01071 5230ac4010.9311±112 15.8495.293.380.01071 5210ac8010.5911±112 15.8495.293.380.01071 (mW/cm2 )(mW/cm2) Antenna Gain Max tune-up pow er Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) 5.3G conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 5260a1615±116 39.8115.293.380.02681 5280a15.8715±116 39.8115.293.380.02681 5320a14.8115±116 39.8115.293.380.02681 5260n2014.8814±115 31.6235.293.380.02131 5280n2014.514±115 31.6235.293.380.02131 5320n2013.8414±115 31.6235.293.380.02131 5270n401413±114 25.1195.293.380.01691 5310n4012.1613±114 25.1195.293.380.01691 5260ac2014.914±115 31.6235.293.380.02131 5280ac2014.4714±115 31.6235.293.380.02131 5320ac2013.8114±115 31.6235.293.380.02131 5270ac4013.513±114 25.1195.293.380.01691 5310ac4012.7313±114 25.1195.293.380.01691 5290ac8011.811±112 15.8495.293.380.01071 (mW/cm2 )(mW/cm2) Antenna Gain Max tune-up pow er Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) 5.6G conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 5500a13.7914±115 31.6235.293.380.02131 5600a14.6714±115 31.6235.293.380.02131 5700a13.0614±115 31.6235.293.380.02131 5500n2013.5214±115 31.6235.293.380.02131 5600n2014.5514±115 31.6235.293.380.02131 5700n201314±115 31.6235.293.380.02131 5510n4010.5411±112 15.8495.293.380.01071 5590n4012.112±113 19.9535.293.380.01341 5670n4012.1312±113 19.9535.293.380.01341 5500ac2013.7414±115 31.6235.293.380.02131 5600ac2014.5414±115 31.6235.293.380.02131 5700ac2012.9913±114 25.1195.293.380.01691 5510ac4011.9212±113 19.9535.293.380.01341 5590ac4013.0113±114 25.1195.293.380.01691 5670ac4012.6813±114 25.1195.293.380.01691 5530ac8011.0112±113 19.9535.293.380.01341 5610ac8012.912±113 19.9535.293.380.01341 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm)(mW/cm2 )(mW/cm2) Antenna Gain Max tune-up power 5.8G conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 5745a15.2115±116 39.8115.293.380.02681 5785a15.3415±116 39.8115.293.380.02681 5825a15.5115±116 39.8115.293.380.02681 5745n2014.9115±116 39.8115.293.380.02681 5785n2015.2315±116 39.8115.293.380.02681 5825n2015.4115±116 39.8115.293.380.02681 5755n4015.5615±116 39.8115.293.380…

Text truncated - open the document above for the full version.

Report No.: S22122800607005 1 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 26.17 PASS EGPRS1900 1 Slot 661 1880 25.58 PASS EGPRS1900 1 Slot 810 1909.8 25.23 PASS EGPRS1900 2 Slot 512 1850.2 25.08 PASS EGPRS1900 2 Slot 661 1880 24.57 PASS EGPRS1900 2 Slot 810 1909.8 23.93 PASS EGPRS1900 3 Slot 512 1850.2 23.13 PASS EGPRS1900 3 Slot 661 1880 22.26 PASS EGPRS1900 3 Slot 810 1909.8 21.59 PASS EGPRS1900 4 Slot 512 1850.2 21.42 PASS EGPRS1900 4 Slot 661 1880 20.82 PASS EGPRS1900 4 Slot 810 1909.8 19.92 PASS EGPRS850 1 Slot 128 824.2 26.92 PASS EGPRS850 1 Slot 189 836.4 27.60 PASS EGPRS850 1 Slot 251 848.8 26.80 PASS EGPRS850 2 Slot 128 824.2 26.82 PASS EGPRS850 2 Slot 189 836.4 25.67 PASS EGPRS850 2 Slot 251 848.8 26.57 PASS EGPRS850 3 Slot 128 824.2 24.63 PASS EGPRS850 3 Slot 189 836.4 24.85 PASS EGPRS850 3 Slot 251 848.8 24.34 PASS EGPRS850 4 Slot 128 824.2 21.89 PASS EGPRS850 4 Slot 189 836.4 21.71 PASS EGPRS850 4 Slot 251 848.8 22.10 PASS Report No.: S22122800607005 2 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.528609626 13.00 PASS EGPRS1900 661 1880 5.60721831 13.00 PASS EGPRS1900 810 1909.8 7.088614458 13.00 PASS EGPRS850 128 824.2 7.64816568 13.00 PASS EGPRS850 189 836.4 7.519310924 13.00 PASS EGPRS850 251 848.8 7.57939759 13.00 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: S22122800607005 3 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S22122800607005 4 / 47 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S22122800607005 5 / 47 Report No.: S22122800607005 6 / 47 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 253.936 338.157 PASS EGPRS1900 661 1880 239.595 295.787 PASS EGPRS1900 810 1909.8 242.388 300.753 PASS EGPRS850 128 824.2 242.443 299.674 PASS EGPRS850 189 836.4 245.529 315.294 PASS EGPRS850 251 848.8 252.455 317.399 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: S22122800607005 7 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: S22122800607005 8 / 47 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22122800607005 9 / 47 Report No.: S22122800607005 10 / 47 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.97 -35.43 -13 PASS EGPRS1900 810 1909.8 1910.01 -37.75 -13 PASS EGPRS850 128 824.2 823.96 -35.81 -13 PASS EGPRS850 251 848.8 849.01 -35.66 -13 PASS EGPRS1900 Channel=810 EGPRS1900 Channel=512 Report No.: S22122800607005 11 / 47 EGPRS850 Channel=251 EGPRS850 Channel=128 Report No.: S22122800607005 12 / 47 Report No.: S22122800607005 13 / 47 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25989.79 -18.53 -13 PASS EGPRS1900 661 1880 25469.66 -18.23 -13 PASS EGPRS1900 810 1909.8 25949.42 -18.36 -13 PASS EGPRS850 128 824.2 25928.91 -20.73 -13 PASS EGPRS850 189 836.4 26005.67 -20.36 -13 PASS EGPRS850 251 848.8 25999.06 -20.46 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: S22122800607005 14 / 47 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S22122800607005 15 / 47 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S22122800607005 16 / 47 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 30.02 PASS GPRS1900 1 Slot 661 1880 29.79 PASS GPRS1900 1 Slot 810 1909.8 29.49 PASS GPRS1900 2 Slot 512 1850.2 28.89 PASS GPRS1900 2 Slot 661 1880 28.59 PASS GPRS1900 2 Slot 810 1909.8 28.32 PASS GPRS1900 3 Slot 512 1850.2 26.64 PASS GPRS1900 3 Slot 661 1880 26.33 PASS GPRS1900 3 Slot 810 1909.8 26.01 PASS GPRS1900 4 Slot 512 1850.2 25.47 PASS GPRS1900 4 Slot 661 1880 25.26 PASS GPRS1900 4 Slot 810 1909.8 24.82 PASS GPRS850 1 Slot 128 824.2 32.70 PASS GPRS850 1 Slot 189 836.4 32.42 PASS GPRS850 1 Slot 251 848.8 32.42 PASS GPRS850 2 Slot 128 824.2 31.16 PASS GPRS850 2 Slot 189 836.4 31.25 PASS GPRS850 2 Slot 251 848.8 31.22 PASS GPRS850 3 Slot 128 824.2 29.78 PASS GPRS850 3 Slot 189 836.4 29.69 PASS GPRS850 3 Slot 251 848.8 29.87 PASS Report No.: S22122800607005 17 / 47 GPRS850 4 Slot 128 824.2 28.69 PASS GPRS850 4 Slot 189 836.4 28.68 PASS GPRS850 4 Slot 251 848.8 28.64 PASS Report No.: S22122800607005 18 / 47 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.790798429 13.00 PASS GPRS1900 661 1880 2.805748503 13.00 PASS GPRS1900 810 1909.8 2.821698944 13.00 PASS GPRS850 128 824.2 2.794171123 13.00 PASS GPRS850 189 836.4 2.796789838 13.00 PASS GPRS850 251 848.8 2.786070496 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S22122800607005 19 / 47 GPRS1900 Channel=810 GPRS850 Channel=128 Re…

Text truncated - open the document above for the full version.
