2A9IP-IP13-61INKZONE smartphone case

Shenzhen Hanhongda Electronic Technology Co., LTD
INKZONE smartphone case - FCC ID 2A9IP-IP13-61 - Shenzhen Hanhongda Electronic Technology Co., LTD
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 05, 2022
Application Purpose
Original Equipment
Date of Application
Dec 05, 2022
Equipment Note
INKZONE smartphone case
Frequency Range
2402.00000000 - 2480.00000000
Company
Shenzhen Hanhongda Electronic Technology Co., LTD
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

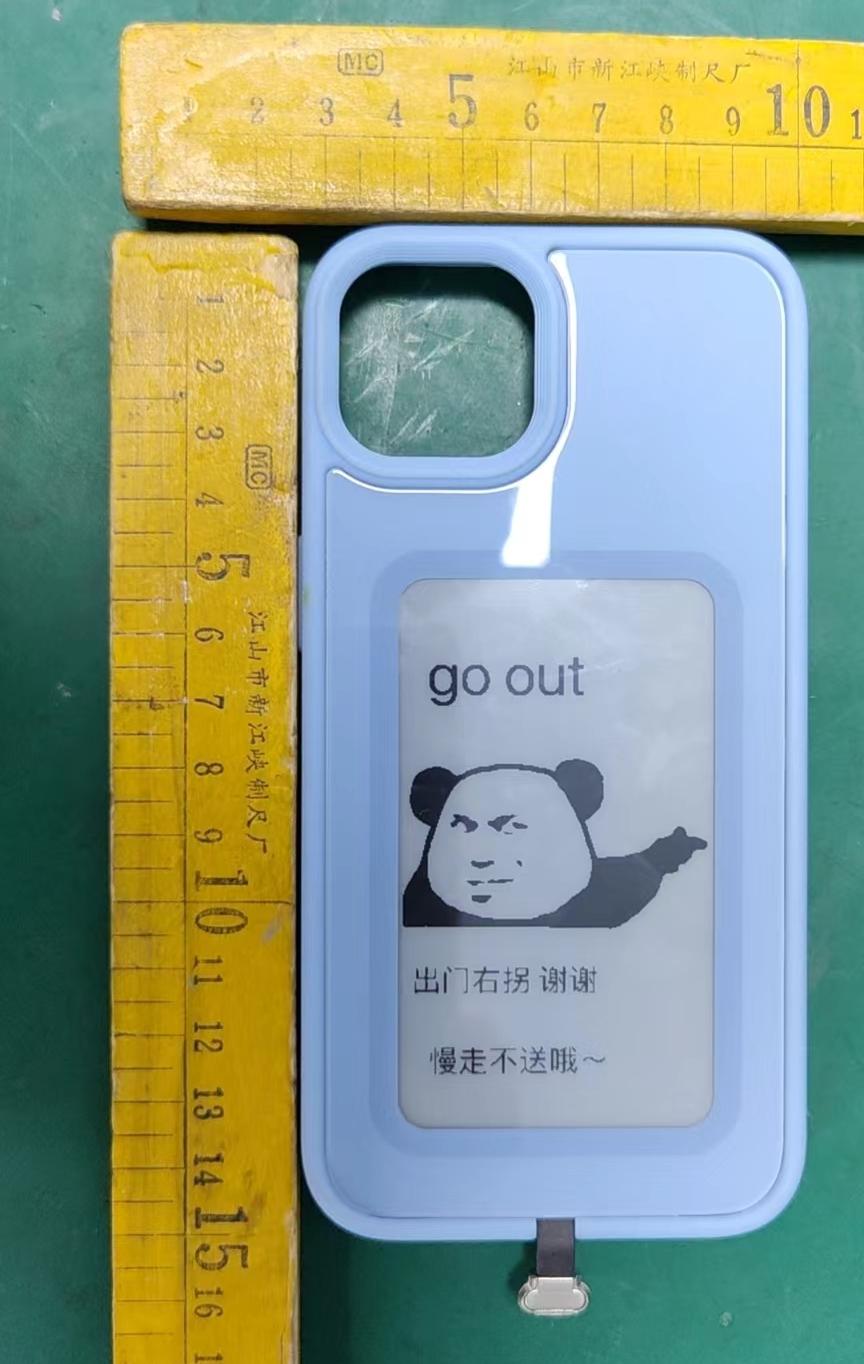

External Photos

FCCID : 2A9IP-IP13-61

ID Label/Location Info

FCCID : 2A9IP-IP13-61 INKZONEsmartphonecase Model:iPhone13-6.1 FCCID:2A9IP-IP13-61 ShenzhenHanhongdaElectronicTechnologyCo.,LTD

Internal Photos

FCCID : 2A9IP-IP13-61 Antenna

RF Exposure Info

RFExposureevaluation FCCID:2A9IP-IP13-61 Accordingto447498D01GeneralRFExposureGuidancev06 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Worsecaseisasbelow:[2402MHz,(3.37+1)dBm(2.74mW)outputpower] (2.74/5)·[√2.402(GHz)]=0.849<3.0for1-gSAR ThenSARevaluationisnotrequired

Test Report

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs:Attestation of Global Compliance Co., Ltd.

Test Report

Page 1 of 63 FCC TEST REPORT FCC ID: 2A9IP-IP13-61 Product : INKZONE smartphone case Model Name : iPhone 13-6.1 Brand : N/A Report No. : PTC22093000602E-FC01 Sample ID : PTC22093000602E-01# Prepared for Shenzhen Hanhongda Electronic Technology Co., LTD Room 510-512, Building C, Qianwan hard Science and Technology Industrial Park, Gushu Road, Baoan District, Shenzhen City Prepared by Precise Testing & Certification Co., Ltd. Building 1, No.6 Tongxin Road, Dongcheng Street, Dongguan,China Report No.: PTC22093000602E-FC01 Page 2 of 63 1 TEST RESULT CERTIFICATION Applicant’s name : Shenzhen Hanhongda Electronic Technology Co., LTD Address : Room 510-512, Building C, Qianwan hard Science and Technology Industrial Park, Gushu Road, Baoan District, Shenzhen City Manufacture's name : Shenzhen Hanhongda Electronic Technology Co., LTD Address : Room 510-512, Building C, Qianwan hard Science and Technology Industrial Park, Gushu Road, Baoan District, Shenzhen City Product name : INKZONE smartphone case Model name : iPhone 13-6.1 Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10:2013 Test Date : Nov. 09, 2022 to Nov. 11, 2022 Date of Issue : Nov. 14, 2022 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Simon Pu / Engineer Technical Manager: Ronnie Liu / Manager Report No.: PTC22093000602E-FC01 Page 3 of 63 Contents Page 1 TEST RESULT CERTIFICATION ........................................................................................................................ 2 2 TEST SUMMARY ................................................................................................................................................... 5 2.1 TEST SITE .................................................................................................................. 6 3 GENERAL INFORMATION .................................................................................................................................. 7 3.1 GENERAL DESCRIPTION OF E.U.T............................................................................ 7 3.2 CHANNEL LIST ........................................................................................................... 7 4 EQUIPMENT DURING TEST ............................................................................................................................... 9 4.1 EQUIPMENTS LIST ..................................................................................................... 9 4.2 MEASUREMENT UNCERTAINTY................................................................................ 11 4.3 DESCRIPTION OF SUPPORT UNITS .......................................................................... 12 5 CONDUCTED EMISSION ................................................................................................................................... 13 5.1 E.U.T. OPERATION ................................................................................................. 13 5.2 EUT SETUP ............................................................................................................. 13 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................ 14 5.4 MEASUREMENT PROCEDURE .................................................................................. 14 5.5 CONDUCTED EMISSION LIMIT .................................................................................. 14 5.6 MEASUREMENT DESCRIPTION ................................................................................ 14 5.7 CONDUCTED EMISSION TEST RESULT .................................................................... 14 6 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 15 6.1 EUT OPERATION ..................................................................................................... 15 6.2 TEST SETUP ............................................................................................................ 16 6.3 SPECTRUM ANALYZER SETUP ................................................................................ 17 6.4 TEST PROCEDURE ................................................................................................... 18 6.5 SUMMARY OF TEST RESULTS ................................................................................. 20 7 BAND EDGE MEASUREMENT ........................................................................................................................ 29 7.1 TEST PROCEDURE ................................................................................................... 29 7.2 TEST RESULT .......................................................................................................... 30 8 6DB BANDWIDTH MEASUREMENT ............................................................................................................... 42 8.1 TEST PROCEDURE ................................................................................................... 42 Report No.: PTC22093000602E-FC01 Page 4 of 63 8.2 TEST RESULT .......................................................................................................... 42 9 MAXIMUM PEAK OUTPUT POWER ............................................................................................................... 50 9.1 TEST PROCEDURE ................................................................................................... 50 9.2 TEST RESULT .....................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCCID : 2A9IP-IP13-61 RadiatedSpuriousEmissions TestFrequencyFrom30MHz-1000MHz TestFrequencyabove1G

Contact Information

Applicant

Caolidan Zhang
[email protected]13434481251Fax: 86-755-23016367

Test Firm

Precise Testing & Certification Co., LTD.Chris Du
[email protected]+86-769-38808222

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.20 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted.
