2A9JD-T68PLUSSmartWatch

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Sincerely, Name/Title： Naiyu Sun/Manager Company: Shenzhen Jingyun Wulian Technology CO.,Ltd Address: 11/F, Building A, Dahong Zhigu, No.59, Gangzi Street, Shajing Xinqiao Street Bao'an District, Shenzhen China Phone: 13603002160 Fax: N/A E-Mail: [email protected]

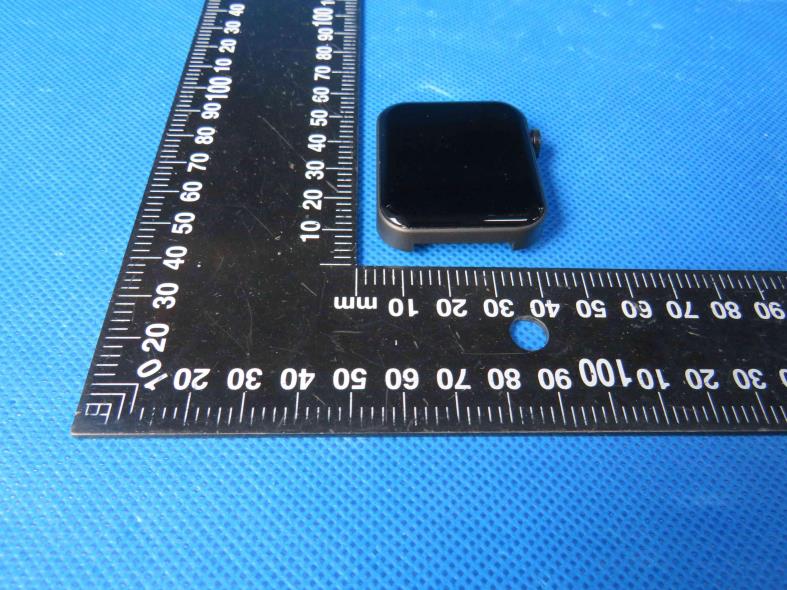

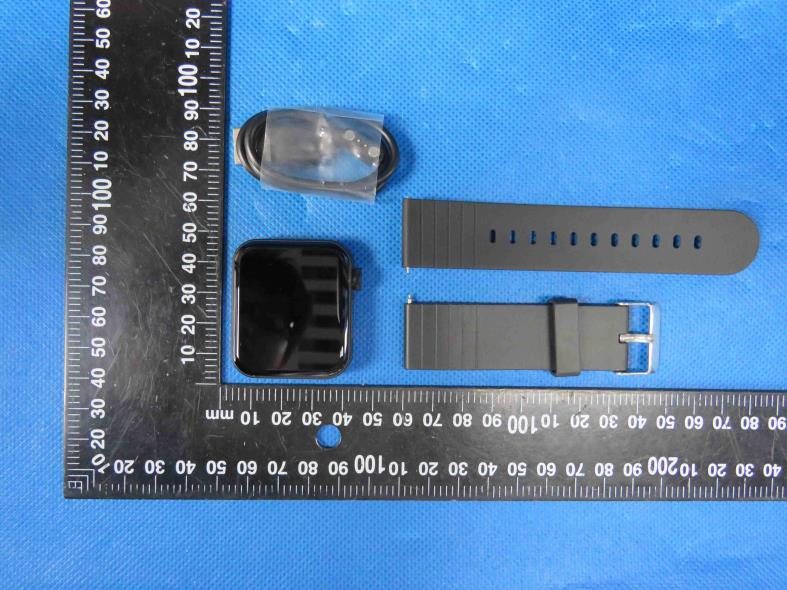

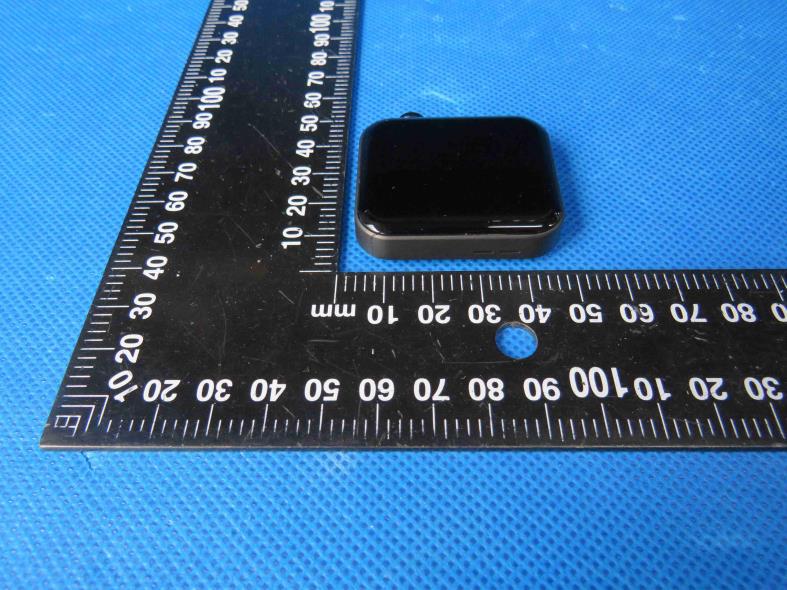

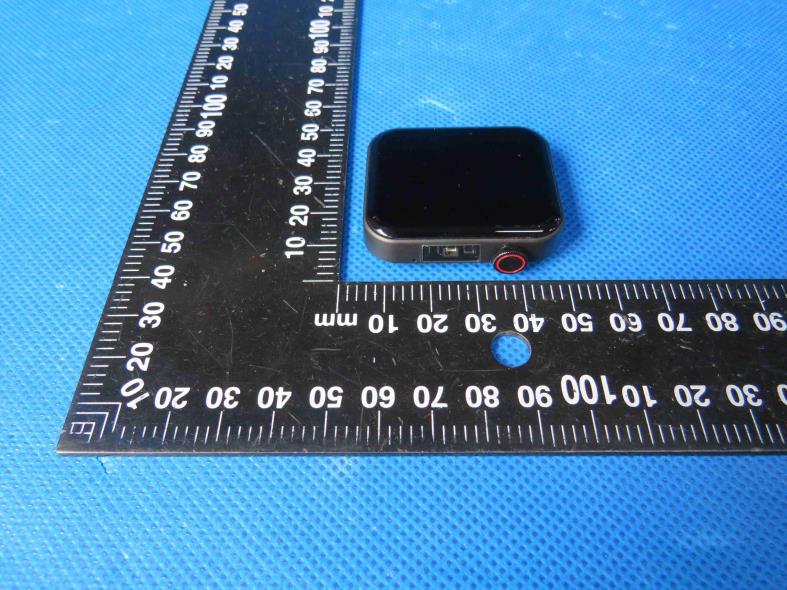

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: SmartWatch Model No.: T68 PLUS EUT Constructional Details External Photo Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2A9JD-T68PLUS

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: SmartWatch Model No.: T68 PLUS EUT Constructional Details Internal Photo Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2A9JD-T68PLUS 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 0.0 0.0 Tolerance ±(Db) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm Mw BT 2.450 5 2.0 1.5849 0.4962<3.0 Yes BLE 2.450 5 2.0 1.5849 0.4962<3.0 Yes Simultaneous Transmission for SAR Exclusion The sample support one BT modular and one BLE modular, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR BT +SAR BLE )/1.6 = (0.0668+0.0668)/1.6 = 0.1 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

样 品 承 认 书 Part Approval Sheet Version： V1.0 Customer： Shenzhen Haikangsheng Intelligent Co., Ltd Project： Bluetooth antenna Part Name： Conducting wire Part Color： Black Part Number： Sample Delivery Date： April 3, 2021 Sample Quantity： 5PCS Sample type： Built-in Bluetooth wire Reason for Sample Delivery： ○New tooling ○New supplier ○Tooling change ○Engineering change ○Other: Remark： Supplier sample production confirmation: (stamp required) Formulate Confirm Approve Quality Stamp 代庆蓉 龙超群 傅梁成 曹光平 Customer approval: Project confirmation Project approval Quality confirmation Quality approval Confirmation date 1.Graphic for reference Figure 2 0.8*25mmBT 2.OTA(Free Space) Channel TRP（dBm） TIS（dBm） 0 6.3 -91.1 39 6.5 -91.3 78 6.6 -91.2 Name ANTENNA Model LT13 Frequency 2.45Ghz Input impedance 50Ω Allowed power 5W Working temp. -25 ~ +65 °C Storage temp. -40 ~ +85 °C Weight 0.25g Antenna gain -1.0dBi 3.Field 4. BT Test Test term Environment Max pairing distance BT Call distance BT Office 16-18m 10-12m

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202211337F02 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST Report Applicant: Shenzhen Jingyun Wulian Technology CO.,Ltd Address of Applicant: 11/F, Building A, Dahong Zhigu, No.59, Gangzi Street, Shajing Xinqiao Street, Bao'an District, Shenzhen Manufacturer : Shenzhen Jingyun Wulian Technology CO.,Ltd Address of Manufacturer : 11/F, Building A, Dahong Zhigu, No.59, Gangzi Street, Shajing Xinqiao Street, Bao'an District, Shenzhen Equipment Under Test (EUT) Product Name: SmartWatch Model No.: T68 PLUS Series model: KE2, Q50, T58, T59, T66, F800, F600 Trade Mark: N/A FCC ID: 2A9JD-T68PLUS Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Nov.17,2022 Date of Test: Nov.17,2022~Nov.26,2022 Date of report issued: Nov.26,2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202211337F02 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 30 1. Version Version No. Date Description 00 Nov.26,2022 Original Tested/ Prepared By Date: Nov.26,2022 Project Engineer Check By: Date: Nov.26,2022 Reviewer Approved By : Date: Nov.26,2022 Authorized Signature Report No.: HTT202211337F02 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 30 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ............................................................................................ 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED OUTPUT POWER .................................................................................................................. 12 6.3. CHANNEL BANDWIDTH ............................................................................................................................. 13 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 15 6.5. BAND EDGES ........................................................................................................................................... 17 6.5.1. Conducted Emission Method ......................................................................................................... 17 6.5.2. Radiated Emission Method ............................................................................................................ 18 6.6. SPURIOUS EMISSION ................................................................................................................................ 20 6.6.1. Conducted Emission Method ......................................................................................................... 20 6.6.2. Radiated Emission Method ............................................................................................................ 22 7. TEST SETUP PHOTO .................................................................................................................................. 30 8. EUT CONSTRUCTIONAL DETAILS ........................................................................................................... 30 Report No.: HTT202211337F02 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng In…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: SmartWatch Model No.: T68 PLUS Test Setup Photo Radiated Emission Report No.: HTT202211337 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission ------End------
