2A9JR-EAP-CP8Communication Port

C o m m u n i c a t i o n P o r t E A P-C P 8 2 Shanghai Cross Stars Cultural Technology LLC., Co. 1. Product Introduction 3 2. Product Main Characteristics 3 3. Product Description 3 4. Product Parameter Description 4 3 1. Product Introduction The equipment supports the gigabit Ethernet to ensure wireless high-speed transmission; it is deployed simply with PoE remote power supply. The device housing fully supports enclosed waterproof, moisture-proof, dust-proof, fireproof, sunscreen, etc. with the highest protection level of IP 68. 2. Product Main Characteristics  Excellent outdoor adaptability: The product supports fully enclosed waterproof, moisture-proof, dust-proof, fire prevention, sun protection, etc. with the ultra-high protection level IP68.  High efficient transfer: Device supports the gigabit Ethernet and the WiFi channels support to be changed easily. The data transmission rate is up to 3Gbps to make sure the high-speed wireless transmission.  Directional antenna: The transmission power of the built-in directional antenna can be adjusted easily. The antenna covers a certain aera to meet the wireless coverage requirement of UAV. 3. Product Description The Communication Port, as an important accessory of the CROSS STARS III UAV, ensures the safety of the whole communication network of the UAV. The overall weight is 2.25kg, the size is 242 * 242 * 68mm, and the network port is compatible with POW power supply. The device contains the following components, as shown in the figure as below: 4 1.Transmission Unit: It can be adjusted the power and frequency by the software configuration tool to meet the compliance requirements of each country. The directional antenna transmits the signals to the UAV long distance. 2.Ethernet port: The speed of the port supports the gigabit and 100M ethernet to meet the different Scenario. The port supports the POE power supply to reduce deployment complexity. 3.Housing: With the IP68 protection level, it can work in extreme harsh environments. 4. Product Parameter Description The Communication Port (EAP-CP8) is an important supporting ground equipment for the CROSS STARS III UAV. It is a bridge of the WiFi network to establish the WiFi communication between the aircraft and the ground station. The detailed parameters as below: Communication Port EAP-CP8 Product Parameter Table Num Item Parameter 1 Overall weight 2.25kg 2 Size 242*242*68mm 3 Power supply 48VDC/0.53A 4 Power ≤25W 5 Transmitting power ≤20dBm 6 Antenna The directional antenna 7 IP Grade IP68 8 Wireless frequency WIFI: 5.18-5.24GHz(MIC) 5.18-5.24GHz,5.745-5.825GHz(CE/UKCA/FCC) 2.412-2.462GHz(FCC) 2.412-2.472GHz(CE/UKCA/MIC) 9 Operating temperature -40°C～70°C Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FRE.2412-2462MHz FRE.2412-2462MHz FRE.5180-5240MHz 5745-5825 MHz FRE.5180-5240MHz 5745-5825 MHz FRE.5180-5240MHz 5745-5825 MHz FRE.5180-5240MHz 5745-5825 MHz FRE.5180-5240MHz 5745-5825 MHz FRE.5180-5240MHz 5745-5825 MHz

Shanghai Cross Stars Cultural Technology LLC., Co. Agent Authorization Company: Shanghai Cross Stars Cultural Technology LLC., Co. Address: Floor 3, building 7, block chain ecological Valley, Jing’ an District, Shanghai, P.R. China Product Name: Communication Port Model Number(s): EAP-CP8 Product Description: Communication Port We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Nov. 30 2022 Signature: Name: Sean Ning Title: manager Company: Shanghai Cross Stars Cultural Technology LLC., Co.

Shanghai Cross Stars Cultural Technology LLC., Co. Date: Nov. 24, 2022 Offic e of Engineering Technology Federal Communications Commission 743 5 Oakland Mill s Road Columbia, MD 21046 US A Subject; Request for Confidentiality FCC ID: 2A9JR-EAP-CP8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705 . OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sean Ning Title: manager Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices

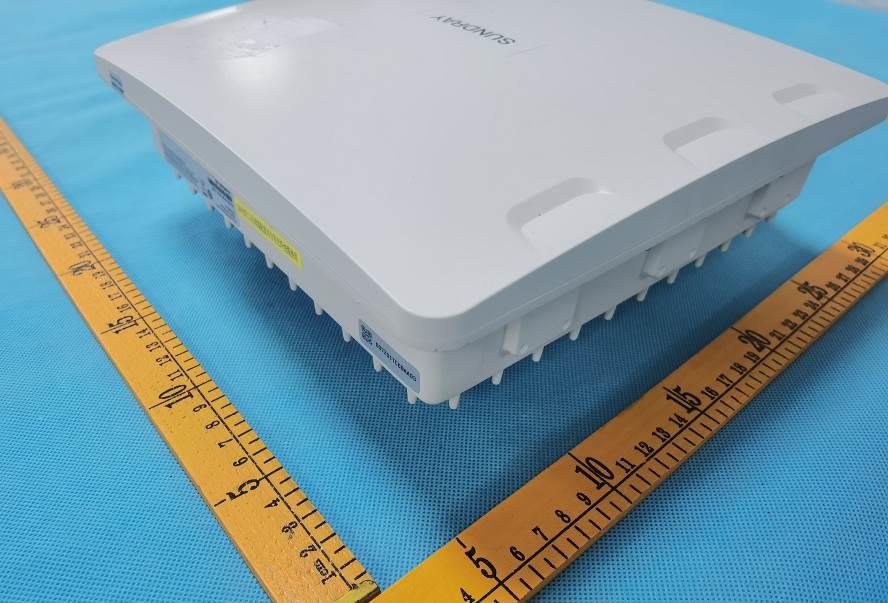

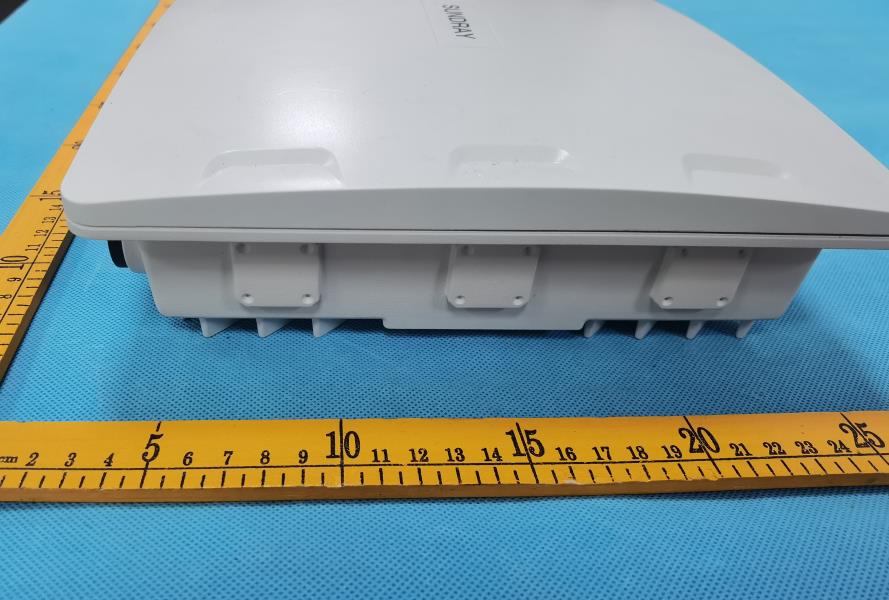

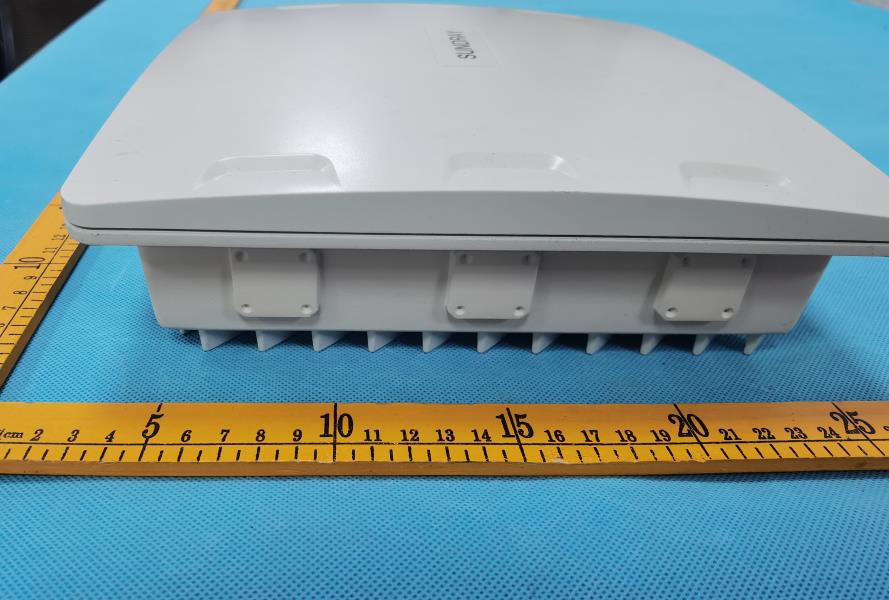

External photos Project No.: ZKT-220920L7016-01 FCC ID: 2A9JR-EAP-CP8

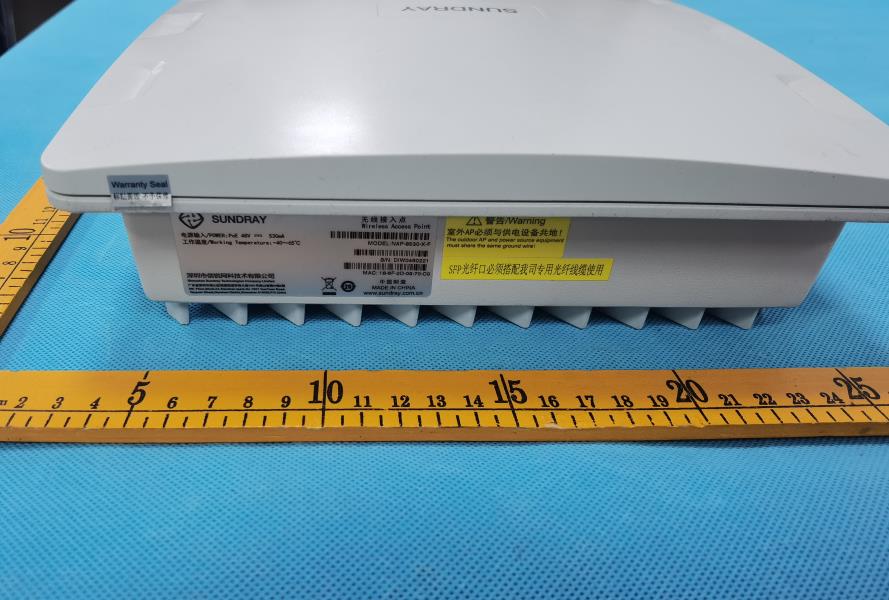

Label place Size:54*20mm Product Name: Communication Port Model No.: EAP-CP8 FCC ID: 2A9JR-EAP-CP8 Input: DC48V/0.53A Manufacturer: Shanghai Cross Stars Cultural Technology LLC., Co. Address:Floor 3,building 7,block chain ecological Valley,Jing'an District,Shanghai,P.R. China Made in China Project No.: ZKT-220920L7016-01 FCC ID: 2A9JR-EAP-CP8

2.4G wifi ant2 2.4G wifi ant1 5G wifi ant1 5G wifi ant2 5G wifi ant3 5G wifi ant4 5G wifi ant5 5G wifi ant6 2.4G wifi ant1 2.4G wifi ant2 5G wifi ant1 5G wifi ant2 5G wifi ant3 5G wifi ant4 5G wifi ant5 5G wifi ant6 Project No.: ZKT-220920L7016-01 FCC ID: 2A9JR-EAP-CP8

FCC ID: 2A9JR-EAP-CP8 RF Exposure Evaluation According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Result of RF Exposure Evaluation BT ANT1: 3.74dBi; 2.4G- ANT1:10.13dBi; ANT2:10.15 dBi;MIMO: 13.16dBi 5G-WIFI ANT1:12.04dBi ; ANT2: 12.29dBi ; ANT3: 8.94dBi; ANT4: 9.14 dBi ; ANT5:9.80 dBi ; ANT6: 9.94 dBi MIMO: 18.24dBi; Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Measurement Data The Max Conducted Peak Output Power data refer to report Report No.: ZKT-220920L7016-01 & ZKT-220920L7016-02 FCC ID: 2A9JR-EAP-CP8 2.4GWIFI worst mode and channel: Test channel Antenna Output Power (dBm) Maximum tune-up Power (dbm) Maximum tune-up Power (dbm) ANT1 ANT2 ANT1 ANT2 802.11n –2412MHz 16.06 16.22 16±1 16±1 20.01 802.11n –2437MHz 15.88 16.32 16±1 16±1 20.01 802.11n –2462MHz 16.15 15.95 16±1 16±1 20.01 Test worst case Maximum tune-up Power (dbm) Maximum tune-up Power (mW) Calculated value (mW/cm2) Limit (mW/cm2) 20.01 100.24 0.413 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-220920L7016-01 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 100.24*20.07)/(4*3.1415*20*20)= 0.413, G=10 gain/10 =20.07 5GWIFI- worst mode and channel: Mode Test channel Antenna Output Power (dBm) Tune up tolerance(dBm) Max Tune up (dBm) ANT1 ANT2 ANT3 ANT4 ANT5 ANT6 ANT1 ANT2 ANT3 ANT4 ANT5 ANT6 802.11ax-5180MHz 3.74 3.74 3.79 3.49 3.78 3.73 4±1 4±1 4±1 4±1 4±1 4±1 12.78 802.11ax-5200MHz 3.70 3.81 3.74 3.63 3.53 3.75 4±1 4±1 4±1 4±1 4±1 4±1 12.78 802.11ax-5240MHz 3.98 4.04 3.97 3.97 4.04 4.08 4±1 4±1 4±1 4±1 4±1 4±1 12.78 Test worst case Maximum tune-up Power(dbm) Maximum tune-up Power(mW) Calculated value (mW/cm2) Limit (mW/cm2) 12.78 18.967 0.252 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221109L8361-04 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 18.967 *66.68)/(4*3.1415*20*20)=0.252, G=10 gain/10 =66.68 EUT RF Exposure Evaluation simultaneous transmission operations According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits : Simultaneous transmission mode The sum of the ratios SUM Limit 2.4G WIFI + 5G WIFI 0.413+0.252 0.665 1.0 conclusion : 0.665 < 1.0, So there is no sar requirement NOTE:1. EUT wifi-5G module & wifi-2.4G module is more than 20cm away from the human body. 2.The sum of the ratios(2.4GWIFI + 5G WIFI) is less than the limit value of 1.0, so there is no sar requirement.

Project No.: ZKT-220920L7016-01 Page 1 of 94 FCC TEST REPORT FCC ID: 2A9JR-EAP-CP8 Report Number. .............................. : ZKT-220920L7016-01 Date of Test ...................................... : Aug. 25, 2022 -- Dec. 05, 2022 Date of issue .................................... : Dec. 05, 2022 Total number of pages ..................... : 94 Test Result ....................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Shanghai Cross Stars Cultural Technology LLC., Co. Address .......................................... : Floor 3, building 7, block chain ecological Valley, Jing'an District, Shanghai,P.R.China Manufacturer's name ................... : Shanghai Cross Stars Cultural Technology LLC., Co. Address .......................................... : Floor 3, building 7, block chain ecological Valley, Jing'an District, Shanghai,P.R.China Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : KDB558074 D0115.247 Meas Guidance v 05r02 Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Communication Port Trademark ...................................... : N/A Model/Type reference ...................... : EAP-CP8 Ratings ............................................. : DC 48V/0.53A Project No.: ZKT-220920L7016-01 Page 2 of 94 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-220920L7016-01 Page 3 of 94 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 6 2.2 MEASUREMENT UNCERTAINTY 6 3. GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS 10 4. EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 TEST PROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TEST SETUP 13 4.1.5 EUT OPERATING CONDITIONS 13 4.1.6 TEST RESULT 14 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 TEST RESULTS 18 5.RADIATED BAND EMISSIONMEASUREMENT 32 5.1 TEST REQUIREMENT: 32 5.2 TEST PROCEDURE 32 5.3 DEVIATION FROM TEST STANDARD 32 5.4 TEST SETUP 33 5.5 EUT OPERATING CONDITIONS 33 5.6 TEST RESULT 34 6.POWER SPECTRAL DENSITY TEST 38 6.1 APPLIED PROCEDURES / LIMIT 38 6.2 TEST PROCEDURE 38 6.3 DEVIATION FROM STANDARD 38 6.4 TEST SETUP 38 6.5 EUT OPERATION CONDITIONS 38 Project No.: ZKT-220920L7016-01 Page 4 of 94 6.6 TEST RESULT 39 7. CHANNEL BANDWIDTH 44 7.1 APPLIED PROCEDURES / LIMIT 44 7.2 TEST PROCEDURE 44 7.3 DEVIATION FROM STANDARD 44 7.4 TEST SETUP 44 7.5 EUT OPERATION CONDITIONS 44 7.6 TEST RESULT 45 8. OUTPUT POWER TEST 50 8.1 APPLIED PROCEDURES/LIMIT 50 8.2 TEST PROCEDURE 50 8.3 DEVIATION FROM STANDARD 50 8.4 TEST SETUP 50 8.5 EUT OPERATION CONDITIONS 50 8.6 TEST RESULT 51 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 52 9.1 APPLICABLE STANDARD 52 9.2 TEST PROCEDURE 52 9.3 DEVIATION FROM STANDARD 52 9.4 TEST SETUP 52 9.5 EUT OPERATION CONDITIONS 52 9.6 TEST RESULTS 52 10. ANTENNA REQUIREMENT 85 11. TEST SETUP PHOTO 86 12. EUT CONSTRUCTIONAL DETAILS 88 Project No.: ZKT-220920L7016-01 Page 5 of 94 1. VERSION Report No. Version Description Approved ZKT-220920L7016-01 Rev.01 Initial issue of report Dec. 05, 2022 Project No.: ZKT-220920L7016-01 Page 6 of 94 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Result Remark FCC part 15.203 /15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3) Conducted Peak Output Power PASS FCC part 15.247 (a)(2) Channel Bandwidth& 99% OCB PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately…

Text truncated - open the document above for the full version.

Project No.: ZKT-220920L7016-01 Page 50 of 94 8. OUTPUT POWER TEST Test Requirement: FCC Part15 C Section 15.247 (b)(3) Test Method: KDB558074 D0115.247 Meas Guidance v05r02 8.1 APPLIED PROCEDURES/LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 8.2 TEST PROCEDURE a. The EUT was directly connected to the Power meter 8.3 DEVIATION FROM STANDARD No deviation. 8.4 TEST SETUP 8.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.4 Unless otherwise a special operating condition is specified in the follows during the testing. Project No.: ZKT-220920L7016-01 Page 51 of 94 8.6 TEST RESULT Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC48V Condition NVNT Modulation Frequency (MHz) Conducted Power(dBm) limit(dBm) Result ANT1 ANT2 NVNT 802.11b 2412.00 14.25 15.09 30 Pass NVNT 802.11b 2437.00 14.13 15.04 30 Pass NVNT 802.11b 2462.00 13.88 14.89 30 Pass NVNT 802.11g 2412.00 16.49 16.21 30 Pass NVNT 802.11g 2437.00 16.35 16.24 30 Pass NVNT 802.11g 2462.00 16.14 15.98 30 Pass NVNT 802.11n(HT20) 2412.00 16.06 16.22 30 Pass NVNT 802.11n(HT20) 2437.00 15.88 16.32 30 Pass NVNT 802.11n(HT20) 2462.00 16.15 15.95 30 Pass NVNT 802.11n(HT40) 2422.00 14.01 15.17 30 Pass NVNT 802.11n(HT40) 2437.00 14.60 15.52 30 Pass NVNT 802.11n(HT40) 2452.00 13.21 15.77 30 Pass Condition NVNT Modulation Frequency (MHz) Conducted Power(dBm) limit(dBm) Result MIMO NVNT 802.11n(HT20) 2412.00 19.15 22.84 Pass NVNT 802.11n(HT20) 2437.00 19.12 22.84 Pass NVNT 802.11n(HT20) 2462.00 19.06 22.84 Pass NVNT 802.11n(HT40) 2422.00 17.64 22.84 Pass NVNT 802.11n(HT40) 2437.00 18.09 22.84 Pass NVNT 802.11n(HT40) 2452.00 17.69 22.84 Pass Note: 1. For MIMO with CCD technology device, The Directional Gain= Gain of individual transmit antennas (dBi) + Array gain; Array gain = 10 log (Nant), where N ant is the number of transmit antennas. So MIMO=30-(13.16-6)=30-7.16=22.84 dBm Project No.: ZKT-220920L7016-01 Page 52 of 94 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION Test Requirement: FCC Part15 C Section 15.247 (d) Test Method: KDB558074 D0115.247 Meas Guidance v05r02 9.1 APPLICABLE STANDARD in any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power, In addition, radiated emissions which fall in the restricted bands, as defined in§15.205(a), must also comply with the radiated emission limits specified in15.209(a). 9.2 TEST PROCEDURE Using the following spectrum analyzer setting: A) Set the RBW = 100KHz. B) Set the VBW = 300KHz. C) Sweep time = auto couple. D) Detector function = peak. E) Trace mode = max hold. F) Allow trace to fully stabilize. 9.3 DEVIATION FROM STANDARD No deviation. 9.4 TEST SETUP 9.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.4 Unless otherwise a special operating condition is specified in the follows during the testing. 9.6 TEST RESULTS Test plot as follows: Project No.: ZKT-220920L7016-01 Page 53 of 94 ANT1 802.11b Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 54 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 55 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 56 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 57 of 94 802.11g Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 58 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 59 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 60 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 61 of 94 802.11n20 Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 62 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 63 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 64 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 65 of 94 802.11n40 Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 66 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 67 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 68 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 69 of 94 ANT2 802.11b Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 70 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 71 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 72 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 73 of 94 802.11g Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 74 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 75 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 76 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 77 of 94 802.11n20 Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 78 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 79 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 80 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 81 of 94 802.11n40 Modulation Spurious emission Low Channel Project No.: ZKT-220920L7016-01 Page 82 of 94 Middle Channel Project No.: ZKT-220920L7016-01 Page 83 of 94 High Channel Project No.: ZKT-220920L7016-01 Page 84 of 94 Lowest Channel Highest Channel Left Band Edge Right Band Edge Project No.: ZKT-220920L7016-01 Page 85 of 94 10. ANTENNA REQUIREMENT Standard requirement: FCC Part15 C Section 15.203 /247(c) For intentional device, according …

Text truncated - open the document above for the full version.
