2A9JS-2A01Halo Aware Devices

Halo USER’S manual I. Warning II. Product introduction III. Operation IV. Indicator V. Customer service I. Warning  Please keep the device from high temperature.  When smoke, smell or noise comes out from the device, shut down the power immediately, and contact your supplier in time.  Please contact your supplier if the device is not working properly. No warranty will be covered if the damage caused by unauthorized disassembly or repair.  Please do NOT charge the device at high temperature over 45 degrees Celsius, it could possibly cause the explosion of the battery. Please use the certificated battery from the original factory ONLY.  Please read this manual carefully before using the device, and follow the instructions when using the device.  Please do NOT kick or hit the product to avoid device damage and data missing.  Keep the device away from high temperature and high humidity environment.  Keep the device away strong interference source. II. Product introduction TYPE‐C tag III. Operation ●Power ON/OFF Power ON: Remove the Type-c tag and the indicator① shows the red light once then start to flash green/red light. Power OFF: Connect the Type-C tag to power off the sensor. Automatically pairing to any HALO Horizon BodyCam within a 30 feet radius. The HALO Aware device activates all connected HALO Horizon Body Cameras within a 30 feet radius into record mode; IV. Indicator LED Indicator① Colour LED status Description Green Flashing Battery power sufficient Red Flashing Battery low LED Indicator② Red Solid Battery charging complete Flashing Battery charging V. Customer service User Notice A. Warranty 1. This product is warranted for one year; 2. Warranty are not covered in any case of unauthorized modification, repair or damage (such as water, moisture, drop, improper use, etc.) 3. In order to extend the life of the battery, it is recommended to charge once every three months when devices are not used for a long time. B. Technical support service If you have any operation or technology problems when you are using product, you can refer to the user manual to find solutions. If that still can't help, try the ways below to find help: 1. Contact your supplier for technical support 2. Regardless of the method of seeking technical services, please be sure to provide the model number, device ID and detailed malfunction of the failed unit, so that our engineers can be more quickly and accurately to help or repair. C. Precautions before maintenance 1. Do simple troubleshooting before you send device back, if that still can't help you solve problems, please confirm the basic information of the product and contact the supplier for repair. 2. If the product is out of warranty, make a preliminary quotation for the product repair, and we will provide repair service after receiving your consent. Note: The service mentioned in this warranty is a standard service. If you have an extra agreement with the company on the service at the time of purchase, the extra service agreement signed will prevail. Warranty card User Profile D M Y（Date） Name Company Telephone No. Address Dev. Model Device ID Data of sale Sales Department Repair Date Repair Record Repair Department FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment h as b een tested and found to comply with the limits for a Class B digital d evice, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is n o guarantee that interference will not occur in a particular installation. I f this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the u ser is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. - - Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer o r an exp erienced radio/TV tech nician for help . ISED Statement English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. Sp ecific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific stu dies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FC C) is 1.6 W/kg averaged over one gram of tissue. Device types: Smart phone (FCC ID: 2A9JS-2A01) has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the device kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's body and the back of the phone. The use of belt clips, holsters and similar accessories should not contain metallic …

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: TECHNITY SOLUTIONS USA INC FRN: 0028473106 Contact Name: Jerry Kao Address: 155 FEDERAL ST STE 700 BOSTON, MA 02110 Telephone No: +1(905) 948-8828 Email: [email protected] This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of Edwin Lee. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Halo Technologies Europe Ltd Product Description: Halo Aware Devices Grantee code: 2A9JS FCC ID: 2A9JS-2A01 Contact Name: Edwin Lee Address: 5P Weavers Court, Belfast, United Kingdom Telephone No: +44 (0) 28 9023 0510 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date:2023/08/17 Applicant’s Name: US Agent for Service of Process’s Name: Title:CTO Title: Director Signature Signature

C5266091_X24_Ed.2 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Halo Technologies Europe Ltd Grantee code: 2A9JS FCC ID:2A9JS-2A01 Contact Name: Edwin Lee Address:5P Weavers Court, Belfast, United Kingdom Telephone No: +44 (0) 28 9023 0510 Fax No: Email:[email protected] i.[Halo Technologies Europe Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii.[Halo Technologies Europe Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Halo Technologies Europe Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 08.17.2023 Applicant’s Name: Edwin Lee Title: CTO Signature 1 The Commission’sCovered Listis published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment.https://www.fcc.gov/supplychain/coveredlist 1/1

C5266091_X8_Ed.1 Letter of Authorization < Halo Technologies Europe Ltd > Company: Halo Technologies Europe Ltd Address: 5P Weavers Court, Belfast, United Kingdom Product Name: Halo Aware Devices Model Number: Halo-2A01 FCC Identifier: 2A9JS-2A01 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Edwin LeeDate: 2023/08/17 Title: CTO Signature of applicant: 1/1

C5266091_X10_Ed.2 < Halo Technologies Europe Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/08/17 Subject: Request for Confidentiality FCC ID: 2A9JS-2A01 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/LocationNoNo Attestation StatementNoNo External PhotosNo Block Diagram ☒☐ Schematics ☒☐ Test ReportNoNo Test Setup PhotosNo User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ RF Exposure InfoNoNo Operational Description ☒☐ Cover Letter(s)NoNo SDR Software / Security InfoNo NOTE 1: Long-Term Confidentiality may be permitted under special conditions (SeeII. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180 days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: 1/1 ☐ ☐ ☒ ☒ C5266091_X10_Ed.2 Name:EdwinLee Title:CTO 1/1

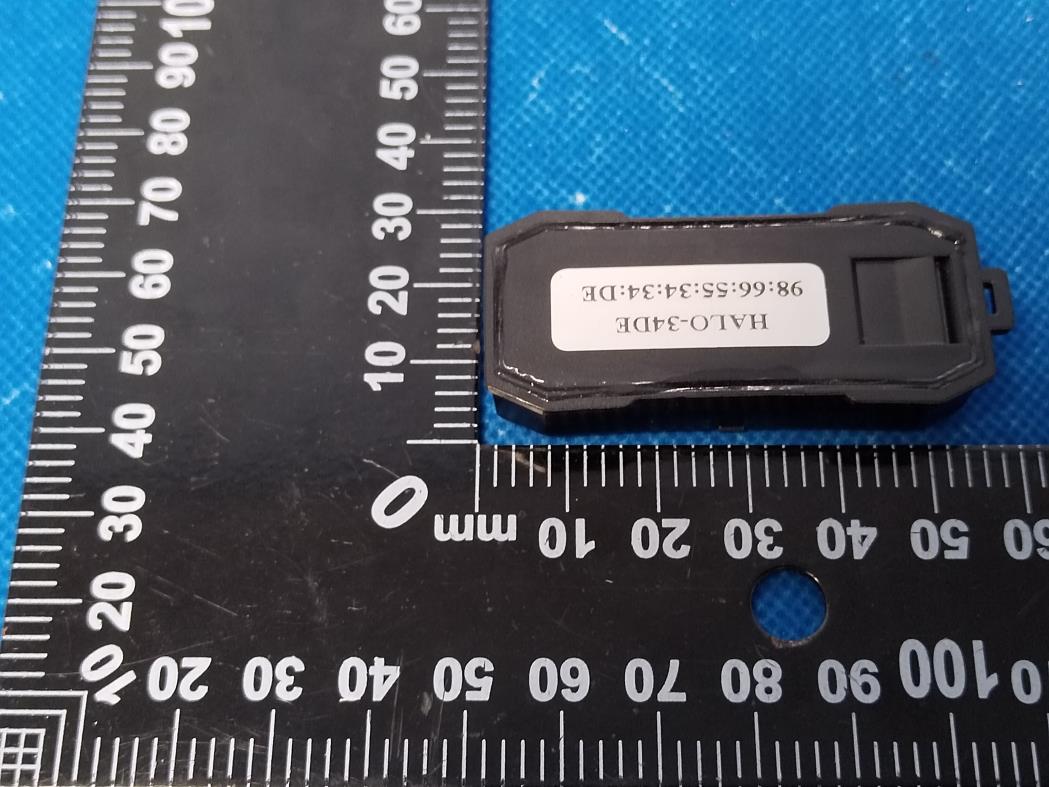

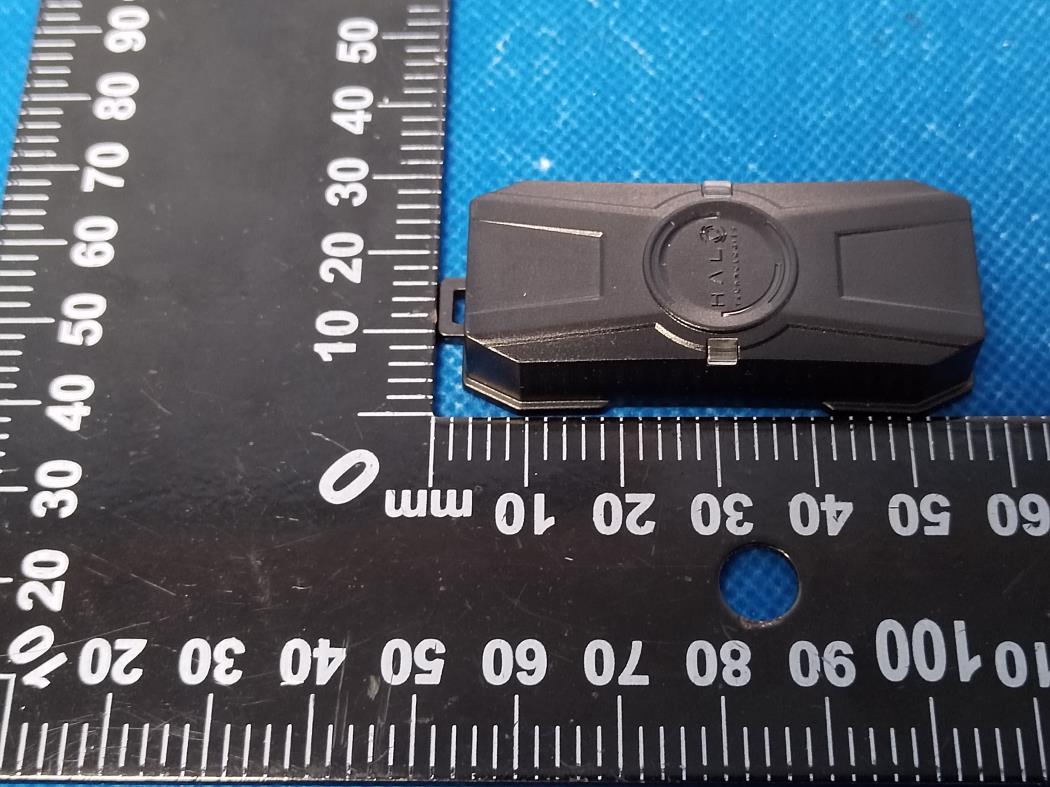

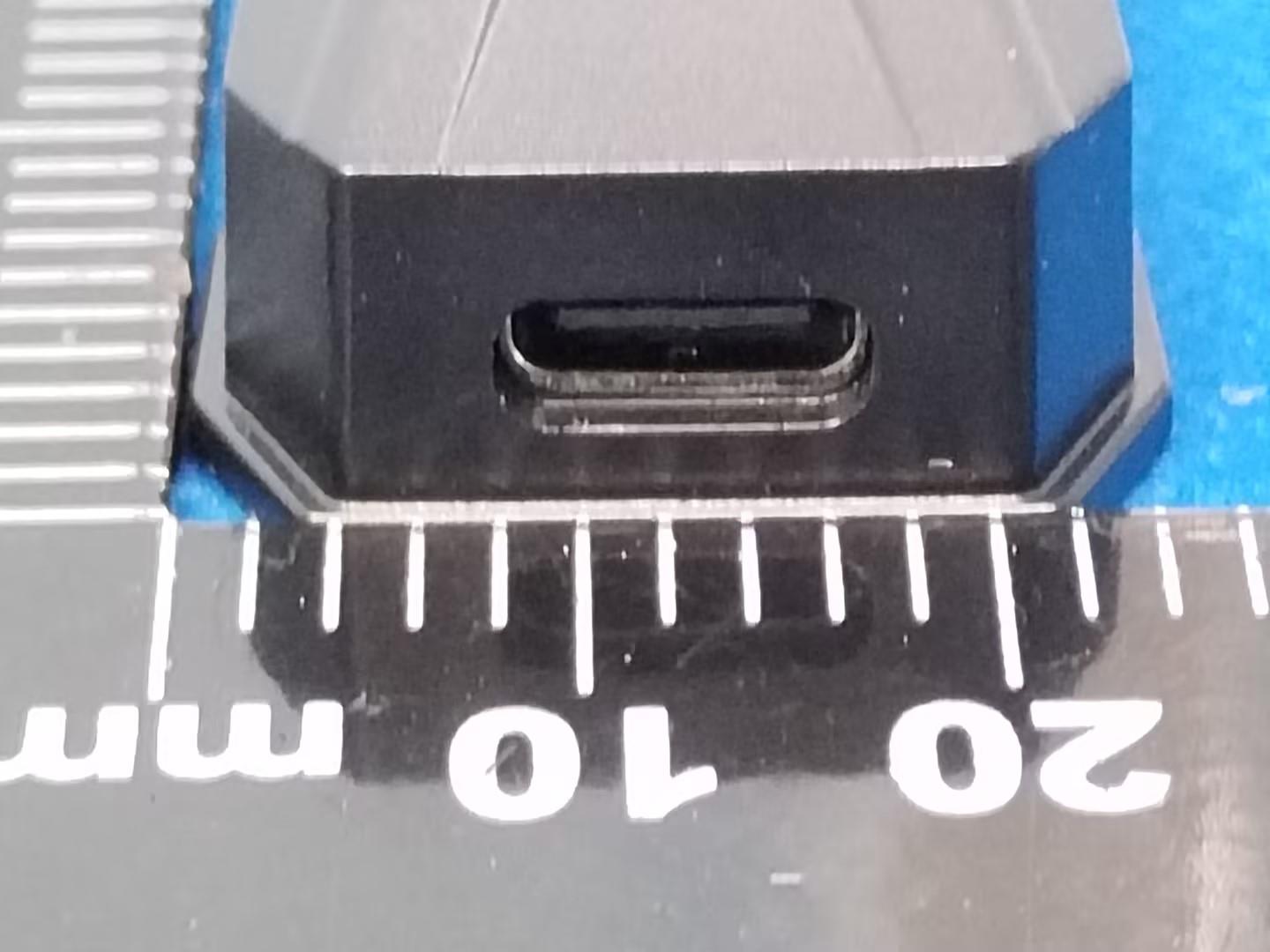

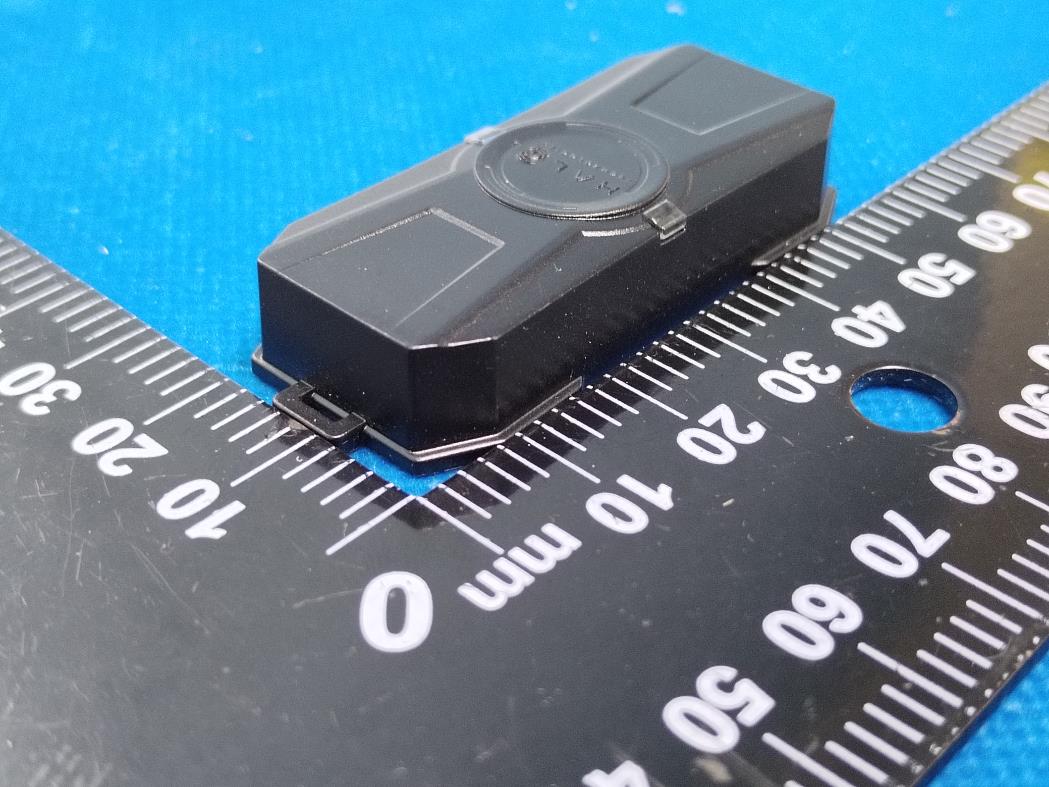

Page 1 of 3 FCC ID: 2A9JS-2A01 IC: 31121-2A01 APPENDIX 2 PHOTOS OF EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo EUT Photo Page 3 of 3 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo EUT Photo

Label Label location FCC ID: 2A9JS-2A01 Halo-2A01 IC: 31121-2A01 MAC: 98:66:55:34:2A:01

Page 1 of 5 FCC ID: 2A9JS-2A01 IC: 31121-2A01 APPENDIX 2 PHOTOS OF EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo EUT Photo BT Antenna Page 3 of 5 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo EUT Photo Module Page 4 of 5 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo EUT Photo Metal detection Coil magnetic field No RF Signal Page 5 of 5 FCC ID: 2A9JS-2A01 IC: 31121-2A01 EUT Photo

Page 1 of 56 FCC ID: 2A9JS-2A01 Report No.: LCSA08153090E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT For Halo Technologies Europe Ltd Halo Aware Devices Test Model: Halo-2A01 Additional Model No.: / Prepared for : Halo Technologies Europe Ltd Address : 5P Weavers Court, Belfast, United Kingdom Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 16, 2023 Number of tested samples Sample No. : : 1 A08153090-1 Serial number : Prototype Date of Test : August 16, 2023 ~ August 16, 2023 Date of Report : August 18, 2023 Page 2 of 56 FCC ID: 2A9JS-2A01 Report No.: LCSA08153090E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT Report Reference No. ................. : LCSA08153090E Date Of Issue ................................ : August 18, 2023 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : Halo Technologies Europe Ltd Address ......................................... : 5P Weavers Court, Belfast, United Kingdom Test Specification: Standard ........................................ : IEEE Std C95.1-2019&IEEE 62209-1528-2020&FCC Part 2.1093 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Halo Aware Devices Trade Mark .................................... : HALO Model/Type Reference .................. : Halo-2A01 Operation Frequency .................... : Bluetooth4.2 Ratings .......................................... : DC3.7V Result .......................................... : Positive Compiled by: Supervised by: Approved by: Jay Zhan/ File administrators Cary Luo /Technique principal Gavin Liang/ Manager Page 3 of 56 FCC ID: 2A9JS-2A01 Report No.: LCSA08153090E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA08153090E August 18, 2023 Date of issue Type / Model......................... : Halo-2A01 EUT....................................... : Halo Aware Devices Applicant.............................. : Halo Technologies Europe Ltd Address.................................. : 5P Weavers Court, Belfast, United Kingdom Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Halo Technologies Europe Ltd Address.................................. : 5P Weavers Court, Belfast, United Kingdom Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / Page 4 of 56 FCC ID: 2A9JS-2A01 Report No.: LCSA08153090E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revison History Revision Issue Date Revision Content Revised By 000 August 18, 2023 Initial Issue --- Page 5 of 56 FCC ID: 2A9JS-2A01 Report No.: LCSA08153090E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ....................................................................................................................................................…
