2A9KPNU110SENUGU candle SE

영문 설정 관련 추가 예정 삭제 삭제 Power port 삭제 Power port NUGU candle SE 구성품 매칭 확인 Power plugQuick manual 반복 “NUGU for lisma”iOS 120도/화씨 14도/화씨

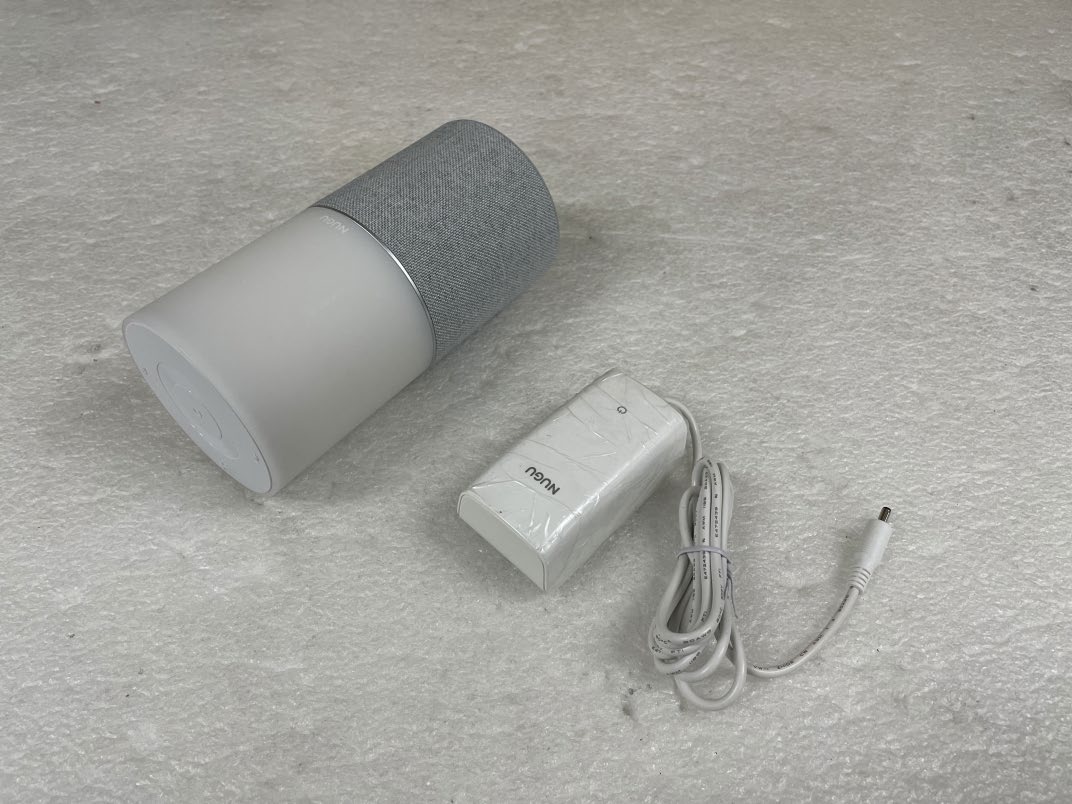

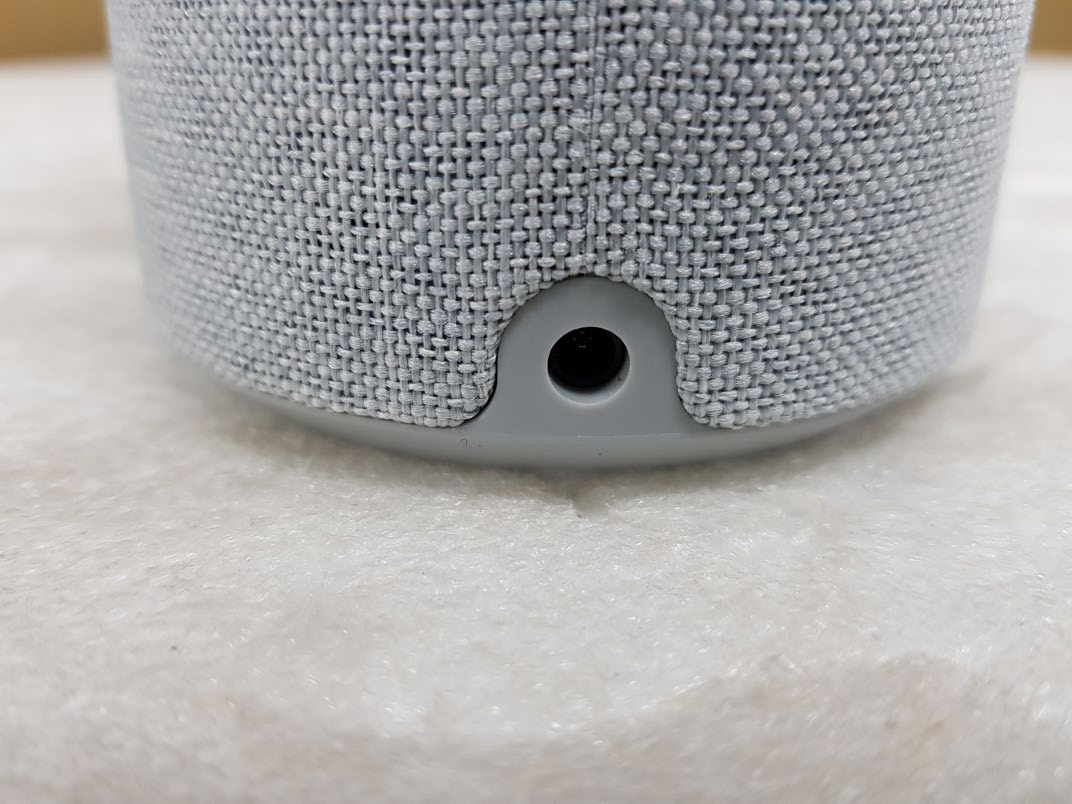

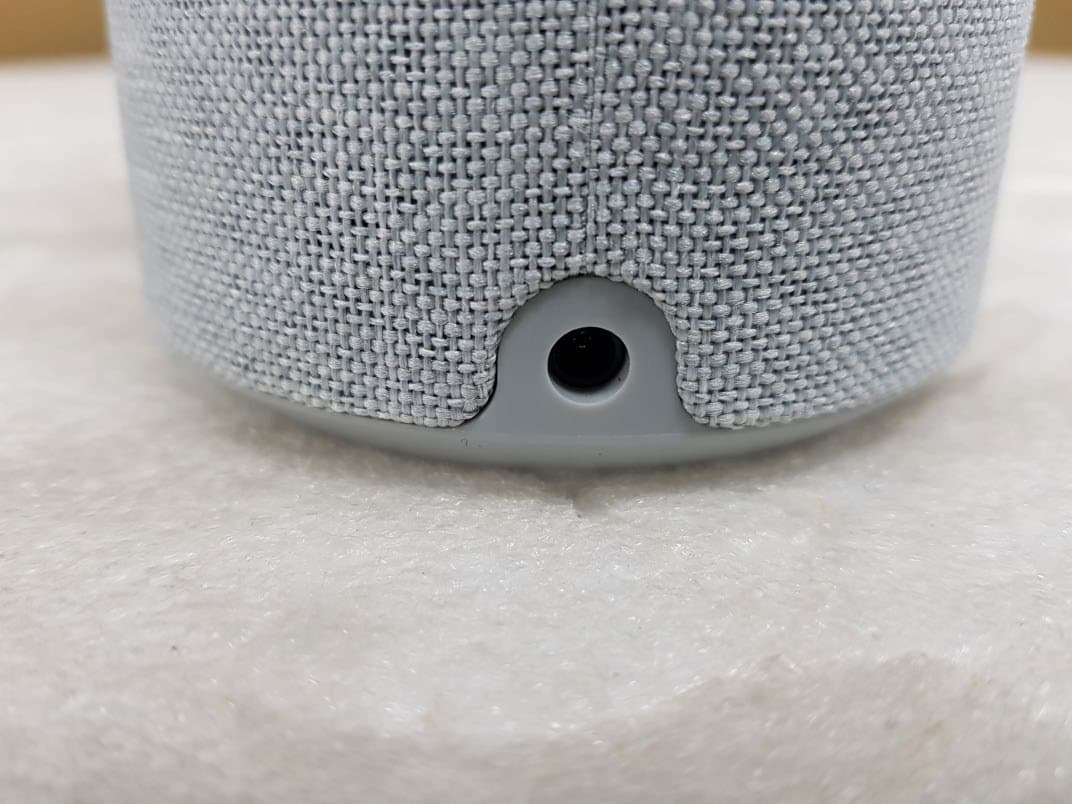

Model No.: NU110 Page 1 of 2 External photos Model No.: NU110 Page 2 of 2

Model No.: NU110 Page 1 of 1 Label Location

Model No.: NU110 Page 1 of 2 Internal photos Model No.: NU110 Page 2 of 2 Chip Antenna

Model Name : NU110 Page 1 of 2 RF exposure FCC ID : 2A9KPNU110SE According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results 2.4 ㎓ Operation mode Frequency (㎒) Maximum Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) BDR (1 Mbps) 2 402 ㎒ ~ 2 480 ㎒ 6.5 3.0 0.001 77 1 EDR (2 Mbps) 5.5 0.001 41 EDR (3 Mbps) 5.5 0.001 41 LE (1 Mbps) -3.5 0.000 18 802.11b 2 412 ㎒ ~ 2 462 ㎒ 13.5 0.008 89 802.11g 11.5 0.005 61 802.11n_HT20 10.5 0.004 45 802.11n_HT40 2 422 ㎒ ~ 2 452 ㎒ 3.0 0.000 79 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30 Model Name : NU110 Page 2 of 2 UNII-1 Operation mode Frequency (㎒) Maximum Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11a 5 180 ㎒ ~ 5 240 ㎒ 12.0 3.3 0.006 74 1 802.11n_HT20 12.0 0.006 74 802.11n_HT40 5 190 ㎒ ~ 5 230 ㎒ 12.0 0.006 74 UNII-2A Operation mode Frequency (㎒) Maximum Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11a 5 260 ㎒ ~ 5 320 ㎒ 11.5 3.3 0.006 01 1 802.11n_HT20 11.5 0.006 01 802.11n_HT40 5 270 ㎒ ~ 5 310 ㎒ 13.0 0.008 49 UNII-2C Operation mode Frequency (㎒) Maximum Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11a 5 500 ㎒ ~ 5 720 ㎒ 12.0 3.3 0.006 74 1 802.11n_HT20 12.0 0.006 74 802.11n_HT40 5 510 ㎒ ~ 5 710 ㎒ 13.0 0.008 49 UNII-3 Operation mode Frequency (㎒) Maximum Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11a 5 745 ㎒ ~ 5 825 ㎒ 11.5 3.3 0.006 01 1 802.11n_HT20 11.5 0.006 01 802.11n_HT40 5 755 ㎒ ~ 5 795 ㎒ 13.0 0.008 49

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0013 Page ( 1 ) of ( 37 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TEST REPORT Part 15 Subpart C 15.247 Equipment under test NUGU candle SE Model name NU110 FCC ID 2A9KPNU110SE Applicant LISMA CO., LTD. Manufacturer DongGuan Hajen Electro-mechanics Co., Ltd. Date of test(s) 2022.12.01 ~ 2023.01.03 Date of issue 2023.01.12 Issued to LISMA CO., LTD. 358, Samil-daero, Jung-gu, Seoul, Republic of Korea Tel: +82-10-3107-0083 / Fax: +82-0508-918-3183 Issued by KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Gu-Bong, Kang Test engineer Ye o n g-Jun Cho Technical manager This test report is not related to KS Q ISO/IEC 17025 and KOLAS KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0013 Page ( 2 ) of ( 37 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Revision history Revision Date of issue Test report No. Description - 2023.01.12 KES-RF-23T0013 Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0013 Page ( 3 ) of ( 37 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 5 1.2. Test configuration ...................................................................................................................................... 6 1.3. Information about derivative model .......................................................................................................... 6 1.4. Accessory information............................................................................................................................... 6 1.5. Sample calculation .................................................................................................................................... 6 1.6. Measurement Uncertainty ......................................................................................................................... 6 1.7. Frequency/channel operations ................................................................................................................... 7 2. Summary of tests ........................................................................................................................................................ 9 3. Test results ................................................................................................................................................................ 10 3.1. 6 ㏈ bandwidth ...................................................................................................................................... 10 3.2. Output power ........................................................................................................................................... 12 3.3. Power spectral density ............................................................................................................................. 14 3.4. Radiated restricted band and emissions ................................................................................................... 16 3.5. Conducted spurious emissions & band edge ........................................................................................... 30 3.6. AC conducted emissions ......................................................................................................................... 33 3.7. Antenna Requirement .............................................................................................................................. 35 Appendix A. Measurement equipment ......................................................................................................................... 36 Appendix B. Test setup photos ..................................................................................................................................... 37 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0013 Page ( 4 ) of ( 37 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 1. General information Applicant: LISMA CO., LTD. Applicant address: 358, Samil-daero, Jung-gu, Seoul, Republic of Korea Test site: KES Co., Ltd. Test site address: 37…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 1 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TEST REPORT Part 15 Subpart C 15.247 Equipment under test NUGU candle SE Model name NU110 FCC ID 2A9KPNU110SE Applicant LISMA CO., LTD. Manufacturer DongGuan Hajen Electro-mechanics Co., Ltd. Date of test(s) 2022.12.01 ~ 2023.01.03 Date of issue 2023.01.12 Issued to LISMA CO., LTD. 358, Samil-daero, Jung-gu, Seoul, Republic of Korea Tel: +82-10-3107-0083 / Fax: +82-0508-918-3183 Issued by KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Gu-Bong, Kang Test engineer Yeong-Jun Cho Technical manager This test report is not related to KS Q ISO/IEC 17025 and KOLAS KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 2 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Revision history Revision Date of issue Test report No. Description - 2023.01.12 KES-RF-23T0014 Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0014 Page ( 3 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 5 1.2. Test configuration ...................................................................................................................................... 6 1.3. Information about derivative model .......................................................................................................... 6 1.4. Accessory information............................................................................................................................... 6 1.5. Sample calculation .................................................................................................................................... 6 1.6. Measurement Uncertainty ......................................................................................................................... 6 1.7. Frequency/channel operations ................................................................................................................... 7 2. Summary of tests ........................................................................................................................................................ 9 3. Test results ................................................................................................................................................................ 10 3.1. 6 ㏈ bandwidth ...................................................................................................................................... 10 3.2. Output power ........................................................................................................................................... 15 3.3. Power spectral density ............................................................................................................................. 17 3.4. Radiated restricted band and emissions ................................................................................................... 22 3.5. Conducted spurious emissions & band edge ........................................................................................... 57 3.6. AC conducted emissions ......................................................................................................................... 67 3.7. Antenna Requirement .............................................................................................................................. 69 Appendix A. Measurement equipment ......................................................................................................................... 70 Appendix B. Test setup photos ..................................................................................................................................... 71 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 4 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 1. General information Applicant: LISMA CO., LTD. Applicant address: 358, Samil-daero, Jung-gu, Seoul, Republic of Korea Test site: KES Co., Ltd. Test site address: 3701,…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 34 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Horizontal // Peak for 1 ㎓ to 3 ㎓ Vertical // Peak for 1 ㎓ to 3 ㎓ Horizontal // Peak for 3 ㎓ to 18 ㎓ Vertical // Peak for 3 ㎓ to 18 ㎓ Horizontal // Average for 3 ㎓ to 18 ㎓ Vertical // Average for 3 ㎓ to 18 ㎓ N/A Note. 1. Average test would be performed if the peak result were greater than the average limit. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 35 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Test results (Above 1 000 ㎒) Mode: 802.11g Distance of measurement: 3 meter Channel: 1 - Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 004.30 45.50 Peak H -10.39 - 35.11 74.00 38.89 1 035.30 46.62 Peak V -10.20 - 36.42 74.00 37.58 1 327.87 45.21 Peak V -8.41 - 36.80 74.00 37.20 2 521.55 43.64 Peak H -1.60 - 42.04 74.00 31.96 4 820.10 47.52 Peak V 4.82 - 52.34 74.00 21.66 4 824.60 44.05 Peak H 4.86 - 48.91 74.00 25.09 - Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 386.62 58.64 Peak V -1.69 - 56.95 74.00 17.05 2 386.62 40.89 Average V -1.69 0.22 39.42 54.00 14.58 2 386.99 66.75 Peak H -1.69 - 65.06 74.00 8.94 2 386.99 48.35 Average H -1.69 0.22 46.88 54.00 7.12 2 389.03 68.49 Peak H -1.69 - 66.8 74.00 7.20 2 389.03 49.85 Average H -1.69 0.22 48.38 54.00 5.62 2 389.04 60.60 Peak V -1.69 - 58.91 74.00 15.09 2 389.04 42.95 Average V -1.69 0.22 41.48 54.00 12.52 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 36 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Restricted band // Horizontal // Peak Restricted band // Vertical // Peak Restricted band // Horizontal // Average Restricted band // Vertical // Average KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 37 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Horizontal // Peak for 1 ㎓ to 3 ㎓ Vertical // Peak for 1 ㎓ to 3 ㎓ Horizontal // Peak for 3 ㎓ to 18 ㎓ Vertical // Peak for 3 ㎓ to 18 ㎓ Note. 1. Average test would be performed if the peak result were greater than the average limit. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 38 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Mode: 802.11g Distance of measurement: 3 meter Channel: 6 - Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 006.10 44.89 Peak V -10.38 - 34.51 74.00 39.49 1 047.30 45.51 Peak H -10.13 - 35.38 74.00 38.62 1 454.05 44.81 Peak V -7.68 - 37.13 74.00 36.87 2 517.95 43.65 Peak H -1.61 - 42.04 74.00 31.96 Horizontal // Peak for 1 ㎓ to 3 ㎓ Vertical // Peak for 1 ㎓ to 3 ㎓ Horizontal // Peak for 3 ㎓ to 18 ㎓ Vertical // Peak for 3 ㎓ to 18 ㎓ Note. 1. No spurious emission were detected above 3 ㎓. 2. Average test would be performed if the peak result were greater than the average limit. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 39 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Mode: 802.11g Distance of measurement: 3 meter Channel: 11 - Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 027.70 45.86 Peak H -10.25 - 35.61 74.00 38.39 1 033.10 45.36 Peak V -10.22 - 35.14 74.00 38.86 2 513.55 44.15 Peak V -1.62 - 42.53 74.00 31.47 2 544.55 44.63 Peak H -1.53 - 43.10 74.00 30.90 4 926.60 42.39 Peak V 5.64 - 48.03 74.00 25.97 - Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.51 71.20 Peak H -1.67 - 69.53 74.00 4.47 2 483.51 52.14 Average H -1.67 0.22 50.69 54.00 3.31 2 483.51 61.69 Peak V -1.67 - 60.69 74.00 13.31 2 483.51 43…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 56 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Test results (18 ㎓ to 30 ㎓) Mode: 802.11g Distance of measurement: 3 meter Channel: 11 (Worst case) Horizontal Peak Vertical Peak Note. 1. No spurious emission were detected above 18 ㎓. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 57 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 3.5. Conducted spurious emissions & band edge Test setup EUT Attenuator Spectrum analyzer Test procedure Band edge ANSI C63.10-2013 - Section 11.11 1. Start and stop frequency were set such that the band edge would be placed in the center of the plot 2. Span was set large enough so as to capture all out of band emissions near the band edge 3. Set the RBW = 100 ㎑ 4. Set the VBW = [3 × RBW]. 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow trace to fully stabilize. Out of band emissions ANSI C63.10-2013 - Section 11.11 1. Start frequency was set to 30 ㎒ and stop frequency was set to 25 ㎓ for 2.4 ㎓ frequencies and 40 ㎓ for 5 ㎓ frequencies 2. Set the RBW = 100 ㎑ 3. Set the VBW = [3 × RBW]. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Allow trace to fully stabilize. Limit According to 15.247(d), in any 100 ㎑ bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 ㏈ below that in the 100 ㎑ bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval , as permitted under paragraph(b)(3) of this section , the attenuation required under this paragraph shall be 30 ㏈ instead of 20 ㏈. Attenuation below the general limits specified in section 15.209(a) is not required. In addition, radiated emission which in the restricted band, as define in section 15.205(a), must also comply the radiated emission limits specified in section 15.209(a) (see section 15.205(c)) KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0014 Page ( 58 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Limit According to RSS-247 5.5, In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated device is operating, the RF power that is produced shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under section 5.4(d), the attenuation required shall be 30 dB instead of 20 dB. Attenuation below the general field strength limits specified in RSS-Gen is not required. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 59 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Test results 802.11b 2 412 ㎒ 2 442 ㎒ KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 60 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 802.11b 2 462 ㎒ - N/A N/A N/A KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-23T0014 Page ( 61 ) of ( 71 ) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 802.11g 2 412 ㎒ 2 442 ㎒ KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2…

Text truncated - open the document above for the full version.

品名 品名品名 品名 : ACM3-5036-A1-CC-S History List 版本 REV. 修訂者 EDITOR 修訂頁次 PAGE 修訂內容 ITEMS OF CHANGE 申請日期 DATE 生效日期 VALID DATE A0 黃啟傑 All 正式發行 2013/10/01 2013/10/15 A1 林豪建 P2 P3 W1 、L1 、W2、L2尺 寸圖面修正標示、新增 Pin 放置圖示 新增Mirror Layout & Usage 2015/06/23 20150701 UNLESS OTHER SPECIFIED TOLERANCES ON： ：： ： X＝ ＝＝ ＝± ±± ± X.X＝ ＝＝ ＝± ±± ± X.XX＝ ＝＝ ＝ ANGLES＝ ＝＝ ＝± ±± ± HOLEDIA＝ ＝＝ ＝± ±± ± INPAQ TECHNOLOGY CO., LTD. SCALE： ：： ： ----- UNIT： ：： ：mm DRAWN BY： ：： ：趙彥年 趙彥年趙彥年 趙彥年 CHECKED BY： ：： ：黃啟傑 黃啟傑黃啟傑 黃啟傑 DESIGNED BY： ：： ：林豪建 林豪建林豪建 林豪建 APPROVED BY： ：： ：蘇志銘 蘇志銘蘇志銘 蘇志銘 THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DOCUMENT SPEC REV. TITLE： ：： ：ACM3-5036-A1-CC-S Specification NO. ENS000062410 A1 PAGE 1 OF 9 - ACM3-5036-A1-CC-S Specification 1. Features and Application This product is for 2.4/5 GHz Dual Band WiFi, 802.11 a/b/g/n, Zigbee, Bluetooth,... 2. Explanation of Part Number AC M3 - 5036 - A1 - CC - S _ (1) (2) (3) (4) (5) (6) (7) (1) Product Type: Chip Antenna (2) Center Frequency/Band Code: 2.4/5 GHz Dual-Band (3) Size Code: 5.0*3.6 mm (Length * Width) (4) Design Revision Code: Rev. 1 (5) Antenna Type: Coupling Ceramics (6) Special Code: RoHS Compliant (7) Suffix For Special Requirements 3. Electrical Specification Item Specification Frequency Band 2400 ~ 2500 MHz 5000 ~ 6000 MHz Polarization Linear Impedance 50 ohm Typ. VSWR Less than 2.0 Less than 2.0 *Peak Gain 3.0 dBi Typ. 3.3 dBi Typ. *Peak Efficiency 73.4% Typ. 80.2% Typ. * Test condition: Test board size 80*40 mm Matching circuit may be required UNLESS OTHER SPECIFIED TOLERANCES ON： ：： ： X＝ ＝＝ ＝± ±± ± X.X＝ ＝＝ ＝± ±± ± X.XX＝ ＝＝ ＝ ANGLES＝ ＝＝ ＝± ±± ± HOLEDIA＝ ＝＝ ＝± ±± ± INPAQ TECHNOLOGY CO., LTD. SCALE： ：： ： ----- UNIT： ：： ：mm DRAWN BY： ：： ：趙彥年 趙彥年趙彥年 趙彥年 CHECKED BY： ：： ：黃啟傑 黃啟傑黃啟傑 黃啟傑 DESIGNED BY： ：： ：林豪建 林豪建林豪建 林豪建 APPROVED BY： ：： ：蘇志銘 蘇志銘蘇志銘 蘇志銘 THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DOCUMENT SPEC REV. TITLE： ：： ：ACM3-5036-A1-CC-S Specification NO. ENS000062410 A1 PAGE 2 OF 9 - 4. Physical Dimension Top view Bottom view Marking is Black L 5.20 ± 0.30 W 3.70 ± 0.30 H 0.70 ± 0.15 A 0.45 ± 0.25 B 0.45 ± 0.25 L1 1.60 ± 0.20 W1 0.62 ± 0.20 L2 1.50 ± 0.20 W2 0.62 ± 0.20 (Unit: mm) Pin Configuration Pin Assignments Top View Layout Pin Function 1 GND 2 GND 3 Feed 4 No connect Mirror Layout Pin Function 1 GND 2 GND 3 No connect 4 Feed L W H A B L W1 L1 L2 W2 UNLESS OTHER SPECIFIED TOLERANCES ON： ：： ： X＝ ＝＝ ＝± ±± ± X.X＝ ＝＝ ＝± ±± ± X.XX＝ ＝＝ ＝ ANGLES＝ ＝＝ ＝± ±± ± HOLEDIA＝ ＝＝ ＝± ±± ± INPAQ TECHNOLOGY CO., LTD. SCALE： ：： ： ----- UNIT： ：： ：mm DRAWN BY： ：： ：趙彥年 趙彥年趙彥年 趙彥年 CHECKED BY： ：： ：黃啟傑 黃啟傑黃啟傑 黃啟傑 DESIGNED BY： ：： ：林豪建 林豪建林豪建 林豪建 APPROVED BY： ：： ：蘇志銘 蘇志銘蘇志銘 蘇志銘 THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DOCUMENT SPEC REV. TIT…

Text truncated - open the document above for the full version.
