2A9M6-GS8ULTRAsmart watch

FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has evaluated to meet general RF exposure requirement. The device can be used be in portable exposure without restriction.

ShenzhenGuangsuShidaiTechnologyCo.,Ltd. AgentAuthorization Company:ShenzhenGuangsuShidaiTechnologyCo.,Ltd. Address:JiHuaJieDaoGanLierLuJuYinsci-techindustrialparkb2,Longgang District,ShenzhenCity,GuangdongProvince ProductName:smartwatch ModelNumber(s):GSWear,GS8Ultra,GS8+Ultra,GSUltra8,Ultra8mini, Ultra8Max,Ultra8Plus,GS(1-50)Max,GS(1-50)Plus, GS(1-50)ProMax,GS(1-50)Pro,M(1-50)Max,M(1-50)Plus, M(1-50)ProMax,GST(1-50)Pro,GST(1-50)Max,GS(1-50)mini, G(1-50)mini,G(1-50)Pro. ProductDescription:smartwatch WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2022.12.14 Name:RongWu Title:Manager Company: ShenzhenGuangsuShidaiTechnologyCo.,Ltd.

ShenzhenGuangsuShidaiTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022.12.14 Subject;RequestforConfidentiality FCCID:2A9M6-GS8ULTRA ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:RongWu Title:Manager

ShenzhenGuangsuShidaiTechnologyCo.,Ltd. ModelDifferent Modelname：smartwatch FCCID:2A9M6-GS8ULTRA Modelnumber:GSWear,GS8Ultra,GS8+Ultra,GSUltra8,Ultra8mini,Ultra8Max, Ultra8Plus,GS(1-50)Max,GS(1-50)Plus,GS(1-50)ProMax,GS(1-50)Pro, M(1-50)Max,M(1-50)Plus,M(1-50)ProMax,GST(1-50)Pro,GST(1-50)Max, GS(1-50)mini,G(1-50)mini,G(1-50)Pro. Allmodel’sthefunction,softwareandelectriccircuitarethesame,exceptthemodelnumber andthecolour. Name:RongWu Date:2022-12-14 Title:Manage Signatureofapplicant:

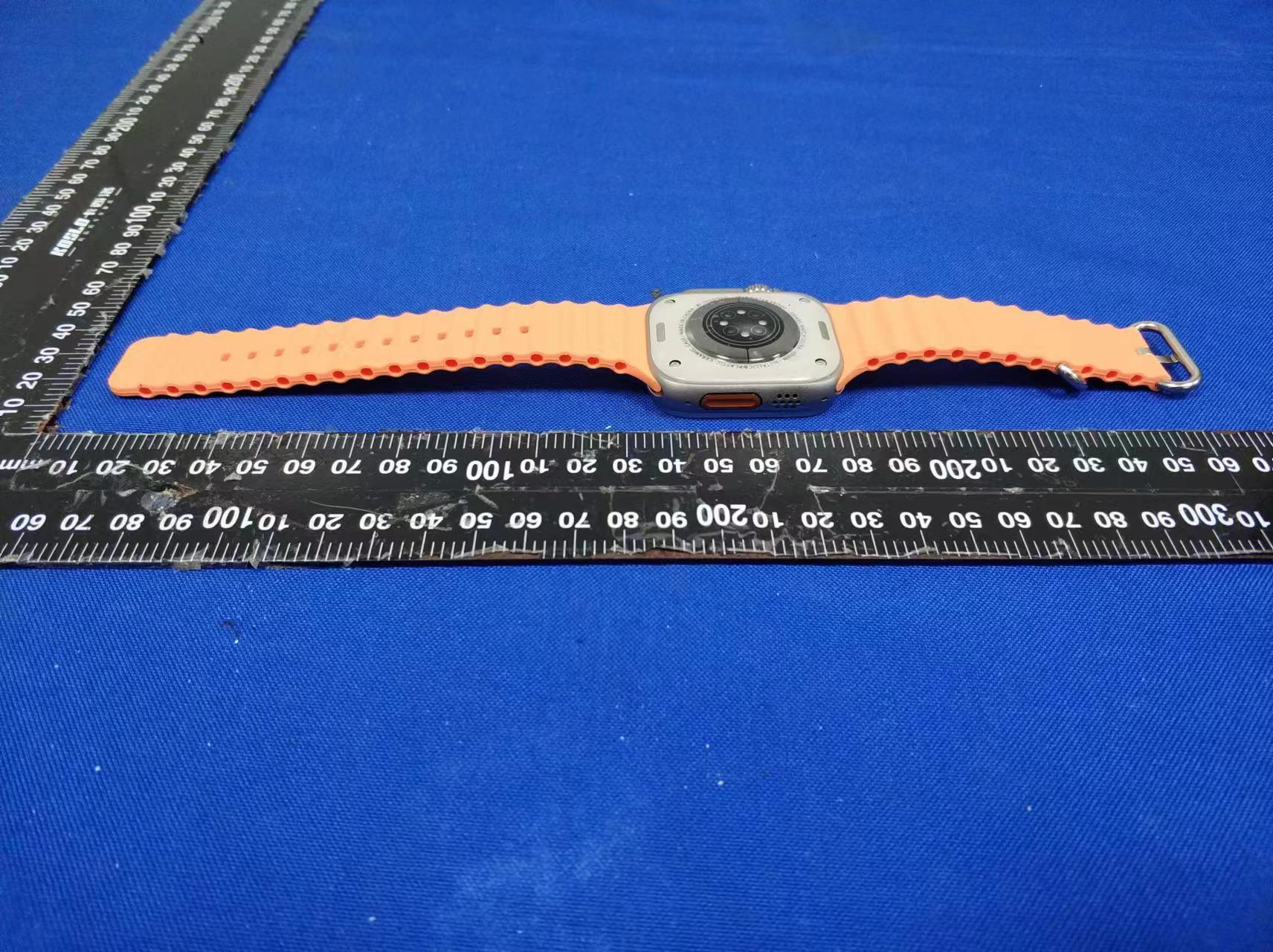

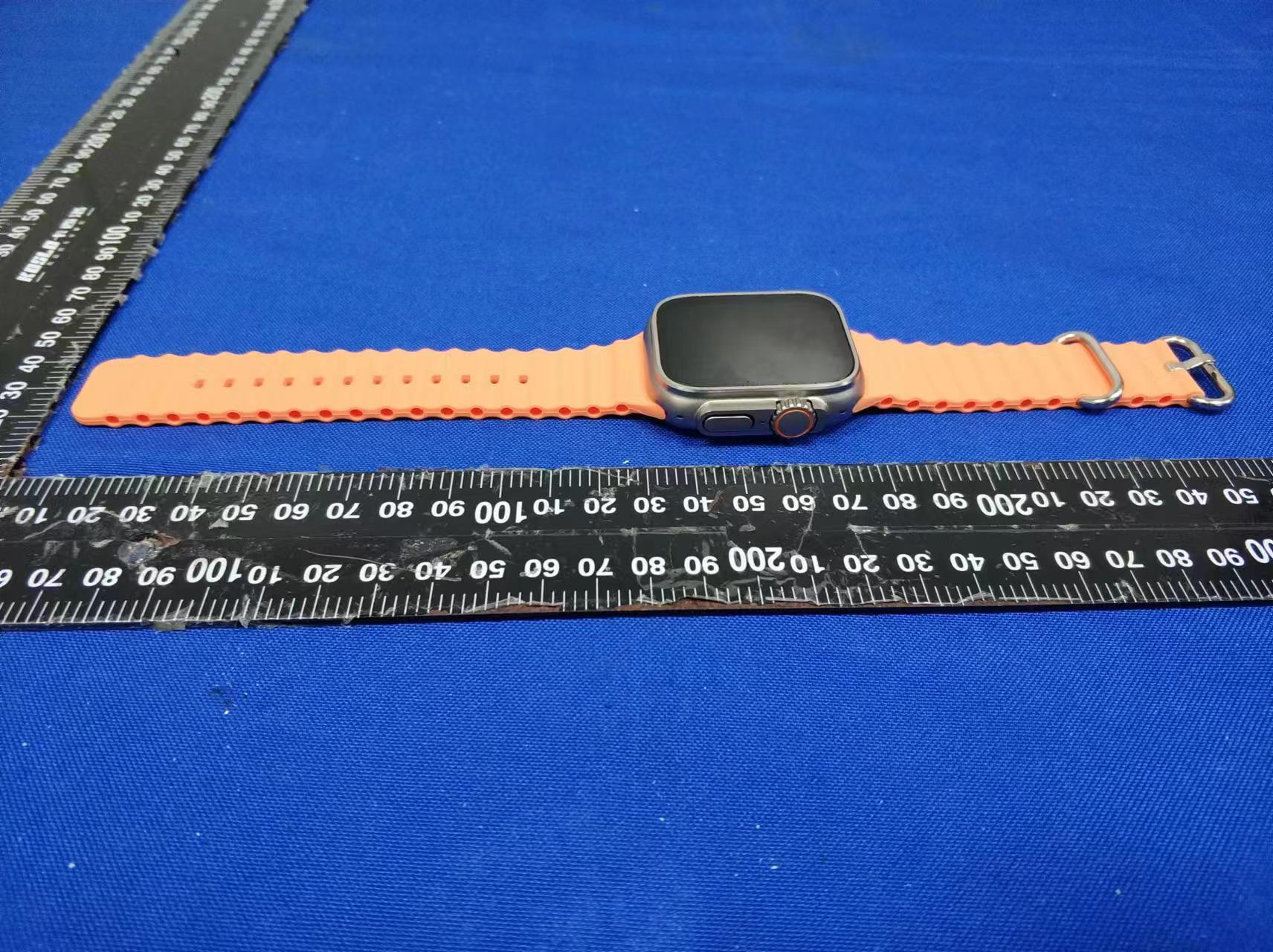

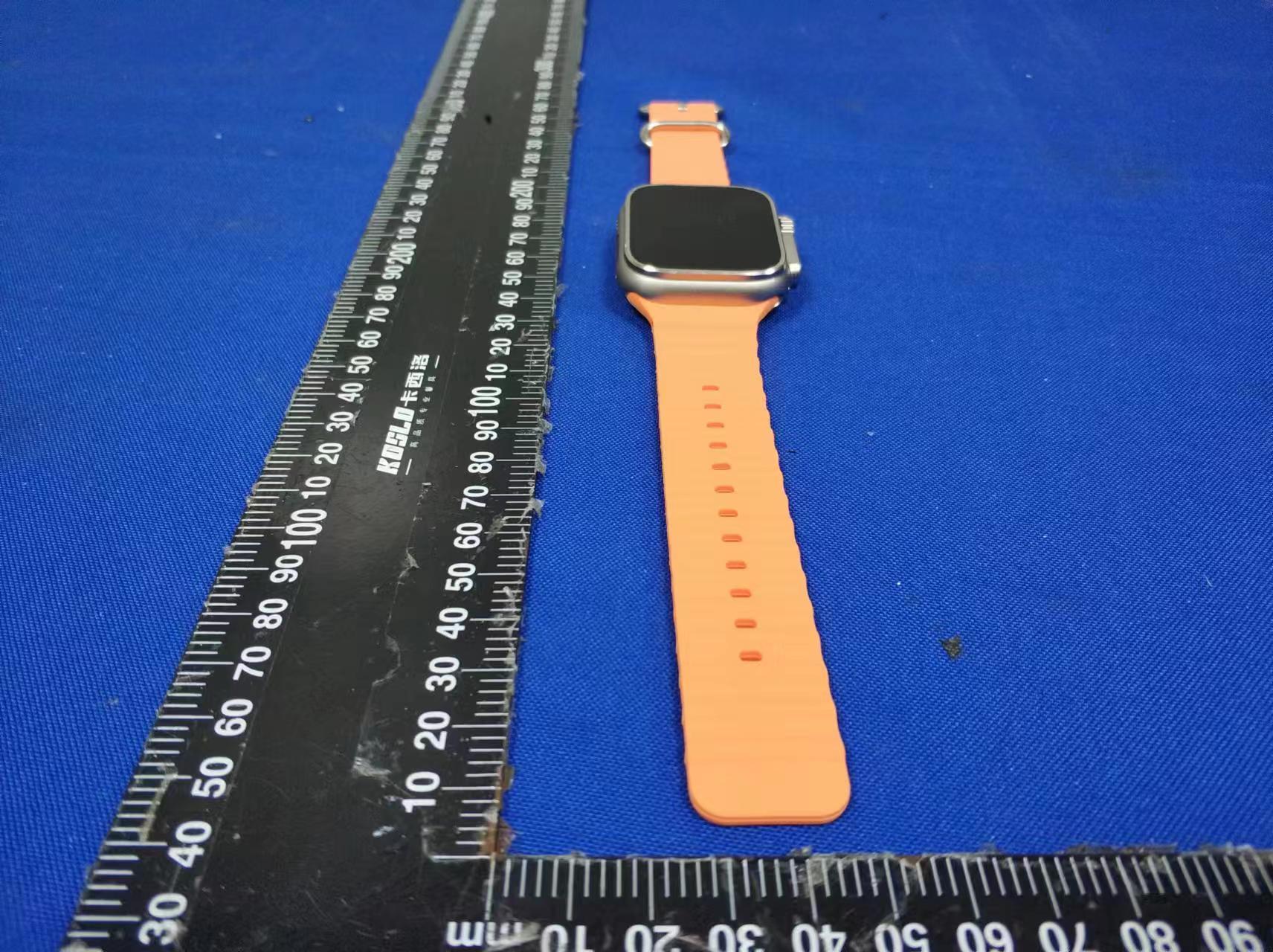

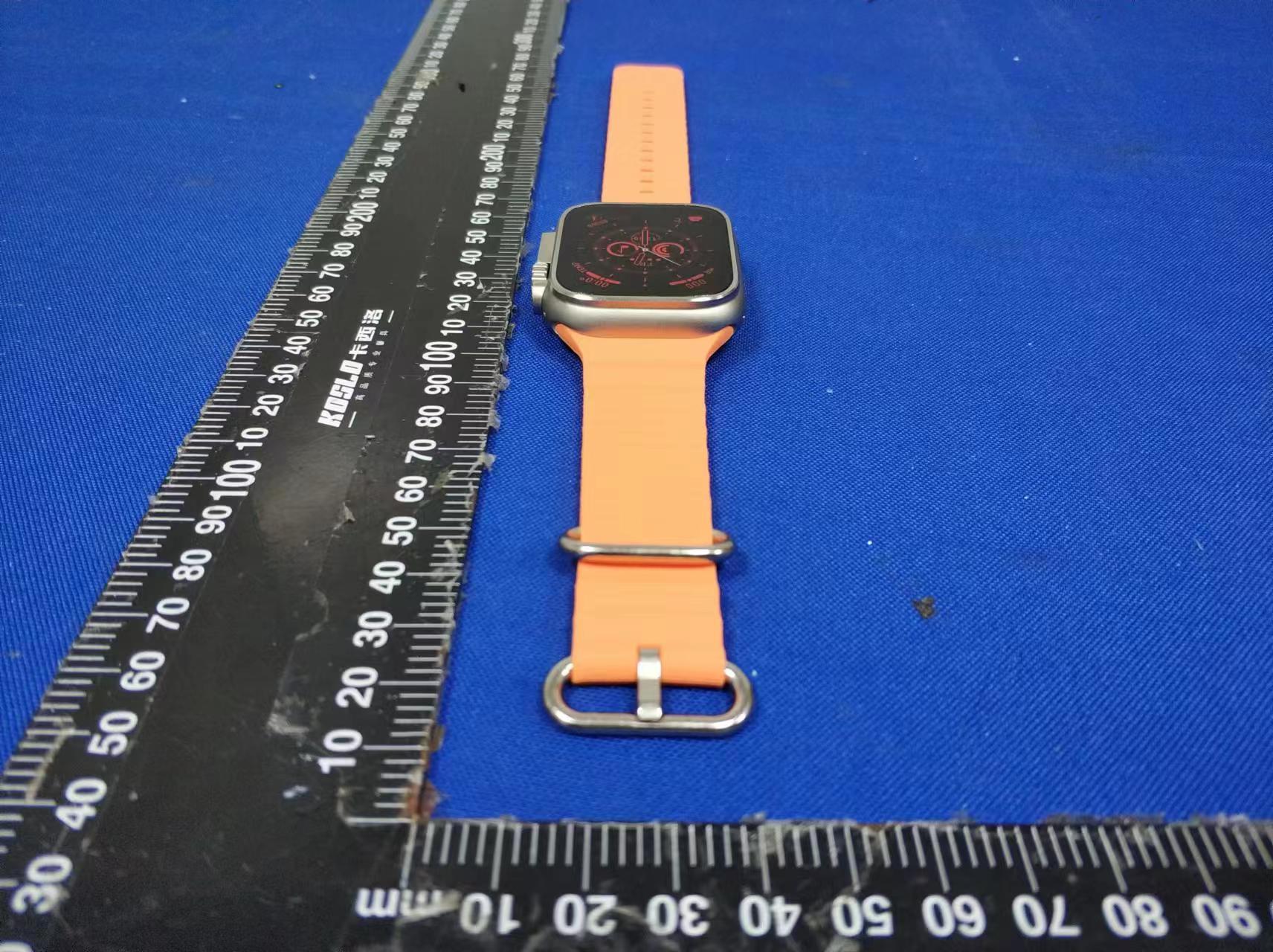

EUTPHOTO(ExternalPhotos)

Lable:

EUTPHOTO(InternalPhotos) ANT2 ANT1

FCCID:2A9M6-GS8ULTRA RFExposureEvaluation AccordingtoKDB447498V06andpart2.1093，Unlessspecificallyrequiredbythe publishedRFexposureKDBprocedures,standalone1-gheadorbodyand10-gextremity SARevaluationforgeneralpopulationexposureconditions,bymeasurementornumerical simulation,isnotrequiredwhenthecorrespondingSARTestExclusionThreshold condition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤5mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, InthecaseofsimultaneouslaunchesforBLEandEDR： Calc.Thresholds：0.6284+0.3965=1.0249≤3(Limit) SoaSARtestisnotrequired ModeFrequency (MHz) Max Power (dBm) Targetpower W/tolerance (dBm) Maxtuneup power tolerance (dBm) Max Power (mW) Min. Distance (mm) Calc. thresholds limit BLEGFSK 2402 1.973 2±1.0 3 1.995350.6185 3.0 2440 2.054 2±1.0 3 1.995350.6233 3.0 2480 2.310 2±1.03 1.995350.6284 3.0 EDR GFSK 2402 -0.719 0±1.01 1.2589 5 0.3902 3.0 2441 -0.753 0±1.0 1 1.2589 5 0.3934 3.0 2480 -0.476 0±1.0 1 1.2589 5 0.3965 3.0 π/4-DQ PSK 2402 0.199 0±1.01 1.2589 5 0.3902 3.0 2441 0.134 0±1.01 1.2589 5 0.3934 3.0 2480 0.383 0±1.0 1 1.2589 5 0.3965 3.0 8-DPSK 2402 0.549 0±1.0 1 1.2589 5 0.3902 3.0 2441 0.536 0±1.01 1.2589 5 0.3934 3.0 2480 0.786 0±1.01 1.2589 5 0.3965 3.0

Project No.: ZKT-221205L9020E-1 Page 1 of 67 FCC TEST REPORT FCC ID:2A9M6-GS8ULTRA Report Number. .................................... :ZKT-221205L9020E-1 Date of Test......................................................:Nov. 01, 2022 to Nov. 07, 2022 Date of issue.........................................:Nov. 07, 2022 Total number of pages.........................67 Test Result..........................................: PASS Testing Laboratory...........................: Shenzhen ZKT Technology Co., Ltd. Address...............................................: 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name.............................: Shenzhen Guangsu Shidai Technology Co. , Ltd. Address...............................................: Ji Hua Jie Dao Gan Li er Lu Ju Yin sci-tech industrial park b 2, Longgang District, Shenzhen City, Guangdong Province Manufacturer's name......................: Shenzhen Guangsu Shidai Technology Co. , Ltd. Address...............................................: Ji Hua Jie Dao Gan Li er Lu Ju Yin sci-tech industrial park b 2, Longgang District, Shenzhen City, Guangdong Province Test specification: Standard ................................................ : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure.....................................: / Non-standard test method................:N/A Test Report Form No........................: TRF-EL-112_V0 Test Report Form(s) Originator.....: ZKT Testing Master TRF ........................................ : Dated: 2021-04-22 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name.....................................: smart watch Trademark...........................................: GS Wear Model/Type reference ......................... : GS8 Ultra, GS8+ Ultra, GS Ultra8, Ultra8 mini, Ultra8 Max, Ultra8 Plus, GS(1-50) Max, GS(1-50) Plus, GS(1-50)Pro Max, GS(1-50)Pro, M(1-50)Max, M(1-50)Plus, M(1-50)Pro Max, GST(1-50) Pro, GST(1-50) Max, GS(1-50) mini, G(1-50) mini, G(1-50) Pro. Ratings .................................................. : DC 3.8V Battery Project No.: ZKT-221205L9020E-1 Page 2 of 67 Testing procedure and testing location: Testing Laboratory .......................................... :Shenzhen ZKT Technology Co., Ltd. Address............................................................:1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) ....................... : Joe Liu Reviewer (name + signature) ....................... : Lake Xie Approved (name + signature) ....................... : Project No.: ZKT-221205L9020E-1 Page 3 of 67 Table of Contents Page 1. VERSION............................................................. 5 2. TEST SUMMARY...................................................... 6 2.1 TEST FACILITY....................................................... 7 2.2 MEASUREMENT UNCERTAINTY....................................... 7 3. GENERAL INFORMATION..............................................8 3.1 GENERAL DESCRIPTION OF EUT..................................... 8 3.2 Test Setup Configuration............................................... 9 3.3 Support Equipment.................................................... 9 3.4 Test Mode...........................................................10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS............................. 11 4. EMC EMISSION TEST.................................................13 4.1 Conducted emissions................................................. 13 4.1.1 POWER LINE CONDUCTED EMISSION Limits........................ 13 4.1.2 TEST PROCEDURE................................................ 13 4.1.3 DEVIATION FROM TEST STANDARD................................ 13 4.1.4 TEST SETUP...................................................... 13 4.1.5 EUT OPERATING CONDITIONS..................................... 14 4.1.6 Test Result........................................................ 15 4.2 Radiated emissions...................................................17 4.2.1 Radiated Emission Limits............................................ 17 4.2.2 TEST PROCEDURE................................................ 17 4.2.3 DEVIATION FROM TEST STANDARD................................ 18 4.2.4 TEST SETUP...................................................... 18 4.2.5 EUT OPERATING CONDITIONS..................................... 19 4.2.6 TEST RESULTS....................................................20 5. RADIATED BAND EMISSION MEASUREMENT.......................... 25 5.1 Test Requirement:....................................................25 5.2 TEST PROCEDURE..................................................25 5.3 DEVIATION FROM TEST STANDARD..................................26 5.4 TEST SETUP........................................................26 5.5 EUT OPERATING CONDITIONS.......................................26 5.6 TEST RESULT.......................................................27 6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION..................29 6.1 Limit................................................................ 29 6.2 Test Setup.......................................................... 29 6.3 Test procedure.......................................................29 6.4 DEVIATION FROM STANDARD....................................... 29 6.5 Test Result.......................................................... 30 7. 20DB&99% BANDWIDTH..................…

Text truncated - open the document above for the full version.

1 Test Report 一、Test environment： Temp erature 24°C Humidity55%RH Atmospheric pressure100.04kPa 二、Sample information： Product name2.4G ANT Specification Size 11.65mm x 4.7mm x 0.8mm Test Project Standing Wavebie：Gain；Radiation efficiency；Radiation pattern Frequency Band Range2400-2500MHZ Test Data2020.09.01 2 三、Test Results 1.Antenna Specification ITEMANT SPEC PolarizationHorizontal Center Frequency 2400 MHZ 2450 MHZ 2500 MHZ -0.71 dBi 1 dBi -3.22 dBi PolarizationVertical Center Frequency 2400 MHZ 2450 MHZ 2500 MHZ -0.53 dBi -1.10 dBi -3.99dBi Azimuth Beam Pattern0mni-directional Impedance 50Ω Antenna Length 11.65mm 3 2.Antenna Photo & Length 3. Directed graph 4 4.Test Datas 5 6 7

RE CE
