2A9MI-P30HELMET WIRELESS EARPHONE

尸刁 D Q uick Start Manual I Product Overview . ' Volume up Next song Power on or off Voice assistant button Play or pause Dating mode button Answer or hang up Volume down Previous song Lighting button Intercom button Intercom Indicator (green) Wireless Indicator (blue) Dating Mode Indicator (blue) Speaker&Microphone interface RGB Phantom Light Charging Indicator (red) Important Reminder Before installing the headset, please connect your mobile phone according to the quick manual guide to test the sound effect and volume. If there is a big difference in sound effect and volume after installing into the helmet, please adjust the position of the speaker inside the helmet 厦 Double click to switch language broadcasting(rnsconnect面,eless) Press and hold for 3 seconds to power on/off 昌 三 Blue light blinks rapidly Wireless waiting for Pairing: Blue indicator light blinks rapidly 瞿 Intercom pairing status. Green indicator light flashes rapidly Subir volumen Siguiente canci6n Bajar volumen Canci6n anterior � 帛 Haz doble clic para camb1ar el idioma de em1s16n (Deswn玩扫laconexi6n malOmbnca) 今 Powe, on tone 今 Wireless mode tone Bolon de iluminaci6n Bolon de intercomunicaci6n lndicador de intercomunicaci6n (verde) lndicador inalambrico (azul) lndicador de modo de cita (azul) 今 Pa;red c,e Successful wireless pairing: Blue indicator light blinks slowly ｀ Intercom pairing successful: Green indicator light remains on After the machine 1s switched on, the two devices short press the intercom key to enter the intercom mode, the intercom key green LED light flashes quickly, accompanied by a tone 'intercom pairing', after successful pairing, there will be a tone prompting successful pairing , intercom has been connected', at this time you can two people talk to each other 尸刁0 Manual de inicio rapido I Resumen del producto Encender o apagar Reproducir o pausar Contestar o colgar Charging port lnterfaz de altavoz y micr6fono Luz fantasma RGB lndicador de carga (rojo) Recordatorio importante Antes de inslala「elcasco, conecte su lelefono m6vil de acuerdo con la guia rapida del manual para comprobar el efecto de sonido y el volumen Si hay una gran diferencia en el efecto de sonido y el volumen despues de la inslalaci6n en el casco, po「favor,ajuste la posici6n del altavoz denlro del casco. 今 Tono de encendido La luz azul parpadea 咱pidamente 今 Tono de modo lnalambdco m lnalambrico en espera de Emparejamiento inalambrico emparejamiento: La luz indicadora correcto: La luz indicadora azul azul parpadea rapidamente parpadea lentamente ，- Bolon de mte心mumcac,on 》�)立:... (� 《三 Estado de emparejamiento Empare』am,entodel intercomumcador del intercomumcador: El indicado「correcto:El indicador luminoso luminoso verde parpadea rapidamente verde permanece encendido Despues de encender la maquina, las dos disposilivos pulsan brevemente la tecla de intercomunicaci6n para entrar en el modo de inlercomunicaci6n, la luz LED verde de la tecla de inlercomunicaci6n parpadea 咱pidamenle,acompanada de un Iona "emparejamienlo de inlercomunicaci6n", despues del empare1amiento ex,toso, hab泊unIona 1nd1cando empare1amiento exiloso "1ntercomunicaci6n se ha coneclado", en este momenta usled puede dos personas hablan entre si 雪 Double-tap to toggle manual/ automatic answer(whoo oot cooaecied tow晊,,邸 ， ,ote,com) Automatic Answer ( cl aftec15s如ads) the phone Long press 2 seconds Double click Dating mode waiting for pairing: Blue indicator light blinks super fast Short press Volume down button Volume up button Charging red light IS always on Autom纹ico (0中�叮＂＇伶de15,eg,odos) Doble cllc (locomlag call) 今 ® 今 (lncom,ng call) 今 Decline to answer the phone 今 ＠ Manual answer "short press" 今 (locomlog也II) 今 (On the phone) @ Answer the phone 8 "Short press" during a cal Redial the last numbe Short press 今 Dating mode tone Hang up the phone Maki之ne call)(Q Cancel a call Successful pairing in dating mode:Blue indicator indicator light is always on 今 (while music is paused) 今 (while moslc Is playlog) lol七'"""'oolcooo臼l曰l 今 (whHe music is playiog) lot""""'oot coooectod ＠ 今 CB (while music is playing) Play Pause ＠ 今 � (while music is playing) Short press Previous song ＠ Short press Next song 今 (while m"'lc Is play们g) Long press Volume down @v Long press Volume up 今 Wlraless coaoectloa 5"盯仁二"'"' (With the machlae switched on, plug In the charge「to charge and the machine will automatically switch off) 瞿 Toque dos veces para alternar entre respuesta manual/automat,ca (cuando no es迨conectadoa ,nal•mbnco, lntercomumcador) ( LI 之 ra 呴 心） Contestar al Respuesta manual telefono "pulsaci6n corta" (Lla�traote) 8 Pulsaci6n larga 2 segundos 今 心) 今 Negarse a contestar al telefono Rellamada al ultimo numero ＠ Short press again to exit "Pulsaci6n corta" durante una llamada P「ensacorta Red light goes out when fully charged (Lia� 之 te ) 心） 今 (AJtei;fo,o) 今 (Hacocooanamada "'''""'"' ) 匾�-.... Modo cita a la espera de emparejamiento: La luz 1ndicadora azul parpadea superrapido 今 Toao de modo de c;ta Contestar al telefono 8 Cuelga el telefono 心 Cancelar una llamada Emparejamiento cor『ectoen modo de cita: El indicador luminoso azul esta siempre encendido (m,a如slam 今 Os,raas伯"''"")＠ (m,eotcas�lamOs,ra) CB Prensa corta Jugar Pausa Bot6n para bajar el volumen ＠ (m,eatra立，amOs,ca)� 今 (mientras suena la musical ( I nterfono no co ne ct ado) Pulsaci6n co rt a Pulsaci6n larga Canci6n anterior Bajar volumen rga en la m n olu 16 pu su 9 』 i 动 引 , U m 之 咡 al 阳 Im n rta “CIO eo an @ － i pu gu Si 8 01 3 d 吧 g b 呻 � 8 g g s o 尽 今 ol 伍} 盂 Im ） n e m lu产 \ ｀ 。 v q r b u s e d n ,0 t 。 B 今 Conexi6n inalAmbrica correcta 今 ＠ Vuelva a pulsar brevemente para sahr (Con la m•qu1na enoendida, conecte el ca屯ado,para 笠屯a,y la maquina se apaga咱autom台t归mente) La luz ro」a de carga s1empre La luz ro」a se apaga cuando es泊 es伯encendida completamente cargada ＿ 今 (Phantom light on by default) Long press to switch the light effect, switch to the last mode off (long press again to turn on the light effect) RGB Lighting E…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A9MI-P30 P30 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-12-1 Signature Date: 2025-12-1 Company Name: GLOCERTS TECHNOLOGY INC Shenzhen Yixi Technology Co., LTD FRN: 0036339737 0033155482 Contact Name: Huiying Fan Qisong Wang Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 Second Floor, Building B, Area A, Longquan Science Park, Dalang Huaxing Road, Longhua District, Shenzhen City, China Phone: (626) 588-8039 +86-13423817655 Email: [email protected] [email protected]

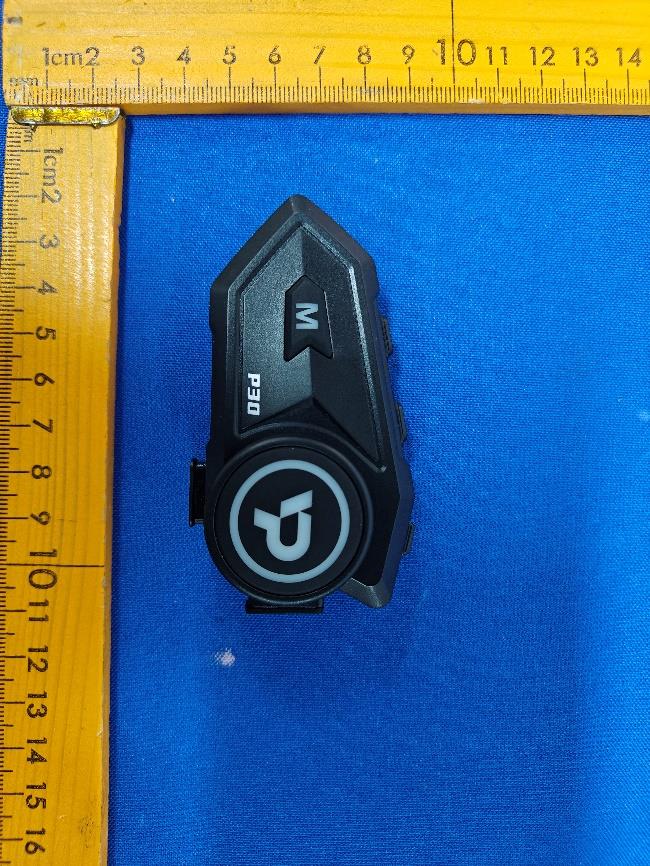

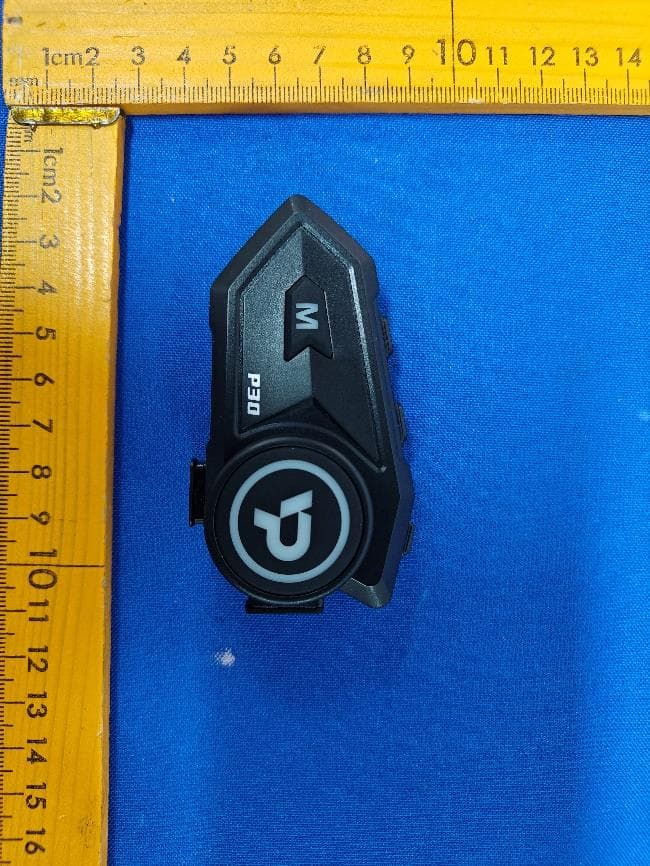

Page 1 of 3 FCC ID: 2A9MI-P30 External photos Page 2 of 3 FCC ID: 2A9MI-P30 Page 3 of 3 FCC ID: 2A9MI-P30

Label 1. The label is silk-screen on the sample FCC ID: 2A9MI-P30

Page 1 of 2 FCC ID: 2A9MI-P30 Internal photos ANT Page 2 of 2 FCC ID: 2A9MI-P30

Page 1 of 7 Report No.: AiTSZ-251125005FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : HELMET WIRELESS EARPHONE Brand Name : N/A Model : P30 Series Model : N/A FCC ID : 2A9MI-P30 Applicant : Shenzhen Yixi Technology Co., LTD Address : Second Floor, Building B, Area A, Longquan Science Park, Dalang Huaxing Road, Longhua District, Shenzhen City,China Manufacturer : Shenzhen Yixi Technology Co., LTD Address : Second Floor, Building B, Area A, Longquan Science Park, Dalang Huaxing Road, Longhua District, Shenzhen City,China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Nov.25, 2025 Date of Test : Nov.25, 2025~ Nov.27, 2025 Issued Date : Nov.27, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-251125005FW2 Report Revise Record Report Version Issued Date Notes M0 Nov.27, 2025 Initial Release Page 3 of 7 Report No.: AiTSZ-251125005FW2 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-251125005FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: HELMET WIRELESS EARPHONE Model/Type reference: P30 Serial Model: N/A Power Supply: Input: 5V/1A DC 3.7V 1000mAh 3.7Wh Rechargeable Li-ion battery Hardware Version: V1.1 Software Version: V1.5 Sample(s) Status: AiTSZ-251125005-1(Normal sample) AiTSZ-251125005-2(Engineer sample) Bluetooth: Supported type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: Chip antenna Antenna gain: 2.06dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 7 Report No.: AiTSZ-251125005FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration La…

Text truncated - open the document above for the full version.

Page 1 of 36 Report No.: AiTSZ-251125005FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : HELMET WIRELESS EARPHONE Brand Name : N/A Model : P30 Series Model : N/A FCC ID : 2A9MI-P30 Applicant : Shenzhen Yixi Technology Co., LTD Address : Second Floor, Building B, Area A, Longquan Science Park, Dalang Huaxing Road, Longhua District, Shenzhen City,China Manufacturer : Shenzhen Yixi Technology Co., LTD Address : Second Floor, Building B, Area A, Longquan Science Park, Dalang Huaxing Road, Longhua District, Shenzhen City,China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Nov.25, 2025 Date of Test : Nov.25, 2025~ Nov.27, 2025 Issued Date : Nov.27, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 36 Report No.: AiTSZ-251125005FW1 Report Revise Record Report Version Issued Date Notes M0 Nov.27, 2025 Initial Release Page 3 of 36 Report No.: AiTSZ-251125005FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3 MAXIMUM PEAK OUTPUT POWER................................................................................................................................. 21 3.4 20DB BANDWIDTH ..................................................................................................................................................... 22 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 23 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 24 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 25 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 26 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 27 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 29 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 30 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 31 5 PHOTOS OF E…

Text truncated - open the document above for the full version.

SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 1 深圳市飞敏科技有限公司 ShenZhen FeiMin Technology CO.,LTD. 产品承认书 SPECIFICATION FOR APPROVED 客户 CUSTOMER: 产品名称 PRODUCTS:321610—X6贴片天线 客户料号 PART NO: 产品型号 Spec.:X6 日期 Data:2021.12.14 备注：承认盖章后请回复一份承认书（或复印件）给我司，其余由贵公司存档 REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. 地址：深圳市宝安区西乡街道固戍社区恒南一路C栋厂房303室 ADD:Room 303,Building C,Hengnan one Road,Gushu community,Xixiang Street,Bao’an District,Shenzhen City 电话Tel: 0755-23035723传真Fax: 0755-23036702 邮箱E-mail: [email protected]网址HTTP: www.fmant.cn 客户 CUSTOMER 承认 ACCEPTED BY 审核 CHECKED BY 批准 APPROVED BY 供应商 SUPPLIER 拟制 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY 杨轩 夏兴喜马冬冬 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd2 2 1. 项目信息 Project Information 1.1.外观尺寸Appearance and Dimensions SymbolDimension (mm) L（长度） 3.2± 0.20 W（宽度） 1.6± 0.20 T（厚度） 1.0± 0.20 S（电极宽度） 0.4± 0.20 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd3 3 1.2.天线净空区面积antenna Clearance area 在设计天线时，应远离金属部件和不相关的部件，如电池、振荡器、防护罩、摄像头等，为天线留出 干净的空间。这个间隔简称为净空区。以下是我们建议预留的净空区面积大小。 When designing the antenna, it should be far away from metal components and irrelevant components such as batteries, oscillators, shields, cameras, etc. to leave a clean space for the antenna. This interval is called clearance area. The following is the size of clearance area we recommend to reserve. 天线型号（Model） 天线尺寸 （size） 净空区面积 Clearance area L*W(mm) A1（2.4G单极） 5.5*1.2*1.29.1*5.6 X5（2.4G单极） 5.2*2.2*1.08.7*6.5 X6（2.4G pifa） 3.2*1.6*1.07.0*6.0 D1（2.4G单极） 5.2*2.2*1.08.7*6.5 D2（2.4G单极） 5.2*2.2*1.08.7*6.5 D3（2.4G单极） 3.4*1.7*1.27.2*6.5 F01（2.4G pifa） 3.2*1.6*0.47.0*6.0 S2（2.4/5.8G双频） 7.0*3.0*2.09.0*7.0 U1(UHF单极） 15.0*3.0*1.019.0*8.0 G2（GPS单极） 8.5*3.0*1.013.5*7.5 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd4 4 1.3.天线Demo测试板DemoTest Board with Antenna(Unit:mm) 1.4.匹配电路Matching Circuit 使用以下推荐的匹配和调谐元件值，在我们的标准25*60 mm评估板上，中心频率约为2440mhz。然 而，这些是典型的参考值，当电路板或零件供应商不同时，可能需要更改 。 With the following recommended values of matching and tuning components,the center frequencies will be about 2440 MHz at our standard 25*60 mm evaluation board.However,these are typical reference values which may need to be changed when circuit boards or part vendors are diffierent. 3 4 21 系统匹配电路元件(村田) System Matching Circuit Component（Murata） LocationDesciptionTolerance 10.75pF (0402) ±0.1pF 2NC/ 31.0pF (0402) ±0.1pF 4NC/ SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd5 5 2. 电特性 Electrical Characteristics(25*60mm ground plane) 2.1.电子表格Electrical Table 特征Characteristics规范Specifications单位Unit 轮廓尺寸Outline Dimensions 3.2*1.6*1.0mm 工作频率Working Frequency 2400-2500MHz 电压驻波比VSWR <2/ 阻抗Impedance 50 Ω 极化Polarization线极化 / 增益Gain 峰值Peak 2dBi 效率Efficiency 50% 2.2.电压驻波比与Smith圆图VSWR& Smith VSWRS11 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd6 6 2.3.天线增益与效率GainandEfficiency 测试系统Testsystem Frequency (MHz)Gain (dBi)Efficiency (%) 2400 MHz 1.4350.15 2410 MHz 1.3850.78 2420 MHz 1.4950.49 2430 MHz 1.3450.43 2440 MHz 1.3050.04 2450 MHz 1.5752.50 2460 MHz 1.7656.12 2470 MHz 1.8957.29 2480 MHz 2.0558.23 2490 MHz 2.0655.99 2500 MHz 2.0653.66 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd7 7 2.4.天线辐射方向图Antenna radiation pattern [email protected] XOY @2.44GHz 2D-plane [email protected] YOZ @2.44GHz SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd8 8 3. 包装信息 Packaging Information 3.1.胶带规范Tape specification 指数Index A0B0K0P0PP2 φD0 WEFT 尺寸 Dimension( mm) 1.85 ±0.1 3.50 ±0.1 1.30 ±0.1 4.00 ±0.1 4.00 ±0.1 2.00 ±0.1 1.50 +0.1 12.00 ±0.3 1.75 ±0.1 3.20 ±0.1 0.30 ±0.05 1.10链轮孔距累积公差±0.20。10 sprocket hole pitch cumulative tolerance ±0.20. 2.在250毫米中，载体的拱度在1毫米以内。Carrier camber is within 1 mm in 250 mm. 3.所有尺寸符合EIA-481-C要求。All dimensions meet EIA-481-C requirements. 4.材料:透明PS。Material :Transparent PS. 5.包装长度每7“卷:12.5米。Packing length per 7" reel :12.5Meters. 6.组件加载/ 7”卷:3000个。Component load per 7" reel : 3000 pcs.(前后共预留120pcs) 3.2.卷规范Reel specification IndexABCD Dimension(mm)13.3±0.3100±0.3330±0.324.5±0.3 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd9 9 4. 注意事项 Notes 1)产品应小心处理，以避免汗水和皮肤油脂损坏或污染。 Products should be handled with care to avoid damage or contamination from perspiration and skin oils. 2)对于单个部件，强烈建议使用镊子或真空拾取。 The use of tweezers or vacuum pick up is strongly recommended for individual components. 5. 储存条件 Storage Conditions 1)推荐产品从交货之日起6个月内使用。 Recommended products should be used within 6 months form the time of delivery. 2)存储环境条件 Storage environment condition 温湿度条件:-10~40°C，30~70%RH。 Temperature and humidity conditions:-10~40°Cand 30~70%RH. 包装材料应保存在空气中不含氯或硫的地方。 The packaging material should be kept where no chlorine or sulfur exists in the air. 产品应储存在仓库内，无热震、振动、阳光直射等。 Products should be storage in thewarehouse without heat shock,vibration,direct sunlight and so on.

Page 1 of 55 Report No.: AiTSZ-251125005FW1 Appendix RF test data for BT Page 2 of 55 Report No.: AiTSZ-251125005FW1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.873 / Pass 2441 DH5 1 0.884 / Pass 2480 DH5 1 0.882 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.174 / Pass 2441 2DH5 1 1.169 / Pass 2480 2DH5 1 1.177 / Pass 8DPSK SISO 2402 3DH5 1 1.176 / Pass 2441 3DH5 1 1.181 / Pass 2480 3DH5 1 1.185 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.963 / Pass 2441 DH5 1 0.960 / Pass 2480 DH5 1 0.953 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.287 / Pass 2441 2DH5 1 1.286 / Pass 2480 2DH5 1 1.289 / Pass 8DPSK SISO 2402 3DH5 1 1.313 / Pass 2441 3DH5 1 1.307 / Pass 2480 3DH5 1 1.307 / Pass Page 3 of 55 Report No.: AiTSZ-251125005FW1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 4 of 55 Report No.: AiTSZ-251125005FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 5 of 55 Report No.: AiTSZ-251125005FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 6 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 7 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 8 of 55 Report No.: AiTSZ-251125005FW1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 9 of 55 Report No.: AiTSZ-251125005FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 10 of 55 Report No.: AiTSZ-251125005FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 11 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 12 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 13 of 55 Report No.: AiTSZ-251125005FW1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 1.93 <=20.97 Pass 2441 DH5 2.17 <=20.97 Pass 2480 DH5 1.74 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 2.80 <=20.97 Pass 2441 2DH5 3.03 <=20.97 Pass 2480 2DH5 2.64 <=20.97 Pass 8DPSK SISO 2402 3DH5 3.09 <=20.97 Pass 2441 3DH5 3.38 <=20.97 Pass 2480 3DH5 3.02 <=20.97 Pass Note1: Antenna Gain: Ant1: 2.06dBi; Page 14 of 55 Report No.: AiTSZ-251125005FW1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 15 of 55 Report No.: AiTSZ-251125005FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 16 of 55 Report No.: AiTSZ-251125005FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 17 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 18 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 19 of 55 Report No.: AiTSZ-251125005FW1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.992 0.963 >=0.963 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.289 >=0.859 Pass 8DPSK SISO HOPP 3DH5 1.001 1.313 >=0.875 Pass Page 20 of 55 Report No.: AiTSZ-251125005FW1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 21 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 22 of 55 Report No.: AiTSZ-251125005FW1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 23 of 55 Report No.: AiTSZ-251125005FW1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 24 of 55 Report No.: AiTSZ-251125005FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 25 of 55 Report No.: AiTSZ-251125005FW1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.390 31.600 320 124.800 <=400 Pass DH3 1.648 31.600 159 262.032 <=400 Pass DH5 2.896 31.600 101 292.496 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 320 126.720 <=400 Pass 2DH3 1.654 31.600 146 241.484 <=400 Pass 2DH5 2.902 31.600 98 284.396 <=400 Pass 8DPSK SISO HOPP 3DH1 0.396 31.600 319 126.324 <=400 Pass 3DH3 1.648 31.600 160 263.680 <=400 Pass 3DH5 2.902 31.600 112 325.024 <=400 Pass Page 26 of 55 Report No.: AiTSZ-251125005FW1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 27 of 55 Report No.: AiTSZ-251125005FW1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 28 of 55 Report No.: AiTSZ-251125005FW1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 29 of 55 Report No.: AiTSZ-251125005FW1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant…
