2A9MY-709196Wirless Charging Clock

Instruction Manual Product Parameters: Power supply: DC 5V---2A, AC100-240V 50/60HZ In order to ensure the charging speed and the stability of product function, the product needs to use USB cable with 2A electric current+ DC5V/2A power adapter Power: 5W Charging distance: 2-10mm (the closer distance between the mobile phone and the product, the faster charging) Charging time: about one hour more compare with plug-in charging. Usage : When the clock is plugged in, put the phone on the top of the clock, the phone can be charged. Functions: 1. Display mode: There are two display modes, press the button “SET”, you could change the mode of display; Dp-1: time, temperature and year, month and day display would change orderly(Carousel mode) Dp-2: only time, temperature display (Fixed mode) 2. Voice Mode Mode (power-saving mode): Press the button “DOWN”, on: Sd”←→”--:Sd”; “on:Sd” means sound control in on; “--:SD” means sound control is off. It will automatically close the voice mode in seconds; Display will be woke up when the sound is louder than 60 decibels or flapping the clock. If close the voice control mode, constant light function will be opened. 3. Temperature Mode Setting: Press the button of “UP”, you could change the Temperature Mode between °C and °F 4. Brightness Setting: Press the button of “UP” for 3 seconds, you could enter into the mode of brightness, then you could change the brightness through pressing the button of “UP”(more bright) and pressing the button of “DOWN”(less bright). L1: Bright L2: Less Bright L3: Weakest brightness 5. Power supply: to use2A USB cable supply power directly or + DC5V/2A power adapter It must use plugged-in power supply when charging the phone. (The clock with built-in cell battery, it will automatically remember the time when the power is off, we don’t need to reset the time); 6. Alarm Setting: User can set 3 alarm time every day, alarm lasting 1 minute, the sound is: beep beep beep, can press any key on the back of clock to stop the alarm; SETTING INSTRUCTION Press the button “SET” (While the numbers flashing), you would enter into the setting mode. And the setting order are as follows: 1. Setting of Date When entering the set mode, the letter flashing setting order “Year” “Month” “Day”, press button “UP” or “DOWN” to change the number. 2. 12H/24H Setting After finishing the setting of date, you would enter into the 12H/24H Setting mode while you press “SET”, and also you could change the 12H/24H through pressing the “UP” and “DOWN”. At the 12H Setting mode, PM lights on. 3. Time Setting After finishing the date setting mode, you could enter into the time mode setting while you need to press “SET” and then you could adjust the time through pressing “UP” and “DOWN”. 4. Alarm Setting After finishing the time mode setting, you could enter into the alarm setting while you need to continue press “SET”, and then you could adjust the time through pressing “UP” and “DOWN”. Press “UP” and “DOWN” can adjust upward or downward to open on A1/Close -: A1.When the letter “on :A1” appears ,you could press “SET” and enter into A1 Alarm clock Setting(you could set 3 Alarm clock A1/A2/A3 ).Then the letter of time “--”flashing, you continue to press “UP” and “DOWN” to set alarm . You could continue set the Alarm clock A2/A3 follow the step 1 and step 2. 5.Alarm Setting For Work Day After finishing the alarm setting, Press the key “SET”. Then you could press “UP” and “DOWN” to change the status of on/off workday alarm.(on: E means on; --:E means off.) 12H PM Turn off Alarm Turn on Alarm 1 Turn off Alarm 3 Turn on voice control Turn off voice control Turn on workday alarm Turn off workday alarm  SET  UP  DOWN  RESET  DC5V Tips:  When the function is abnormal or the display is abnormal (such as nothing happened in the screen when the power is plugged in or the battery is installed), press the RESET button on the back of the product, reactivate.  If the mobile phone without wireless charging receptor function, you need to equip the wireless charging receptor based on the mobile phone model. Please following below steps: Step 1: The receptor is plugged into the charging port. Step 2: Fixed the receptor on the back of the phone. Step 3: Charging the clock Part 4: Put the phone on the top of clock (the receptor is aligned with the clock transmitter), the phone is charging. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled e…

Text truncated - open the document above for the full version.

Hitech Industrial Co., Ltd Agent Authorization Company: Hitech Industrial Co., Ltd Address: 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Product Name: Wirless Charging Clock Trade Mark: N/A Model Number(s): 709196, HT-WAC01 FCC ID: 2A9MY-709196 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-12-08 Name: Jennifer Liu Title: Sales manager Company: Hitech Industrial Co., Ltd

Hitech Industrial Co., Ltd To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, Hitech Industrial Co., Ltd Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: Wirless Charging Clock Trade Mark: N/A Model No.: 709196, HT-WAC01 Signature: Date: 2022-12-08 Name: Jennifer Liu Title: Sales manager Company: Hitech Industrial Co., Ltd

Hitech Industrial Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-12-08 Subject; Request for Confidentiality FCC ID: 2A9MY-709196 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jennifer Liu Title: Sales manager

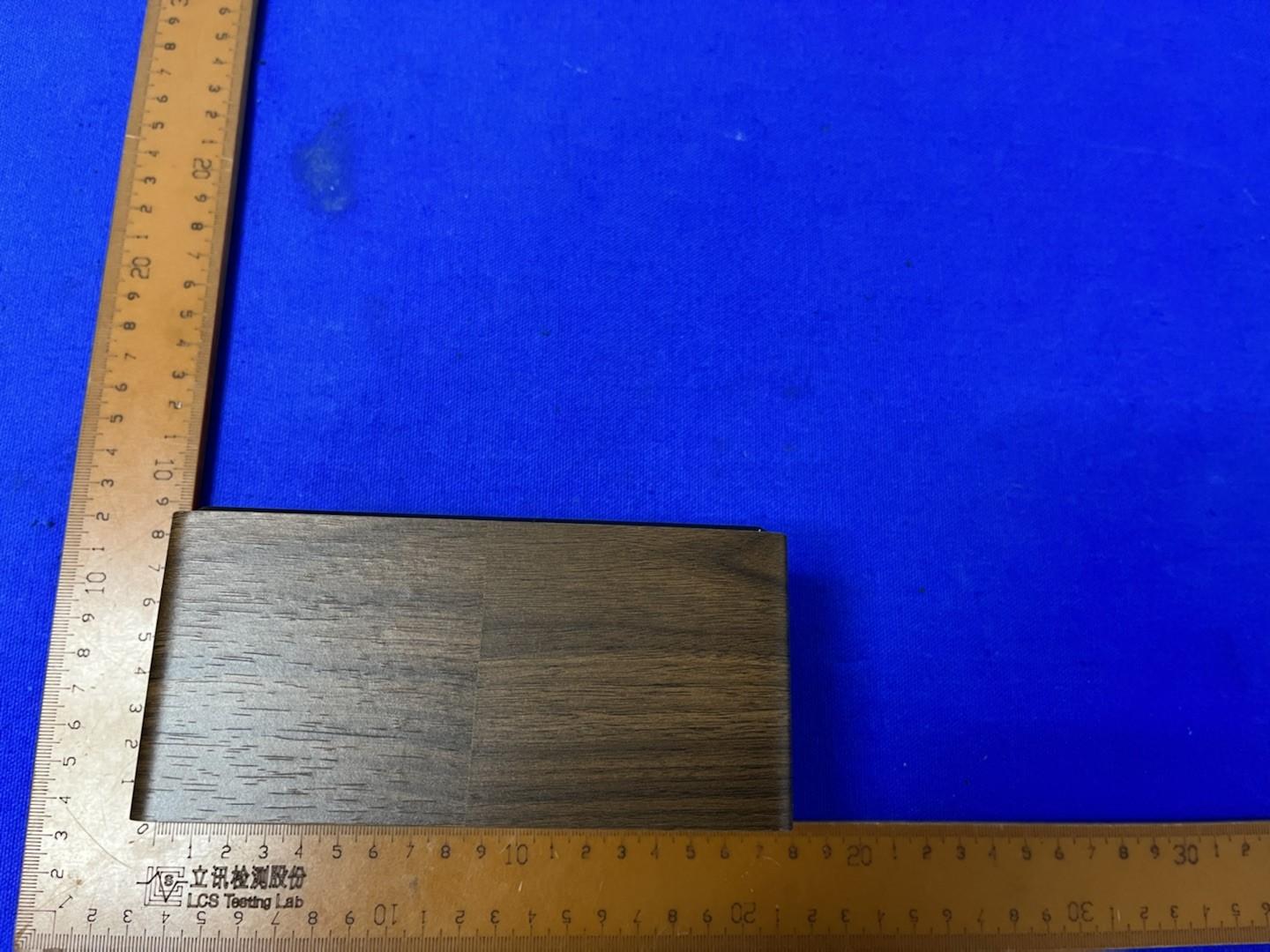

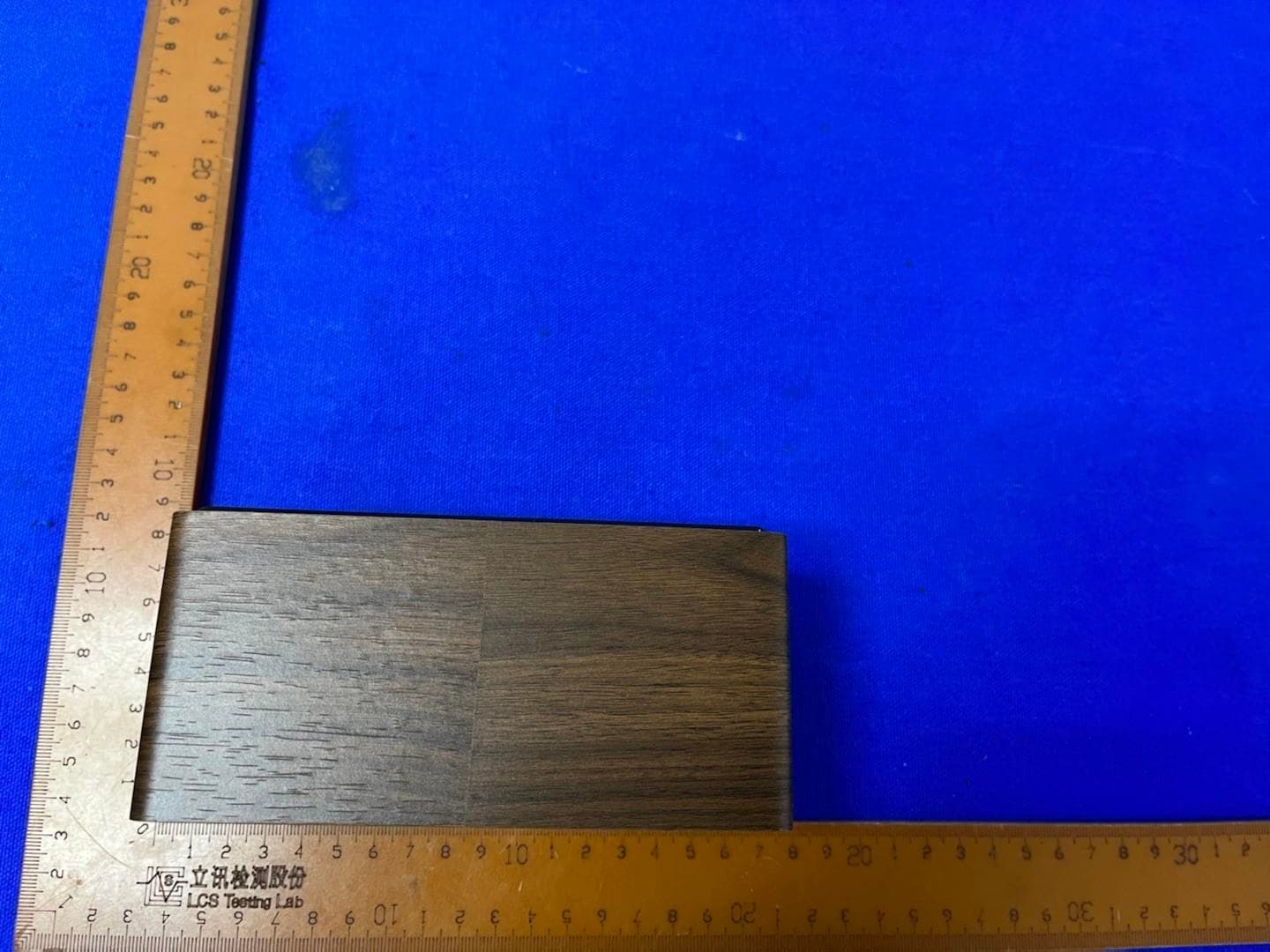

Page 1 of 4 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7

Page 1 of 1 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L: 4.0cm x W: 3.0cm) Label Location Wirless Charging Clock Model: 709196 FCC ID: 2A9MY-709196

Page 1 of 5 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Coil Antenna Page 3 of 5 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9

Page 1 of 10 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation Report 1. Product Information FCC ID: 2A9MY-709196 Product Name Wirless Charging Clock Model Number 709196 Power Supply Input: DC 5V, 1A, 5W Modulation Type ASK Frequency Range 111.0~205.0KHz Operation Frequency 125 KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for Page 2 of 10 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment Page 3 of 10 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.…

Text truncated - open the document above for the full version.

SHENZHEN YINLONG TENFEI ELECTRONICS CO.LED Client SHENZ YUEXIN ELECTRONICS NO EL.X.XQ00000009 Model NO Wireless charging coil 50 -6.5UH material number Client p/NO 003 Date 2022-12-8 Prepared Checked Approved CUSTOMER CONFIRMATION ENGINEER QC THE DATE OUR ENGINEER/For REVISE CONTENT/ THE DATE/ SHENZHEN YINLONG TENFEI ELECTRONICS CO.LED 一、 WINDING NO 1 WAG TURNS DIRECTION WINDING REMARK 1 N1 2UEW-B-0.08*105P 12TS CCW 2 二． FEATURES: 1.（Test conditions）：25°C,65%RH@1KHz/0.3V 1.1 （Inductance） 1.11 L0A=6.5uH±20% 1.12 L0A=6.5uH±10% 1.2 Q =70MIN 1.3 （DCR）：55mΩ MAX 1.4 (Operating Temperature)：-25°C~85°C 2. (Test instrument)：L:WEIRI 102;DCR:TH2811D;SIZE:Callipers 3.MATERIAL LIST NO PROJECT MATERIAL 1 WIRE ￠0.08*105p 2UEW-1.2mm 2 FERRITE 50*0.56*1.0MM DOUBLE-SLOT FERRITE HARD MAGNET 3 GLUE WHITE 4 SOLDER XCD-907B 5 Adhesive WHITE 6 High temperature adhesive 6MM 7 8 SHENZHEN YINLONG TENFEI ELECTRONICS CO.LED 三． CIRCUIT DIAGRAM UNIT： MM 四．OUTSIDE DIAGRA REMARK：THE COIL FOOT LENGTH CAN BU CUSTOMIZEDFOR CUSTOMER,THE COVER 6MM HIGH TEMPERATURE TAPE AT THE COIL OUTLET STA NDA RD A B C D E F I T STD 43.5 20.5 5.0± 0.5 FOR CUSTOM ER 2-3 41±1.2 0.8±0.1 2.0Max UNIT： MM SHENZHEN YINLONG TENFEI ELECTRONICS CO.LED 五．PACKAGE THE PACKING CAN BU CUSTOMIZED FOR CUSTOMER ,THANKS A LOT. . 1440 SHENZHEN YINLONG TENFEI ELECTRONICS CO.LED 六、Storage and Use condition 6.1 Storage condition 6.1.1 Recommended keeping conditions: -25°C ~85°C, 70%RH (Max.) 6.1.2 Storage life : Within the limits of six months from being produced. 6.2 Use condition Use condition limit: T=-25°C~85°C, RH≤ 90%.

Page 1 of 23 FCC ID: 2A9MY-709196 Report No.: LCSA120122122EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Hitech Industrial Co., Ltd Wirless Charging Clock Test Model: 709196 Additional Model No.: HT-WAC01 Prepared for : Hitech Industrial Co., Ltd Address : 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 01, 2022 Number of tested samples : 2 Sample No. : A120122122-1, A120122122-2 Serial number : Prototype Date of Test : December 01, 2022 ~ December 05, 2022 Date of Report : December 05, 2022 Page 2 of 23 FCC ID: 2A9MY-709196 Report No.: LCSA120122122EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15C Report Reference No. ................ : LCSA120122122EA Date Of Issue ................................. : December 05, 2022 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Hitech Industrial Co., Ltd Address .......................................... : 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15C Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Wirless Charging Clock Trade Mark ..................................... : N/A Test Model ...................................... : 709196 Power Supply ................................. : Input: DC 5V, 1A, 5W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 23 FCC ID: 2A9MY-709196 Report No.: LCSA120122122EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA120122122EA December 05, 2022 Date of issue Test Model.............................. : 709196 EUT......................................... : Wirless Charging Clock Applicant............................... : Hitech Industrial Co., Ltd Address.................................. : 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Hitech Industrial Co., Ltd Address................................... : 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Hitech Industrial Co., Ltd Address................................... : 6/F, 15th Building, 4th Industrial Zone, Yulv Community, Gongming, Guangming New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Page 4 of 23 FCC ID: 2A9MY-709196 Report No.: LCSA120122122EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 December 05, 2022 Initial Issue --- Page 5 of 23 FCC ID: 2A9MY-709196 Report No.: LCSA120122122EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: webma…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Radiated Emission below 30MHz Radiated Emission from 30MHz to 1GHz Page 2 of 2 FCC ID: 2A9MY-709196 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Conducted Emission
