2A9N4-C02Magnetic Wireless Charger

OANDYS Magnetic Wireless Charger Package Contents 2x Magnetic Wireless Charger 2 x Type-C to USB adapter 1 x User Manual 1 x Customer Service Card How to Use 1. Plug the cable into a wall charger, and plug it into a wall outlet. 2.To start charging, simply place your phone on the stand using a MagSafe magnetic attachment. Instructions A.To use the wireless charging feature, please make sure you the smartphone is Qi-enabled or has Qi-Compatiblecover(available separately). B.Please note a quick charge power adapter is required for the fast wireless charging feature. C.To use MagSafe charging, please make sure your smart phone is MagSafe enabled or has a MagSafe accessory(such as a magnetic protective case). Attention A.To avoid product damage,please do not drop,knock or disassemble the charger or stand. B.Please do not use or store the magnetic wireless charger in a hot or humid environment as doing so may damage internal circuitry. C.Magnets may interfere with the magnetic charging of the product or cause product to malfunction;To avoid accidentally interfering with product functioning, please keep magnetic chip cards (e.g.ID cards,credit cards) or medical devices (e.g.pulse measuring device,hearing aid)at least 20cm away from the product. Customer service contact email: [email protected] If you have any dissatisfaction with the products and services, please feel free to contact our customer service. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

ShenZhen RuiYiDa Technology Co., Ltd (2022.12.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Magnetic Wireless Charger / C02/ FCC ID: 2A9N4-C02 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Yilong Wang Title: manager

ShenZhen RuiYiDa Technology Co., Ltd (2022.12.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Yilong Wang Title: manager

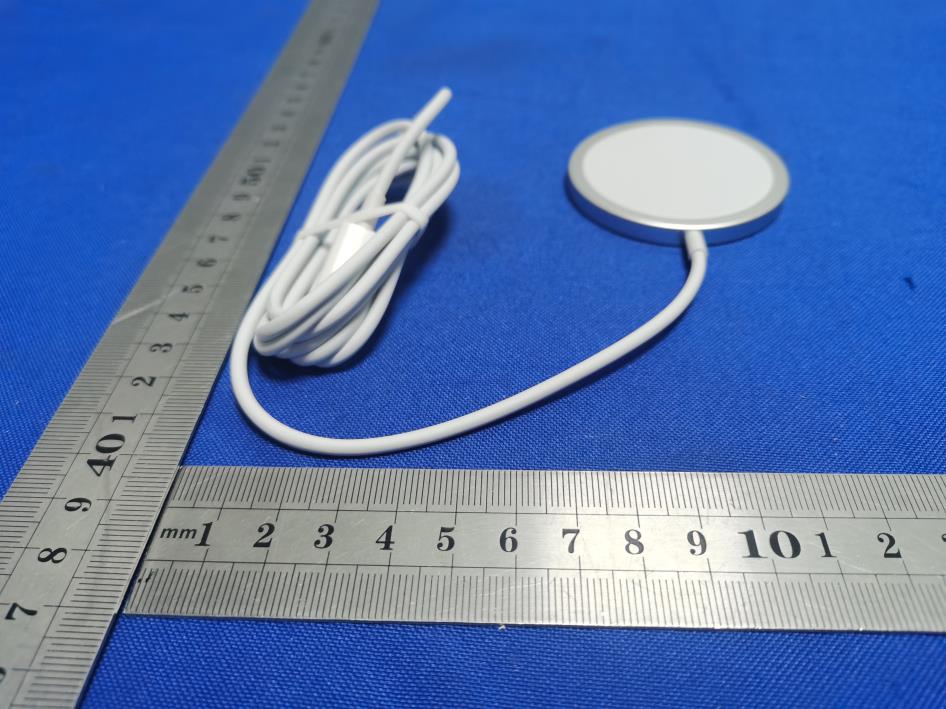

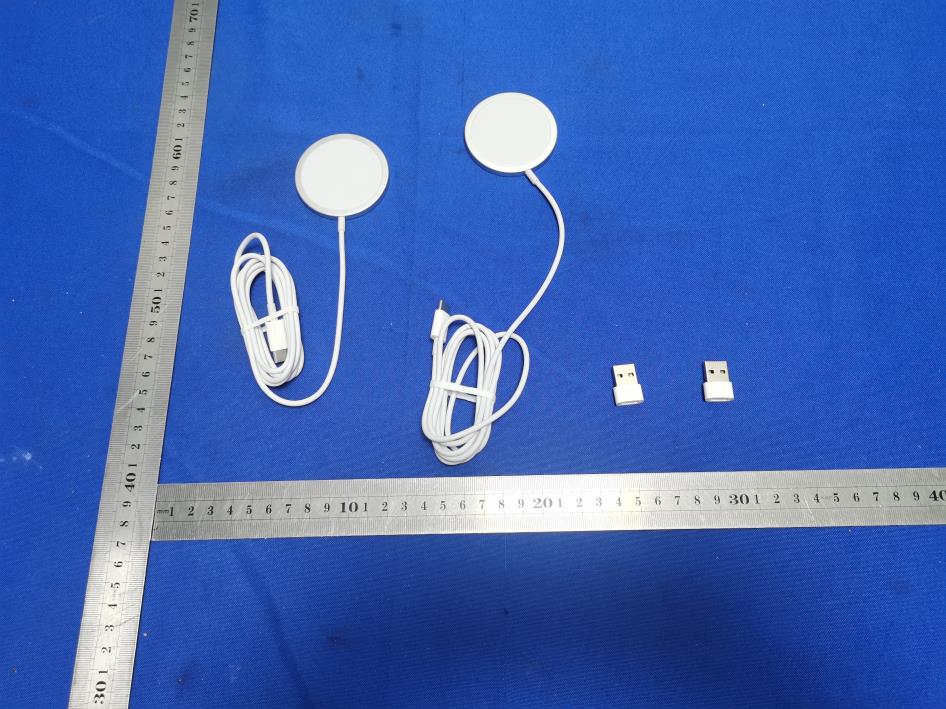

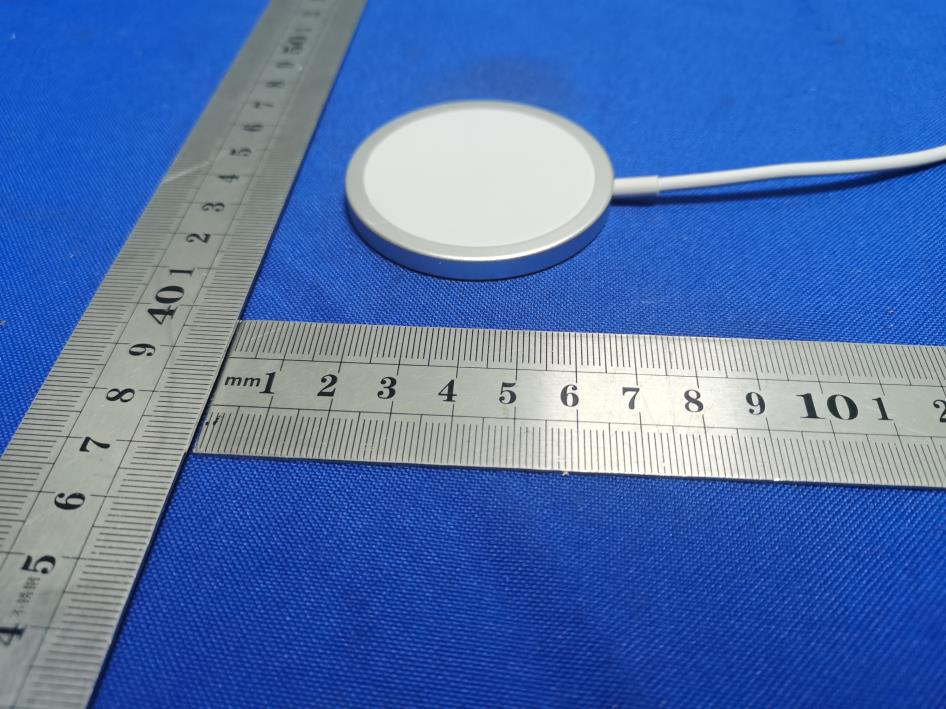

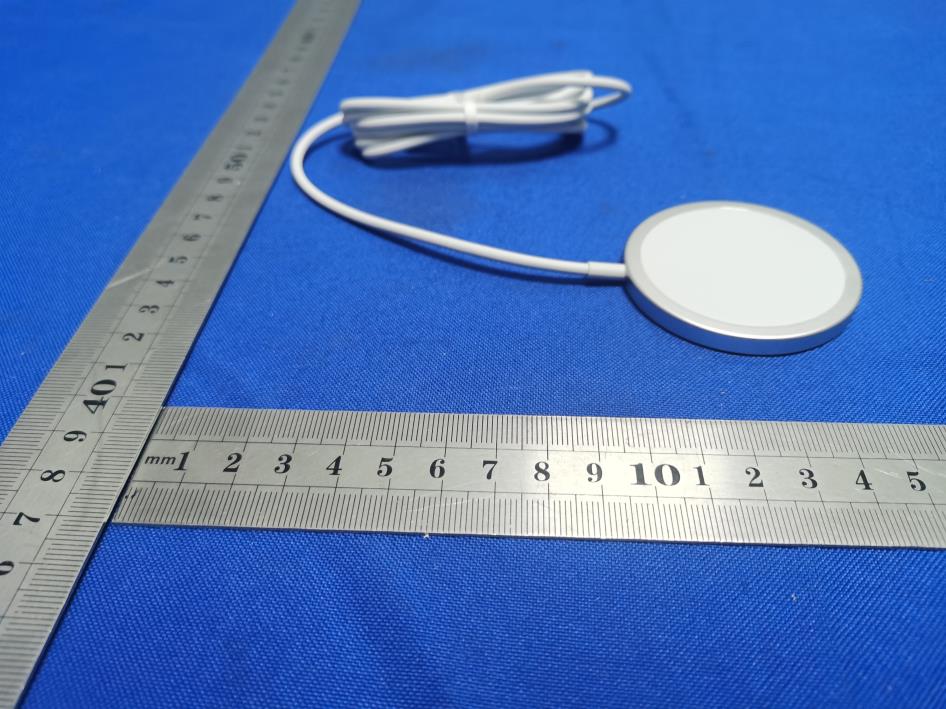

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model:C02 External Photos Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

Model: C02 FCC ID: 2A9N4-C02 Label Location

Model: C02 Internal Photos ANT

Antenna photo L W H 37mm±0.1 37mm±0.1 0.1mm±0.1

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page1 of 7 RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Magnetic Wireless Charger FCC ID: 2A9N4-C02 Trademark: OANDYS Model Number: C02 Prepared For: ShenZhen RuiYiDa Technology Co., Ltd Address: 1103, no.4, Baxiang, Wuhe Road, Wuhe community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: ShenZhen RuiYiDa Technology Co., Ltd Address: 1103, no.4, Baxiang, Wuhe Road, Wuhe community, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Dec. 08, 2022 Sample tested Date: Dec. 08, 2022 to Dec. 12, 2022 Issue Date: Dec. 12, 2022 Report No.: CTB221212014RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310, 47 CFR§2.1091; KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Test Results PASS Remark: This is wireless charger EMF report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page2 of 7 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF TEST AND MEASUREMENT INSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page3 of 7 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 15W 1.2. Test Supporting System Adapter Description : Adapter Model No. : SDC-20W Power Input : AC100-240V 50/60Hz 0.8A Output: 5V 3.0A, 9V 2.25A, 12V 1.67A DC Line : Unshielded, Detachable 1.2m Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page4 of 7 2.LIST OF TEST AND MEASUREMENT INSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Serial No. Last calibration Calibrated until 1 EMF TESTER Wavecontrol SMP160 19SN0989 2021.08.20 2023.08.29 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page5 of 7 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: RF Exposure Wireless Charging Apps v 03r01. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106v03r01. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page6 of 7 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 V03R01 1) Power transfer frequency is less than 1MHz Yes, the device operate in the frequency range from 110KHz to 205KHz 2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of the primary coil is 15000mW. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling onlybetween individual pair of coils. Yes, the transfer system includes only single primary and secondary coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, the EUT is a Mobile Wireless Charger 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes, the EUT field strength levels are less 50% x MPE limit. 4.3. E and H field Strength Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221212014RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page7 of 7 E-Field Strength at 15 cm surr…
