2A9NN-5625sMart Lock

Commercial-In-Confidence © 2020 TDMN Pty Ltd All rights reserved Commercial-In-Confidence SD000975 SMART LOCK SPECIFICATION SMART LOCK SPECIFICATION FOR PUBLICATION Document No: SD000975 Revision: 1.00 Author: D.Ammendolia Date: 14 April 2020 Next Review Date: 24 April 2021 Copywrite © 2020 TDMN Pty Ltd All rights reserved ABN 92 630 519 121 Suite 19, 103 George street Parramatta, NSW 2150 Email: [email protected] Phone: +61 2 9138 7994 Commercial-In-Confidence © 2020 TDMN Pty Ltd All rights reserved Commercial-In-Confidence SD000975 Title sMart Lock Specification for publication Document Control Document Title sMart Lock Specification for publication Document No. SD000975 Effective Date 9 April 2020 Issues/Rev. 1.00 Author/s D. Ammendolia Review Date 16 April 2020 Approver D. Ammendolia Document History Revision Description of Changes Date Revised Approved 1.00 Initial Release 09-Apr-2020 DA DA Note: TDMN at its sole discretion, may change, delete, suspend to discontinue parts if the document in its entirety, at any time without prior notice. Commercial-In-Confidence © 2020 TDMN Pty Ltd All rights reserved Commercial-In-Confidence PD000144 sMart Lock Specification for publication The purpose of this document is to list sMart Lock specification for publication purposes to be used for commercial activities and advertising. POWER (3V) 2 AA Batteries BATTERY LIFE ~ 2 year WEIGHT 250 g SIZE 93 X 67 X 65 mm (L x W x H) COMPLIANCE CE, FCC, WEEE, RoHS2 OPERATING TEMP -10 ̊ to 50 ̊ C / 14° to 122°F STORAGE TEMP -20 ̊ to 60 ̊ C / -4° to 140°F INGRESS PROTECTION IP 66 RADIO RANGE ~ 1 km BLE Yes RFID / NFC Yes GPS Yes UV RESISTANT Yes COMPATIBLE DISTANCE BETWEEN TROLLEY HANDLES < 300 mm CHAIN STRENGTH 600 N This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. FCC Warning Statement:

TDMN Pty Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: TDMN Pty Ltd Address: Suite 19, 103 George Street, Parramatta 2150, Australia Product Name: sMart Lock™ FCC ID: 2A9NN-5625 Model(s): 5625 2.911(d)(5)(i) Equipment Type We, [TDMN Pty Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: August 27, 2026 Title and Company name: CEO / TDMN Pty Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the `

TDMN Pty Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: TDMN Pty Ltd Address: Suite 19, 103 George Street, Parramatta 2150, Australia Product Name: sMart Lock™ FCC ID: 2A9NN-5625 Model(s): 5625 2.911(d)(5)(ii) Applicant filing We, [TDMN Pty Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date:August 27, 2026 Title and Company name: CEO / TDMN Pty Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

TDMN Pty Ltd Letter of Authorization Company: TDMN Pty Ltd Address: Suite 19, 103 George Street, Parramatta 2150, Australia Product Name: sMart Lock™ Model Number(s): 5625 Product Description: sMart Lock™ FCC ID: 2A9NN-5625 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: August 27, 2026 Name: Domenico Ammendolia Title: CEO Company: TDMN Pty Ltd

TDMN Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 25, 2026 Subject; Request for Confidentiality FCC ID: 2A9NN-5625 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Domenico Ammendolia Title: CEO

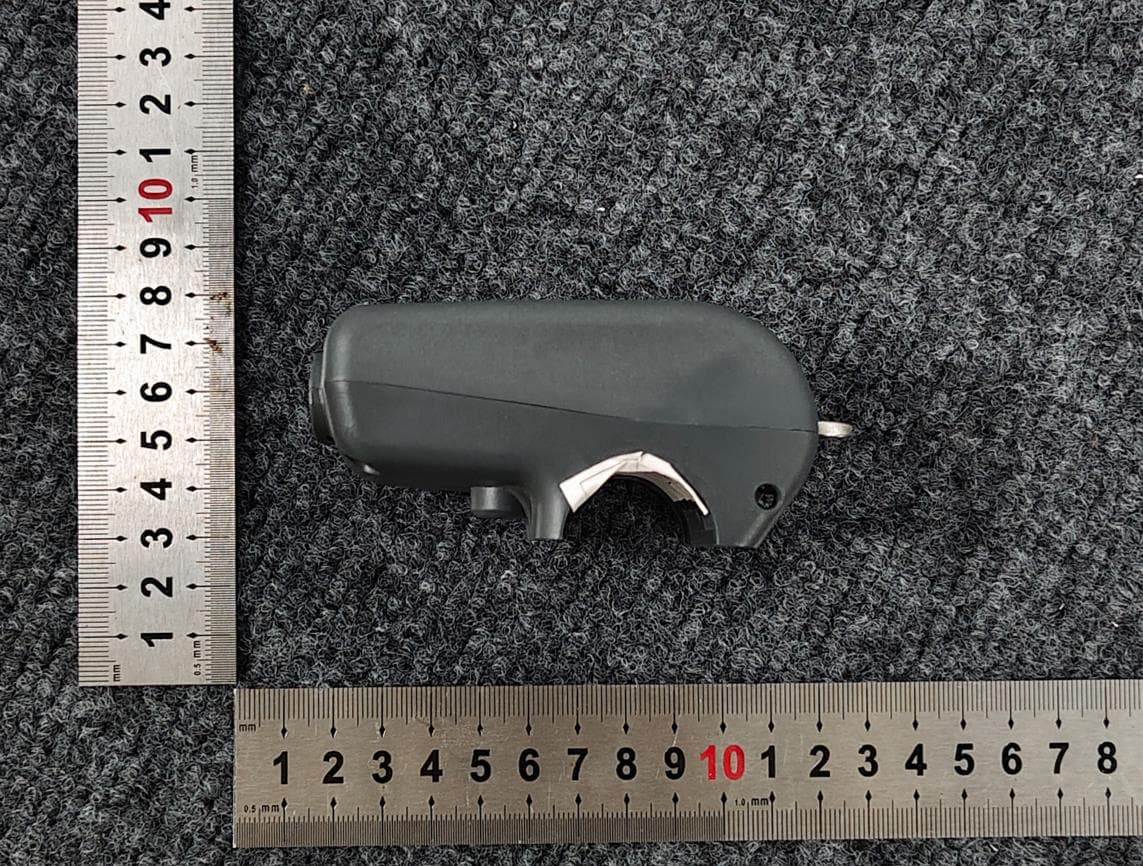

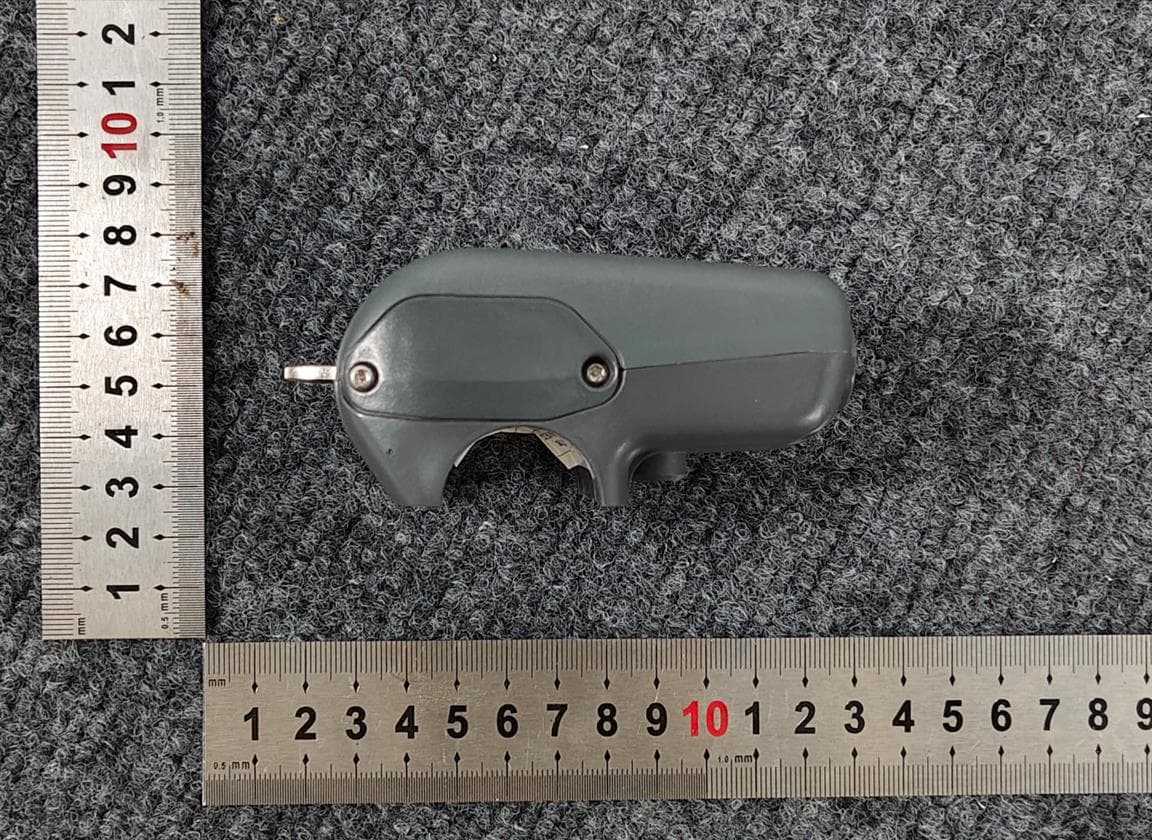

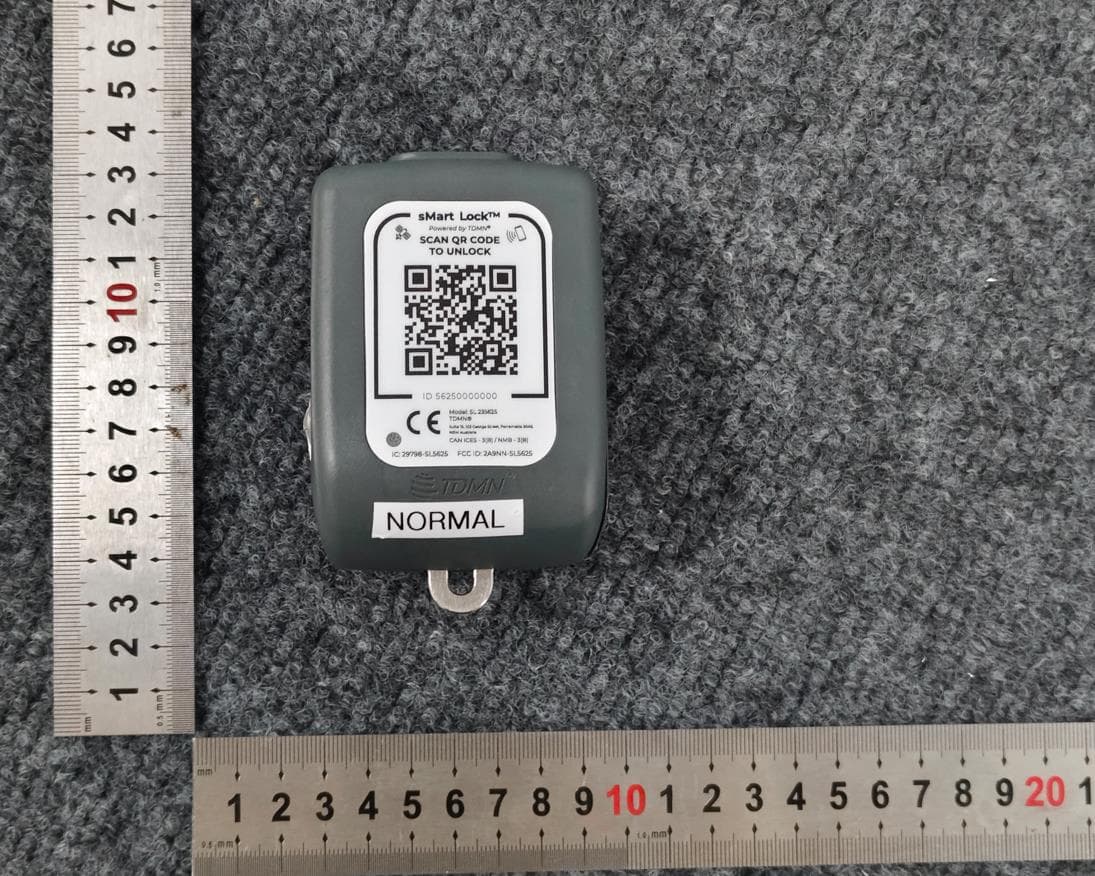

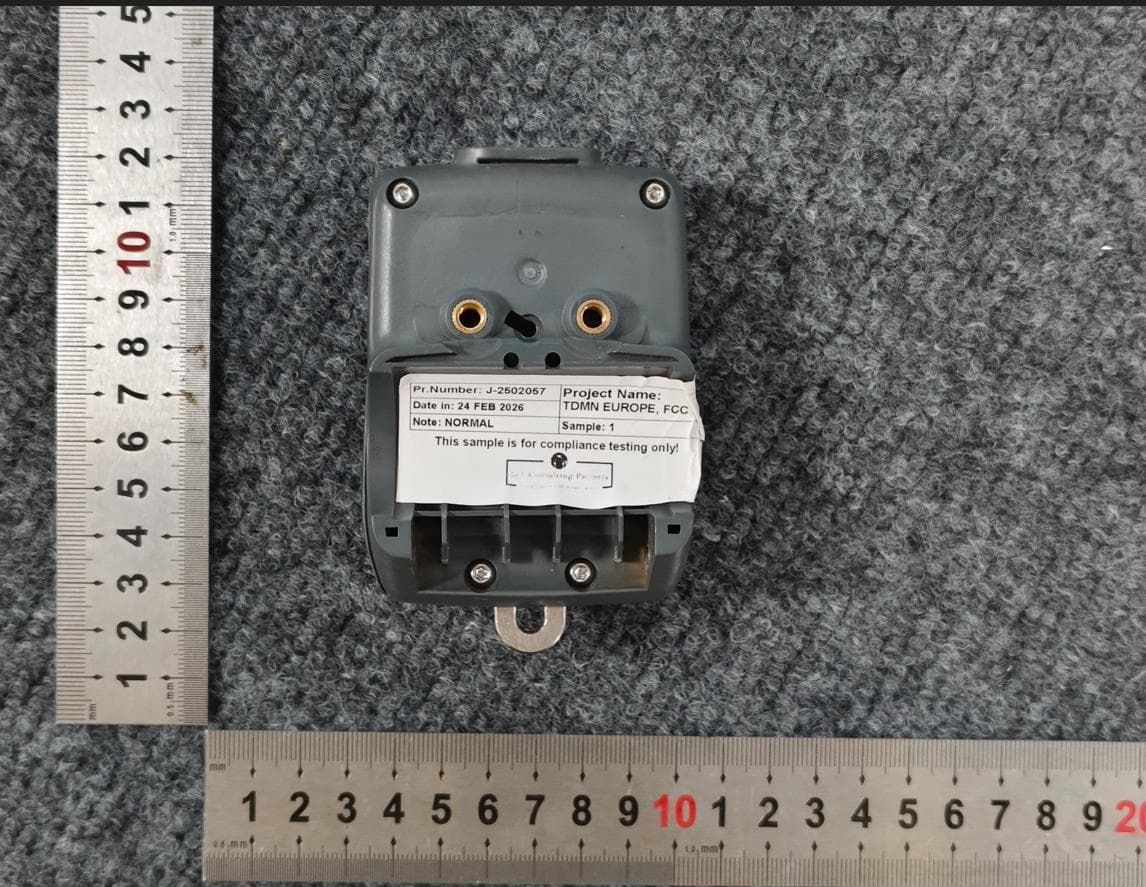

Page 1 of 3 Report No.: psi2604016-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2A9NN-5625 Page 2 of 3 Report No.: psi2604016-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 3 Report No.: psi2604016-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 57 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2A9NN-5625 On Behalf of TDMN Pty Ltd sMart Lock™ Model No.: 5625 Prepared for : TDMN Pty Ltd Address : Suite 19, 103 George Street, Parramatta 2150, Australia Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2604016-C01-R01 Date of Receipt : April 8, 2026 Date of Test : April 8, 2026–April 27, 2026 Date of Report : April 27, 2026 Version Number : V0 Page 2 of 57 Report No.: psi2604016-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results----------------------------------------------------------------------- 6 1.1. Description of Standards and Results ---------------------------------------------------------------- 6 2. General Information --------------------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) ---------------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------- 8 2.3. Tested Supporting System Details -------------------------------------------------------------------- 8 2.4. Block Diagram of Connection Between EUT and Simulators ----------------------------------- 8 2.5. Test Mode Description ----------------------------------------------------------------------------------- 9 2.6. Software test version and power setting information --------------------------------------------- 9 2.7. Test Conditions ------------------------------------------------------------------------------------------ 10 2.8. Test Facility----------------------------------------------------------------------------------------------- 10 2.9. Measurement Uncertainty ---------------------------------------------------------------------------- 10 2.10. Test Equipment List ------------------------------------------------------------------------------------- 11 3. Spurious Emission -------------------------------------------------------------------------------------------- 12 3.1. Test Limits ------------------------------------------------------------------------------------------------ 12 3.2. Block Diagram of Test setup ------------------------------------------------------------------------- 13 3.3. Test Procedure ------------------------------------------------------------------------------------------ 15 3.4. Test Results ---------------------------------------------------------------------------------------------- 16 4. Power Line Conducted Emission ------------------------------------------------------------------------- 22 4.1. Test Limits ------------------------------------------------------------------------------------------------ 22 4.2. Test Procedure ------------------------------------------------------------------------------------------ 22 4.3. Test Setup ------------------------------------------------------------------------------------------------ 22 4.4. Test Results ---------------------------------------------------------------------------------------------- 23 5. Out-of-band Emissions -------------------------------------------------------------------------------------- 24 5.1. Test Limits ------------------------------------------------------------------------------------------------ 24 5.2. Test Procedure ------------------------------------------------------------------------------------------ 24 5.3. Test Setup ------------------------------------------------------------------------------------------------ 24 5.4. Test Results ---------------------------------------------------------------------------------------------- 24 6. Conducted Maximum Output Power --------------------------------------------------------------------- 35 6.1. Test limits ------------------------------------------------------------------------------------------------- 35 6.2. Test Procedure ------------------------------------------------------------------------------------------ 35 6.3. Test Setup ------------------------------------------------------------------------------------------------ 35 6.4. Test Results ---------------------------------------------------------------------------------------------- 35 7. Peak Power Spectral Density ------------------------------------------------------------------------------ 42 7.1. Test limits ------------------------------------------------------------------------------------------------- 42 7.2. Test Procedure ------------------------------------------------------------------------------------------ 42 7.3. Test Setup ------------------------------------------------------------------------------------------------ 42 7.4. Test Results ---------------------------------------------------------------------------------------------- 42 8. Occupied Bandwidth------------------------------------------------------------------------------------------ 46 8.1. Test limits ------------------------------------------------------------------------------------------------- 46 8.2. Test Procedure ------------------------------------------------------------------------------------------ 46 8.3. Test Setup ------------------------------------------------------------------------------------------------ 46 8.4. Test Results ---------------------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 41 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2A9NN-5625 On Behalf of TDMN Pty Ltd sMart Lock™ Model No.: 5625 Prepared for : TDMN Pty Ltd Address : Suite 19, 103 George Street, Parramatta 2150, Australia Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2604016-C01-R02 Date of Receipt : April 8, 2026 Date of Test : April 8, 2026–April 27, 2026 Date of Report : April 27, 2026 Version Number : V0 Page 2 of 41 Report No.: psi2604016-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye W est Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results--------------------------------------------------------------------------- 5 1.1. Description of Standards and Results -------------------------------------------------------------------- 5 2. General Information ------------------------------------------------------------------------------------------------- 6 2.1. Description of Device (EUT) -------------------------------------------------------------------------------- 6 2.2. Accessories of Device (EUT) ------------------------------------------------------------------------------ 7 2.3. Tested Supporting System Details ------------------------------------------------------------------------ 7 2.4. Block Diagram of Connection Between EUT and Simulators --------------------------------------- 7 2.5. Test Mode Description --------------------------------------------------------------------------------------- 8 2.6. Software test version and power setting information ------------------------------------------------- 8 2.7. Test Conditions ------------------------------------------------------------------------------------------------ 9 2.8. Test Facility----------------------------------------------------------------------------------------------------- 9 2.9. Measurement Uncertainty ---------------------------------------------------------------------------------- 9 2.10. Test Equipment List ---------------------------------------------------------------------------------------- 10 3. Spurious Emission ------------------------------------------------------------------------------------------------ 11 3.1. Test Limits ---------------------------------------------------------------------------------------------------- 11 3.2. Block Diagram of Test setup ----------------------------------------------------------------------------- 12 3.3. Test Procedure ---------------------------------------------------------------------------------------------- 13 3.4. Test Results -------------------------------------------------------------------------------------------------- 14 4. Power Line Conducted Emission ----------------------------------------------------------------------------- 19 4.1. Test Limits ---------------------------------------------------------------------------------------------------- 19 4.2. Test Procedure ---------------------------------------------------------------------------------------------- 19 4.3. Test Setup ---------------------------------------------------------------------------------------------------- 19 4.4. Test Results -------------------------------------------------------------------------------------------------- 20 5. Out-of-band Emissions ------------------------------------------------------------------------------------------ 21 5.1. Test Limits ---------------------------------------------------------------------------------------------------- 21 5.2. Test Procedure ---------------------------------------------------------------------------------------------- 21 5.3. Test Setup ---------------------------------------------------------------------------------------------------- 21 5.4. Test Results -------------------------------------------------------------------------------------------------- 21 6. Conducted Maximum Output Power ------------------------------------------------------------------------- 27 6.1. Test limits ----------------------------------------------------------------------------------------------------- 27 6.2. Test Procedure ---------------------------------------------------------------------------------------------- 27 6.3. Test Setup ---------------------------------------------------------------------------------------------------- 27 6.4. Test Results -------------------------------------------------------------------------------------------------- 27 7. Peak Power Spectral Density ---------------------------------------------------------------------------------- 32 7.1. Test limits ----------------------------------------------------------------------------------------------------- 32 7.2. Test Procedure ---------------------------------------------------------------------------------------------- 32 7.3. Test Setup ---------------------------------------------------------------------------------------------------- 32 7.4. Test Results -------------------------------------------------------------------------------------------------- 32 8. Occupied Bandwidth---------------------------------------------------------------------------------------------- 35 8.1. Test limits ----------------------------------------------------------------------------------------------------- 35 8.2. Test Procedure ---------------------------------------------------------------------------------------------- 35 8.3. Test Setup --------------------------------------------…

Text truncated - open the document above for the full version.

HighFrequencyCeramicSolutions P/N2450AT18B100 Page1of5 Letushelpyouwiththeantennadesign,optimization,andtuning! GeneralSpecifications PartNumber 2450AT18B100 Frequency(MHz)2400-2500 Avg.RadEfficiency*76% PeakGain(dBityp.) 0.5 AverageGain(dBityp.) -0.5 StorageTemperature -45to+125°C OperatingTemperature-45to+125°C ReturnLoss(dB)9.5min. RecommendedStorage Conditionsofunused productonT&Randperiod. +5to+35°C Humidity45~75%RH 18monthsmax. Impedance 50Ω InputPower 2Wattsmax.(CW) ReelQuantity 3000pcs *EfficiencybasedonJohanson'sstandardevaluationboard PartNumberExplanation P/NSuffix PackingStyle Bulk(loose) Suffix=Se.g.2450AT18B100S T&R Suffix=E e.g.2450AT18B100E 100%Tin Suffix=EorSe.g.2450AT18B100(EorS) EvaluationBoard 2450AT18B100-EB1SMA(seepage2&3fordetails) MechanicalDimensions L In mm 0.126±0.0083.20±0.2 W 0.063±0.0081.60±0.2 T 0.051+.004/-.0081.30+0.1/-0.2 a 0.020±0.0080.50±0.2 W a — T L Wantthelayoutfile?Requestitat:https://www.johansontechnology.com/ask-a-question JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved TerminalConfiguration No.Function 1FEED 2NC ②① 2.4GHzMiniAntenna,SMT DetailSpecification:11/5/2018 JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved HighFrequencyCeramicSolutions P/N2450AT18B100 Page2of5 *Linewidthshouldbedesignedtoprovied50Ωimpedance Toorderapre_tuned50ΩEVBwithafemaleSMAconnectorclick here:https://www.johansontechnology.com/request_a_sample Referencep/n:2450AT18B100_EB1SMA 13.5 6.5 39.5 MountingConsiderations1:EvaluationBoard 50ΩFeedLine GND NOGND Unitsinmm Antenna 4 6.5 JTIP/NforMatchingCircuit: Capacitor(1.2pF):500R07S1R2BV4T Inductor(2.7nH):L-07C2N7SV6T Inductor(3.3nH):L-07C3N3SV6T 3.3nH 1.2pF 2.7nH * 1.6 4.2 2.6 0.4 1.9 2.4GHzMiniAntenna,SMT DetailSpecification:11/5/2018 JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved HighFrequencyCeramicSolutions P/N2450AT18B100 Page3of5 MountingConsiderations Wouldyouliketheantennalayout?Haveantennatuningissues? Pleasecontactusifyouhaveanyquestionsregardingthe implementationofthisantennainyourPCB'slayout.We'llbehappyto guideyoutomaximizetheantenna'sperformance. Contactourapplicationsengineersat: https://www.johansontechnology.com/ask_a_question 1:TypicalElectricalPerformance(T=25°C) 2.4GHzMiniAntenna,SMT DetailSpecification:11/5/2018 JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved HighFrequencyCeramicSolutions P/N2450AT18B100 Page4of5 MountingConsiderations1:AntennaPerformance [email protected] +Z(θ=0°) θ -Z +X(θ=90°) θ -X -Z +Z=° XY_plane +X(φ=0°) +Y(φ=90°) φ -Y -X -Y (θ0) YZ_plane +Y(θ=90°) XZ_plane 2.4GHzMiniAntenna,SMT DetailSpecification:11/5/2018 JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved MountingConsiderations1:AntennaPerformance [email protected] JohansonTechnology,Inc.reservestherighttomakedesignchangeswithoutnotice. AllsalesaresubjecttoJohansonTechnology,Inc.termsandconditions. https://www.johansontechnology.com 4001CalleTecate•Camarillo,CA93012•TEL805.389.1166FAX805.389.1821 Ver.4.0 2018JohansonTechnology,Inc.AllRightsReserved HighFrequencyCeramicSolutions P/N2450AT18B100 Page5of5 Antennatuning,optimization,andvalidationservices: https://www.johansontechnology.com/ipc-antenna-services FormoreantennasandtodownloadmeasuredS-parameters,goto: https://www.johansontechnology.com/antennas SolderingInformation https://www.johansontechnology.com/ipcsoldering-profile MSLInfo https://www.johansontechnology.com/msl-rating Packaginginformation https://www.johansontechnology.com/tape-reel-packaging ForlayoutreviewcontactourApplicationsTeamat: https://www.johansontechnology.com/ask-a-question RoHSCompliance https://www.johansontechnology.com/rohs-compliance Needhelpdesigningtheantennain?Useourantennadesignservices! https://www.johansontechnology.com/ipc-antenna-services Weprovide2freelayoutreviewsandifyouneedustotuneandcharacterizetheantennaonyour product(insideouranechoicchamber)wecandothattoo.Smalllabfeemayapply. 2.4GHzMiniAntenna,SMT DetailSpecification:11/5/2018

Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 1 1. Features  Antenna for 3G applications including MIMO systems.  GSM850, GSM900, DCS1800, PCS1900, WCDMA2100  1.13mm diameter RF cable with IPEX MHF connector  Self-adhesive mounted  Quick and simple integration minimizes design cycle  Available in 3 standard cable lengths 2. Description Avia is intended for use with 3G applications. This product specification shows the performance of the antenna to cover a typical penta-band reception: GSM850/900/1800/1900 and WCDMA. 3. Applications  Smart meters  Femto / Pico base stations  Tracker devices  Remote monitoring  Machine to Machine  POS (Point of Sale) terminals Avia 3G FPC Antenna Part No. SRFC025 flexiiANT ® Product Specification Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 2 4. Part Number Avia: SRFC025 5. General Data 6. RF Characteristics Product name Avia GSM antenna Part Number SRFC025 Frequency 824-960MHz; 1710-2170MHz Polarization Linear Operating temperature -40°C to 85°C Impedance with matching 50 Ω Weight < 0.5 g Antenna type FPC Self-adhesive 3M 468P Dimensions (Antenna) 71.0 x 12.5 x 0.15 (mm) Connection IPEX 824 – 960 MHz 1710 – 1990 MHz 2110 – 2170 MHz Peak gain 4.07dBi 5.44dBi 3.9dBi Average gain -3.31dBi -1.1dBi -1.74dBi Average efficiency >45% >70% >65% Maximum return loss -6.6dB -8.7dB -17dB Maximum VSWR 2.80:1 2.20:1 1.30:1 All data measured in a loaded condition adhered to a plastic carrier free space. Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 3 7. RF Performance 7.1 Return Loss 7.2 VSWR 8009001000110012001300140015001600170018001900200021002200 -35 -30 -25 -20 -15 -10 -5 0 5 [MHz] [dB] Atyune 1 2 3 4 5 6 MARKERS:MHz dBMHz dBMHz dB RD8025-MP.S1P - S11 1: 824 2: 960 -6.60 -14.39 3: 1710 4: 1990 -8.73 -19.67 5: 2110 6: 2170 -17.77 -22.02 8009001000110012001300140015001600170018001900200021002200 1 2 3 4 5 6 7 8 9 10 [MHz] [] Atyune 1 2 3 4 5 6 MARKERS:MHz MHz MHz RD8025-MP.S1P - S11 1: 824 2: 960 2.76 1.47 3: 1710 4: 1990 2.16 1.23 5: 2110 6: 2170 1.30 1.17 Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 4 7.3 Antenna patterns 7.3.1 824 MHz – 960 MHz 3D pattern at 890 MHz Drag to rotate pattern and PCB by using Adobe Reader (Click to Activate) Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 5 7.3.2 1710 MHz – 2170 MHz 3D pattern at 1950 MHz Drag to rotate pattern and PCB by using Adobe Reader (Click to Activate) Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 6 8. Antenna Dimensions 8.1 Dimensions FPC section All dimensions in mm 8.2 Dimensions assembled L W T Length Width Thickness 71.0 ±0.2 (mm) 12.5 ±0.2 (mm) 0.15 (mm) nominal SRFC025-100 SRFC025-150 SRFC025-200 L L L 160 ±2.0 (mm) 210 ±2.0 (mm) 260 ±2.0 (mm) Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 7 8.3 IPEX Connector All dimensions in mm 8.4 Assembly I-PEX Material Copper Alloy Plating Ag Front Side Back 5.0 3.0 I-PEX Connector 1.13mm ø Cable FPC Avia Part No. SRFC025 Antennas for Wireless M2M Applications Product Specification PS SRFC025-1.0 Page 8 9. Electrical Interface 9.1 Host Interface The host PCB requires the mating connector which is IPEX MHF (UFL) receptacle. The location should be close to the chip/modules pin for the RF. Any feed from this receptacle should be maintained at 50Ω impedance. 9.2 Transmission Line All transmission lines should be designed…
