2A9NQ-M69Bluetooth Headset

功能 配对名 开机 耳机在充电仓内情况下，取出耳机自动开机/耳 机关机状态下，长按功能键3秒，开机 红蓝灯交替闪 红灯快闪三次 左右耳配对成功后，主耳蓝 红灯交替闪烁，副耳灯光熄 灭 / / / / / / / / / / / / / / / 左右耳灯光熄灭 Power on/开机 Power off/关机 Connected/连接成功 配对中/Pairing 叮咚 English/中文 Connected /连接成功 音乐/游戏模式 MUSIC/GAME MODE 最大音量提示(咚) 手机铃声提示音 耳机放入充电仓后关机/耳机开机状态下，长按 功能键5秒，关机 左右耳机，开机后自动进入配对模式 未连接智能设备情况下，连击任意左右耳功能 键2次，进行语言切换。出厂默认英文 当双耳配对成功后，自动进入待连接状态, 此时打开智能设备的蓝牙列表搜索点击 "M69”进行连接，耳机与智能设备连接 成功后，有提示音，且耳机指示灯熄灭 关机 左右耳机 配对 切换中英文 提示音 智能设备连接 切换音乐/ 游戏模式 播放/暂停 上一曲 下一曲 增加音量 减小音量 语音助手 接听来电 拒接来电 双击任意左右耳机触摸键 音乐模式下，连击左耳机触摸键三次 音乐模式下，连击右耳机触摸键三次 单击右耳机触摸键 单击左耳机触摸键 来电状态下，双击任意左右耳机触摸键 来电状态下，长按任意左右耳机触摸键2秒 连接状态下，长按左耳机触摸键2秒放开， 即可唤醒语音助手 M69 挂断电话 低电量报警 断开连接 自动回连 耳机充电 给充电仓充电中 给充电仓充满电 备注：当蓝牙耳机连接智能设备，切换游戏模式时，耳机的使用时长和连接距离会有缩短 将耳机放回 充电仓 通话状态下，双击任意左右耳机触摸键 当耳机的电压低于3.3V，会有提示，直至耳 机关机 超出有效连接范围，或手动操作断开智能设 备蓝牙连接 开机后或断连后，在有效距离内，耳机会自 动回连上一次连接过的智能设备 耳机放回充电仓内，自动关机并开始充电，耳机红灯常亮，充满电后灯熄灭 耳机充电中，显示屏亮起，显示当前电量，耳机充满电显示屏熄屏 插上适配器给充电仓充电，充电仓显示屏显示当前电量 充满后显示屏显示电量为100 红灯隔5秒闪一次 主耳红蓝灯交替闪烁，副耳灯 熄灭 灯熄灭 / 叮咚 不开机 耳机闪红灯 充电无提示 自动关机 耳机有回音 耳机有杂音 对方声音小 信号断续 耳机电量不足 耳机电量不足 耳机没有放好 自动电量不足 音量太大或者环境太嘈杂 外界干扰严重或距离手机太远 耳机佩戴不正确或音量太小 外界干扰严重或距离手机太远 有害物质 部件名称 铅 (Pb) 汞 (Hg) 镉 (Cd) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 主机 配件 本表依据SJ/T11364的规定编制。 0:表示该有害物质在该部件所有均质材料中含量均在GB/T 26572规定的限量要求以下。 X:表示该有害物质至少在该部件的某一均质材料中的含量超过GB/T 26572规定的限量要求。 注:本产品标有“X”的原因是，现阶段没有可供选择的替代技术或部件。 对耳机进行充电 对耳机进行充电 调整耳机放置的位置 对耳机进行充电 调节音量或更换环境 更换地点或靠近手机 调节耳机佩带或音量大小 选择无干扰的环境或靠近手机 故障原因解决方法 Disconnected /断开连接 connected /连接成功 / 操作指示灯提示音 产品中有害物质的名称及含量 简单故障排查 产品操作介绍产品结构图 耳机参数 X X 1.初次使用本产品前，请先充满电再使用。 2.产品不是玩具，12岁以下儿童须在成年人监护下使用。 3.请使用通过正规厂家安全认证的5V/1A充电器，避免支持高电压的快充充电器对产品造成 损坏。 4.请在安全的环境下充电，在给充电仓充电时，电量充满后请尽快将充电线拔出，避免长时 间充电对电池造成损坏。充电仓的充电方式为Type-C接口。 5.本产品内置不可拆卸的可重复充电电池，重复对耳机进行充电和放电将会随时间推移而导 致电池性能下降，这对于所有可以重复充电电池来说均属于正常现象。 6.本产品带有理电池，如长时间未使用，请至少一个月充电一次。 7.因个体差异原因，如佩戴时感到皮肤不适，请停止佩戴并咨询医生。 8.在蓝牙连接本产品使用时，请将耳机声音调至合适音量大小，以免长期在大音量状态下对 听力造成损伤。 9.如果您在从事需要集中注意力的活动时使用本产品，应注意您自身和他人的安全，例如驾 车或骑自行车时，在道路、施工现场、铁路上或徒步行走时。您应取下耳机或调整音量以确 保可以听到周围的声音，包括警报和警告信号。 10.请遵守所在地区或国家的相关规定，驾车时按照要求使用本产品。 11.本产品含有磁性材料，使用或安放产品时，请远离具有强磁场或强电场的电器，如微波 炉、电冰箱等。 12.建议在温度-0°C~45°C的环境中使用本产品。当环境温度低于 +5°C时，电池性能会受到 限制。 13.有明文规定禁止使用无线设备的场所，请勿使用本产品，否则会干扰其它电子设备或导致 其它危险。 14.靠近医疗及工业设备或登飞机之前，请咨询当地工作人员能否使用。 15.对本产品清洁和维护前，请停止使用本产品，关闭所有应用，并断开与其它设备的所有连 接或线缆。 16.请根据本地法令，正确处置废弃电子产品，不可将电子电气设备、部件、电池与其它生活 垃圾一起丢弃。 1.请遵循本说明书的内容进行使用，避免产品因错误操作损坏。 2.本产品请远离儿童、火源、热源、冷冻源、水源及化学品。 3.请勿长时间使用大音量收听，以免对听力造成不良影响。 4.请勿将产品及附件浸入任何液体或用水冲洗产品，否则导致火灾或触电危险。 5.请勿将产品放置在太阳晒射或者温度高的地方。高温会缩短电子部件的使用寿命、损坏电 池、使某些塑料部件变形。 6.请勿将本产品放在尘土多、温度和湿度过高或过低的地方保存。 7.请勿将磁条卡(例如银行卡、公交卡等)长期接触本产品，否则可能导致磁条卡被磁场损 坏。 8.请勿在本产品上施加较大的压力，或拆卸、摔打、震动本产品，以防产品损坏 9.请勿在靠近热源处使用本产品，如散热器、热风调节器、炉灶或其他产生热量的仪器 10.请勿堵塞本产品的开口处，如充电口、指示灯、麦克风等。 11.请勿在暴雨天气下使用设备，雷暴可能导致设备出现故障，增大电击的风险。 12.请避免本产品及其配件雨淋或受潮，且激烈运动或出汗较多时使用本产品，防止液体渗 透到产品内部损坏本产品。 13.产品属于内置聚合物理电池，不可更换，请勿丢弃或置以火中，以免爆炸、起火等危险 发生。 14.如因消费者违反上述警示而不恰当使用所造成的人身及财产损害将自行承担一切后果本 公司将不产生任何法律责任。 警告安全指引 10.喇叭额定功率:3mW 11.耳机电池容量:3.7V/30mAh (聚合物电池) 12.充电仓电池容量: 3.7V/200mAh (聚合物电池) 13.充电接口:USB Type-C 14.耳机使用时间:≈5小时 15.耳机单次充电时间:≈1.5小时 16.充电仓充电时间: ≈1.5小时 17.充电仓给耳机充电次数: 2次 18.关机待机时间:≈160小时 1.产品名称：M69 2.蓝牙版本:Bluetooth 5.4 3.支持模式:AAC/SBC 4.蓝牙传输距离:10m 5.载波频率:2.402GHz~2.480GHz 6.频响范围:20Hz~20KHz 7.喇叭尺寸: 6mm 8.喇叭灵敏度:115dB 3dB 9.喇叭阻抗:32 15% 使用说明书 M69 TWS 蓝牙耳机 耳机x2pcs 充电仓X1pCS Type-C充电线 x1ps 说明书x1pcs 硅胶耳帽1对 包装清单 中文 Power on/开机 Power off/关机 English/中文 Connected /连接成功 音乐/游戏模式 MUSIC/GAME MODE Disconnected /断开连接 connected /连接成功 function operate LightTone The red light flashes three times After the left and right ear ears are successfully paired, the blue and red lights of the main ear will flash alternately, and the light of the secondary ear will be extinguished The lights in the left and right ears are turned off Maximum volume indicator (knock) Ringtone of your phone The left and right earphones will automatically enter pairing mode after powering on When the smart device is not connected, tap any left and right ear functions in a row button 2 times to switch the language. The factory default is English When the ears are successfully paired, it will automatically enter the state to be connected, at this time, open the Bluetooth list of the smart device to search and click "M69" to connect, after the earbuds are successfully connected to the smart device, there will be a prompt tone, and the headset indicator will go off Pair the left and right earphones Toggle the Chinese and English prompt tones Smart device connectivity Toggle Music/ Game mode Play/Pause Previous song Next song Increase the volume Reduce the volume Voice assistant Reject an incoming call Hang up Low battery alarm Product structure diagram INSTRUCTION MANUAL M69 TWS Bluetooth earphones Headphones x2pcs Charging case X1pCS Type-C charging cable x1ps Instruction manual x1pcs Packing list 英语 After the earbuds are placed in the charging case, they are turned off/when the earbuds are powered on, press and hold Function button for 5 seconds, power off Pair name Boot When the earbuds are in the charging compartment, take out the earbuds to automatically turn on/earbuds When the machine is off, press and hold the function button for 3 seconds to turn it on The blue light is on / / / / / / / / / / / / / / / Shutdown Answer an incoming call M69 Disconnect Automatic reconnection Charge the headphones Charging the charging case Fully charge the charging case Note: When the Bluetooth headset is connected to a smart device and the game mode is switched, the usage time and connection distance of the headset will be shortened Place the earbuds back into the charging case When the voltage of the earbuds is lower than 3.3V, there will be a prompt up to the ear Powered off Outside the effective connection range, or manually disconnect the Bluetooth connection of the smart device After powering on or disconnecting, the earbuds will automatically reconnect to the last connected smart device within the effective distance Put the earbuds back into the charging compartment, automatically power off and start charging, the red light of the earbuds will always be on, and the light wil…

Text truncated - open the document above for the full version.

62 Shenzhen Lanxingxin Technology Co., Ltd. 301, No. 8,East Zone,Shengjingyuan Industrial Park, Fuqian Road,Fumin Community,Fucheng Street, Longhua District,Shenzhen Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Br anch 7435 Oakland Mills Road Columbia,MD 21046 2024-07-03 To whom it may concern: We, Shenzhen Lanxingxin Technology Co., Ltd.,hereby certify that the equipment for which authorization is sought (FCC ID: 2A9NQ-M69)is not"covered"equipment prohibited from receiving an equipment authorization pursuant to §2.903 of the FCC rules. We also certify that,as of the date of the filing of the application,we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing"covered"equipment. By signing this form,we confirm the above and that we are aware of the application requirements listed under §2.911(b)and (d)(5)and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Jianying Li Shenzhen Lanxingxin Technology Co., Ltd.

Shenzhen Lanxingxin Technology Co., Ltd. "301, No. 8,East Zone,Shengjingyuan Industrial Park,Fuqian Road,Fumin Community,Fucheng Street,Longhua District,Shenzhen" Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/07/03 U.S. Agent Designation Shenzhen Lanxingxin Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A9NQ-M69): Name and company of U.S. agent: Molo Import Export LLC Physical U.S. address of agent: 2334 Crystal Mile CT,Toms River,NJ,08755,USA FRN of U.S. agent: 0033490996 Email address of U.S. agent: [email protected] Molo Import Export LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Lanxingxin Technology Co., Ltd. Shenzhen Lanxingxin Technology Co., Ltd. with the FRN [ 0033163379 ] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jianying Li Manager Shenzhen Lanxingxin Technology Co., Ltd. Signature Samuel Weiss Manager Molo Import Export LLC 48_[model] US_Agent_2.911(d)(7) - U, V05

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division,Application Processing Branch 7435 Oakland Mills Road Columbia,MD 21046 Date:<2024-07-03> Pursuant to Paragraphs $0.457 and 0.459 of the Commission's Rules (47 C.F.R.)and Section §552(b)(4)of the Freedom of Information Act,we requests confidentiality for the following products: FCC ID Model name 2A9NQ-M69 M69 For the product stated above,we request that the following information be held confidential; The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions,please feel free to contact me at the address shown below. Sincerely Name/Title: Jianying Li /N/A Company: Shenzhen Lanxingxin Technology Co., Ltd. Address: "301, No. 8,East Zone,Shengjingyuan Industrial Park,Fuqian Road,Fumin Community,Fucheng Street,Longhua District,Shenzhen" Phone: 13420983785 Fax: N/A E-Mail: [email protected]

Shenzhen Lanxingxin Technology Co., Ltd. "301, No. 8,East Zone,Shengjingyuan Industrial Park,Fuqian Road,Fumin Community,Fucheng Street,Longhua District,Shenzhen" Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia,MD 21046 202 4-0 7-03 To whom it may concen: We,the undersigned,hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A9NQ-M69 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form,we agree to Eurofins'current valid General Terms and Conditions (AGB),Testing and Certification Regulations(PZO)which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits,including FCC benefits,pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely Name/Title Company: Address: Phone: Fax: E-Mail: Jianying Li /N/A Shenzhen Lanxingxin Technology Co., Ltd. "301, No. 8,East Zone,Shengjingyuan Industrial Park,Fuqian Road,Fumin Community,Fucheng Street,Longhua District,Shenzhen" 13420983785 NA [email protected]

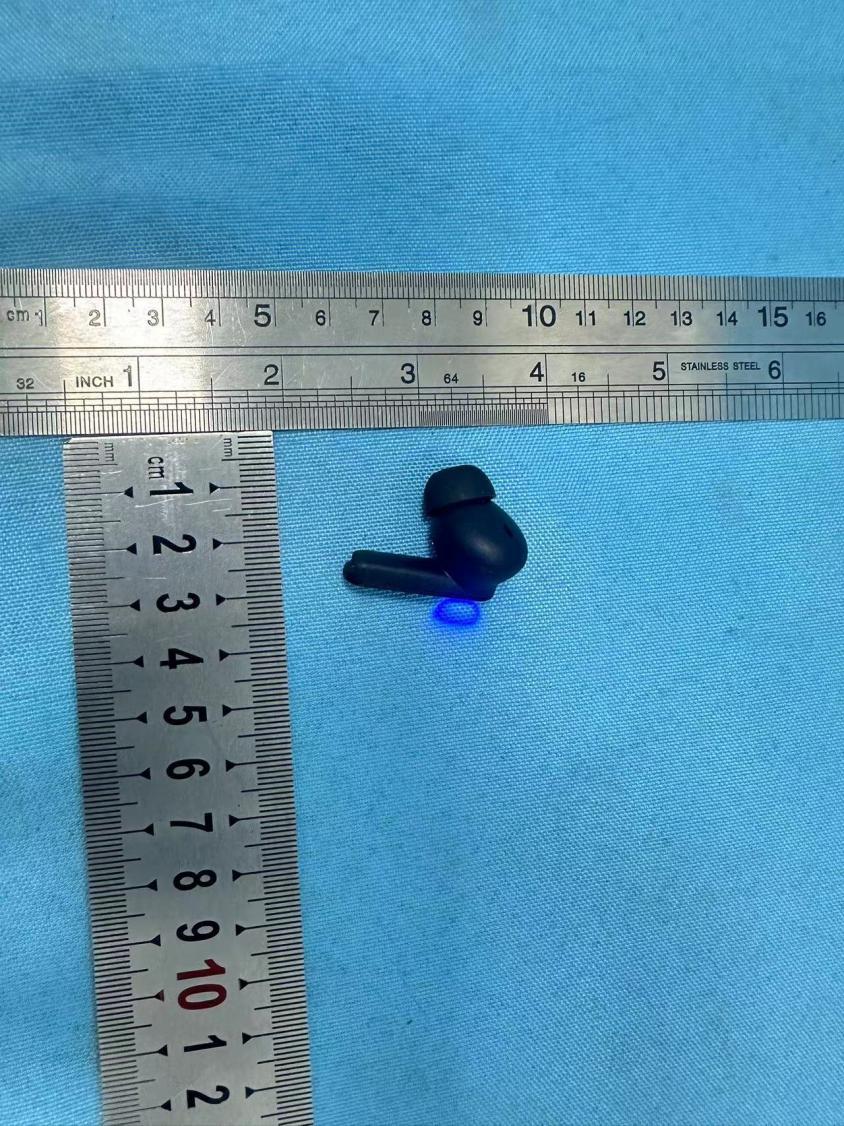

Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2A9NQ-M69 ExternalPhotos Page: 2 of 4 ExternalPhotos Page: 3 of 4 ExternalPhotos . Page: 4 of 4 ExternalPhotos

Page: 1 of 2 PHOTOGRAPHSOFEUT FCCID:2A9NQ-M69 InternalPhotos Page: 2 of 2 InternalPhotos

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT241235R1658-4284 Applicant: ShenzhenlanxingxinTechnologyCo.,Ltd. AddressofApplicant: 301,No.8,EastZone,ShengjingyuanIndustrialPark,FuqianRoad, FuminCommunity,FuchengStreet,LonghuaDistrict,Shenzhen EUTDescription: BluetoothHeadset ModelNo.: M69 FCCID: 2A9NQ-M69 Powersupply DC3.7VFromBattery ChargingVoltage: DC5V Standards: 47CFRPart2.1093 FCCKDB447498D04v01 TradeMark: CIRCE DateofReceipt: 2024/6/12 DateofTest: 2024/6/13to2024/6/20 DateofIssue: 2024/6/21 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT241235R1658-4284Date：June21,2024Page： 2 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V2.0/Jun.21,2024ValidOriginalReport ReportNo.:DNT241235R1658-4284Date：June21,2024Page： 3 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 2RFEXPOSUREEVALUATION............................................................................................................................................................5 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................5 ReportNo.:DNT241235R1658-4284Date：June21,2024Page： 4 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer: ShenzhenlanxingxinTechnologyCo.,Ltd. AddressofManufacturer: 301,No.8,EastZone,ShengjingyuanIndustrialPark,FuqianRoad, FuminCommunity,FuchengStreet,LonghuaDistrict,Shenzhen EUTDescription: BluetoothHeadset TestModelNo.:M69 AdditionalModel(s): / ChipType: AB5656C2 Serialnumber: PR241235R1658 PowerSupply: DC3.7VFromBattery ChargingVoltage: DC5V TradeMark:CIRCE HardwareVersion:V1.0 SoftwareVersion:V1.0 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaGain: Providedbyapplicant 2.78dBi Remark: *Sincetheabovedataand/orinformationisprovidedbytheapplicantrelevantresultsorconclusionsofthisreportare onlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresultsofthe dataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT241235R1658-4284Date：June21,2024Page： 5 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2RFExposureEvaluation 2.1RFExposureComplianceRequirement 2.1.1Limits HumanexposuretoRFemissionsfromportabledevices(47CFR§2.1093),asdefinedbytheFCC,mustbe evaluatedwithrespecttotheFCC-adoptedlimitsforSAR.Evaluationofmobiledevices,asdefinedbytheFCC,may alsobeperformedwithrespecttoSARlimits,butinsuchcasesitisusuallysimplerandmorecost-effectiveto evaluatecompliancewithrespecttofieldstrengthorpowerdensitylimits.Forcertaindevicesthataredesignedtobe usedinbothmobileandportableconfigurationssimilartothosedescribedin47CFR§2.1091(d)(4),suchascertain desktopphonesandwirelessmodemmodules,complianceformobileconfigurationsisalsosatisfiedwhenthesame deviceisevaluatedforSARcomplianceinportableconfigurations. Referto47CFR§2.1093: Aportabledeviceisdefinedasatransmittingdevicedesignedtobeusedinotherthanfixedlocationsandto generallybeusedinsuchawaythattheRFsource'sradiatingstructure(s)is/arewithin20centimetersofthebody oftheuser. Evaluationofcompliancewiththeexposurelimitsin§1.1310ofthischapter,andpreparationofanEAifthelimits areexceeded,isnecessaryforportabledeviceshavingsingleRFsourceswithmorethananavailablemaximum time-averagedpowerof1mW,morethantheERPlistedinTable1to§1.1307(b)(3)(i)(C),ormorethanthePthin thefollowingformula,whicheverisgreater.Thefollowingformulashallonlybeusedinconjunctionwithportable devicesnotexemptby§1.1307(b)(3)(i)(C)atdistancesfrom0.5centimetersto20centimetersandfrequencies from0.3GHzto6GHz. ReportNo.:DNT241235R1658-4284Date：June21,2024Page： 6 / 7 Do…

Text truncated - open the document above for the full version.

深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION:地磁天线 客户型号: CUSTOMERPARTNO: 产品型号: OURMODELNO:PBX1608MA01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL” WITHYOURAPPROVEDSIGNATURES 核准审核刘飞制作刘小美 客户承认签印 日期 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 2 PBX1608MA01Specification OperatingTemp.:-40°C~+85°C 1. FEATURES : ●Lightweight,compact ●Widebandwidth,lowcost ●Built-inantennawithhighgain 2. APPLICATIONS : ●Bluetooth,WirelessLAN,MobileTV ●HomeRFSystem,etc 3.PRODUCTIDENTIFICATION (1)(2)(3) (1)Producttype:MultilayerchipAntenna (2)CenterFrequency:2450MHz (3)ExternalDimensions(L×W)(mm):1.6*0.8 4.SHAPEANDDIMENSIONS: LWHA 1.6±0.20.8±0.2 0.8 ± 0.20.3 ± 0.1 CH IP45 016 2 08 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 3 ●天线位于PCB板内部或中间位置时（长条式耳机）：（单位：mm） 天线最优放置于中间区域，净空区周围最优需要至少一排过孔。 ●天线位于PCB板边缘位置时（入耳式耳机和部分长条式耳机）： 天线最优放置于PCBA的边缘；天线及其走线设置在单层。 设计标准： 1.图中的尺寸仅作为参考；实际尺寸会根据不同版型进行优化。 2.净空区周围最优需要至少一排过孔，孔径0.3mm，与PCBA上的其它回路或物料进行隔离。 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 4 天线封装方案一（ 3.5mm × 7.5mm） 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 5 天线封装方案二（ 4.5mm × 6mm） 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 6 天线封装方案三（ 1.5mm × 10mm） 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 7 ElectricalCharacteristics CharacteristicCurves 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 8 RadiationPattern 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 9 3DRadiationPattern 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 10 RadiationPattern TheGainpatternismeasuredinFAR-fieldchamber.DUTisplacedonthetableofrotator,a standardhornantennaandVectorNetworkAnalyzerisusedtocollectdata. EnvironmentalCharacteristics (1)ReliabilityTest (2)StorageCondition (a)Atwarehouse: Thetemperatureshouldbewithin0~30°Candhumidityshouldbelessthan60%RH. Theproductshouldbeusedwithin1yearfromthetimeofdelivery. (b)Onboard: Thetemperatureshouldbewithin-40~85°Candhumidityshouldbelessthan85%RH. (3)OperatingTemperatureRange Operatingtemperaturerange:-40 °C to+105 °C . 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 11 8.RecommendedReflowSoldering…

Text truncated - open the document above for the full version.

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] FCCTestReport ApplicationNo.: DNT241235R1658-4283 Applicant: ShenzhenlanxingxinTechnologyCo.,Ltd. Addressof Applicant: 301,No.8,EastZone,ShengjingyuanIndustrialPark,FuqianRoad, FuminCommunity,FuchengStreet,LonghuaDistrict,Shenzhen EUTDescription: BluetoothHeadset ModelNo.: M69 FCCID: 2A9NQ-M69 PowerSupply: DC3.7VFromBattery ChargingVoltage: DC5V TradeMark: CIRCE Standards: 47CFRFCCPart2,SubpartJ 47CFRPart15,SubpartC ANSIC63.10:2013 DateofReceipt: 2024/6/12 DateofTest: 2024/6/13to2024/6/20 DateofIssue: 2024/6/21 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT241235R1658-4283Date：June21,2024Page： 2 / 65 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Jun.21,2024 ValidOriginalReport ReportNo.:DNT241235R1658-4283Date：June21,2024Page： 3 / 65 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1TestSummary TestItemTestRequirementTestMethodTestResultResult AntennaRequirement 15.203/247(b) --Clause3.1PASS 20dBEmissionBandwidth 15.247(a)(1) ANSIC63.10(2013)Clause3.2PASS ConductedPeakOutput Power 15.247(b)(1) ANSIC63.10(2013)Clause3.3PASS CarrierFrequencies Separation 15.247(a)(1) ANSIC63.10(2013)Clause3.4PASS DwellTime 15.247(a)(1) ANSIC63.10(2013)Clause3.5PASS HoppingChannelNumber 15.247(a)(1) ANSIC63.10(2013)Clause3.6PASS Band-edgeforRF ConductedEmissions 15.247(d) ANSIC63.10(2013)Clause3.7PASS RFConductedSpurious Emissions 15.247(d) ANSIC63.10(2013)Clause3.8PASS RadiatedSpurious emissions 15.247(d); 15.205/15.209 ANSIC63.10(2013)Clause3.9PASS Restrictedbandsaround fundamentalfrequency(Radiated Emission) 15.247(d); 15.205/15.209 ANSIC63.10(2013)Clause3.10PASS ACPowerLineConducted Emission 15.207 ANSIC63.10(2013)Clause3.11NA Note: 1.“N/A”denotestestisnotapplicableinthistestreport. ReportNo.:DNT241235R1658-4283Date：June21,2024Page： 4 / 65 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents 1TestSummary.............................................................................................................................................................3 2GeneralInformation.....................................................................................................................................................5 2.1TestLocation................................................................................................................................................5 2.2GeneralDescriptionofEUT.........................................................................................................................6 2.3ChannelList.................................................................................................................................................7 2.4TestEnvironmentandMode........................................................................................................................8 2.5PowerSettingofTestSoftware....................................................................................................................9 2.6DescriptionofSupportUnits........................................................................................................................9 2.7TestFacility..................................................................................................................................................9 2.8MeasurementUncertainty(95%confidencelevels,k=2)..........................................................................10 2.9EquipmentList............................................................................................................................................11 2.10Assistantequipmentusedfortest..............................................................................................................12 3TestresultsandMeasurementData.........................................................................................................................13 3.1AntennaRequirement................................................................................................................................13 3.220dBEmissionBandwidth.........................................................................................................................14 3.3ConductedOutputPower...........................................................................................................................15 3.4CarrierFrequenciesSeparationy...............................................................................................................16 3.5DwellTime..................................................................................................................................................17 3.6HoppingChannelNumber.......................................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:DNT241235R1658-4283Date：June21,2024Page： 36 / 65 DongguanDNTestingCo.,Ltd. Add:No.1,WestFou…
