2A9NV-CCB1-NSmart Baby Monitor

Orange Series • Smart Baby Monitor User Guide WHAT’S IN THE BOX Cheego Camera x 1 Mounting Bracket x 1 Screws x 3 Drywall Anchors x 3 User Guide x 1 Power Adapter x 1 Type-C Power Cable x 1 PRODUCT OVERVIEW Microphone RESET Button Speaker Lens USB Power Input Infrared Light Magnetic Suction Charging Multicolor Night Light MicroSD Slot (*32GB Card Included) Temperature Sensor Status LED Please read this user guide carefully before using the device SAFETY ⚠ WARNING: Strangulation Hazard—Children have STRANGLED in cords. NEVER attempt to use cord without the protective covering. Check protective covering before each use to ensure that the cord is not exposed to your child. Immediately discontinue use if protective covering is damaged or broken. • Adult assembly is required. Keep small parts away from children when assembling. • This product cannot replace adult supervision. Ensure your child’s health by checking on him/her regularly. • This device is designed for indoor use only. • This product and its packaging are not toys. Do not allow children to play with them. • Falling warning---In order to prevent products fell to hurt, be sure to install the monitor in a stable location, tighten the screws and tighten button, securely monitor your device. INSTALLATION ACCESSORIES 450mm 450mm 90mm 1125mm (Camera not Included) Replacement Floor Stand Mount Replacement Clip- on Mount INSTRUCTIONS Get start Cheego Smart App Download the Cheego Smart App from Apple Store or Google Play. Or scan the QR code on the box or in the guide. Download & Register “Cheego Smart”APP BOOT Please connect the camera with the original power adapter. Once the camera power on, the Status LED light will turn on and the camera enters the initialization state. Wait about 10 seconds, then the camera will boot up successfully. CHEEGO SMART APPLICATION SETUP GUIDE Please setup the APP step by step. Add Device FEATURES INTRODUCTION Crying Detection& Soothing Music Cheego baby monitor automatically plays soothing musics & turns on the night lamp (at night), and sends alarm messages to the APP when it detected baby's crying. Virtual Fence Detection Cheego sends instant notifications through the APP when it detected baby out of the virtual fence. Danger Zone Detection Set the electronic area as the danger zone, when baby enters the danger zone, Cheego provides voice warning and sends alarm messages to the APP. Multicolor Night Light Integrated 9 colors night light, making the dark less scary for your babies. Cheego automatically turns ON the night light when it detected baby's crying. Colors and brightness can be adjusted by the APP. Temperature and Humidity Detection Embeded high precision temperature& humidity sensor, Cheego checks the room temperature and humidity in real time to make baby more comfortable. ModelCCB1-N Resolution2304X1296 Lens2.8mm F1.6 Field of View130° (Diagonal) ConnectivityWi-Fi 2.4GHz Support SystemAndroid 7.0 or IOS 11.0 or above StorageMicro SD Card (Max 512GB) MountingClip-on Mount, Wall Mount, Floor Stand PowerDC5V, 1.5A, Dimensionsφ75×125mm Item Weight138g FEATURES INTRODUCTION SPECIFICATIONS 1. The working temperature of this product is 0 ～ 40 °C . Please do not use this product in an environment where the temperature is too high or too low. 2. This product is a precision electronic product. Do not use it in an environment that is excessively humid or may cause water to enter the product. Avoid damaging the device. 3. Please ensure that this product is installed within the coverage of the 2.4GHZ Wi-Fi signal, and place it in a location with a better Wi-Fi signal as much as possible. Install as far as possible away from metal and microwave ovens that may affect the signal. FAQ Why can’t the device connect to WiFi when configuring the network? Please make sure setup routers to a 2.4GHz Wi-Fi network and that the password is entered correctly. Why I don't hear the connection succeeded after I scan QR code? The smart device screen is facing the lens. Please adjust distance of 20-30 cm between the camera and the smart device. Please avoid the camera facing the strong light. What should I do if the camera goes offline (device icon gray)? 1.Shut down and reboot your device; 2.If the device connects with a new Wi-Fi network, please press and hold the "RESET" button for 5 seconds. Re-pair the network after the device is reset. What should I do when firmware upgrade fails? Check whether the network is stable. We recommend that you move your device closer to the router, and try to upgrade again. What should I do if mobile phone cannot receive the notification? Go to the smart device “setting” → “Cheego smart” → “Allow notification” GUARANTEE & WARRANTY SATISFACTION GUARANTEE & RETURN POLICY Thank you for purchasing Cheego products. If you are not completely satisfied with your purchase, you may return the product for a full refund within 30 calendar days of setting up a hardware product ( icheego.com) or within 15 days of activating an online product (Cheego authorized online reseller). This satisfaction guarantee requires proof of purchase from an authorized seller. Purchases from 3rd party retailers will need to be returned to the original place of purchase. LIMITED WARRANTY This limited warranty contains important information about your rights and obligations, as well as limitations and exclusions that may apply to you. This limited warranty only applies if you are the original purchaser. 1.WHAT THIS LIMITED WARRANTY COVERS? PERIOD OF COVERAGE. Warrants to the owner of the enclosed product that the product contained in this box (“Product”) will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery following the original retail purchase (the “Warranty Period”). If you believe you have received a defective product, we will either repair or replace the defective product or its defective component part(s) in accordance with the terms of this limited warranty. We…

Text truncated - open the document above for the full version.

Hangzhou Cheego Smart Technology Co., Ltd. Agent Authorization Company: Hangzhou Cheego Smart Technology Co., Ltd. Address: Room 603, Bldg. E2, 3# Xiyuan 8 Road, Hangzhou, Zhejiang, China Product Name: Smart Baby Monitor Model Number(s): CCB1-N, CCB1-* Product Description: Smart Baby Monitor We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 09, 2022 Name: Wendy Wei Title: COO Company: Hangzhou Cheego Smart Technology Co., Ltd.

Hangzhou Cheego Smart Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 09, 2022 Subject; Request for Confidentiality FCC ID: 2A9NV-CCB1-N To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wendy Wei Title: COO

Hangzhou Cheego Smart Technology Co., Ltd. Model Difference Declaration To Whom It May Concern, We, Hangzhou Cheego Smart Technology Co., Ltd. (Smart Baby Monitor) ; Model Number: CCB1-N, CCB1-*; All model’s the function, software and electric circuit are the same, only with appearance, product color and model named different. Test sample model: CCB1-N. Please contact me if you have any question. Signature: Date: Dec. 09, 2022 Name: Wendy Wei Title: COO

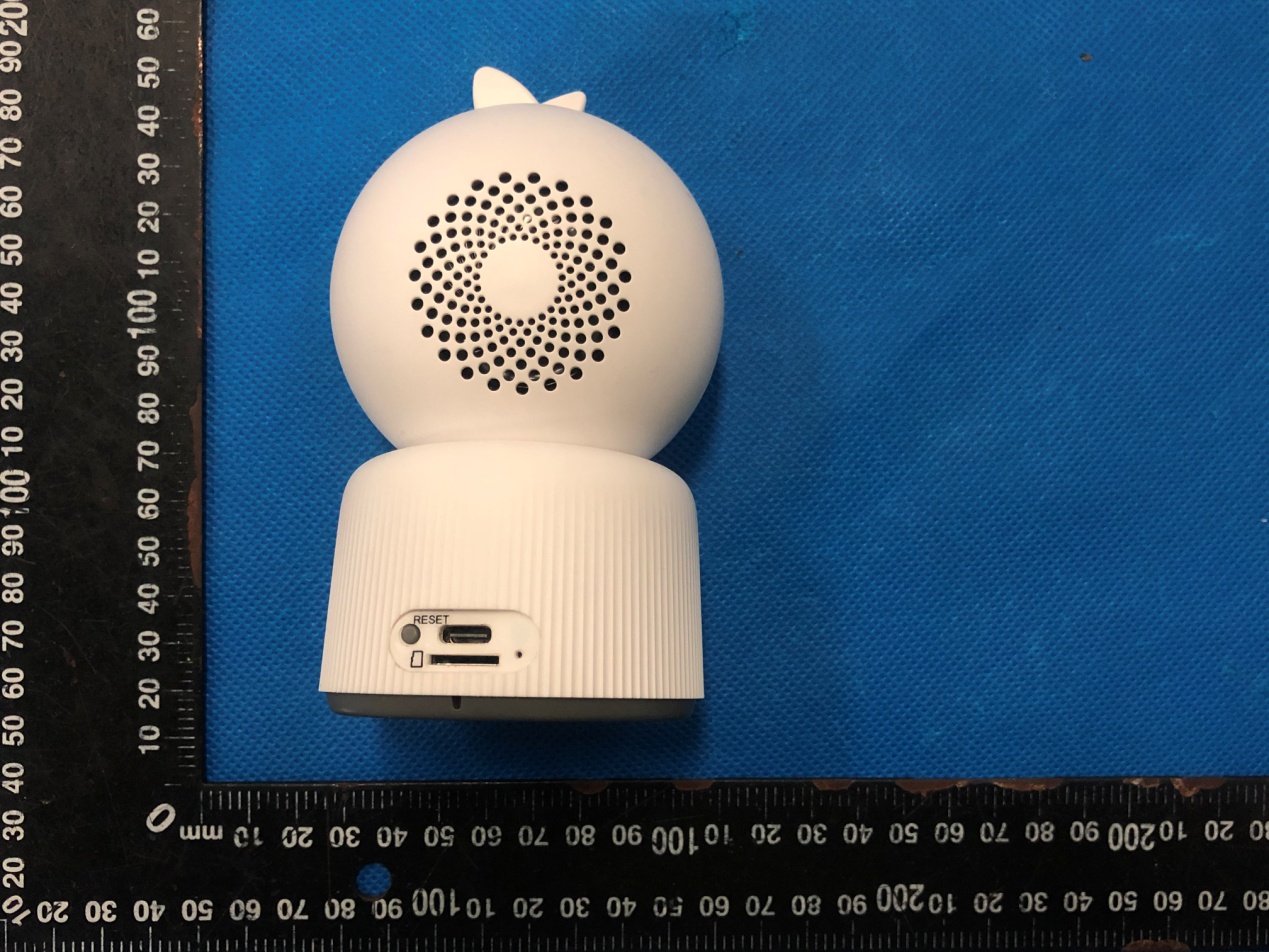

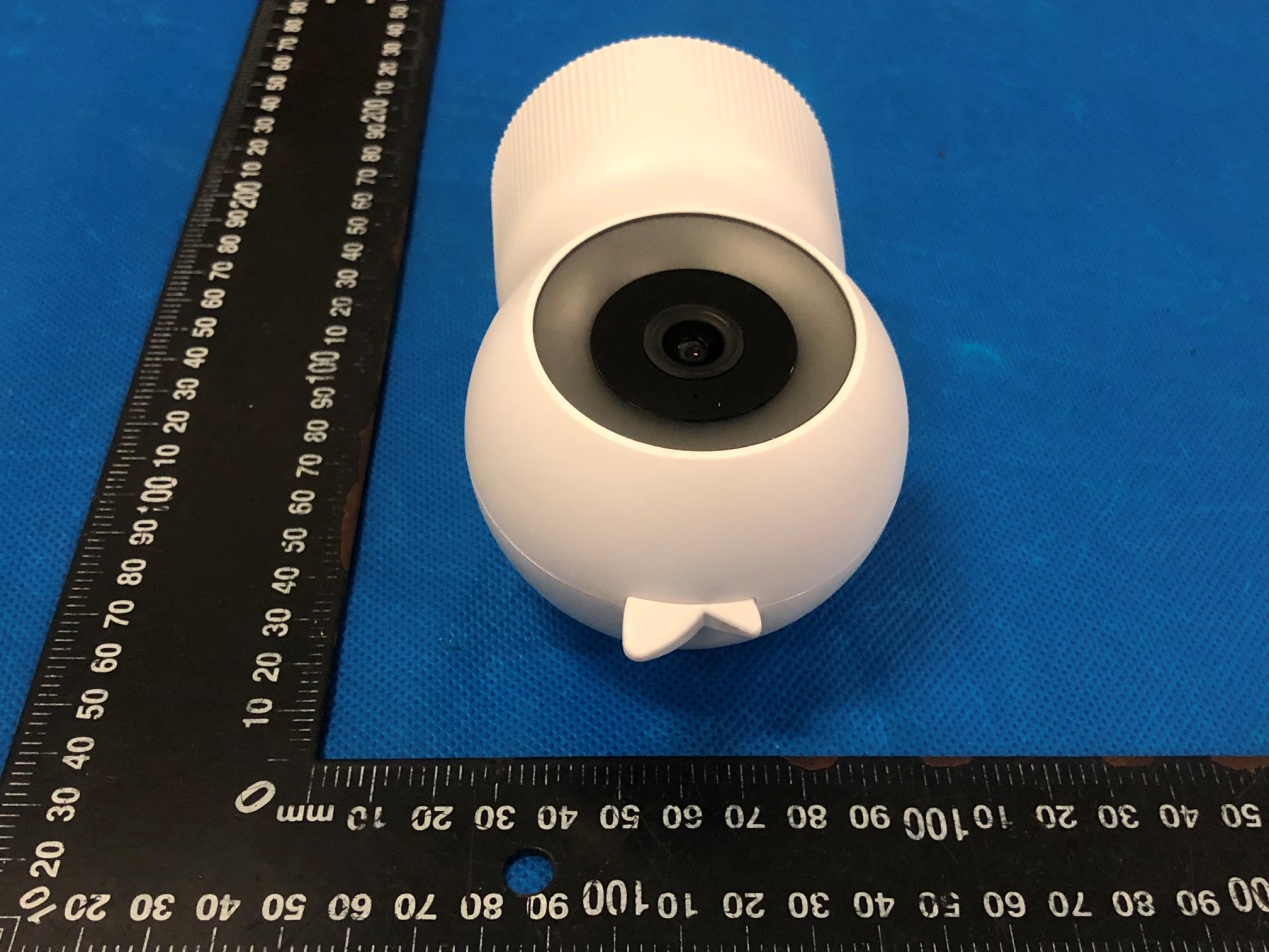

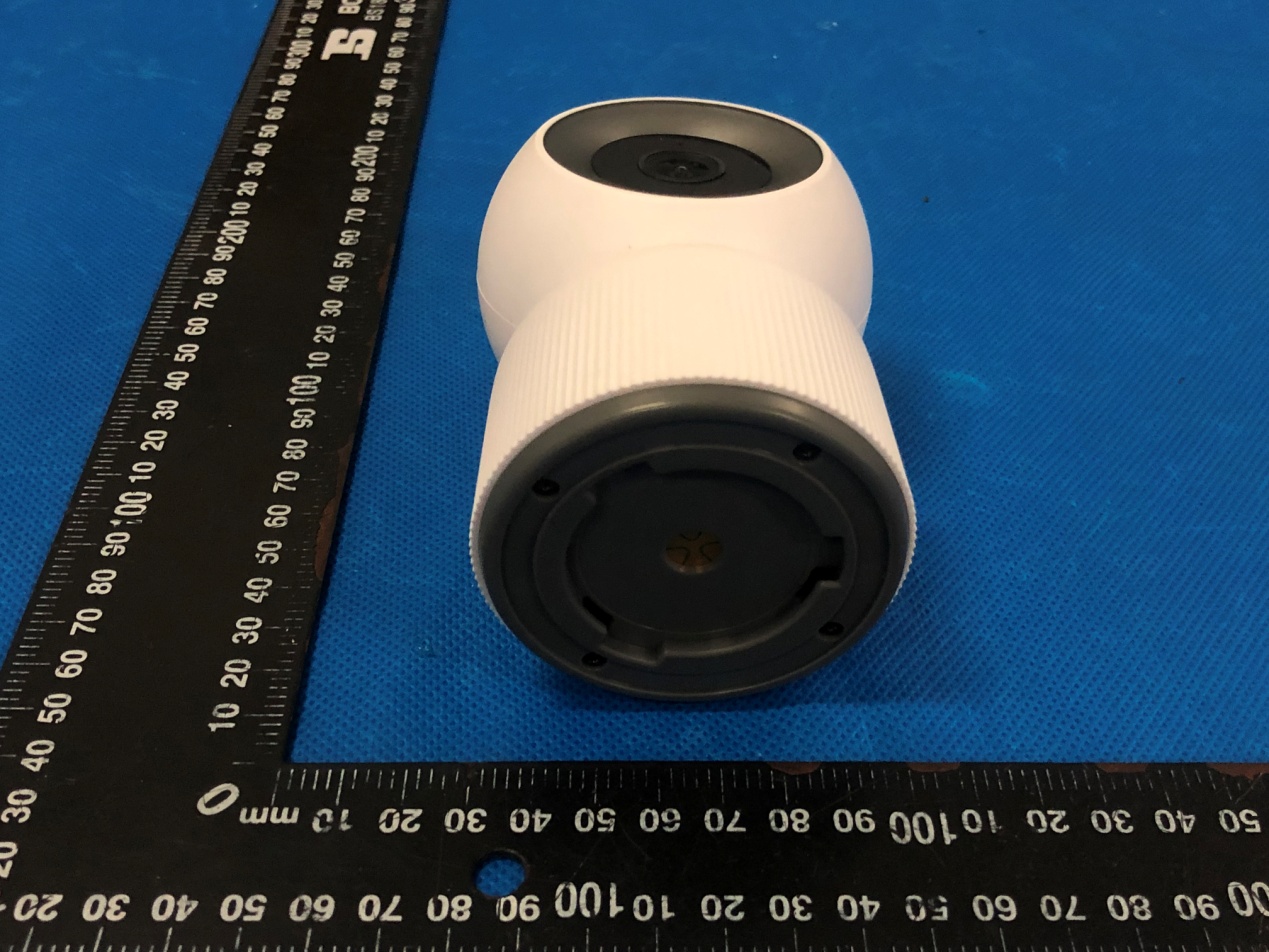

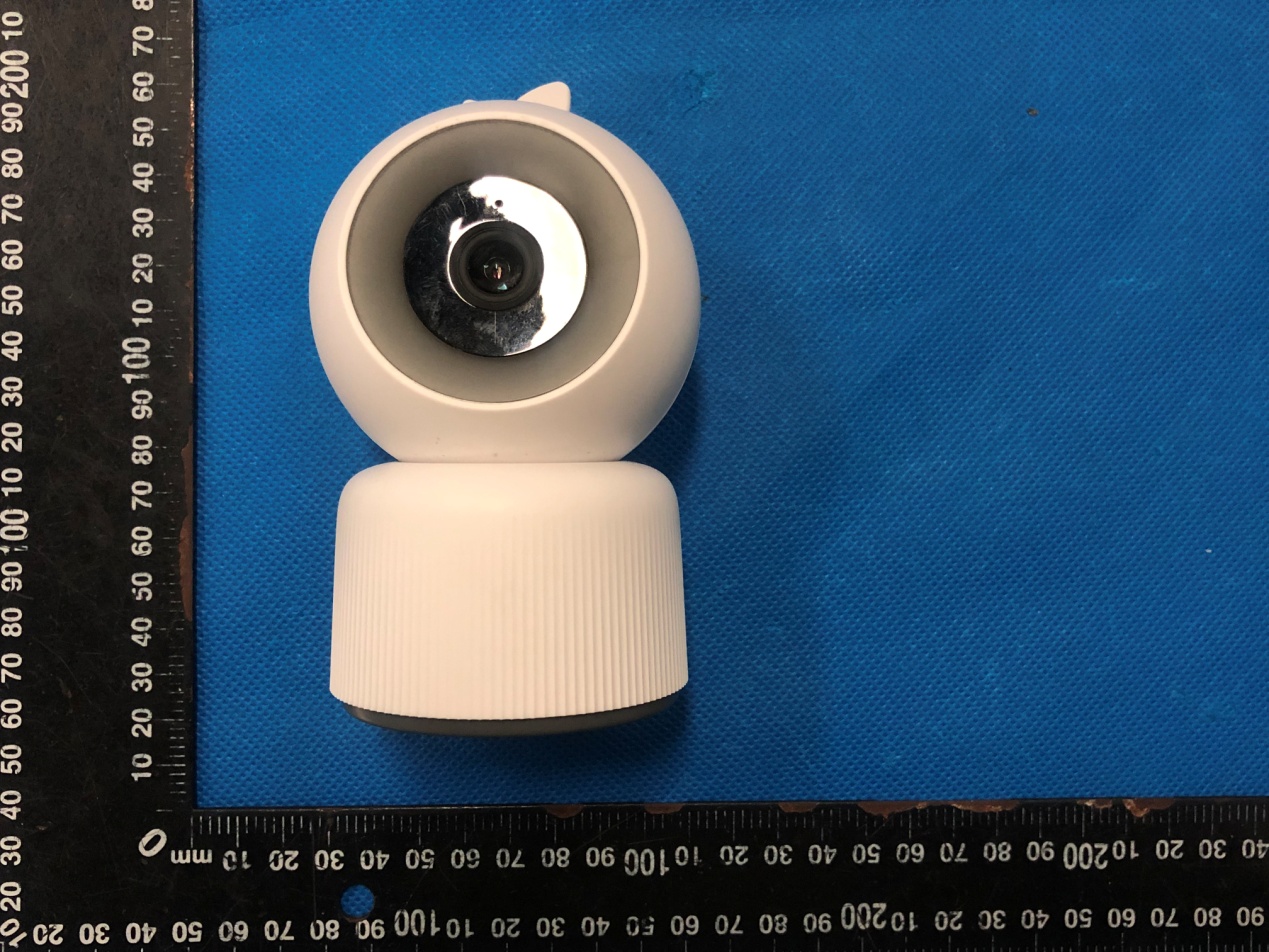

Annex A External Photos Report No.:HK2210184579-E Page 1 of 4 Report No.:HK2210184579-E Page 2 of 4 Report No.:HK2210184579-E Page 3 of 4 Report No.:HK2210184579-E Page 4 of 4

FCC ID LABEL: Ca. 20mm x 30mm Label Location FCC ID: 2A9NV-CCB1-N

Annex B Internal Photos Report No.:HK2210184579-E Page 1 of 7 Report No.:HK2210184579-E Page 2 of 7 Antenna Report No.:HK2210184579-E Page 3 of 7 Report No.:HK2210184579-E Page 4 of 7 Report No.:HK2210184579-E Page 5 of 7 Report No.:HK2210184579-E Page 6 of 7 Report No.:HK2210184579-E Page 7 of 7

MPE ESTIMATION FCC ID: 2A9NV-CCB1-N 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (numerical) MPE ( mW/cm²) WIFI 19.70 19±1(20) 100 2.5 1.78 0.03540 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2210184579-E, antenna gain=2.5dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.03540 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz2400MHz 2450MHz 2500MHz Center Frequency -1.26 2.5 0.76 -5.25 -2.46 -1.86 MAX. Gain 2.5dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-36.5604-7.48023 2500 0.76580 -22.0315-6.59127 2.5 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432

Page 1 of 60 Report No.: HK2210184579-E FCC TEST REPORT Test report On Behalf of Hangzhou Cheego Smart Technology Co., Ltd. For Smart Baby Monitor Model No.: CCB1-N, CCB1-* FCC ID: 2A9NV-CCB1-N Prepared For : Hangzhou Cheego Smart Technology Co., Ltd. Room 603, Bldg. E2, 3# Xiyuan 8 Road, Hangzhou, Zhejiang, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Nov. 03, 2022 ~ Nov. 10, 2022 Date of Report: Nov. 10, 2022 Report Number: HK2210184579-E Applican Address Manufa c Address Product Trade M a Product n Model an Standard This publ the Shen source o f and will n reproduc Date of T Date (s) o Date of Is Te s t R e su nt’s name .. .................. cture's Nam .................. descriptio ark: name ........... nd/or type re ds .............. lication may zhen HUAK f the materi not assume ed material Test ............ of performan ssue ........... ult ............... Te s Te c Aut TES ................: ................: me .............: ................: n .................. : eference .: ................: y be reprod K Testing Te al. Shenzhe liability for due to its p .................. nce of tests .................. .................. sting Engine chnical Man thorized Sig ST RESU Hangzhou Room 603 China Hangzho u Room 603 China Cheego Smart Ba b CCB1-N, FCC Rul e ANSI C63 uced in who echnology C en HUAK Te damages re placement a .............. : s ............. : .............. : .............. : eer : nager : gnatory : Page 2 of ULT CER u Cheego S 3, Bldg. E2, u Cheego S 3, Bldg. E2, by Monitor CCB1-* es and Regu 3.10: 2013 ole or in par Co., Ltd. is a esting Tech esulting from and context Nov. 03, 20 Nov. 10, 20 Pass 60 RTIFICAT Smart Techn , 3# Xiyuan Smart Techn , 3# Xiyuan ulations Par rt for non-co acknowledg nology Co., m the reade t. 022 ~ Nov. 1 022 (Gary Qi a (Eden H u (Jason Zho Repor TION nology Co., 8 Road, H a nology Co., 8 Road, H a rt 15 Subpa ommercial p ged as copy , Ltd. takes er's interpre 0, 2022 an) u) ou) rt No.: HK221 Ltd. angzhou, Z Ltd. angzhou, Z art C Sectio purposes as yright owner no respons etation of the 10184579-E hejiang, hejiang, n 15.247 s long as r and sibility for e Page 3 of 60 Report No.: HK2210184579-E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS .......................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. TEST RESULT .................................................................................................................................. 14 4.3. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.4. EMISSION BANDWIDTH .................................................................................................................. 18 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 23 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 28 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT .................................................................... 36 5. ANTENNA REQUIREMENT ..................................................................... 57 6. PHOTOGRAPH OF TEST ........................................................................ 58 7. PHOTOS OF THE EUT ............................................................................ 60 Page 4 of 60 Report No.: HK2210184579-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Nov. 10, 2022 Jason Zhou Page 5 of 60 Report No.: HK2210184579-E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. INFORMATION OF THE TEST LABORATORY Shenzhen HUAK Testing Technology …

Text truncated - open the document above for the full version.

Report No.: HK2210184579-E Radiated Emissions Report No.: HK2210184579-E Conducted Emission
