2A9OI-F1Anti Lost Alarm

進入App後Android系統手機請點選 定位器說明書 1、下載APP，請根據手機系統掃描相應的QRcode， 並使用手機內置瀏覽器下載，使用前請打開手機藍芽。 2、抽出電池的絕緣片（如圖） 出廠狀態的Tag，接通電源後成功可聽到滴一聲，表 示上電成功，同時也能看到LED快閃一次。 3、打開APP頁面，如圖: 4、APP將自動檢測到上電的Tag，如圖:5、填寫註冊信息，可以選擇你要綁定的物品圖標， 也可以自定義命名，如圖: 6、開通完成，如圖片顯示: 當防丟器在手機附近（距離10 公尺以內），物品列表可 連接圖標 將點亮，此時可以點擊蜂鳴器按鈕 使得 Tag發出聲音。 聲明: 產品團隊將持續提升產品體驗，但我們無法承諾 非常迅速可靠的網路查詢服務，我們也保留未來更改軟 硬件功能的權利，謝謝你的理解和支持。 常見問題： Q&A 1、無法開通 請檢察是否手機網路是否正常工作，藍芽是否打開，定 位權限和存儲讀寫權限（Android系統）是否打開，如 果遇到服務器或網路異常，建議切換手機網路試試。 當防丟器遠離手機，可使用地圖查找功能，如果有他人 發現你的房丟器，你可以獲取他人手機匯報的位置並解 密出防丟器最近的位置是在哪裡（位置更新非實時的)， 點擊綠色箭頭可以直接導航到Tag位置，如圖: 非常重要: 激活成功後的Tag，如果重新加電（取下電池， 等待8秒再安裝電池），請留意，LED將閃爍三次，而蜂 鳴器將不再蜂鳴。 7、附近查找 8、地圖查找 GlobalLocatorUserGuider AppDownload ScantheQRcodesaccordingtoyourphoneOS,open websiteanddownloadthefindmyTagAppviaphone nativebrowser,enableyourBluetoothfunctionbefore launchtheApp. Pulloutthebatteryinsulationfilm(Asthepicture shown) Onebeepsoundwillplayifpowerupsuccessfully,and theLEDwillflashonetimeifnotactivated. LaunchthefindmyTagapp,click + toaddanewtag. AppwilldetectthenewTagautomatically. Selectyourfavoriteitemiconandenteryourcontact informationtoactivatetheTag.Onceactivated,your phonenumberoremailwillbeboundtotheTaguntil unpairing(restoretofactory). Congratulations,yourTagisactivatedsuccessfully. Tip:IftheTagisactivated,theLEDwillflashthreetimes asre-installingthebattery,thebuzzerdoesn’twork againuntilyouclickthebeepbuttonintheapp. Searchnearby TheconnectableiconwillbelightediftheTagis nearby,Clickthebuzzerbutton tomaketheTag beep. WhenTagisfarawayfromyou,trytofindonthemap, ifsomebodyelseisnearbyyourTag,hisphonewill transmittheTagIDandhislocationtoserver,then youmaygetthelocationdatafromserver,then decrypttheGPSdatabyyourphone,soyouwillget thelocationofyourTagbysource-crowd.Clickthe greenarrow,youmayopenanavigationapptofind theroutetoyourTag. Disclaimer:Ourteamwillcontinuetoimprovetheuser experience,butwecan’tpromiseyouareliablenetw o rk location.Wealsoreservetherightforfurther modificationofhardwareandsoftware,thanksforyour understandingandsupport.                ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "

Rev 11/20/07 Shenzhen Zhongchuangda Electronics Co., LTD 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A9OI-F1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram, Schematics, Operational Description) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name () () Sincerely, the printed name：Zhou zhou

Shenzhen Zhongchuangda Electronics Co., LTD 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen Date: 2022-12-15 FCC ID: 2A9OI-F1 Dear Sir/Madam, We, Shenzhen Zhongchuangda Electronics Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and appearance is different for these model: Product name: Anti Lost Alarm Model no.: F1, F2, F3, F6 Regards, the printed name：Zhou zhou

Shenzhen Zhongchuangda Electronics Co., LTD 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 12-15-2022 SUBJECT: FCC Application for 2A9OI-F1 To Whom It May Concern: We, the undersigned, hereby authorize （Eric Wang）Shenzhen CTA Testing Technology Co., Ltd. at Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTA Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, the printed name：Zhou zhou

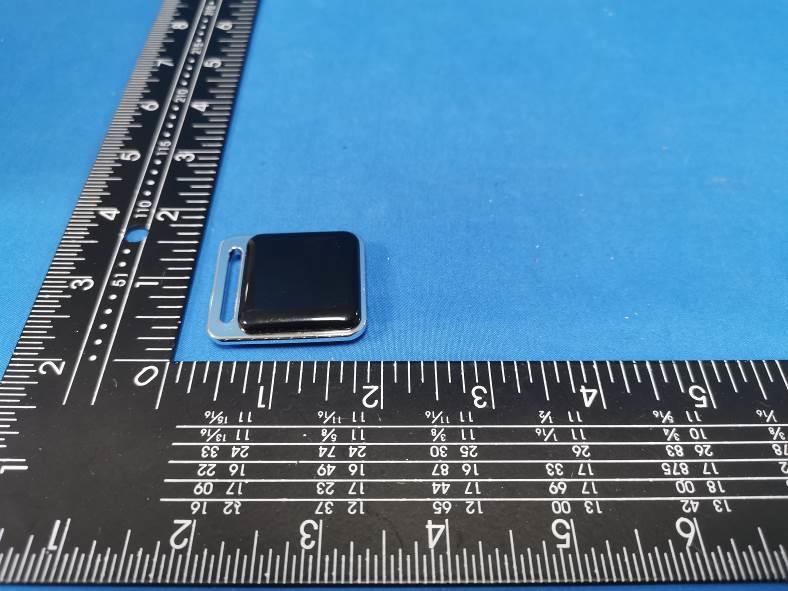

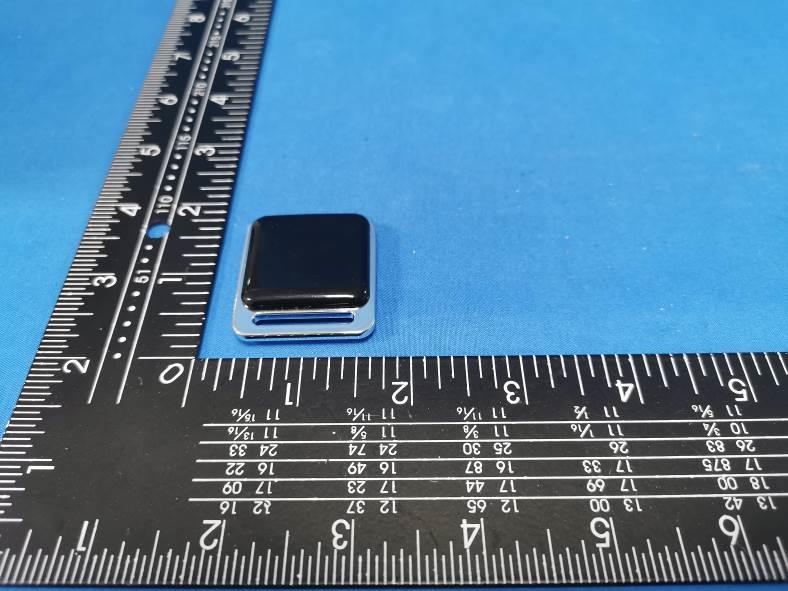

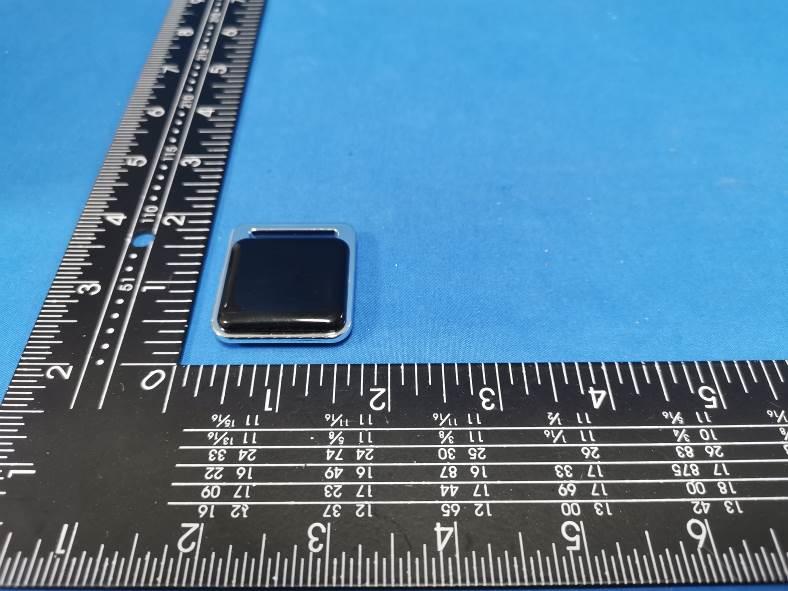

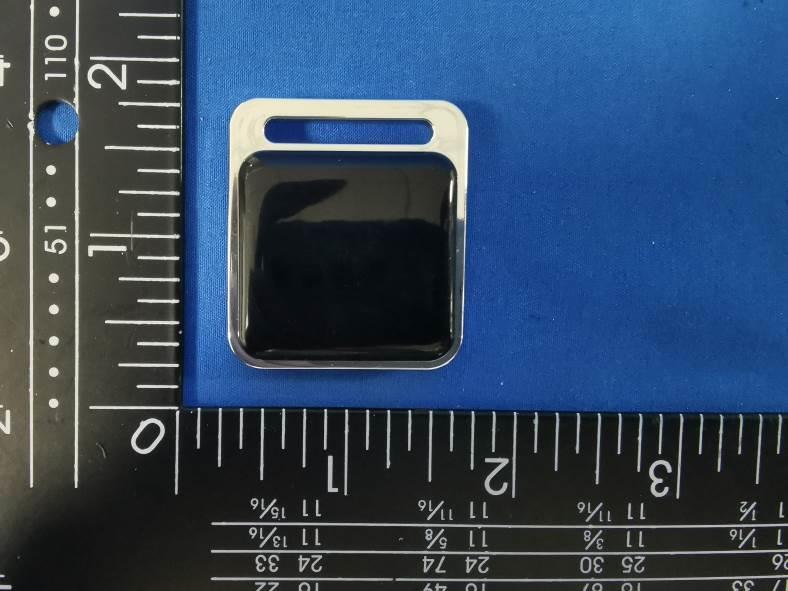

FCC ID: 2A9OI-F1 F1 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9OI-F1 Photo 4 Photo 5 Photo 6 FCC ID: 2A9OI-F1 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID: 2A9OI-F1

FCC ID: 2A9OI-F1 F1 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BLE(PCB) antenna FCC ID: 2A9OI-F1 Photo 4 Photo 5 Photo 6

RF Exposure evaluation FCC ID: 2A9OI-F1 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BLE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model F1 Frequency range 2400-2500MHz Manufacturer Shenzhen Zhongchuangda Electronics Co., LTD ANT Peak Gain 1.96 dBi 2. Antenna Photo: 3. Test Equipment & Conditions Length :12.35mm Width:2.97mm 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA22120601601 2A9OI-F1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 14, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zhongchuangda Electronics Co., LTD Address ............................................ : 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description .................. : Anti Lost Alarm Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zhongchuangda Electronics Co., LTD Model/Type reference ...................... : F1 Listed Models .................................. : F2, F3, F6 Modulation ....................................... : GFSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.0V From Battery Result ............................................... : PASS Report No.: CTA22120601601 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Anti Lost Alarm Model /Type : F1 Listed Models : F2, F3, F6 Applicant : Shenzhen Zhongchuangda Electronics Co., LTD Address : 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Zhongchuangda Electronics Co., LTD Address : 3/F, No. 5, Furong Road, Gushu Village, Xixiang Town, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22120601601 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R ES U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 11 4.3 Maximum Peak Output Power 18 4.4 Power Spectral Density 19 4.5 6dB Bandwidth 21 4.6 Out-of-band Emissions 23 4.7 Antenna Requirement 27 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 28 6 P H O T O S O F T H E E U T ........................................................... 29 Report No.: CTA22120601601 Page 4 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA22120601601 Page 5 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test…

Text truncated - open the document above for the full version.

FCC ID: 2A9OI-F1 F1 Test Setup Photos of the EUT
