Page 1 of 1 The following is a sample Agency Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜV Rheinland. Authority to Act as Agent Date: 22-12-2022 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint Raghavendra Kulkarni to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Dotcom IoT LLP 1ST, C-25, OFFICE NO 1 LAXM I TOWERS, BANDRA KURLA COM PLEX M umbai – 400051. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 22-12-2022 Agreement is valid for 12 months from the above date. By: __________________________ Alpesh Donga (Signature) (Print name) Co-Founder __________________________ (Title) (Telephone) On behalf of: Dotcom IoT LLP (Company Name)

Confidentiality Letter Date: 09-12-2022 Subject: Confidentiality Request for FCC ID: 2A9OQ-SN0001A Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation /NII software security attestation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent Test Setup Photos Short Term Permanent User’s Manual Dotcom IoT LLP has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, Company Information Dotcom IoT LLP 1ST, C-25, OFFICE NO 1, LAXMI TOWERS, BANDRA KURLA COMPLEX, MUMBAI, Mumbai City, Maharashtra, 400051 By: (Signature) Name: Alpesh Donga Title: Co-Founder On behalf of: Dotcom IoT LLP

+91 8591900346 S-node is working on the top of the RF protocol called OpenThread having 2.4Ghz frequencies, IEEE 802.15.4 Bluetooth/Bluetooth Low Energy and NFC is disabled via software. . Company Information: Dotcom IoT LLP 1ST, C-25, OFFICE NO 1, On behalf of: Dotcom IoT LLP LAXMI TOWERS, BANDRA By: (Signature) Name: Alpesh Donga Kurla Complex , Mumbai, Title: Co-Founder Maharashtra, 400051.

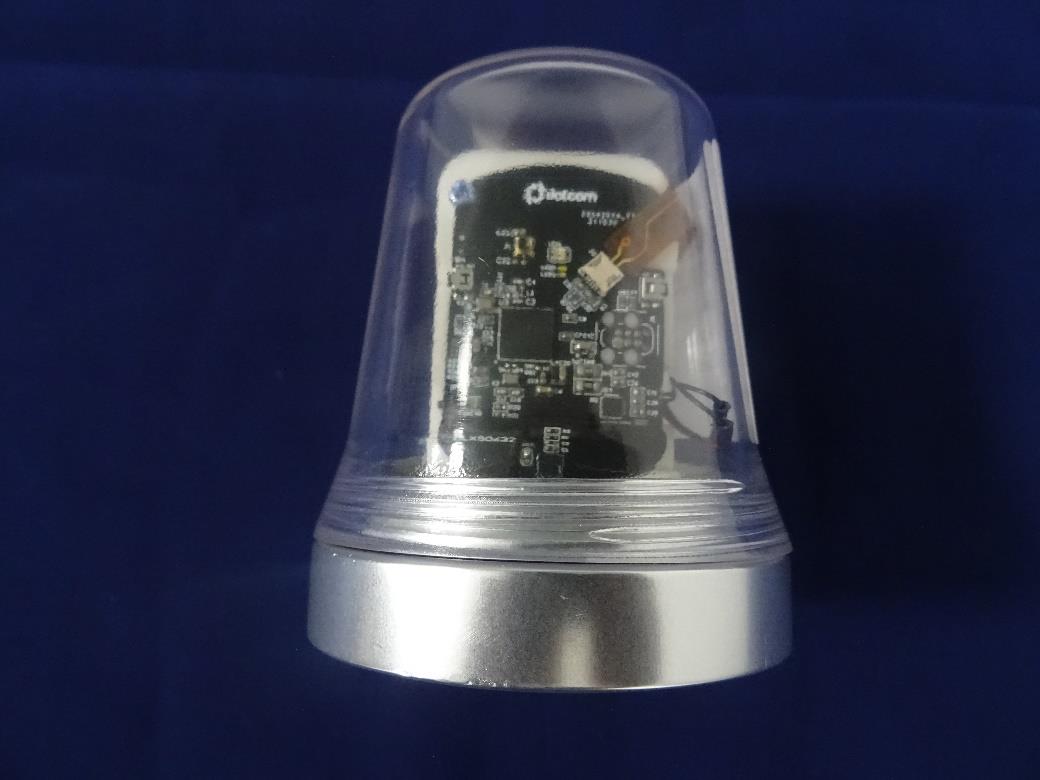

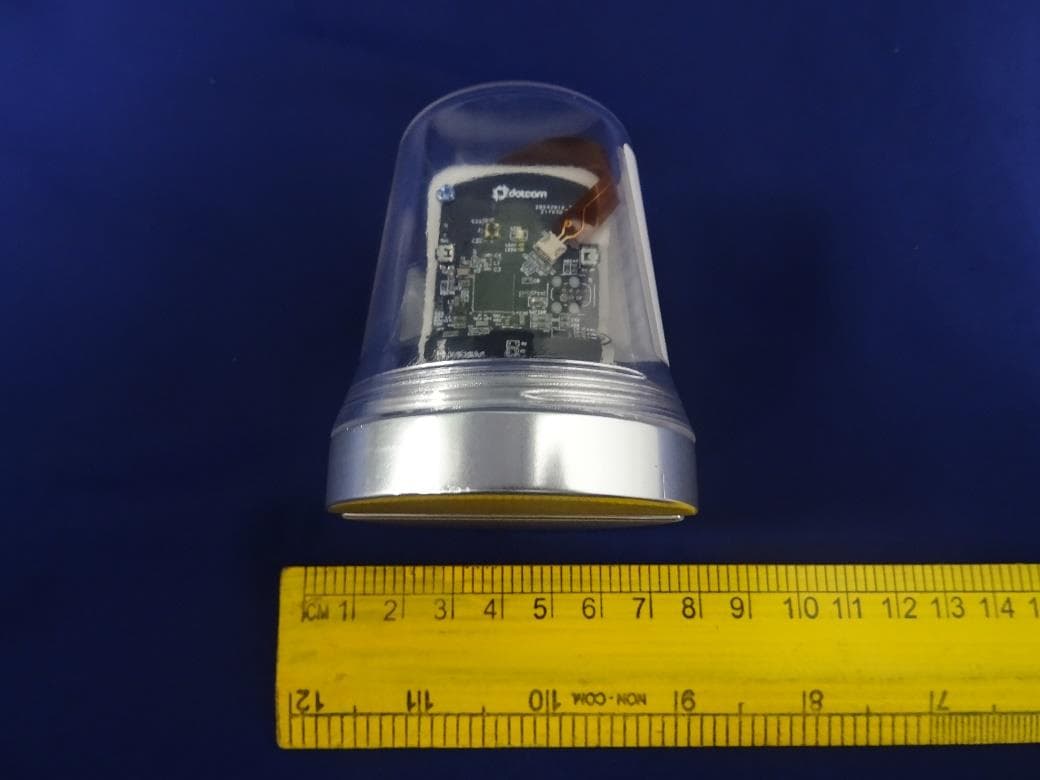

Produkte Products www.tuv.com EUT External Photos ULR-TC568822300000106F Seite 1 von 2 Page 1 of 2 EUT External Photos Figure 1: EUT Photo Figure 2: EUT Dimensional View Produkte Products www.tuv.com EUT External Photos ULR-TC568822300000106F Seite 2 von 2 Page 2 of 2 Figure 3: EUT Dimensional View ****End of EUT External Photos****

Applicant: Dotcom IoT LLP. Model: SN0001A FCC ID: 2A9OQ-SN0001A Label: Front View of S-Node: Back View of S-Node: Label Side View of S-Node:

Produkte Products www.tuv.com EUT Internal Photos ULR-TC568822300000106F Seite 1 von 3 Page 1 of 3 EUT Internal Photos Figure 1: Front view of the PCB Figure 2: Front view of the PCB Produkte Products www.tuv.com EUT Internal Photos ULR-TC568822300000106F Seite 2 von 3 Page 2 of 3 Figure 3: Dimensional view of PCB Figure 4: Dimensional view of PCB Produkte Products www.tuv.com EUT Internal Photos ULR-TC568822300000106F Seite 3 von 3 Page 3 of 3 Figure 5: EUT Internal Parts ****End of EUT Internal Photos****

Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ReferenceTest Report No: ULR-TC568822300000106F Seite 1 von 2 Page 1 of 2 1 RF Exposure Report 1.1 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 1.2 RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) showed in Table 1. Table 1: Limits for Maximum Permissible Exposure (MPE) as per FCC Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F or ƒ = Frequency in MHz 1.2.1 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ReferenceTest Report No: ULR-TC568822300000106F Seite 2 von 2 Page 2 of 2 KDB Guidelines applied: MPE calculations were made as per KDB 447498 D01 General RF Exposure Guidance v06. 1.3 Compliance criteria The Radio frequency Human Exposure Evaluation specification, method and procedures for S-Node is in accordance with the following standard FCC 1.1310 1.4 Test Results Protocol: ZigBee Antenna types Antenna gain Omnidirectional antenna 1.5 dBi MPE calculations : For FCC 1.1307 (b) Antenna Gain (dBi) Antenna gain in linear scale Channel Frequency (MHz) Maximum output power (dBm) Tune up Value in (dB) Maximum output power including Tune-up value (mW) Power Density (mW/cm²) FCC Limit (mW/cm2) 1.5 1.412 2405 6.96 1.5 7.014 0.00197 1.0 Note: 1. MPE evaluation is performed for 20 cm saperation distance 2. MPE evaluation is performed for highest antenna gain of 1.5 dBi

+91 8591900346 2.4 GHz PCB antenna: Ope rating Fre que ncy Range 2405MHz to 2480MHz Ante nna Mode l B Ante nna Gain 1.5 dBi Ante nna Type PCB ante nna Matching Ne twork Pi-ne twork Figure 3 Initial impedance If it is not possible to get the impedance exactly 50 ohm by adjusting the length of the antenna, a component must be used to pull the impedance to the 50 ohm point. It is preferable to use a shunt capacitor since a capacitor is cheaper than an inductor and because a shunt compone nt can be removed without any impact. +91 8591900346 When the length of the antenna is adjusted, it is important to completely remove the piece of track that is cut off since any remaining metal affects the antenna. Figure 4: Impedance after length adjustment. After the length is adjusted, and the impedance is getting close to the conductance circle that passes through the centre of the Smith chart, see Figure 4, a suitable capacitor is used to bring the impedance to the 50 ohm point, see Figure 5. In this case, a 1.0 pF capacitor gives the best results. The exact value can be calculated, or it can be found by trial and error. +91 8591900346 Figure: 5 Impedance after length adjustment and adding a shunt capacitor. Figure: 6 SWR after length adjustment and adding a shunt capacitor. +91 8591900346 Horizontal polarisation PCB Antenna Pattern 2402MHz Polar plot: +91 8591900346 Horizontal polarisation PCB Antenna Pattern 2440MHz Polar plot: +91 8591900346 Horizontal polarisation PCB Antenna Pattern 2480MHz Polar plot: +91 8591900346 Vertical polarization PCB Antenna Pattern 2402MHz Polar plot: +91 8591900346 Vertical polarization PCB Antenna Pattern 2440MHz Polar plot: +91 8591900346 Vertical polarization PCB Antenna Pattern 2480MHz Polar plot:

Prüfbericht – Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: IN22VUH5 ULR-TC568822300000106F Auftrags-Nr.: Order no.: 146738981 010 Seite 1 von 51 Page 1 of 51 Kunden-Referenz-Nr.: Client reference no.: 2458640 Auftragsdatum: Order date: 2022-11-23 Auftraggeber: Client: Dotcom IoT LLP 1ST, C-25, OFFICE NO 1 LAXMI TOWERS, BANDRA KURLA COMPLEX Mumbai - 400051 Prüfgegenstand: Test item: S-node Bezeichnung Identification SN0001A Serien -Nr.: Serial no.: Engineering Sample Auftrags-Inhalt: Order content: Testing and issue of Test Report and Grant Certificate Prüfgrundlage: Test specification: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209 Wareneingangsdatum: Date of sample receipt: 23-11-2022 Prüfmuster-Nr.: Test sample no: A003377890-002 Prüfzeitraum: Testing period: 2022-11-24 - 2022-11-26 Ort der Prüfung: Place of testing: Wireless laboratory, Bangalore Prüflaboratorium: Testing laboratory: TÜV Rheinland (India) Pvt. Ltd. 27/B,2nd cross road, Electronic city Phase1, Banglore-560100, India Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2022-11-27 Ausstellatum: Issue date: 23-12-2022 Stellung / Position: Likhithesh M D Senior Engineer Stellung / Position: Madhu K N Senior Engineer Sonstiges / Other: FCC ID: 2A9OQ-SN0001A Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhaf t P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfm uster und darf ohne Genehm igung der Prüfstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. T ÜV Rheinland (India) Pvt. Ltd, Plot No.27/B, 2nd Cross, Electronic city, Industrial Area, Phase I, Hosur Road Bangalore-560 100, India Mail: [email protected] ∙ Web: www.ind.tuv.com Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568822300000106F Seite 2 von 51 Page 2 of 51 TEST SUMMARY Test Item FCC Result Maximum conducted (average) output power FCC 15.247(b)(3) Pass Maximum Power Spectral Density FCC 15.247(e) Pass Occupied bandwidth and 6dB Bandwidth 15.247 (a) (2) Pass Emissions in non-restricted frequency bands 15.247 (d) Pass Spurious Radiated Emissions and Restricted Bands of Operation FCC 15.209 / FCC 15.205 Pass Conducted Spurious Emission on AC Power lines FCC 15.207 Pass Product Category: Electronics Testing Test Discipline: EMC Test Facility Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568822300000106F Seite 3 von 51 Page 3 of 51 REVISION HISTORY OF THIS REPORT Report Number Version Description Issue date ULR-TC568822300000106F 01 Initial issue of report 16-12-2022 ULR-TC568822300000106F 02 Reviewer comments updated 23-12-2022 Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568822300000106F Seite 4 von 51 Page 4 of 51 Table of Contents 1 GENERAL REMARKS ........................................................................................................................ 5 1.1 Attachments .............................................................................................................................. 5 2 TEST SITES ..................................................................................................................................... 6 2.1 Testing Facilities ........................................................................................................................ 6 2.2 List of Test and Measurement Instruments ..................................................................................... 6 3 GENERAL PRODUCT INFORMATION ................................................................................................. 7 3.1 Product Function and Intended Use .............................................................................................. 7 3.2 Ratings and System Details of Equipment under Test ...................................................................... 7 3.3 Measurement Uncertainty: ........................................................................................................... 8 4 TEST SET-UP AND OPERATION MODE .............................................................................................. 9 4.1 Principle of Configuration Selection ............................................................................................... 9 4.2 Test Operation and Test Software................................................................................................. 9 4.3 Special Accessories and Auxiliary Equipment ................................................................................. 9 4.4 Countermeasures to achieve EMC Compliance .............................................................................. 9 4.5 List of frequencies ...................................................................................................................... 9 5 OPERATIONAL DESCRIPTION..........................................................................................................10 6 TEST METHODOLOGY.....................................................................................................................12 6.1 Conducted Spurious Emission Test on AC Power lines .........................................................…

Text truncated - open the document above for the full version.

Produkte Products www.tuv.com EUT Test Setup Photos ULR-TC568822300000106F Seite 1 von 5 Page 1 of 5 EUT Test Setup Photos Frequency Range: 9kHz – 30MHz Polarization: Parallel Frequency Range: 9kHz – 30MHz Polarization: Perpendicular Produkte Products www.tuv.com EUT Test Setup Photos ULR-TC568822300000106F Seite 2 von 5 Page 2 of 5 Frequency Range: 30MHz – 200MHz Polarization: Vertical Frequency Range: 30MHz – 200MHz Polarization: Horizontal Produkte Products www.tuv.com EUT Test Setup Photos ULR-TC568822300000106F Seite 3 von 5 Page 3 of 5 Frequency Range: 200MHz – 1GHz Polarization: Vertical Frequency Range: 200MHz – 1GHz Polarization: Horizontal Produkte Products www.tuv.com EUT Test Setup Photos ULR-TC568822300000106F Seite 4 von 5 Page 4 of 5 Frequency Range: 1GHz – 18GHz Polarization: Vertical Frequency Range: 1GHz – 18GHz Polarization: Horizontal Produkte Products www.tuv.com EUT Test Setup Photos ULR-TC568822300000106F Seite 5 von 5 Page 5 of 5 Frequency Range: 18GHz – 26GHz Polarization: Vertical Frequency Range: 18GHz – 26GHz Polarization: Horizontal ****End of EUT Setup Photos****
