2A9OXBBP72086VOLT REMOTE

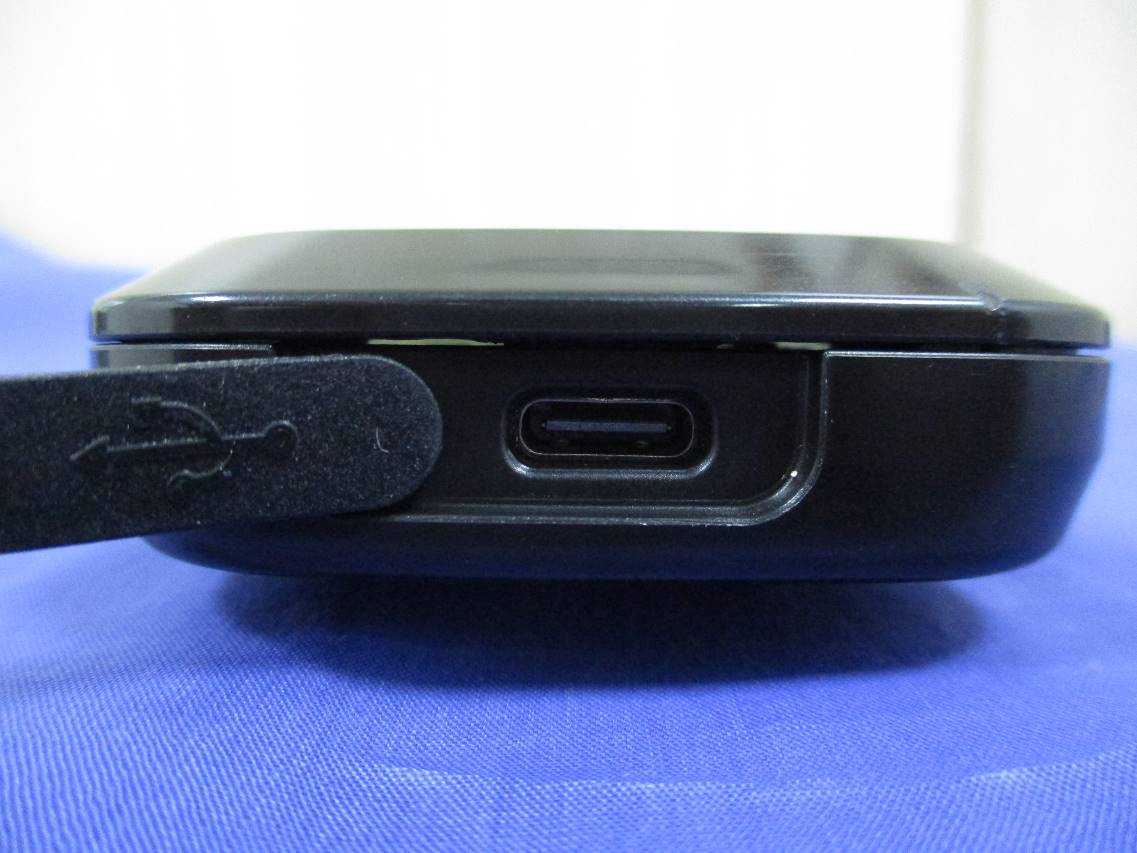

VOLT Remote BagBoy Remote Control 2 Charging • Before using the Remote, please make sure that it is fully charged. • The Remote contains a rechargeable lithium battery. Charge the Remote with the provided USB cable, and the charging port is located under the rubber cover located at the bottom of the remote. • The blue LED light flashes when charging is in progress, and it will remain solid when fully charged. • When the battery level of the Remote is low, the blue LED and the red LED will start to flash at the same time. And the low battery icon of the remote will display on the display screen. • When the battery is completely drained, no LED lights will light up when any button is pressed. • The keypad will be locked while charging. • A full charging process takes about 3 hours. Remote Control Operating Remote 1 Forward Button • The starting speed is level 2. Each tap increases 1 speed level, maximum is level 9. • Press and hold the Forward Button to speed up the motor quickly.(accelerate to level 9 in 3 seconds) 2 Down Button • When the brakes is activated, press and hold Down Button to move the cart in reverse. • While moving forward, every time you tap the Down Button, the speed will be reduced by 1 level, and the minimum speed is level 1. 3 3&4 Left / Right Button • Tap the Left / Right Button, then the cart will turn slightly and continue to move forward.(no matter if the cart is moving or not) • Press and hold the Left / Right Button, then the cart will keep turning left / right until release the button. 5 Stop Button • The cart stops when pressed in any state 6 Unlock Button • If the remote control keys are locked, press the Unlock Button to unlock the keypads. • Press any button when the keypad unlocked, the blue LED will light up. 7 Lock Button • Press the Lock Button to limit and prevent unexpected control. • Press any button when the keypad locked, the red LED will light up. 6+7 Unlock + Lock Button • Press these two buttons at the same time to activate the pairing mode. 8 Charging Port • USB-C port • The keypad will be locked while charging 1 5 4 3 2 6 7 8 Pairing Your Cart 1.Press and hold the Lock & Unlock buttons on the remote at the same time until the blue and red LED blink alternately. Then the remote will enter into the pairing mode and continue sending the pairing signal for 60 seconds. 4 LockButtonUnlock Button 2.When the pairing is complete, you can press and hold the Unlock Button for 3 seconds to exit the pairing mode. *The remote will automatically exit the pairing mode after 60 seconds. 3.The keypad of the Remote will be locked during the pairing mode except for the Unlock Button. StatesDescription of LED lights Low batteryThe blue and red LED keep flashing. Batteryfully chargedThe blue LED stays on. Battery is chargingThe blue LED keeps flashing. Ready to pairThe blue LED and red LED flashseparately. Keypad is lockedThe blue LED lights up while pressing any button. Keypad is unlockedThe red LED lights up while pressing any button. FCC Compliance Statement 5 •This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. •This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. •Any changes or modifications not expressly approved by BagBoyfor compliance could void the user's authority to operate this equipment. •This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. •This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the Instructions , may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. •This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. •FCC Radiation Exposure Statement: •This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. •This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. •Responsible party (contact for FCC matters only): Dynamic Brands 2701 EmerywoodPkwy., Ste. 200 Richmond, VA 23294 USA (804) 726-1343

Grantee also Agent for Service of ProcessFCC Attestation Statements Kiwa RF 754 01 Page 1 of 2 09-02-2023 Dynamic BrandS $ liio-"baJ')oainaa:I,;<,!l',,W%,ai:'<.le:i'4'i4y'rrh,<[FYN!"9!4.' L1.S. Agent Designation for Seivice of Process (Applicant is Both Grantee and u.s. Agent) TO: ATTENTION: FCC Certification - Section 2.911(d%7) Information This letter is to confirm that the Applicant will also serve as the u.s. Agent for Service of Process as required by 47 CFR 2.911 (d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated u.s. Agent information changes. Mplicant & Aqent Company name: Dynamic Brands LLC FRN: 0033164666 Grantee Code: 2A90X Contact person name: Pat Gallagher Agent name: Pat Gallagher Street address: 2701 Emerywood Pkwy, Suite 200 ZIP/City/State Richmond, VA 23294 Telephone number: 6316826120 Email address:[email protected] . Signature Contact person': Date: ,u'\,_ X.l(-Z_?, Signature Agent": Date: ],c,, (,( , i I . Z__'5 Grantee also Agent ;for Service of ProcessFCCAttestation StatementsKiwa RF 754 01 Page 2 of 2 09-02-2023 DynamiC Braands 3 1'.A }a6a.sl cuavesv ll,,.1,, !22,, ffi'€,!.-',t'i'i 157((H4 @hvxpoii Note 'Must be signed by both the applicant, and agent on behalf Revision Record Sheet: RevisionSection number Page number Date Remark(s) issued by 01 09-02-20231"' version RvM Issued/modified by Function Revision Date Verified by Function Date Released by Function Date of release: : Richard van de Meer : Certification assessor :01 : 09-02-2023 : Willem Jan Jong : Team Lead :09-02-2023 : Axel Gase : Manager Quality Assurance : 09-02-2023

Dynamic Brands ( . a . . . . . , .. , . . ; ... ( " aia :i. .. . ; . ' + N l( ', 1( ' . Certification Application Attestation Statements Dynamic Brands LLC 2701 Emerywood Pkwy, Suite 200 23294 Richmond, VA, USA Subject: FCC ID: 2A90XBBP72086 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) Dynamic Brands LLC certifies that as of the date of the application the equipment for which authorization is sought is not "covered" equipment' prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not "covered" equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911 (d)(5)(ii) Dynamic Brands LLC ("the applicant") certifies that, as of the date of the filing of this application, the applicant g-is/(g- is not (3) identified on the Covered List as an entity producing "covered" equipment. Date: 3/31 /2023 City: Richmond, VA Name(2) : Pat Gallagher Function: Product Manager Telephone number: 6316826120 Email address: [email protected] n. . // i / Signature: p ' - The Commission's Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commrssion's websrte. This Covered List, which rs periodically updated, identifies particular equipment, produced by particular entibes, that constitutes "covered" equipment. https://wwwJcc qov/supplychain/coveredlist (2).' For FCC rt must be the Grantee Code"owner" or the authorrzed agent. (3).' double click on the appropriate box and select "checked" then "OK" Dynamic Brands Revision Record Sheet: Revision Section number Page number DateRemark(s)issued b7 01 07-02-2023 I "' version RvM 52'H:(1,5HQ2,;2Q235_ti.NffiiUlA=i.i=ffi.tit:St_-0-Sc_ 6mTha'6\iB,y,a_fV! 5[ig8g'i$ji6'ii'q0;'[gQ::i,(:2 -i': Issued/modified by Function Revision Date Verified by Function Date Released by Function Date of release: : Richard van de Meer : Certification assessor : 02 :15-02-2023 : Willem Jan Jong : Team Lead :16-02-2023 : Axel Gase : Manager Quality Assurance : -02-2023

RF 160 05 Declaration of Authorisation kiwd Date of issue 02-01-2023 Dynamic BrandS Declaration of Authorization We Name: Address: City: Country: Dynamic Brands LLC 2801 Emerywood Pkwy, suite 200 Richmond, VA United States of America Declare that: Name Representative of agent: Agent Company name: Address: City: Country Daphne Liang (') SGS Compliance Certification Services Inc. No.8,Jiucengling,Xinhua Dist., Tainan City. Taiwan R.O.C is authorized to apply For Certification of the following product(s): Product description: VOLT REMOTE Type designation: VOLT REMOTE Trademark: Bag Boy Validity/ expiry date 2023 /'I 0 /07 (OCT. 07 2023) on our behalf. Date: City: Name: Function: Signature: 4/1 3/2023 Richmond,VA Patrick Gallagher Product Manager, Dynamic ),rands LLC Notes.' (1) .' Required for FCC application (2) . For FCC it must be the Grantee Code "ownef' or the authorized agent. Dynamic Brands za 6[.'o"') oterpetisc ml,,,l"a,. ygi;i7 ietircya (!=Y':'!'9!#. Revision Record Sheet: Revision Section number Page numberDateRemark(s)issued by 021 02-01-2023History sheet added AG Issued/modified by Function Revision Date Verified by Funcflon Date Released by Function Date of release: : Axel Gase : Quality Manager : 02 : 02-01-2023 : Willem Jan Jong : Team Lead : 02-01-2023 : Axel Gase : Manager Quality Assurance : 02-01-2023

FCC, Request for non-disclosure RF 50'), IssuelO kiwal Date: 02-01-2022 Company Name: Address' City: Country' To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Dynamic Brands LLC 2701 Emerywood Pkwy, Suite 200 RichmondVA United States of America Subject: Request for confidentiality FCC ID: 2A90XBBP72086 Reference number: #### Dear FCC TCB 1. Long-Term Confidentiality Pursuant to 47 CFR Section O.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: 0 Bill(S) Of Material [g Block Diagrams § Operational Description [g Schematic Diagrams @ Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section O.457(d%2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission's policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment ofthe following materials (See notes below): @ Internal Photos @ User's Manual @ Test Set-up Photos g External Photos Justification: Date: 3/2"l/2023 Notes' Name and signature of applicant: Patrick Gallagher 1) A document or type or document can only have ONE type of confidentielityl 2) Shod-Term confiderdiality rs rn pnnciple for 45 days from date of grant, it can be extended max 3 [rmes (total time 1 80 days max )l The planned dare should stake in the RF731 application form 3) FCC musd be rnformed when marketing begins earlrer 4) Release rakes place automatically thus e:Aension must be requested in time Telefication does not remind you of thisl 5) Request for extension or for release must be received by Krwa NL B V at least 7 days before date of actual marketrng or before exprratron of the STC penod FCC, Request for non-disclosure RF 501, Issue 10 Revision Record Sheet: RevisionSection number Page number' Date '' Remark(s) iissuedby 10102-01-2023History sheet added i AG Issued/modified by Function Revision Date Verified by Funcflon Date Released by Function Date of release: Axel Gase : Quality Manager : 10 : 02-01-2023 : Willem Jan Jong : Team Lead : 02-01-2023 : Axel Gase : Manager Quality Assurance 02-01-2023 Date: 02-01-2023 Page 1 of 1

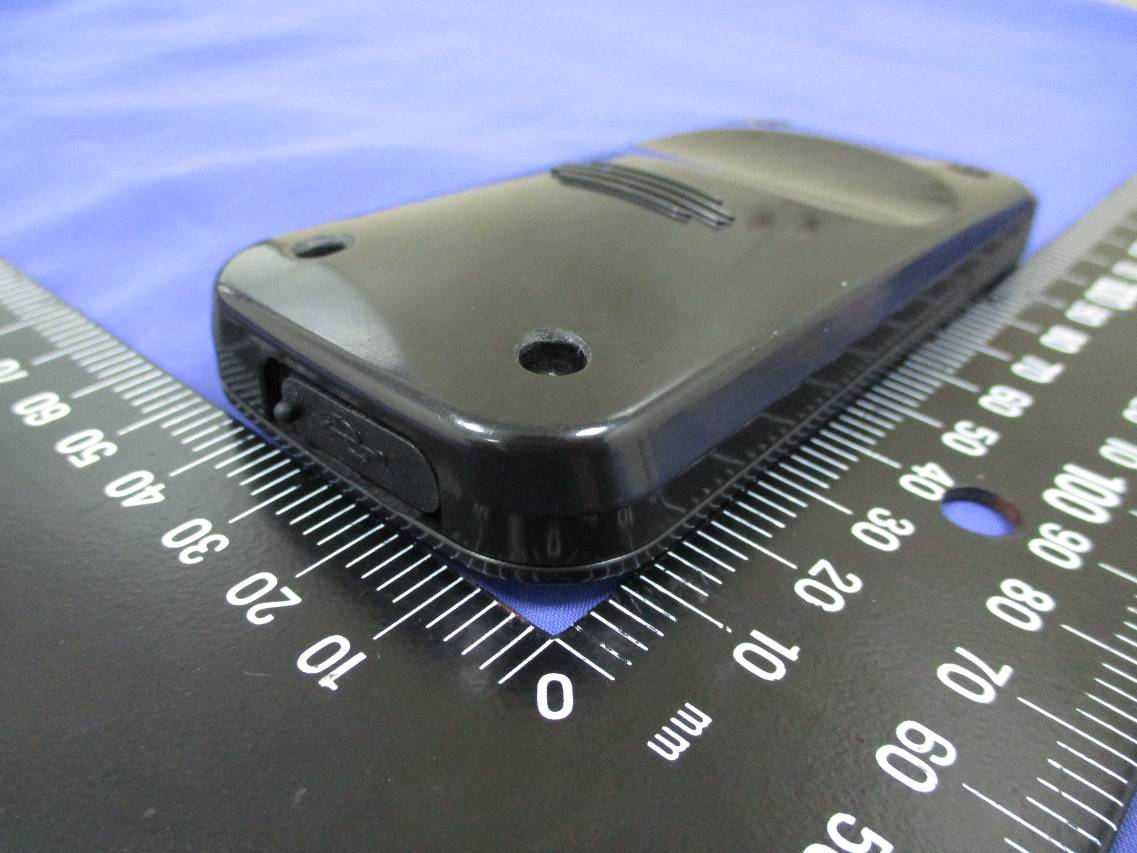

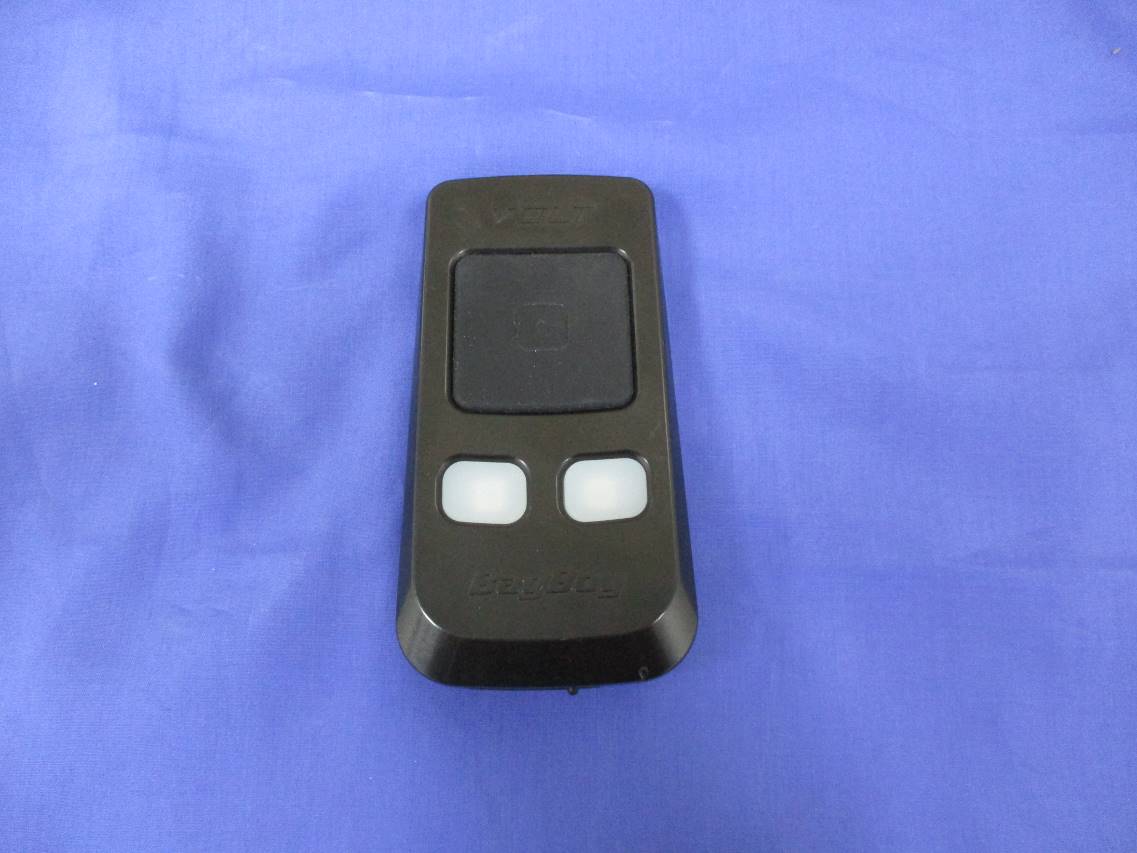

Page: 52 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 APPENDIX II - PHOTOGRAPHS OF EUT External Photo Model: VOLT REMOTE Page: 53 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00

5mm 23mm 標籤內文 Model Name: VOLT REMOTE FCC ID: 2A9OXBBP72086 INPUT:5V⎓300mAMade in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name: VOLT REMOTE FCC ID: 2A9OXBBP72086 INPUT:5V⎓300mAMade in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name: VOLT REMOTE FCC ID: 2A9OXBBP72086 INPUT:5V⎓300mAMade in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 42mm 20mm 7mm 7mm Label位置

Page: 54 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Internal Photo Model: VOLT REMOTE Page: 55 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Page: 56 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Page: 57 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Page: 58 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00

This document cannot be reproduced except in full, without prior written approval of the Company. FCC ID: 2A9OXBBP72086 IC: Page: 1 / 1 Report No.: TMWK2212005377KS Rev.: 00 FCC ID: 2A9OXBBP72086 According to 447498 D04 Interim General RF Exposure Guidance v01 section 2.1.2, the available maximum time-average power not exceeding 1 mW is exempt from the test. The tune-up power is -17 dBm +/- 0.5dB, therefore the highest tune-up power is -16.5 dBm(0.02 mW)@ 2480 MHz <1mW Note: 1. The tune up power referred the AVG power of the test report TMTN2212001724NR for SAR test exclusion purpose.

Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2302000103E4 Page No.: 1 of 8 Antenna Test Report Report No.: TEOT2302000103E4 Applicant Name: UNIQUE PRODUCT & DESIGN CO., LTD Manufacturer Name: UNIQUE PRODUCT & DESIGN CO., LTD Product Name: VOLT REMOTE Model Number: VOLT REMOTE Measurements performed at SGS Taiwan Ltd. Hwaya District, Taiwan Issued Date: March 06, 2023 Name Date & Signature Distribution Prepared by: Nandi Chen Sr. Engineer March 06, 2023 Approved by: Shawn Yen Supervisor March 06, 2023 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2302000103E4 Page No.: 2 of 8 Measurement System Information General Information Testing Condition: ⚫ Temperature: 22±3 ̊C ⚫ Humidity: <80% Measurement Facility: ⚫ Measurement Chamber: MVG 3D fully anechoic chamber and its measuring system (Stargate-24-L) ⚫ Base Station Simulator: Anritsu MT8820C (or R&S CMU200) ⚫ Network Analyzer: Agilent E5071C Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2302000103E4 Page No.: 3 of 8 Measurements are performed in a MVG Stargate-24-L with the StarAct interface for a base station simulator. The Stargate-24-L has 23 probe antennas mounted with equal spacing on a circular arch. Electronic switching of the probe antennas provides outstanding measurement speed. The geometry of the setup, with only a Styrofoam column within 1.6 meters of the EUT, ensures minimum interference and low ripple on the measured radiation patterns. The DUT is placed on top of the pedestal, in the center of the system. Typical Setup for MVG Stargate-24-L: Instruments View Inside View Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request…

Text truncated - open the document above for the full version.

Project No.: TM-2212000411P FCC ID: 2A9OXBBP72086 Page: 1 / 58 Report No.: TMTN2212001724NR Rev.: 00 No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan City, 717017, Taiwan /台南市仁德區中正路三段523巷168號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C ANSI C63.10: 2013 TEST REPORT For VOLT REMOTE Model: VOLT REMOTE Brand: Bag Boy Test Report Number: TMTN2212001724NR Issued to Dynamic Brands LLC 2701 Emerywood Pkwy, ste 200, Richmond, Virginia, United States Issued by Compliance Certification Services Inc. Tainan Lab. No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan Cit y, 717017, Taiwan Issued Date: April 26, 2023 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page: 2 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 April 26, 2023 Initial Issue ALL Gina Lin 01 January 14, 2020 See the following note rev.01 Page 6~7 Gina Lin Note: ※ Rev .00 Issue Date: October 13, 2021 Ori ginal Report ※ Rev.01 Issue Date: January 14, 2020 Update EUT description & EUT exercise. Page: 3 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 TABLE OF CONTENTS 1.TEST RESULT CERTIFICATION ........................................................................ 4 2.EUT DESCRIPTION ............................................................................................. 5 3.TEST METHODOLOGY ....................................................................................... 6 3.1 EUT CONFIGURATION .................................................................................. 6 3.2 EUT EXERCISE .............................................................................................. 6 3.3 GENERAL TEST PROCEDURES ................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ....................... 7 3.5 DESCRIPTION OF TEST MODES .................................................................. 7 4.INSTRUMENT CALIBRATION ............................................................................ 8 4.1 MEASURING INSTRUMENT CALIBRATION .................................................. 8 4.2 MEASUREMENT EQUIPMENT USED ........................................................... 8 4.3 MEASUREMENT UNCERTAINTY .................................................................. 9 5.FACILITIES AND ACCREDITATIONS .............................................................. 10 5.1 FACILITIES ................................................................................................... 10 5.2 EQUIPMENT ................................................................................................. 10 5.3 LABORATORY ACCREDITATIONS LISTING ............................................... 10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................... 11 6.SETUP OF EQUIPMENT UNDER TEST ........................................................... 12 6.1 SETUP CONFIGURATION OF EUT ............................................................. 12 6.2 SUPPORT EQUIPMENT ............................................................................... 12 6.3 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 13 6.4 EUT OPERATING CONDITION .................................................................... 14 7.FCC PART 15.249 REQUIREMENTS ................................................................ 15 7.1 20 dB BANDWIDTH ...................................................................................... 15 7.2 DUTY CYCLE ................................................................................................ 19 7.3 SPURIOUS EMISSION ................................................................................. 27 7.4 POWERLINE CONDUCTED EMISSIONS .................................................... 44 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ................................................. 47 APPENDIX II - PHOTOGRAPHS OF EUT ............................................................... 52 Page: 4 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 1.TEST RESULT CERTIFICATION Product: VOLT REMOTE Model: VOLT REMOTE Brand Name: Bag Boy Applicant: Dynamic Brands LLC 2701 Emerywood Pkwy, ste 200, Richmond, Virginia, United States Manufactur…

Text truncated - open the document above for the full version.

Page: 47 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP(Below 1G) Page: 48 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Page: 49 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 RADIATED RF MEASUREMENT SETUP(Above 1G) Page: 50 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 Page: 51 / 58 Report No.: TMTN2212001724NR Ref. No.: T210201N03-RT Rev.: 00 CONDUCTED EMISSION MEASUREMENT SETUP
