2A9PBTYRLD-1Table Lamp

Table Lamp FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCCs RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

ZHONGSHAN KEMI LIGHTING CO.,LTD Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/31/2023 U.S. Agent Designation ZHONGSHAN KEMI LIGHTING CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A9PBTYRLD-1): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of ZHONGSHAN KEMI LIGHTING CO.,LTD. ZHONGSHAN KEMI LIGHTING CO.,LTD with the FRN 0033170572 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature ZHIPENG WU MANAGER ZHONGSHAN KEMI LIGHTING CO.,LTD Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Phone: +86-18675086880 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: ZHIPENG WU / MANAGER Company: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Phone: +86-18675086880 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A9PBTYRLD-1 TYRLD-1, TYRLD-2, TYRLD-3, TYRLD-4, TYRLD-5, TYRLD-6, TYRLD-7, TYRLD-8, TYRLD-9, TYRLD-10, TYRLD-11, TYRLD-12, TYRLD-13, TYRLD-14, TYRLD-15, TYRLD-16, TYRLD-17, TYRLD-18, TYRLD-19, TYRLD-20, TYRLD-21, TYRLD-22, TYRLD-23, TYRLD-24, TYRLD-25, TYRLD-26, TYRLD-27, TYRLD-28, TYRLD-29, TYRLD-30 We, applicant Company Name: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Phone: +86-18675086880 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: ZHIPENG WU / MANAGER Company: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Phone: +86-18675086880 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2A9PBTYRLD-1 TYRLD-1, TYRLD-2, TYRLD-3, TYRLD-4, TYRLD-5, TYRLD-6, TYRLD-7, TYRLD-8, TYRLD-9, TYRLD-10, TYRLD-11, TYRLD-12, TYRLD-13, TYRLD-14, TYRLD-15, TYRLD-16, TYRLD-17, TYRLD-18, TYRLD-19, TYRLD-20, TYRLD-21, TYRLD-22, TYRLD-23, TYRLD-24, TYRLD-25, TYRLD-26, TYRLD-27, TYRLD-28, TYRLD-29, TYRLD-30 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: ZHIPENG WU / MANAGER Company: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Phone: +86-18675086880 Fax: N/A E-Mail: [email protected]

ZHONGSHAN KEMI LIGHTING CO.,LTD Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Date: July 31, 2023 FCC ID: 2A9PBTYRLD-1 Model Number: TYRLD-1, TYRLD-2, TYRLD-3, TYRLD-4, TYRLD-5, TYRLD-6, TYRLD-7, TYRLD-8, TYRLD-9, TYRLD-10, TYRLD-11, TYRLD-12, TYRLD-13, TYRLD-14, TYRLD-15, TYRLD-16, TYRLD-17, TYRLD-18, TYRLD-19, TYRLD-20, TYRLD-21, TYRLD-22, TYRLD-23, TYRLD-24, TYRLD-25, TYRLD-26, TYRLD-27, TYRLD-28, TYRLD-29, TYRLD-30 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ZHONGSHAN KEMI LIGHTING CO.,LTD hereby declare that our product (Table Lamp) Model Number: TYRLD-1, TYRLD-2, TYRLD-3, TYRLD-4, TYRLD-5, TYRLD-6, TYRLD-7, TYRLD-8, TYRLD-9, TYRLD-10, TYRLD-11, TYRLD-12, TYRLD-13, TYRLD-14, TYRLD-15, TYRLD-16, TYRLD-17, TYRLD-18, TYRLD-19, TYRLD-20, TYRLD-21, TYRLD-22, TYRLD-23, TYRLD-24, TYRLD-25, TYRLD-26, TYRLD-27, TYRLD-28, TYRLD-29, TYRLD-30 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: ZHIPENG WU / MANAGER Company: ZHONGSHAN KEMI LIGHTING CO.,LTD Address: Card 3, No. 35-2, Xinxing West Road Qifang Village, Guzhen Town, ZHONGSHAN, GUANGDONG, China Tel: +86-18675086880 Fax: N/A E-Mail: [email protected]

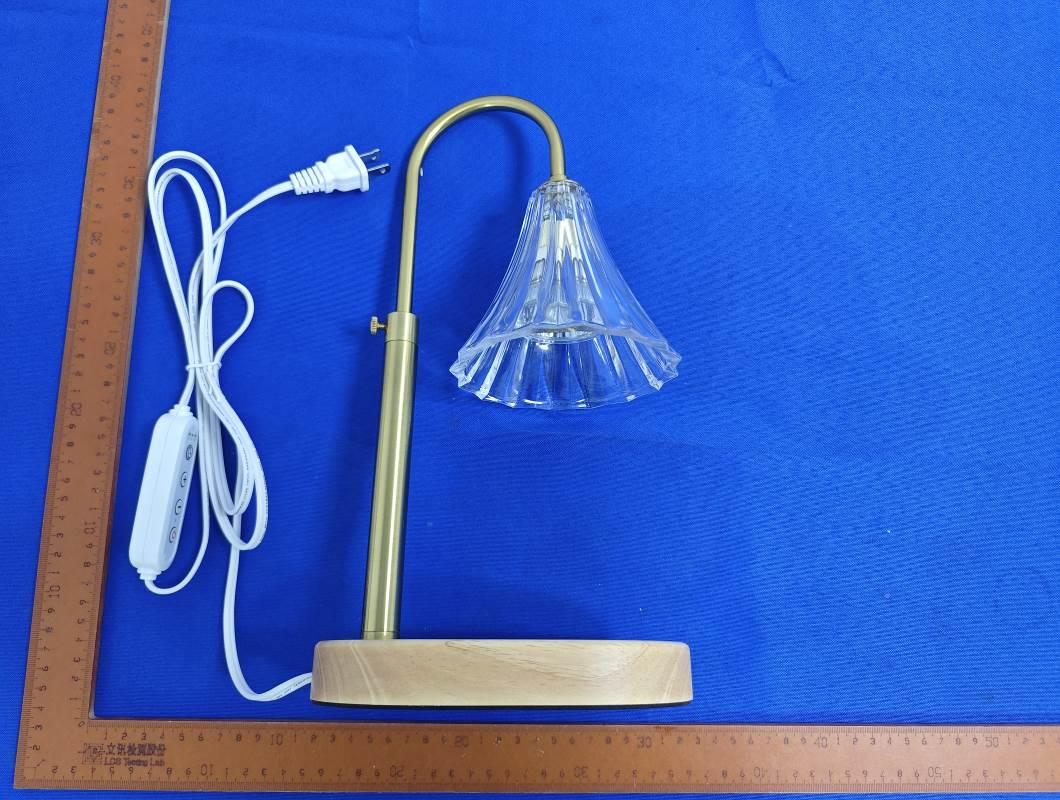

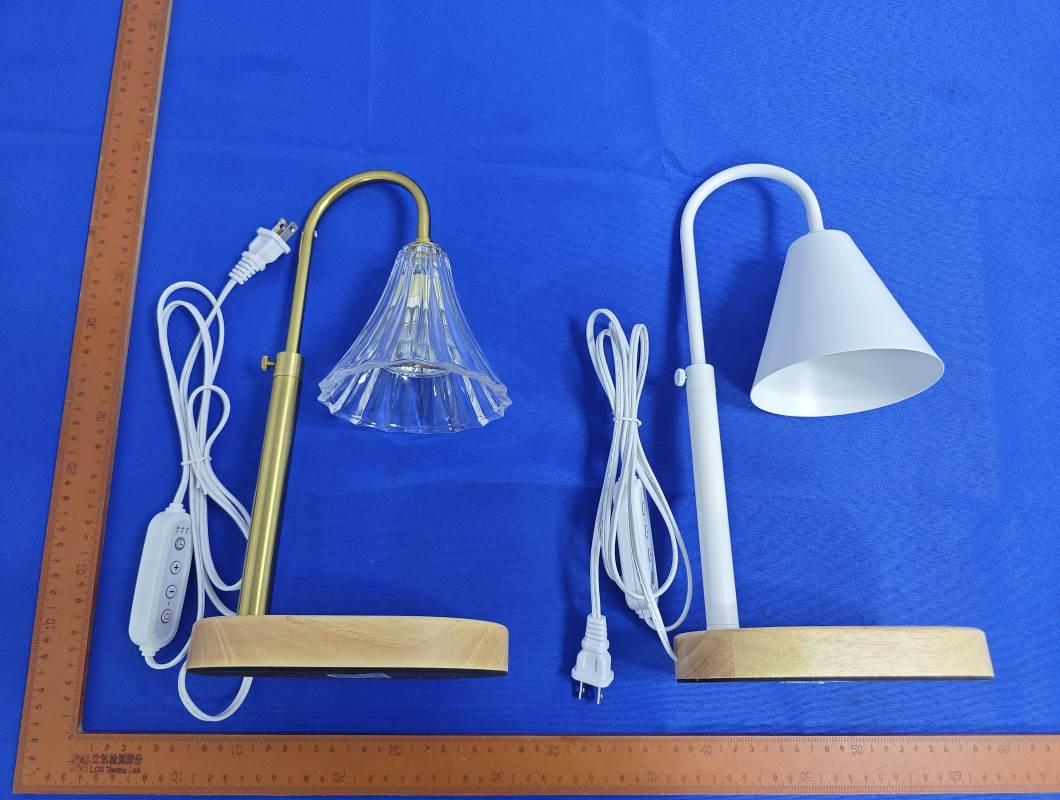

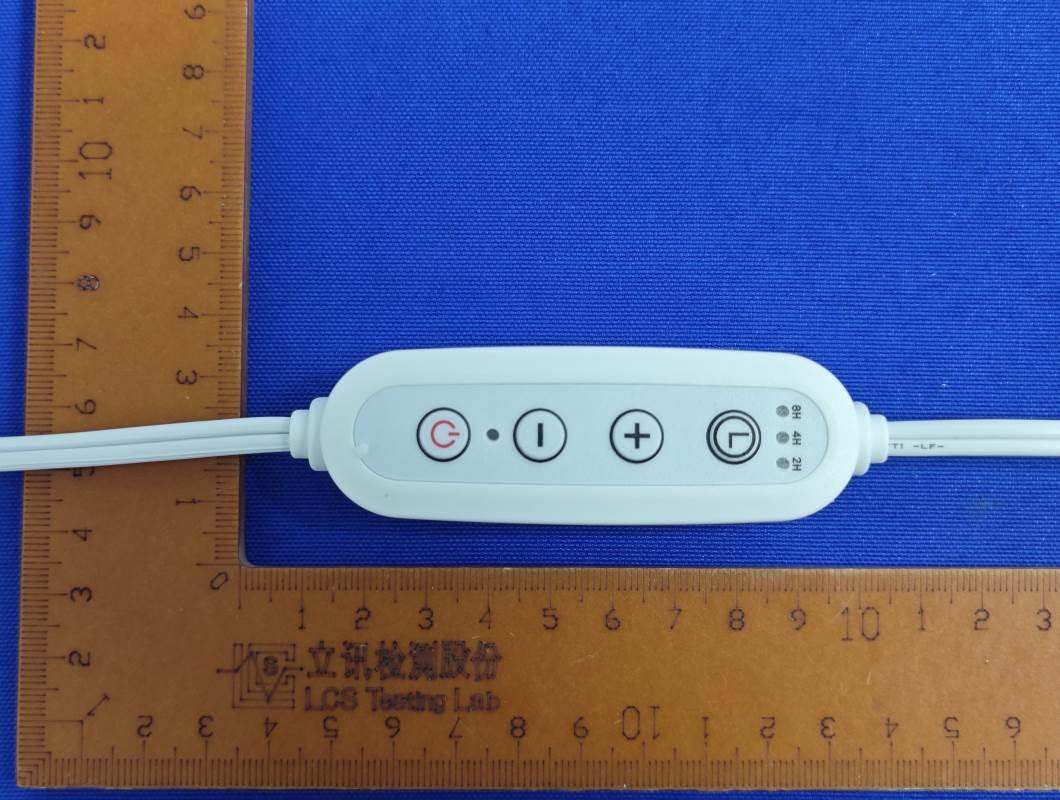

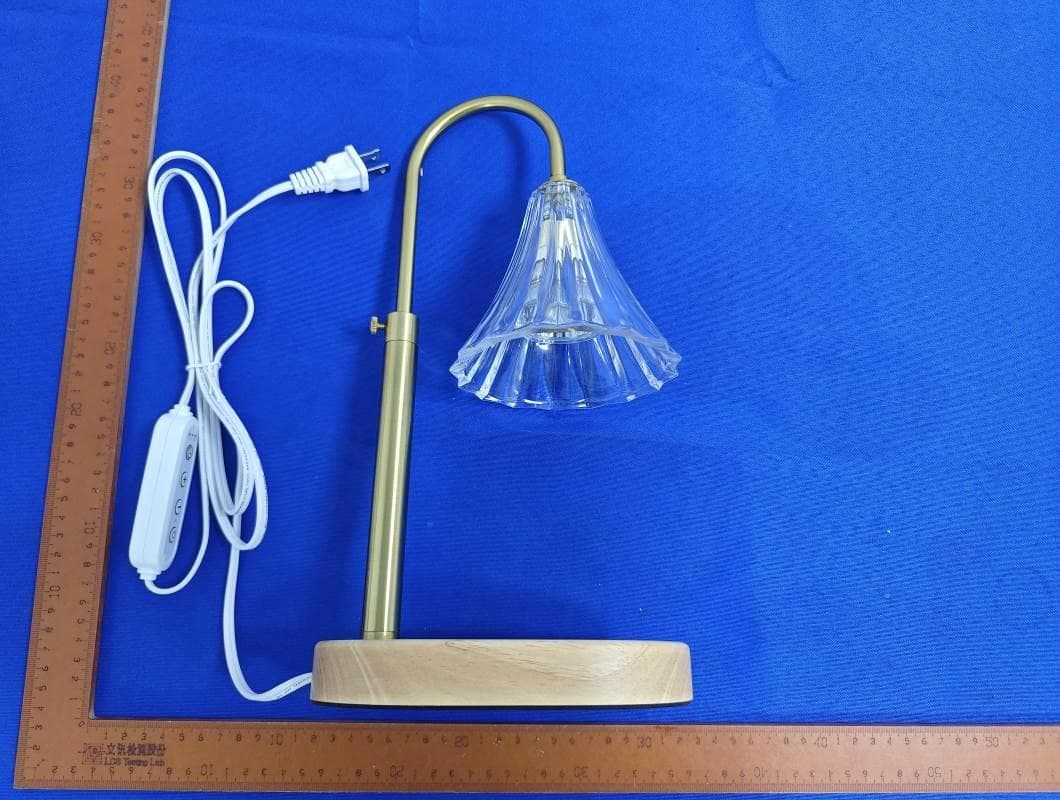

Page1of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11 Fig.12 Page7of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.13 Fig.14 Page8of8FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.15

Page1of1FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L10.0cmx5.0cm) LabelLocation TableLamp Model:TYRLD-1 FCCID:2A9PBTYRLD-1

Page1of3FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Antenna

Page 1 of 3 FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID2A9PBTYRLD-1 ProductnameTableLamp ModelnumberTYRLD-1 AdditionalModelNo.TYRLD-X(Xstandsfor1-30) ModelDeclaration PCBboard,structureandinternalofthesemodel(s)arethesame, Sonoadditionalmodelsweretested PowersupplyInput:AC110-220V,50/60Hz,35W ModulationTypeGFSKforBluetoothV5.0 AntennaTypePCBAntenna AntennaGain-4.78dBi(Max.) Hardwareversion/ Softwareversion/ FCCOperationfrequency2402MHz-2480MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoesnot applywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalentconditions. Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimumtest separationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. Page 2 of 3 FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PCBAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Note AntennaPCBAntenna2402MHz-2480MHz-4.78dBiBTAntenna Page 3 of 3 FCCID:2A9PBTYRLD-1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ConductedPower <BTLEMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK 02402-0.04 1924400.24 3924800.34 7.ManufacturingTolerance <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)000 Tolerance±(dB)1.01.01.0 8.MeasurementResults AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromany bodypartoftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparation distance,r=20cm,aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensity canbeobtained. [Antenna] <BTLE> Band/Mode RFoutputpower AntennaGain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW GFSK1.01.2589-4.780.00011.0000 Remark: 1.Outputpowerincludingtune-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer; 9.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRFExposureof mobiledevice. .......................THEENDOFREPORT.........................

Antenna Study  Project Name: TYRLD-1  Debugging frequency band: 2.4G  Valuation date ： 2023.07.19 08  Client Name: ZHONGSHAN KEMI LIGHTING CO.,LTD 1 PCB Antenna 2 Testing 3D microwave darkroom(6m*6m*6m) Testing environment PCB Antenna 3 Antenna • Antenna name: 2.4G • Antenna Type ： PCB • Covers ： 2.4G 4 S Parameter_Return Loss&VSWR 5 Efficiency and Gain‐Smith Frequency ID 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2400.0 2410.0 2420.0 2430. 0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi) -4.78-5.09-4.97-5.46-5.70-5.58-5.23-5.02-5.08-5.44-5.49 Efficiency (%) 10.68 10.12 10.03 9.56 9.35 9.70 9.98 10.57 10.73 10.06 10.01 2400.0MHz H+V, Eff: 10.7%Back View2400.0MHz Total(E1-XZ), Max= -6.00dBi2400.0MHz Total(E2-YZ), Max= -4.83dBiTotal(H-XY), Max= -5.49dBi, CirD=12.24 -4.78 -6.63 -8.47 -10.31 -12.15 -14 -15.84 -17.68 -19.52 -21.36 -23.21 -25.05 -26.89 -28.73 -30.57 -32.42 -34.26 -36.1 2410.0MHz H+V, Eff: 10.1%Back View2410.0MHz Total(E1-XZ), Max= -5.87dBi2410.0MHz Total(E2-YZ), Max= -5.09dBiTotal(H-XY), Max= -5.50dBi, CirD=10.93 -5.09 -6.93 -8.77 -10.61 -12.46 -14.3 -16.14 -17.98 -19.82 -21.67 -23.51 -25.35 -27.19 -29.04 -30.88 -32.72 -34.56 -36.4 2420.0MHz H+V, Eff: 10.0%Back View2420.0MHz Total(E1-XZ), Max= -5.79dBi2420.0MHz Total(E2-YZ), Max= -5.37dBiTotal(H-XY), Max= -5.58dBi, CirD=10.19 -4.97 -6.81 -8.66 -10.5 -12.34 -14.18 -16.02 -17.87 -19.71 -21.55 -23.39 -25.24 -27.08 -28.92 -30.76 -32.6 -34.45 -36.29 2430.0MHz H+V, Eff: 9.6%Back View2430.0MHz Total(E1-XZ), Max= -6.53dBi2430.0MHz Total(E2-YZ), Max= -6.01dBiTotal(H-XY), Max= -6.27dBi, CirD=10.30 -5.46 -7.3 -9.14 -10.98 -12.83 -14.67 -16.51 -18.35 -20.19 -22.04 -23.88 -25.72 -27.56 -29.41 -31.25 -33.09 -34.93 -36.77 2440.0MHz H+V, Eff: 9.3%Back View2440.0MHz Total(E1-XZ), Max= -7.06dBi2440.0MHz Total(E2-YZ), Max= -6.26dBiTotal(H-XY), Max= -6.47dBi, CirD=11.40 -5.7 -7.54 -9.38 -11.22 -13.06 -14.91 -16.75 -18.59 -20.43 -22.27 -24.12 -25.96 -27.8 -29.64 -31.48 -33.33 -35.17 -37.01 2450.0MHz H+V, Eff: 9.7%Back View2450.0MHz Total(E1-XZ), Max= -6.76dBi2450.0MHz Total(E2-YZ), Max= -5.75dBiTotal(H-XY), Max= -5.75dBi, CirD=13.46 -5.58 -7.43 -9.27 -11.11 -12.95 -14.79 -16.64 -18.48 -20.32 -22.16 -24.01 -25.85 -27.69 -29.53 -31.37 -33.22 -35.06 -36.9 2460.0MHz H+V, Eff: 10.0%Back View2460.0MHz Total(E1-XZ), Max= -6.24dBi2460.0MHz Total(E2-YZ), Max= -5.23dBiTotal(H-XY), Max= -5.23dBi, CirD=15.50 -5.23 -7.07 -8.92 -10.76 -12.6 -14.44 -16.29 -18.13 -19.97 -21.81 -23.65 -25.5 -27.34 -29.18 -31.02 -32.86 -34.71 -36.55 2470.0MHz H+V, Eff: 10.6%Back View2470.0MHz Total(E1-XZ), Max= -5.92dBi2470.0MHz Total(E2-YZ), Max= -5.02dBiTotal(H-XY), Max= -5.02dBi, CirD=16.26 -5.02 -6.86 -8.7 -10.54 -12.39 -14.23 -16.07 -17.91 -19.75 -21.6 -23.44 -25.28 -27.12 -28.96 -30.81 -32.65 -34.49 -36.33 2480.0MHz H+V, Eff: 10.7%Back View2480.0MHz Total(E1-XZ), Max= -6.10dBi2480.0MHz Total(E2-YZ), Max= -5.08dBiTotal(H-XY), Max= -5.08dBi, CirD=16.64 -5.08 -6.92 -8.77 -10.61 -12.45 -14.29 -16.13 -17.98 -19.82 -21.66 -23.5 -25.34 -27.19 -29.03 -30.87 -32.71 -34.56 -36.4 2490.0MHz H+V, Eff: 10.1%Back View2490.0MHz Total(E1-XZ), Max= -7.19dBi2490.0MHz Total(E2-YZ), Max= -5.44dBiTotal(H-XY), Max= -5.57dBi, CirD=17.35 -5.44 -7.28 -9.13 -10.97 -12.81 -14.65 -16.49 -18.34 -20.18 -22.02 -23.86 -25.7 -27.55 -29.39 -31.23 -33.07 -34.91 -36.76 2500.0MHz H+V, Eff: 10.0%Back View2500.0MHz Total(E1-XZ), Max= -7.83dBi2500.0MHz Total(E2-YZ), Max= -5.49dBiTotal(H-XY), Max= -5.65dBi, CirD=17.02 -5.49 -7.33 -9.18 -11.02 -12.86 -14.7 -16.54 -18.39 -20.23 -22.07 -23.91 -25.75 -27.6 -29.44 -31.28 -33.12 -34.96 -36.81

Page 1 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBTLE(ConductedMeasurement) ProductName:TableLamp TestModel:TYRLD-1 EnvironmentalConditions Temperature: 23.5°C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer:TaylorHu Supervisedby:LingZhu Page 2 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.708>=0.5Pass NVNTBLE1M2440Ant10.705>=0.5Pass NVNTBLE1M2480Ant10.708>=0.5Pass Page 3 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 Page 4 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2480MHzAnt1 Page 5 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaTotalPower(dBm)Limit(dBm)Verdict NVNTBLE1M2402Ant1-0.0430Pass NVNTBLE1M2440Ant10.2430Pass NVNTBLE1M2480Ant10.3430Pass Page 6 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt1 PowerNVNTBLE1M2440MHzAnt1 Page 7 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt1 Page 8 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaTotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-14.998Pass NVNTBLE1M2440Ant1-14.858Pass NVNTBLE1M2480Ant1-14.788Pass Page 9 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 Page 10 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 Page 11 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-55.91-20Pass NVNTBLE1M2480Ant1-56.19-20Pass Page 12 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission Page 13 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission Page 14 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.5ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-54.32-20Pass NVNTBLE1M2440Ant1-54.5-20Pass NVNTBLE1M2480Ant1-53.21-20Pass Page 15 of 23 FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA Shenzh…

Text truncated - open the document above for the full version.

Page1of34FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ZHONGSHANKEMILIGHTINGCO.,LTD TableLamp TestModel:TYRLD-1 AdditionalModelNo.:TYRLD-X(Xstandsfor1-30) Preparedfor:ZHONGSHANKEMILIGHTINGCO.,LTD Address:Card3,No.35-2,XinxingWestRoad,QifangVillage,GuzhenTown, ZHONGSHAN,GUANGDONG,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:July12,2023 Numberoftestedsamples:2 SampleNo.:A032323142-1,A032323142-2 Serialnumber:Prototype DateofTest:July12,2023~July20,2023 DateofReport:July21,2023 Page2of34FCCID:2A9PBTYRLD-1ReportNo.:LCSA032323142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA032323142EA DateofIssue.......................................:July21,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ZHONGSHANKEMILIGHTINGCO.,LTD Address................................................:Card3,No.35-2,XinxingWestRoad,QifangVillage,Guzhen Town,ZHONGSHAN,GUANGDONG,China TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeor…
