2A9PX-T3BActive stylus pen

---- ------------ ---- ----------------- ---- ------------- ---- ---------------- ---- ------------ ---- ----------- 21.5cm 12cm Product Introduction YEBOS Certification (Perfect Substitute · ChooseYEBOS ) Brand name: YEBOS Material: Aluminum Alloy Grade: High Performace Origin: Dongguan Shenzhen Jinji Digital Technology Co., LTD Dear users, Hello! Thank you very much for your use. It is our duty to provide you with high-quality products and after-sales service to fully protect your consumer rights and nterests. Therefore, our company implements the following standard service terms according to relevant national regulations. 1. Warranty Service: Users can go to the local after-sales service center to enjoy the replacement service provided by our company 15 days after purchase 2. No warranty service will be provided if the damage is caused by the following circumstances. (1) The original serial number label of the product is altered, replaced or torn, or the product model and number on the warranty certificate are inconsistent with the product without serial number; (2) Products beyond the shelf life: (3) Abnormal use of products leads to appearance damage; (4) The outer packaging part and the enclosed gifts, the services beyond the products promised by the sales staff and the additional configuration and gifts; (5) Performance damage caused by improper storage, such as products exposed to abnormal working temperature and temperature environment for a long time; (6) Without following the operation instructions, it is considered that the product is damaged due to abuse and misuse; 3. Please take good care of the warranty card and valid shopping voucher, as the necessary documents for the warranty period. Please do not modify the contents without authorization, otherwise it will be deemed invalid. 4. The Company reserves the right to interpret the regulations on after-sales service of the products. Address: 301-305, Building 6, Vanke Xinghuo, Bantian Street, Longgang District, Shenzhen Fine Apple digital accessories Place of charge switch Key Indicator One piece design iPad Pro Strong magnetic adsorption POM material pen tip User Manual 1. Starting Up Press the up button to turn on the device (after the device is turned on, the indicator will be steady on, and the Bluetooth will be connected within 30 seconds) Enter Settings, turn on Bluetooth, search for Yebos Pencil Bluetooth name, and click Connect (Wait for 10s when the Bluetooth name appears for the first connection) 2. Charging 2. Connect to support OTG device charging Red light on charging, green light on 80%. Full of bright blue light: After the blue light is on, continue charging for about 3 seconds and shut down. 1. Connect the data cable to charge 3. Change the nib Replace the pen tip. Rotate the pen tip clockwise, remove the pen tip, and then take the new pen tip and screw it in counterclockwise. Palm rejection function is available on iPad 2018&above * The iPad must be upgraded to iOS13.4 or later. * If your iPad has been paired with the Apple Pencil before, Unpair the device before using it. Pencilx1 Data cable x1 Manual x1 nib x1 Compatible devices Packing list List of packing Parameter Specifications Name of Product T3B/T4B/T8/T8pro/T9 Main Functions Drawing, writing, painting Material of product AluminumAlloy Size of product Tip 1.2* diameter 9* length 165mm Charge time 40 minutes Capacity of battery 150mAh Voltage of charge 5V Current of charge 0.2A Current of operation 18mA Net weight of product About 16 g Duration of use About 9 hours When the blue light is on, the power level is 100%-70% When the green light is steady on, the power level is 70%-10% When the red light is blinking, the power level is 10%-0% Displayed on lpad after connected successfully Press the up button to turn on the device (the light will be on after the device is turned on, and the Bluetooth will be connected within 30 seconds) and press the up button for 3 seconds to turn off the device (the indicator light is off). Power on status Tip: The eraser function is only supported（Procreate/GoodNotes） Power percentage display Press the Up button to switch eraser (Procreate/GoodNotes only). Other software double-click to undo previous step) Press the key to return to the main screen Double click the down button to split the screen Long press the button to take a picture                 ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "

Rev 11/20/07 Dongguan Dimi Intelligent Manufacturing Co.,Ltd Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A9PX-T3B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram, Schematics, Operational Description) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name () () Sincerely, the printed name：Xianshen Jin

Dongguan Dimi Intelligent Manufacturing Co.,Ltd Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Date: 2022-12-15 FCC ID: 2A9PX-T3B Dear Sir/Madam, We, Dongguan Dimi Intelligent Manufacturing Co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Active stylus pen Model no.: T3B,T4B, T8, T8 Pro, T9 Regards, the printed name：Xianshen Jin

Dongguan Dimi Intelligent Manufacturing Co.,Ltd Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 12-15-2022 SUBJECT: FCC Application for 2A9PX-T3B To Whom It May Concern: We, the undersigned, hereby authorize （Eric Wang）Shenzhen CTA Testing Technology Co., Ltd. at Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTA Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, the printed name：Xianshen Jin

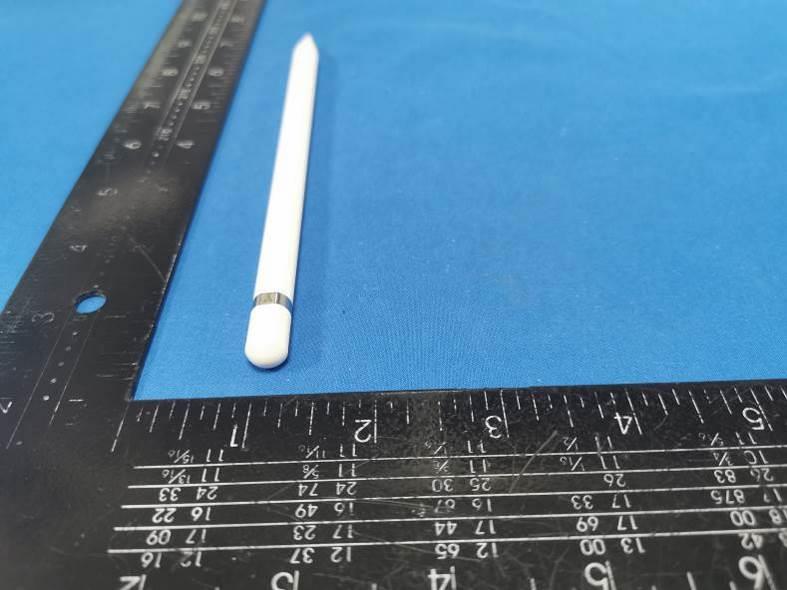

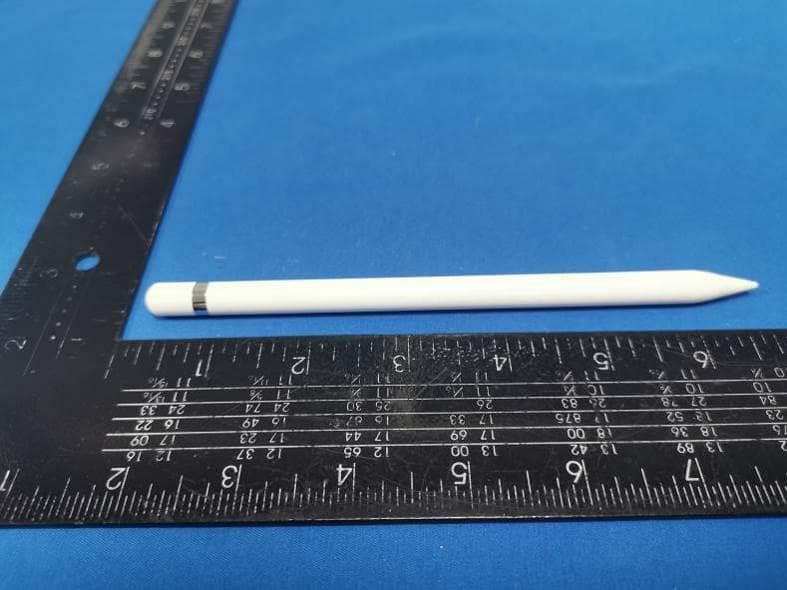

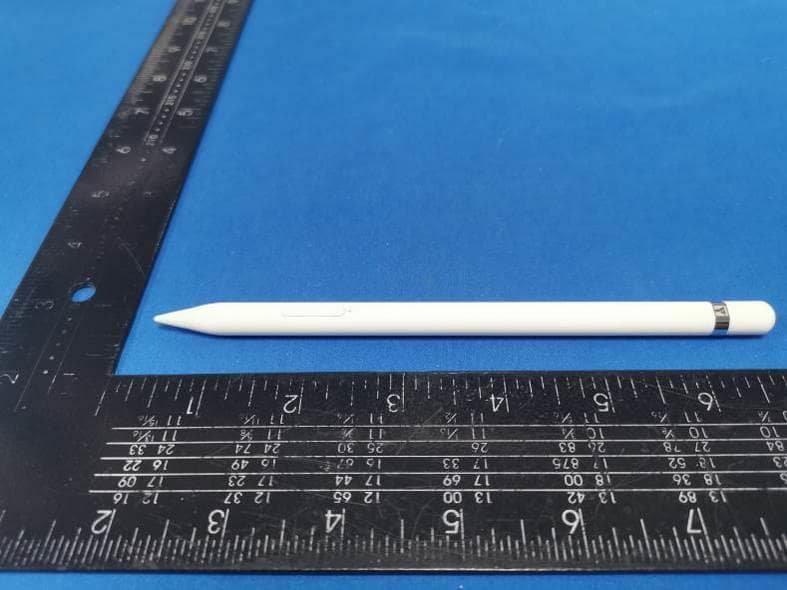

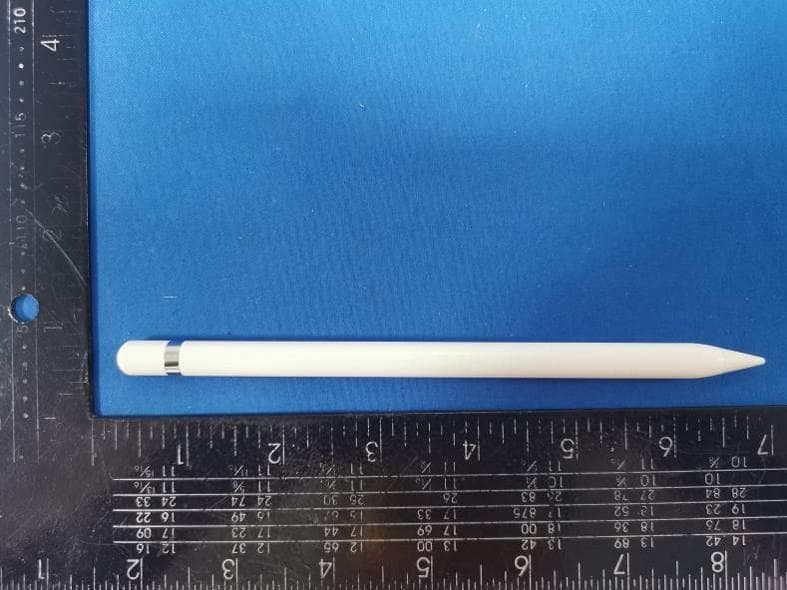

FCC ID: 2A9PX-T3B T3B External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9PX-T3B Photo 4 Photo 5 Photo 6

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID: 2A9PX-T3B

FCC ID: 2A9PX-T3B T3B Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9PX-T3B Photo 4 Photo 5 Photo 6 FCC ID: 2A9PX-T3B Photo 7 Photo 8 Photo 9 BLE（PCB） antenna FCC ID: 2A9PX-T3B Photo 10

RF Exposure evaluation FCC ID: 2A9PX-T3B 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BLE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA22102100101 2A9PX-T3B Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Oct. 27, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Dongguan Dimi Intelligent Manufacturing Co.,Ltd Address ............................................ : Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Active stylus pen Trade Mark ....................................... : YeBos Manufacturer .................................... : Dongguan Dimi Intelligent Manufacturing Co.,Ltd Model/Type reference....................... : T3B Listed Models .................................. : T4B, T8, T8 Pro, T9 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA22102100101 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Active stylus pen Model /Type : T3B Listed Models : T4B, T8, T8 Pro, T9 Applicant : Dongguan Dimi Intelligent Manufacturing Co.,Ltd Address : Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Manufacturer : Dongguan Dimi Intelligent Manufacturing Co.,Ltd Address : Rm401, Building 1, No.151 JieNan Rd, Humen Town, Dongguan City, GuangDong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22102100101 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA22102100101 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA22102100101 Page 5 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta@cta-te…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model T3B Frequency range 2400-2500MHz Manufacturer Dongguan Dimi Intelligent Manufacturing Co.,Ltd ANT Peak Gain 1.97 dBi 2. Antenna Photo: Length :7.50mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

FCC ID: 2A9PX-T3B T3B Test Setup Photos of the EUT
