2A9QF-KT820Game steering wheel

1 G30-R808A方向盘 V2版本 20220718 1 R808A 1080 Degree Guided Wired Steering Wheel ● Precautions 1. What is DirectInput mode: DirectInput is the old game input standard of the Windows operating system. Most old games support game controllers to use DirectInput. If the game supports the DirectInput game controller, and the steering wheel is in XInput mode, most functions of the steering wheel will not work normally, nor will it support the vibration function. What is XInput mode: XInput mode is pc360 mode. XInput is the latest game input standard of the Windows operating system. Most recent games support game controllers to use XInput, and the XBOX360 handle uses XInput. If the game supports the XInput game controller and the steering wheel is in XInput mode, vibration feedback and all functions of the steering wheel will work normally. If the game supports the XInput game controller and the steering wheel is in DirectInput mode, the steering wheel will not work normally in the game (unless you switch the steering wheel to XInput mode). 2. When the steering wheel is powered on, the default DirectInput mode supports the H lever; If the steering wheel is in XInput mode, the H gear lever is not supported, and the H gear lever can be used normally only when the steering wheel is in DirectInput mode. 3. The gear lever and pedal cannot be inserted in the wrong position to avoid abnormal problems. 4. If the pedal or gear lever is abnormal, please check whether the USB socket in the storage box behind the steering wheel is inserted in the wrong position or whether the USB plug is inserted to the bottom. 5. If there is no vibration in the steering wheel game, please check whether the game supports vibration, and check whether the steering wheel DirectInput mode or XInput mode matches the game mode. 6. When the sensitivity is set above level 5, the function steering of 1080 degrees due to the high sensitivity will become smaller. (sensitivity is not suitable for cart games) 7. After receiving the steering wheel, please press the reset key for 5 seconds to reset the steering wheel, and then turn it left and right to the maximum angle to calibrate the direction. 8. The steering wheel has an automatic calibration function. Before power on, please put the refueling/braking/clutch/gear lever of the wheel disc/pedal in the nonopnonoperating before normal calibration. Otherwise, poor calibration will occur . ● Introduction to the steering wheel 1. Steering wheel support platform ps5 / PS4 / Xbox series X / Xbox One / Xbox 360; What is steering wheel guidance? Connect each original controller corresponding to each platform to the position marked with the letter D in the storage box behind the steering wheel through the data line and start the steering wheel through 2 G30-R808A方向盘 V2版本 20220718 2 the original controller. 2. The steering wheel plug-and-play for the platform PS3 / PC XInput / PC Dinput /switch. When the PC is powered on, the default mode is DirectInput. 3. The steering wheel can only guide the PS4 controller to play PS4 games on the ps5 platform. 4. Support high and low gear functions. 5. Support the hot plug function of the foot pedal and gear lever; When the steering wheel is electrified, the foot pedal and gear lever can be plugged in and out. 6. Support potentiometer sensitivity adjustment. The 7. Support function key replacement. 8. It supports locking at any angle when the steering wheel rotates more than 180 degrees. 9. The angle locking function and replacement function support power-off memory. 10. The angle setting and replacement function supports pressing the reset key for 5 seconds to reset and restore with one key. 11. Support manual calibration of H lever. ●Function Introduction 1. The LB function key corresponds to the No. 7 key of the controller. 2. The Y function key corresponds to the No. 1 key of the controller. 3. The X function key corresponds to the No. 4 key of the controller. 4. Reset function, one-key reset angle setting 3 G30-R808A方向盘 V2版本 20220718 3 5. Angle function, angle setting function key. 6. Left trigger paddle, default LB function. 7. Direction control buttons. 8. The sensitivity potentiometer knob adjusts the sensitivity height; there are 6 levels of sensitivity, and level 0 is to close the sensitivity. 9. Left and right clamp screws. 10. RB key, corresponding to the No. 8 key of the controller. 11. The B key corresponds to the No. 2 key of the controller. 12. A key, corresponding to the No. 3 key of the controller. 13. Replace function, function keys replace keys. 14. PS key, the PC platform switches between DirectInput mode and Xinput mode, long press for 3 seconds to switch; PS3 platform is used as PS key; NS Switch platform is the HOME key function; XBOX platform is the X big button function. 15. Right trigger paddle, default RB function key. 16. High and low gear adjustment switch. 17. Clutch pedal function. 18. Gas pedal function. 19. Brake pedal function. 20. H gear lever. 21. L3 function key, corresponding to controller 11 key 22. BACK function key, return or select function key. 23. Platform indicator lights and function setting lights. 24. START key, pause start key. 25. R3 function key, corresponding to the 12 key of the controller. ● Introduction to the special functions of the steering wheel Angle function: angle setting key. The steering wheel angle can only be set to lock with one side greater than 90 degrees. When it is less than 90 degrees, the system will automatically default to 90 degrees. For example, set the steering wheel angle to 900 degrees, press and hold the "angle" key for about 2 seconds, and the blue LED flashes slowly to enter the angle setting. 4 G30-R808A方向盘 V2版本 20220718 4 After entering the angle setting, rotate the left side of the steering wheel to the position of 900 degrees, press the "angle" key once to lock the angle, and the LED returns to the platform indicator. 5 G30-R808A方向盘 V2版本 20220718 5 Then long press the "angle"…

Text truncated - open the document above for the full version.

Dongguan Langming Intelligent Technology Co., Ltd Floor 3, Block B, Building 4, Jewelry Industrial Park, Changping Town, Dongguan City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/08/02 U.S. Agent Designation Dongguan Langming Intelligent Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A9QF-KT820): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Dongguan Langming Intelligent Technology Co., Ltd Dongguan Langming Intelligent Technology Co., Ltd with the FRN [0033181306] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Juan Liao Manager Dongguan Langming Intelligent Technology Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Juan Liao/Manager Company: Dongguan Langming Intelligent Technology Co., Ltd Address: Floor 3, Block B, Building 4, Jewelry Industrial Park, Changping Town, Dongguan City, Guangdong Province China Phone: 13712300530 Fax: N/A E-Mail: [email protected]

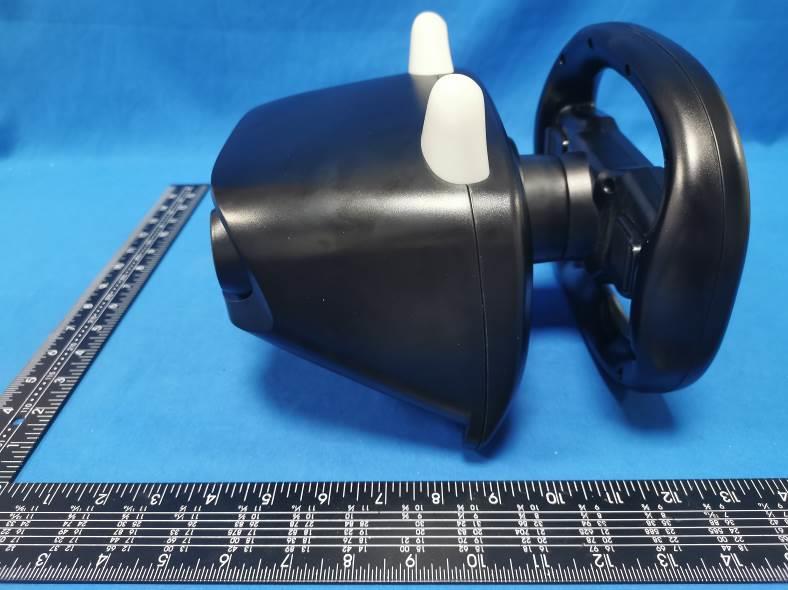

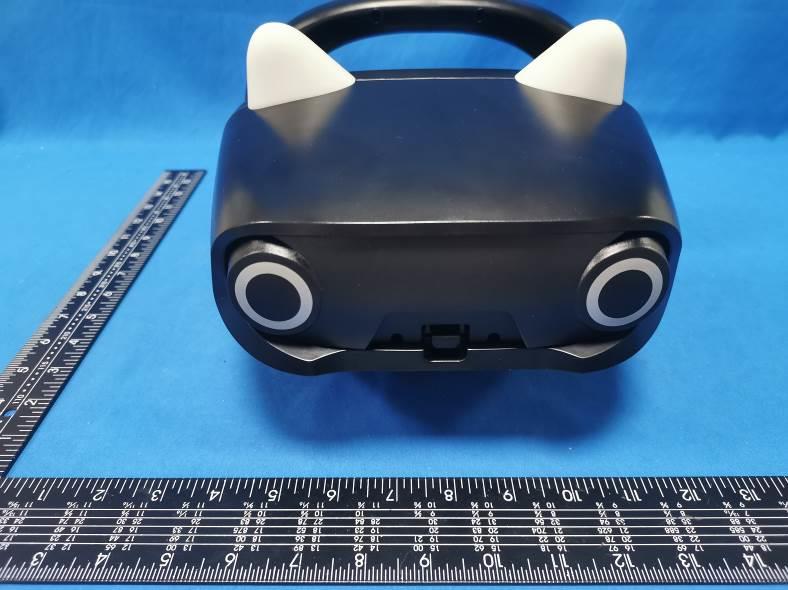

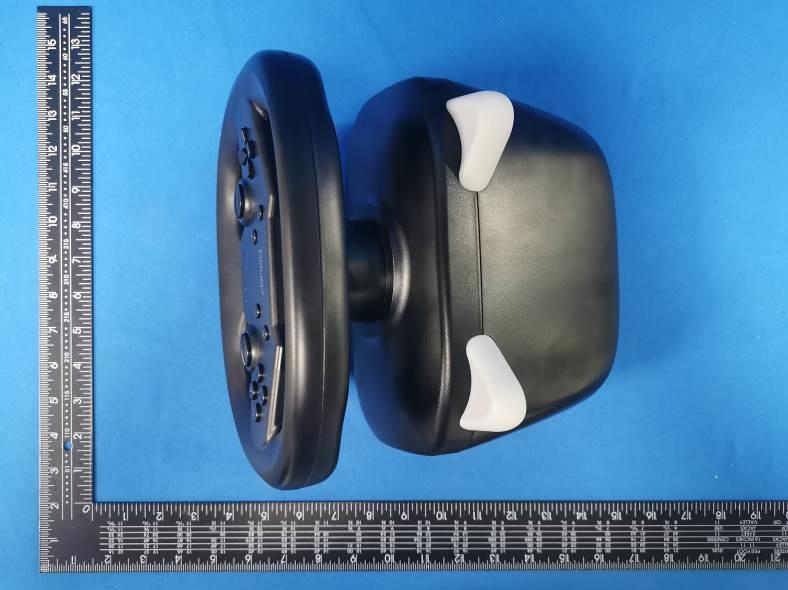

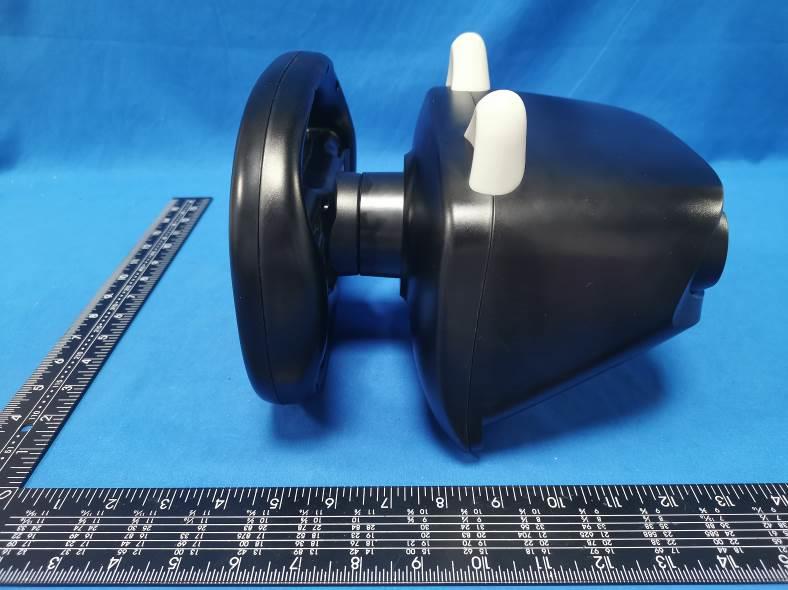

FCC ID: 2A9QF-KT820 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9QF-KT820 Photo 4 Photo 5 Photo 6 FCC ID: 2A9QF-KT820 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A9QF-KT820

FCC ID: 2A9QF-KT820 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9QF-KT820 Photo 4 Photo 5 Photo 6 FCC ID: 2A9QF-KT820 Photo 7 Photo 8 Photo 9 BLE PCB Antenna FCC ID: 2A9QF-KT820 Photo 10 Photo 11 Photo 12

RF Exposure evaluation FCC ID: 2A9QF-KT820 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 3.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 5.0 3.1623 0.9899<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model KT820 Frequency range 2400-2500MHz Manufacturer Dongguan Langming Intelligent Technology Co., Ltd ANT Peak Gain 1.30 dBi 2. Antenna Photo: Length :16.37mm Width:3.69mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23071701201 2A9QF-KT820 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jul. 24, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Dongguan Langming Intelligent Technology Co., Ltd Address ............................................ : Floor 3, Block B, Building 4, Jewelry Industrial Park, Changping Town, Dongguan City, Guangdong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Game steering wheel Trade Mark ....................................... : DOYO, NBCP Manufacturer .................................... : Dongguan Langming Intelligent Technology Co., Ltd Model/Type reference....................... : KT820 Listed Models .................................. : KT820A, KT820B, KT820C, KT820D, 820 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 4.5V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23071701201 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Game steering wheel Model /Type : KT820 Listed Models : KT820A, KT820B, KT820C, KT820D, 820 Applicant : Dongguan Langming Intelligent Technology Co., Ltd Address : Floor 3, Block B, Building 4, Jewelry Industrial Park, Changping Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Langming Intelligent Technology Co., Ltd Address : Floor 3, Block B, Building 4, Jewelry Industrial Park, Changping Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23071701201 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA23071701201 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23071701201 Page 5 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaola…
