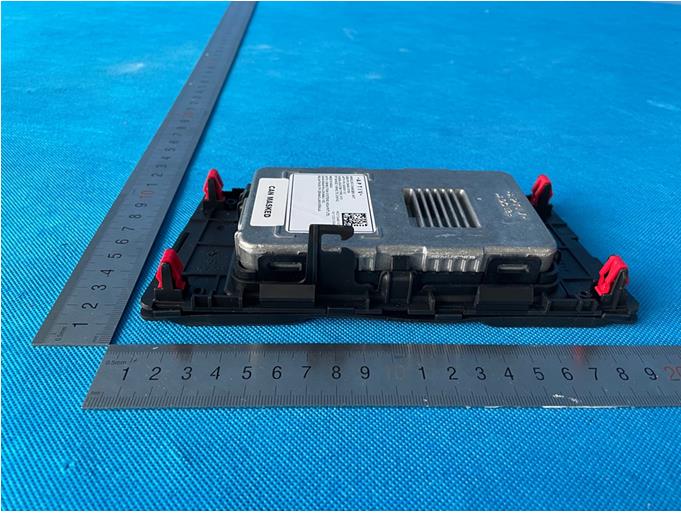

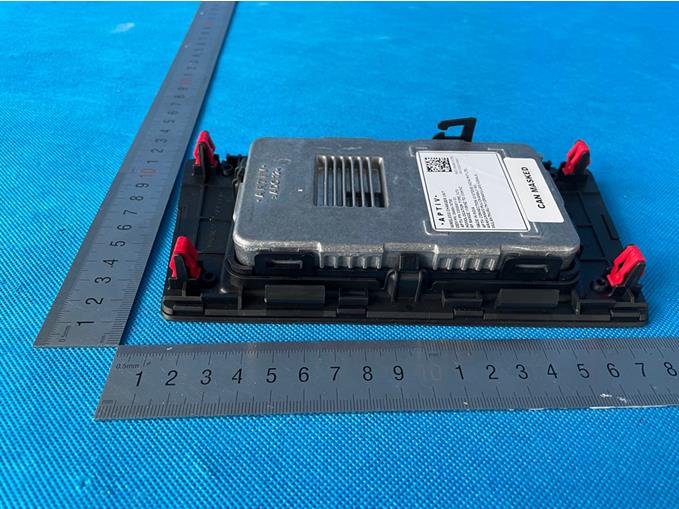

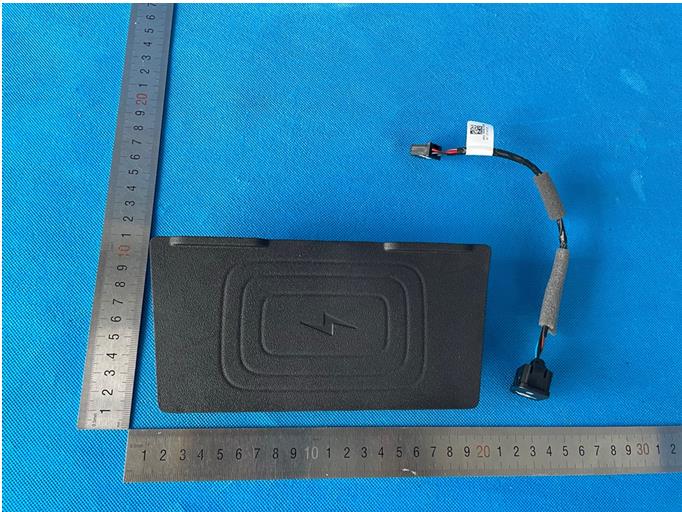

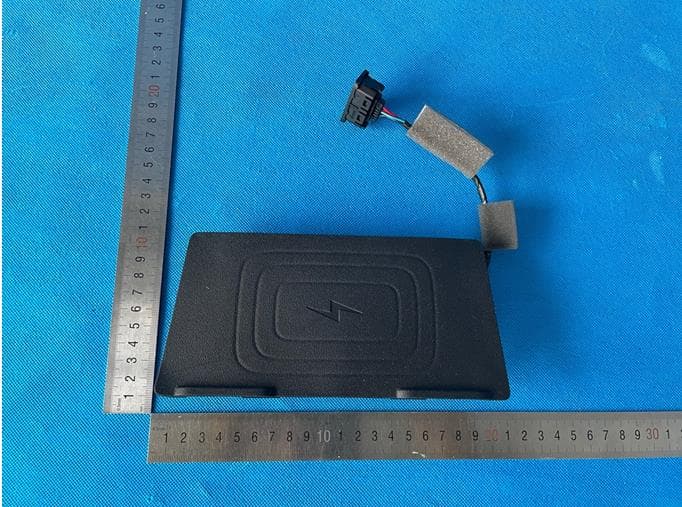

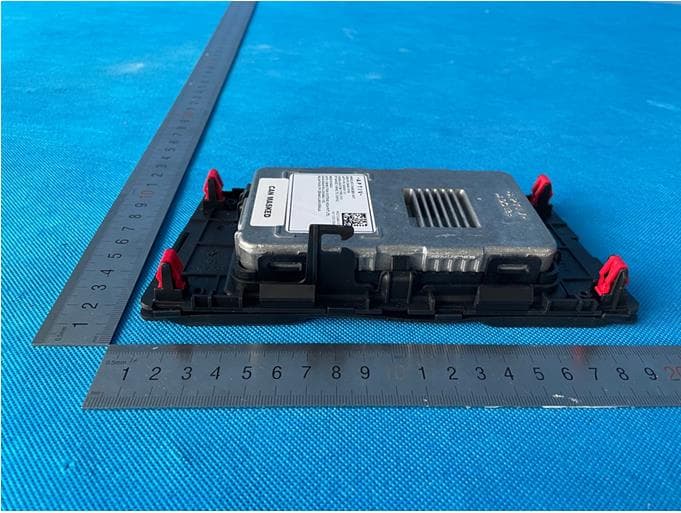

1 Note: Please read this manual for proper operation and keep it for future reference. 15W WIRELESS CHARGER USER MANUAL Charger module Model Number - 74T0 2 Note: Please read this manual for proper operation and keep it for future reference. Charger module with Garnish, Antiskid Mat & Mounting clips 3 Note: Please read this manual for proper operation and keep it for future reference. TABLE OF CONTENTS 15W WIRELESS CHARGER Section Title Page 1.0 warning 4 2.0 Product Description 5 3.0 Connector Detail 7 4.0 User Instruction 10 5.0 Precaution 11 6.0 Notice 12 7.0 FCC Rule 13 4 Note: Please read this manual for proper operation and keep it for future reference. SECTION 1.0 Warning Observe the following precautions. Failure to do so may result in the possibility of equipment failure or damage, or burns due to heat. 1. While charging, do not put any metallic object between the charging area and the i. mobile phone.(Coin, ATM card, clip etc...) 2. Do not attach metallic objects, such as aluminum stickers, to the mobile phones 3. Do not cover the wireless charger with a cloth or other object while charging. 4. Do not attempt to charge mobile phones which are not compatible with the i. Qi wireless charging standard. 5. Do not disassemble, modify or remove the wireless charger. 6. Do not apply force or impact to the wireless charger. 5 Note: Please read this manual for proper operation and keep it for future reference. SECTION 2.0 Product Description Mobile phones can be charged by just placing them on the charging area, if the Mobile phone is compatible with the Qi wireless charging standard created by the Wireless Power Consortium. ELECTRICAL CHARACTERISTIC Item Specification OPERATING VOLTAGE RANGE 6V ~ 16V Operation OUTPUT POWER (AT RECEIVER DEVICE) 5W AT 6V -9V 15W AT 9V - 16V STANDBY CURRENT ~50mA TYPICAL CURRENT (@12V) ~1.9A MAX CURRENT CONSUMPTION (@9V) ~2.6A DARK CURRENT LESS THAN 1mA INRUSH CURRENT 4.5A FOR 5ms OPERATING FREQUENCY (PEAK) 127.7 ± 10 KHz CHARGING EFFICIENCY (AS PER Qi) MIN 70% ACC CURRENT 100mA(MAX) Qi VERSION 1.2.4 Charging surface 6 Note: Please read this manual for proper operation and keep it for future reference. TEMPERATURE CHARACTERISTIC Item Specification RANGE OF STORAGE TEMP -40 ~ 85( ̊C) RANGE OF OPERATING TEMP -40 ~ 80( ̊C) GENERAL CHARACTERISTIC Item Specification INGRESS PROTECTION (MODULE TOP SURFACE) IP 65 TOTAL WEIGHT 350g (MAX) COMPATIBLE DEVICES Qi COMPLIANT RECEIVER DEVICES 7 Note: Please read this manual for proper operation and keep it for future reference. SECTION 3.0 Connector Details PIN # Terminal Name Connection 1 +B Power source 2 ACC ACC Input 3 CAN H CAN HIGH 4 CAN L CAN LOW 5 NC Not connected 6 NC Not connected 7 KLVC LF Search Signal 8 GND Power Ground 8 Note: Please read this manual for proper operation and keep it for future reference. PIN # Connections 1 5V 2 NC 3 NC 4 ON/OFF SWITCH 5 GND 6 LED_R 7 LED_G 8 LED_B 9 DEBUG_5V 10 CLK 11 DATA 12 GND Note : PIN # 9 to 12 is meant for Debug 9 Note: Please read this manual for proper operation and keep it for future reference. PIN# Connections 1 LED_R 2 LED_G 3 LED_B 4 ON/OFF SWITCH (Reserved) 5 GND 6 NC 10 Note: Please read this manual for proper operation and keep it for future reference. SECTION 4.0 User Instructions 1) The Wireless Charger will automatically turn ON after 4 seconds when the car ignition is on and all the doors are closed. The LED charging indicator will turn Amber during Standby mode. 2) Place the mobile phone into the wireless charger charging area and make sure it is aligned properly to the center of the charging area. 3) The LED Charging indicator light will change from Amber to blue once the charging begins. After the charging is complete, the Blue light will change to Green. Recharging function ➢ If a certain amount of time has elapsed since charging completed and the mobile has not been moved, the wireless charger will restart charging. ➢ If the portable device is moved within the charging area, charging will stop temporarily and then restart. LED Charging indicator Status Pattern Color No light up - • Wireless charger is Off / sleep state Light up Amber • Wireless charger is On (Standby Mode – waiting for receiver to charge) Light up Blue • Charging in progress Light up Green • Charging completed Blinks (20 times) Red • Detect foreign object • Charging error • Overheat condition Light up Red • Permanent failure error *note: No inbuilt charging indication LED available in the wireless charger. 11 Note: Please read this manual for proper operation and keep it for future reference. SECTION 5.0 Precaution 1. Always remove foreign objects from the charging area before charging the portable i. device. 2. Be sure the surface of the charging area is clear of dust and other debris before i. charging. 3. Do not spill liquids (i. e. water, drinks, etc.) on the Wireless charger. 4. Do not use oil, grease, alcohol, benzine or thinner to clean the anti-slip sheet. 5. Do not try to peel off the anti-slip sheet from the wireless charger. 6. While charging, do not cover the Wireless charger with a towel, cloth, or other objects. 7. Avoid spraying aerosols which may come in contact with the charge pad surface. 8. Depending on the type of cover and/or accessory attached, it may not be possible to charge the mobile phones. If the mobile phone is placed in the charging area and does not charge, remove the cover and/or accessories. 9. While charging, the wireless charger and the portable device will become warm. i. This is not a malfunction. If a portable device becomes warm while charging and ii. charging stops due to its protection function, wait until it cools down and charge it again. 12 Note: Please read this manual for proper operation and keep it for future reference. SECTION 6.0 Notice 1. Charging will be suspended temporarily when any door is opened. a. Charging will resume after the door is closed. 2. Mobile phones compatible with the Qi wireless charging standard can be charged…
