2A9QP-BTHPV1FT52HEADPHONE ASST

WIRELESS HEADPHONES Function: Keep your headphone and mobile phone (or other devices) within 32.8FT. 1. Press the power button for 3 seconds, power on.2. Select Bluetooth name of “ BTHPV1FT52 ” to connect headphone. 3. 5. 6. Press the power button for 3 seconds, power off.7. 4. MAX0011225-300354 Bluetooth version: 5.4 Wireless distance: 32.8FT Input: 5V 1A Battery: 150mAh Product Description: After connected, short press “+ ” button for next song, long press “+ ” button for volume up. Short press “- ” button for previous song, long press “ -” button for volume down. Press the power button to play or pause music. Press the power button to answer or reject a call. 78 mm 144 mm FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A9QP-BTHPV1FT52 BTHPV1FT52-CP-BLK, BTHPV1FT52-CP-BLU, BTHPV1FT52-CP-SIL, BTHPV1FT52-CP-WHI, BTHPV4FT52-BLK, BTHPV4FT52-BLU, BTHPV4FT52-WHI, BTHPV2FT52-CP-BLK, BTHPV2FT52-CP-BLU, BTHPV2FT52-CP-WHI, BTHPV3FT52-CP-BLK, BTHPV3FT52-CP-SIL, BTHPV3FT52-CP-WHI We, Applicant Company Name: ORBIT INNOVATIONS LLC Address: 148 West 37th Street, 14th Floor, New York 10018, United States Phone: +86-18825861614 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-30 Signature Date Name / Title: Echo Choi / Sales Company: ORBIT INNOVATIONS LLC Address: 148 West 37th Street, 14th Floor, New York 10018, United States Phone: +86-18825861614 Fax: +86-18825861614 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2A9QP-BTHPV1FT52 BTHPV1FT52-CP-BLK, BTHPV1FT52-CP-BLU, BTHPV1FT52- CP-SIL, BTHPV1FT52-CP-WHI, BTHPV4FT52-BLK, BTHPV4FT52-BLU, BTHPV4FT52-WHI, BTHPV2FT52-CP- BLK, BTHPV2FT52-CP-BLU, BTHPV2FT52-CP-WHI, BTHPV3FT52-CP-BLK, BTHPV3FT52-CP-SIL, BTHPV3FT52- CP-WHI Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-01-21

US Agent – Attestation Statement / Part [ORBIT INNOVATIONS LLC] [148 West 37th Street, 14th Floor New York, NY 10018] [New York, NY] [US] Date: [01-16-2026] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A9QP-BTHPV1FT52 FRN of the Applicant: [0033184391] 2.911(d)(7) Company: [Orbit Innovations LLC]Designated Agent: FCC US Agent, LLC Company Representative: [Eddie Jemal]Designated Agent Representative: Tim Payne [ORBIT INNOVATIONS LLC]certifies, that as of [01-16-2026], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2A9QP-BTHPV1FT52 [ORBIT INNOVATIONS LLC], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [ORBIT INNOVATIONS LLC] for FCC ID: 2A9QP-BTHPV1FT52 Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Signature:Signature:

ORBIT INNOVATIONS LLC 148 West 37th Street, 14th Floor, New York 10018, United States Date: January 30, 2026 FCC ID: 2A9QP-BTHPV1FT52 Model Number: BTHPV1FT52-CP-BLK, BTHPV1FT52-CP-BLU, BTHPV1FT52-CP-SIL, BTHPV1FT52-CP-WHI, BTHPV4FT52-BLK, BTHPV4FT52-BLU, BTHPV4FT52-WHI, BTHPV2FT52-CP-BLK, BTHPV2FT52-CP-BLU, BTHPV2FT52-CP-WHI, BTHPV3FT52-CP-BLK, BTHPV3FT52-CP-SIL, BTHPV3FT52-CP-WHI To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ORBIT INNOVATIONS LLC hereby declare that our product (HEADPHONE ASST) Model Number: BTHPV1FT52-CP-BLK, BTHPV1FT52-CP-BLU, BTHPV1FT52-CP-SIL, BTHPV1FT52-CP-WHI, BTHPV4FT52-BLK, BTHPV4FT52-BLU, BTHPV4FT52-WHI, BTHPV2FT52-CP-BLK, BTHPV2FT52-CP-BLU, BTHPV2FT52-CP-WHI, BTHPV3FT52-CP-BLK, BTHPV3FT52-CP-SIL, BTHPV3FT52-CP-WHI board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Echo Choi / Sales Company: ORBIT INNOVATIONS LLC Address: 148 West 37th Street, 14th Floor, New York 10018, United States Phone: +86-18825861614 Fax: +86-18825861614 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2A9QP-BTHPV1FT52 BTHPV1FT52-CP-BLK, BTHPV1FT52-CP-BLU, BTHPV1FT52-CP-SIL, BTHPV1FT52-CP-WHI, BTHPV4FT52-BLK, BTHPV4FT52-BLU, BTHPV4FT52- WHI, BTHPV2FT52-CP-BLK, BTHPV2FT52-CP-BLU, BTHPV2FT52-CP-WHI, BTHPV3FT52-CP-BLK, BTHPV3FT52-CP-SIL, BTHPV3FT52-CP-WHI For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-30 Signature Date Name / Title: Echo Choi / Sales Company: ORBIT INNOVATIONS LLC Address: 148 West 37th Street, 14th Floor, New York 10018, United States Phone: +86-18825861614 Fax: +86-18825861614 E-Mail: [email protected]

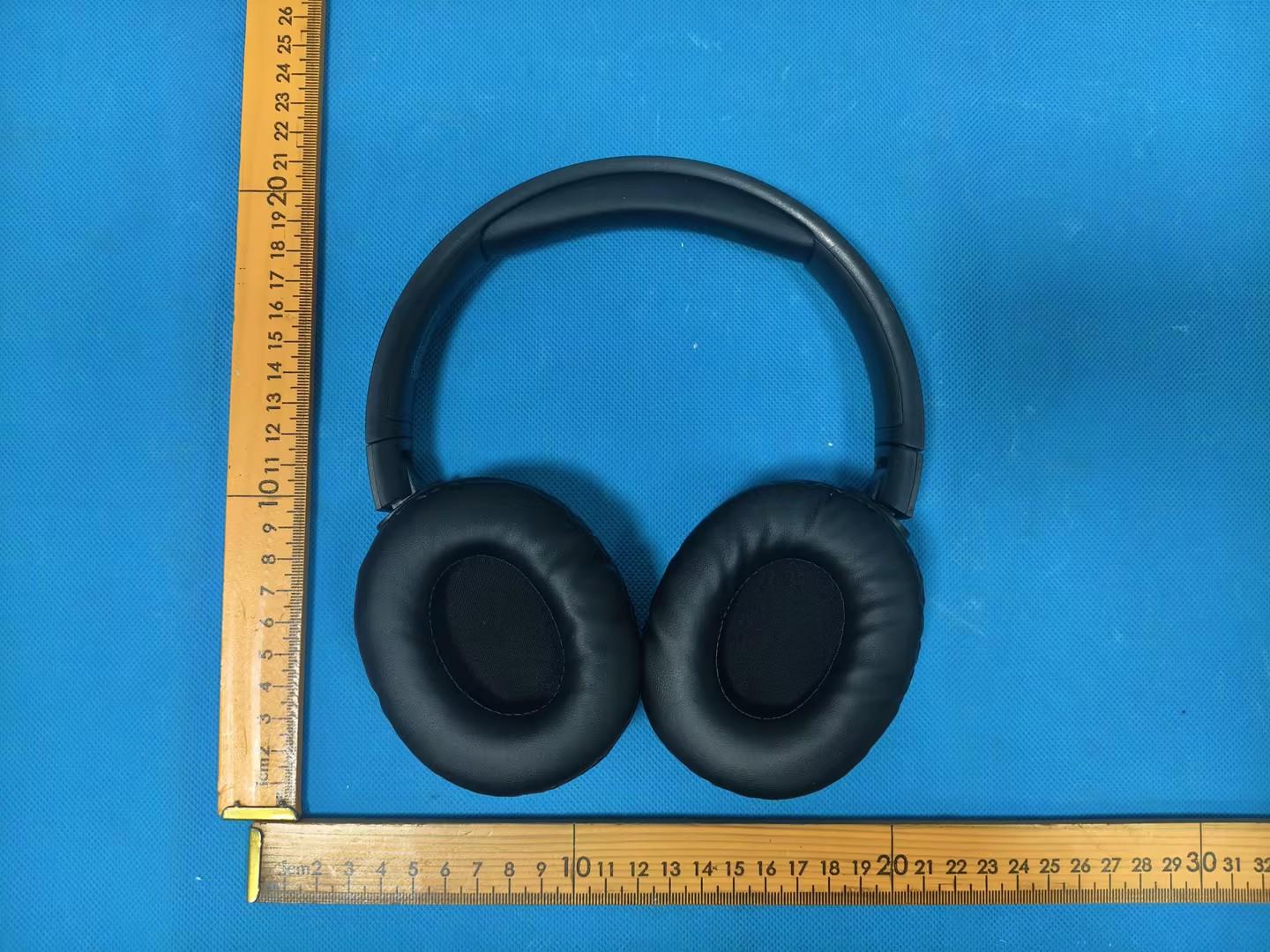

Page1of5FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of5FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of5FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of5FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9

Page 1 of 1 FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LabelandLocation (Size:L:3.0cmxW:1.0cm) LabelLocation

Page1of3FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Antenna Page3of3FCCID:2A9QP-BTHPV1FT52 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6

Page 1 of 9 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation For ORBITINNOVATIONSLLC HEADPHONEASST TestModel:BTHPV1FT52-CP-BLK AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ORBITINNOVATIONSLLC Address:148West37thStreet,14thFloorNewYork,NY10018 Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January07,2026 Numberoftestedsamples:2 SampleNo.:C251222013-1,C251222013-2 Serialnumber:Prototype DateofTest:January07,2026~January20,2026 DateofReport:January21,2026 Page 2 of 9 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC01076006EB DateofIssue.......................................:January21,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure.............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ORBITINNOVATIONSLLC Address................................................:148West37thStreet,14thFloorNewYork,NY10018 TestSpecification Standard..............................................:FCCKDBpublication447498D01GeneralRFExposureGuidance v06 FCCCFR47part11.1310 FCCCFR47part22.1093 TestReportFormNo.......................:TRF-4-E-215A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacement andcontext. TestItemDescription......................:HEADPHONEASST TradeMark..........................................: N/A TestModel...........................................:BTHPV1FT52-CP-BLK Ratings.................................................:PleaseRefertoPage6 Result...................................................: PASS Compiledby:Supervisedby:Approvedby: LifengLe/AdministratorJustinZhu/TechniqueDirectorGavinLiang/Manager Page3of9FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation EUT.........................................:HEADPHONEASST TestModel...........................:BTHPV1FT52-CP-BLK Applicant...............................:ORBITINNOVATIONSLLC Address..................................:148West37thStreet,14thFloorNewYork,NY10018 Telephone...............................:/ Fax..........................................:/ Manufacturer.......................:NINGBOSC-STARMAXIMP.&EXP.CO.,LTD. Address...................................:19F,Building1,Lane1255,HeqingNorthRoad,YinzhouDistrict, Ningbo,Zhejiang,China Telephone...............................:/ Fax..........................................:/ Factory.......................:NINGBOSC-STARMAXIMP.&EXP.CO.,LTD. Address...................................:19F,Building1,Lane1255,HeqingNorthRoad,YinzhouDistrict, Ningbo,Zhejiang,China Telephone...............................:/ Fax..........................................:/ TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC01076006EB January21,2026 Dateofissue Page4of9FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January21,2026InitialIssue--- Page5of9FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.PRODUCTINFORMATION ..................................................................................................................................... 6 2.EVALUATIONMETHODANDLIMIT .................................................................................................................... 7 3.REFEREVALUATIONMETHOD...........................................................................................................................7 4.CONDUCTEDPOWERRESULTS ........................................................................................................................ 8 5.MANUFACTURINGTOLERANCE ........................................................................................................................ 8 6.EVALUATIONRESULTS........................................................................................................................................9 7.CONCLUSION ............................…

Text truncated - open the document above for the full version.

Page 1 of 37 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EA GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT FOR ORBITINNOVATIONSLLC HEADPHONEASST TestModel:BTHPV1FT52-CP-BLK AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ORBITINNOVATIONSLLC Address:148West37thStreet,14thFloorNewYork,NY10018 Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January07,2026 Numberoftestedsamples:2 SampleNo.:C251222013-1,C251222013-2 Serialnumber:Prototype DateofTest:January07,2026~January20,2026 DateofReport:January21,2026 Page 2 of 37 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EA GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSC01076006EA DateofIssue.......................................:January21,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: ORBITINNOVATIONSLLC Address................................................: 148West37thStreet,14thFloorNewYork,NY10018 TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:TRF-4-E-148A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:HEADPHONEASST TradeMark..........................................:N/A TestModel...........................................:BTHPV1FT52-CP-BLK Ratings.................................................:PleaseRefertoPage6 Result..................................................:PASS Compiledby:Supervisedby:Approvedby: LifengLe/AdministratorJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 37 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EA GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCC--TESTREPORT TestResult PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC01076006EA January21,2026 Dateofissue TestModel.............................. : BTHPV1FT52-CP-BLK EUT......................................... : HEADPHONEASST Applicant...............................:ORBITINNOVATIONSLLC Address...................................:148West37thStreet,14thFloorNewYork,NY10018 Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:NINGBOSC-STARMAXIMP.&EXP.CO.,LTD. Address...................................: 19F,Building1,Lane1255,HeqingNorthRoad,Yinzhou District,Ningbo,Zhejiang,China Telephone...............................: Fax..........................................: Factory...................................: NINGBOSC-STARMAXIMP.&EXP.CO.,LTD. Address...................................: 19F,Building1,Lane1255,HeqingNorthRoad,Yinzhou District,Ningbo,Zhejiang,China Telephone...............................:/ Fax..........................................:/ Page 4 of 37 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EA GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January21,2026InitialIssue--- Page 5 of 37 FCCID:2A9QP-BTHPV1FT52ReportNo.:LCSC01076006EA GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.GENERALINFORMATION.........................................................................................................6 1.1DescriptionofDevice(EUT)...............................................................................................................6 1.2SupportequipmentList........................................................................................................................7 1.3.ExternalI/OCable ............................................................................................................................... 7 1.4DescriptionofTestFacility..................................................................................................................7 1.5StatementoftheMeasurementUncertainty .................................................................................... 7 1.6MeasurementUncertainty............................................................................................................…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) No. 333, Kexing Road, Xiangzhou District, Zhuhai, China Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT (Conducted Measurement) Product Name: HEADPHONE ASST Test Model: BTHPV1FT52-CP-BLK Environmental Conditions Temperature: 24.2C Relative Humidity: 52.6% ATM Pressure: 100.0 kPa Test Engineer: Yan Chen Supervised by: Fengliu Tang Page 2 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 20dB Emission Bandwidth Test Result TestMode Antenna Freq (MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.960 2401.511 2402.471 --- --- 2441 0.993 2440.505 2441.498 --- --- 2480 0.948 2479.520 2480.468 --- --- 2DH5 Ant1 2402 1.260 2401.373 2402.633 --- --- 2441 1.239 2440.376 2441.615 --- --- 2480 1.266 2479.370 2480.636 --- --- 3DH5 Ant1 2402 1.254 2401.370 2402.624 --- --- 2441 1.260 2440.370 2441.630 --- --- 2480 1.257 2479.370 2480.627 --- --- Note: offset=System attenuation +cabal loss Page 3 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 4 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2402 2DH5_Ant1_2441 Page 5 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2480 3DH5_Ant1_2402 Page 6 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 7 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 8 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Peak conducted output power Test Result Peak Test Mode Antenna Freq (MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 2.55 ≤20.97 PASS 2441 3.00 ≤20.97 PASS 2480 3.60 ≤20.97 PASS 2DH5 Ant1 2402 2.51 ≤20.97 PASS 2441 2.87 ≤20.97 PASS 2480 3.35 ≤20.97 PASS 3DH5 Ant1 2402 2.45 ≤20.97 PASS 2441 2.83 ≤20.97 PASS 2480 3.42 ≤20.97 PASS Note: offset=System attenuation +cabal loss Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Page 9 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com DH5_Ant1_2480 2DH5_Ant1_2402 Page 10 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 11 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2402 3DH5_Ant1_2441 Page 12 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2480 Page 13 of 61 FCC ID: 2A9QP-BTHPV1FT52 Report No.: LCSC01076006EA Guangzhou LCS Compliance Testing…

Text truncated - open the document above for the full version.
