2A9RA-P110Thermal label Printer

ZHUHAI NELKO TECHNOLOGY CO.,LTD. (2023.04.27) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Thermal label Printer / P110 / FCC ID: 2A9RA-P110) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Yuhong Wang Title: manager

ZHUHAI NELKO TECHNOLOGY CO.,LTD. (2023.04.27) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Yuhong Wang Title: manager

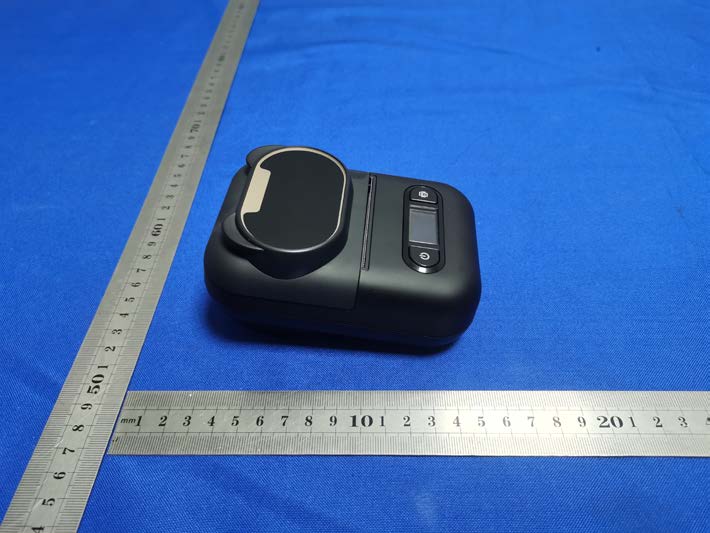

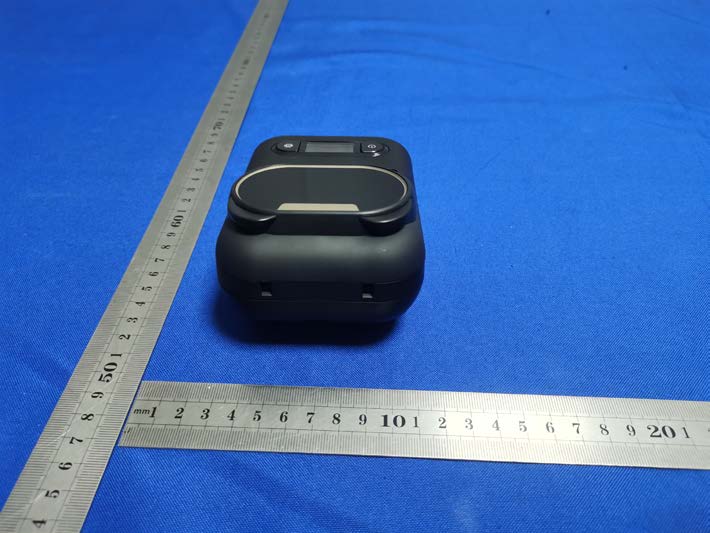

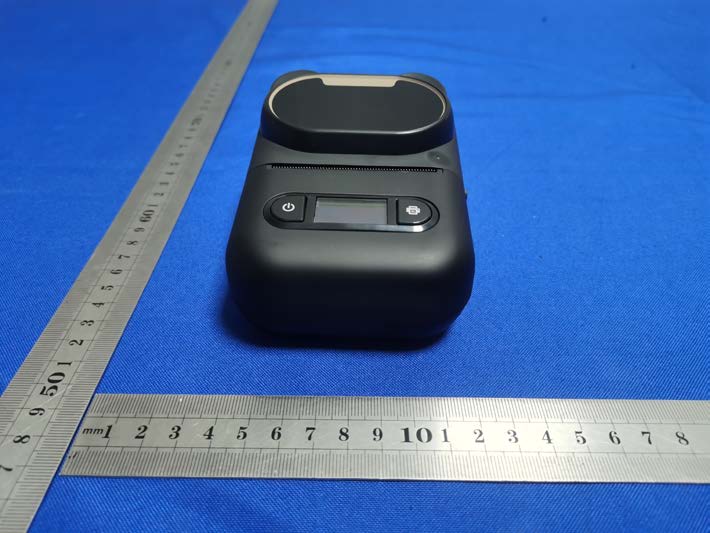

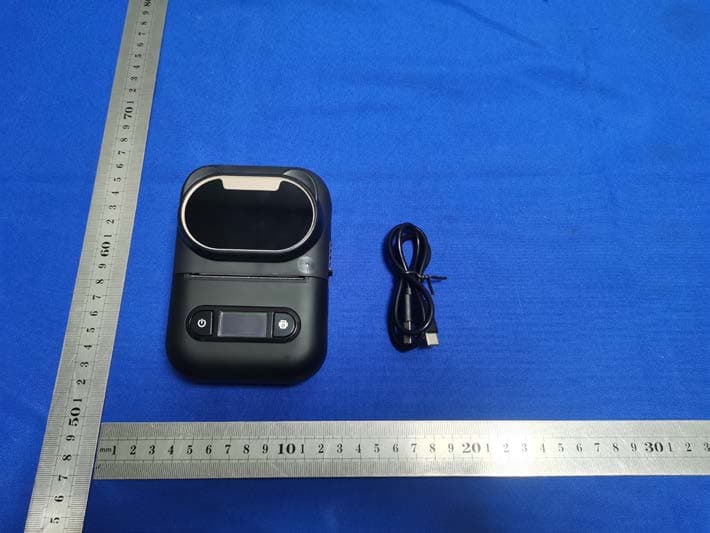

External Photos

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2A9RA-P110 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -0.871 0.82 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.441 -1.521 0.70 -1±1 0.00 1.00 <5 0.31247 3.00 YES 2.480 -2.066 0.62 -2±1 -1.00 0.79 <5 0.25018 3.00 YES 2.402 -0.601 0.87 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.441 -1.375 0.73 -1±1 0.00 1.00 <5 0.31247 3.00 YES 2.480 -1.868 0.65 -1±1 0.00 1.00 <5 0.31496 3.00 YES 2.402 -0.303 0.93 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.441 -1.213 0.76 -1±1 0.00 1.00 <5 0.31247 3.00 YES 2.480 -1.575 0.70 -1±1 0.00 1.00 <5 0.31496 3.00 YES GFSK π /4DQPSK 8DQPSK BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 0.276 1.07 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.44 -0.531 0.88 0±1 1.00 1.26 <5 0.39330 3.00 YES 2.480 -0.955 0.80 0±1 1.00 1.26 <5 0.39651 3.00 YES GFSK Conclusion: For the max result : 0.39651 Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230415010RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 59 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Thermal label Printer FCC ID: 2A9RA-P110 Trademark: Nelko Model Number: P110 Prepared For: ZHUHAI NELKO TECHNOLOGY CO.,LTD. Address: RM 325, 3/F, FORMING WORKSHOP (BLDG A), NO. 8, PINGDONG 2ND ROAD, NANPING, ZHUHAI, GUANGDONG, China Manufacturer: Tianjin Milabel Technology Co., Ltd. Address: Room 210、213, Building C1, Low Carbon Industrial Park, Huaming Street, Dongli District, Tianjin Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Apr. 06, 2023 Sample tested Date: Apr. 06, 2023 to Apr. 15, 2023 Issue Date: Apr. 15, 2023 Report No.: CTB230415010RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230415010RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 59 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 4 2. TEST SUMMARY ................................................................... 5 3. MEASUREMENT UNCERTAINTY ..................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 7 4.1 Product Information .................................................................... 7 4.2 Test Setup Configuration ............................................................... 7 4.3 Support Equipment .................................................................... 7 4.4 Channel List .......................................................................... 8 4.5 Test Mode ............................................................................ 8 4.6 Test Environment ...................................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 9 5.1 Test Facility ........................................................................... 9 5.2 Test Instrument Used .................................................................. 9 6. AC POWER LINE CONDUCTED EMISSION ............................................ 12 6.1 Block Diagram Of Test Setup .......................................................... 12 6.2 Limit ................................................................................ 12 6.3 Test procedure ....................................................................... 12 6.4 Test Result .......................................................................... 14 7. RADIATED SPURIOUS EMISSION ................................................... 16 7.1 Block Diagram Of Test Setup .......................................................... 16 7.2 Limit ................................................................................ 16 7.3 Test procedure ....................................................................... 17 7.4 Test Result .......................................................................... 18 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 27 8.1 Block Diagram Of Test Setup .......................................................... 27 8.2 Limit ................................................................................ 27 8.3 Test procedure ....................................................................... 27 8.4 Test Result .......................................................................... 28 9. COUDUCTED PEAK OUTPUT POWER ............................................... 35 9.1 Block Diagram Of Test Setup .......................................................... 35 9.2 Limit ................................................................................ 35 9.3 Test procedure ....................................................................... 35 9.4 Test Result .......................................................................... 36 10. 20DB OCCUPIED BANDWIDTH...................................................... 40 10.1 Block Diagram Of Test Setup ......................................................... 40 10.2 Limit ............................................................................... 40 10.3 Test procedure ...................................................................... 40 10.4 Test Result ......................................................................... 40 11. CARRIERFREQUENCIES SEPARATION .............................................. 44 11.1 Block Diagram Of Test Setup ......................................................... 44 11.2 Limit ............................................................................... 44 11.3 Test procedure ...................................................................... 44 11.4 Test Result ......................................................................... 44 12. HOPPING CHANNEL NUMBER ...................................................... 48 12.1 Block Diagram Of Test Setup ......................................................... 48 12.2 Li…

Text truncated - open the document above for the full version.

深圳市飞易通科技有限公司 www.feasycom.com Bluetooth antenna of PCB on-board specification 1，Index Item Content Page Remark 1 Index 1 2 Spec Drawing 2 3 Specification 2 4 Antenna On Test Board 3 5 Return Loss 3 6 Radiation Pattern 3 Document Type: 2.4GHZ PCB antenna Document Version: V1.0 Release Date: Aug. 23，2017 Shenzhen Feasycom Co., LTD Telephone: 86-755-27924639 www.feasycom.com 深圳市飞易通科技有限公司 www.feasycom.com 2，Spec Drawing 3，Specification Product Number: 2.4GHZ PCB antenna Sample Photo: A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <=2.0 Gain 2.0 dBi Efficiency ~ 50% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Gold-plated copper C. Environmental Operation Temperature - 40°C ~ + 85°C Storage Temperature - 40°C ~ + 105°C 深圳市飞易通科技有限公司 www.feasycom.com 4，Antenna On Test Board 5, Return Loss 6，Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of PCB antenna was measur ed based on the PCB size and installation position as shown in the below figure Test Board. FR4 Thickness 0.8mm 16mm Empty Area 16 x 7.5mm Z X Y Ground Copper 16 x 6mm 50 ohm Feed Line 深圳市飞易通科技有限公司 www.feasycom.com Vertical Horizontal Y - Z Plane Average Gain=1.19 dBi Peak Gain = 2.00 dBi Average Gain = 0.75 dBi Peak Gain= -1.33 dBi Average Gain=-8.7 dBi X - Z Plane Average Gain=-2.91d Bi Peak Gain= -3.71 dBi Average Gain= -8.76dBi Peak Gain= -0.29 dBi Average Gain= -4.19dBi X - Y Plane Average Gain=-0.95 dBi Peak Gain= 0.77 dBi Average Gain= -5.86dBi Peak Gain= 1.35 dBi Average Gain= -2.62 dBi 深圳市飞易通科技有限公司 www.feasycom.com Test Result: Frequency VNA E Total. dB(dB) Efficiency 2400MHz 0.693991 41.07% 2410MHz 1.14338 47.24% 2420MHz 0.223052 40.48% 2430MHz -0.13659 33.93% 2440MHz 0.35326 37.82% 2450MHz 1.039894 42.77% 2460MHz 2.00801 50.67% 2470MHz 0.649809 41.93% 2480MHz -0.215933 36.66% 2490MHz -0.476639 34.62% 2500MHz 0.710741 40.22%

Radiated Emission Below 1G Above 1G Conducted emissions
