2A9S3-SR-611Walkie-Talkie

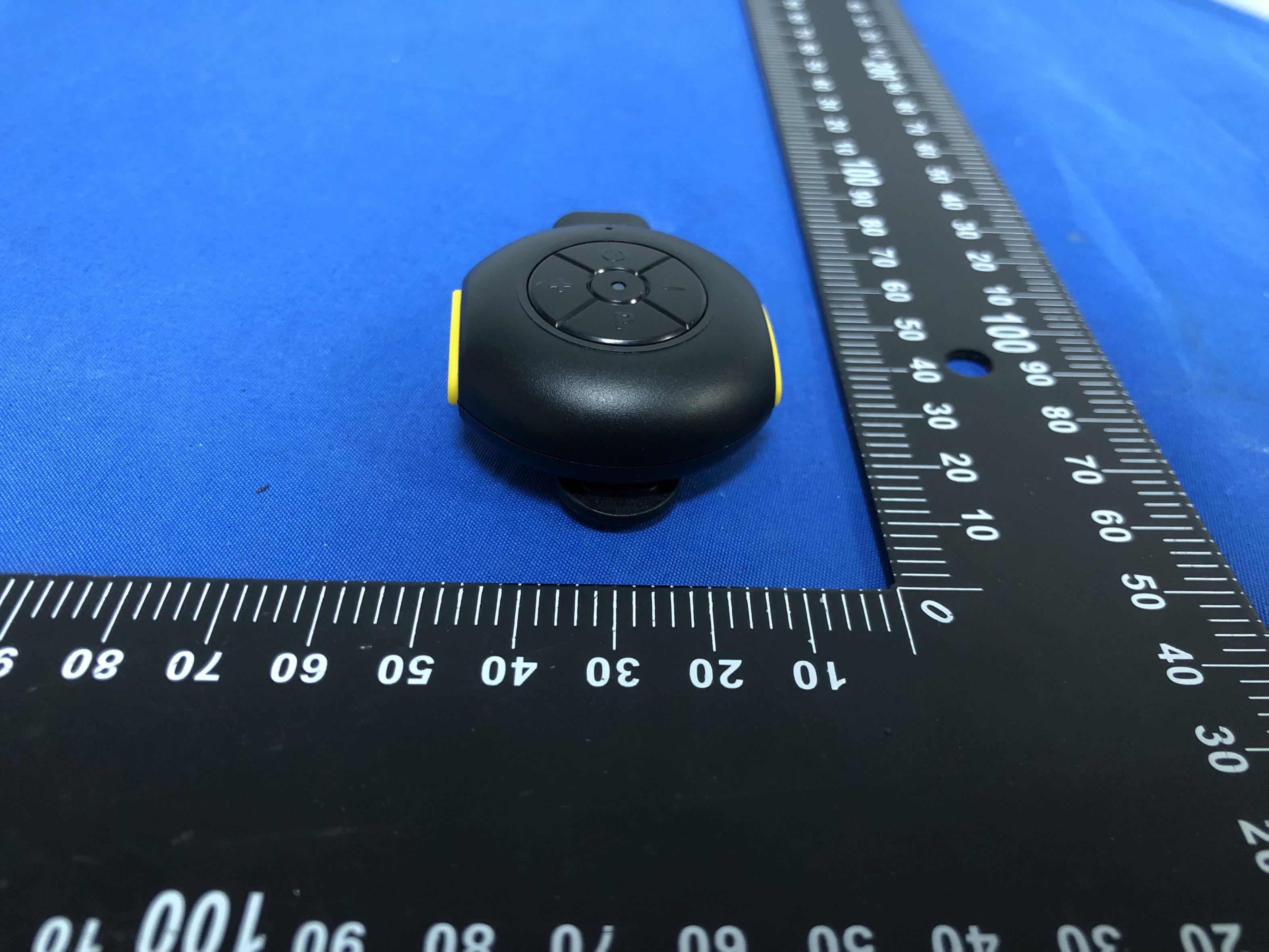

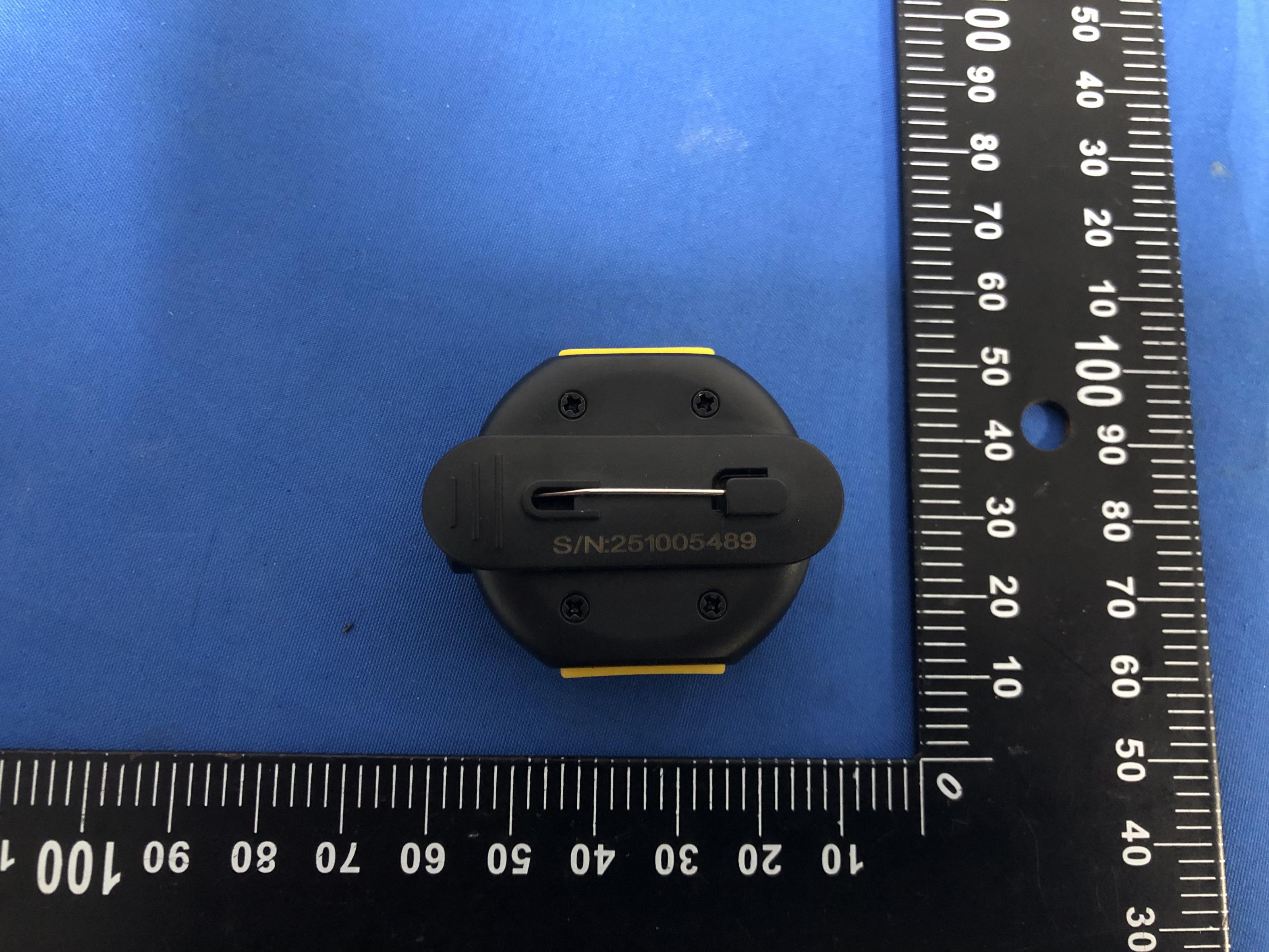

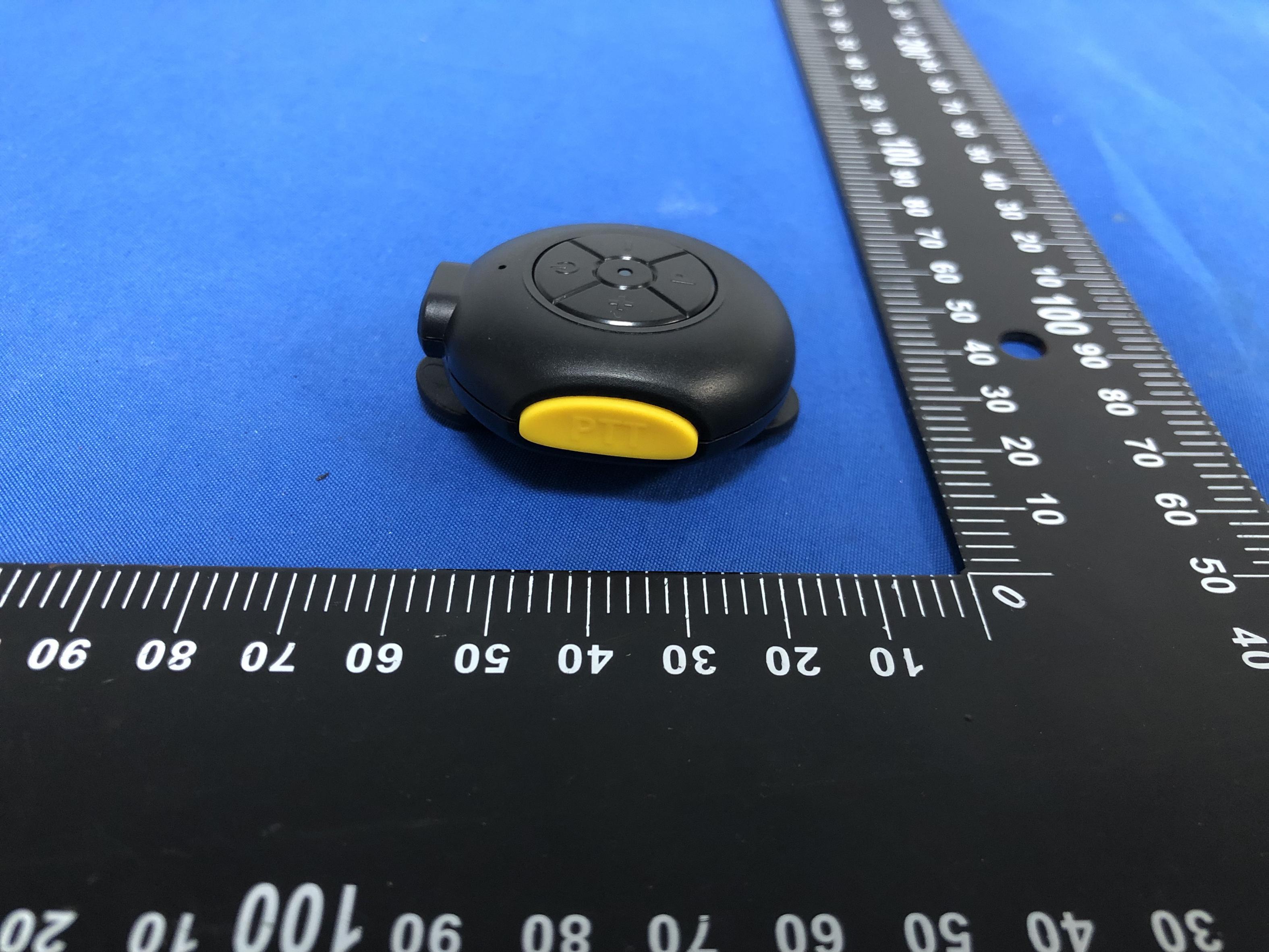

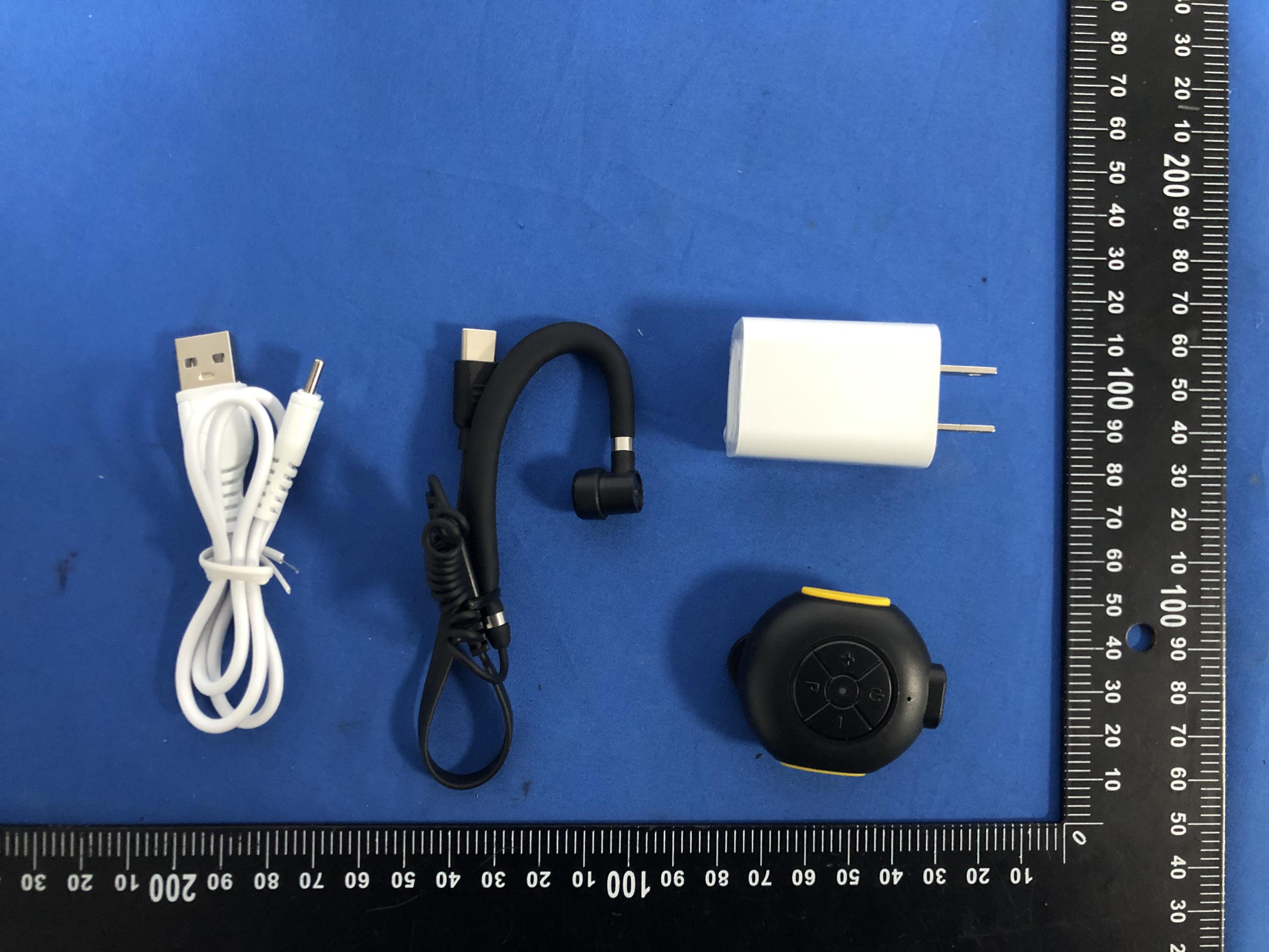

USER’S Manual SR-611 CAUTION： This Walkie-Talkie is the product with excellent design and advanced technology. The following suggestions will help you fulfill your obligations under warranty terms and understand the safety knowledge of using walkie-talkie. 1. Don’t try to disassemble the walkie-talkie. Unauthorized disassemble may cause damage to the walkie-talkie. 2. This machine can use universal qualified mobile phone charger(5V). 3. Don’t expose the machine to sun for a long time or put it on a overheated place. 4. Don’t place it in a dusty or damp place. 5. Don’t use strong chemicals, cleaning agents or strong lotions to clean walkie-talkie. 6. If it is found to emit peculiar smell or smoke, place it on the open ground to avoid injury, and contact the distributor in time. 7. Don’t use the machine inflammable, explosive or other place where walkie-talkie is prohibited. 8. In order to obtain the best communication performance, it is recommended that least distance between walkie-talkies is 2 meters. 9. Please abide the local wireless management regulations, Contact with the distributor if you have any questions. Checklist： Open the package carefully, check the product and accessories according to the following list: Please conduct your distributor immediately if any damaged or missing happened! NO. ItemQTY 1 Walkie-talkie 1 2Charger1 3Charging line1 4Earphone1 5User manual1 Function & Description： FunctionDescriptionRemark Channel22 channelsDefault:22 channel CTCSS/DCSNormal：38CTCSS+61CDCSSCan be adjusted in normal mode only. Volume Receiving vlume 1-8 Battery savingExtending standby time LED Description: LED(ON)STATUSDescription RedTransmitting Red Led is lighted while transmitting Signals (PTT key is pressed) GreenReceiving Green Led is lighted while receiving Signals BlueBattery full Blue led is lighted while charging the battery full R-G B blinking ChargingThe LED is blinking (R-G-B) while charging Led Blinking Slowly Standby mode Indicator Blinking(Blue) ： Battery meter (higher than 75%) Blinking(Cyan): Battery meter(50%-75%) Blinking(Yellow) ： Battery meter (10%-50%) Blinking(Red) ： Battery Low(less than 10%) 5.J;i：机l充电插孔 7.话筒 1.电源键 8.指示灯 『 6.PTT 6.PTT 4.－下翻键 2.P键（锁定） Unit Description: No.NameDescription 1Power key Power ON/OFF：Press Power key continuously for 2 seconds, to turn ON/OFF. 2Pkey Press P key for 2 seconds to Lock/Unlock the key. Press P key shortly ： Voice prompt current channel. 3＋ （Up key） 1.Press the key shortly to adjust the channel, Press the key for 2 seconds to adjust the receiving volume.(key unlocked mode). 2.To Increase channel/volume while upper mode. 4－ （Down key） 1.Press the key shortly to adjust the channel, Press the key for 2 seconds to adjust the receiving volume.(key unlocked mode). 2.To Decrease channel/volume while upper mode. 5TYPE C Socket Earphone(Antenna)/Charge & Program Interface 6PTT Push To Talk key 7Microphone Send the Voice 8LEDIndicate Walkie-Talkie working status F ast Function Guide： 1、Power ON/OFF Power ON： Press the power key for 2 seconds while power off, “Power on” will be heard and the radio will enter the standby mode. Power OFF： Press the power key for 2 seconds while power on, “Di” will be heard and the radio will power off. 2、Channel Setting Press th e up/down key shortly to adjust the channel, current channel Voice prompt will be heard, Press “+” or “-“ key to Increase/Decrease Channel. *Notice: If you want to change the setting, please Unlock the radio firstly. 3、CTCSS/DCS setting Defa ult CTCSS is set as 67Hz. 4、Volume Setting Press the "+" or "-" key continiously for 2 seconds, a prompt machine volume, such as the current volume is set to 5, "volume 5" promptwill be heard. The red light will flash twice, press the "+" or "-" key to add and decrease the volume, Press to the PTT button to save Settings and enter standby mode. In the volume setting state, if no key operation is pressed within 5 seconds, you will hear a beep and return to the standby mode. *Notice: If you want to change the setting, please Unlock the radio firstly. 5、Keylocksetting Manually locking: In standby mode, Press P keys for 2 seconds and you will hear a key tone of the lock key. At this time, all the keys and functions are locked except the power on/off function and PTT function. Automatic locking: If there is no key is pressed over 30 seconds, the key will be automatically locked (to prevent Trigging by mistake). Unlock: When the machine is locked, Press the P key for 2 seconds, and you will hear the unlock prompt key. At this time, the lock key function will be removed. 5、Channel promote Press the P key shortly, the current channel number will be heard. Battery Information： ■Charge note Please charge the radio that is new or unused for a long time before use. When the battery power is found to be low, the red light of the radio flashes, and a "Please charge" prompt sound is heard in the headset. The transmission is prohibited, and the battery needs to be charged at this time. The Red-Green-Blue Led flashes alternately while charging. The Led turn to Blue while the battery is full. FCCstatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1) thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference received, includinginterferencethatmaycauseundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidthe user'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterference willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulin…
