2A9SN-INOI105Feature phone

INOI Limited

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 02, 2023
Application Purpose: Original Equipment
Date of Application: Mar 02, 2023
Equipment Note: Feature phone
Frequency Range: 2402.00000000 - 2480.00000000
Company: INOI Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This smart phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: smart phone (FCC ID:2A9SN-INOI105) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.365W/kg and when properly worn on the body is 0.199W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

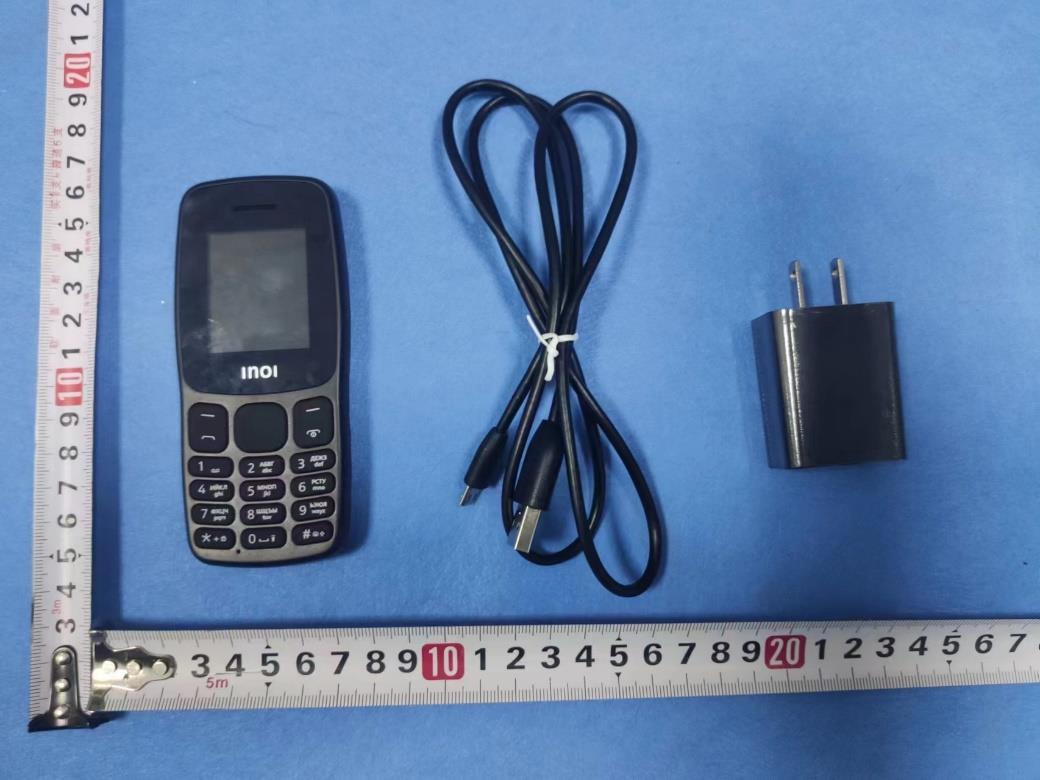

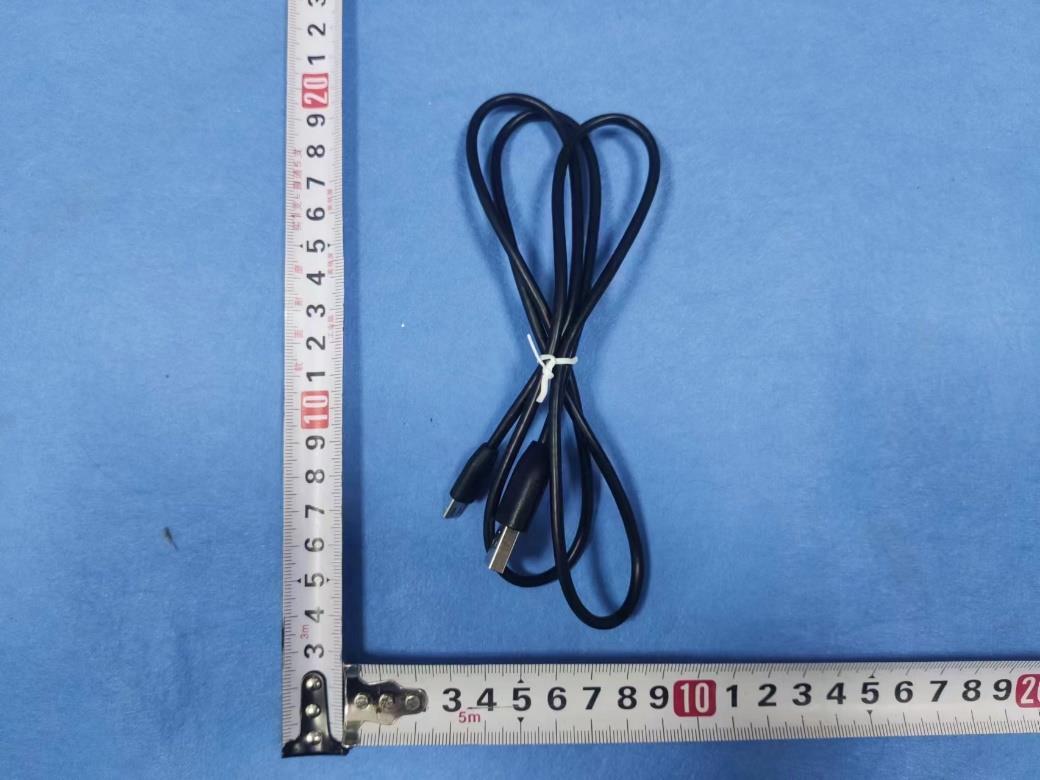

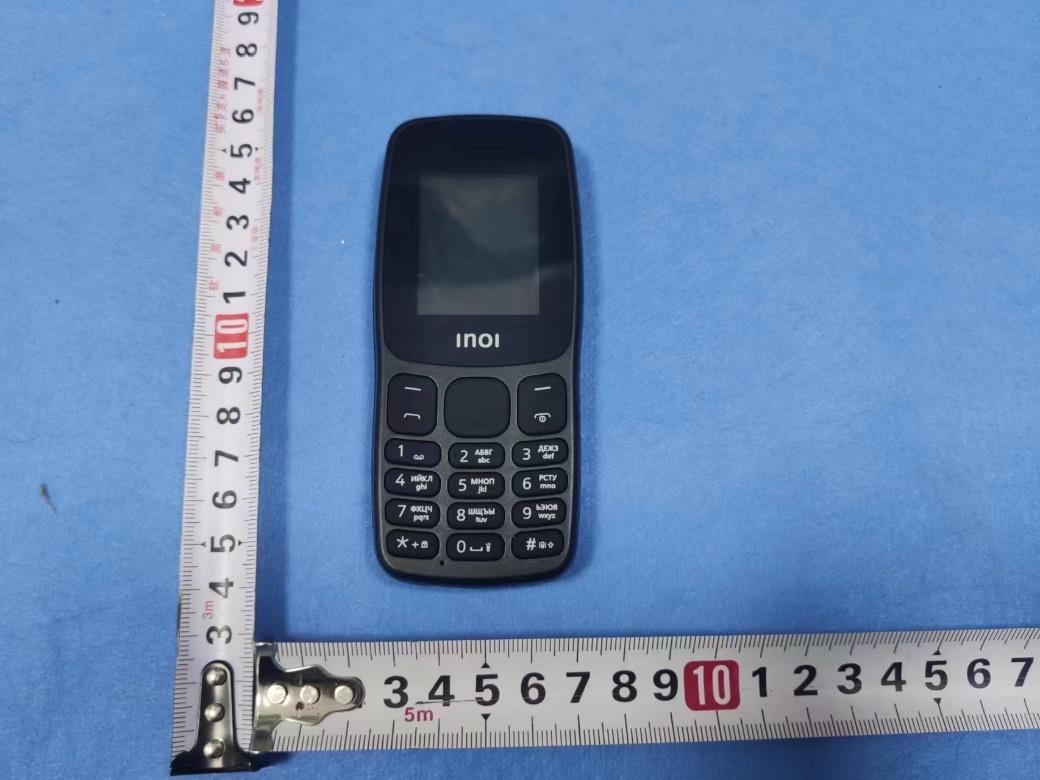

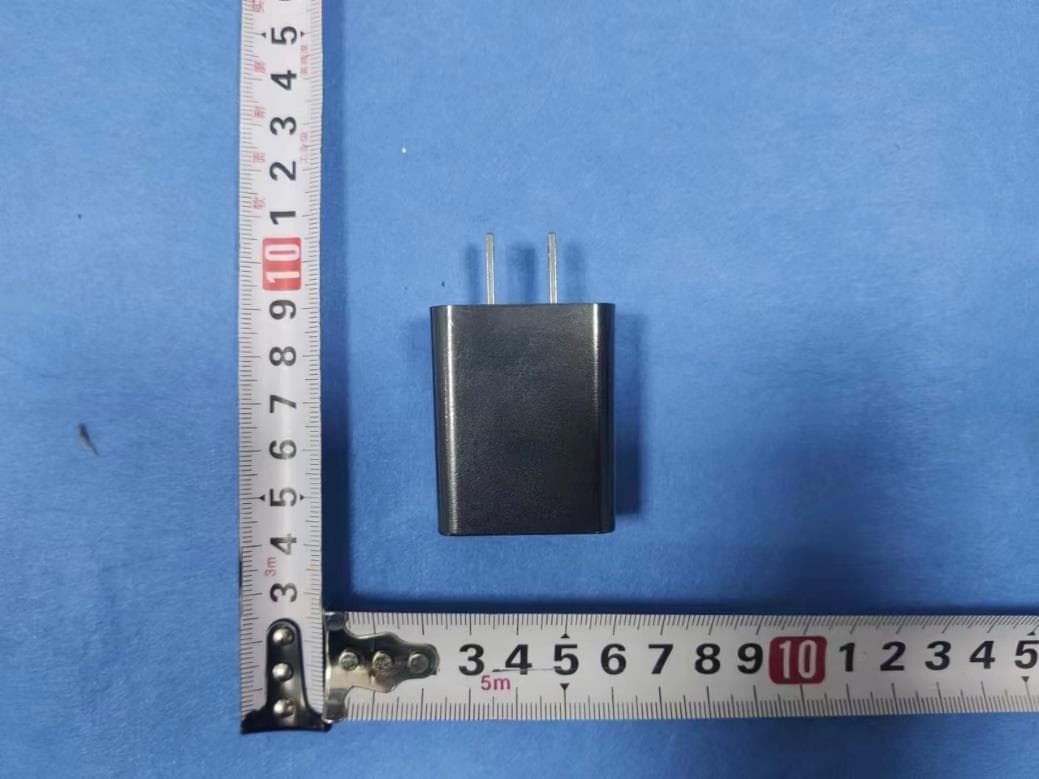

External Photos

Page 1 of 5 Report No.: LGT23A020 Appendix - External Photographs of EUT Constructional Details Model Name: INOI 105 Photo 1 Photo 2 Page 2 of 5 Report No.: LGT23A020 Photo 3 Photo 4 Page 3 of 5 Report No.: LGT23A020 Photo 5 Photo 6 Page 4 of 5 Report No.: LGT23A020 Photo 7 Photo 8 Page 5 of 5 Report No.: LGT23A020 Photo 9

ID Label/Location Info

FCC Label Feature phone Model name: INOI 105 FCC ID:2A9SN-INOI105

Internal Photos

Page 1 of 6 Report No.: LGT23A020 Appendix - Internal Photographs of EUT Constructional Details Model Name: INOI 105 Photo 1 Photo 2 Page 2 of 6 Report No.: LGT23A020 Photo 3 Photo 4 BT ANT Page 3 of 6 Report No.: LGT23A020 Photo 5 Photo 6 Page 4 of 6 Report No.: LGT23A020 Photo 7 Photo 8 GSM ANT Page 5 of 6 Report No.: LGT23A020 Photo 9 Photo 10 GSM ANT Page 6 of 6 Report No.: LGT23A020 Photo 11

RF Exposure Info

!! " !#$ %# &'()*+,$!)$ !-%./-0 10/2$!#''/3-3-%%/!0%$ 4-0 !3 3 .-" 2-.)%-/- $1-05%-/- $ $.0%!$ -0 36 !3!0/%!-3/- (7-%1/!) /-0!#8+9:**1!';9 <=>?@<ABC<A36 #-#CB=<DE>FABCGC><?=B BHIFEDJ=B)@BKA-@E>KBL*M,<NBFGB0=BO>KCB/EHIEF *M*P+1!.0(7/0 <=>?@<A>EFC<AB8+*:&&:*+** QQR STUVUTWXYZ[\]^_ QW` VaVTbVcb WXdddQW RVQ R IBGKBEeAIB Ee@<H?@<FC<FCAIB<HH@BC>A<A>EF@BeB@BFHBK>KD@EI>?>ABCe@Ef<Fg@BD@ECGHA>EF# hijjkl mnTYSWQop XU`R Y XUYUn p UnWSVXSR YobUY RWpVXVQQR STU Sqrq [sT bStRWc QVbTcRVUTWX` R WRp SVUruvwoYTXxUn yzt qU YUc XQnw WRoY dTUnVruvqrq Y{YU pWXb{mn U YUR YobUYQWa R Sc{VQQR STUVUTWXVR URVQ Vcb UWUn zXU RXVUTWXVb{YU pW |XTUY}z~ !3 !0/(7>B=C1@E?B <=>?@<A>EF/BDE@A !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ M"_LNKOGJN` O"aG!N OLR" R"S R"IQ]#bcdefghijiklminopnlnqd rssrt uF"Kv"IQ]#bcdefghijiklminopnlnqd rssrt wSSRJX"IQ]xnlljyhznmlgn{ydnzyd|}mdizyd rssrt uLHOJM"R^ M" `GHORGQLOGJN# g~jklkl jzjiklyoyq| ygz HHL"^ M"` O"YJIGVGK OGJNH bcdefghirssrtlmzmnodon !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ _`abcdefghi jfkelbi_hbfamiakd ^ndfopqdkfroiakdsssssssssssssssssssssssssssssssssssssssssssssssssssssss tuohlfrdiuivke t^wadofaixssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss tdhaia`aixsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss ttwkyf_ibiakdwaraisssssssssssssssssssssssssssssssssssssssssssssssssssss tqhkifkmxsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t^kldeofxbissssssssssssssssssssssssssssssssssssssssssssssssssssssssss uohlfrdicdbfioadixz opa{foiakduohlfrdihlpihz ^dhaia`aixadoafssssssssssssssssssssssssssssssssssssssssssssssssssssssssssz wadofaixssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss| tdhaia`aixadpa}laessssssssssssssssssssssssssssssssssssssssssssssssssssssss~ qhkifkmxsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss zwahik}lamrdi^ !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ _ ` abcdebfghbijbkl mnopqrstutmtvuqvwvxmyt uz{|zp}|~~u u ~oz|~yt y~|p}{o}o{{| w~|{prz{y~ o}z{pq~mosz}{{p}~ mosu mosu mosu ` xvwtuqvt ¡¢£¤¥¦§ ̈©ª«¬¦ª¦¬®¥§ ̄¥°zpp~z{p}}vv±²z{w ³m²m }z{z~ ́μ¶· ̧^¹YZ[º»Y»¼½¾¿JHGM"ORGKÀVG"PIRJQ" y~x{} x{}v{ono|zmos uzÁo|Á}~{zoz}~² y~qosÁ}~{zmoz}~ mo}z{p}{oss~Á}~o}r Â`Ã qvv±²z{w³m²m}z{z~s~no~p{s~zp}op ~ }s~pzo~z}o{Äo{p|o{}s~~z{ppz~zp}~o}opo{}~}z{}rop} z}o~zp}pzo~z}o{z|~{}s~~}}~{}o{}z{z~ xv vqÅ qnz|z}o{}o{z~o}rz{o{~szp|o{}zn|oÄs~~o{zs~ s} pn~}~z{ÆÇ}ÆÇ vqvvqÅ q{o}ono}rzp}~}}~os~}~o{|o{z}}spzo~z}o{}zo~ z {}o|o|z}o{o|o|o{zn|oz|}o{o{}}z{z~ …

Text truncated - open the document above for the full version.

Test Report

www.szjhwx.com Page 1 目录 Catalog 说明书 Description 1 匹配电路 Matching circuit 2 结构组件 Structural components 3 材料说明 Material Description 4 可靠性测试 Reliability Test 5 测试 Test 5 .1 测试设备 Test Equipment 5.2 测试数据 Test Data 6 物料BOM 表 Material BOM Table 7 天线图纸 Antenna Drawing 8 产品流程图 Product Flo//w chart 9 尺寸测试报告 Dimension Test Report 10 包装方式及存储 Packing method and Storage www.szjhwx.com Page 2 说明书 Description 这份报告包含天线电性能测试的若干设备、测试环境和测试结果，以及天线的结构图纸和检验报告。 1 匹配电路 Match circuit 无更改 2 结构组件 Structure constituent 此蓝牙天线组件组成，天线采用漆包线； 3 材料说明 Material Description 蓝牙天线：天线采用漆包线. www.szjhwx.com Page 3 4 可靠性测试 Reliability Test 盐雾检测报告 Salt spray detection report 客户名称小蜜蜂订单编号项目名称BM17订单数量物料名称BT蓝牙天线组件此批数量测试标准GB2423.17测试数量5 测试仪器规格F-60C测试时间12H 盐雾测试类型NSS中性喷雾方式连续喷雾测试项目要求标准实际数值判定盐水PH值 6.5-72 6.8AC 盐水比例5:1005：100AC 饱和温度47°C47CAC 盐雾箱温度 3535AC 盐雾沉降量（H.80C） 1-2m11.5mlAC 压缩空气节压力1±0.1KG/C㎡1KgAC 样品放置角度90°C90°C AC 测试时间测试中观察现象 □ 4小时 □ 无氧化，无剥离 □ 有氧化，有剥离 █12小时█无氧化，无剥离□有氧化，有剥离 □ 24小时 □ 无氧化，无剥离 □ 有氧化，有剥离 □36小时□无氧化，无剥离□有氧化，有剥离 □48小时□无氧化，无剥离□有氧化，有剥离最终判定结果合格█不合格□ 审核杨乾忠审核判定标准：依国标5944-86评级方法判定，9级以上为合格备注：常用的盐雾试验方法有：NSS中惦盐雾试验：AASS乙酸盐雾试验：CASS铜乙酸加速试验。 www.szjhwx.com Page 4 5 测试 Test 5.1 测试设备 Test Equipment 5071C 5.2 测试数据 Test Data 室内实际测试10米通话无杂音天线频率 www.szjhwx.com Page 5 5.3 无源效率Passive efficiency 6 物料 BOM 表 Material Bom Table www.szjhwx.com Page 6 7 天线图纸 Antenna Drawing www.szjhwx.com Page 7 8 工艺流程图 Product Flow chart www.szjhwx.com Page 8 9 尺寸测试报告 Dimension Test Report 10 包装方式及存储 Packing method and storage 包装方式:1000根/捆（如客户有包装要求则以客户标准为准），常温保存。

Test Report

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China RF TEST REPORT Product Name: Feature phone Model Name: INOI 105, INOI 100, INOI 101 FCC ID: 2A9SN-INOI105 Issued For : INOI Limited Office 302, Dominion Centre 43-59, Queens Road, East Wanchai, Hong Kong, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT23A020RF01 Sample Received Date: Jan. 10, 2023 Date of Test: Jan. 10, 2023 ~ Feb. 08, 2023 Date of Issue: Feb. 08, 2023 Report No.: LGT23A020RF01 Page 2 of 84 TEST REPORT CERTIFICATION Applicant INOI Limited Address Office 302, Dominion Centre 43-59, Queens Road, East Wanchai, Hong Kong, China Manufacturer INOI Limited Address Office 302, Dominion Centre 43-59, Queens Road, East Wanchai, Hong Kong, China Product Name Feature phone Trademark INOI Model Name INOI 105, INOI 100, INOI 101 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT23A020RF01 Page 3 of 84 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 35 4.1 LIMIT 35 4.2 TEST PROCEDURE 35 4.3 TEST SETUP 36 4.4 EUT OPERATION CONDITIONS 36 4.5 TEST RESULTS 36 5. NUMBER OF HOPPING CHANNEL 37 5.1 LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 37 6. AVERAGE TIME OF OCCUPANCY 38 6.1 LIMIT 38 6.2 TEST PROCEDURE 38 6.3 TEST SETUP 38 6.4 EUT OPERATION CONDITIONS 38 6.5 TEST RESULTS 38 7. HOPPING CHANNEL SEPARATION MEASUREMEN 39 7.1 LIMIT 39 7.2 TEST PROCEDURE 39 Report No.: LGT23A020RF01 Page 4 of 84 Table of Contents Page 7.3 TEST SETUP 39 7.4 EUT OPERATION CONDITIONS 39 7.5 TEST RESULTS 39 8. BANDWIDTH TEST 40 8.1 LIMIT 40 8.2 TEST PROCEDURE 40 8.3 TEST SETUP 40 8.4 EUT OPERATION CONDITIONS 40 8.5 TEST RESULTS 40 9. OUTPUT POWER TEST 41 9.1 LIMIT 41 9.2 TEST PROCEDURE 41 9.3 TEST SETUP 41 9.4 EUT OPERATION CONDITIONS 41 9.5 TEST RESULTS 42 10. ANTENNA REQUIREMENT 43 10.1 STANDARD REQUIREMENT 43 10.2 EUT ANTENNA 43 APPENDIX I:TEST RESULTS 44 DUTY CYCLE 44 MAXIMUM PEAK CONDUCTED OUTPUT POWER 48 -20DB BANDWIDTH 49 OCCUPIED CHANNEL BANDWIDTH 53 CARRIER FREQUENCIES SEPARATION 57 BAND EDGE 61 BAND EDGE(HOPPING) 66 CONDUCTED RF SPURIOUS EMISSION 71 NUMBER OF HOPPING CHANNEL 78 DWELL TIME 80 APPENDIX II：PHOTOS OF TEST SETUP 83 Report No.: LGT23A020RF01 Page 5 of 84 Revision History Rev. Issue Date Contents 00 Feb. 08, 2023 Initial Issue Report No.: LGT23A020RF01 Page 6 of 84 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT23A020RF01 Page 7 of 84 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate FCC Registration No.: 746540 A2LA Certificate No.: 6727.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Report No.: LGT23A020RF01 Page 8 of 84 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Feature phone Trademark INOI Model Name INOI 105 Series Model INOI 100, INOI 101 Model Difference Model Motor Key Screen printing Adapter Camera Hardware Version Rear cover INOI 100 ON different NO NO identical identical NOI 105 YES identical YES YES identical different NOI 101 YES identical YES NO identical identical Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type Please refer to the Note 3. Adapter Model: ICH-01/19 Input: 100-240~50/60Hz 0.15A Output: DC5.0V 1.0A, 5W Battery Capacity: 600mAh Rated V…

Text truncated - open the document above for the full version.

Test Report

Report No.: LGT23A020RF01 Page 29 of 84 Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 27.4°C M/N: INOI 105 Humidity: 65%RH Test Voltage: Battery Test Data: 2023-01-14 Test Mode: DH5 2480 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 4.689GHz 55.62 -5.90 49.72 74.00 -24.28 PK Hor 2* 8.193GHz 57.21 -3.45 53.76 74.00 -20.24 PK Hor 3* 17.930GHz 50.23 8.47 58.70 74.00 -15.30 PK Hor 4* 4.689GHz 44.90 -5.90 39.00 54.00 -15.00 AV Hor 5* 8.193GHz 45.55 -3.45 42.10 54.00 -11.90 AV Hor 6* 17.930GHz 40.23 8.47 48.70 54.00 -5.30 AV Hor Report No.: LGT23A020RF01 Page 30 of 84 Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 27.4°C M/N: INOI 105 Humidity: 65%RH Test Voltage: Battery Test Data: 2023-01-14 Test Mode: DH5 2480 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 4.721GHz 54.90 -5.93 48.97 74.00 -25.03 PK Ver 2* 8.975GHz 55.40 -1.24 54.16 74.00 -19.84 PK Ver 3* 17.958GHz 49.70 8.49 58.19 74.00 -15.81 PK Ver 4* 4.721GHz 45.43 -5.93 39.50 54.00 -14.50 AV Ver 5* 8.975GHz 44.94 -1.24 43.70 54.00 -10.30 AV Ver 6* 17.958GHz 39.91 8.49 48.40 54.00 -5.60 AV Ver Report No.: LGT23A020RF01 Page 31 of 84 3.2.8 TEST RESULTS(BAND EDGE REQUIREMENTS) Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 23.1°C M/N: INOI 105 Humidity: 60%RH Test Voltage: Battery Test Data: 2023-02-10 Test Mode: 3DH5 2402 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 2.3614GHz 17.50 34.02 51.52 74.00 -22.48 PK Hor 2* 2.3900GHz 13.95 33.95 47.90 74.00 -26.10 PK Hor Report No.: LGT23A020RF01 Page 32 of 84 Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 23.1°C M/N: INOI 105 Humidity: 60%RH Test Voltage: Battery Test Data: 2023-02-10 Test Mode: 3DH5 2402 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 2.3622GHz 17.22 34.02 51.24 74.00 -22.76 PK Ver 2* 2.3900GHz 16.15 33.95 50.10 74.00 -23.90 PK Ver Report No.: LGT23A020RF01 Page 33 of 84 Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 23.1°C M/N: INOI 105 Humidity: 60%RH Test Voltage: Battery Test Data: 2023-02-10 Test Mode: 3DH5 2480 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 2.4835GHz 14.27 34.13 48.40 74.00 -25.60 PK Hor 2* 2.4849GHz 17.93 34.13 52.06 74.00 -21.94 PK Hor Report No.: LGT23A020RF01 Page 34 of 84 Project: LGT23A020 Test Engineer: Dylan.shi EUT: Feature phone Temperature: 23.1°C M/N: INOI 105 Humidity: 60%RH Test Voltage: Battery Test Data: 2023-02-10 Test Mode: 3DH5 2480 Note: No. Frequency Reading dBuV Factor dB/m Level dBuV/m Limit dBuV/m Margin dB Detector Polar 1* 2.4835GHz 14.17 34.13 48.30 74.00 -25.70 PK Ver 2* 2.4967GHz 17.44 34.16 51.60 74.00 -22.40 PK Ver Report No.: LGT23A020RF01 Page 35 of 84 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 4.1 LIMIT According to FCC section 15.247(d), in any 100kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 4.2 TEST PROCEDURE Spectrum Parameter Setting Detector Peak Start/Stop Frequency 30 MHz to 10th carrier harmonic RB / VB (emission in restricted band) 100 KHz/300 KHz Trace-Mode: Max hold For Band edge Spectrum Parameter Setting Detector Peak Start/Stop Frequency Lower Band Edge: 2300 – 2407 MHz Upper Band Edge: 2475 – 2500 MHz RB / VB (emission in restricted band) 100 KHz/300 KHz Trace-Mode: Max hold For Hopping Band edge Spectrum Parameter Setting Detector Peak Start/Stop Frequency Lower Band Edge: 2300– 2403 MHz Upper Band Edge: 2479 – 2500 MHz RB / VB (emission in restricted band) 100 KHz/300 KHz Trace-Mode: Max hold Report No.: LGT23A020RF01 Page 36 of 84 4.3 TEST SETUP The EUT is connected to the Spectrum Analyzer; the RF load attached to the EUT antenna terminal is 50Ohm; the path loss as the factor is calibrated to correct the reading. Tune the measurement with the spectrum analyzer's resolution bandwidth (RBW) = 100 kHz. In order to make an accurate measurement, the span is set to be greater than RBW. 4.4 EUT OPERATION CONDITIONS Please refer to section 3.1.4 of this report. 4.5 TEST RESULTS For the measurement records，refer to the appendix I. Report No.: LGT23A020RF01 Page 37 of 84 5. NUMBER OF HOPPING CHANNEL 5.1 LIMIT FCC Part 15.247, Subpart C Section Test Item Limit FrequencyRange (MHz) Result 15.247 (a)(1)(iii) Number of Hopping Channel ≥15 2400-2483.5 PASS Spectrum Parameters Setting Attenuation Auto Span Frequency > Operating FrequencyRange RB 300KHz VB 300KHz Detector Peak Trace Max Hold Sweep Time Auto 5.2 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below. b. Spectrum Setting: RBW= 300KHz, VBW=300KHz, Sweep time = Auto. 5.3 TEST SETUP 5.4 EUT OPERATION CONDITIONS Please refer to section 3.1.4 of this report. 5.5 TEST RESULTS For the measurement records，refer to the appendix I. Report No.: LGT23A020RF01 Page 38 of 84 6. AVERAGE TIME OF OCCUPANCY 6.1 LIMIT FCC Part 15.247,Subpart C Section Test Item Limit FrequencyRange (MHz) Result 15.247 (a)(1)(iii) Average Time of Occupancy 0.4sec 2400-2483.5 PASS 6.2 TEST PROCEDURE a. The transmitter output (antenna port) was connected to the spectrum analyzer. b. Set RBW =1MHz/VBW =3MHz. c. Use a video trigger with the trigger level set to enable triggering only on full pulses. d. Sweep Time is more than once pulse time. e. Set the center frequency on any frequency would be measure and set the frequency span to zero span. f. Measure the maximum time duration of o…

Text truncated - open the document above for the full version.

Test Report

Report No.: LGT23A020RF01 Page 57 of 84 Carrier Frequencies Separation Condition Mode Antenna Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2402.058 2402.966 0.908 0.621 Pass NVNT 1-DH5 Ant1 2440.992 2441.976 0.984 0.631 Pass NVNT 1-DH5 Ant1 2478.968 2479.978 1.01 0.678 Pass NVNT 2-DH5 Ant1 2401.946 2402.99 1.044 0.873 Pass NVNT 2-DH5 Ant1 2440.948 2441.986 1.038 0.878 Pass NVNT 2-DH5 Ant1 2478.978 2479.984 1.006 0.857 Pass NVNT 3-DH5 Ant1 2401.908 2402.97 1.062 0.866 Pass NVNT 3-DH5 Ant1 2440.914 2441.918 1.004 0.871 Pass NVNT 3-DH5 Ant1 2478.942 2479.978 1.036 0.847 Pass Report No.: LGT23A020RF01 Page 58 of 84 Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 CFS NVNT 1-DH5 2480MHz Ant1 Report No.: LGT23A020RF01 Page 59 of 84 CFS NVNT 2-DH5 2402MHz Ant1 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 Report No.: LGT23A020RF01 Page 60 of 84 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 CFS NVNT 3-DH5 2480MHz Ant1 Report No.: LGT23A020RF01 Page 61 of 84 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -54.96 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -55.13 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -52.46 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -54.07 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -55.5 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -52.58 -20 Pass Report No.: LGT23A020RF01 Page 62 of 84 Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Report No.: LGT23A020RF01 Page 63 of 84 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Report No.: LGT23A020RF01 Page 64 of 84 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Report No.: LGT23A020RF01 Page 65 of 84 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: LGT23A020RF01 Page 66 of 84 Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -49.48 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -51.78 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -51.08 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -50.03 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -48.87 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -51.86 -20 Pass Report No.: LGT23A020RF01 Page 67 of 84 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Report No.: LGT23A020RF01 Page 68 of 84 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: LGT23A020RF01 Page 69 of 84 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Report No.: LGT23A020RF01 Page 70 of 84 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: LGT23A020RF01 Page 71 of 84 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -52.32 -20 Pass NVNT 1-DH5 2441 Ant1 -52.91 -20 Pass NVNT 1-DH5 2480 Ant1 -51.29 -20 Pass NVNT 2-DH5 2402 Ant1 -53.21 -20 Pass NVNT 2-DH5 2441 Ant1 -52.77 -20 Pass NVNT 2-DH5 2480 Ant1 -51.76 -20 Pass NVNT 3-DH5 2402 Ant1 -51.23 -20 Pass NVNT 3-DH5 2441 Ant1 -51.6 -20 Pass NVNT 3-DH5 2480 Ant1 -51.68 -20 Pass Report No.: LGT23A020RF01 Page 72 of 84 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Report No.: LGT23A020RF01 Page 73 of 84 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: LGT23A020RF01 Page 74 of 84 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Report No.: LGT23A020RF01 Page 75 of 84 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: LGT23A020RF01 Page 76 of 84 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Report No.: LGT23A020RF01 Page 77 of 84 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission Report No.: LGT23A020RF01 Page 78 of 84 Number of Hopping Channel Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass Report No.: LGT23A020RF01 Page 79 of 84 Test Graphs Hopping No. NVNT 1-DH5 2441MHz Ant1 Hopping No. NVNT 2-DH5 2441MHz Ant1 Hopping No. NVNT 3-DH5 2441MHz Ant1 Report No.: LGT23A020RF01 Page 80 of 84 Dwell Time Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2441 Ant1 2.895 193.965 67 31600 400 Pass NVNT 2-DH5 2441 Ant1 2.883 138.384 48 31600 400 Pass NVNT 3-DH5 2441 Ant1 2.882 210.386 73 31600 400 Pass Report No.: LGT23A020RF01 Page 81 of 84 Test Graphs Dwell NVNT 1-DH5 2441MHz Ant1 One Burst Dwell NVNT 1-DH5 2441MHz Ant1 Accumulated Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Report No.: LGT23A020RF01 Page 82 of 84 Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated Dwell NVNT 3-DH5 2441MHz Ant1 One Burst…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mikhail Khazov

[email protected]97152245Fax: 97152245

Technical Contact

Shenzhen LGT Test Service Co., Ltd.Vita Li

[email protected]+86-0755 89668180

room 205, Building 13, Zone B, Chen Hsong · Community,Kengzi Street,Pingshan New District,Shen · China

Non-Technical Contact

Shenzhen LGT Test Service Co., Ltd.Vita Li

[email protected]+86-0755 89668180

Test Firm

Shenzhen LGT Test Service Co., Ltd.Wen Wen

[email protected]0755-89668180

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.73 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Highest reported SAR for Head, Body-worn accessory, and simultaneous transmission are <0.10W/kg, <0.10W/kg, 0.41W/kg respectively.
