2A9SQ-SWAAHUBYale Connect Plus Hub 2

Model： YAR/SWAA/HUB YAR/BDG/BLE YAR/BDG/ZGB YAR/BDG/OMN Model： YAR/SWAA/ZMD

Product Name: Yale Connect Plus Hub 2 Model No.: YAR/SWAA/HUB, YAR/BDG/BLE, YAR/BDG/ZGB, YAR/BDG/OMN FCC Regulation Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of the FCC Rules and ISED Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1)L'appareil ne doit pas produire de brouillage; 2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Date: 2/16/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2A9SQ-SWAAHUB 1. ASSA ABLOY AUSTRALIA PTY LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. ASSA ABLOY AUSTRALIA PTY LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Title: Intellectual Property Manager

Date: 2/24/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Grantee Code: 2A9SQ Grantee's FRN:0033180613 To whom it may concern: FCC US Agent Agent Company Name Agent Contact Name Agent US Address 89502 Agent Email Address : Interlock USA : Peter Minter : 1105 South Rock Blvd., Suite 120-123, Reno, Nevada USA : [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of ASSA ABLOY AUSTRALIA PTY LTD. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Name: Peter Minter Job Title: VP of Engineering Agent Company name: Interlock USA Interlock USA does not do any other business with the FCC.

Contact Person : Peter Minter Company Name : Interlock USA Company Address : 1105 South Rock Blvd., Suite 120-123, Reno, Nevada USA 89502 Email : [email protected] Sincerely yours, Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Title: Intellectual Property Manager Date: 2/16/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2A9SQ-SWAAHUB Grantee's FRN:0033180613 ASSA ABLOY AUSTRALIA PTY LTD as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Interlock USA does not do any other business with the FCC.

ASSA ABLOY AUSTRALIA PTY LTD Date: 02/16/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia

ASSA ABLOY AUSTRALIA PTY LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2A9SQ-SWAAHUB To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Date:02/16/2023

ASSA ABLOY AUSTRALIA PTY LTD DATE : 02/16/2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: ASSA ABLOY AUSTRALIA PTY LTD FCC ID: 2A9SQ-SWAAHUB FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos (3) Internal Photos (4) User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Date:02/16/2023

ASSA ABLOY AUSTRALIA PTY LTD Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Confirmation Letter We, ASSA ABLOY AUSTRALIA PTY LTD The product: Yale Connect Plus Hub 2 And model No.: YAR/SWAA/HUB YAR/BDG/BLE AR/BDG/ZGB YAR/BDG/OMN FCC ID:2A9SQ-SWAAHUB IC:29955-SWAAHUB YAR/BDG/BLE, YAR/BDG/ZGB and YAR/BDG/OMN have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with YAR/SWAA/HUB. The difference lies only the firmware. We select “YAR/SWAA/HUB” as the representative model for compliance test. YAR/SWAA/HUB: All functions are turned on, including BLE, ZigBee and WIFI 2.4G. YAR/BDG/BLE: Disable ZigBee function. YAR/BDG/ZGB: Disable BLE function. YAR/BDG/OMN: All functions are turned on, including BLE, ZigBee and WIFI 2.4G. Company Name: ASSA ABLOY AUSTRALIA PTY LTD Contact Name: Prashanth Lingarajappa Address: 235 Huntingdale Road Oakleigh Victoria 3166 Australia Title: Intellectual Property Manager

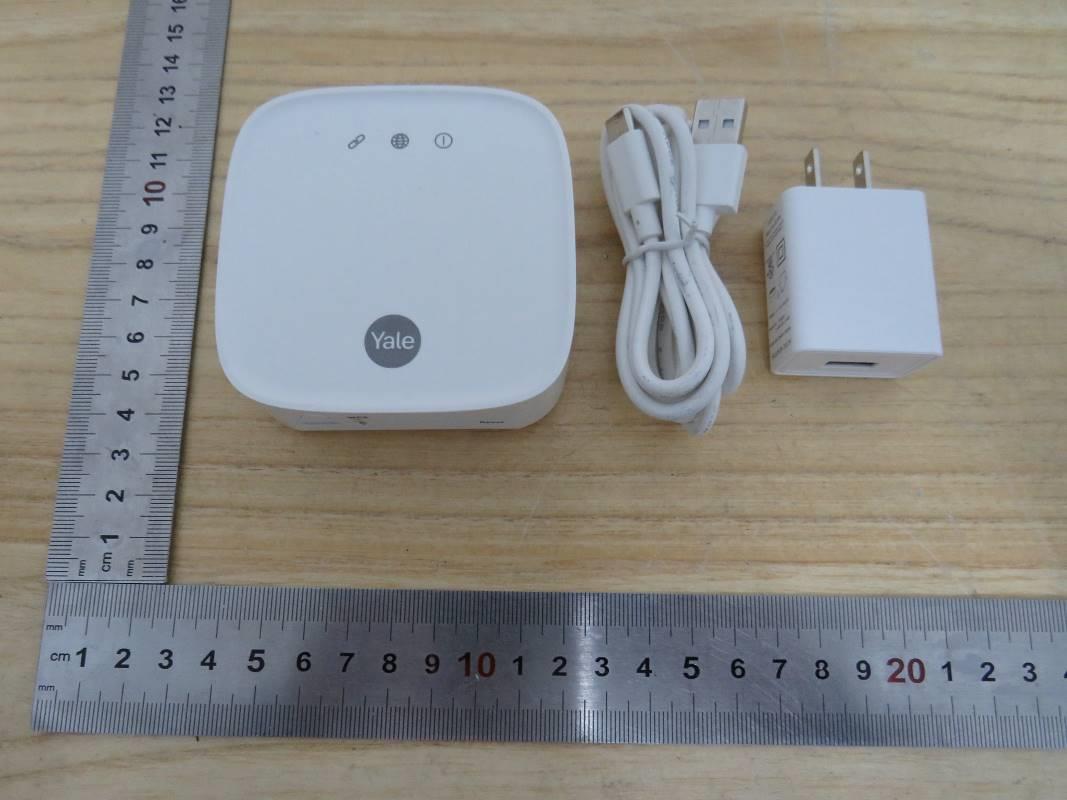

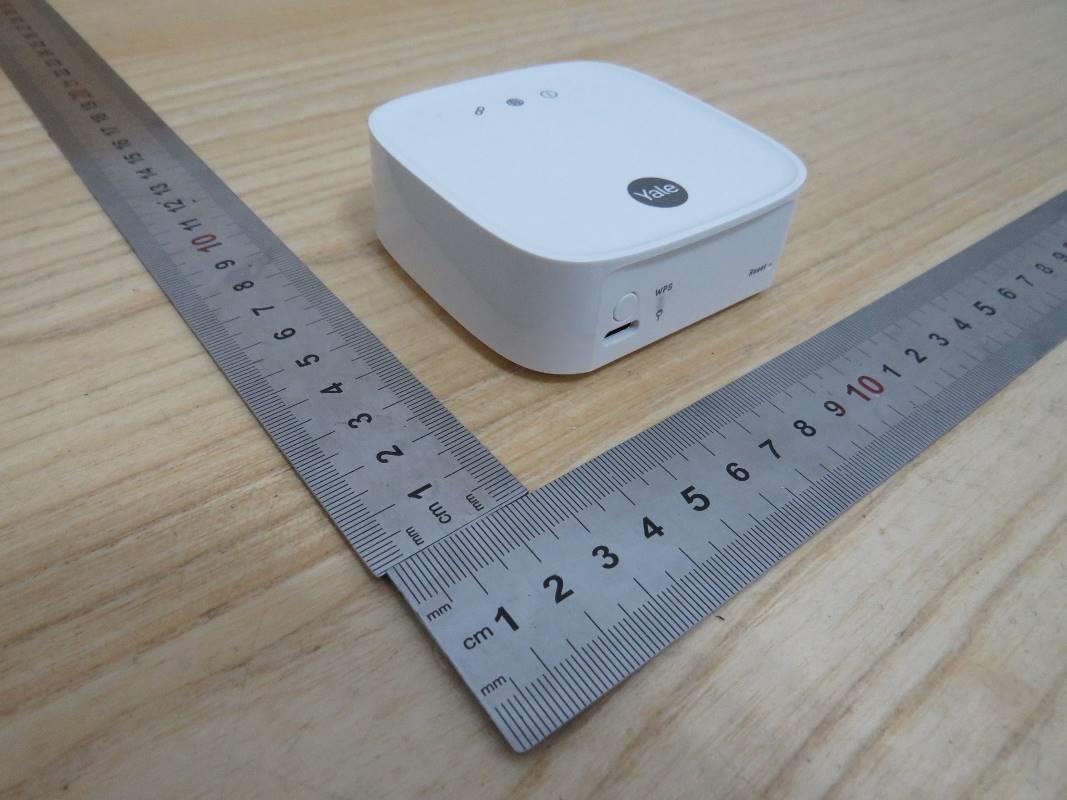

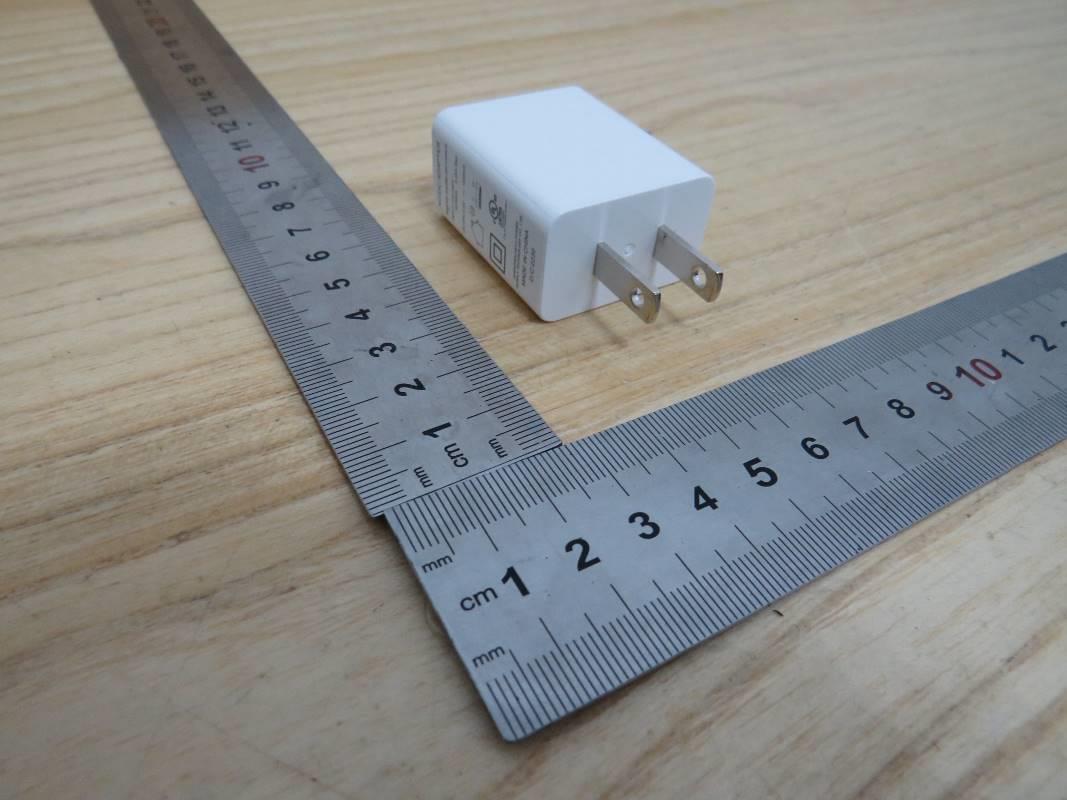

External Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 View of EUT-8 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-9

Information Connect Plus Hub 2 58.8 30.8 Model: YAR/SWAA/HUB Input: DC5V/1A FCC ID: 2A9SQ-SWAAHUB IC: 29955-SWAAHUB Contains FCC ID:2AC7Z-ESP32WROVERE Contains IC:21098-ESPWROVERE Information Connect Plus Hub 2 58.8 30.8 Information Connect Plus Hub 2 58.8 30.8 Information Connect Plus Hub 2 58.8 30.8 Model: YAR/BDG/ZGB Input: DC5V/1A FCC ID: 2A9SQ-SWAAHUB IC: 29955-SWAAHUB Contains FCC ID:2AC7Z-ESP32WROVERE Contains IC:21098-ESPWROVERE Model: YAR/BDG/BLE Input: DC5V/1A FCC ID: 2A9SQ-SWAAHUB IC: 29955-SWAAHUB Contains FCC ID:2AC7Z-ESP32WROVERE Contains IC:21098-ESPWROVERE Model: YAR/BDG/OMN Input: DC5V/1A FCC ID: 2A9SQ-SWAAHUB IC: 29955-SWAAHUB Contains FCC ID:2AC7Z-ESP32WROVERE Contains IC:21098-ESPWROVERE The label is printed to the back of the device with ink.

Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-3 Internal View of EUT-4 BLE Module BLE Antenna ZigBee Module ZigBee Antenna ESPRESSIF Module Antenna Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-5

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Yale Connect Plus Hub 2 MODEL NUMBER: YAR/SWAA/HUB YAR/BDG/BLE YAR/BDG/ZGB YAR/BDG/OMN FCC ID:2A9SQ-SWAAHUB REPORT NUMBER: 4790701190-1-RF-3 ISSUE DATE: February 13, 2023 Prepared for ASSA ABLOY Australia Pty Ltd. 235 Huntingdale Rd, Oakleigh, VIC 3166, Australia Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4790701190-1-RF-3 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 February 13, 2023 Initial Issue REPORT No.: 4790701190-1-RF-3 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4790701190-1-RF-3 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: ASSA ABLOY Australia Pty Ltd. Address: 235 Huntingdale Rd, Oakleigh, VIC 3166, Australia Manufacturer Information Company Name: ASSA ABLOY Australia Pty Ltd. Address: 235 Huntingdale Rd, Oakleigh, VIC 3166, Australia EUT Information EUT Name: Yale Connect Plus Hub 2 Model: YAR/SWAA/HUB YAR/BDG/BLE YAR/BDG/ZGB YAR/BDG/OMN Brand: Yale Sample Received Date: January 3, 2023 Sample Status: Normal Sample ID: 5673628 Date of Tested: January 3, 2023 ~ February 13, 2023 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Kebo Zhang Denny Huang Senior Project Engineer Senior Project Engineer Approved By: Stephen Guo Operations Manager REPORT No.: 4790701190-1-RF-3 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4790701190-1-RF-3 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For Yale Connect Plus Hub 2 MODEL NUMBER: YAR/SWAA/HUB YAR/BDG/BLE YAR/BDG/ZGB YAR/BDG/OMN FCC ID:2A9SQ-SWAAHUB IC:29955-SWAAHUB REPORT NUMBER: 4790701190-1-RF-1 ISSUE DATE: February 13, 2023 Prepared for ASSA ABLOY Australia Pty Ltd. 235 Huntingdale Rd, Oakleigh, VIC 3166, Australia Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790701190-1-RF-1 Page 2 of 72 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 2/13/2023 Initial Issue REPORT NO.: 4790701190-1-RF-1 Page 3 of 72 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Peak Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4790701190-1-RF-1 Page 4 of 72 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. CHANNEL LIST .............................................................................................................. 9 5.3. MAXIMUM PEAK OUTPUT POWER ............................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ............................................................................. 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 11 5.7. DESCRIPTION OF TEST SETUP ................................................................................ 12 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 13 7. ANTENNA PORT TEST RESULTS .................................................................................... 16 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 16 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ................................... 17 7.3. CONDUCTED OUTPUT POWER ................................................................................ 19 7.4. POWER SPECTRAL DENSITY ................................................................................... 20 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................ 22 8. RADIATED TEST RESULTS .............................................................................................. 24 8.1. RESTRICTED BANDEDGE ......................................................................................... 30 8.2. SPURIOUS EMISSIONS (1 GHz ~ 3 GHz) .................................................................. 34 8.3. SPURIOUS EMISSIONS (3 GHz ~ 18 GHz) ................................................................ 40 8.4. SPURIOUS EMISSIONS (18 GHz ~ 26 GHz) .............................................................. 46 8.5. SPURIOUS EMISSIONS (30 MHz ~ 1 GHz) .....................…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 TEST REPORT For Yale Connect Plus Hub 2 MODEL NUMBER: YAR/SWAA/HUB YAR/BDG/BLE YAR/BDG/ZGB YAR/BDG/OMN REPORT NUMBER: 4790701190-1-RF-2 ISSUE DATE: February 13, 2023 FCC ID:2A9SQ-SWAAHUB IC:29955-SWAAHUB Prepared for ASSA ABLOY AUSTRALIA PTY LTD 235 Huntingdale Road, Oakleigh,3166 Australia Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790701190-1-RF-2 Page 2 of 96 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 February 13, 2023 Initial Issue REPORT NO.: 4790701190-1-RF-2 Page 3 of 96 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.12 & Clause 11.13 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to …

Text truncated - open the document above for the full version.
