2A9U6-YML01wireless lavalier microphone

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Sincerely, Name/Title： SHI-KEN CHO /Manager Company: NISHO SHOJI Co.,Ltd. Address: 284-0034, 155-1,Nabasama, Yotsukaido-shi, Chiba-ken, Japan Phone: 043-312-1831 Fax: 043-312-1832 E-Mail: [email protected]

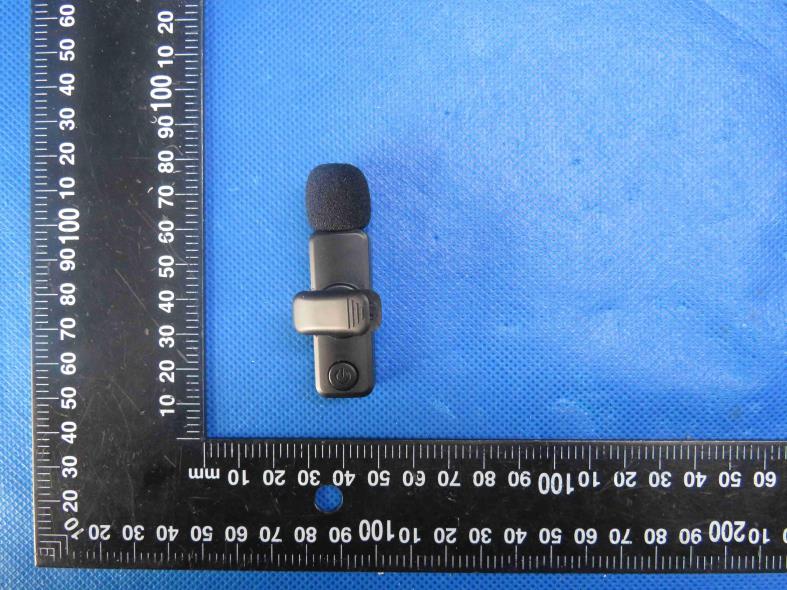

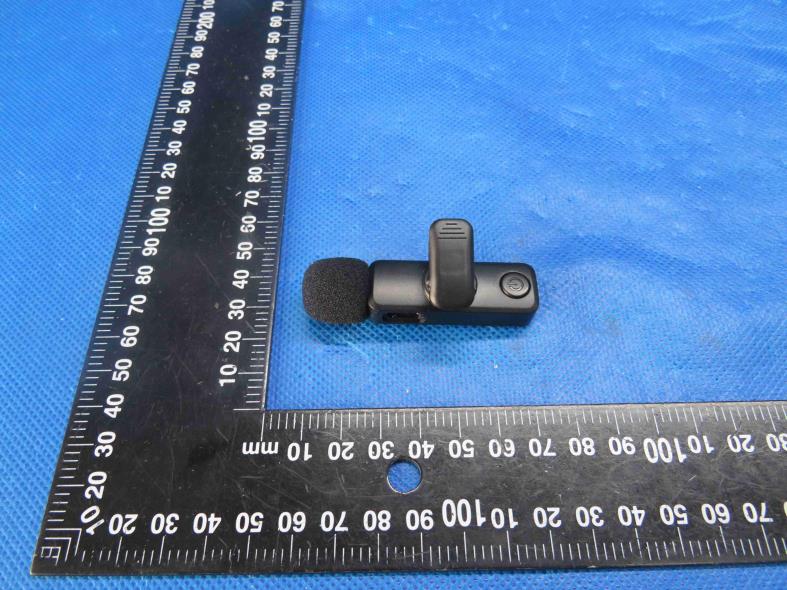

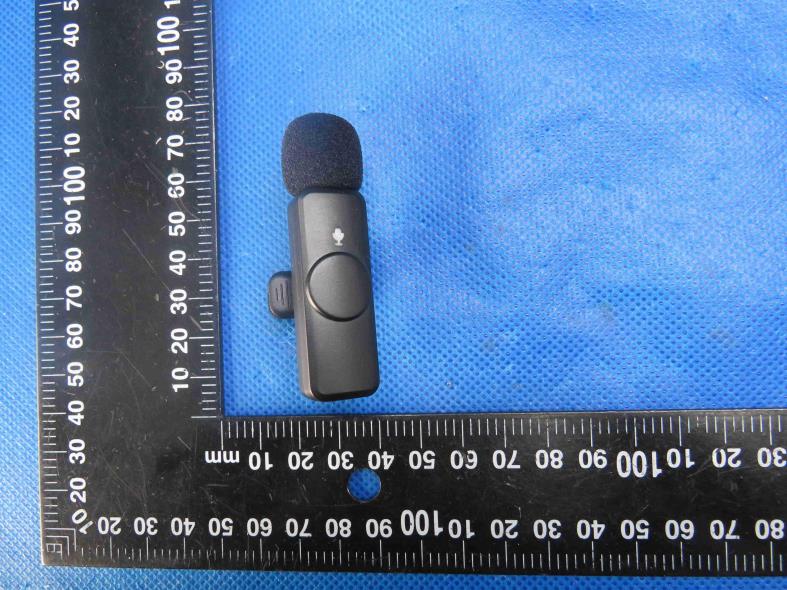

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: wireless lavalier microphone Model No.: YM-L01 EUT Constructional Details External Photo Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2A9U6-YML01

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: wireless lavalier microphone Model No.: YM-L01 EUT Constructional Details Internal Photo Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202212360 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 1 OF 12 3.2X1.6X0.4 (mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B- 1) Engineering Specification 1. Product Number YF 3216 Y1 P 2G45 0 1 1 2 3 4 5 6 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 2 OF 12 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4. Description Yingfeng chip antenna series are specially designed for WiFi/Bluetooth applications. Based on yingfeng proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications (80 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2x1.6x0.4 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 2.5(typical) dBi Efficiency 75 . 5(typical) % 5-2. Return Loss & VSWR 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 3 OF 12 Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 4 OF 12 b. Test Board with Antenna 80 40 Unit: mm 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z X Y 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 5 OF 12 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 72.8 73.7 74.3 74.4 75.5 75.0 74.0 73.6 73.1 72.6 71.5 Gain (dBi) 2.1 2.2 2.3 2.4 2.5 2.5 2.4 1.8 1.7 1.6 1.4 Y X Z Y X X Y Z 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 6 OF 12 7-3. 3D Efficiency vs. Frequency 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Customer’s requirement, matching circuit as shown below is also recommended. Efficiency vs. Frequency 50 60 70 80 90 100 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Frequency(MHz) Efficiency(%) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 7 OF 12 Top View Bottom View Unit： mm 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 8 OF 12 9. Frequency tuning a. Chip antenna tuning scenario： b. Matching circuit：(Center frequency is about 2442 MHz @ 80 x 40 mm 2 ground plane) System Matching Circuit Component Location Description Vendor Toleranc e 1 1.2 pF* Murata (0402) ±0.1 pF 2 10PF* Murata(0402) ±0.5 PF 3 N/A* - - Fine tuning element 4 1.5 pF* Murata (0402) ±0.1 pF *Typical reference values which may need to be changed when circuit boards or part vendors are different. Matching circuit Feed 4. Fine tuning elemet 1 2 3 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 9 OF 12 c. Fine tuning element vs. Center frequency 10. Soldering Conditions a. Typical Soldering Profile for Lead-free Process Time 60-180s 60-150s 20- Pre- 150-200° 217°C 260° Temperature (°C) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 10 OF 12 11. Packing (1) Quantity/Reel: 5000 pcs/Reel (2) Plastic tape: 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6x 0.4(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF300B-1) Engineering Specification DOCUMENT YF3216Y1P2G4501 REV. NO. C PAGE 11 OF 12 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved b…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. TEST REPORT FCC Rules and Regulations Part PART 15.249 Report Reference No..............: HTT202212360F01 FCC ID...................................: 2A9U6-YML01 Compiled by ( position+printed name+signature ... : File administrators Supervised by ( position+printed name+signature ... : Project Engineer Approved by ( position+printed name+signature ... : RF Manager Date of issue ..................................... : Jan. 04, 2023 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : NISHO SHOJI Co.,Ltd. Address ............................................ : 284-0034, 155-1,Nabasama, Yotsukaido-shi, Chiba-ken, Japan Standard ........................................... : FCC Rules and Regulations Part PART 15.249 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: wireless lavalier microphone Trade Mark ....................................... : YOCOM Manufacturer .................................... : Shen zhen Maction Technology CO., Ltd. Model/Type reference....................... : YM-L01 Listed Models .................................. : YM-L02, YM-L03 ,YM-L04 ,YM-L05, YM-L06 ,YM-L07 ,YM-L08, YM-L09 ,YM-L10, YM-L11, YM-L12,YM-L13, YM-L14 ,YM-L15, YM-L16 ,YM-L17, YM-L18 ,YM-L19 ,YM-L20 Modulation ....................................... : GFSK Frequency .......................................... 2404-2447.5MHz Ratings ............................................. : DC 3.7V Form Battery and DC 5V From External Circuit Result................................................ : PASS Report No.: HTT202212360F01 Page 2 of 25 T E S T R E P O R T Equipment under Test : wireless lavalier microphone Model /Type : YM-L01 Listed Models : YM-L02, YM-L03 ,YM-L04 ,YM-L05, YM-L06 ,YM-L07 ,YM-L08, YM-L09 ,YM-L10, YM-L11, YM-L12,YM-L13, YM-L14 ,YM-L15, YM-L16 ,YM-L17, YM-L18 ,YM-L19 ,YM-L20 Applicant : NISHO SHOJI Co.,Ltd. Address : 284-0034, 155-1,Nabasama, Yotsukaido-shi, Chiba-ken, Japan Manufacturer : Shen zhen Maction Technology CO., Ltd. Address : Light Industry Plant 203, Hezhihe Factory, east of Songbai Road, Jingbei Village, Shangwu Village Committee, Longteng Community, Shiyan Street, Bao 'an District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202212360F01 Page 3 of 25 Contents 1. T E S T S T A N D A R D S ....................................................................... 4 2. S U M M A R Y .................................................................................. 5 2.1. General Remarks ......................................................................................................................................... 5 2.2. Product Description .................................................................................................................................... 5 2.3. Equipment Under Test ................................................................................................................................ 5 2.4. Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5. EUT operation mode ................................................................................................................................... 5 2.6. Block Diagram of Test Setup...................................................................................................................... 6 2.7. Modifications ............................................................................................................................................... 6 3. T E S T E N V I R O N M E N T ................................................................... 7 3.1. Address of the test laboratory ................................................................................................................... 7 3.2. Test Facility .................................................................................................................................................. 7 3.3. Environmental conditions .......................................................................................................................... 7 3.4. Summary of measurement results ............................................................................................................ 8 3.5. Statement of the measurement uncertainty ............................................................................................. 8 3.6. Equipments Used during the Test ............................................................................................................. 8 4. T E S T C O N D I T I O N S A N D R E S U L T S ................................................. 10 4.1. AC Power Conducted Emission ............................................................................................................... 10 4.2. Radiated Emission and Band Edges ....................................................................................................... 13 4.3. 20dB Bandwidth Measurement ................................................................................................................ 22 4…

Text truncated - open the document above for the full version.
