2A9UC-F1Wireless Video Doorbell

FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note 2: 1.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. The minimum separation generally be used is at least 20 cm.

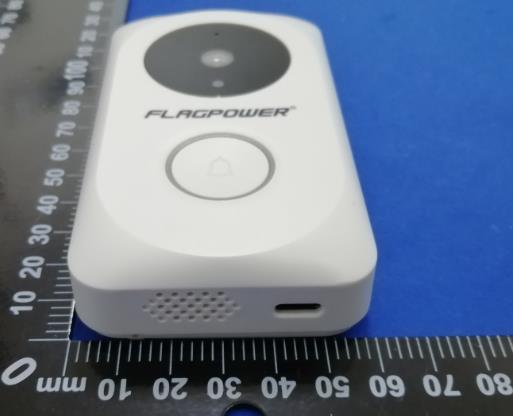

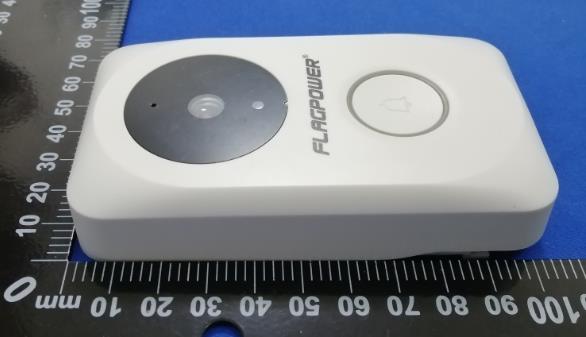

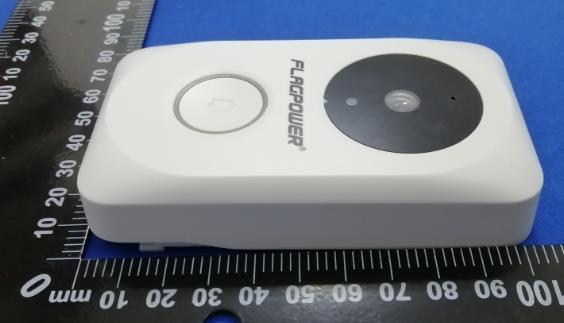

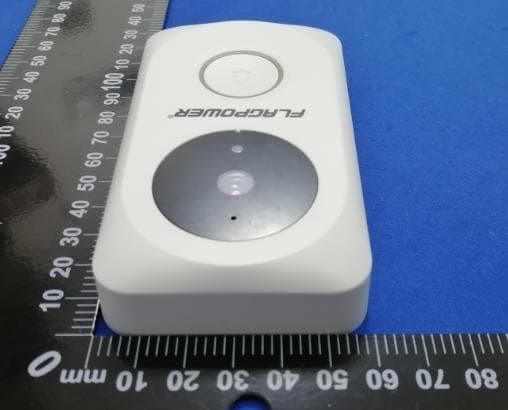

Wireless Video Doorbell FCC ID: 2A9UC-F1 F1 External Photographs

FCC ID: 2A9UC-F1 F1 Label and Label location

Wireless Video Doorbell FCC ID: 2A9UC-F1 F1 Internal Photographs

CTC Laboratories, Inc. Report No.: CTC20221388E03 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2A9UC-F1 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: HD Wi-Fi Wireless Video Doorbelll Trade Mark: / Model/Type reference: F1 Listed Model(s): / Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz BT:2402MHz~2480MHz Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) 1.8dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Page 2 of 2 Report No.: CTC20221388E03 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, We will know the distance where the MPE limit is reached. Measurement Result Only show the value of the worst antenna. For 2.4G WIFI: Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) WLAN 802.11b 2462 1.8 16.77 17±1 18 0.19 1.000 WLAN 802.11g 2462 1.8 17.75 17±1 18 0.19 1.000 WLAN 802.11n(HT20) 2452 1.8 17.78 17±1 18 0.19 1.000 For BLE Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) BLE 2402 1.8 3.352 3±1 4 0.001 1.000 2440 1.8 3.553 3±1 4 0.001 1.000 2480 1.8 3.564 3±1 4 0.001 1.000 Note: For a more detailed features description, Please refer to the RF Test Report. So the transmitter complies with the RF exposure requirements and the SAR is not required. **********************THE END**********************

ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] SPECIFICATIONSFORAPPROVAL CustomerName: ProductName:2.4GHzAntenna ProductModel: PartNumber:LJW01-17091602-R0A WriteBy:Huxuwen IssuedDate:2021-04-08 CUSTOMER ENGINEERR&DDEPTBUSSINESSDEPTAPPROVAL LEJIN R&DDEPTENGINEERDEPTAPPROVAL REVMODIFIEDDESCRIPTIONDATEREMARK V1.0InitialDraftRelease2021/04/08 ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] Index 1.Cover ································ 1 2.Index································2 3.ProductSpecification ·························· 3 4.TestEquipment&Conditions·······················3 5.TestReport ······························ 4 6.ReliabilityTest····························5 7.Assembletype ···························· 6 8.ProductDrawing···························8 ShenzhenLejinradiofrequencytechnologyCo.,LTD Lejin radio frequencyProprietary& Confidential© 2017 Lejin radio frequencyCorporation.All rightsreserved. Add：Rm 301B,A4Bld,JunfengInnovationPark,Fuyong,Baoan Dist,Shenzhen.Tel:0755-27780515Email:[email protected] 3. ProductSpecification A.ElectricalCharacteristics Frequency2400MHz~2500 MHz VSWR<2.0 Efficiency>40% Impedance50Ohm PolarizationLinear Gain ≤1.8dBi B. Material& MechanicalCharacteristics Materialof RadiatorMetal Cable TypeN/A ConnectorTypeN/A Dimension19.0*3.50*3.75(H)mm C. Environmental OperationTemperature- 20 ̊C ~ + 70 ̊C StorageTemperature- 30 ̊C ~ + 85 ̊C Humidity40%~95% 4. Test Equipment& Conditions 1.NetworkAnalyzersAgilent8753D/5071C 2.HSPAand LTE protocoltest setR&S CMW500-PT 3.CommunicationsTest SetAgilent8960 4.3D ChamberTest System Chart1 Testtopology ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 5.TestReport 5.1VoltageStandingWaveRatio(VSWR). Chart2VSWR 5.2Efficientandgain. Passive TestFor WIFI 2.4G Freq(MHz) 24002410242024302440245024602470248024902500 Effi(%) 42.6246.8451.4755.0753.5448.0651.8049.3844.2142.7740.64 Gain(dBi) 1.471.441.561.651.541.791.621.591.621.370.36 5.3Radiationpattern. ShenzhenLejinradiofrequencytechnologyCo.,LTD LejinradiofrequencyProprietary&Confidential©2017LejinradiofrequencyCorporation.Allrightsreserved. Add：Rm301B,A4Bld,JunfengInnovationPark,Fuyong,BaoanDist,Shenzhen.Tel:0755-27780515Email:[email protected] 6. ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp. Storage Test Temperature:-30 °C， Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25 °C and humidityis65%foronehour,thenstep-downthe temp.to-30 °C inonehour,storeantennafor44hours; step-uptempto25°C,testantennaafter2hours. Temp.&Hu mi. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 2 High Temp./High Humid Storage Test Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°Cand humidityis65%foronehour,thenstep-upthetemp.to 80°Candthehumidityupto85%inonehour,store antennafor44hours;step-downtempto25 °C ,test antennaafter2hours. Temp.&Hu mi. Tester Nomaterial deformationis allowed. Electronic Performanceis ok. PASS 3 Salt-Spray 6prayTest PlacingantennaintheSalt-SprayTester,setthetest condition，Temp:35±2°CHumidity:85%NaClsalt spray:5±1%.PHvalue:6.5~7.2Testtime:24hours Salt-Spray Tester Nocolor change Noappear rusting PASS 7.Assembletype(omitted) 8.ProductDrawing

CTC Laboratories, Inc. $CNAS$ 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20221388E01 FCC ID································: 2A9UC-F1 Applicant····························: Shenzhen Shangfeng Tesco Co., Ltd. Address·······························: 3B2501, Shangfeng Garden, New District Avenue, Minzhi Street, Longhua New District, Shenzhen Manufacturer························: Shenzhen Shangfeng Tesco Co., Ltd. Address·······························: 3B2501, Shangfeng Garden, New District Avenue, Minzhi Street, Longhua New District, Shenzhen Product Name······················: HD Wi-Fi Wireless Video Doorbelll Trade Mark···························: / Model/Type reference·············: F1 Listed Model(s) ····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: December 11, 2022 Date of testing.......................: December 11 to December 22, 2022 Date of issue.........................: December 22, 2022 Result.................................: PASS Compiled by: (Printed name+signature) Zoe Xie Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 49 Report No.: CTC20221388E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .............................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. CLIENT INFORMATION ................................................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 9 2.4. OPERATION STATE ....................................................................................................................................................... 10 2.5. MEASUREMENT INSTRUMENTS LIST ............................................................................................................................... 11 3. TEST ITEM AND RESULTS ........................................................................................................................................ 13 3.1. CONDUCTED EMISSION ................................................................................................................................................ 13 3.2. RADIATED EMISSION ................................................................................................................................................... 16 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 21 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 24 3.5. DTS BANDWIDTH ....................................................................................................................................................... 37 3.6. PEAK OUTPUT POWER ................................................................................................................................................ 42 3.…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20221388E02 FCC ID································: 2A9UC-F1 Applicant····························: Shenzhen Shangfeng Tesco Co., Ltd. Address·······························: 3B2501, Shangfeng Garden, New District Avenue, Minzhi Street, Longhua New District, Shenzhen Manufacturer························: Shenzhen Shangfeng Tesco Co., Ltd. Address·······························: 3B2501, Shangfeng Garden, New District Avenue, Minzhi Street, Longhua New District, Shenzhen Product Name······················: HD Wi-Fi Wireless Video Doorbelll Trade Mark···························: / Model/Type reference·············: F1 Listed Model(s) ·····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: December 11, 2022 Date of testing.......................: December 11 to December 22, 2022 Date of issue.........................: December 22, 2022 Result.................................: PASS Compiled by: (Printed name+signature) Zoe Xie Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao $Totti$ Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 32 Report No.: CTC20221388E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. 7TEST SUMMARY .......................................................................................................................................... 3 1.1. TEST STANDARDS ................................................................................................................................................... 3 1.2. REPORT VERSION ................................................................................................................................................... 3 1.3. TEST DESCRIPTION ................................................................................................................................................. 4 1.4. TEST FACILITY ........................................................................................................................................................ 5 1.5. MEASUREMENT UNCERTAINTY ................................................................................................................................. 5 1.6. ENVIRONMENTAL CONDITIONS ................................................................................................................................. 6 2. GENERAL INFORMATION ............................................................................................................................... 7 2.1. CLIENT INFORMATION ............................................................................................................................................. 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. ACCESSORY EQUIPMENT INFORMATION ...................................................................................................................... 8 2.4. OPERATION STATE .................................................................................................................................................. 9 2.5. MEASUREMENT INSTRUMENTS LIST ........................................................................................................................ 10 3. TEST ITEM AND RESULTS ............................................................................................................................. 11 3.1. CONDUCTED EMISSION ......................................................................................................................................... 11 3.2. RADIATED EMISSION ............................................................................................................................................. 14 3.3. BAND EDGE EMISSIONS (RADIATED) ........................................................................................................................ 19 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ............................................................................................... 22 3.5. DTS BANDWIDTH ................................................................................................................................................ 27 3.6. PEAK OUTPUT POWER .......................................................................................................................................... 29 3.7. POWER SPECTRAL DENSITY ......................................................................................................................…

Text truncated - open the document above for the full version.

HD Wi-Fi Wireless Video Doorbelll FCC ID: 2A9UC-F1 F1 Test Setup Photos Radiated emission 30MHz~1GHz Radiated emission above 1GHz Conducted emission
