2A9V8-CORE30Smart Work Station

Core20/30
Non-China
Starter
Guide
Thank
you
for
choosing
our
product.
As
a
globally
innovative
product,
StarryHub
Bot
requires
you
to
read
this
<Getting
Started
Guide>
before
use
to
quickly
get
started.
Reading
time
is
approximately
2
minutes.
Regarding
this
product
instruction
manual
(hereinafter
referred
to
as
the
"manual")
Thank
you
for
purchasing
products
from
Shenzhen
Chengzhe
Chuangxiang
Technology
Co.,
Ltd.
(hereinafter
referred
to
as
"Chengzhe
Company"
or
"Chengzhe").
For
your
safety
and
interests,
please
carefully
read
the
instruction
manual
before
use.
Chengzhe
Company
shall
not
be
liable
for
any
losses
or
damages
caused
by
your
failure
to
operate
in
accordance
with
the
instruction
manual
or
precautions.
The
copyright
of
the
instruction
manual
belongs
to
Chengzhe
Company;
if
the
content
of
the
instruction
manual
is
inconsistent
with
the
actual
product,
the
actual
product
shall
prevail.
If
you
have
any
objections
to
the
content
or
terms
of
the
instruction
manual,
please
submit
a
written
objection
to
Chengzhe
Company
within
seven
days
after
purchase;
otherwise,
you
will
be
deemed
to
have
agreed
to
and
understood
all
the
content.

Chengzhe
Company
reserves
the
right
to
interpret
and
modify
the
instruction
manual.
The
model
and
parameters
of
this
product
shall
be
subject
to
the
label
on
the
device
body.

Host
Front
front
Back
back
side
Host
above
top
Side
Touchpad
(Remote
Control)
Front
o f
t he
t ouchpad
( remote
c ontrol)
Front
of
control
panel
(remote
control)
Back
o f
t he
t ouchpad
( remote
c ontrol)
Back
of
control
board
(remote
control)
1.Power
On
• Power
On
Connect
the
power
supply,long
press
the
top
power
switch
for
2
seconds,
and
the
device
will
turn
on.
• Shutdown
When
the
device
is
powered
on,
press
and
hold
the
top
power
switch
for
2
seconds
to
pop
up
the
shutdown/restart
selection.
Or
press
and
hold
for
8
seconds
to
directly
shut
down
the
device.

• Standby
When
the
device
is
powered
on,

press

the
power
switch,
and
the
device
will
enter
standby
mode;
or
place
the
touchpad
(remote
control)
back
in
the
storage
area,
and
the
device
will
enter
standby
mode.

• Wake
up

In
standby
mode,

press

the
power
switch
to
wake
up
the
device;
or
remove
the
touchpad
(remote
control)
from
the
placement
area
to
wake
up
the
device.

If
the
device
is
not
used
for
a
long
time,
it
is
recommended
to
turn
it
off
and
disconnect
the
power
supply.

2.Device
Function
Scenarios
and
Usage:
This
product
is
mainly
used
inconference
rooms,
negotiation
rooms,
classrooms,
training
rooms,
or
other
spaces.
As
an
AI
conference
robot
end
point,
it
can
be
used
by
connecting
to
a
large-screen
display
device
(TV,
projector,
LED,
etc.)
via
the
HDMI
OUT
on
the
back.
Core
functions:
wireless
screen
mirroring,
intelligent
local
meetings,
remote
video
conferencing,
recording
and
playback
,
AI
subtitle
transcription
and
summarization,
AI
bilingual
translation,
file
storage,
etc.,
and
can
also
play
entertainment
audio
and
video.
2.1
H ost
M ode:
E nsure
t hat
H DMI
O UT
ou tput
i s
n ormal
After
StarryHub
Bot
is
powered
on,
connect
it
to
a
large-screen
display
device
(TV,
projector,
LED,
etc.)
via
the
HDMI
OUT
port
on
the
back
,
StarryHub
Bot
enters
the
host
mode,
where
all
functions
and
settings
of
the
built-in
StarryOS
can
be
used,
and
operations
can
be
performed
via
the
remote
control
(trackpad).

2.1.1
C ommercial-grade
W ireless
S creen
M irroring
Recommendation:
Smartphones
and
computers
can
download
the
[Chengzhe
Miaochuan]
software
for
wireless
screen
mirroring
and
file
transfer;
(self-developed
private
protocol
is
more
stable)
Supports
AirPlay
and
screen
mirroring
built
into
Apple
devices;
supports
Windows
devices
(shortcut:
Win+K)
and
Android
devices,
allowing
wireless
screen
projection
using
the
system's
built-in
screen
mirroring
function;
can
also
perform
wireless
screen
projection
via
the
ClickDrop
wireless
peripheral
module.

[Chengzhe
Miaochuan]
(https://www.czur.com/cn/app/czurshare)
PC
software
download
URL

2.2
P eripheral
M ode:
U sed
a s
a
c omputer
ac cessory
2.2.1
U SB
P eripheral
M ode:
Connect
the
computer
and
the
device
via
the
included
dedicated
USB
data
cable,
and
the
computer
can
then
call
the
device's
microphone,
speaker,
and
camera;

2.2.2
B YOM
W ireless
P eripheral
M ode:
After
successfully
pairing
with
the
device
via
the
ClickDrop
wireless
peripheral
module,
insert
it
into
the
computer,
and
then
you
can
call
the
device's
microphone,
speaker,
and
camera
in
the
computer's
conferencing
software.



Note:
Different
versions
of
the
software
may
vary,
please
refer
to
the
actual
functions
of
the
version.
3.Remote
Control
(Trackpad)
Operation
Instructions
The
touchpad
is
the
device's
Bluetooth
remote
control,
used
for
operation;

Before
using
the
device
for
the
first
time,
the
switch
on
the
back
of
the
touchpad
needs
to
be
adjusted
to
the
ON
position;

After
each
use,
place
the
touchpad
back
in
the
storage
area
for
charging
(the
device
will
automatically
enter
sleep
mode).

Pairing
• Turn
both
the
device
and
the
touchpad
to
the
on
state.

• Long
press
the
[Keyboard/Touchpad]
button
in
the
upper
left
corner
of
the
touchpad
for
3
seconds
until
the
blue
light
in
the
upper
left
corner
flashes.

• Place
the
touchpad
back
into
the
touchpad
placement
area
of
the
device,
and
wait
about
10
seconds
to
complete
the
pairing.

Keyboard/Touch
Click
[Keyboard/Touch],
and
the
touchpad
switches
between
keyboard
and
mouse.
Adjust
V olume
Click
[-]
or
[+]
to
adjust
the
volume
level.
Customize
Tap/long
tap
the
[+]
icon
to
quickly
implement
the
customized
functions
of
the
settings.
mute
Click
the
[MIC]
icon
to
mute.
• Homepage
Tap
[Home]
to
return
to
the
main
interface,
and
long
press
the
[Home]
icon
to
enter
the
APP
switcher.
Back
Return
to
the
previous
step.

Finger
touch

In
touch
mode,
you
can
use
common
operations
such
as
[single-finger
swipe],
[single-finger
tap/click],
[two-finger
swipe],
[two-f…

Text truncated - open the document above for the full version.

33 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 34 11AC80SISO_Ant1_5775 35 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty factor(dB) Limit Verdict 11A Ant1 5180 0.14 0.19 73.68 1.33 --- --- 5220 0.14 0.19 73.68 1.33 --- --- 5240 0.15 0.20 75.00 1.25 --- --- 5745 0.15 0.20 75.00 1.25 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.14 0.19 73.68 1.33 --- --- 11N20SISO Ant1 5180 0.17 0.22 77.27 1.12 --- --- 5220 0.18 0.23 78.26 1.06 --- --- 5240 0.17 0.22 77.27 1.12 --- --- 5745 0.18 0.23 78.26 1.06 --- --- 5785 0.18 0.23 78.26 1.06 --- --- 5825 0.18 0.23 78.26 1.06 --- --- 11N40SISO Ant1 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AC20SISO Ant1 5180 0.16 0.21 76.19 1.18 --- --- 5220 0.16 0.21 76.19 1.18 --- --- 5240 0.16 0.21 76.19 1.18 --- --- 5745 0.16 0.21 76.19 1.18 --- --- 5785 0.16 0.21 76.19 1.18 --- --- 5825 0.16 0.21 76.19 1.18 --- --- 11AC40SISO Ant1 5190 0.15 0.20 75.00 1.25 --- --- 5230 0.15 0.20 75.00 1.25 --- --- 5755 0.15 0.20 75.00 1.25 --- --- 5795 0.16 0.21 76.19 1.18 --- --- 11AC80SISO Ant1 5210 0.16 0.21 76.19 1.18 --- --- 5775 0.16 0.21 76.19 1.18 --- --- 36 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 37 11A_Ant1_5745 11A_Ant1_5785 38 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 39 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 40 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 41 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 42 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 43 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 44 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 45 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 46 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 47 48 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MH z) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 12.38 73.68 1.33 13.71 ≤23.98 PASS 5220 12.46 73.68 1.33 13.79 ≤23.98 PASS 5240 12.30 75.00 1.25 13.55 ≤23.98 PASS 5745 12.02 75.00 1.25 13.27 ≤30.00 PASS 5785 12.06 75.00 1.25 13.31 ≤30.00 PASS 5825 11.80 73.68 1.33 13.13 ≤30.00 PASS 11N20SI SO Ant1 5180 12.49 77.27 1.12 13.61 ≤23.98 PASS 5220 12.49 78.26 1.06 13.55 ≤23.98 PASS 5240 12.41 77.27 1.12 13.53 ≤23.98 PASS 5745 12.17 78.26 1.06 13.23 ≤30.00 PASS 5785 12.19 78.26 1.06 13.25 ≤30.00 PASS 5825 11.93 78.26 1.06 12.99 ≤30.00 PASS 11N40SI SO Ant1 5190 12.48 78.26 1.06 13.54 ≤23.98 PASS 5230 12.62 78.26 1.06 13.68 ≤23.98 PASS 5755 12.36 78.26 1.06 13.42 ≤30.00 PASS 5795 12.44 78.26 1.06 13.50 ≤30.00 PASS 11AC20S ISO Ant1 5180 12.41 76.19 1.18 13.59 ≤23.98 PASS 5220 12.42 76.19 1.18 13.60 ≤23.98 PASS 5240 12.34 76.19 1.18 13.52 ≤23.98 PASS 5745 12.10 76.19 1.18 13.28 ≤30.00 PASS 5785 12.15 76.19 1.18 13.33 ≤30.00 PASS 5825 11.88 76.19 1.18 13.06 ≤30.00 PASS 11AC40S ISO Ant1 5190 12.35 75.00 1.25 13.60 ≤23.98 PASS 5230 12.48 75.00 1.25 13.73 ≤23.98 PASS 5755 12.13 75.00 1.25 13.38 ≤30.00 PASS 5795 12.28 76.19 1.18 13.46 ≤30.00 PASS 11AC80S ISO Ant1 5210 12.83 76.19 1.18 14.01 ≤23.98 PASS 5775 12.45 76.19 1.18 13.63 ≤30.00 PASS 49 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/1MHz] For 5.2G RBW Factor (dB) Duty factor (dB) Result [dBm/MHz] For 5.2G Limit[dBm/MHz] For 5.2G Verdict Result [dBm/300KHz] For 5.8G Result [dBm/500kHz] For 5.8G Limit[dBm/500kHz] For 5.8G 11A Ant1 5180 2.299 / 1.33 3.63 ≤11.00 PASS 5220 2.263 / 1.33 3.59 ≤11.00 PASS 5240 2.313 / 1.25 3.56 ≤11.00 PASS 5745 -3.330 2.22 1.25 0.14 ≤30.00 PASS 5785 -3.291 2.22 1.25 0.18 ≤30.00 PASS 5825 -3.533 2.22 1.33 0.02 ≤30.00 PASS 11N20SISO Ant1 5180 2.128 / 1.12 3.25 ≤11.00 PASS 5220 2.656 / 1.06 3.72 ≤11.00 PASS 5240 2.163 / 1.12 3.28 ≤11.00 PASS 5745 -3.289 2.22 1.06 -0.01 ≤30.00 PASS 5785 -3.572 2.22 1.06 -0.29 ≤30.00 PASS 5825 -3.533 2.22 1.06 -0.25 ≤30.00 PASS 11N40SISO Ant1 5190 -1.102 / 1.06 -0.04 ≤11.00 PASS 5230 -0.902 / 1.06 0.16 ≤11.00 PASS 5755 -6.480 2.22 1.06 -3.20 ≤30.00 PASS 5795 -6.277 2.22 1.06 -3.00 ≤30.00 PASS 11AC20SISO Ant1 5180 2.222 / 1.18 3.40 ≤11.00 PASS 5220 2.203 / 1.18 3.38 ≤11.00 PASS 5240 2.194 / 1.18 3.37 ≤11.00 PASS 5745 -3.063 2.22 1.18 0.34 ≤30.00 PASS 5785 -2.734 2.22 1.18 0.67 ≤30.00 PASS 5825 -3.708 2.22 1.18 -0.31 ≤30.00 PASS 11AC40SISO Ant1 5190 -1.296 / 1.25 -0.05 ≤11.00 PASS 5230 -1.080 / 1.25 0.17 ≤11.00 PASS 5755 -6.600 2.22 1.25 -3.13 ≤30.00 PASS 5795 -6.332 2.22 1.18 -2.93 ≤30.00 PASS 11AC80SISO Ant1 5210 -3.843 / 1.18 -2.66 ≤11.00 PASS 5775 -8.317 2.22 1.18 -4.92 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz). 2. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB 50 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 51 11A_Ant1_5745 11A_Ant1_5785 52 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 53 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 54 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 55 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 56 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 57 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 58 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 59 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 60 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 61 62 Appendix E: Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -45.58 ≤-27 PASS High 5240 -46.52 ≤-27 PASS 11N20SISO Ant1 Low 5180 -45.65 ≤-27 PASS High 5240 -45.98 ≤-27 PASS 11N40SISO Ant1 Low 5190 -44.75 ≤-27 PASS High 5230 -46.06 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -45.6 ≤-27 PASS High 5240 -46.77 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -42.29 ≤-27 PASS High 5230 -47.17 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -38.85 ≤-27 PASS High 5210 -46.65 ≤-27 PASS Test …

Text truncated - open the document above for the full version.

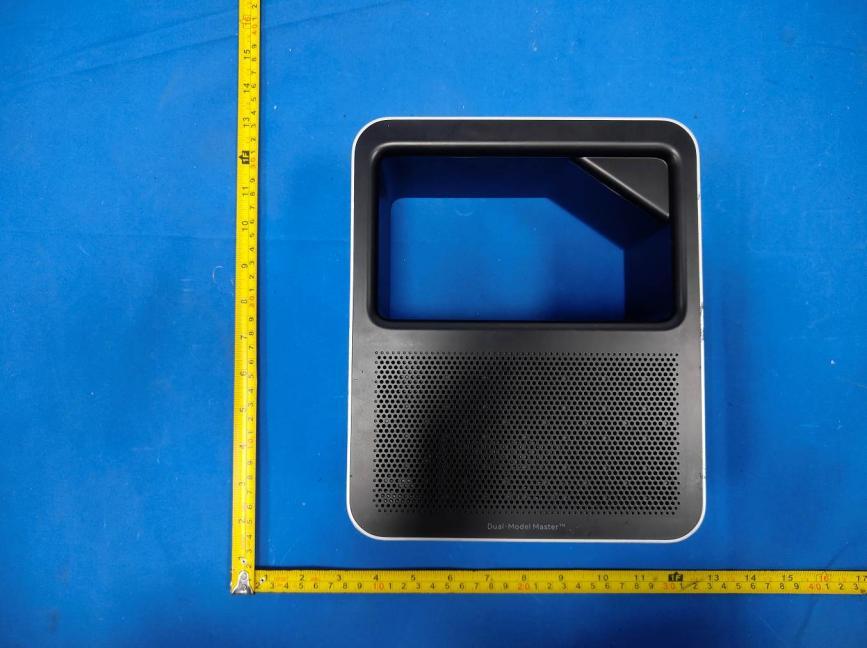

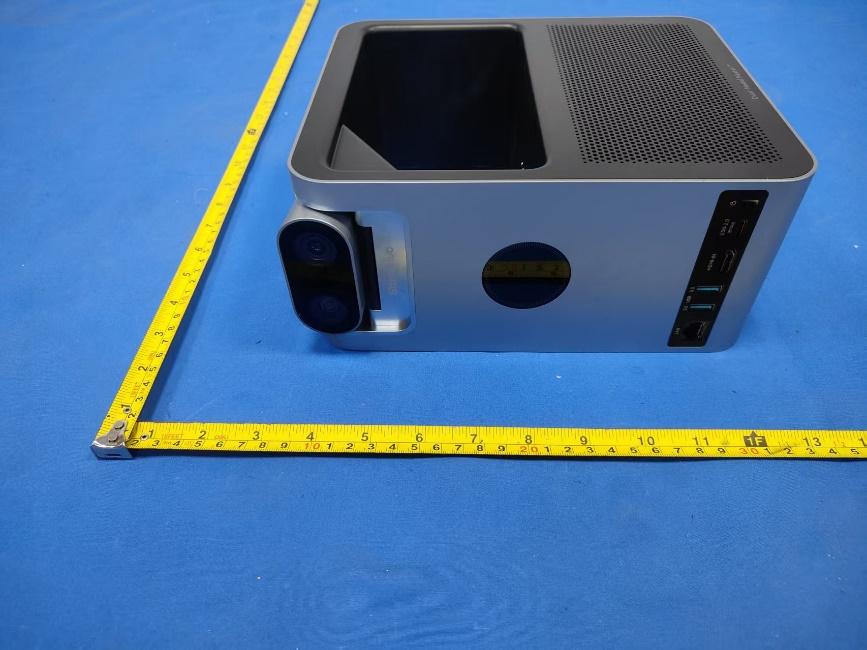

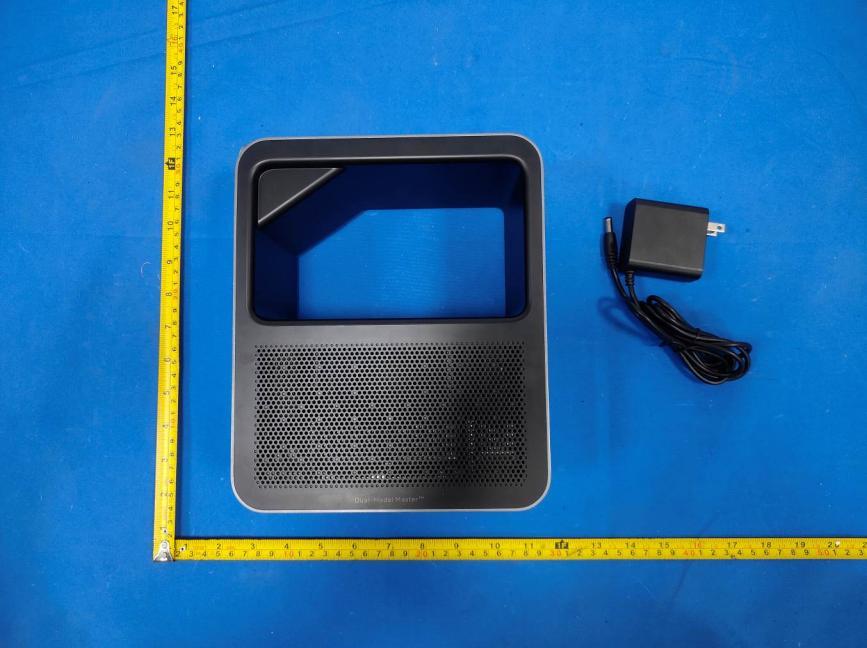

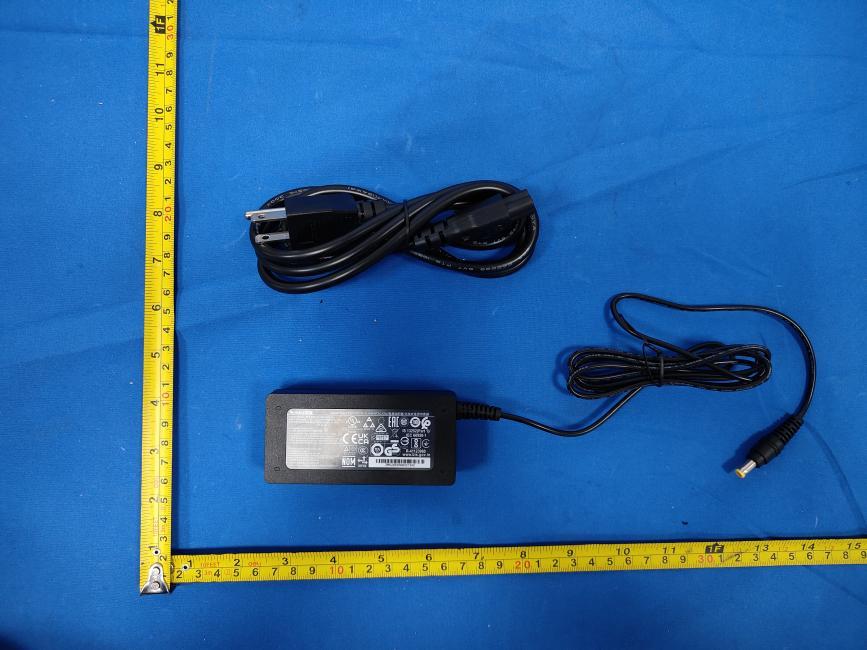

FCC ID:2A9V8-CORE30 Test Setup Photos of the EUT FCC ID:2A9V8-CORE30

360 11AC80SISO_Ant2_5210_5360~40000 11AC80SISO_Ant2_5775_30~5650 361 11AC80SISO_Ant2_5775_5925~40000 11AX20SISO_Ant2_5180_30~5140 11AX20SISO_Ant2_5180_5360~40000 362 11AX20SISO_Ant2_5220_30~5140 11AX20SISO_Ant2_5220_5360~40000 363 11AX20SISO_Ant2_5240_30~5140 11AX20SISO_Ant2_5240_5360~40000 11AX20SISO_Ant2_5745_30~5650 364 11AX20SISO_Ant2_5745_5925~40000 11AX20SISO_Ant2_5785_30~5650 365 11AX20SISO_Ant2_5785_5925~40000 11AX20SISO_Ant2_5825_30~5650 11AX20SISO_Ant2_5825_5925~40000 366 11AX40SISO_Ant2_5190_30~5140 11AX40SISO_Ant2_5190_5360~40000 367 11AX40SISO_Ant2_5230_30~5140 11AX40SISO_Ant2_5230_5360~40000 11AX40SISO_Ant2_5755_30~5650 368 11AX40SISO_Ant2_5755_5925~40000 11AX40SISO_Ant2_5795_30~5650 369 11AX40SISO_Ant2_5795_5925~40000 11AX80SISO_Ant2_5210_30~5140 11AX80SISO_Ant2_5210_5360~40000 370 11AX80SISO_Ant2_5775_30~5650 11AX80SISO_Ant2_5775_5925~40000

331 11N40SISO_Ant2_High_5795 11AC20SISO_Ant2_Low_5745 11AC20SISO_Ant2_High_5825 332 11AC40SISO_Ant2_Low_5755 11AC40SISO_Ant2_High_5795 333 11AC80SISO_Ant2_Low_5775 11AC80SISO_Ant2_High_5775 11AX20SISO_Ant2_Low_5745 334 11AX20SISO_Ant2_High_5825 11AX40SISO_Ant2_Low_5755 335 11AX40SISO_Ant2_High_5795 11AX80SISO_Ant2_Low_5775 11AX80SISO_Ant2_High_5775 336 337 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant2 5180 30~5140 2843.23 -65.77 ≤-27 PASS 5360~40000 26715.79 -56.02 ≤-27 PASS 5220 30~5140 3159.02 -65.73 ≤-27 PASS 5360~40000 25739.11 -56.01 ≤-27 PASS 5240 30~5140 3025.82 -65.82 ≤-27 PASS 5360~40000 26628.51 -55.79 ≤-27 PASS 5745 30~5650 3182.26 -65.88 ≤-27 PASS 5925~40000 26740.78 -55.96 ≤-27 PASS 5785 30~5650 3142.36 -64.78 ≤-27 PASS 5925~40000 25314 -56.22 ≤-27 PASS 5825 30~5650 2519.1 -60.33 ≤-27 PASS 5925~40000 26230.06 -55.99 ≤-27 PASS 11N20SISO Ant2 5180 30~5140 3372.45 -65.35 ≤-27 PASS 5360~40000 24906.69 -55.42 ≤-27 PASS 5220 30~5140 2615.49 -65.17 ≤-27 PASS 5360~40000 26086.79 -54.88 ≤-27 PASS 5240 30~5140 3165.5 -65.62 ≤-27 PASS 5360~40000 25710.98 -56.35 ≤-27 PASS 5745 30~5650 2480.51 -63.19 ≤-27 PASS 5925~40000 26199.15 -55.9 ≤-27 PASS 5785 30~5650 2479.38 -62.87 ≤-27 PASS 5925~40000 25995.43 -55.78 ≤-27 PASS 5825 30~5650 32.44 -63.89 ≤-27 PASS 5925~40000 26912.89 -55.57 ≤-27 PASS 11N40SISO Ant2 5190 30~5140 3149.83 -65.09 ≤-27 PASS 5360~40000 26185.61 -55.57 ≤-27 PASS 5230 30~5140 2469.51 -63.44 ≤-27 PASS 5360~40000 26619.86 -54.52 ≤-27 PASS 5755 30~5650 5493.39 -65.25 ≤-27 PASS 5925~40000 26261.67 -55.19 ≤-27 PASS 5795 30~5650 2403.89 -64.74 ≤-27 PASS 5925~40000 26496.31 -54.98 ≤-27 PASS 11AC20SISO Ant2 5180 30~5140 2469.68 -64.43 ≤-27 PASS 5360~40000 26919.21 -56 ≤-27 PASS 5220 30~5140 2469.17 -63.68 ≤-27 PASS 5360~40000 26682.61 -54.51 ≤-27 PASS 5240 30~5140 3169.92 -65.83 ≤-27 PASS 338 5360~40000 26624.19 -55.11 ≤-27 PASS 5745 30~5650 2477.51 -65.65 ≤-27 PASS 5925~40000 26639.62 -55.39 ≤-27 PASS 5785 30~5650 2480.69 -61.99 ≤-27 PASS 5925~40000 26258.86 -54.01 ≤-27 PASS 5825 30~5650 2476.01 -63.84 ≤-27 PASS 5925~40000 26228.66 -55.16 ≤-27 PASS 11AC40SISO Ant2 5190 30~5140 32.04 -61.44 ≤-27 PASS 5360~40000 26650.87 -54.8 ≤-27 PASS 5230 30~5140 2479.73 -62.08 ≤-27 PASS 5360~40000 25664.09 -55.31 ≤-27 PASS 5755 30~5650 2474.33 -63.91 ≤-27 PASS 5925~40000 26874.25 -56.12 ≤-27 PASS 5795 30~5650 3287.73 -64.42 ≤-27 PASS 5925~40000 26208.99 -55.89 ≤-27 PASS 11AC80SISO Ant2 5210 30~5140 3149.31 -64.98 ≤-27 PASS 5360~40000 26902.62 -55.7 ≤-27 PASS 5775 30~5650 2476.39 -61.92 ≤-27 PASS 5925~40000 25691.24 -55.05 ≤-27 PASS 11AX20SISO Ant2 5180 30~5140 2475.31 -62.58 ≤-27 PASS 5360~40000 25393.59 -55.23 ≤-27 PASS 5220 30~5140 2472.58 -63.34 ≤-27 PASS 5360~40000 25732.62 -55.95 ≤-27 PASS 5240 30~5140 2469.17 -65.66 ≤-27 PASS 5360~40000 24494.09 -55.48 ≤-27 PASS 5745 30~5650 2479.57 -62.54 ≤-27 PASS 5925~40000 26192.83 -54.97 ≤-27 PASS 5785 30~5650 2473.01 -63.84 ≤-27 PASS 5925~40000 26988.06 -56.05 ≤-27 PASS 5825 30~5650 2478.26 -61.89 ≤-27 PASS 5925~40000 25265.53 -55.57 ≤-27 PASS 11AX40SISO Ant2 5190 30~5140 2471.56 -62.92 ≤-27 PASS 5360~40000 26114.92 -55.13 ≤-27 PASS 5230 30~5140 2671.36 -65.51 ≤-27 PASS 5360~40000 25663.37 -55.52 ≤-27 PASS 5755 30~5650 3294.85 -65.6 ≤-27 PASS 5925~40000 24897.42 -54.33 ≤-27 PASS 5795 30~5650 2473.76 -63.26 ≤-27 PASS 5925~40000 25654.01 -55.72 ≤-27 PASS 11AX80SISO Ant2 5210 30~5140 2477.86 -61.97 ≤-27 PASS 5360~40000 26673.24 -56.27 ≤-27 PASS 5775 30~5650 2479.38 -64.68 ≤-27 PASS 5925~40000 26951.53 -55.27 ≤-27 PASS 339 Test Graphs 11A_Ant2_5180_30~5140 11A_Ant2_5180_5360~40000 11A_Ant2_5220_30~5140 340 11A_Ant2_5220_5360~40000 11A_Ant2_5240_30~5140 341 11A_Ant2_5240_5360~40000 11A_Ant2_5745_30~5650 11A_Ant2_5745_5925~40000 342 11A_Ant2_5785_30~5650 11A_Ant2_5785_5925~40000 343 11A_Ant2_5825_30~5650 11A_Ant2_5825_5925~40000 11N20SISO_Ant2_5180_30~5140 344 11N20SISO_Ant2_5180_5360~40000 11N20SISO_Ant2_5220_30~5140 345 11N20SISO_Ant2_5220_5360~40000 11N20SISO_Ant2_5240_30~5140 11N20SISO_Ant2_5240_5360~40000 346 11N20SISO_Ant2_5745_30~5650 11N20SISO_Ant2_5745_5925~40000 347 11N20SISO_Ant2_5785_30~5650 11N20SISO_Ant2_5785_5925~40000 11N20SISO_Ant2_5825_30~5650 348 11N20SISO_Ant2_5825_5925~40000 11N40SISO_Ant2_5190_30~5140 349 11N40SISO_Ant2_5190_5360~40000 11N40SISO_Ant2_5230_30~5140 11N40SISO_Ant2_5230_5360~40000 350 11N40SISO_Ant2_5755_30~5650 11N40SISO_Ant2_5755_5925~40000 351 11N40SISO_Ant2_5795_30~5650 11N40SISO_Ant2_5795_5925~40000 11AC20SISO_Ant2_5180_30~5140 352 11AC20SISO_Ant2_5180_5360~40000 11AC20SISO_Ant2_5220_30~5140 353 11AC20SISO_Ant2_5220_5360~40000 11AC20SISO_Ant2_5240_30~5140 11AC20SISO_Ant2_5240_5360~40000 354 11AC20SISO_Ant2_5745_30~5650 11AC20SISO_Ant2_5745_5925~40000 355 11AC20SISO_Ant2_5785_30~5650 11AC20SISO_Ant2_5785_5925~40000 11AC20SISO_Ant2_5825_30~5650 356 11AC20SISO_Ant2_5825_5925~40000 11AC40SISO_Ant2_5190_30~5140 357 11AC40SISO_Ant2_5190_5360~40000 11AC40SISO_Ant2_5230_30~5140 11AC40SISO_Ant2_5230_5360~40000 358 11AC40SISO_Ant2_5755_30~5650 11AC40SISO_Ant2_5755_5925~40000 359 11AC40SISO_Ant2_5795_30~5650 11AC40SISO_Ant2_5795_5925~40000 11AC80SISO_Ant2_5210_30~5140

301 5775 -9.536 2.22 1.18 -6.14 ≤30.00 PASS 11AX20SISO Ant2 5180 1.557 / 0.76 2.32 ≤11.00 PASS 5220 1.811 / 0.76 2.57 ≤11.00 PASS 5240 1.406 / 0.79 2.20 ≤11.00 PASS 5745 -4.308 2.22 0.79 -1.30 ≤30.00 PASS 5785 -3.937 2.22 0.76 -0.96 ≤30.00 PASS 5825 -4.503 2.22 0.76 -1.52 ≤30.00 PASS 11AX40SISO Ant2 5190 -2.151 / 1.06 -1.09 ≤11.00 PASS 5230 -1.888 / 1.06 -0.83 ≤11.00 PASS 5755 -7.505 2.22 1.12 -4.17 ≤30.00 PASS 5795 -7.253 2.22 1.06 -3.97 ≤30.00 PASS 11AX80SISO Ant2 5210 -4.366 / 1.18 -3.19 ≤11.00 PASS 5775 -9.371 2.22 1.25 -5.90 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz). 2. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB 302 Test Graphs 11A_Ant2_5180 11A_Ant2_5220 11A_Ant2_5240 303 11A_Ant2_5745 11A_Ant2_5785 304 11A_Ant2_5825 11N20SISO_Ant2_5180 11N20SISO_Ant2_5220 305 11N20SISO_Ant2_5240 11N20SISO_Ant2_5745 306 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 307 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 308 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 309 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 310 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 311 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 312 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 313 11AX20SISO_Ant2_5180 11AX20SISO_Ant2_5220 314 11AX20SISO_Ant2_5240 11AX20SISO_Ant2_5745 11AX20SISO_Ant2_5785 315 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5190 316 11AX40SISO_Ant2_5230 11AX40SISO_Ant2_5755 11AX40SISO_Ant2_5795 317 11AX80SISO_Ant2_5210 11AX80SISO_Ant2_5775 318 Appendix E: Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant2 Low 5180 -46.8 ≤-27 PASS High 5240 -47.52 ≤-27 PASS 11N20SISO Ant2 Low 5180 -46.13 ≤-27 PASS High 5240 -46.56 ≤-27 PASS 11N40SISO Ant2 Low 5190 -43.31 ≤-27 PASS High 5230 -46.79 ≤-27 PASS 11AC20SISO Ant2 Low 5180 -45.82 ≤-27 PASS High 5240 -46 ≤-27 PASS 11AC40SISO Ant2 Low 5190 -42.95 ≤-27 PASS High 5230 -47.16 ≤-27 PASS 11AC80SISO Ant2 Low 5210 -38.59 ≤-27 PASS High 5210 -47.5 ≤-27 PASS 11AX20SISO Ant2 Low 5180 -46.67 ≤-27 PASS High 5240 -46.54 ≤-27 PASS 11AX40SISO Ant2 Low 5190 -44.12 ≤-27 PASS High 5230 -47.05 ≤-27 PASS 11AX80SISO Ant2 Low 5210 -40.77 ≤-27 PASS High 5210 -46.83 ≤-27 PASS Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant2 Low 5745 5650~5700 -49.19 ≤-26.62 PASS 5700~5720 -47.58 ≤10.41 PASS 5720~5725 -41.88 ≤21.85 PASS 5760~5650 -48.73 ≤-27 PASS High 5825 5850~5855 -47.18 ≤16.03 PASS 5855~5875 -48.59 ≤10.25 PASS 5875~5925 -48.9 ≤-26.21 PASS 5925~5935 -48.46 ≤-27 PASS 11N20SI SO Ant2 Low 5745 5650~5700 -50.07 ≤-26.70 PASS 5700~5720 -47.86 ≤10.41 PASS 5720~5725 -46.4 ≤15.82 PASS 5760~5650 -49.31 ≤-27 PASS High 5825 5850~5855 -48.23 ≤15.73 PASS 5855~5875 -47.21 ≤10.93 PASS 319 5875~5925 -48.9 ≤-26.71 PASS 5925~5935 -48.42 ≤-27 PASS 11N40SI SO Ant2 Low 5755 5650~5700 -49.34 ≤-26.50 PASS 5700~5720 -41.03 ≤14.79 PASS 5720~5725 -42.34 ≤16.04 PASS 5780~5650 -49.21 ≤-27 PASS High 5795 5850~5855 -46.57 ≤15.66 PASS 5855~5875 -46.79 ≤10.76 PASS 5875~5925 -49.58 ≤-26.71 PASS 5925~5935 -49.25 ≤-27 PASS 11AC20S ISO Ant2 Low 5745 5650~5700 -49.03 ≤-26.79 PASS 5700~5720 -47 ≤10.60 PASS 5720~5725 -46.23 ≤16.08 PASS 5760~5650 -48.59 ≤-27 PASS High 5825 5850~5855 -48.01 ≤16.96 PASS 5855~5875 -49.26 ≤10.02 PASS 5875~5925 -49.41 ≤-26.31 PASS 5925~5935 -48.73 ≤-27 PASS 11AC40S ISO Ant2 Low 5755 5650~5700 -49.7 ≤-26.90 PASS 5700~5720 -44.4 ≤12.10 PASS 5720~5725 -41.28 ≤15.74 PASS 5780~5650 -47.96 ≤-27 PASS High 5795 5850~5855 -48.44 ≤15.66 PASS 5855~5875 -47.14 ≤10.53 PASS 5875~5925 -50.1 ≤-26.95 PASS 5925~5935 -48.43 ≤-27 PASS 11AC80S ISO Ant2 Low 5775 5650~5700 -49.36 ≤-26.46 PASS 5700~5720 -41.16 ≤11.14 PASS 5720~5725 -40.64 ≤16.71 PASS 5800~5650 -48.75 ≤-27 PASS High 5775 5850~5855 -42.48 ≤15.84 PASS 5855~5875 -44.23 ≤10.50 PASS 5875~5925 -47.35 ≤-25.78 PASS 5925~5935 -47.92 ≤-27 PASS 11AX20S ISO Ant2 Low 5745 5650~5700 -49.45 ≤-26.62 PASS 5700~5720 -47.11 ≤10.18 PASS 5720~5725 -45.66 ≤15.82 PASS 5760~5650 -49.36 ≤-27 PASS High 5825 5850~5855 -40.51 ≤22.80 PASS 5855~5875 -48.62 ≤10.02 PASS 5875~5925 -47.78 ≤-26.31 PASS 5925~5935 -48.34 ≤-27 PASS 11AX40SAnt2 Low 5755 5650~5700 -48.42 ≤-25.61 PASS 320 ISO 5700~5720 -42.58 ≤14.94 PASS 5720~5725 -43.39 ≤16.04 PASS 5780~5650 -48.09 ≤-27 PASS High 5795 5850~5855 -46.63 ≤16.03 PASS 5855~5875 -47.07 ≤10.80 PASS 5875~5925 -49.11 ≤-26.95 PASS 5925~5935 -48.94 ≤-27 PASS 11AX80S ISO Ant2 Low 5775 5650~5700 -49.09 ≤-26.69 PASS 5700~5720 -42.26 ≤10.92 PASS 5720~5725 -39.44 ≤18.83 PASS 5800~5650 -47.68 ≤-27 PASS High 5775 5850~5855 -40.55 ≤16.68 PASS 5855~5875 -45.09 ≤10.45 PASS 5875~5925 -48.1 ≤-26.73 PASS 5925~5935 -47.85 ≤-27 PASS 321 Test Graphs B1 11A_Ant2_Low_5180 11A_Ant2_High_5240 11N20SISO_Ant2_Low_5180 322 11N20SISO_Ant2_High_5240 11N40SISO_Ant2_Low_5190 323 11N40SISO_Ant2_High_5230 11AC20SISO_Ant2_Low_5180 11AC20SISO_Ant2_High_5240 324 11AC40SISO_Ant2_Low_5190 11AC40SISO_Ant2_High_5230 325 11AC80SISO_Ant2_Low_5210 11AC80SISO_Ant2_High_5210 11AX20SISO_Ant2_Low_5180 326 11AX20SISO_Ant2_High_5240 11AX40SISO_Ant2_Low_5190 327 11AX40SISO_Ant2_High_5230 11AX80SISO_Ant2_Low_5210 11AX80SISO_Ant2_High_5210 328 329 Test Graphs B4 11A_Ant2_Low_5745 11A_Ant2_High_5825 11N20SISO_Ant2_Low_5745 330 11N20SISO_Ant2_High_5825 11N40SISO_Ant2_Low_5755

271 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant2 5745 17.560 5736.240 5753.800 0.5 PASS 5785 17.520 5776.240 5793.760 0.5 PASS 5825 17.520 5816.240 5833.760 0.5 PASS 11N40SISO Ant2 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC20SISO Ant2 5745 17.280 5736.240 5753.520 0.5 PASS 5785 17.520 5776.240 5793.760 0.5 PASS 5825 17.280 5816.240 5833.520 0.5 PASS 11AC40SISO Ant2 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 11AC80SISO Ant2 5775 75.200 5737.400 5812.600 0.5 PASS 11AX20SISO Ant2 5745 18.600 5735.800 5754.400 0.5 PASS 5785 18.720 5775.640 5794.360 0.5 PASS 5825 18.440 5815.800 5834.240 0.5 PASS 11AX40SISO Ant2 5755 37.600 5736.280 5773.880 0.5 PASS 5795 37.600 5776.280 5813.880 0.5 PASS 11AX80SISO Ant2 5775 74.880 5737.560 5812.440 0.5 PASS 272 Test Graphs B4 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 273 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 274 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 275 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 276 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 277 11AC80SISO_Ant2_5775 11AX20SISO_Ant2_5745 278 11AX20SISO_Ant2_5785 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5755 279 11AX40SISO_Ant2_5795 11AX80SISO_Ant2_5775 280 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty factor(dB) Limit Verdict 11A Ant2 5180 0.14 0.19 73.68 1.33 --- --- 5220 0.14 0.19 73.68 1.33 --- --- 5240 0.14 0.19 73.68 1.33 --- --- 5745 0.14 0.19 73.68 1.33 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.14 0.19 73.68 1.33 --- --- 11N20SISO Ant2 5180 0.17 0.22 77.27 1.12 --- --- 5220 0.17 0.22 77.27 1.12 --- --- 5240 0.18 0.23 78.26 1.06 --- --- 5745 0.18 0.23 78.26 1.06 --- --- 5785 0.17 0.22 77.27 1.12 --- --- 5825 0.17 0.22 77.27 1.12 --- --- 11N40SISO Ant2 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AC20SISO Ant2 5180 0.16 0.21 76.19 1.18 --- --- 5220 0.16 0.21 76.19 1.18 --- --- 5240 0.16 0.21 76.19 1.18 --- --- 5745 0.16 0.21 76.19 1.18 --- --- 5785 0.16 0.21 76.19 1.18 --- --- 5825 0.16 0.21 76.19 1.18 --- --- 11AC40SISO Ant2 5190 0.15 0.20 75.00 1.25 --- --- 5230 0.16 0.21 76.19 1.18 --- --- 5755 0.16 0.21 76.19 1.18 --- --- 5795 0.16 0.21 76.19 1.18 --- --- 11AC80SISO Ant2 5210 0.17 0.22 77.27 1.12 --- --- 5775 0.16 0.21 76.19 1.18 --- --- 11AX20SISO Ant2 5180 0.26 0.31 83.87 0.76 --- --- 5220 0.26 0.31 83.87 0.76 --- --- 5240 0.25 0.30 83.33 0.79 --- --- 5745 0.25 0.30 83.33 0.79 --- --- 5785 0.26 0.31 83.87 0.76 --- --- 5825 0.26 0.31 83.87 0.76 --- --- 11AX40SISO Ant2 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 281 5755 0.17 0.22 77.27 1.12 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AX80SISO Ant2 5210 0.16 0.21 76.19 1.18 --- --- 5775 0.15 0.20 75.00 1.25 --- --- 282 Test Graphs 11A_Ant2_5180 11A_Ant2_5220 11A_Ant2_5240 283 11A_Ant2_5745 11A_Ant2_5785 284 11A_Ant2_5825 11N20SISO_Ant2_5180 11N20SISO_Ant2_5220 285 11N20SISO_Ant2_5240 11N20SISO_Ant2_5745 286 11N20SISO_Ant2_5785 11N20SISO_Ant2_5825 11N40SISO_Ant2_5190 287 11N40SISO_Ant2_5230 11N40SISO_Ant2_5755 288 11N40SISO_Ant2_5795 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5220 289 11AC20SISO_Ant2_5240 11AC20SISO_Ant2_5745 290 11AC20SISO_Ant2_5785 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5190 291 11AC40SISO_Ant2_5230 11AC40SISO_Ant2_5755 292 11AC40SISO_Ant2_5795 11AC80SISO_Ant2_5210 11AC80SISO_Ant2_5775 293 11AX20SISO_Ant2_5180 11AX20SISO_Ant2_5220 294 11AX20SISO_Ant2_5240 11AX20SISO_Ant2_5745 11AX20SISO_Ant2_5785 295 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5190 296 11AX40SISO_Ant2_5230 11AX40SISO_Ant2_5755 11AX40SISO_Ant2_5795 297 11AX80SISO_Ant2_5210 11AX80SISO_Ant2_5775 298 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MH z) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5180 11.96 73.68 1.33 13.29 ≤23.98 PASS 5220 12.04 73.68 1.33 13.37 ≤23.98 PASS 5240 11.90 73.68 1.33 13.23 ≤23.98 PASS 5745 11.57 73.68 1.33 12.90 ≤30.00 PASS 5785 11.66 75.00 1.25 12.91 ≤30.00 PASS 5825 11.36 73.68 1.33 12.69 ≤30.00 PASS 11N20SI SO Ant2 5180 12.01 77.27 1.12 13.13 ≤23.98 PASS 5220 12.10 77.27 1.12 13.22 ≤23.98 PASS 5240 11.94 78.26 1.06 13.00 ≤23.98 PASS 5745 11.79 78.26 1.06 12.85 ≤30.00 PASS 5785 11.82 77.27 1.12 12.94 ≤30.00 PASS 5825 11.52 77.27 1.12 12.64 ≤30.00 PASS 11N40SI SO Ant2 5190 12.10 78.26 1.06 13.16 ≤23.98 PASS 5230 12.24 78.26 1.06 13.30 ≤23.98 PASS 5755 11.93 78.26 1.06 12.99 ≤30.00 PASS 5795 12.05 78.26 1.06 13.11 ≤30.00 PASS 11AC20S ISO Ant2 5180 11.95 76.19 1.18 13.13 ≤23.98 PASS 5220 12.03 76.19 1.18 13.21 ≤23.98 PASS 5240 11.87 76.19 1.18 13.05 ≤23.98 PASS 5745 11.72 76.19 1.18 12.90 ≤30.00 PASS 5785 11.77 76.19 1.18 12.95 ≤30.00 PASS 5825 11.49 76.19 1.18 12.67 ≤30.00 PASS 11AC40S ISO Ant2 5190 11.94 75.00 1.25 13.19 ≤23.98 PASS 5230 12.07 76.19 1.18 13.25 ≤23.98 PASS 5755 11.75 76.19 1.18 12.93 ≤30.00 PASS 5795 11.91 76.19 1.18 13.09 ≤30.00 PASS 11AC80S ISO Ant2 5210 12.46 77.27 1.12 13.58 ≤23.98 PASS 5775 12.08 76.19 1.18 13.26 ≤30.00 PASS 11AX20S ISO Ant2 5180 12.09 83.87 0.76 12.85 ≤23.98 PASS 5220 12.17 83.87 0.76 12.93 ≤23.98 PASS 5240 12.07 83.33 0.79 12.86 ≤23.98 PASS 5745 11.95 83.33 0.79 12.74 ≤30.00 PASS 5785 11.98 83.87 0.76 12.74 ≤30.00 PASS 5825 11.66 83.87 0.76 12.42 ≤30.00 PASS 11AX40S ISO Ant2 5190 11.70 78.26 1.06 12.76 ≤23.98 PASS 5230 11.83 78.26 1.06 12.89 ≤23.98 PASS 299 5755 11.59 77.27 1.12 12.71 ≤30.00 PASS 5795 11.66 78.26 1.06 12.72 ≤30.00 PASS 11AX80S ISO Ant2 5210 12.15 76.19 1.18 13.33 ≤23.98 PASS 5775 11.76 75.00 1.25 13.01 ≤30.00 PASS 300 Appendix D: Maximum power spectral density Test Re…
