ZY-M100-1 Micro Motion Sensor Product ManualV1.1 1 Product Function ◼ Fretting detection It can detect small movements, such as hand lifting, hand flicking, hand turning, etc. Presence detection It can detect the human body standing still, squatting still, sitting still and other static states. ◼ Motion detection It can detect walking, trotting, fast running, circling, jumping and other movements. ◼ Distance measurement The target distance measurement function can accurately filter targets outside the area. ◼ Illuminance detection Detectable illuminance value ◼ Log query It can query the records of human existence and illumination change ◼ Adjustable parameters Various parameters such as detection distance can be set through app. ◼ Fault detection Equipment fault information can be self checked through app 2 Application Area ZY-M100 micro motion sensor can be widely used in lighting, security, home appliances, hotels, garages, buildings, transportation. (1) "Inching" detection area: it can detect inching (small actions such as leaning head, waving, raising hands, light start, turning books, slightly tilting left and right, back and forth), movement (walking, trotting, fast running, turning, high jump and other movements), existence (standing still, squatting still); (2) "Presence" detection area: it can detect the human body in static state, such as standing still, squatting still, sitting still, etc. Detection area (related to installation height and sensitivity parameters); ⚫existing detection radius: 1 ~ 3M ⚫fretting detection radius: 5 ~ 7M 3 Installation (1) Distribution network The sensor is powered by 12V and connected with the power adapter. The indicator light of the sensor will be on for 1s and then flash slowly, indicating that the power on is successful. The distribution network button is in the bottom cover. Open the cover and Height 3M Presence sensing 1 - 3m Micro motion sensing 7 - 5 meters you can see a reset button. Press and hold the reset button for more than 6S until the indicator light flashes and enter the ZigBee distribution network. (2) Installation Use the clips on both sides to install on the ceiling gypsum board. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： Bin Wu/PM Company: Hangzhou Zhiyi Internet of Things Technology Co., Ltd. Address: Zone 3, Floor 3, E-commerce Building, No. 118, Hongbianli, Bainiu Village, Changhua Town, Lin 'an District, Hangzhou City Phone: 15012669958 Fax: N/A E-Mail: [email protected]

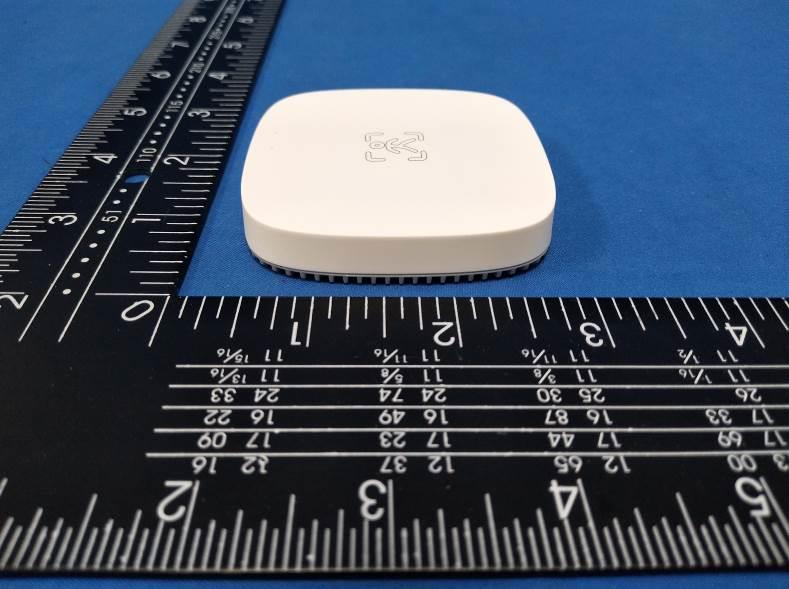

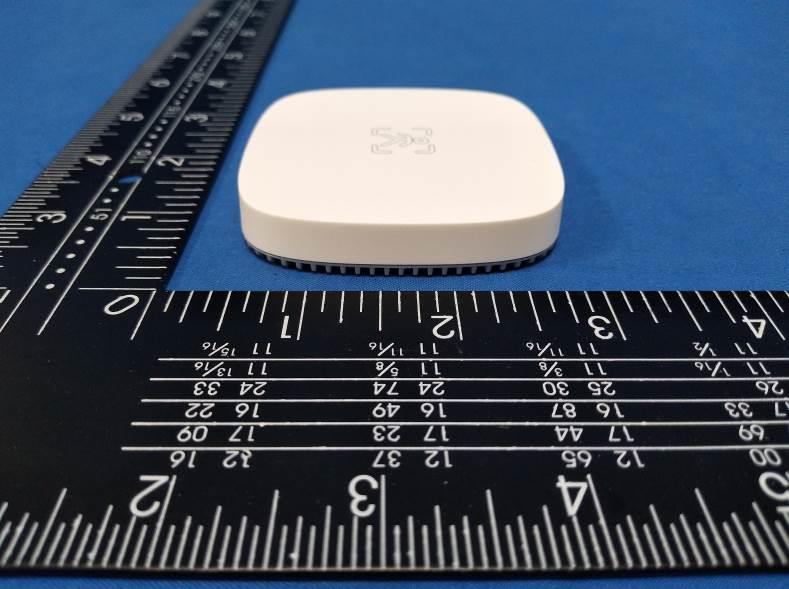

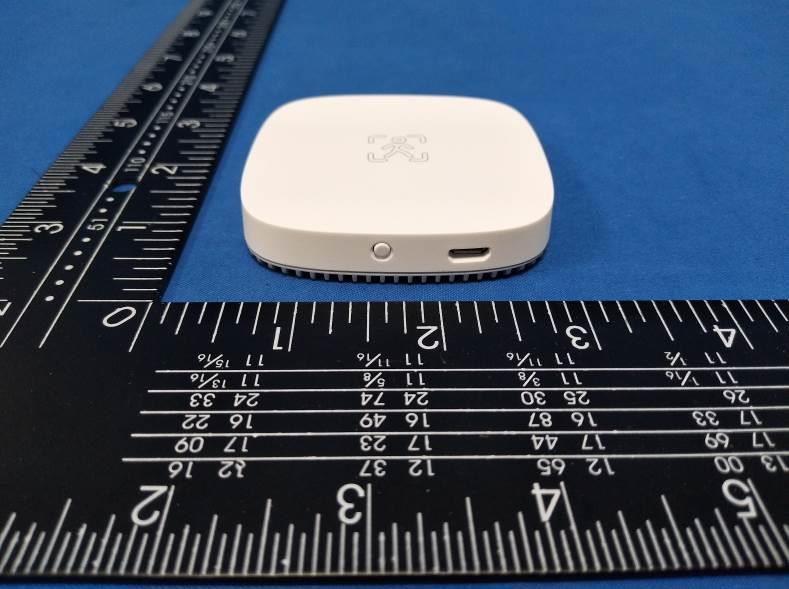

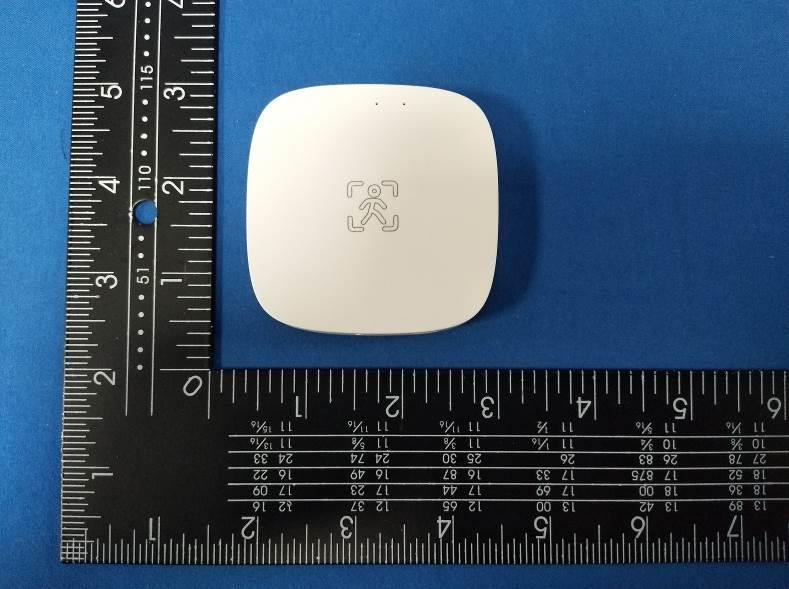

FCC ID: 2A9VV-ZY-M100-1 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9VV-ZY-M100-1 Photo 4 Photo 5 Photo 6 FCC ID: 2A9VV-ZY-M100-1 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: ZY-M100-1 FCC ID : 2A9VV-ZY-M100-1

FCC ID: 2A9VV-ZY-M100-1 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9VV-ZY-M100-1 Photo 4 Photo 5 Photo 6 ZIGBEE PCB antenna FCC ID: 2A9VV-ZY-M100-1 Photo 7 Photo 8 Photo 9 FCC ID: 2A9VV-ZY-M100-1 Photo 10 Photo 11

RF Exposure evaluation FCC ID: 2A9VV-ZY-M100-1 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information ZY-M100-1 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: Zigbee / PCB Antenna 1.88dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 11 Channel 18 Channel 26 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.88dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 5.0 3.1623 1.88 1.5417 0.0010 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model ZY-M100-1 Frequency range 2405MHz - 2480MHz Manufacturer Hangzhou Zhiyi Internet of Things Technology Co., Ltd. ANT Peak Gain 1.88 dBi 2. Antenna Photo: 3. Test Equipment & Conditions Length :14.60mm Width:5.18mm 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2405MHz 2440MHz 2480MHz
