2A9WL-S10Projector

Pixxie Global Pty Ltd Family models declaration letter. Date: January 11, 2023 We Pixxie Global Pty Ltd Of Product: Projector Model Name: S10 Serial Model: A3,A5,A7,A9,G1,G2,G3,G5,G6,G7,G8,G9,G11,H1,H2,H3,H4,H5, H6,K10,K20,K40,K60,K70,K90,M1,M2,M3,M4,M5,M6,M7,M8,M9,M10, M20,M30,M40,M60,N1,N2,N3,N7,N9,N11,N15,N19,P1,P1+,P2,P2+,P3,P3+,P6,P8,P9,P1 0,P19,P20,P30,P40,P60,Q3,R1,R2,R3,R5,R6,R7,R8,R9,R10,R11,R13,R15,R16,R11S,S 6,S20,S30,X1,X2,X3,X5,X6,X7,X8,X9,X10,X30,X60,X70,X90,VSWT01,VSWT02,VSWT0 3,VSWT04,VSWT05,VSWT06,VSWT07,VSWT08,VSWT09,VSWT10,VSWT20,VSWT30, R5 PRO, S10PRO,S30 PRO,HDP300,HDP500 Difference description of series models: All the models are the same circuit and RF module, except the names. Thanks Sincerely Signature Name: Poppy Hepburn Date: Jan.11,2023 Title: CEO

Pixxie Global Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: January 11, 2023 Subject; Request for Confidentiality FCC ID: 2A9WL-S10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Poppy Hepburn Title: CEO

FCC Software Configuration Control Declaration Rev1.1 Pixxie Global Pty Ltd FCC Software Configuration Control Declaration Date: January 11, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Projector S10,A3,A5,A7,A9,G1,G2,G3,G5,G6,G7,G8,G9,G11,H1,H2,H3,H4,H5, H6,K10,K20,K40,K60,K70,K90,M1,M2,M3,M4,M5,M6,M7,M8,M9,M10, M20,M30,M40,M60,N1,N2,N3,N7,N9,N11,N15,N19,P1,P1+,P2,P2+, P3,P3+,P6,P8,P9,P10,P19,P20,P30,P40,P60,Q3,R1,R2,R3,R5,R6,R7, R8,R9,R10,R11,R13,R15,R16,R11S,S6, S20,S30,X1,X2,X3,X5, X6,X7,X8,X9,X10,X30,X60,X70,X90,VSWT01,VSWT02,VSWT03, VSWT04,VSWT05,VSWT06,VSWT07,VSWT08,VSWT09,VSWT10, VSWT20,VSWT30,R5 PRO, S10 PRO,S30 PRO,HDP300,HDP500 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Poppy Hepburn Date: Jan.11,2023 Title: CEO Signature of applicant

Pixxie Global Pty Ltd Agent Authorization Company: Pixxie Global Pty Ltd Address: P.O. Box 7054 Redland Bay Queensland 4165 Australia Product Name: Projector Model Number(s): S10,A3,A5,A7,A9,G1,G2,G3,G5,G6,G7,G8,G9,G11,H1,H2,H3,H4,H5, H6,K10,K20,K40,K60,K70,K90,M1,M2,M3,M4,M5,M6,M7,M8,M9,M10, M20,M30,M40,M60,N1,N2,N3,N7,N9,N11,N15,N19,P1,P1+,P2,P2+,P3,P3+,P6,P8,P9,P10,P 19,P20,P30,P40,P60,Q3,R1,R2,R3,R5,R6,R7,R8,R9,R10,R11,R13,R15,R16,R11S,S6,S20, S30,X1,X2,X3,X5,X6,X7,X8,X9,X10,X30,X60,X70,X90,VSWT01,VSWT02,VSWT03,VSWT0 4,VSWT05,VSWT06,VSWT07,VSWT08,VSWT09,VSWT10,VSWT20,VSWT30,R5 PRO, S10PRO,S30 PRO,HDP300,HDP500 Product Description: Projector We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan.11,2023 Name: Poppy Hepburn Title: CEO Company: Pixxie Global Pty Ltd

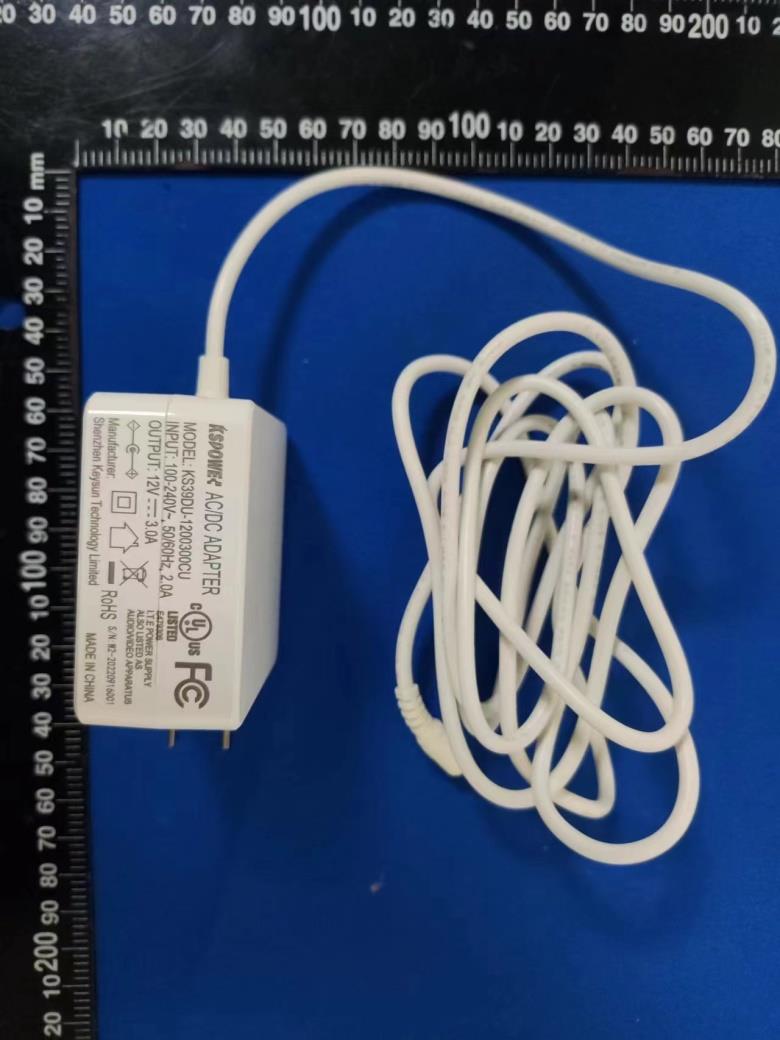

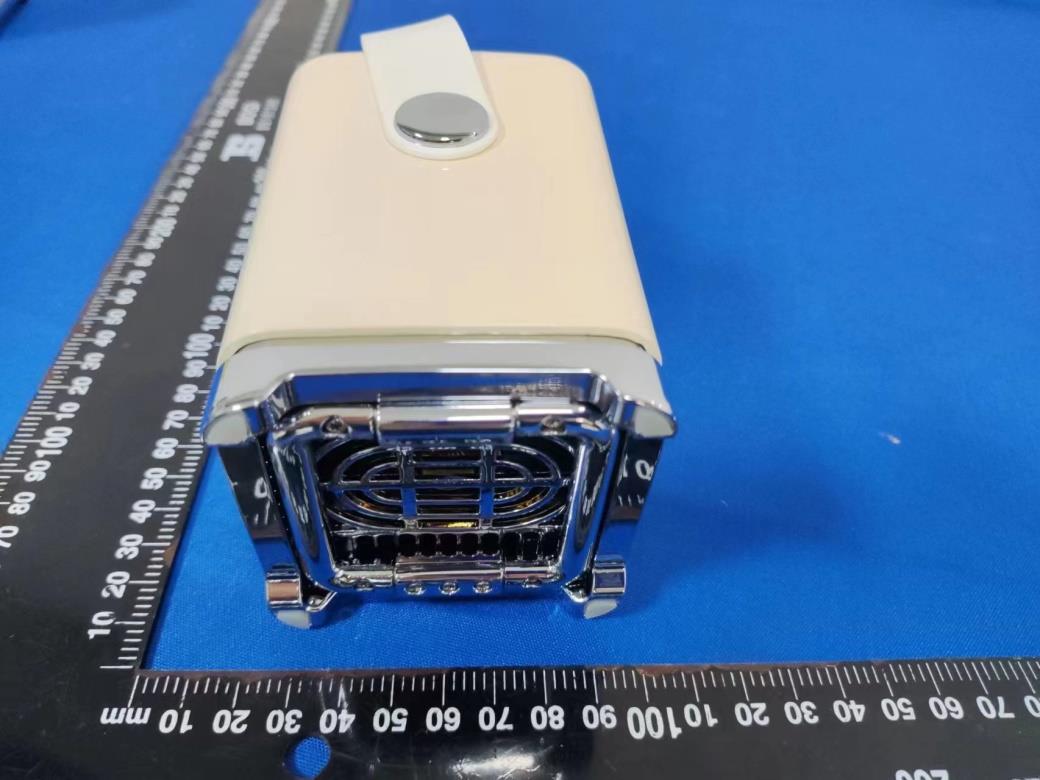

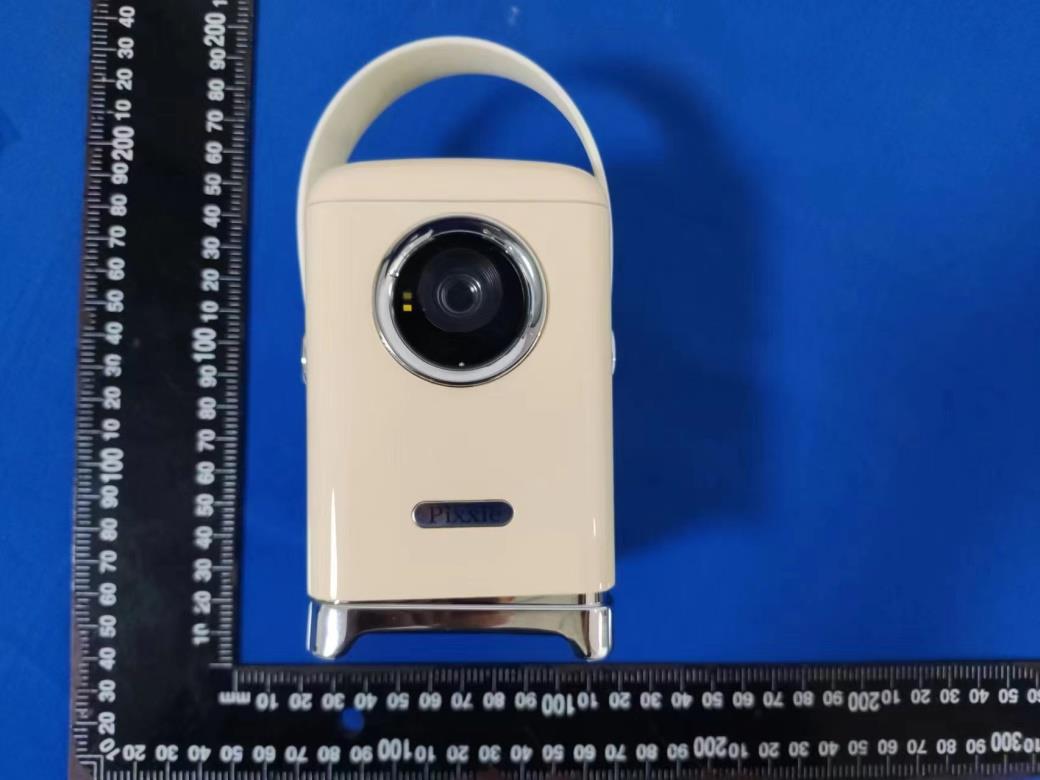

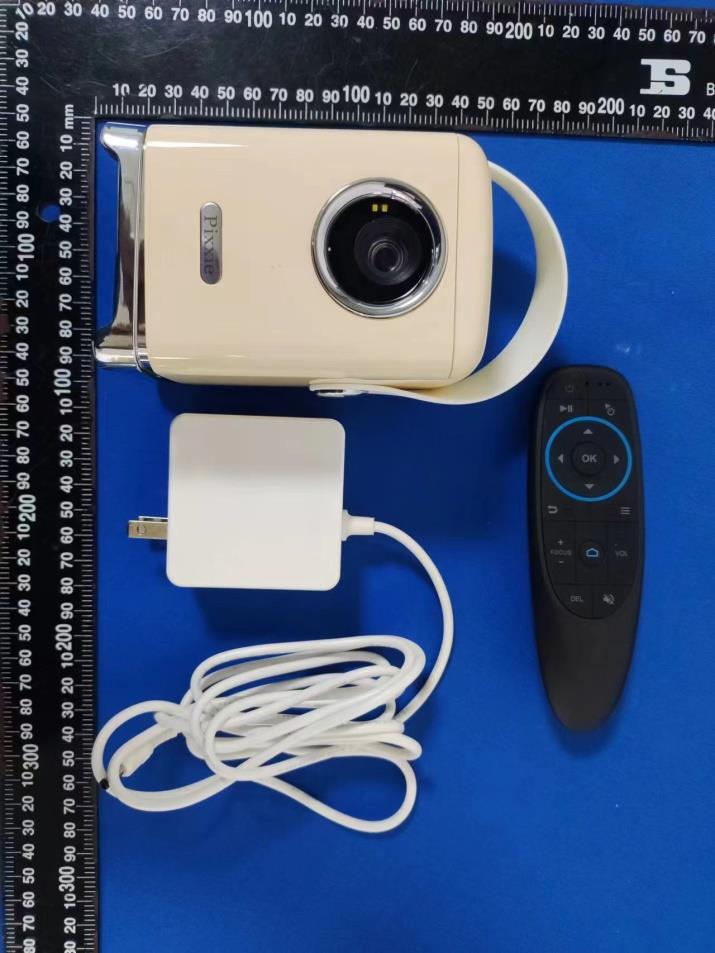

- Page 1 of 4 - ET-22120922 Product Name: Projector Model No.: S10 Ext Photos - Page 2 of 4 - ET-22120922 - Page 3 of 4 - ET-22120922 - Page 4 of 4 - ET-22120922 -----END-----

Label and label location Label location

- Page 1 of 8 - ET-22120922 Product Name: Projector Model No.: S10 Internal photos - Page 2 of 8 - ET-22120922 - Page 3 of 8 - ET-22120922 - Page 4 of 8 - ET-22120922 - Page 5 of 8 - ET-22120922 BT ANT 2.4 G WIFI ANT 5 G WIFI ANT - Page 6 of 8 - ET-22120922 - Page 7 of 8 - ET-22120922 - Page 8 of 8 - ET-22120922 ------END-----

FCC ID: 2A9WL-S10 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2A9WL-S10 Test Result of RF Exposure Evaluation Note: Data of the following evaluation is from the report No.:ET-22120922E01/02/03. 2.4G Antenna gain=2.33dBi 5G Antenna=3.01dBi For BLE Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 3.74 2.37 1.71 0.0008 1.0 PASS For 2.4G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 11.81 15.17 1.71 0.0052 1.0 PASS 802.11g 15.32 34.04 1.71 0.0116 1.0 PASS 802.11n(HT20) 15.00 31.62 1.71 0.0108 1.0 PASS 802.11n(HT40) 14.27 26.73 1.71 0.0091 1.0 PASS For 5.2G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11a 12.64 18.37 2.0 0.0073 1.0 PASS 802.11n(HT20) 12.33 17.10 2.0 0.0068 1.0 PASS 802.11n(HT40) 12.42 17.46 2.0 0.0069 1.0 PASS 802.11ac(HT20) 11.95 15.67 2.0 0.0062 1.0 PASS 802.11ac(HT40) 12.80 19.05 2.0 0.0076 1.0 PASS 802.11ac(HT80) 11.99 15.81 2.0 0.0063 1.0 PASS For 5.8G WIFI Mode Output power (dBm) Output power (mW) Numeric antenna gain Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11a 11.89 15.45 2.0 0.0061 1.0 PASS 802.11n(HT20) 11.87 15.38 2.0 0.0061 1.0 PASS 802.11n(HT40) 10.86 12.19 2.0 0.0049 1.0 PASS 802.11ac(HT20) 11.62 14.52 2.0 0.0058 1.0 PASS 802.11ac(HT40) 10.77 11.94 2.0 0.0048 1.0 PASS 802.11ac(HT80) 9.45 8.81 2.0 0.0035 1.0 PASS If BLE, 2.4G WIFI and 5.2G WIFI operate simultaneously, Total power density=0.0008/1+0.0116/1+0.0076/1=0.02<1.0 If BLE, 2.4G WIFI and 5.8G WIFI operate simultaneously, Total power density=0.0008/1+0.0116/1+0.0061/1=0.0185<1.0 Then SAR evaluation is not require.

Report No.: ET-22120922E03 This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd. TEST REPORT Applicant: Pixxie Global Pty Ltd Address of Applicant: P.O. Box 7054 Redland Bay Queensland 4165 Australia Manufacturer: VSOONTECH (GUANGZHOU) ELECTRONICS CO., LIMITED Address of Manufacturer 101, Buliding 11,NO.3 South Street, Yongshan Village, Shiqi Town, Panyu District, Guangzhou City, Guangdong Province, China Product Name: Projector Model No.: S10,A3,A5,A7,A9,G1,G2,G3,G5,G6,G7,G8,G9,G11,H1,H2,H3,H4,H5, H6,K10,K20,K40,K60,K70,K90,M1,M2,M3,M4,M5,M6,M7,M8,M9,M10, M20,M30,M40,M60,N1,N2,N3,N7,N9,N11,N15,N19,P1,P1+,P2,P2+, P3,P3+,P6,P8,P9,P10,P19,P20,P30,P40,P60,Q3,R1,R2,R3,R5,R6,R7, R8,R9,R10,R11,R13,R15,R16,R11S,S6, S20,S30,X1,X2,X3,X5, X6,X7,X8,X9,X10,X30,X60,X70,X90,VSWT01,VSWT02,VSWT03, VSWT04,VSWT05,VSWT06,VSWT07,VSWT08,VSWT09,VSWT10, VSWT20,VSWT30,R5 PRO, S10 PRO,S30 PRO,HDP300,HDP500 Trade Mark: Pixxie FCC ID: 2A9WL-S10 Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of Test: Dec.13,2022-Dec.31,2022 Date of report issued: Jan.09, 2023 Test Result : PASS * Remark: * In the configuration tested, the EUT complied with the standards specified above. The results shown in this test report refer only to the sample(s) tested , this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report Revision History Report No. Description Issue Date ET-22120922E03 Original Jan.09, 2023 - Page 3 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1 TEST SUMMARY ......................................................................................................................................4 1.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 2 GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 2.2 TEST MODE .........................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................8 2.4 DEVIATION FROM STANDARDS ..............................................................................................................8 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................8 2.6 TEST FACILITY ....................................................................................................................................8 2.7 TEST LOCATION ..................................................................................................................................8 2.8 ADDITIONAL INSTRUCTIONS ..................................................................................................................8 3 TEST INSTRUMENTS LIST ......................................................................................................................9 4 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 4.1 ANTENNA REQUIREMENT ....................................................................................................................10 4.2 CONDUCTED EMISSIONS ....................................................................................................................11 4.3 CONDUCTED PEAK OUTPUT POWER ...................................................................................................14 4.4 CHANNEL BANDWIDTH .......................................................................................................................16 4.5 POWER SPECTRAL DENSITY ..............................................................................................................24 4.6 BAND EDGE .......................................................................................................................................32 4.6.1 Conducted test Method ...............................................................................................................32 4.7 SPURIOUS EMISSION .........................................................................................................................39 4.7.1 Radiated Emission Method .........................................................................................................39 4.7.2 Conducted Emission Method ......................................................................................................48 4.8 FREQUENCY STABILITY ......................................................................................................................55 5 TEST SETUP PHOTO ......................................................................................................................…

Text truncated - open the document above for the full version.

- Page 31 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China (802.11ac40) PSD plot on channel 151 (802.11ac80) PSD plot on channel 155 (802.11ac40) PSD plot on channel 159 - Page 32 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4.6 Band edge 4.6.1 Conducted test Method Test Requirement: FCC Part15 C Section 15.209 and 15.205 Test Method: ANSI C63.10: 2013 Limit: All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. Test setup: Test Procedure: 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz with a convenient frequency span. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete.. Test Instruments: Refer to section 3.0 for details Test mode: Refer to section 2.2 for details Test results: Pass Remarks:/ - Page 33 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 5.180~5.240 GHz (802.11a) Band Edge, Left Side (802.11n20) Band Edge, Left Side (802.11a) Band Edge, Right Side (802.11n20) Band Edge, Right Side - Page 34 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China (802.11ac20) Band Edge, Left Side (802.11n40) Band Edge, Left Side (802.11ac20) Band Edge, Right Side (802.11n40) Band Edge, Right Side - Page 35 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China (802.11ac40) Band Edge, Left Side (802.11ac80) Band Edge (802.11ac40) Band Edge, Right Side - Page 36 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 5.745~5.825 GHz (802.11a) Band Edge, Left Side (802.11n20) Band Edge, Left Side (802.11a) Band Edge, Right Side (802.11n20) Band Edge, Right Side - Page 37 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China (802.11ac20) Band Edge, Left Side (802.11n40) Band Edge, Left Side (802.11ac20) Band Edge, Right Side (802.11n40) Band Edge, Right Side - Page 38 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 5.745~5.825 GHz (802.11ac40) Band Edge, Left Side (802.11ac80) Band Edge (802.11ac40) Band Edge, Right Side - Page 39 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4.7 Spurious Emission 4.7.1 Radiated Emission Method Test Requirement: FCC Part15 C Section 15.209, Part 15E Section 15.407(b)(4) Test Method: ANSI C63.10:2013 Test Frequency Range: 9kHz to 40GHz Test site: Measurement Distance: 3m Receiver setup: Frequency Detector RBW VBW Value 9kHz-150KHz Quasi-peak 200Hz 1kHz Quasi-peak Value 150kHz-30MHz Quasi-peak 9kHz 30kHz Quasi-peak Value 30MHz-1GHz Quasi-peak 120KHz 300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value AV 1MHz 3MHz Average Value Limit: Frequency Limit (uV/m) Value Measurement Distance 0.009MHz-0.490MHz 2400/F(KHz) QP 300m 0.490MHz-1.705MHz 24000/F(KHz) QP 300m 1.705MHz-30MHz 30 QP 30m 30MHz-88MHz 100 QP 3m 88MHz-216MHz 150 QP 216MHz-960MHz 200 QP 960MHz-1GHz 500 QP Frequency Limit (dBm/MHz) Remark Above 1GHz -27.0 Peak Value Test setup: For radiated emissions from 9kHz to 30MHz For radiated emissions from 30MHz to1GHz - Page 40 of 61 - Report No.: ET-22120922E03 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China For radiated emissions above 1GHz Test Procedure: 1. The EUT was placed on the top of a rotating table (0.8m for below 1GHz and 1.5 meters for above 1GHz) above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied f…

Text truncated - open the document above for the full version.

Antenna report 1、 Antenna performance requirements Name Operating frequency range Return loss Antenna 2.4～2.5GHz、5.1～5.9GHz ≤-6dB 2、 Antenna Return loss 3、 Antenna isolation 4、 2.4GHz Antenna gain, direction chart： 5、 5GHz antenna gain and pattern: 6、 Antenna gain data

ET-22120922 Page 1 of 2 Product Name: Projector Test Model No.: S10 Test Setup Photo Radiated emissions 30MHz to1GHz Above 1GHz ET-22120922 Page 2 of 2 Conducted Emission ------End------
