2A9Y6-DVC20IPC for Machine Vision

Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd Pleasereadtheinstructionsindetailbeforeusingtheproduct DVC-20User’sGuide Verion ： v1.0 Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd UpdateTable VersionChangelistAuthorDate V1.0FirstVersionWURUI2022/12/15 Reviewer：PengYincan Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd contents 1Attention..................................................................................................................................1 2.specifications...........................................................................................................................2 3Productview............................................................................................................................3 3.1Productpictures................................................................................................................3 4InterfaceIntroduce..................................................................................................................5 4.1Functionindicationdiagramofchassisinterface .............................................................5 4.2PinDefinition...................................................................................................................6 Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 1Attention Brand Productnameandbrandmentionedinthisuser'sguidearethepropertyofthe company. Notices: 1.Pleasereadtheinstructionsindetailbeforeusingthemotherboardtoavoid damagingthemotherboardbywrongoperation. 2.Pleasestoreorusetheproductintheenvironmentof-10°C<=WorkStation <=+50°C,95%RH,toavoiddamagingtheproductfortoohotorcold. 3.Pleasedonotdostronglymechanicalshake,anddonotoperatetheproduct beforeESDprotection. 4.Pleasedisconnectallpowercablesfromtheexistingsystembeforeyouaddor removeadevice. 5.Makesureyourpowersupplyissettocorrectvoltage,namelyDC12V 6.Forbidtorepair,modifyoraltertheproductbyself.Ifitcausesanydamage,we don’ttakeanyresponsibility. Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 2.specifications Mainfeatures ProcessorIntelApolloLake-DJ3455Intel®Celeron®Processor(TDP10W)① Memory4GDDR3L-1600MT/s Storage 1×M.22280M-Key 16GBEMMC Network 4×RJ45GigabitEthernetInterfaces(EthernetController:Realtek8111H) WNFQ-258ACN(BT) Extensionfeatures IOinterface 1×HDMI2.0DisplayPort （ MaxResolution ： 4096x2160@60Hz ） 4×RJ45GigabitEthernetInterface 2×USB3.0Ports 4×SerialPorts（COM1supportsTTL,COM2supportsRS232,COM3&4supportsRS232/485selections） 1*LINE-OUT 1*CEC-IR 1*KNX 2×Reservedantennaholes ExtensionSlots1×M.22230E-KeyforWIFI&BluetoothModuleextension Systemfeatures O.SUbuntu PowerSupply 12V/7.5ADCInput DC2.5metalthreadedjoint Mechanicalfeatures MaterialsSGCC Dimensions 227mm（L）×116.2mm（W）×37.4mm（H） InstallationWallmount Operatingenvironment Temperature Operatingtemperature ： -10°C~+50°C Storagetemperature ： -40°C~+85°C Relativehumidity PowerOff:95% ， doesnotcondenseat25to30temperatures Notice： ①J3455 ： 4-core4-thread,1.5GHzmainfrequency,graphics:Intel®HDGraphics500 Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 3Productview 3.1Productpictures IOintheback IOinthefront Sideview Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 3.2Physicaldimensions Notice:：Thedimensionsinthedrawingareuniforminmillimeters（mm）. Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 4InterfaceIntroduce 4.1Functionindicationdiagramofchassisinterface InterfaceDescription: Reservedantennahole23.81-2pinKNXTerminals DC2.5metalthreadedjointDB9SerialPort1 DB9SerialPort23.81-5pinCEC_IRTerminals 3.81-8pinTerminals(COM3~COM4)Reservedantennahole1 Powerbutton PowerstatusindicatorLED（green，on） NetworkconnectionlightSystemresetbutton HDMI2.0bdisplayPortLINE-OUTaudiooutputinterface DoublelayerUSB3.0Type-APortRJ45GigabitEthernet1 RJ45GigabitEthernet2RJ45GigabitEthernet3 RJ45GigabitEthernet45.08-2pinDC-OUTTerminals AbnormaldisplayindicatorLED 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd 4.2PinDefinition （1）COM1~4SerialPorts Notice：COM1supportsTTL： pin#Signalpin#Signal 16DV-ICE 2TTL_RXD7 3TTL_TXD8 49 5GND Notice：COM2supportsRS232： pin#Signalpin#Signal 16DV-ICE 2232_RXD7 3232_TXD8 49 5GND Notice：COM3、COM4canselectRS232/RS485bySettingBIOSparameters.ThePindefinitionsareshowninthe tablebelow： pin Pindefinitions RS232RS485 1DCDD- 2SIND+ 3SOUT 4DTR 5GNDGND 6DSR 7RTS 8CTS 9RI Focusonindustrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd （2）HDMIInterface UsestandardHDMIdefinition,omittedhere. （3）USBInterface UsestandardUSBType-Adefinition,omittedhere. （4）AudioInterface LINE-OUTUsestandard3.5mmaudiointerfacedefinition,omittedhere. （5）KNX JP/CNpin#Signal KNX 1KNX- 2KNX+ （ 6 ） IR JP/CNpin#Signal IR 1IR2 2GND 3+3.3V 4GND 5IR1 （ 7 ） DC-OUT JP/CNpin#Signal DC_OUT 112V 2GND Focuson industrialcontrolsystem，Makedevicemoreintelligent ShenzhenComstarTechnologyCo.,Ltd （8）DC-IN JP/CNpin#Signal DC_IN 112 V 2GND FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses …

Text truncated - open the document above for the full version.

Paragon Digital Lifestyle Pte. Ltd. Agent Authorization Company: Paragon Digital Lifestyle Pte. Ltd. Address: 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Product Name: IPC for Machine Vision Trade Mark: N/A Model Number(s): DVC20 FCC ID: 2A9Y6-DVC20 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-01-11 Name: Kamani Vivek Title: Manager Company: Paragon Digital Lifestyle Pte. Ltd.

FCC Software Configuration Control Declaration Rev1.1 Paragon Digital Lifestyle Pte. Ltd. FCC Software Configuration Control Declaration Date: January 11, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ IPC for Machine Vision / DVC20 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Kamani Vivek Date: 2023/01/11 Title: Manager Signature of applicant

Paragon Digital Lifestyle Pte. Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-01-11 Subject; Request for Confidentiality FCC ID: 2A9Y6-DVC20 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Kamani Vivek / Manager Company: Paragon Digital Lifestyle Pte. Ltd. Address: 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Phone: 919425063434 Fax:/ E-Mail: [email protected]

FCC ID: 2A9Y6-DVC20 Fig. 1 Fig. 2 FCC ID: 2A9Y6-DVC20 Fig. 3 Fig. 4 FCC ID: 2A9Y6-DVC20 Fig. 5 Fig. 6 FCC ID: 2A9Y6-DVC20 Fig. 7 Fig. 8 BT&WLAN Antenna 2 WLANAntenna 1 FCC ID: 2A9Y6-DVC20 Fig. 9

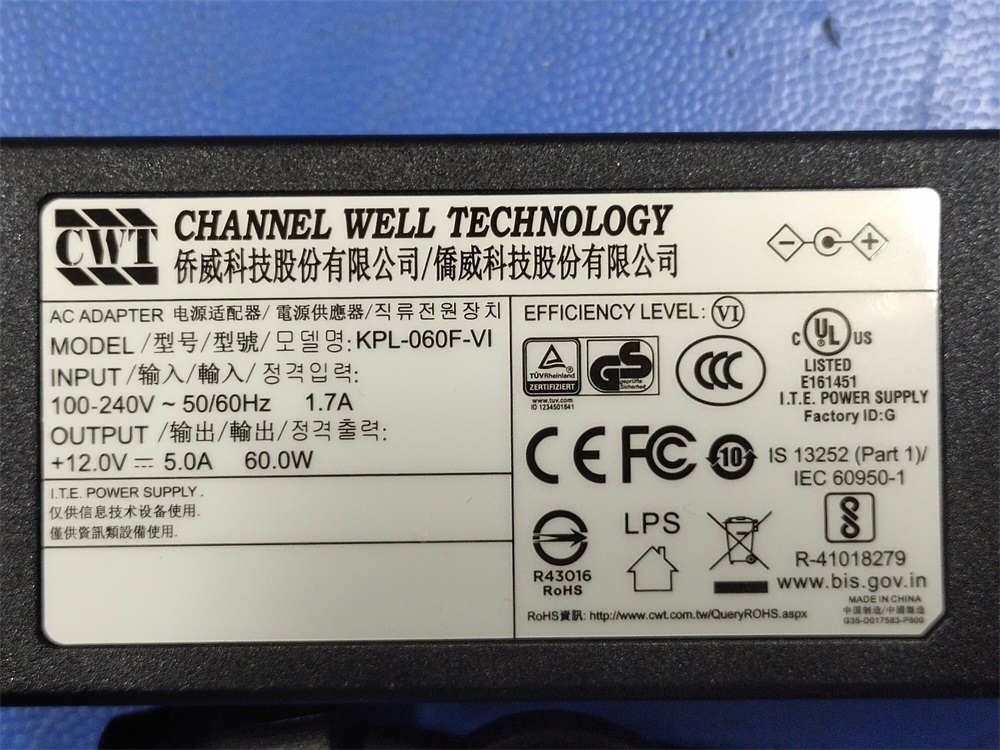

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L5.0cm x 3.0cm) Label Location

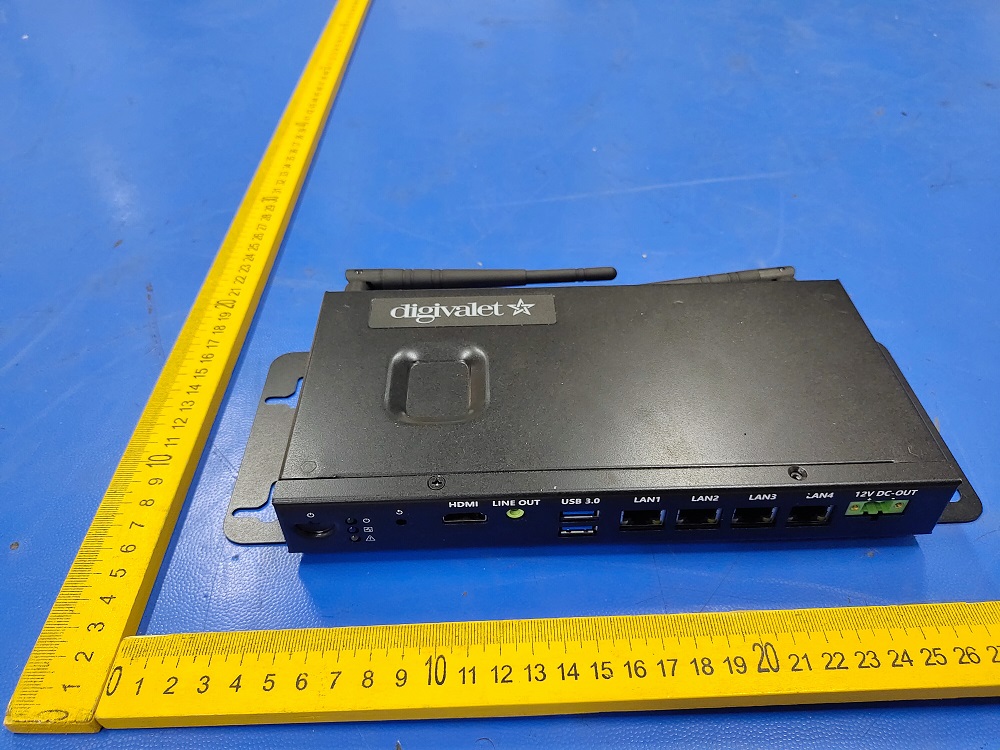

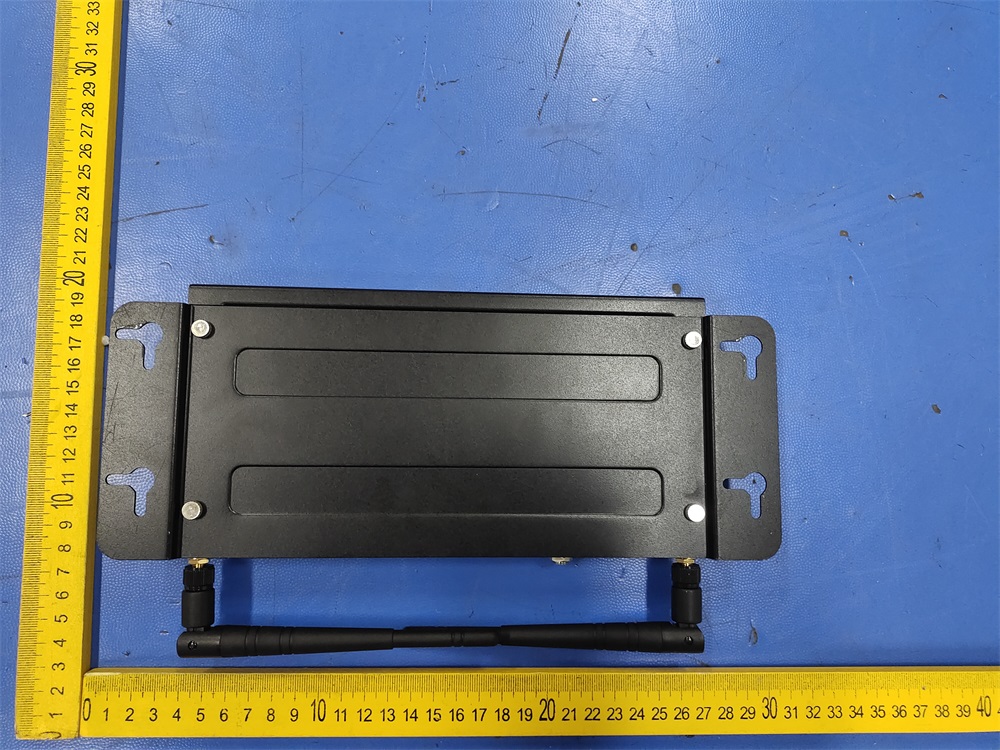

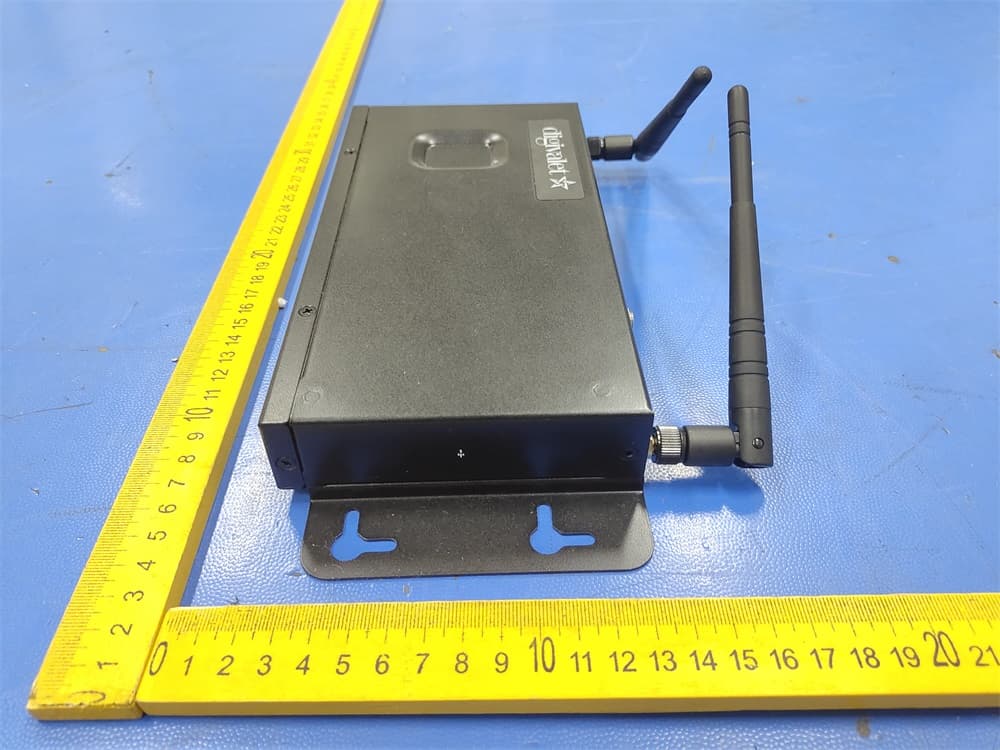

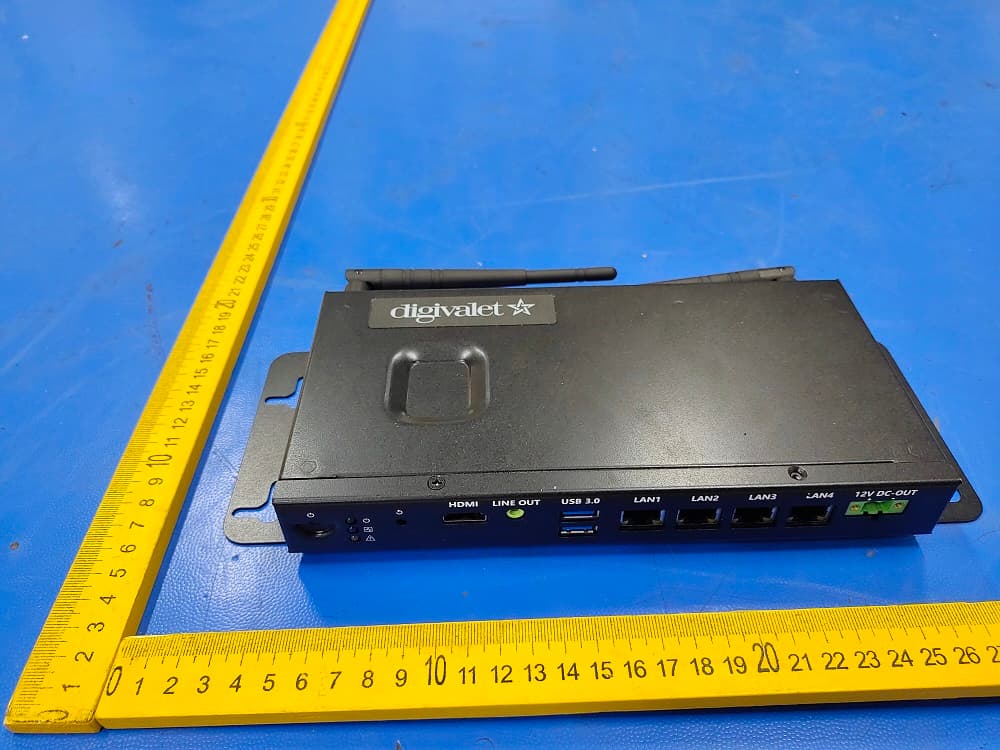

FCC ID: 2A9Y6-DVC20 Fig. 1 Fig. 2 FCC ID: 2A9Y6-DVC20 Fig. 3 Fig. 4 FCC ID: 2A9Y6-DVC20 Fig. 5 Fig. 6 FCC ID: 2A9Y6-DVC20 Fig. 7 Fig. 8 FCC ID: 2A9Y6-DVC20 Fig. 9 Fig. 10 FCC ID: 2A9Y6-DVC20 Fig. 11 Fig. 12

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : GTS20221216016-1-16 2A9Y6-DVC20 Compiled by ( position+printed name+signature): File administrators Peter Xiao Supervised by ( position+printed name+signature): Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue ................................. : Jan.10, 2023 Representative Laboratory Name ....................................................... : Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ......................... : Paragon Digital Lifestyle Pte. Ltd. Address ......................................... : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : IPC for Machine Vision Trade Mark .................................... : N/A Manufacturer ................................. : Paragon Digital Lifestyle Pte. Ltd. Model/Type reference ................... : DVC20 Listed Models .............................. : N/A Modulation Type ............................ : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK, π/4-DQPSK, 8DPSK Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : DC 12.0V/5.0A by adapter Result ............................................ : PASS Report No.: GTS20221216016-1-16 Page 2 of 28 T E S T R E P O R T Test Report No. : GTS20221216016-1-16 Jan.10, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : IPC for Machine Vision Model /Type : DVC20 Listed model : N/A Applicant : Paragon Digital Lifestyle Pte. Ltd. Address : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Manufacturer : Paragon Digital Lifestyle Pte. Ltd. Address : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221216016-1-16 Page 3 of 28 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 6 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 6 2.2 TEST FACILITY ............................................................................................................................................... 6 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 6 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 6 3. METHOD OF MEASUREMENT ................................................................................................................... 7 3.1 APPLICABLE STANDARD ................................................................................................................................. 7 3.2 REQUIREMENT .............................................................................................................................................. 7 3.3 LIMIT ............................................................................................................................................................. 7 3.4 MPE CALCULATION METHOD ......................................................................................................................... 8 3.5 ANTENNA INFORMATION ................................................................................................................................. 8 4. CONDUCTED POWER RESULTS ............................................................................................................... 9 5. MANUFACTURING TOLERANCE ............................................................................................................. 15 6. MEASUREMENT RESULTS ........................................................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. .................... : FCC ID. ........................................... : GTS20221216016-1-15 2A9Y6-DVC20 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jan.10, 2023 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ........................... : Paragon Digital Lifestyle Pte. Ltd. Address ............................................ : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Test specification........................... : Standard .......................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES TRF Originator ................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IPC for Machine Vision Trade Mark ....................................... : N/A Manufacturer .................................... : Paragon Digital Lifestyle Pte. Ltd. Model/Type reference ...................... : DVC20 Listed Models .................................. : N/A Modulation Type .............................. : DSSS,OFDM Operation Frequency ....................... : From 5260MHz to 5320MHz, 5500MHz to 5700MHz Rating ............................................... : DC 12.0V/5.0A by adapter Result ............................................... : PASS Report No.: GTS20221216016-1-15 Page 2 of 26 T E S T R E P O R T Test Report No. : GTS20221216016-1-15 Jan.10, 2023 ____________________________________________________________________________________ Date of issue Equipment under Test : IPC for Machine Vision Model /Type : DVC20 Listed Models : N/A Applicant : Paragon Digital Lifestyle Pte. Ltd. Address : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Manufacturer : Paragon Digital Lifestyle Pte. Ltd. Address : 25 North Bridge Road #08-01EFG Bank Building, Singapore 179104 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221216016-1-15 Page 3 of 26 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. Special Accessories ............................................................................................................................... 8 2.9. Modifications .......................................................................................................................................... 8 2.10. Conduted Output Power and EIRP ...................................................................................................... 8 2.11. TEST METHODOLOGY ....................................................................................................................... 8 2.12. SYSTEM TEST CONFIGURATION ..................................................................................................... 9 2.12.1. Justification ........................................................................................................................................ 9 2.13. Procedure ............................................................................................................................................. 9 3. TEST ENVIRONMENT ................................................................................................................................... 10 3.1. Address of the test …

Text truncated - open the document above for the full version.

Case No. : GTS20221216016-1-14 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2023.1.6 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 20.120 5169.880 5190.000 --- --- 5200 21.000 5189.120 5210.120 --- --- 5240 20.960 5229.760 5250.720 --- --- 11N20SISO Ant1 5180 22.920 5168.280 5191.200 --- --- 5200 22.840 5188.560 5211.400 --- --- 5240 24.440 5228.200 5252.640 --- --- 11N40SISO Ant1 5190 55.520 5160.800 5216.320 --- --- 5230 42.000 5209.360 5251.360 --- --- 11AC20SISO Ant1 5180 20.920 5169.280 5190.200 --- --- 5200 24.200 5187.480 5211.680 --- --- 5240 21.160 5229.840 5251.000 --- --- 11AC40SISO Ant1 5190 43.840 5168.000 5211.840 --- --- 5230 51.520 5204.880 5256.400 --- --- 11AC80SISO Ant1 5210 107.840 5153.360 5261.200 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.050 5171.539 5188.589 --- --- 5200 17.073 5191.538 5208.611 --- --- 5240 17.146 5231.475 5248.621 --- --- 11N20SISO Ant1 5180 18.090 5171.032 5189.122 --- --- 5200 18.163 5190.961 5209.124 --- --- 5240 18.125 5230.991 5249.116 --- --- 11N40SISO Ant1 5190 36.736 5171.755 5208.491 --- --- 5230 36.629 5211.841 5248.470 --- --- 11AC20SISO Ant1 5180 18.024 5171.056 5189.080 --- --- 5200 18.055 5191.023 5209.078 --- --- 5240 18.012 5231.058 5249.070 --- --- 11AC40SISO Ant1 5190 36.562 5171.821 5208.383 --- --- 5230 36.527 5211.908 5248.435 --- --- 11AC80SISO Ant1 5210 75.785 5172.308 5248.093 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 1.40 1.44 97.22 5200 1.39 1.43 97.20 5240 1.39 1.44 96.53 11N20SISO Ant1 5180 1.30 1.34 97.01 5200 1.30 1.34 97.01 5240 1.30 1.34 97.01 11N40SISO Ant1 5190 0.65 0.69 94.20 5230 0.65 0.69 94.20 11AC20SISO Ant1 5180 1.31 1.35 97.04 5200 1.31 1.36 96.32 5240 1.32 1.36 97.06 11AC40SISO Ant1 5190 0.65 0.69 94.20 5230 0.65 0.70 92.86 11AC80SISO Ant1 5210 0.33 0.37 89.19 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[M Hz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 10.65 97.22 0.12 10.77 ≤23.98 PASS 5200 10.92 97.20 0.12 11.04 ≤23.98 PASS 5240 11.92 96.53 0.15 12.07 ≤23.98 PASS 11N20SISO Ant1 5180 10.37 97.01 0.13 10.50 ≤23.98 PASS 5200 10.71 97.01 0.13 10.84 ≤23.98 PASS 5240 11.72 97.01 0.13 11.85 ≤23.98 PASS 11N40SISO Ant1 5190 10.25 94.20 0.26 10.51 ≤23.98 PASS 5230 10.17 94.20 0.26 10.43 ≤23.98 PASS 11AC20SISO Ant1 5180 10.54 97.04 0.13 10.67 ≤23.98 PASS 5200 10.66 96.32 0.16 10.82 ≤23.98 PASS 5240 11.70 97.06 0.13 11.83 ≤23.98 PASS 11AC40SISO Ant1 5190 10.38 94.20 0.26 10.64 ≤23.98 PASS 5230 11.21 92.86 0.32 11.53 ≤23.98 PASS 11AC80SISO Ant1 5210 10.30 89.19 0.50 10.80 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 0.05 ≤11.00 PASS 5200 0.33 ≤11.00 PASS 5240 1.52 ≤11.00 PASS 11N20SISO Ant1 5180 -0.33 ≤11.00 PASS 5200 0.05 ≤11.00 PASS 5240 1.19 ≤11.00 PASS 11N40SISO Ant1 5190 -3.08 ≤11.00 PASS 5230 -2.99 ≤11.00 PASS 11AC20SISO Ant1 5180 -0.18 ≤11.00 PASS 5200 -0.03 ≤11.00 PASS 5240 1.07 ≤11.00 PASS 11AC40SISO Ant1 5190 -2.94 ≤11.00 PASS 5230 -1.92 ≤11.00 PASS 11AC80SISO Ant1 5210 -5.9 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -35.38 ≤-27 PASS High 5240 -37.4 ≤-27 PASS 11N20SISO Ant1 Low 5180 -36.11 ≤-27 PASS High 5240 -38.02 ≤-27 PASS 11N40SISO Ant1 Low 5190 -29.22 ≤-27 PASS High 5230 -36.6 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -33.54 ≤-27 PASS High 5240 -38.01 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -37.56 ≤-27 PASS High 5230 -38.02 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -31.85 ≤-27 PASS High 5210 -37.74 ≤-27 PASS Test Graphs B1/2/3 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 Appendix D.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5139.32 -45.99 ≤-27 PASS 5360~40000 26914.88 -38.48 ≤-27 PASS 5200 30~5140 5000.5 -47.37 ≤-27 PASS 5360~40000 26495.07 -38.45 ≤-27 PASS 5240 30~5140 2658.75 -47.13 ≤…

Text truncated - open the document above for the full version.

Case No. : GTS20221216016-1-14 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2023.1.7 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 20.880 5170.040 5190.920 --- --- 5200 21.760 5188.680 5210.440 --- --- 5240 21.600 5229.560 5251.160 --- --- 11N20SISO Ant2 5180 22.560 5168.320 5190.880 --- --- 5200 22.240 5188.440 5210.680 --- --- 5240 24.040 5227.320 5251.360 --- --- 11N40SISO Ant2 5190 61.920 5161.040 5222.960 --- --- 5230 61.920 5200.720 5262.640 --- --- 11AC20SISO Ant2 5180 20.480 5169.760 5190.240 --- --- 5200 23.760 5186.680 5210.440 --- --- 5240 22.080 5229.160 5251.240 --- --- 11AC40SISO Ant2 5190 45.360 5167.280 5212.640 --- --- 5230 40.160 5210.000 5250.160 --- --- 11AC80SISO Ant2 5210 87.680 5166.800 5254.480 --- --- Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 17.134 5171.509 5188.643 --- --- 5200 17.124 5191.485 5208.609 --- --- 5240 17.088 5231.501 5248.589 --- --- 11N20SISO Ant2 5180 18.026 5171.060 5189.086 --- --- 5200 18.072 5191.001 5209.073 --- --- 5240 18.063 5231.004 5249.067 --- --- 11N40SISO Ant2 5190 36.724 5171.802 5208.526 --- --- 5230 36.699 5211.809 5248.508 --- --- 11AC20SISO Ant2 5180 17.937 5171.115 5189.052 --- --- 5200 …

Text truncated - open the document above for the full version.
