2A9YW-HYZS-A11-B3 in 1 Wireless Charging Station

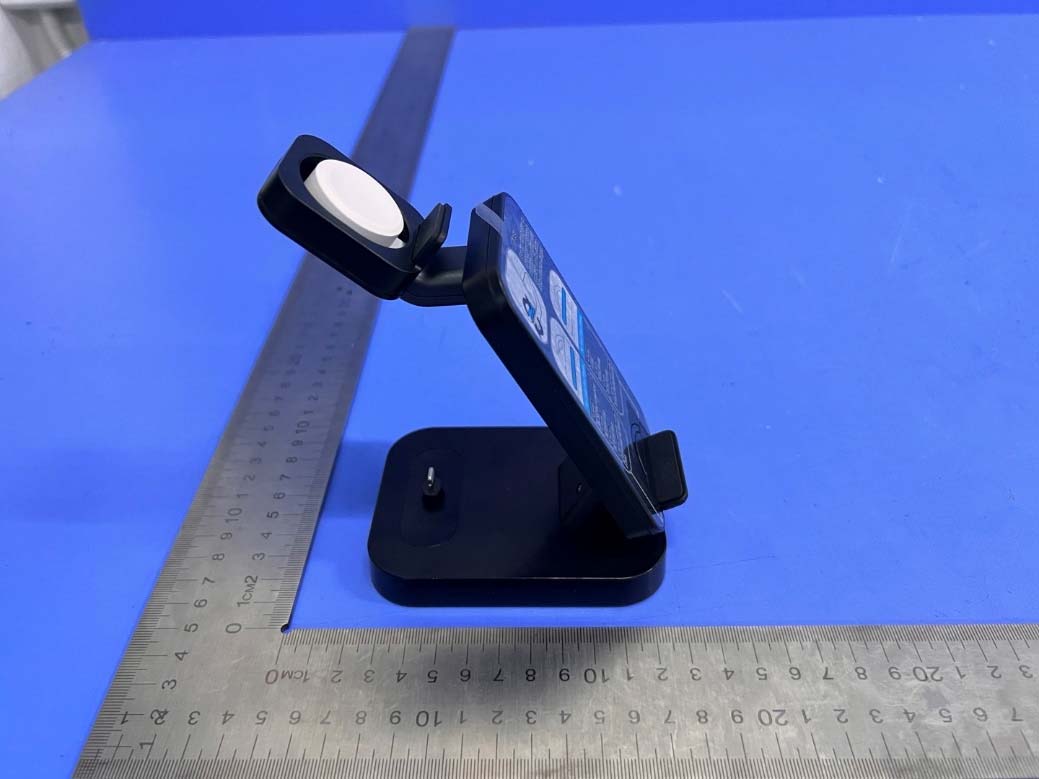

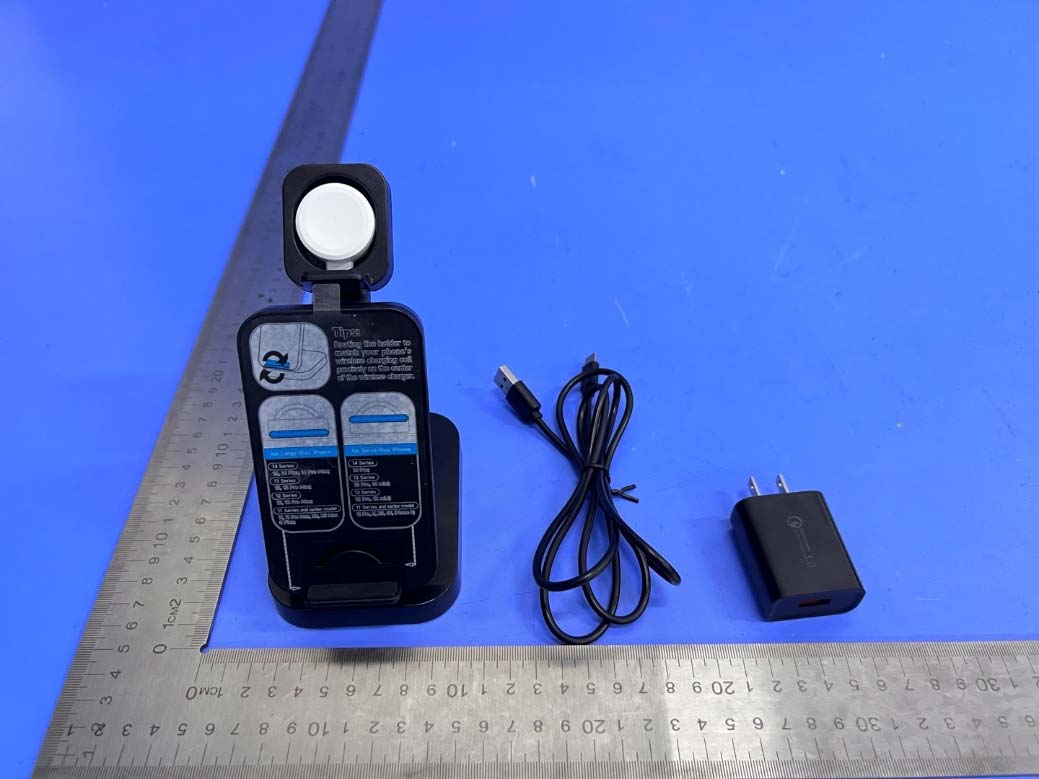

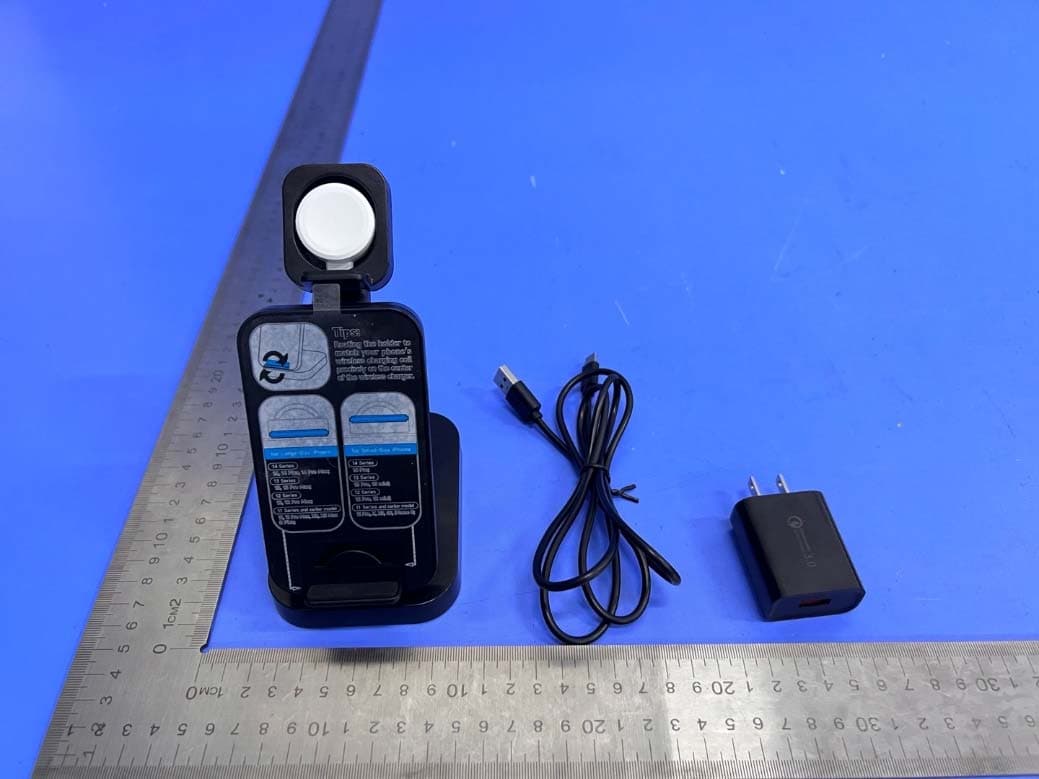

FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo 3 Appearance of Adapter Photo 4 Appearance of EUT FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of Adapter

FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Appendix IID Label Appendix II ID Label Location shenzhenshihongyaozhuangshigongchengyouxiangongsi 3 in 1 Wireless Charging Station Model NO.: HYZS-A11-B Input: DC5V/3A 9V/2A 12V/1.5A Output: Phone:5W/7.5/10W Watch: DC5V 0.5A Earphone: DC5V 0.5A FCC ID: 2A9YW-HYZS-A11-B Made In China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of PCB Photo 8 Internal of PCB FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo 9 Internal of PCB Photo 10 Internal of PCB FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo 11 Internal of PCB Photo 12 Internal of EUT Watch Antenna1 Phone Antenna2 FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo 13 Internal of PCB Photo 14 Internal of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202212-0191-1 Page: 1 of 11 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A9YW-HYZS-A11-B 1. Client Information Applicant : shenzhenshihongyaozhuangshigongchengyouxiangongsi Address : bantianjiedaojihualu505haodadangongyeyuan6dong304shishenzhen518000.China Manufacturer : shenzhenshihongyaozhuangshigongchengyouxiangongsi Address : bantianjiedaojihualu505haodadangongyeyuan6dong304shishenzhen518000.China 2. General Description of EUT EUT Name : 3 in 1 Wireless Charging Station Model(s) : HYZS-A11-B, HYZS-A11-RG, HYZS-A11-G, HYZS-A11-S, HYZS-A11-Blue, HYZS-A11-TG, HYZS-A11-Green, HYZS-A11-C, HYZS-A11-P, HYZS-A11-W Sample ID : 202212-0191-1-1# Model Difference : All these models are identical in the same PCB layout and electrical circuit, the only difference is color. Product Description : Operation Frequency: Watch:300-350KHz Phone:113-205KHz Modulation Type: ASK Antenna: Coil Antenna 1 (Watch) Coil Antenna 2 (Phone) Power Supply : Adapter(CA-25) Input: AC 100~240V 50/60Hz, 0.5A Output: DC 3.6-6.5V/3A, DC6.5V-9V2A, DC9V-12V, 1.5A Earphone Charger output: DC 5V0.5A(Max) Watch Wireless Charger output: DC 5V0.5A Phone Wireless Charger output: 5W/7.5W/10W Software Version : V1.0 Hardware Version : V1.2 Connecting I/O Port(S) : : Please refer to the User's Manual Accessories : Apple Phone11 and Apple Watch Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202212-0191-1 Page: 2 of 11 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TBR-C-202212-0191-1 Page: 3 of 11 TB-RF-074-1.0 3. Test Setup Note: The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 4.Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 15cm Report No.: TBR-C-202212-0191-1 Page: 4 of 11 TB-RF-074-1.0 5. Equipment Approval Considerations The EUT does comply with item 5.2 of KDB 680106 D01v03 as follows table; Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 113 KHz - 205 KHz and 300KHz -350KHz Output power from each primary coil is less than 15 watts Yes The maximum output power of the primary coil less than 15W. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes The transfer system includes only single primary and secondary coils. Charging systems have two primary coils and clients that are able to detect and allow coupling only between individual pairs of coilsand the coil pairs powered on at the same time. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions and mobile exposure conditions The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. In all other cases, unless excluded above, an RF exposure evaluation report must be reviewed and accepted through a KDB or PBA inquiry to enable authorization of the equipment. When evaluation is required to show compliance; for example, using field strength, power density, SAR measurements or computational modeling etc., the specific authorization requirements will be determined based on the results of the RF exposure evaluation 6. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 09, 2022 Sep. 08, 2023 7. Deviation from Test Standard No deviation 8. Mode of operation during the test / Test peripherals used Test Modes: TM1 AC/DC Adapter + EUT + Earphone +Phone+ Watch (Battery Status: <1%) record TM2 AC/DC Adapter + EUT + Earphone +Phone+ Watch (Battery Status: <50%) record TM3 AC/DC Adapter + EUT + Earpho…

Text truncated - open the document above for the full version.

SPECIFICATION Product model:DESC JYC0-F19.5X27.5-80-FR Version Rev:A CustomerJYCCC07 Description Double coil + hard magnetic Date 20221220 I.DIMENSION: (mm) A27.5±1.0 B19.5±1.0 C48.0±1.5 D41.0±1.5 E19.5±1.0 F27.5±1.0 G41.0±1.5 H48.0±1.5 I8.0±1.5 J80.0±3.0 K40.0±2.0 L0.8±0.15 M3.5±1.5 N93.0±1.0 O51.5±1.0 P Note: 1. Double coil paste double hard magnetic 2. Wrap 5MM high-temperature tape around the position where the coil exits 3. There is double-sided tape on the back of magnetic sheet, 91*50 4. The coil must not be loosened II.schematic diagram III.WindingSpecification： NO. TERMINALWIRETurnsWinding Direction 1 0.08×105P silk covered wire 9TScounterclockwise IV.ELECTRICAL CHARACTERISTICS: TEMPERATURE: 25±10°C, RELATIVE HUMIDITY: 65±20% NO. ITEMTERMINALSPECIFICATIONTEST FREQUENCYTEST EQUIPMENTS 1 IND. 6.8uH Magnetic plate100KHZ/1.0VSHDA 1062 I.Plane structure diagram: Unit :MM magnet A7.6±0.05 B2.0±0.05 C2±1 D14±0.2 E20.7±0.3 F2.1±0.2 G7.7±0.05 H13.5±0.2 I23.5±0.3 J25±0.3 K2.55±0.1 L 2.25±0.1 Height of center column M120±2 II.Product parameters: Foot positionLine diameterNumber of turnsremarks 1-20.08*2414Hot air twisted wire III.Technical requirements: (Magnetic force of magnet is 3000 Gauss)

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202212-0191-2 Page: 1 of 27 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2A9YW-HYZS-A11-B Original Grant Report No. : TBR-C-202212-0191-2 Applicant : shenzhenshihongyaozhuangshigongchengyouxiangongsi Equipment Under Test (EUT) EUT Name : 3 in 1 Wireless Charging Station Model No. : HYZS-A11-B Series Model No. : HYZS-A11-RG, HYZS-A11-G, HYZS-A11-S, HYZS-A11-Blue, HYZS-A11-TG, HYZS-A11-Green, HYZS-A11-C, HYZS-A11-P, HYZS-A11-W Brand Name : Conido Sample ID : 202212-0191-1-1# Receipt Date : 2023-01-04 Test Date : 2023-01-04 to 2023-01-12 Issue Date : 2023-01-13 Standards : FCC Part 15, Subpart C(15.209) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above Test/Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202212-0191-2 Page: 2 of 27 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 16 6.5 EUT Operating Condition ................................................................................................. 16 6.6 Test Data ............................................................................................................................. 16 7. BANDWIDTH MEASUREMENT ............................................................................................ 17 7.1 Test Standard and Limit .................................................................................................... 17 7.2 Test Setup ........................................................................................................................... 17 7.3 Test Procedure ................................................................................................................... 17 7.4 Deviation From Test Standard ......................................................................................... 17 Report No.: TBR-C-202212-0191-2 Page: 3 of 27 TB-RF-074-1.0 7.5 EUT Operating Condition ................................................................................................. 17 7.6 Test Data ............................................................................................................................. 17 8. ANTENNA REQUIREMENT ...........................…

Text truncated - open the document above for the full version.

FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (9KHz~30MHz) Photo of Setup for Radiated Emission (30M~1G) FCC ID: 2A9YW-HYZS-A11-B TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
