2AA22SR10SPORTS CAM

User Manual Warning : FCC Mark Warning : This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Exposure Statement : This equipment complies with RFCC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum 20cm between the radiator and your body.

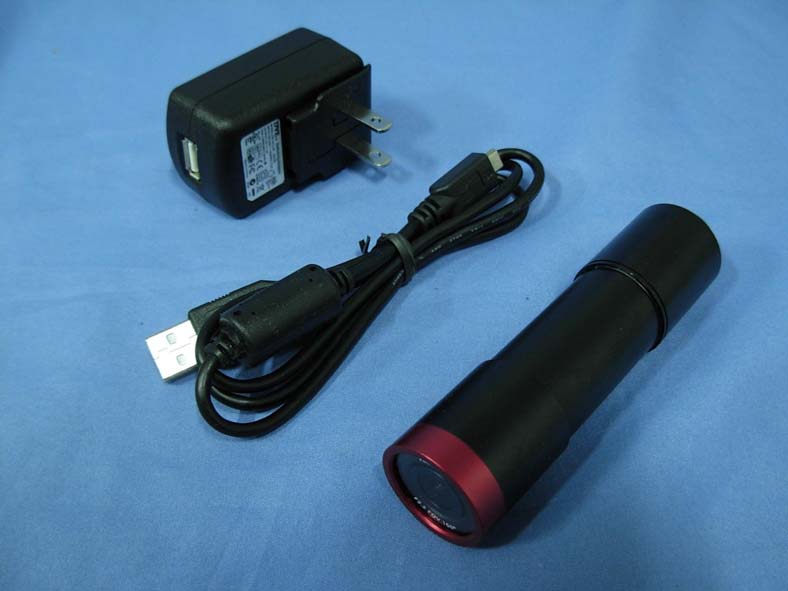

Report No： 138403R-RFUSP28V01 Page: 132 of 145 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: 2AA22SR10 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. SPORTS CAM Model No.: SR10 FCC ID : 2AA22SR10 S/N: Made in Taiwan Trade name: SanJet Model number.: SR10

FCC ID.: 2AA22SR10 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. SPORTS CAM Model No.: SR10 FCC ID : 2AA22SR10 S/N: Made in Taiwan Trade name: SanJet Model number.: SR10

Report No： 138403R-RFUSP28V01 Page: 133 of 145 (3) EUT Photo (4) EUT Photo Report No： 138403R-RFUSP28V01 Page: 134 of 145 (5) EUT Photo (6) EUT Photo Report No： 138403R-RFUSP28V01 Page: 135 of 145 (7) EUT Photo (8) EUT Photo Report No： 138403R-RFUSP28V01 Page: 136 of 145 (9) EUT Photo (10) EUT Photo Report No： 138403R-RFUSP28V01 Page: 137 of 145 (11) EUT Photo (12) EUT Photo Report No： 138403R-RFUSP28V01 Page: 138 of 145 (13) EUT Photo(MB) Report No： 138403R-RFUSP28V01 Page: 139 of 145 (14) EUT Photo (15) EUT Photo Report No： 138403R-RFUSP28V01 Page: 140 of 145 (16) EUT Photo (17) EUT Photo Report No： 138403R-RFUSP28V01 Page: 141 of 145 (18) EUT Photo (19) EUT Photo Report No： 138403R-RFUSP28V01 Page: 142 of 145 (20) EUT Photo (21) EUT Photo Report No： 138403R-RFUSP28V01 Page: 143 of 145 (22) EUT Photo (23) EUT Photo Report No： 138403R-RFUSP28V01 Page: 144 of 145 (24) EUT Photo (25) EUT Photo (Battery) Report No： 138403R-RFUSP28V01 Page: 145 of 145 (26) EUT Photo (Adapter) (27) EUT Photo ( Antenna)

Report No. 138403R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name：SPORTS CAM Model No. ：SR10 FCC ID. ：2AA22SR10 Applicant : SanJet Technology Corp. Address : 4F, No.2, Li-Hsin 6th Rd., Hsinchu Science Park, Hsinchu, Taiwan, R.O.C Date of Receipt : 2013/08/20 Date of Declaration : 2013/09/23 Report No. : 138403R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 138403R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 138403R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product SPORTS CAM Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 2.2284 0.00044 6 2437 2.8054 0.00056 11 2462 3.8459 0.00077 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 0.6855 0.00014 6 2437 0.8511 0.00017 11 2462 1.1298 0.00022 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 138403R-RF-US-Exp Page: 4 of 4 Product SPORTS CAM Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 0.6295 0.00013 6 2437 0.7925 0.00016 11 2462 1.0568 0.00021 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 138403R-RFUSP28V01 Page: 1 of 145 FCC Test Report Product Name：SPORTS CAM Model No. ：SR10 FCC ID. ：2AA22SR10 Applicant ： SanJet Technology Corp. Address ： 4F, No.2, Li-Hsin 6th Rd., Hsinchu Science Park, Hsinchu, Taiwan, R.O.C Date of Receipt：2013/08/20 Issued Date ：2013/09/23 Report No. ：138403R-RFUSP28V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 138403R-RFUSP28V01 Page: 2 of 145 Test Report Certification Issued Date : 2013/09/23 Report No. : 138403R-RFUSP28V01 Product Name ： SPORTS CAM Applicant ： SanJet Technology Corp. Address ： 4F, No.2, Li-Hsin 6th Rd., Hsinchu Science Park, Hsinchu, Taiwan, R.O.C Manufacturer ： SanJet Technology Corp. Model No. ： SR10 FCC ID. ： 2AA22SR10 EUT Test Voltage : DC 5V Trade Name ： Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Quale Tang / Senior Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 138403R-RFUSP28V01 Page: 3 of 145 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 138403R-RFUSP28V01 Page: 4 of 145 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .......................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 22 3. Peak Power Output ............................................................................................................ 24 3.1. Test Equipment............................................................................................................. 24 3.2. Test Setup .................................................................................................................... 24 3.3. Test procedures ............................................................................................................ 24 3.4. Limits ............................................................................................................................ 24 3.5. Test Specification.......................................................................................................... 24 3.6. Uncertainty ................................................................................................................... 24 3.7. Test Result.....................................................................................................…

Text truncated - open the document above for the full version.

Report No： 138403R-RFUSP28V01 Page: 67 of 145 5. RF antenna conducted test 5.1. Test Equipment The following test equipments are used during the test: RF antenna conducted test / SR7 Instrument ManufacturerModel No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A-EXA US47140172 2014/08/05 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 5.2. Test Setup RF Antenna Conducted Measurement: Report No： 138403R-RFUSP28V01 Page: 68 of 145 5.3. Limits In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on an RF conducted or radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 5.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements Set RBW = 100 kHz, Set VBW> RBW, scan up through 10th harmonic. 5.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 5.6. Uncertainty Conducted is defined as ± 1.27dB Report No： 138403R-RFUSP28V01 Page: 69 of 145 5.7. Test Result Product Wireless Day/Night Cloud Camera Test Item RF antenna conducted test Test Mode Mode 1: Transmit (Power by PC) Date of Test 2013/08/31 Test Site SR7 IEEE 802.11b, ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 47.04 ≧20 Pass 11 2462 49.12 ≧20 Pass Channel 1 (2412MHz) Report No： 138403R-RFUSP28V01 Page: 70 of 145 Channel 11 (2462MHz) Report No： 138403R-RFUSP28V01 Page: 71 of 145 Product Wireless Day/Night Cloud Camera Test Item RF antenna conducted test Test Mode Mode 1: Transmit (Power by PC) Date of Test 2013/08/31 Test Site SR7 IEEE 802.11g, ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 33.00 ≧20 Pass 11 2462 43.26 ≧20 Pass Channel 1 (2412MHz) Report No： 138403R-RFUSP28V01 Page: 72 of 145 Channel 11 (2462MHz) Report No： 138403R-RFUSP28V01 Page: 73 of 145 Product Wireless Day/Night Cloud Camera Test Item RF antenna conducted test Test Mode Mode 1: Transmit (Power by PC) Date of Test 2013/08/31 Test Site SR7 IEEE 802.11n (20MHz), ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 30.80 ≧20 Pass 11 2462 42.74 ≧20 Pass Channel 1 (2412MHz) Report No： 138403R-RFUSP28V01 Page: 74 of 145 Channel 11 (2462MHz) Report No： 138403R-RFUSP28V01 Page: 75 of 145 2412MHz (30MHz-25GHz)-802.11b 2462MHz (30MHz-25GHz) -802.11b Report No： 138403R-RFUSP28V01 Page: 76 of 145 2412MHz (30MHz-25GHz)-802.11g 2462MHz (30MHz-25GHz) -802.11g Report No： 138403R-RFUSP28V01 Page: 77 of 145 2412MHz (30MHz-25GHz)- 802.11n(20MHz) Ant0 2462MHz (30MHz-25GHz) -802.11n(20MHz) Ant0 Report No： 138403R-RFUSP28V01 Page: 78 of 145 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 138403R-RFUSP28V01 Page: 79 of 145 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 138403R-RFUSP28V01 Page: 80 of 145 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/08/27 - 15:31 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 5V EUT : SPORTS CAM Note : Mode 1: Transmit (Power by PC) 802.11b_2412MHz_axis-X Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB)Limit (dBuV/m) Detector Type 1 2310.000 27.862 29.23757.099-16.90174.000 PEAK 2 2383.480 28.052 31.02559.077-14.92374.000 PEAK 3 2390.000 28.069 29.63657.705-16.29574.000 PEAK 4 * 2412.760 28.128 59.59287.72013.72074.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measure Level = Reading Level + Correct Factor。 6. The average measurement was not performed when the peak measured data un…

Text truncated - open the document above for the full version.

Report No： 138403R-RFUSP28V01 Page: 22 of 145 2.8. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Conducted Emission Test Setup Report No： 138403R-RFUSP28V01 Page: 23 of 145 Test Mode ： Mode 2: Transmit (Power by adapter) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Power by adapter) Description： Back View of Conducted Emission Test Setup Report No： 138403R-RFUSP28V01 Page: 64 of 145 4.8. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 138403R-RFUSP28V01 Page: 65 of 145 Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Horn) Report No： 138403R-RFUSP28V01 Page: 66 of 145 Test Mode ： Mode 2: Transmit (Power by adapter) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Power by adapter) Description： Back View of Radiated Emission Test Setup (Bi-Log)
