2AA28SPEAKERBluetooth Speaker

FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Benway Electronics Co., Ltd Authority to Act as an Agent We declare that the following representative (agent) Name Jack kang Position EMC Manager Company Name Shenzhen TCT Testing Technology Co., Ltd Address 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, China Tel / Fax +86-0755-27363466/+86-0755-27673332 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Bluetooth Speaker Model Name Bluetooth Speaker Brand Name Benway Yours sincerely, Signatory 12 September 2013 Name Johnson Ye Position Manager Company Name Benway Electronics Co., Ltd Address FLAT/RM 1301 13/F NAN FUNG TOWER 173 DES VOEUX RD CENTRAL HK Tel / Fax 83048953 / 83464897 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Benway Electronics Co., Ltd FCC ID: 2AA28SPEAKER FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory 12 September 2013 Name Johnson Ye Position Manager Company Name Benway Electronics Co., Ltd Address FLAT/RM 1301 13/F NAN FUNG TOWER 173 DES VOEUX RD CENTRAL HK Tel / Fax 83048953 / 83464897 E-Mail [email protected]

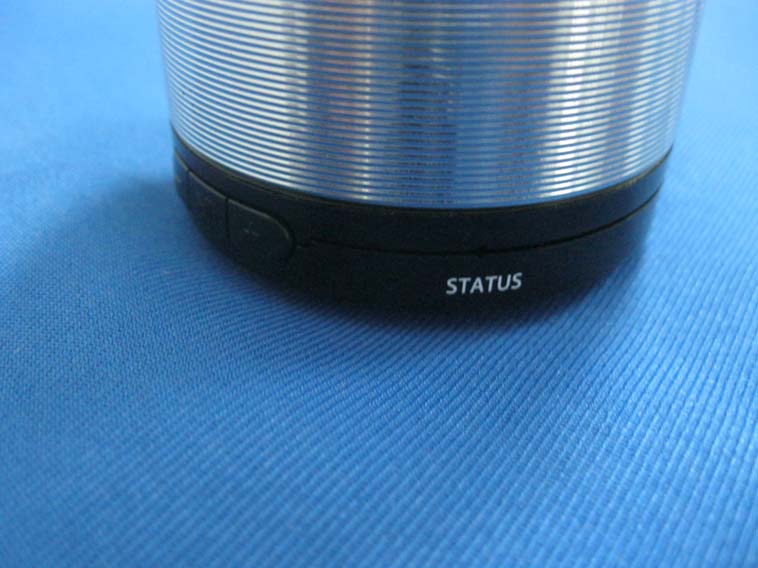

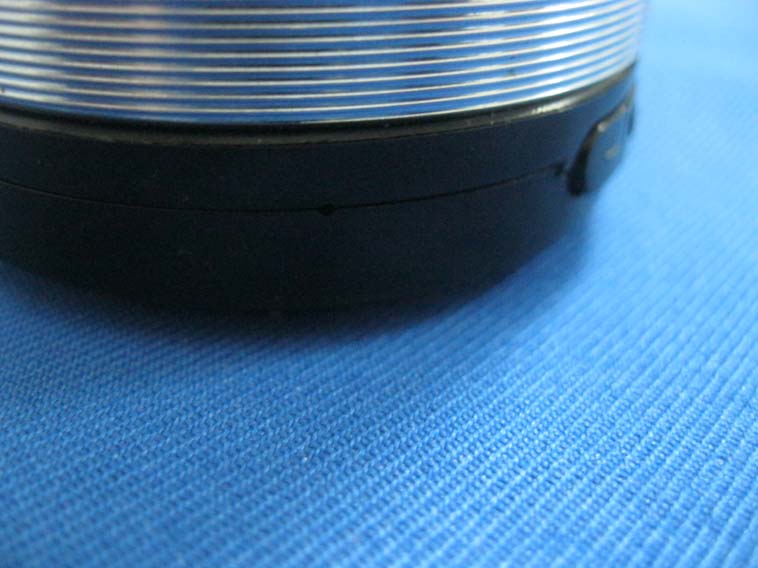

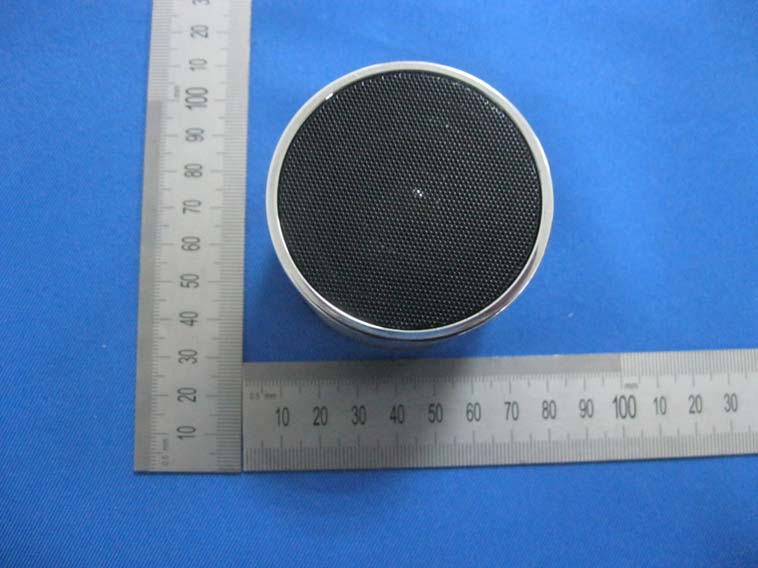

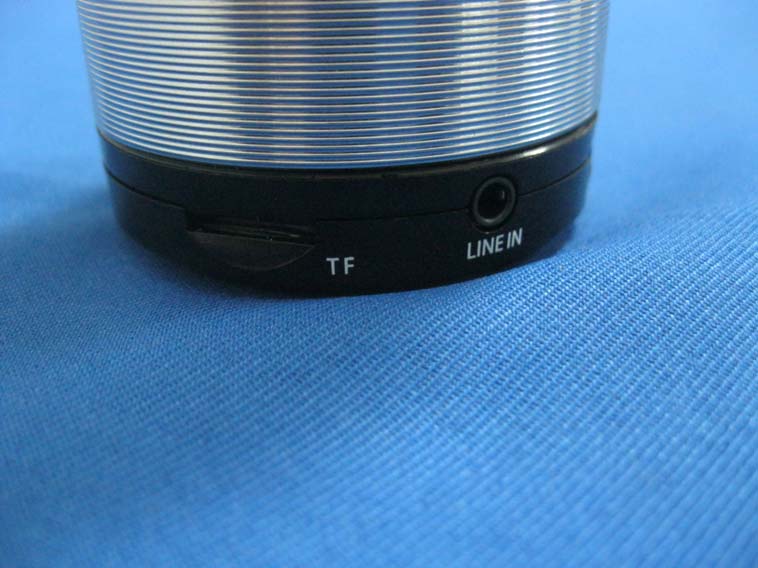

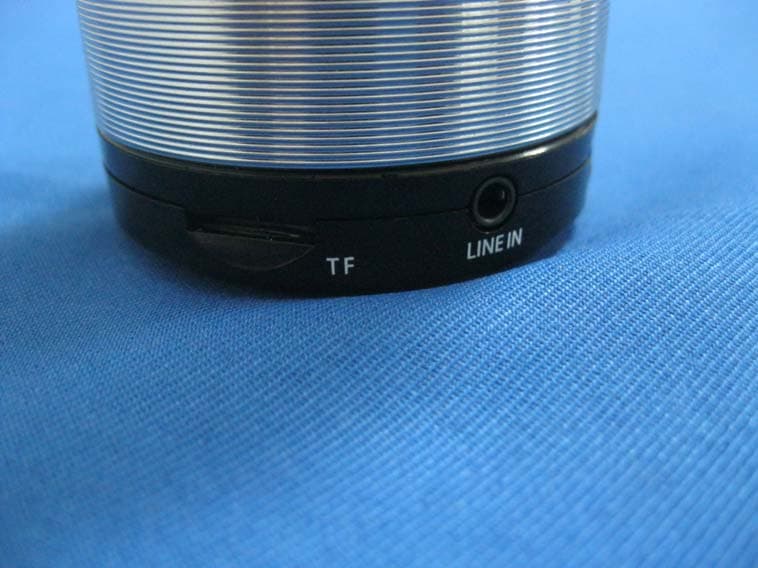

External photo

FCC ID: 2AA28SPEAKER Product: Bluetooth Speaker Model: Bluetooth Speaker Trade Name: Benway This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation LABEL ARTWORK AND LOCATION Label size: L*W=35*25mm FCC ID Label Location

Internal photo

FCC ID TEST REPORT for Bluetooth Speaker Model: Bluetooth Speaker FCC ID: 2AA28SPEAKER Prepared for: Benway Electronics Co., Ltd FLAT/RM 1301 13/F NAN FUNG TOWER 173 DES VOEUX RD CENTRAL HK Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT130912017F2-1 Date of Test： Sept. 18~Sept. 29, 2013 Date of Report： Sept. 29, 2013 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: 2AA28SPEAKER Report Number: TCT130912017F2-1 Page 2 of 53 Table of Contents 1.0 General Details ...................................................................................................3 1.1 Test Lab Details...................................................................................................3 1.2 Applicant Details.................................................................................................3 1.3 Description of EUT ..............................................................................................4 1.4 Submitted Sample.................................................................................................4 1.5 Test By............................................................................................................4 2.0 List of Measurement Equipment............................................................................5 3.0 Technical Details................................................................................................6 3.1 Summary of Test Results.......................................................................................6 3.2 Test Standards....................................................................................................6 4.0 EUT Modification...............................................................................................6 5.0 Measurement Uncertainty....................................................................................6 6.0 Power Line Conducted Emission Test......................................................................7 6.1 Schematics of the test...........................................................................................7 6.2 Test Method and Test Procedure...............................................................................7 6.3 EUT Operating Condition.......................................................................................7 6.4 Test Equipment...................................................................................................7 6.5 Conducted Emission Limit......................................................................................8 6.6 Photo documentation of the test set-up .....................................................................8 6.7 Test specification.................................................................................................8 6.8 Test result.........................................................................................................8 7.0 20 dB Bandwidth Measurement.............................................................................11 7.1 Test Equipment...................................................................................................11 7.2 Test Specification................................................................................................11 7.3 Limit...............................................................................................................11 7.4 Test status........................................................................................................ 11 7.5 Test Result........................................................................................................ 11 8.0 Maximum Peak Output Power..............................................................................15 9.0 Carrier Frequency Separation..............................................................................21 10.0 Number of Hopping Channels...............................................................................25 11.0 Time of Occupancy (Dwell Time).............................................................................27 12.0 Band age Measurement........................................................................................31 13.0 Spurious Emission Test........................................................................................40 14.0 Antenna Requirement.........................................................................................52 15.0 FCC ID Label...................................................................................................53 FCC ID: 2AA28SPEAKER Report Number: TCT130912017F2-1 Page 3 of 53 1.0 General Details 1.1 Test Lab Details Name : Shenzhen TCT Testing Technology Co.,Ltd Address: 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China Telephone: +86-0755-27673339 Fax: +86-0755-27673332 Site Listed with Federal Communication Commission Registration Number: 572331 For 3m chamber Site Listed with Industry Canada of Ottawa, Canada Registration Number IC: 10668A-1 For 3m chamber 1.2 Applicant Details Applicant: Benway Electronics Co., Ltd Address: FLAT/RM 1301 13/F NAN FUNG TOWER 173 DES VOEUX RD CENTRAL HK Telephone: 83048953 Fax: 83464897 Manufacturer: Shenzhen Benway Electronics Co., Ltd. Address: 3/F, Block C6, Zone C, Fuhai Industrial Zone, FuHai Road East, Fuyong, Bao’an, Shenzhen Telephone: 83048953 Fax: 83464897 FCC ID: 2AA28SPEAKER Report Number: TCT130912017F2-1 Page 4 of 53 1.3 Description of EUT Product: Bluetooth Sp…

Text truncated - open the document above for the full version.

Setup photo Radiated test Conducted test
