2AA3EFW200LFixed Wireless Telephone

Warning: Charge the phone for 24 hours before use. Fixed Wireless Telephone Model: FW200L Welcome... to your new Motorola FW200L Fixed Wireless Telephone! • GSM quad band (850 / 900 / 1800 / 1900MHz). • Unlocked to all GSM (2G) networks. 1 • Send and receive SMS. • Store up to 200 SMS messages on the FW200L base, messages can also be stored on the SIM card. 2 • Battery back up (long rechargeable battery life). • Store up to 1000 name and numbers in the FW200L phonebook, contacts can also be stored on the SIM card. 2 • Bright backlit display. • Facility to block up to 20 phone numbers. • Speakerphone for hands-free conversations. • 8 speed dial memory keys for easy dialling. • Choose from 20 different ringer melodies. • Date, time and alarm facility. • Caller ID shows you who’s calling and see details of the last 20 callers in a calls list. • Redial up to 20 of the last numbers called. • FM radio. • Screen lock. • Calendar and calculator. Need help? If you have any problems setting up or using your FW200L, please contact Customer services: xxxxxxxxxxxxxxx Alternatively, you may find the answer in the ‘Help’ section at the back of this guide. 1 A 4G SIM is compatible with the FW200L but it will only work with 2G networks. 2 Number dependent on the capacity of the SIM card. SIM card not included. This User Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages. Got everything? • Corded handset and curly cord. • Corded base with antenna. • 3 x 550 mAh NiMH battery pack. • Micro USB cord. • User guide. ECOMOTO: a convergence of efforts by marketing, design, research, engineering and supply chain management that leads to better products for everyone. A holistic view that focuses on both social and environmental responsibility. A passion and a shared point of view. The right thing to do. • Meets and / or exceeds EMEA environmental regulatory requirements. • Eco friendly packaging with a minimum 20% post consumer recycled content. • Phone housing is built with a minimum of 25% post consumer recycled content plastic. • Energy efficient charger that meets EU Code of Conduct requirements. 4 1. Getting started .....................................................................6 2. Getting to know your phone ................................................9 3. Using the phone .................................................................14 3.1 Inserting the SIM ............................................................................................14 3.3 Calls ...............................................................................................................14 3.3.1 Make a call ...........................................................................................14 3.3.2 Preparatory dialling .............................................................................14 3.3.3 Make a call using speed dial keys .......................................................14 3.3.4 End a call .............................................................................................14 3.3.5 End a single call ..................................................................................15 3.3.6 Receive a call ......................................................................................15 3.4 Adjust the earpiece or hands-free volume ....................................................15 3.5 Mute ...............................................................................................................15 3.6 Hold ................................................................................................................15 4. Phonebook .........................................................................16 4.1 Entering names and writing tips ...................................................................16 4.2 Storing contacts .............................................................................................16 4.2.1 Preferred storage - SIM or phone .......................................................16 4.2.2 Store contacts .....................................................................................16 4.2.3 Move or copy individual contacts ......................................................17 4.2.4 Move or copy all contacts ...................................................................17 4.3 View contacts .................................................................................................17 4.4 Dial contacts ..................................................................................................17 4.5 Edit a contact .................................................................................................18 4.6 Delete a contact ............................................................................................18 4.7 Delete all contacts .........................................................................................18 4.8 Turn the speed dial memory on/off ...............................................................18 4.9 Store a speed dial memory number ..............................................................19 4.10 Edit a direct memory number .......................................................................19 4.11 Delete a direct memory number...................................................................19 4.12 Memory status ...............................................................................................20 4.13 Send text message to a phonebook contact ................................................20 4.14 Add to blacklist ..............................................................................................20 5. Text messaging ...................................................................21 5.1 Write a message .....................................................…

Text truncated - open the document above for the full version.

Shenzhen Guo Wei Electronics Co. Ltd. No. 3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China Tel: 0755-2573 6666 Fax: 0755-2573 2288 Date: October 22, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Shenzhen Guo Wei Electronics Co., Ltd. No. 3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China. hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, ZhihengWisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District 518052, Shenzhen, CHINA Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Type of equipment: Fixed Wireless Telephone Model name: FW200L FCC ID: 2AA3EFW200L This authorization expires on December 31, 2015 Sincerely, Chief Technical Officer: CW Cheung Telephone Number: 0755 -2573 6666 Email: [email protected]

Shenzhen Guo Wei Electronics Co. Ltd. No. 3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China Tel: 0755-2573 6666 Fax: 0755-2573 2288 Date: October 22, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AA3EFW200L Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Shenzhen Guo Wei Electronics Co., Ltd. No. 3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics and PCB layout Parts List Block Diagrams Theory of Operation Turn-up procedure we also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Chief Technical Officer: CW Cheung Telephone Number: 0755 -2573 6666 Email: [email protected]

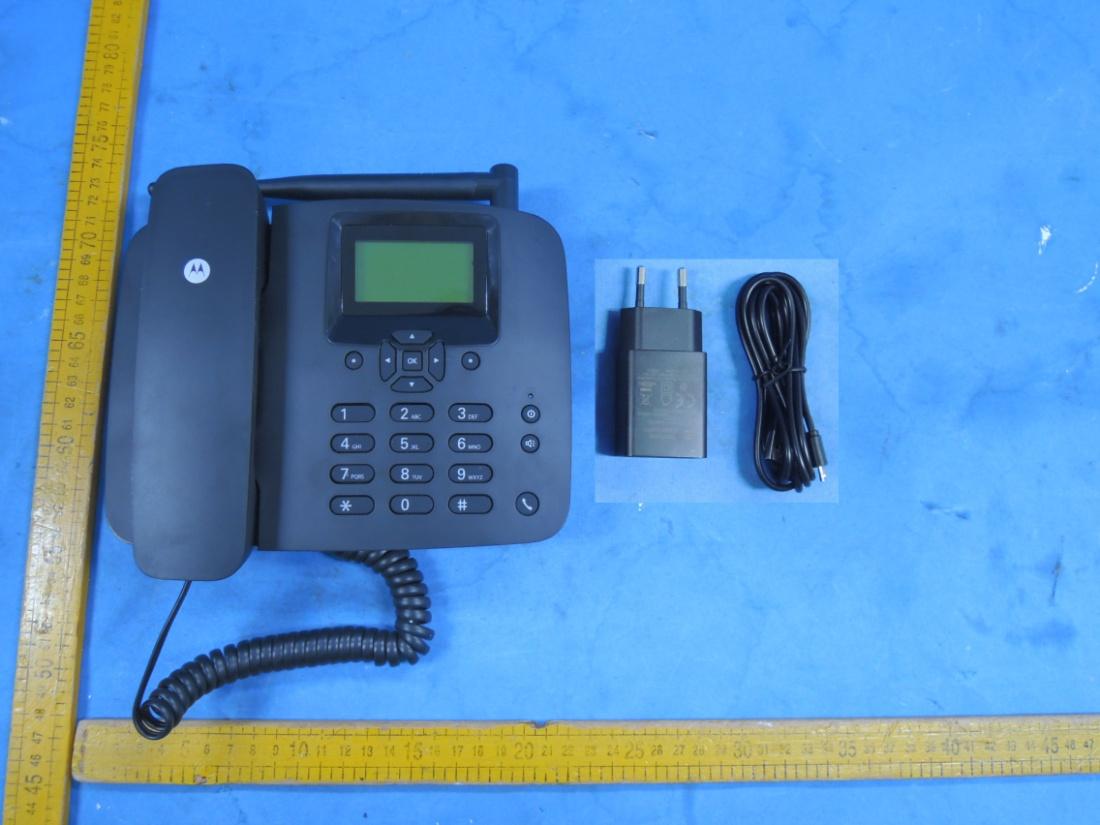

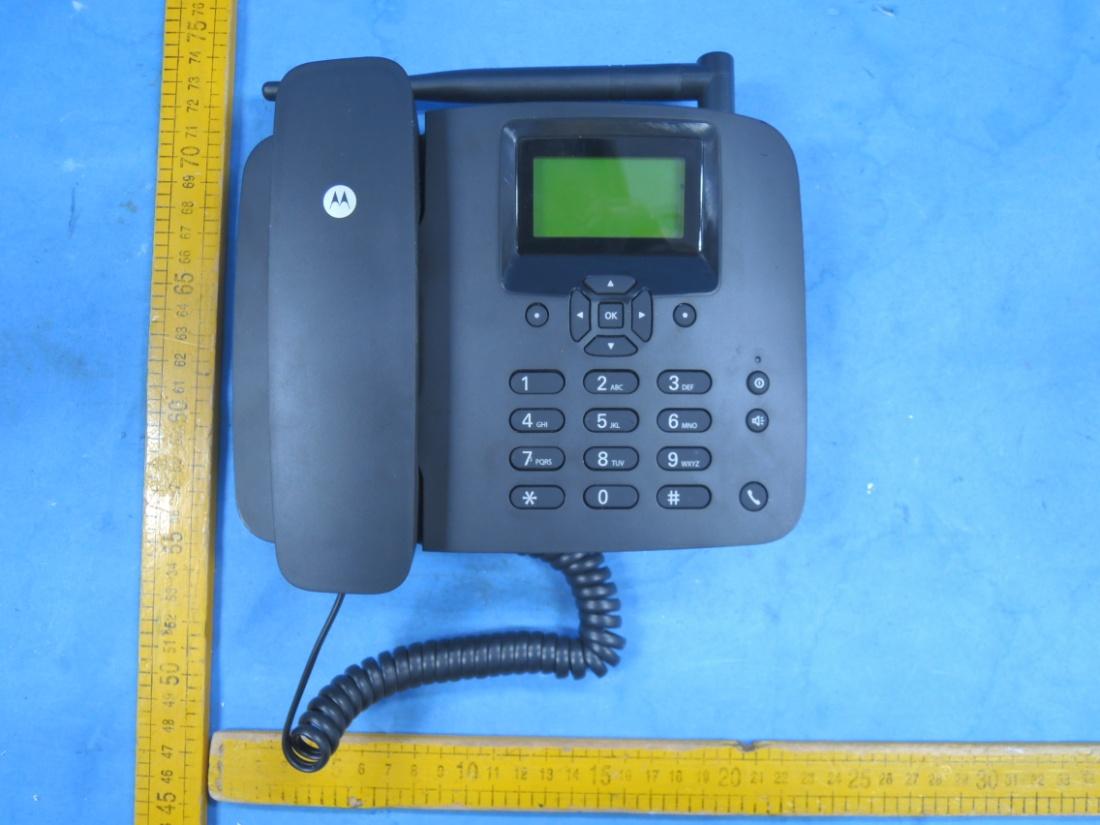

External photos

Base label Label size: W58mm x H35mm (R=1mm, D1xD1) Model: FW200L | Colour: Black | Country: US File: PL_FW200L_US_Black _v1 Label font: Moto Sans / Boldface Contact: [email protected] Date: 2015-10-22 Version: 1 PRODUCT LABEL ARTWORK FW200L Fixed Wireless Telephone, Made in China, Shenzhen Guo Wei Electronics Co., Ltd. DC5.0 V 500mA FCC ID: 2AA3EFW200L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FW200L Fixed Wireless Telephone, Made in China, Shenzhen Guo Wei Electronics Co., Ltd.DC5.0 V 500mA FCC ID: 2AA3EFW200L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Internal photos

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15N01014-SAR For Shenzhen Guo Wei Electronics Co., Ltd. Fixed Wireless Telephone Model Name: FW200L With Hardware Version: V1.0 Software Version: V0001 FCC ID: 2AA3EFW200L Issued Date: 2015-10-16 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com No.I15N01014-SAR Page 2 of 66 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I15N01014-SAR Rev.0 2015-10-16 Initial creation of test report No.I15N01014-SAR Page 3 of 66 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION .......................................................................................................... 13 8.1 SYSTEM SETUP ............................................................................................................................................. 13 8.2 SYSTEM VERIFICATION ................................................................................................................................. 14 9 MEASUREMENT PROCEDURES ............................................................................................ 15 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 15 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 16 9.5 POWER DRIFT ............................................................................................................................................... 17 10 AREA SCAN BASED 1-G SAR .............................................................................................. 18 10.1 REQUIREMENT OF KDB .............................................................................................................................. 18 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 18 11 CONDUCTED OUTPUT POWER ............................................................................................ 19 11.1 MANUFACTURING TOLERANCE ................................................................................................................... 19 11.2 GSM MEASUREMENT RESULT .......................................................................…

Text truncated - open the document above for the full version.

No.I15N01014-SAR Page 39 of 66 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.24269.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.45229.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3633 Head 850MHz June 12, 2015 850 MHz OK 3633 Head 1750MHz June 12, 2015 1750 MHz OK 3633 Head 1900MHz June 12, 2015 1900 MHz OK No.I15N01014-SAR Page 40 of 66 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe EX3DV4-SN:3633 Calibration Certificate No.I15N01014-SAR Page 41 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 42 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 43 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 44 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 45 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 46 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 47 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 48 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 49 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 50 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 51 of 66 ©Copyright. All rights reserved by CTTL. ANNEX H DIPOLE CALIBRATION CERTIFICATE 850 MHz Dipole Calibration Certificate No.I15N01014-SAR Page 52 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 53 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 54 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 55 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 56 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 57 of 66 ©Copyright. All rights reserved by CTTL.

No.I15N01014-SAR Page 58 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 59 of 66 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No.I15N01014-SAR Page 60 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 61 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 62 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 63 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 64 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 65 of 66 ©Copyright. All rights reserved by CTTL. No.I15N01014-SAR Page 66 of 66 ©Copyright. All rights reserved by CTTL.

Report No.: 68.950.15.272.01 Page 1 of 48 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 FCC Test Report Report No.: 68.950.15.272.01 FCC ID : 2AA3EFW200L Application Purpose : Original Equipment Product Type : Fixed Wireless Telephone Model Name : FW200L Applicant : Shenzhen Guo Wei Electronics Co., Ltd. Date Of Issue : October 12, 2015 Standard(S) : FCC Part 22H & 24E ( 2014-10) Report Version : V1.0 CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: 68.950.15.272.01 Page 2 of 48 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / October 20, 2015 Valid Original Report Report No.: 68.950.15.272.01 Page 3 of 48 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ....................................................................................................... 5 2. GENERAL INFORMATION .................................................................................................................. 6 2.1 PRODUCT DESCRIPTION ............................................................................................................................... 6 2.2 RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................ 7 2.3 TEST METHODOLOGY ........................................................................................................................................ 7 2.4 TEST FACILITY ...................................................................................................................................................... 7 2.5 MEASUREMENT INSTRUMENTS ...................................................................................................................... 7 2.6 SPECIAL ACCESSORIES .................................................................................................................................... 8 2.7 EQUIPMENT MODIFICATIONS .......................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................... 9 3.1 EUT CONFIGURATION ..................................................................................................................................... 9 3.2 EUT EXERCISE ..................................................................................................................................................... 9 3.4 CONFIGURATION OF EUT SYSTEM ................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................ 10 5. DESCRIPTION OF TEST MODES ..................................................................................................... 10 6. OUTPUT POWER ............................................................................................................................... 11 6.1 Conducted Output Power ................................................................................................................................. 11 6.2 RADIATED OUTPUT POWER ........................................................................................................................... 12 7. SPURIOUS EMISSION .......................................................................................................................................... 14 7.1 CONDUCTED SPURIOUS EMISSION ............................................................................................................. 14 7.2 Radiated Spurious Emission ........................................................................................................................... 31 9. FREQUENCY STABILITY .................................................................................................................. 35 9.1 MEASUREMENT METHOD ............................................................................................................................... 35 9.2 PROVISIONS APPLICABLE.............................................................................................................................. 35 9.3 MEASUREMENT RESULT (WORST) .............................................................................................................. 36 10. OCCUPIED BANDWIDTH ................................................................................................................ 38 10.1 MEASUREMENT METHOD ............................................................................................................................. 38 10.2 PROVISIONS APPLICABLE ........................................................................................................................... 38 Report No.: 68.950.15.272.01 Page 4 of 48 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, China, 518052 10.3 MEASUREMENT RESULT............................................................................................................................... 38 11. EMISSION BANDWIDTH ................................................................................................................. 42 11.1 MEASUREMENT METHOD ......................…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Radiated Emissions (Part 22/24) (below 3GHz) 2. Radiated Emissions (Part 22/24) (Above 3GHz)

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15N01014-SAR For Shenzhen Guo Wei Electronics Co., Ltd. Fixed Wireless Telephone Model Name: FW200L With Hardware Version: V1.0 Software Version: V0001 FCC ID: 2AA3EFW200L Issued Date: 2015-10-16 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com ©Copyright. All rights reserved by CTTL. Picture 1: front side of the sample Picture 2: back side of the sample ©Copyright. All rights reserved by CTTL. Test positions for body: The Body SAR is tested at the following test positions all with the distance =0mm between the EUT and the phantom bottom: Picture 3: Rear Touch Position 1 (Antenna towards Left) Rear Touch Position 2 (Antenna towards Down) ©Copyright. All rights reserved by CTTL. Rear Touch Position 3 (Antenna towards Right)
