2AA58GOLIFEEXTREMEWIFI smart waterproof DVR

User Manual Warning : FCC Mark Warning : This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Exposure Statement : This equipment complies with RFCC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum 20cm between the radiator and your body. 67 2013.09.18 144 X 54 mm Rack Huang / 4205 封面封底180P銅西卡 內頁80P模造

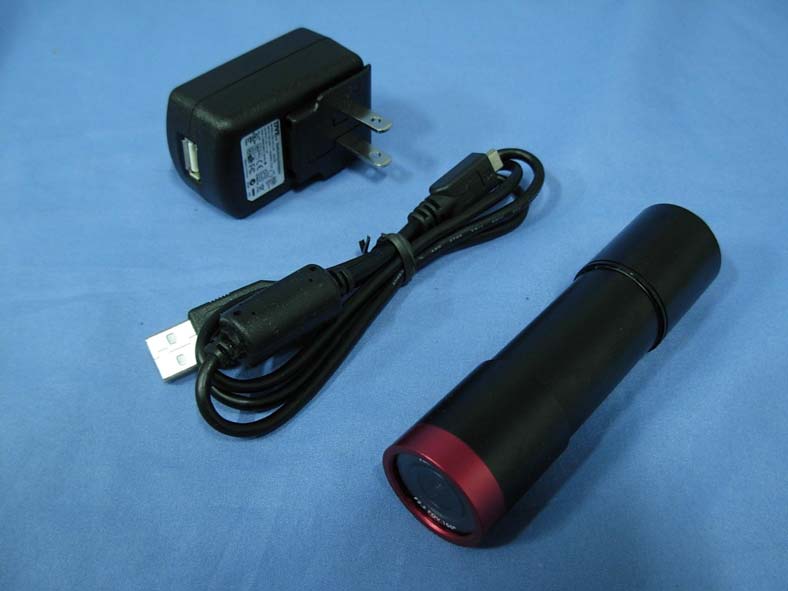

Report No： 1410009R-RFUSP25V00 Page: 132 of 145 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: 2AA58GOLIFEEXTREME FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. WIFI smart waterproof DVR Model No.: GoLife Extreme FCC ID : 2AA58GOLIFEEXTREME S/N: Made in Taiwan Trade name: PAPAGO! Model number.: GoLife Extreme

Report No： 1410009R-RFUSP25V00 Page: 133 of 145 (3) EUT Photo (4) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 134 of 145 (5) EUT Photo (6) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 135 of 145 (7) EUT Photo (8) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 136 of 145 (9) EUT Photo (10) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 137 of 145 (11) EUT Photo (12) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 138 of 145 (13) EUT Photo(MB) Report No： 1410009R-RFUSP25V00 Page: 139 of 145 (14) EUT Photo (15) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 140 of 145 (16) EUT Photo (17) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 141 of 145 (18) EUT Photo (19) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 142 of 145 (20) EUT Photo (21) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 143 of 145 (22) EUT Photo (23) EUT Photo Report No： 1410009R-RFUSP25V00 Page: 144 of 145 (24) EUT Photo (25) EUT Photo (Battery) Report No： 1410009R-RFUSP25V00 Page: 145 of 145 (26) EUT Photo (Adapter) (27) EUT Photo ( Antenna)

Report No. 1410009R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name：WIFI smart waterproof DVR Model No. ：GoLife Extreme FCC ID. ：2AA58GOLIFEEXTREME Applicant : PAPAGO INC. Address : 4F., No.200, Gangcian Rd., Neihu District, Taipei City 11494, Taiwan, R.O.C Date of Receipt : 2013/12/26 Date of Declaration : 2013/12/26 Report No. : 1410009R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1410009R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1410009R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product WIFI smart waterproof DVR Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 2.2284 0.00044 6 2437 2.8054 0.00056 11 2462 3.8459 0.00077 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 0.6855 0.00014 6 2437 0.8511 0.00017 11 2462 1.1298 0.00022 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1410009R-RF-US-Exp Page: 4 of 4 Product WIFI smart waterproof DVR Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 0.6295 0.00013 6 2437 0.7925 0.00016 11 2462 1.0568 0.00021 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 1410009R-RFUSP25V00 Page: 1 of 145 FCC Test Report Product Name：WIFI smart waterproof DVR Model No. ：GoLife Extreme FCC ID. ：2AA58GOLIFEEXTREME Applicant ： PAPAGO INC. Address ： 4F., No.200, Gangcian Rd., Neihu District, Taipei City 11494, Taiwan, R.O.C Date of Receipt：2013/12/26 Issued Date ：2013/12/26 Report No. ：1410009R-RFUSP25V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 1410009R-RFUSP25V00 Page: 2 of 145 Test Report Certification Issued Date : 2013/12/26 Report No. : 1410009R-RFUSP25V00 Product Name ： WIFI smart waterproof DVR Applicant ： PAPAGO INC. Address ： 4F., No.200, Gangcian Rd., Neihu District, Taipei City 11494, Taiwan, R.O.C Manufacturer ： SanJet Technology Corp. Model No. ： GoLife Extreme FCC ID. ： 2AA58GOLIFEEXTREME EUT Test Voltage : DC 5V Trade Name ： Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Quale Tang / Senior Engineer ) Approved By : ( Roy Wang / Director ) Report No： 1410009R-RFUSP25V00 Page: 3 of 145 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 1410009R-RFUSP25V00 Page: 4 of 145 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .......................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 22 3. Peak Power Output ............................................................................................................ 24 3.1. Test Equipment............................................................................................................. 24 3.2. Test Setup .................................................................................................................... 24 3.3. Test procedures ............................................................................................................ 24 3.4. Limits ............................................................................................................................ 24 3.5. Test Specification.......................................................................................................... 24 3.6. Uncertainty ................................................................................................................... 24 3.7. Test Result..........................................…

Text truncated - open the document above for the full version.

Report No： 1410009R-RFUSP25V00 Page: 22 of 145 2.8. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Conducted Emission Test Setup Report No： 1410009R-RFUSP25V00 Page: 23 of 145 Test Mode ： Mode 2: Transmit (Power by adapter) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Power by adapter) Description： Back View of Conducted Emission Test Setup Report No： 1410009R-RFUSP25V00 Page: 64 of 145 4.8. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 1410009R-RFUSP25V00 Page: 65 of 145 Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Horn) Report No： 1410009R-RFUSP25V00 Page: 66 of 145 Test Mode ： Mode 2: Transmit (Power by adapter) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Power by adapter) Description： Back View of Radiated Emission Test Setup (Bi-Log)
