2AA5OCH4GCH4G Asset Tracker

Spark Technology Labs Inc.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 19, 2020
Application Purpose: Original Equipment
Date of Application: Aug 19, 2020
Equipment Note: CH4G Asset Tracker
Frequency Range: 700.50000000 - 713.50000000
Company: Spark Technology Labs Inc.
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CH4G Tracker User Manual For more information please visit our website at http://www.cloudhawk.com 1.FCC compliance statement: Your CloudHawkdevice complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to the CloudHawkdevice not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The CloudHawkdevice has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. The device generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the device does cause harmful interference to radio or television reception, which canbedetermined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) reorient or relocate the receiving antenna; (2) increase the separation between the device and receiver; (3) connect the device into an outlet on a circuit different from that to which the receiver is connected; and (4) consult the dealer or an experienced radio/TV technician for help. 2.Canadian compliance statement: Your CloudHawkdevice complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Changes or modifications to the CloudHawkdevice not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important: It is the user’s responsibility to ensure that the use of CloudHawkservices complies with the applicable laws in the country of usage. Spark Technology Labs Inc. is not responsible the user’s violation of any of the respective laws or regulations. For more information: Visit the CloudHawkwebsite (www.cloudhawk.com) for the latest updates and additional information on any of the CloudHawkfamily of products. Our Terms of Service are made available and maintained on the website regularly. © 2020 Spark Technology Labs Inc. CloudHawk® is a trademark of Spark Technology Labs Inc. Notice This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. Le dispositif a été con?u pour répondre à la demande générale de radioexposition. Mounting screw holes (4x) (for mounting on a flat surface) Sealing gland * 8-core connection cable CH4G Waterproof Tracker * Tie-strap mounting feature * WARNING: Please do not open the tracker or tamper the gland as this may compromise the waterproofing capability of the device and will void the warranty Hardware Overview Wire Connection NOTICE: The CH4G tracker comes as a fully functional tracking device and only needs a connection to a 12~24V DC power for battery charging. If you are interested in connecting to external sensors, such as temperature sensor, door sensor, etc., please contact an authorized installer for installation service. Please contact CloudHawk customer service at 1-844-344-9955 to find an authorized installer close to you. Wire ColorConnectto RedPositive of a 12~24V DC source BlackNegative of a 12~24V DC source Brown (optional) Ignitionwireof yourvehicle or equipment to detect ignition status White (optional) Doorsensor to detect the door open/close of your vehicle or trailer Green (optional) Your choice of temperature sensor, humidity sensor or cargo sensor and more Blue Yellow Grey(optional) Sensor ground Specification Dimensions 96.3mm ×94.2 mm ×33 mm Weight290 g Battery5200 mAhLithium-Ion Power supply12~24VDC Cellular technology Quad-bandGSM/GPRS LTE-M NB-IOT ConnectivityBluetooth 5.0 Low Energy PositioningA-GPS GPSsensitivity-161dBm (radiated, tracking) GPS accuracy3m (in good GPS signal condition) Designed by SparkTechLabsin Canada

Cover Letter(s)

Spark Technology Labs Inc. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.08.08 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Spark Technology Labs Inc. hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Rongrong Zhang Signature:

Cover Letter(s)

Spark Technology Labs Inc. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.08.08 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (CH4G Asset Tracker / CH4G /FCC ID: 2AA5OCH4G) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Tune up Procedure • Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Rongrong Zhang Signature:

External Photos

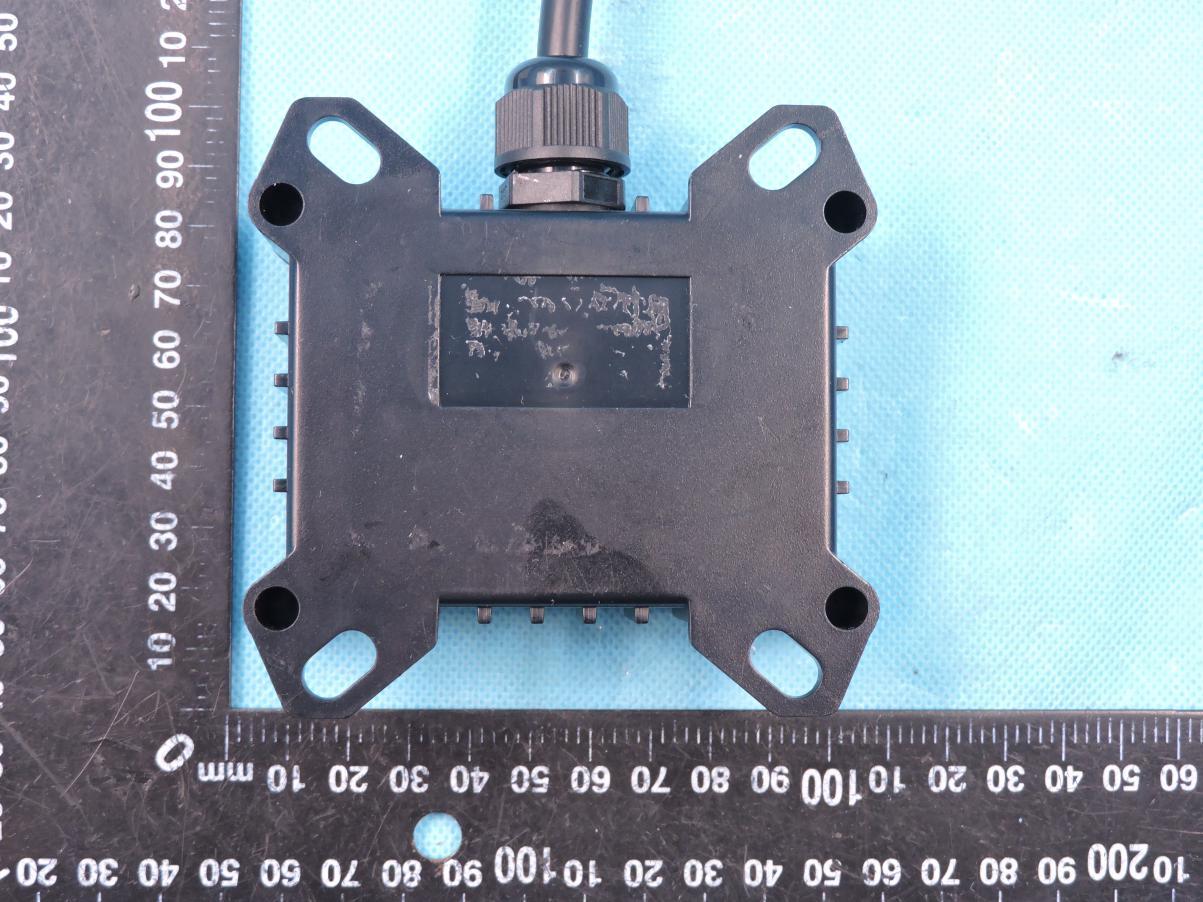

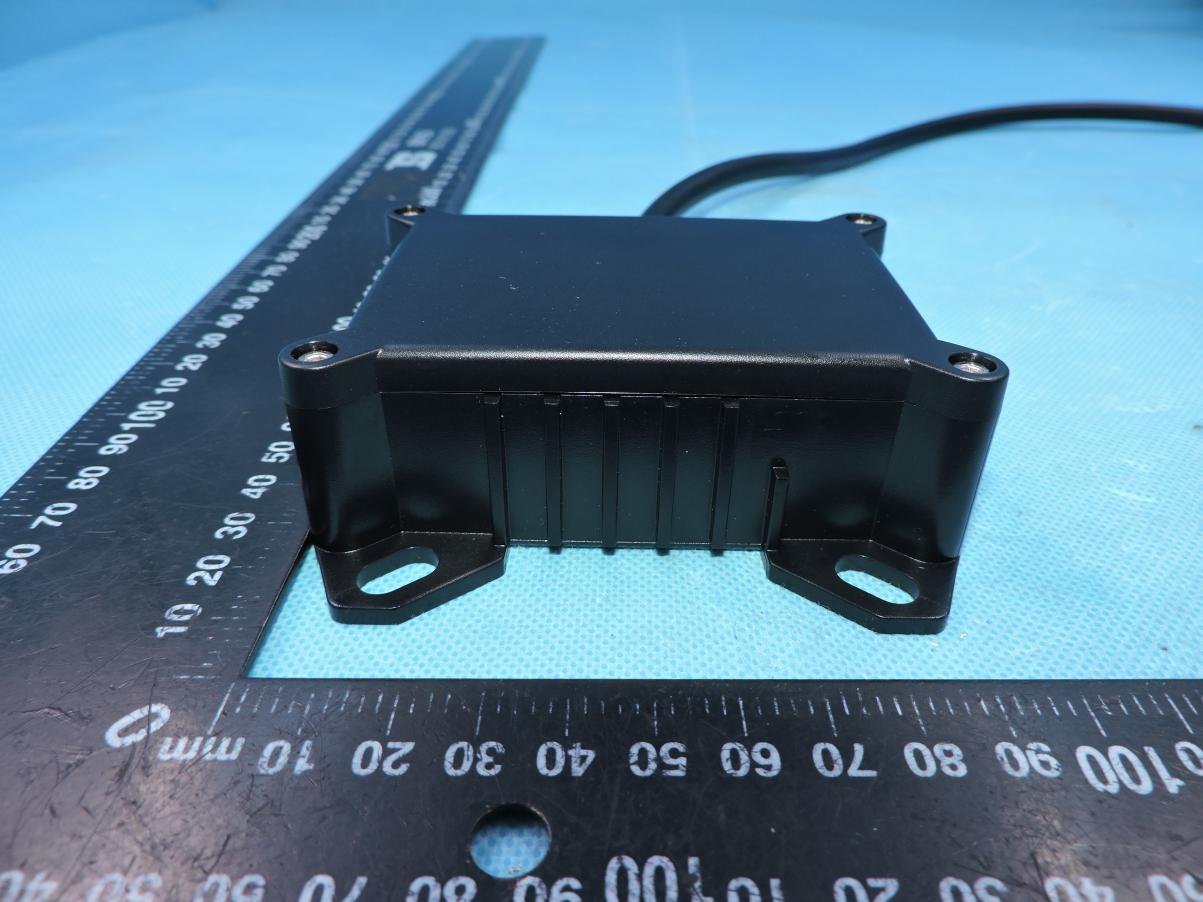

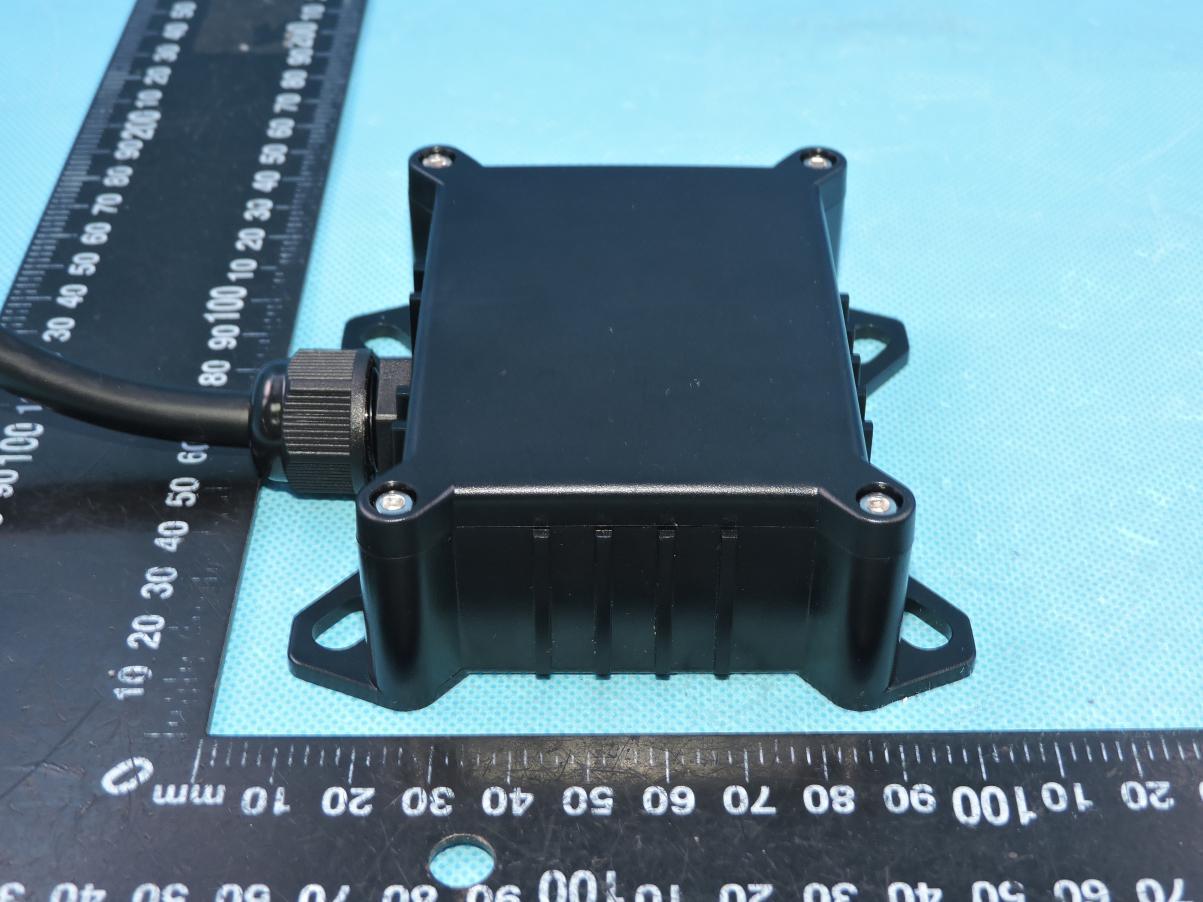

Page 1 of 3 Report No.: STS2007251 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: CH4G Photo 1 Photo 2 Page 2 of 3 Report No.: STS2007251 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2007251 Photo 5 Photo 6

ID Label/Location Info

Contains FCC ID: R17ME910G1WWContains IC: 513A-ME910G1WW

Internal Photos

Page 1 of 5 Report No.: STS2007251 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: CH4G Photo 1 Photo 2 Page 2 of 5 Report No.: STS2007251 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2007251 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2007251 Photo 7 Photo 8 BLE Antenna GNSS Antenna LTE/GPRS Antenna Page 5 of 5 Report No.: STS2007251 Photo 9

RF Exposure Info

RF Exposure Report FCC ID: 2AA5OCH4G RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. 1. BT5.0 Mode 2402-2480MHz Detector PEAK GFSK -1±1dBm ANT Gain (G) Antenna gain :-2dBi (gain of antenna in linear scale=0.63) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm² Limit (mW/cm²) GFSK 0.63 2402 0 1 0.000125 1 2. GSM Mode 850: 824 MHz ~ 849MHz 1900: 1850 MHz ~ 1910MHz 824 MHz ~ 849MHz 32.5±1dBm 1850 MHz ~ 1910MHz 30±1dBm ANT Gain (G) GSM 850: -2dBi (gain of antenna in linear scale=0.63) PCS 1900: -2dBi (gain of antenna in linear scale=0.63) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) GSM 850 0.63 848.80 33.50 2238.72 0.28 0.57 GSM 1900 0.63 1909.80 31.00 1258.93 0.16 1.00 3. LTE(CAT-M) Mode CAT-M Band 2:1850~1910MHz CAT-M Band 4:1710~1755MHz CAT-M Band 5:824~849MHz CAT-M Band 12:699~716MHz CAT-M Band 13:777~787MHz CAT-M Band 25:1850~1915MHz CAT-M Band 26:814~849MHz CAT-M Band 66:1710~1780MHz CAT-M Band 85:698~716MHz Band 2 23±1dBm Band 4 23±1dBm Band 5 23±1dBm Band 12 23±1dBm Band 13 23±1dBm Band 25 23±1dBm Band 26 23±1dBm Band 26(Part 90) 23±1dBm Band66 23±1dBm Band85 23±1dBm ANT Gain (G) :-2 dBi (gain of antenna in linear scale=0.63) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 0.63 1909.3 24 251.1886 0.031483 1.00 Band4 0.63 1754.3 24 251.1886 0.031483 1.00 Band5 0.63 848.3 24 251.1886 0.031483 0.57 Band12 0.63 715.3 24 251.1886 0.031483 0.48 Band13 0.63 784.5 24 251.1886 0.031483 0.52 Band25 0.63 1914.3 24 251.1886 0.031483 1.00 Band26 0.63 823.3 24 251.1886 0.031483 0.57 Band26(Part90) 0.63 848.3 24 251.1886 0.031483 0.57 Band66 0.63 1779.3 24 251.1886 0.031483 1.00 Band85 0.63 713.5 24 251.1886 0.031483 0.48 4. LTE(NB-IOT) Mode NB-IOT Band 2:1930 ~1990MHz NB-IOT Band 4:2110~2155MHz NB-IOT Band 5:869~894MHz NB-IOT Band 12:729~746MHz NB-IOT Band 13:746~756MHz NB-IOT Band 25:1930~1995MHz NB-IOT Band 26:859~894MHz NB-IOT Band 66:2110~2200MHz NB-IOT Band 71:617~652MHz NB-IOT Band 85:728~746MHz Band 2 23±1dBm Band 4 23±1dBm Band 5 23±1dBm Band 12 23±1dBm Band 13 23±1dBm Band 25 23±1dBm Band 26 23±1dBm Band 26(Part 90) 23±1dBm Band66 23±1dBm Band71 22±1dBm Band85 23±1dBm ANT Gain (G) :-2 dBi (gain of antenna in linear scale=0.63) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Band2 0.63 1909.3 24 251.1886 0.031483 1.00 Band4 0.63 1754.3 24 251.1886 0.031483 1.00 Band5 0.63 848.3 24 251.1886 0.031483 0.57 Band12 0.63 715.3 24 251.1886 0.031483 0.48 Band13 0.63 784.5 24 251.1886 0.031483 0.52 Band25 0.63 1914.3 24 251.1886 0.031483 1.00 Band26 0.63 823.3 24 251.1886 0.031483 0.57 Band26(Part90) 0.63 848.3 24 251.1886 0.031483 0.57 Band66 0.63 1779.3 24 251.1886 0.031483 1.00 Band71 0.63 697.9 23 199.5262 0.025007 0.48 Band85 0.63 713.5 24 251.1886 0.031483 0.48 5. Evaluate Simultaneous Protocol PD1+PD2 (mW/cm²) Total Power Density (mW/cm²) Limit (mW/cm²) BT+GSM =0.000125+0.28 0.280125 1 BT+LTE =0.000125+0.031483 0.031608 1 According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.280125 at distance 20cm. This is less than the limit 1, so the SAR test is not required.

Test Report

Page 1 of 18 Report No.: STS1912245W01 26dB Bandwidth and Occupied Bandwidth Band 2 Band 2 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 2 of 18 Report No.: STS1912245W01 Band 2 Band 2 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% QPSK_15M_6#0_Mid_26dB & 99% 16QAM_15M_5#0_Mid_26dB & 99% QPSK_20M_6#0_Mid_26dB & 99% 16QAM_20M_5#0_Mid_26dB & 99% Page 3 of 18 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 4 of 18 Report No.: STS1912245W01 Band 4 Band 4 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% QPSK_15M_6#0_Mid_26dB & 99% 16QAM_15M_5#0_Mid_26dB & 99% QPSK_20M_6#0_Mid_26dB & 99% 16QAM_20M_5#0_Mid_26dB & 99% Page 5 of 18 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 6 of 18 Report No.: STS1912245W01 Band 5 Band 5 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% Page 7 of 18 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 6QAM_5M_5#0_Mid_26dB & 99% Page 8 of 18 Report No.: STS1912245W01 Band 12 Band 12 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% Page 9 of 18 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% Page 10 of 18 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 11 of 18 Report No.: STS1912245W01 Band 25 Band 25 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% QPSK_15M_6#0_Mid_26dB & 99% 16QAM_15M_5#0_Mid_26dB & 99% QPSK_20M_6#0_Mid_26dB & 99% 16QAM_20M_5#0_Mid_26dB & 99% Page 12 of 18 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 13 of 18 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% QPSK_15M_6#0_Mid_26dB & 99% 16QAM_15M_5#0_Mid_26dB & 99% Page 14 of 18 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 15 of 18 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% Page 16 of 18 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_6#0_Mid_26dB & 99% 16QAM_1.4M_5#0_Mid_26dB & 99% QPSK_3M_6#0_Mid_26dB & 99% 16QAM_3M_5#0_Mid_26dB & 99% QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% Page 17 of 18 Report No.: STS1912245W01 Band 66 Band 66 QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99% QPSK_15M_6#0_Mid_26dB & 99% 16QAM_15M_5#0_Mid_26dB & 99% QPSK_20M_6#0_Mid_26dB & 99% 16QAM_20M_5#0_Mid_26dB & 99% Page 18 of 18 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_6#0_Mid_26dB & 99% 16QAM_5M_5#0_Mid_26dB & 99% QPSK_10M_6#0_Mid_26dB & 99% 16QAM_10M_5#0_Mid_26dB & 99%

Test Report

Page 1 of 20 Report No.: STS1912245W01 Band edge Band 2 Band 2 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 2 of 20 Report No.: STS1912245W01 Band 2 Band 2 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 3 of 20 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 4 of 20 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 5 of 20 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 6 of 20 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 7 of 20 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 8 of 20 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 9 of 20 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_1#0_Low_Band edge B13_16QAM_5M_1#0_Low_Band edge QPSK_5M_1#5_High_Band edge B13_16QAM_5M_1#5_High_Band edge QPSK_5M_6#0_Low_Band edge 16QAM_5M_5#0_Low_Band edge Page 10 of 20 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_3#3_High_Band edge 16QAM_5M_3#3_High_Band edge Page 11 of 20 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 12 of 20 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 13 of 20 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 14 of 20 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 15 of 20 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 16 of 20 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 17 of 20 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_1#0_Low_Band edge 16QAM_1.4M_1#0_Low_Band edge QPSK_1.4M_1#5_High_Band edge 16QAM_1.4M_1#5_High_Band edge QPSK_1.4M_6#0_Low_Band edge 16QAM_1.4M_5#0_Low_Band edge Page 18 of 20 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_6#0_High_Band edge 16QAM_1.4M_5#1_High_Band edge Page 19 of 20 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_1#0_Low_Band edge 16QAM_5M_1#0_Low_Band edge QPSK_5M_1#5_High_Band edge 16QAM_5M_1#5_High_Band edge QPSK_5M_6#0_Low_Band edge 16QAM_5M_5#0_Low_Band edge Page 20 of 20 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_3#3_High_Band edge 16QAM_5M_3#3_High_Band edge

Test Report

Page 1 of 20 Report No.: STS1912245W01 Conducted Spurious Emission Band 2 Band 2 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 2 of 20 Report No.: STS1912245W01 Band 2 Band 2 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 3 of 20 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious. QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 4 of 20 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 5 of 20 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 6 of 20 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 7 of 20 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 8 of 20 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 9 of 20 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_1#0_Low_Conducted Spurious 16QAM_5M_1#0_Low_Conducted Spurious QPSK_5M_1#0_Mid_Conducted Spurious 16QAM_5M_1#0_Mid_Conducted Spurious QPSK_5M_1#5_High_Conducted Spurious 16QAM_5M_1#5_High_Conducted Spurious Page 10 of 20 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_6#0_Low_Conducted Spurious 16QAM_5M_5#0_Low_Conducted Spurious QPSK_5M_6#0_Mid_Conducted Spurious 16QAM_5M_5#0_Mid_Conducted Spurious QPSK_5M_3#3_High_Conducted Spurious 16QAM_5M_3#3_High_Conducted Spurious

Test Report

Page 11 of 20 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 12 of 20 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 13 of 20 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 14 of 20 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 15 of 20 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 16 of 20 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 17 of 20 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_1#0_Low_Conducted Spurious 16QAM_1.4M_1#0_Low_Conducted Spurious QPSK_1.4M_1#0_Mid_Conducted Spurious 16QAM_1.4M_1#0_Mid_Conducted Spurious QPSK_1.4M_1#5_High_Conducted Spurious 16QAM_1.4M_1#5_High_Conducted Spurious Page 18 of 20 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_6#0_Low_Conducted Spurious 16QAM_1.4M_5#0_Low_Conducted Spurious QPSK_1.4M_6#0_Mid_Conducted Spurious 16QAM_1.4M_5#0_Mid_Conducted Spurious QPSK_1.4M_6#0_High_Conducted Spurious 16QAM_1.4M_5#1_High_Conducted Spurious Page 19 of 20 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_1#0_Low_Conducted Spurious 16QAM_5M_1#0_Low_Conducted Spurious QPSK_5M_1#0_Mid_Conducted Spurious 16QAM_5M_1#0_Mid_Conducted Spurious QPSK_5M_1#5_High_Conducted Spurious 16QAM_5M_1#5_High_Conducted Spurious Page 20 of 20 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_6#0_Low_Conducted Spurious 16QAM_5M_5#0_Low_Conducted Spurious QPSK_5M_6#0_Mid_Conducted Spurious 16QAM_5M_5#0_Mid_Conducted Spurious QPSK_5M_3#3_High_Conducted Spurious 16QAM_5M_3#3_High_Conducted Spurious

Test Report

Page 1 of 18 Report No.: STS1912245W01 Peak-to-Average Ratio Band 2 Band 2 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 2 of 18 Report No.: STS1912245W01 Band 2 Band 2 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid QPSK_15M_6#0_Mid 16QAM_15M_5#0_Mid QPSK_20M_6#0_Mid 16QAM_20M_5#0_Mid Page 3 of 18 Report No.: STS1912245W01 Band 4 Band 4 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 4 of 18 Report No.: STS1912245W01 Band 4 Band 4 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid QPSK_15M_6#0_Mid 16QAM_15M_5#0_Mid QPSK_20M_6#0_Mid 16QAM_20M_5#0_Mid Page 5 of 18 Report No.: STS1912245W01 Band 5 Band 5 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 6 of 18 Report No.: STS1912245W01 Band 5 Band 5 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid Page 7 of 18 Report No.: STS1912245W01 Band 12 Band 12 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 8 of 18 Report No.: STS1912245W01 Band 12 Band 12 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid Page 9 of 18 Report No.: STS1912245W01 Band 13 Band 13 QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid Page 10 of 18 Report No.: STS1912245W01 Band 25 Band 25 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 11 of 18 Report No.: STS1912245W01 Band 25 Band 25 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid QPSK_15M_6#0_Mid 16QAM_15M_5#0_Mid QPSK_20M_6#0_Mid 16QAM_20M_5#0_Mid Page 12 of 18 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 13 of 18 Report No.: STS1912245W01 Part 22_Band 26 Part 22_Band 26 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid QPSK_15M_6#0_Mid 16QAM_15M_5#0_Mid Page 14 of 18 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 15 of 18 Report No.: STS1912245W01 Part 90_Band 26 Part 90_Band 26 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid Page 16 of 18 Report No.: STS1912245W01 Band 66 Band 66 QPSK_1.4M_6#0_Mid 16QAM_1.4M_5#0_Mid QPSK_3M_6#0_Mid 16QAM_3M_5#0_Mid QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid Page 17 of 18 Report No.: STS1912245W01 Band 66 Band 66 QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid QPSK_15M_6#0_Mid 16QAM_15M_5#0_Mid QPSK_20M_6#0_Mid 16QAM_20M_5#0_Mid Page 18 of 18 Report No.: STS1912245W01 Band 85 Band 85 QPSK_5M_6#0_Mid 16QAM_5M_5#0_Mid QPSK_10M_6#0_Mid 16QAM_10M_5#0_Mid

Test Report

Page 1 of 120 Report No.: STS1912245W01 Transmitter Radiated Spurious Emission Band 2_1.4M_1#0_QPSK_Low_Horizontal Frequency (MHz) Result (dBm) Limit (dBm) Over Limit (dB) ANT Verdict 36.790 -57.05 -13.0 -44.05 Horizontal Pass 77.772 -64.82 -13.0 -51.82 Horizontal Pass 167.982 -69.47 -13.0 -56.47 Horizontal Pass 440.552 -66.06 -13.0 -53.06 Horizontal Pass 614.425 -58.47 -13.0 -45.47 Horizontal Pass 749.013 -57.56 -13.0 -44.56 Horizontal Pass 1037.000 -53.34 -13.0 -40.34 Horizontal Pass 1674.000 -52.41 -13.0 -39.41 Horizontal Pass 2459.000 -34.60 -13.0 -21.60 Horizontal Pass 3700.000 -46.91 -13.0 -33.91 Horizontal Pass 5550.000 -25.49 -13.0 -12.49 Horizontal Pass 15816.250 -28.03 -13.0 -15.03 Horizontal Pass M12 M11 M10 M9 M8 M7 M6 M5 M4 M3 M2 M1 10 -1.0E+2 -90 -80 -70 -60 -50 -40 -30 -20 -10 0.0 Frequency (MHz) 1800030501002004006008001000150020002483.530006000 RE_FCC Test Case_FCC Part 22&24&27 30MHz-13GHz-H Page 2 of 120 Report No.: STS1912245W01 Band 2_1.4M_1#0_QPSK_Low_Vertical Frequency (MHz) Result (dBm) Limit (dBm) Over Limit (dB) ANT Verdict 37.760 -52.39 -13.0 -39.39 Vertical Pass 67.103 -60.42 -13.0 -47.42 Vertical Pass 155.858 -70.82 -13.0 -57.82 Vertical Pass 375.078 -70.03 -13.0 -57.03 Vertical Pass 614.425 -62.24 -13.0 -49.24 Vertical Pass 787.327 -56.24 -13.0 -43.24 Vertical Pass 1037.000 -48.19 -13.0 -35.19 Vertical Pass 1674.000 -46.73 -13.0 -33.73 Vertical Pass 2456.000 -30.97 -13.0 -17.97 Vertical Pass 5550.000 -34.81 -13.0 -21.81 Vertical Pass 11912.500 -33.98 -13.0 -20.98 Vertical Pass 15855.000 -28.34 -13.0 -15.34 Vertical Pass M12 M11 M10 M9 M8 M7 M6 M5 M4 M3 M2 M1 10 -1.0E+2 -90 -80 -70 -60 -50 -40 -30 -20 -10 0.0 Frequency (MHz) 18000 30 50 100 200 400 600 800 1000 1500 2000 2483.5 3000…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Rongrong Zhang(Senior Systems Designer)

[email protected]519-498-9965Fax: 519-498-9965

Technical Contact

Shenzhen STS Test Services Co., Ltd.Bovey Yang

[email protected]86-0755 36886288

A 1/F, Building B, Zhuoke Science Park, No.190 · Baoan District, Shenzhen, Guangdong · China

Test Firm

SHENZHEN STS TEST SERVICES CO.,LTD.Bovey Yang

[email protected]+86 755-36886288

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
46	27	700.5 MHz - 713.5 MHz	154.00 mW	940KW7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
