2AA6LSMG9631Moisture Meter

SMG9631 Operation Instruction Wireless Soil Moisture Meter with Thermometer Introduction Congratulations on purchasing this compact 433MHz soil moisture meter station with temperature, which displays time，indoor temperature , outdoor temperature and outdoor soil moisture readings。 With four easy to use keys，this product is ideal for home or office. The SMG9631 indoor station can receive up to 3 remote sensors. Inventory of contents: 1． 1pc indoor station 2． 1pc remote sensor 3． Instruction Manual Function: 1． Indoor temperature 2. Outdoor soil moisture reading and temperature 3 Min/Max record of temperature and soil moisture 4. Switch from ̊C to ̊F for temperature unit 5. Quartz time, calendar date. 6. Flip out desk stand or wall mount. Intended Use The SMG9631 sensor detects soil volumetric water content (VWC) through sensing the dielectric constant of the media using capacitance domain technology. The sensor is built on PCB, it is reliable in almost any soil. The system has a self learning process built to eliminate the influences of different soil or media. Also on the remote sensor, it measures outdoor temperature, which is received and displayed on by the receiver for easy reading purpose. Since the temperature sensor is located inside the moisture sensor housing, when exposing to direct sun light, the outdoor temperature reading will be a few degrees higher comparing to normal air temperature. So strongly recommending to put the sensor in sun shine shaded locations The remote sensor data is updated around every 90s. After watering the soil, the sensor takes about 4 readings. If the 4 reading data is consistent, new data will be updated accordingly. So there is a delay between watering the soil and having the new data displayed. The typical time needed before an update is about 4~5 minutes It is ideal for use in your garden or plants pots in house. The transparent plastic case is made from PC which is resist to environment aging. It is suitable for indoor and /or outdoor use purpose. Battery Safety
Correct polarity must be observed while inserting the batteries.
Batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking. Leaking or damaged batteries might cause acid burns when in contact with skin, therefore use suitable protective gloves to handle corrupted batteries.
Batteries must be kept out of reach of children. Do not leave the battery lying around, as there is risk, that children or pets swallow it. Power Supply - Sensor: LR3, AAA alkaline batteries 2pcs - Receiver: LR6, AA alkaline batteries 2pcs If the item is sold with battery included, there is an insulator under the battery, remove it before use. Quick Setup Hint：Use good quality Alkaline batteries and avoid using rechargeable batteries。 1. Have the display unit and remote unpacked from the gift box. 2. Place the batteries into the indoor temperature station first. All LCD segment will be turned on for 4 seconds, then the Outdoor Reception Signal Icon displayed, indicating that receiver is trying to find the remote sensor. Please do not press any key, which will interrupt the matching process between the sensor and receiver. Then place the batteries into the remote sensor, and the indicator LED will be lit for about 20s. After that, transmitter will send out temperature reading and air sensor reading (which is the absolute lowest possible reading) first. If the receiver decodes the sensor data successfully, the sensor temperature and soil moisture reading will be displayed. The outdoor temperature and soil moisture data is toggled for display for 3 seconds. The matching process will take 400s before automatic completion. 3. If a key is pressed before the station receives the sensor data, the receiver will terminate the matching process and it will take 10 minutes before the receiver re-synchronizes with the outdoor sensor again. If a reset is needed for receiver or transmitter, pull out the batteries and wait 10 seconds before re-insert the battery to make a proper reset. 4. After matching process is completed, then insert the sensor into the location you want to monitor the soil moisture. The depth of the sensor should be around 8 ~10cm below surface. make sure the soil is tight around the sensor because it is most sensitive to soil adjacent to the sensor. Stones or air pockets next to the sensor will affect the accuracy of the readings. Because it is sensitive to the dielectric permittivity, care should be taken not to install sensor in or near metal. Pour water into the soil until the surface glistens and no more water can permeate. The sensor now will senses the maximum water content level, and after a few minutes(about 4 minutes), the highest water level will be displayed on the receiver LCD: 99%( please note that the “Wet Soil” reading of 99% is not necessary an exact soil moisture content level, it only means that this is the most wet conditions you can have for this part of the soil). There is a self calibrating process built inside the sensor and the time needed for finishing the self calibrating process could be varied due to data stabilizing reason. The longest time needed for this self calibrating is 20 minutes. 5. Now it is ready for the sensor to monitor the soil moisture. When water level drops, the wet soil data will drop accordingly. Please note that the wet soil reading is not linear to the water content. User should be able to tell by him/herself which reading is to be used for watering/not watering condition. 6. If you need to put the sensor into another location, in order to eliminate the difference between the soil, take out the battery and wait for 5s and then restart the above five steps again. Without initiating the self-learning procedure, this could lead to permanent reading error!! 7. Important: The sensor can be damaged if it is pushed directly into hard native soil. Please do not use hammer or other blunt hard instrument duri…

Text truncated - open the document above for the full version.

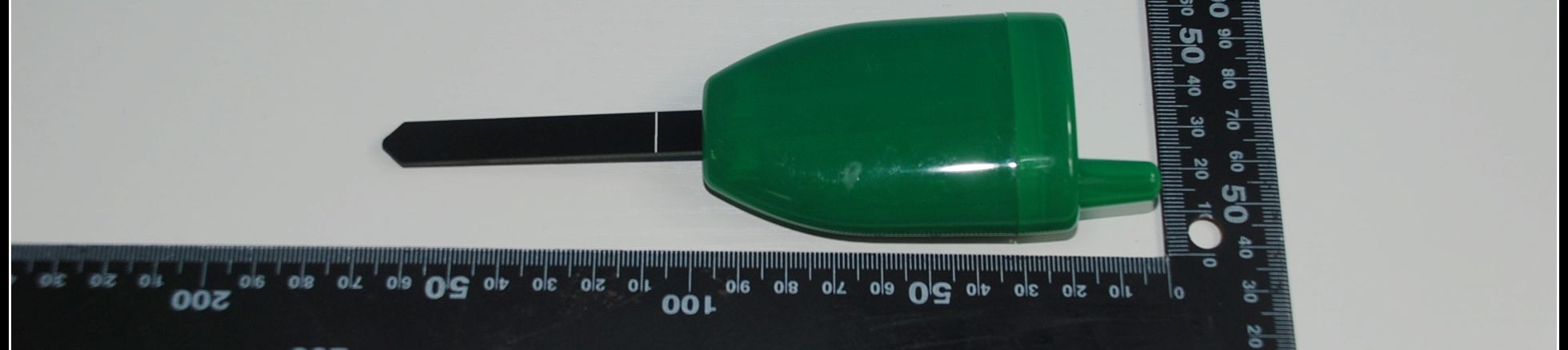

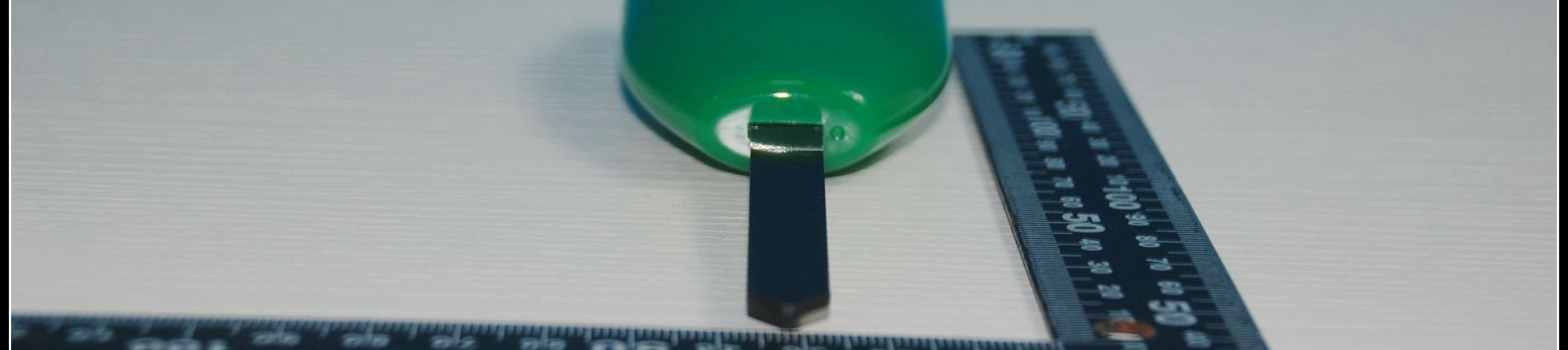

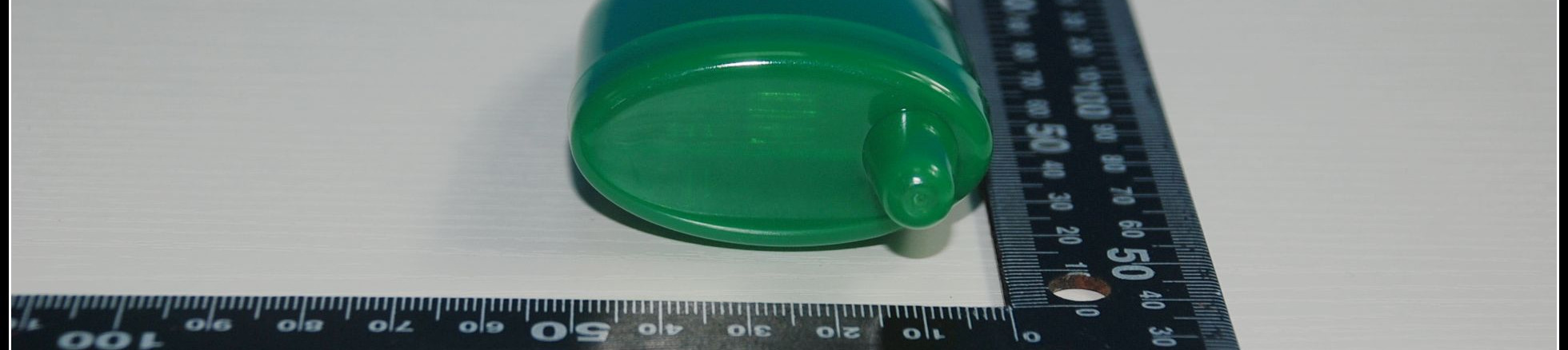

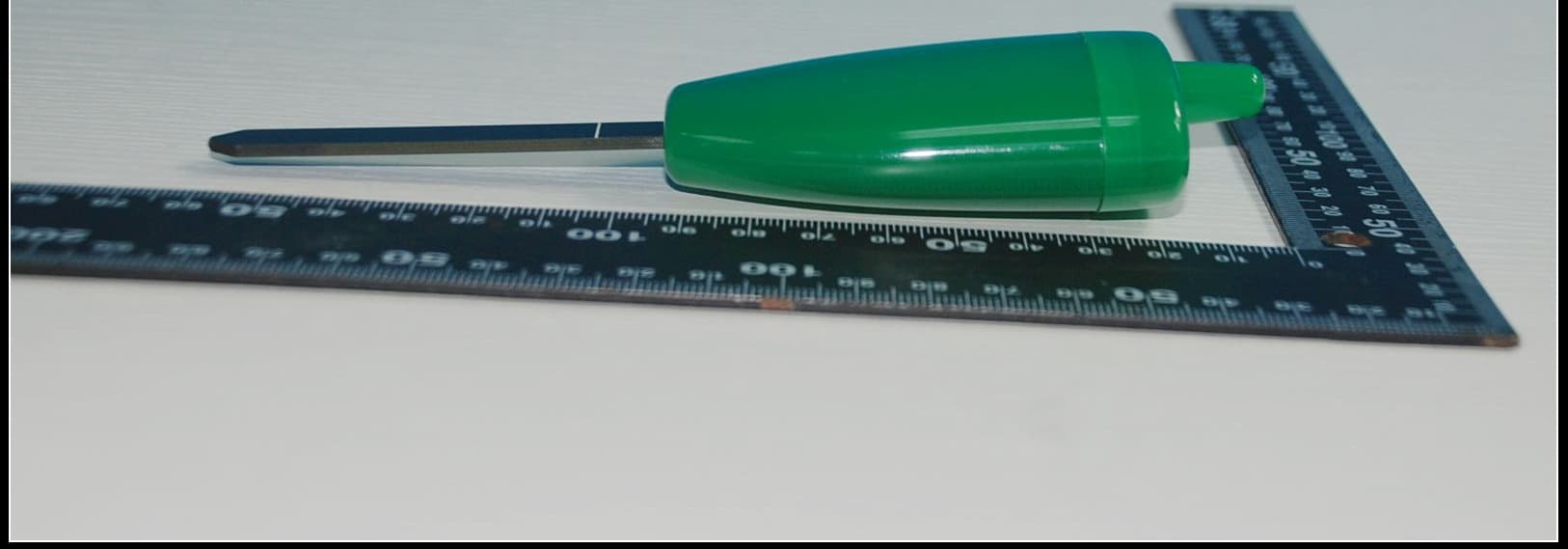

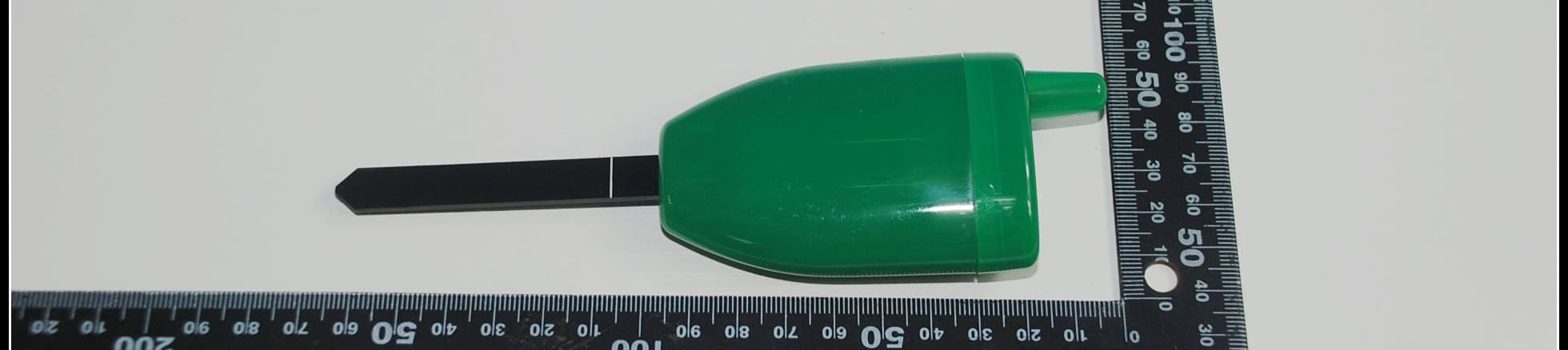

External Photos:

Internal Photos:

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM130900422201 Page: 1 of 19 FCC ID: 2AA6LSMG9631 . Richard Li Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1309004222RF Applicant: Bond Manufacturing CO INC FCC ID: 2AA6LSMG9631 Product Name: Moisture Meter Product Description: 433.92MHz Transmitter Model No.: SMG9631 Standards: 47 CFR PART 15 SUBPART C:2012 section 231 ANSI C63.10:2009 Date of Receipt: 2013-09-09 Date of Test: 2013-11-11 Date of Issue: 2013-11-13 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further details. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130900422201 Page: 2 of 19 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2013-11-13 Original Authorized for issue by: Tested By 2013-09-10 to 2013-11-11 (Fred Zhu) /Project Engineer Date Prepared By 2013-11-11 (Fred Zhu) /Project Engineer Date Checked By 2013-11-13 (Jeffrey Chen) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130900422201 Page: 3 of 19 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary TEST TEST REQUIREMENT TEST METHOD RESULT Radiated Emission FCC PART 15 section 15.231(e) ANSI C 63.10: Clasue 6.4, 6.5 and 6.6 PASS Occupied Bandwidth FCC PART 15 section 15.231(c) ANSI C 63.10: Clasue 6.9 PASS Dwell Time FCC PART 15 section 15.231(e) FCC PART 15: Section 15.231(e) PASS Remark: N/A: not applicable. Refer to the relative section for the details. Tx: In this…

Text truncated - open the document above for the full version.

Test Setup Photos: 1.1 RADIA TED EMISSI ON & FUN DA ME NTA L EMI SSION (B EL OW 1 GHZ) 1.2 RADIA TED EMISSI ON (ABOVE 1 GHZ)
