2AA9XBTX07Waterproof Bluetooth Speaker

Totally Waterproof........ it even Floats! The Miccus eXtreme SPX7 is an extreme climate, floating, waterproof, full range 3W x 2 wireless speaker system with built-in rechargeable battery. Stream & Play your music from your Bluetooth enabled devices such as Smartphone, Tablet, Laptop or transmitter such as the Miccus mini-jack TX. Take and make phone calls thanks to the built-in microphone. The design and floatation of the speaker will keep it positio- ned upright when floating so you can enjoy your music in the pool, bath or lake. Clip on your bike, back- pack or other gear and you have portable all weather music. Contents of the Package: ● Miccus® eXtreme SPX7 ● USB Charging cable ● USB to AC Wall Adapter ● Bike Mount ● Suction Mount ● User Manual *If items are missing or damaged please email us directly at [email protected] Quick Start (pairing): Power on: Press and hold Power ON/OFF button for 4 seconds; two short beeps will indicate the SPX7 is powered on. 1. The SPX Speaker will automatically enter pairing mode and begin searching for other Bluetooth wireless enabled devices. 2. In the Bluetooth settings of your Smartphone, tablet, or media player switch Bluetooth ON and select the option to “Search for Devices”. 3. Find & select (tap) “Miccus SPX7” on your Smartphone/Tablet to complete a successful pairing. (If prompted for a passcode use 0000.) 4. Once the pairing is complete and the Bluetooth connection made you will hear a “beep” tone from the speaker. 5. Now navigate to your music player or music app, press play and enjoy your music wirelessly. 6. For reconnection ensure Bluetooth is enabled and then press the Multi-function button to power the speaker on and it will look for the last paired device first. Note: If you are using a Bluetooth transmitter such as the Miccus Mini-jack TX then put them both into pairing mode and set them next to each other, they will automatically negotiate and connect. The speaker performance and sound may vary when wet. **For optimal performance the battery should be fully charged before first use. Getting Acquainted: (1) MULTI-FUNCTION BUTTON: Power On/Off, Play/Pause & Answer calls Power On: Press and hold button approx. 4 seconds; 2 short beeps indicate unit is powered on. Power Off: Press and hold button approx. 4 seconds; red LED will turn off indicating the unit is powered off. Play or Pause: While music is playing, quickly press and release button to pause playback. Press button again to resume playback. Answer Call: Press to answer incoming calls press again to hang up; the SPX7 features built in microphone with hands free technology for phone calls. (2) DUAL FUNCTION BUTTON: (+) Volume Increase (+): Press and hold (+) to increase the Volume level; 2 short beeps sound when maximum volume reached. Next Track (+): Quickly press & release to select next track. (3) DUAL FUNCTION BUTTON: (-) - Volume Decrease (-): Press and hold (-) to increase the Volume level; 2 short beeps sound when minimum volume reached. Previous Track (-): Quickly press & release to select previous track. (4) MICROPHONE: Locate the built in microphone on the top left side of the unit. While making use of the extreme SPX’s speaker phone feature, it’s best to speak within 50cm (20”) of the Microphone during call (5) INDICATOR LED: Charging: Red LED is lit; LED turns off when charging is complete. Pairing: Blue LED is flashing; the unit is powered on and in pairing mode. When successfully paired Blue LED stops flashing and stays lit. 12 CAP & USB CHARGING CONNECTION: Rubber gasket Ring Micro USB Charging Socket Top of the unit Protective Cap The Micro USB charging port is located under the Protective Cap. Unscrew the Protective Cap in a counter clockwise motion to gain access. Warning: If the Protective Cap is off or loosely secured then the speaker is NOT watertight and can cause damage to the speaker. To maintain a watertight seal, make sure the Protective Cap is attached firmly to the top of the speaker Charging the Battery The built-in Lithium Ion battery uses the included USB cable to recharge; for optimal charging connect the USB cable to your computer or any USB wall or car adapter that outputs a minimum of 5V @1Amp or higher. The red LED will be solid during charging and turn off when charging is complete. Playtime lasts up to 5 hours on a full charge. When battery energy is low, a voice will indicate “Battery Low” with 30 minutes of approximate playtime remaining. BACK OF UNIT Accessories Mounting Hole Mounting Hole Cover (Fig. 1A) (Fig. 1B) 3 How to use the Bike Mount Kit: Speaker Mount Bike Handlebar Mount (Fig. 2A) (Fig. 2B) (Fig. 2C) To remove the mounting hole cover (Fig. 1B), unscrew it from the speaker using a counter clockwise motion. Once the cover is removed take the Speaker Mount (Fig. 2A) and twist it 90 degrees in a clockwise motion into the accessories mounting hole (Fig. 1A) To attach the Bike Handlebar mount (Fig. 2B) to your bicycle, remove the mount screw with a No.2 philips screw driver. Open the Bike Mount and position on your handlebars keeping in mind the overall size of the speaker. Re-insert the mount screw and tighten until firm (Fig.2C). Once secured the Handle- bar Mount should not rotate or move on the handlebars.. Next take the speaker and slide the open end of the Speaker Mount (Fig. 2A) onto the Bike Handlebar Mount (Fig. 2B). Push the speaker mount all the way until it clicks securely into place. To remove the speaker from the Bike Mount press the button on the Bike Mount and slide the speaker off. How to use the Shower Mount Kit: Shower Mount (Fig. 3A) (Fig. 3B) (Fig. 3C) (Fig. 3D) 4 To remove the mounting hole cover (Fig. 1B), unscrew it from the speaker using a counter clockwise motion. Once the cover is removed take the Shower Mount (Fig. 3A) and twist it 90 degrees in a clockwise motion into the accessories mounting hole (Fig. 3C). Make sure the mount is securely attached to the speaker. Next attach the suction cup to the show…

Text truncated - open the document above for the full version.

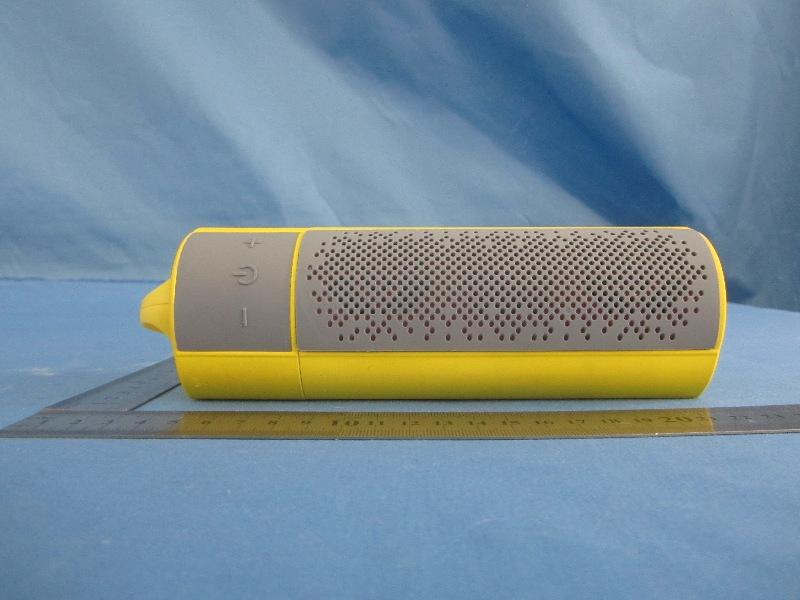

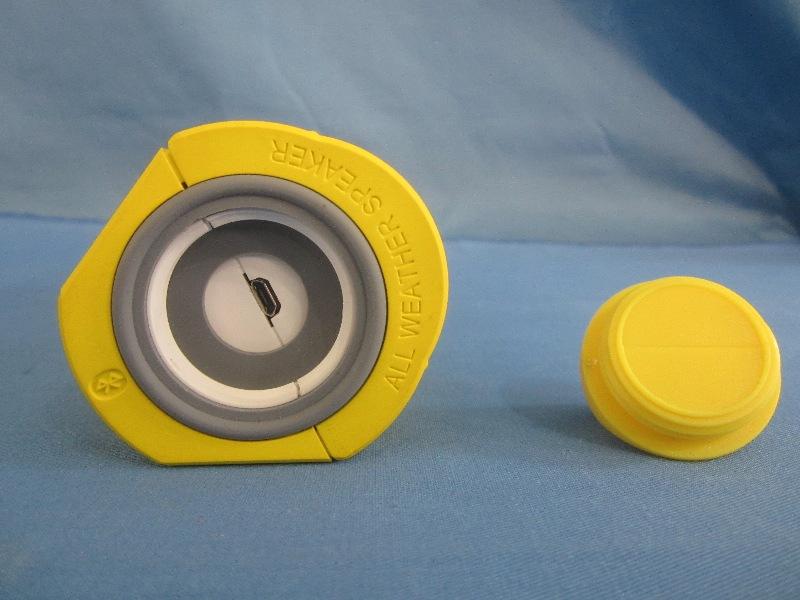

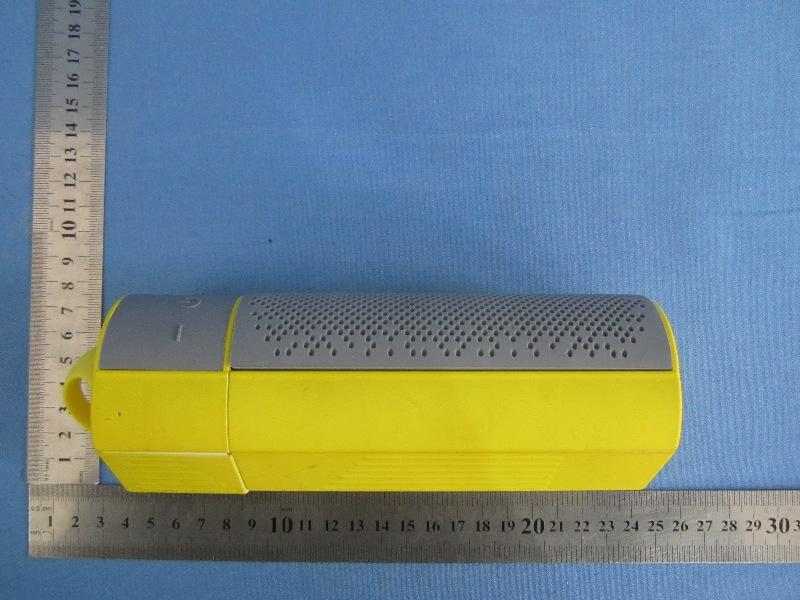

Appendix B Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – External EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – External EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

Label location

Appendix C Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – Internal EUT Photos Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – Internal EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.: BTX-07 Photo of EUT – Internal EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

Date: 2014-01-22 Report No.: 60.870.13.038.01F Model No.:BTX-07 Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] ” 3.0 The maximum tune-up limit power is 0.0009mW @ 2.402GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] = 0.00028 ” 3.0 So standalone SAR measurements are not required for both head and body

TEST REPORT Date: 2014-01-22 Report No.: 60.870.13.038.01F Page 1 of 38 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Foreseen Technology Limited Room 1305, New Commerce Centre, Shatin, Hong Kong Description of Samples:Model name: Waterproof Bluetooth Speaker Brand name: --- Model no.:BTX-07 FCCID:2AA9XBTX07 Date Samples Received:2013-12-10 Date Tested:2013-12-11 to 2014-01-17 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray Cheung Project Engineer Wireless & Telecom Department Jeff Pong Operation Manager Wireless & Telecom Department ReportNo.: 60.870.13.038.01F Page 2 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 38 Content Page 2-3 of 38 1.0General Details 1.1Test Laboratory Page 4 of 38 1.2Applicant Details Page 4 of 38 1.3Equipment Under Test [EUT] Page 5 of 38 1.4 Related Submittal(s) Grants Page 5 of 38 2.0Technical Details 2.1Investigations Requested Page 6 of 38 2.2Test Standards and Results Summary Page 6 of 38 3.0Test Methodology 3.1Radiated Emission Page 7 of 38 3.2Field Strength Calculation Page 7 of 38 3.3Conducted Emission Page 7 of 38 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 38 4.2 20dB Bandwidth Measurement Page 9-12of 38 4.3 Hopping Channel Carrier Frequency Separation Page 13 of 38 4.4 Average Time of Occupancy Page 14-26 of 38 4.5 Band Edge Measurement Page 27-28 of 38 4.6 Maximum Output Power Page 29-31 of 38 4.7 Out ofBand Emissionsand Emissions in Restricted Bands Page 32-36 of 38 4.8 Conducted Emission on AC Mains Page 37 of 38 ReportNo.: 60.870.13.038.01F Page 3 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0List of Measurement Equipments Page 38 of 38 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.13.038.01F Page 4 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Global United Technology Services Co., Ltd. 1 st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, PRC Registration Number: 600491 Tested by: John Zhi 1.2Applicant Details Applicant Foreseen Technology Limited Room 1305, New Commerce Centre, Shatin, Hong Kong. Manufacturer Foreseen Technology Limited Room 1305, New Commerce Centre, Shatin, Hong Kong. ReportNo.: 60.870.13.038.01F Page 5 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Waterproof Bluetooth Speaker Model No.:BTX-07 Brand Name: --- FCCID:2AA9XBTX07 Rating:5.0 VDC (USB Port) Or 3.7 VDC 900mAh (Li-ion battery package) Operated Frequency:2402 - 2480 MHz No. of Operated Channel:79 Accessories and Auxiliary Equipments:-iPhone Antenna Type:Integral Manufacture of Antenna:Foreseen Antenna Gain:0 dBi Antenna Model:N/A General Operation of EUT The EUT is the Waterproof Bluetooth Speaker. FHSS Operation Principle: This module is controlled byBluetoothmicrochip to generate Pseudorandom Frequency Hopping Sequence, this module support 79 hopping channels. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.13.038.01F Page 6 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency HoppingSection 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of OccupancySection 15.247 ( a1 ) Pseudorandom Hopping AlgorithmSection 15.247 ( a1 ) Band Edge MeasurementSection 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC MainsSection 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.13.038.01F Page 7 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = R…
