2AAAS-WR01

Vivint, Inc.

Wireless Router

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Dec 02, 2014
Application Purpose: Original Equipment
Date of Application: Dec 01, 2014
Equipment Note: Wireless Router
Frequency Range: 5745.00000000 - 5825.00000000
Company: Vivint, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

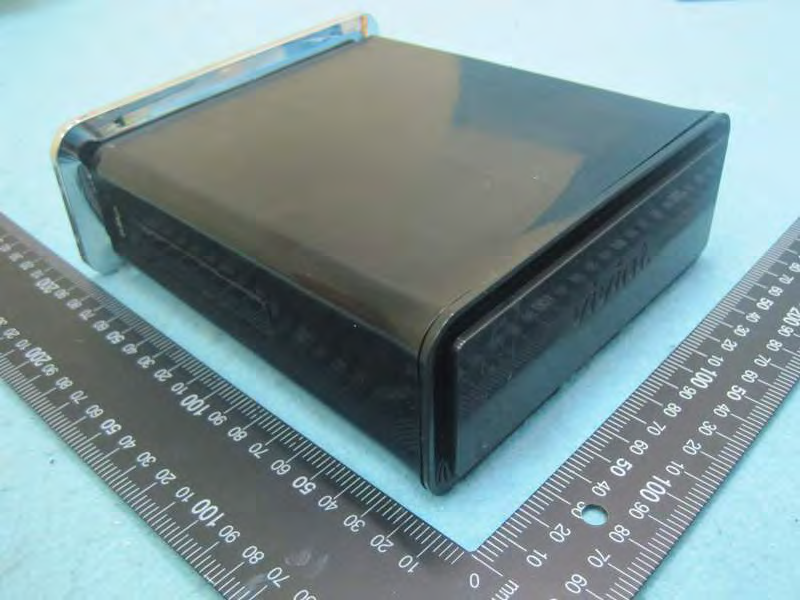

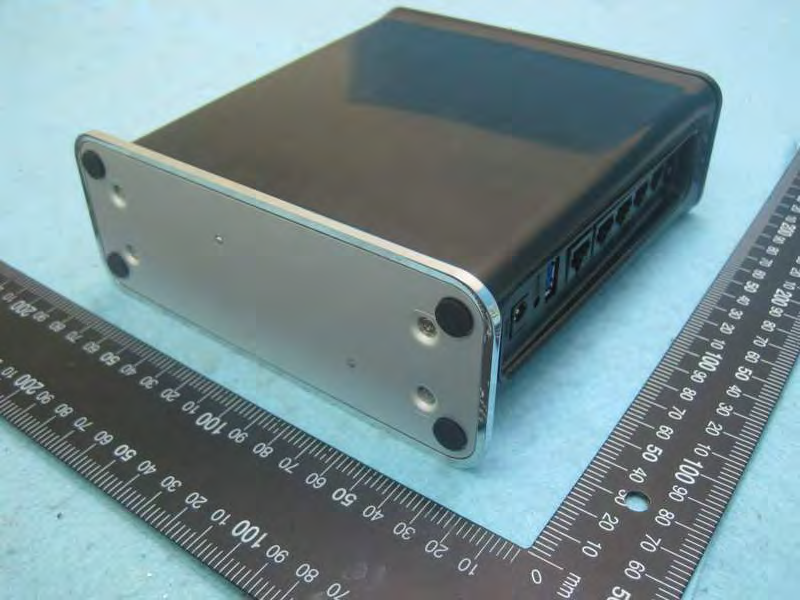

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.75 GHz - 5.83 GHz	800.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum combined output power conducted. This device is an indoor access point restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes.
