2AAAY201307678RC Toy Transmitter

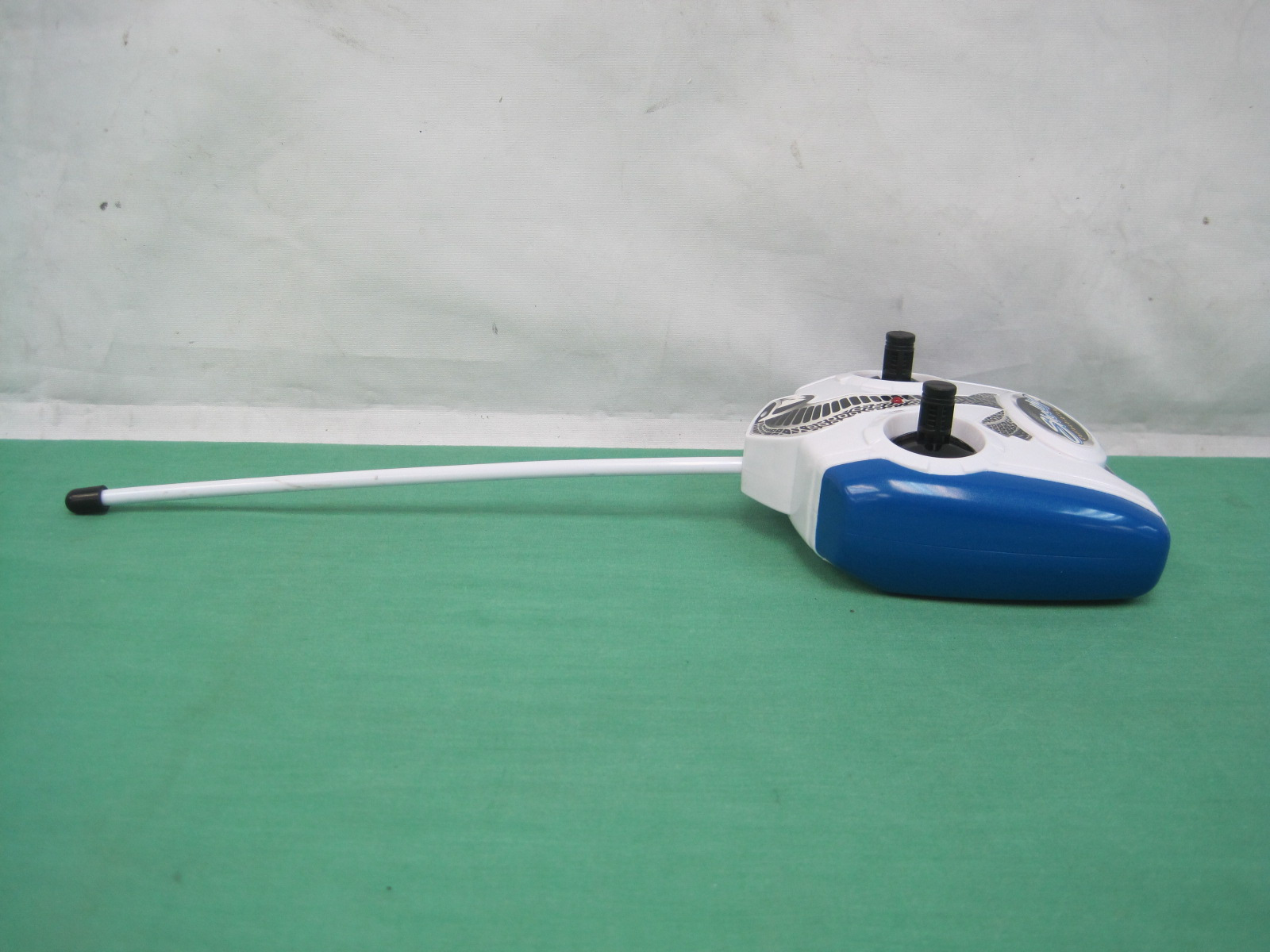

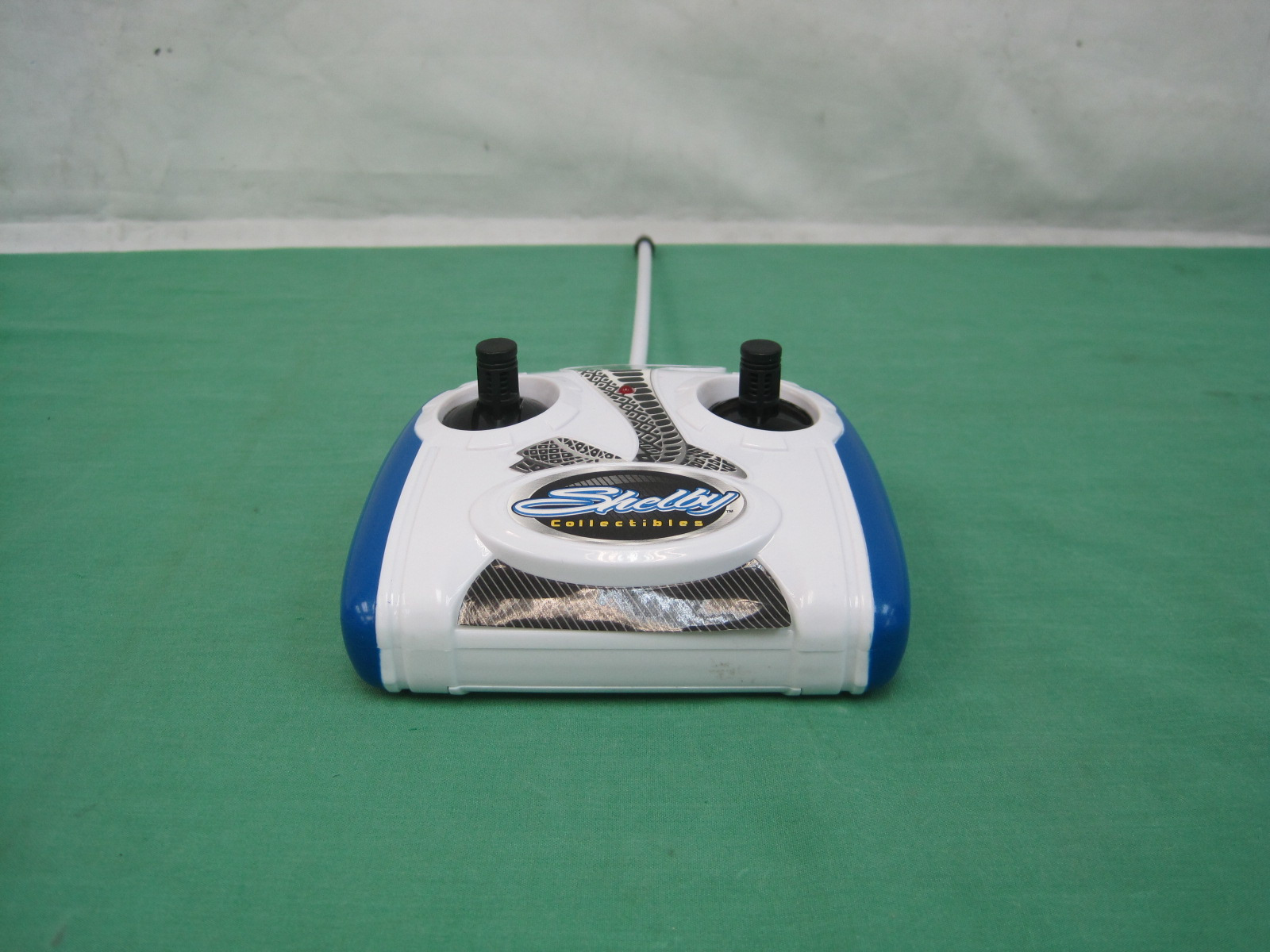

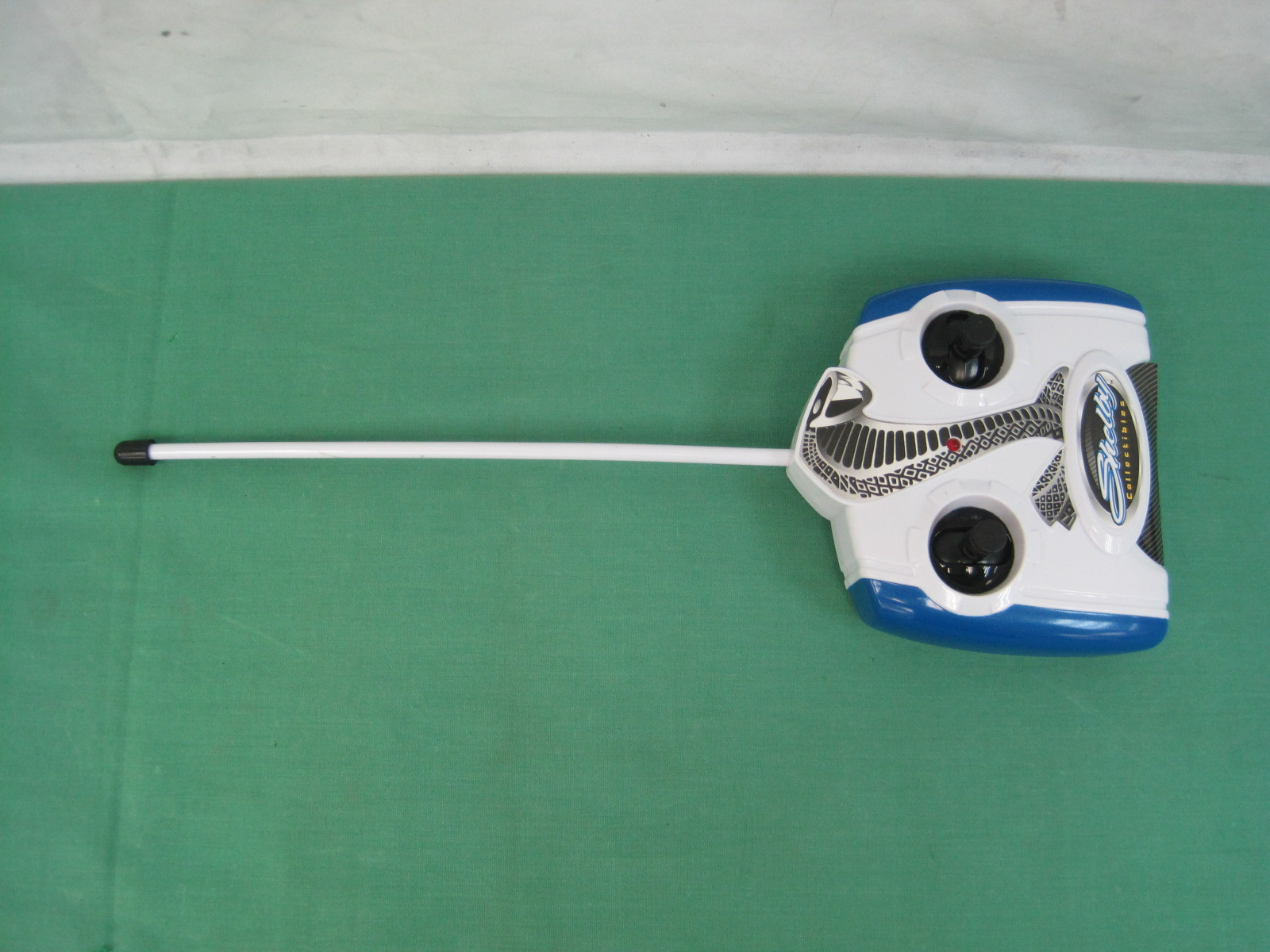

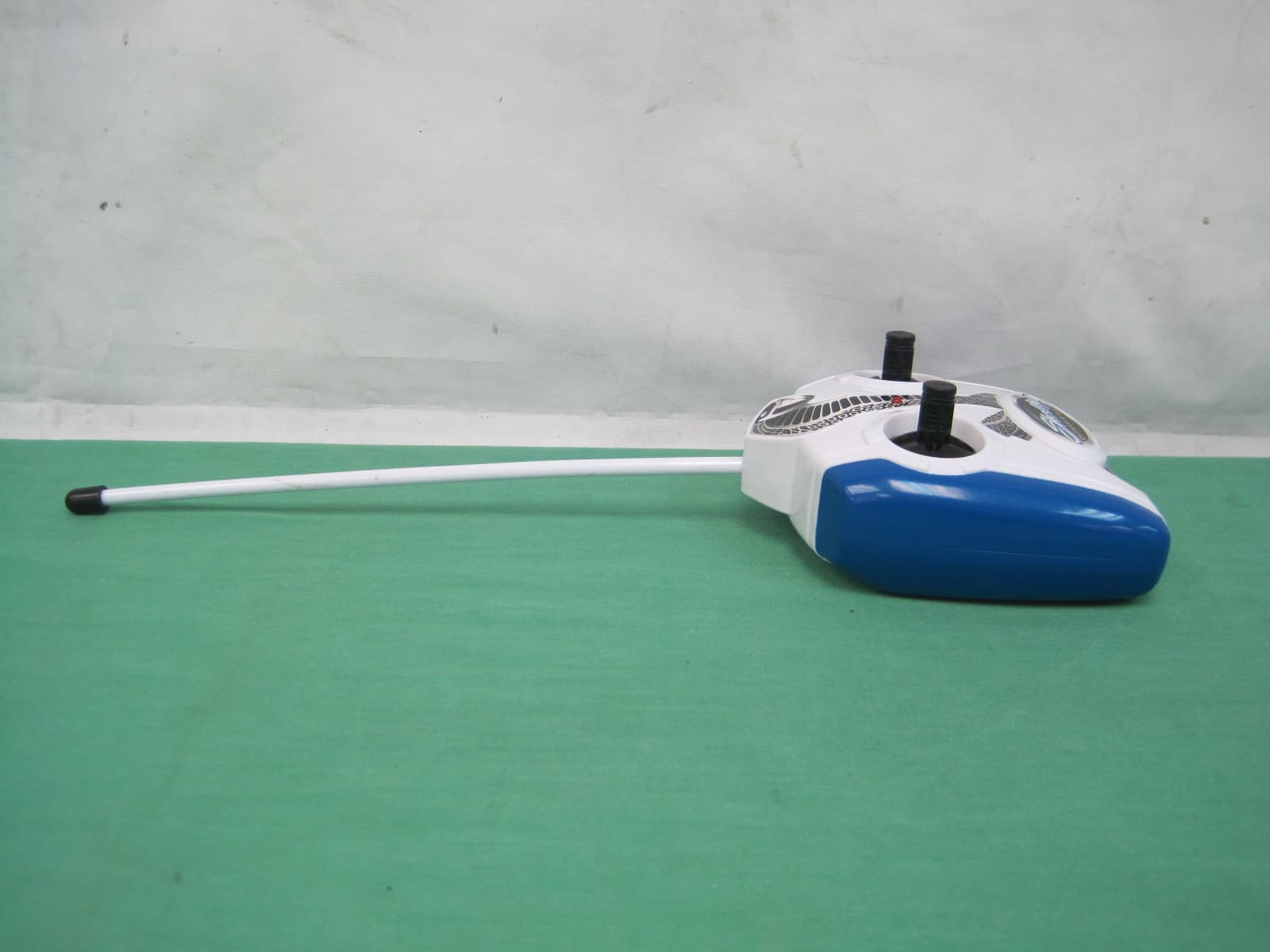

FCC ID: 2AAAY201307678 External photo FCC ID: 2AAAY201307678

FCC ID: 2AAAY201307678 Internal photo FCC ID: 2AAAY201307678

Technical description Description Function Component Antenna Transmit modulated RF signal ANT RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q2 Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation Filter L3, C7 Oscillator Generate RF Frequency Y1, Q1 Encoder Filter the Spurious Frequency Generate Code Signal to Modulator HJTX-2 Model:TRU-88100 Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz ANT IC1 128KHz

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:23-Jul-2013Sheet of File:E:\钜辉\客户\雄发\四通1 24\JH-C931.ddbDrawn By: R4 270K R2 56KR5 8K2 S2 F S1 B S4 L S3 R VDD Q1 9014 Q2 8050 L2 3.3UH L3 8.2UH C5 471P C1 221P C6 47P C7 501P C4 104P E1 ANTENNA L1 3.3UH Y1 27.145M BT1 9V 27M C8 101P 1 2 3 4 5 6 78 9 10 11 12 13 14 JP1 HJTX-2 VDD R3 3K9 C3 104P C2 100UF D1 4A3 VCC D2 LED R1 1K

International Electrical Certification Centre Ltd. Address: Units 303-305, 3/F., 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Telephone: +852 23052570 Fax: +852 27564480 Email: [email protected] Report No.: 59589 Page: 1 of 18 Authorized Signature: LOKE Sai Kit, Wilson Senior Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of International Electrical Certification Centre Ltd. or testing done by International Electrical Certification Centre Ltd. in connection with, distribution or use of the product described in this report must be approved by International Electrical Certification Centre Ltd. in writing. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AAAY201307678 IECC a wholly-owned subsidiary of SGS Group FCC Test Report Application No.: 59589 Applicant: DU JIA DI TOYS FACTORY Address: Chenghai District, Shantou City Guangdong Province China Product Information: Product Description: R/C Car Model: 22400, 22401, 22402, 22403, 22404, 22405, 22406, 22407, 22408, 22409, 22410, 22411, 22412, 22413, 22414, 22415, 22416, 22417, 22418, 22419, 22420, 22421, 22422, 22423, 22424, TRU-88100, 88110, 88111, 88112, 88113, 88114, 88115, 88116, 88117, 88118, 88119, 88120, 88121, 88122, 88123 ♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Product Class : Low Power Communication Device – Transmitter (27 MHz) FCC ID number: 2AAAY201307678 Requirement: CFR 47 FCC PART 15 SUBPART C, 2011 - Intentional Radiators. Date of Receipt: 2013-07-25 Date of Test: 2013-07-30 to 2013-07-31 Date of Issue: 2013-08-02 Test Result : PASS* * In the configuration tested, the EUT complied with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. International Electrical Certification Centre Ltd. Report No.: 59589 Page: 2 of 18 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AAAY201307678 IECC a wholly-owned subsidiary of SGS Group 2 Test Summary Test Test Requirement Test Method Class / Severity Result Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B N/A 1) Radiated Emission below 30MHz FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B PASS Radiated Emission (30MHz to 1GHz) FCC PART 15, SUBPART C: 2011 ANSI C63.4:2009 Class B PASS Radiated Emission above 1 GHz FCC PART 15, SUBPART B: 2011 ANSI C63.4:2009 Class B N/A 1) Remark : 1) Please refer to section 6.1 & 6.4 of this report for explanation International Electrical Certification Centre Ltd. Report No.: 59589 Page: 3 of 18 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all the…

Text truncated - open the document above for the full version.

FCC ID: 2AAAY201307678 Radiated Emission Test Setup FCC ID: 2AAAY201307678
