2AAC3F-10HD2CORETABLET PC

Amelia World Corporation dba LINSAY

Click to zoom

Application Details

Equipment Class: JBC - Part 15 Class B Computing Device/Personal Computer
Date of Grant: Dec 22, 2013
Application Purpose: Original Equipment
Date of Application: Dec 22, 2013
Equipment Note: TABLET PC
Company: Amelia World Corporation dba LINSAY
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

www.LI NSAYdigital.c om F-10HD2Core User Manual 10.1” T ABLET PC ANDROID 2 www.LINSAYdigital.com FCC Class B: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTICE: 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the Emission limits. 3. The manufacture is not responsible for any radio or TV interference caused by unauthorized modification to the equipment. It is the responsibilities of the user to correct such interference. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3 www.LINSAYdigital.com SAFETY PRECAUTIONS • Do not subject the device to severe impact or drop it from heights. • Do not use the device in extreme hot or cold, dusty or damp conditions. Do not expose it to direct sunlight. • Avoid using the device near strong magnetic fields. • Normal functioning of the product may be disturbed by ESD. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment. • Keep the device away from water and other liquids. In the event that water or other liquids enter the device, power off the product immediately and clean the device. • Do not use chemicals to clean the device in order to avoid corrosion. Clean it with a dry cloth. • Do not install this equipment in a confined space such as a book case or similar unit. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. • No naked flame sources, such as lighted candles, should be placed on the apparatus. • Attention should be drawn to environmental aspects of battery disposal. • Use the apparatus in moderate climates. • We are not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement. • Do not attempt to disassemble, repair or modify the product. This will invalidate the warranty. • If the device will not be used for an extended period of time, please charge the battery at least once per month to maintain battery life. • Charge the battery if: a) The battery level icon displays • (An empty battery) b) The device powers off automatically when restarted. c) There is no response when pressing keys with keys unlocked and battery full. • Do not interrupt the connection when the device is being formatted or transferring files. Otherwise, data may be corrupted or lost. • When the device is used as a portable HD, please use only per the instructions. Otherwise, permanent data loss could occur. • Please use and install data using the attachments/accessories provided and only according to the manufacturer’s instruction. • Please refer to the information on the bottom of the device for electrical and safety information before installing data or operating the device. • To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping or splashing. Never place objects filled with liquids, such as vases, on the device. • There is danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type. • The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunlight, fire or the like. • Please follow responsible procedures for battery disposal. • If the power adaptor disconnected from the device, the device will remain operable as long as the battery has sufficient charge. • The power adaptor is a CLASS II apparatus with double insulation, and no external ground is provided. • Safety Symbol Explanation: 4 www.LINSAYdigital.com • -The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. • -To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. • -The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the device. • -Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household waste in the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of materia…

Text truncated - open the document above for the full version.

External Photos

Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EUT View 3 EUT View 4 Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EUT View 5 EUT View 6 Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EUT View 7

ID Label/Location Info

Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AAC3F-10HD2CORE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

Internal Photos

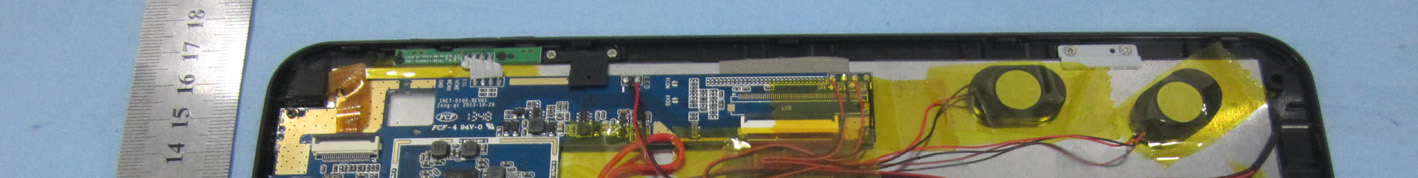

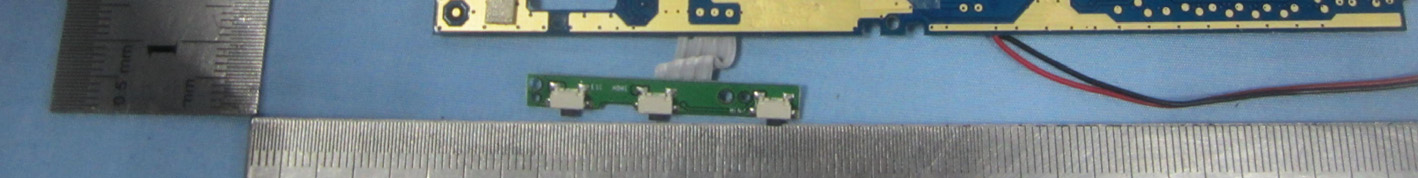

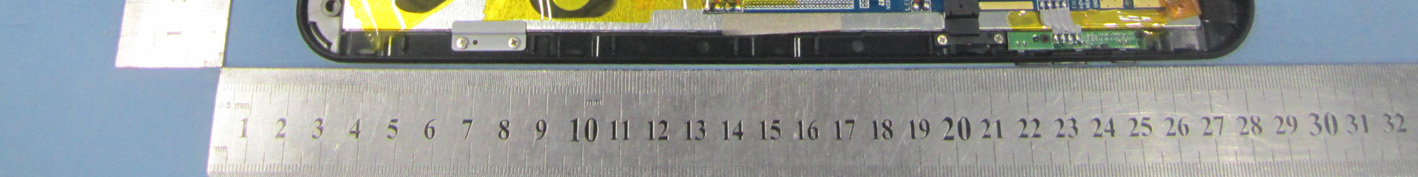

Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Antenna View Wi-Fi Ant Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-1 FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2

Test Report

Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 PAGE 1 OF 16 FCC PART 15B FCC Part 15B Measurement and Test Report For Amelia World Corporation dba LINSAY 16340 West Dixie Highway, North Miami Beach, Florida FCC ID: 2AAC3F-10HD2CORE Test Standards: FCC Part 15 Subpart B Product Description: Tablet PC Tested Model: F-10HD2CORE Report No.: STR13118378I-2 Tested Date: 2013-12-02 to 2013-12-20 Issued Date: 2013-12-21 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 PAGE 2 OF 16 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND OPERATION MODE ...................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. CONDUCTED EMISSIONS .................................................................................................................................... 7 3.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 3.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 3.3 TEST PROCEDURE ................................................................................................................................................... 7 3.4 BASIC TEST SETUP BLOCK DIAGRAM ..................................................................................................................... 7 3.5 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 8 3.6 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................................... 8 3.7 CONDUCTED EMISSIONS TEST DATA ...................................................................................... 错误!未定义书签。 4. RADIATED EMISSIONS ....................................................................................................................................... 11 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................................ 11 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 11 4.3 TEST PROCEDURE ................................................................................................................................................. 11 4.4 TEST RECEIVER SETUP ......................................................................................................................................... 12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 12 4.6 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 PAGE 3 OF 16 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Amelia World Corporation dba LINSAY Address of applicant: 16340 West Dixie Highway, North Miami Beach, Florida Manufacturer: Amelia World Corporation dba LINSAY Address of manufacturer: 16340 West Dixie Highway, North Miami Beach, Florida General Description of EUT Product Name: Tablet PC Trade Name: LINSAY Model No.: F-10HD2CORE Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Rated Voltage: DC 3.7V Power Adaptor: Model:FY0502000 Input 100-240V, 50/60Hz, Output DC 5V Highest Internal Frequency: 1GHz Lowest Internal Frequency: 32.768 kHz Classification of ITE: Class B Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 PAGE 4 OF 16 FCC PART 15B 1.2 Test Standards The following report is prepared on behalf of the Amelia World Corporation dba LINSAY in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 15, Subpart B, and section 15.205, 15.107, and …

Text truncated - open the document above for the full version.

Test Setup Photos

Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Charging mode Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 FCC PART 15B Downloading mode Radiation Emission Test Setup(30MHz to 1GHz) Charging mode Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 FCC PART 15B Downloading mode Radiation Emission Test Setup (Above 1GHz) Charging mode Amelia World Corporation dba LINSAY Model: F-10HD2CORE REPORT NO.: STR13118378I-2 FCC PART 15B Downloading mode
