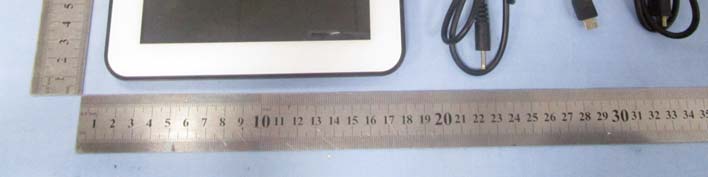

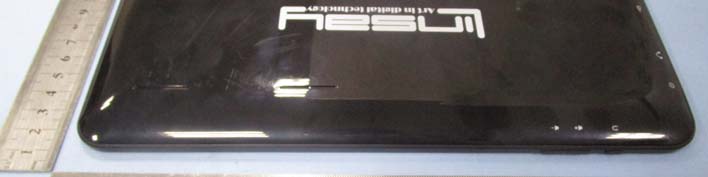

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EUT View 3 EUT View 4 Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EUT View 5

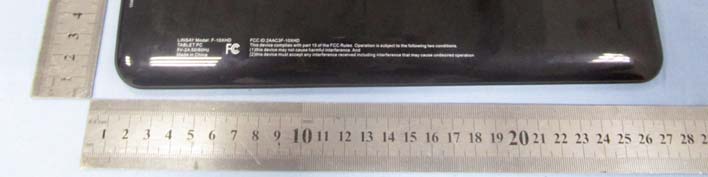

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AAC3F-10XHD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AAC3F-10XHD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Wi-Fi Antenna Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 Solder Board-Component View 4

RF Exposure Requirements Product Description: Tablet PC Model No.: F-10XHD FCC ID: 2AAC3F-10XHD According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Wi-Fi (802.11b/g/n) Tx frequency range: 2412~2472MHz Device category: Portable Device Maximum Conducted Output Power: 5.611mW (7.49dBm) Maximum Antenna Gain: 1.56 dBi Maximum EIRP Output Power: 8.0353mW (9.05dBm) Minimum Distance: 5mm Limit: 10mW Source-based time-averaged EIRP output power is 8.0353 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 PAGE 1 OF 77 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Amelia World Corporation dba LINSAY 16340 West Dixie Highway, North Miami Beach, Florida FCC ID: 2AAC3F-10XHD FCC Rule(s): FCC Part 15C Product Description: Tablet PC Tested Model: F-10XHD Report No.: STR14098042I-1 Tested Date: 2014-09-08 to 2014-09-25 Issued Date: 2014-09-25 Tested By: Jason Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 PAGE 2 OF 77 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 17 6.1 STANDARD APPLICABLE ....................................................................................................................................... 17 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 6.3 TEST PROCEDURE ................................................................................................................................................. 17 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 7. RF OUTPUT POWER ............................................................................................................................................ 25 7.1 STANDARD APPLICABLE ....................................................................................................................................... 25 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 25 7.3 TEST PROCEDURE ................................................................................................................................................. 25 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 25 7.5 SUMMARY OF TEST RESULTS/PLOTS .............................................................…

Text truncated - open the document above for the full version.

Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Amelia World Corporation dba LINSAY Model: F-10XHD REPORT NO.: STR14098042I-1 FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
