南京东沛国际贸易集团有限公司 Du-Hope International Group User manual A． Remote Control Description： LED light Button 1 Button 2 Button 3 Battery cover 南京东沛国际贸易集团有限公司 Du-Hope International Group function Code description Note: Multiple remotes can correspond to a receiver module, but the number of the remote control is not more than six. Maximum operating distance is 50m on open area. 1) Clear Memory: Press the button R for morn than 5S, LED indicator light to red and blinks three times to clear the memory. 2) Remote control of the code: Short press button R for less than 5S, enter the state of control the code, LED lights is in red and always lights. During this period, as long as press any button on the remote control in 10s, whether or not release the button, be able to complete the code, LED flashes once then turns off. If more than 10S, pressed buttons, LED off, exit the learning state. Need to re‐code. 3) Add remote: After the success of the code ,if we need to continue to add remote control, you do not need to clear the memory, and direct execute of the code can operate the remote. LED light Code button R 南京东沛国际贸易集团有限公司 Du-Hope International Group Opertation 1) press remote button once door will move. 2) press button again door will stop. 3) press button again door will move in opposite direction. list 1. battary： 23A 12V one pce. 2. remote control frequency： 433.92MHZ。 Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Request for Confidentiality Date: _2013-5-3_ Subject: Confidentiality Request for: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ____DU-HOPE INTERNATIONAL GROUP_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___ (specify number of days not to exceed 180 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: certification engineer fengping (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. FCC ID: 2AACQ-DHGR1

Authority to Act as Agent Date: _2013-5-3_ ______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Shanghai_____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____Dec 30, 2013____ By: __________________________ _______fengping_ ___________ (Signature 1 ) (Print name) Title: ____certification engineer_ _____ On behalf of: _DU-HOPE INTERNATIONAL GROUP_ (Company Name) Telephone: ______025-52346991__ __________________

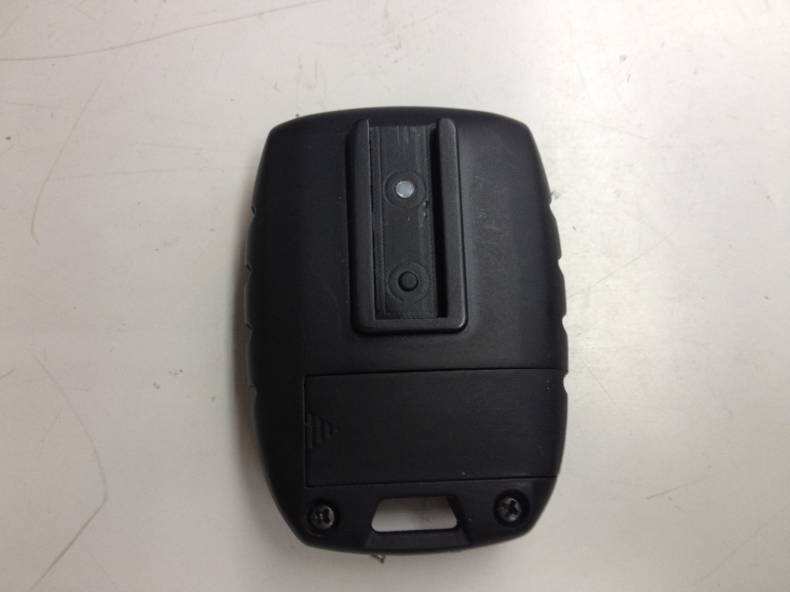

FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 1 of 2 External Picture FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 2 of 2

FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 5 mm 13 mm This label will not be removable. : DHGR1 RIPO Trade mark:

FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 1 of 2 Internal Picture FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 2 of 2

FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 1 of 8 Test Data FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 2 of 8 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x xx x x x x x x MES EZ0426-H3_red MES EZ0426-H3_pre Frequency Level Transd Limit Margin MHz dBμ V/m dB dBμ V/m dB 30.000000 23.30 21.0 40.0 16.7 43.607214 16.30 13.7 40.0 23.7 76.653307 15.60 9.6 40.0 24.4 119.418838 19.10 15.5 43.5 24.4 138.857715 19.10 14.8 43.5 24.4 216.613226 21.80 12.3 46.0 24.2 325.470942 30.80 16.1 46.0 15.2 434.328657 75.10 19.1 46.0 -29.1 694.809619 27.90 22.2 46.0 18.1 867.815631 54.10 24.0 46.0 -8.1 FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 3 of 8 1000-3000MHz Frequency Level Transd Limit Margin MHz dBμ V/m dB dBμ V/m dB 2170.340681 50.18 -8.1 54.0 3.8 2603.206413 52.40 -7.1 54.0 1.6 3036.072144 52.20 -6.2 54.0 1.8 3909.819639 44.02 -2.7 54.0 10.0 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 2G3G 4G5G Frequency [Hz] x x x x x MES EZ0426-VH1_red MES EZ0426-VH1_pre LIM 54dB Field Strength QP FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 4 of 8 Vertical 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES EZ0426-V4_red MES EZ0426-V4_pre Frequency Level Transd Limit Margin MHz dBμ V/m dB dBμ V/m dB 30.000000 23.70 21.0 40.0 16.3 43.607214 17.50 13.7 40.0 22.5 74.709419 14.50 9.3 40.0 25.5 119.418838 19.10 15.5 43.5 24.4 129.138277 20.00 15.2 43.5 23.5 189.398798 17.70 12.5 43.5 25.8 325.470942 21.90 16.1 46.0 24.1 434.328657 71.70 19.1 46.0 -25.7 601.503006 28.40 21.4 46.0 17.6 867.815631 47.00 24.0 46.0 -1.0 FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 5 of 8 1000-3000MHz Frequency Level Transd Limit Margin MHz dBμ V/m dB dBμ V/m dB 1296.593186 46.59 -11.6 54.0 3.4 1737.474950 42.31 -10.0 54.0 11.7 2170.340681 48.35 -8.1 54.0 5.7 2603.206413 52.00 -7.1 54.0 2.0 3036.072144 56.50 -6.2 54.0 2.5 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G 3G4G 5G Frequency [Hz] x x x x x x MES EZ0426-VH3_red MES EZ0426-VH3_pre LIM 56dB Field Strength QP FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 6 of 8 2. Deactivating time FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 7 of 8 3. Emission bandwidth Emission bandwidth = 44.125+ 39.9375 = 84.0625 kHz FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 8 of 8 4. Occupied Bandwidth

FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 1 of 19 EMC TEST REPORT No. 130400722SHA-001 Applicant : Du-hope international group NO.199 Jian Ye Road, Oriental Perfect Building, Nanjing, China Manufacturer : Du-hope international group NO.199 Jian Ye Road, Oriental Perfect Building, Nanjing, China Equipment : Remote controller Type/Model : DHGR1 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2011): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: June 4, 2013 Prepared by: Reviewed by: Endman Zhao (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AACQ-DHGR1 IC: 11116A-DHGR1 Page 3 of 19 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 11 4.1 Test limit ....................................................................................................................... 11 4.2 Test Configuration ........................................................................................................ 12 4.3 Test procedure and test setup ........................................................................................ 12 4.4 Test protocol ................................................................................................................. 12 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 13 5.1 Limit .............................................................................................................................. 13 5.2 Test configuration ......................................................................................................... 13 5.3 Test procedure and test set up ....................................................................................... 14 5.4 Test protocol ................................................................................................................. 15 6. EMISSION BANDWIDTH ............................................................................................................................. 16 6.1 Test limit ....................................................................................................................... 16 6.2 Test Configuration ........................................................................................................ 16 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. OCCUPIED BANDWIDTH ............................................................................................................................ 18 7.1 Test limit ....................................................................................................................... 18 7.2 Test Configuration ........................................................................................................ 18 7.3 Test procedure and test setup ......................................…
