TiaLinx, Inc. 2151 Michelson drive, STE 232 Irvine, CA 92612 Phone: (949) 748-7579 Fax: (949) 748-1911 Web: www.TiaLinx.com July 8, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Modifications to the device To Whom It May Concern, TiaLinx would like to formally notify you that the following modifications have been received and completed by Compatible Electronics, Inc. to our (Eagle5-N Sense-Through-The-Wall sensor) during FCC certification, and will be implemented in FCC Certified Production models. Modifications: 1. A single 3dB attenuator SMA MUU5550 made by Mini-Circuits Inc. placed between antenna and the transmitter output. 2. Three Ferrite beads from Fair-Rite Product Corp. MN: 0431173951. If you have any questions, please do not hesitate to contact me at 949-285-6255. Sincerely, By: __________________________________________ Fred Mohamadi, Ph.D. CEO

TiaLinx, Inc. 2151 Michelson drive, STE 232 Irvine, CA 92612 Phone: (949) 748-7579 Fax: (949) 748-1911 Web: www.TiaLinx.com July 19, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Subject: Request for withholding from public disclosure the schematics, block diagrams, manual (restricted by ITAR) and operational description pursuant to an application for certification To Whom It May Concern, TiaLinx would like to request that all schematics, block diagrams, manual (restricted by ITAR) and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact me at 949-285-6255. Sincerely, By: __________________________________________ Fred Mohamadi, Ph.D. CEO

TiaLinx, Inc. 2151 Michelson drive, STE 232 Irvine, CA 92612 Phone: (949) 748-7579 Fax: (949) 748-1911 Web: www.TiaLinx.com May 20, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 To Whom It May Concern. This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for TiaLinx, Inc. located in 2151 Michelson Drive, Suite 232, Irvine, CA 92612, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following TiaLinx product: Eagle5-N Ultra wideband sense-through-the-wall (STTW) and Sense-through-the-roof (STTR) RF sensor. Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither TiaLinx, Inc. nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, TiaLinx, Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing TiaLinx, Inc. to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 949-285-6255. Sincerely, By: __________________________________________ Fred Mohamadi, Ph.D. CEO

FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. B FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and; (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID= 2AAD6Eagle5N This device complies with Part 15 of …

Text truncated - open the document above for the full version.

TiaLinx, Inc. 2151 Michelson drive, STE 232 Irvine, CA 92612 Phone: (949) 748-7579 Fax: (949) 748-1911 Web: www.TiaLinx.com July 24, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Subject: Exclusion from SAR Test To Whom It May Concern, This device, FCC ID: 2AAD6Eagle5N, is excluded from SAR testing by the following justification: The maximum power that the transmitter IC is capable of is 0.0524807 mW. By using the following formula from section 4.3.1 of KDB 447498: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[ √f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Using the maximum conducted power capable (-12.8dBm) and the minimum test separation (5 mm), the resulting calculated SAR value is: (0.0524807 mW)/5 mm) * ( √5.061 GHz) = 0.023 This value is below the exclusion threshold for both the 1-g SAR and 10-g extremity SAR requirements. If you have any questions, please do not hesitate to contact me at 949-285-6255. Sincerely, By: __________________________________________ Fred Mohamadi, Ph.D. CEO

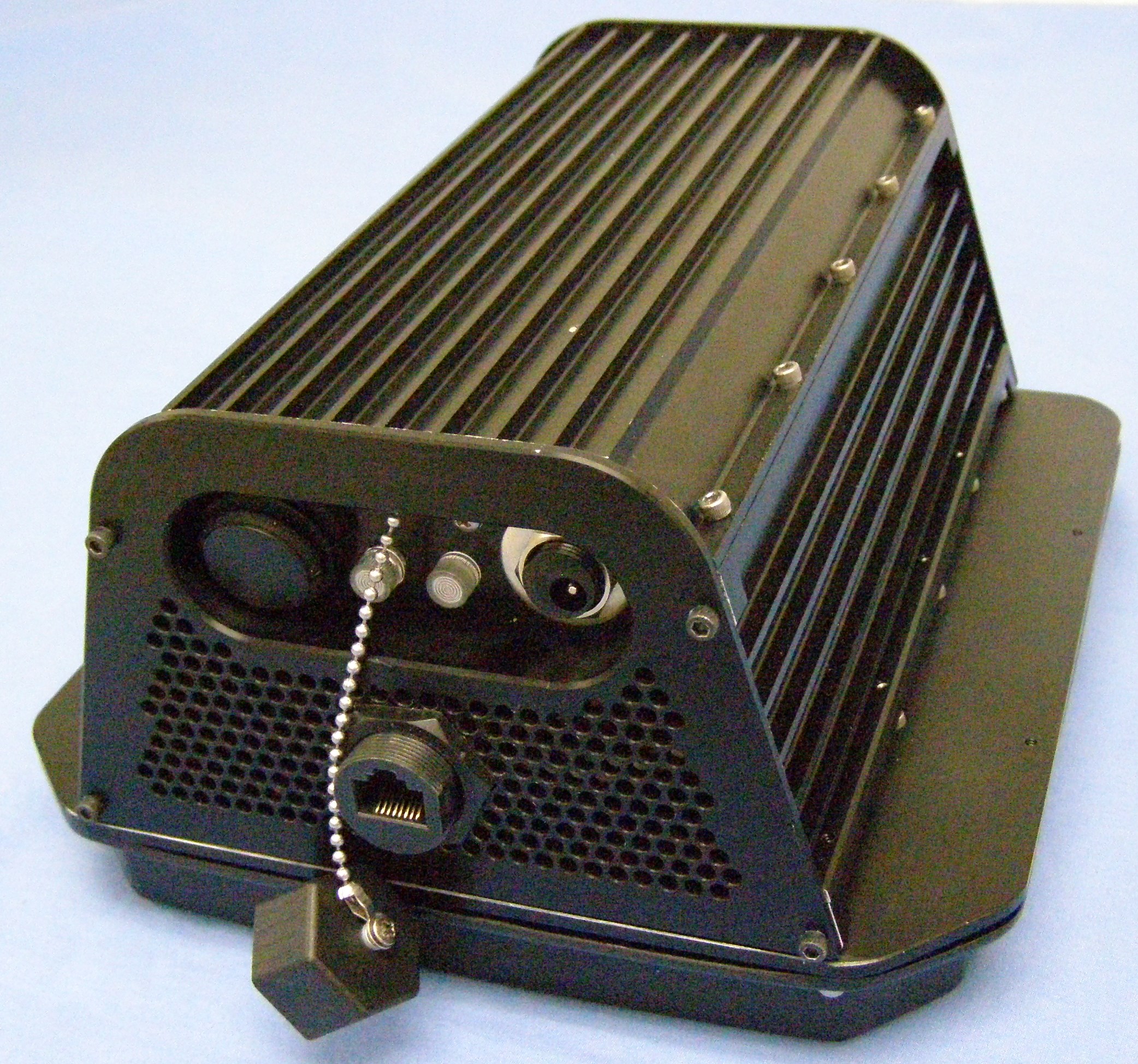

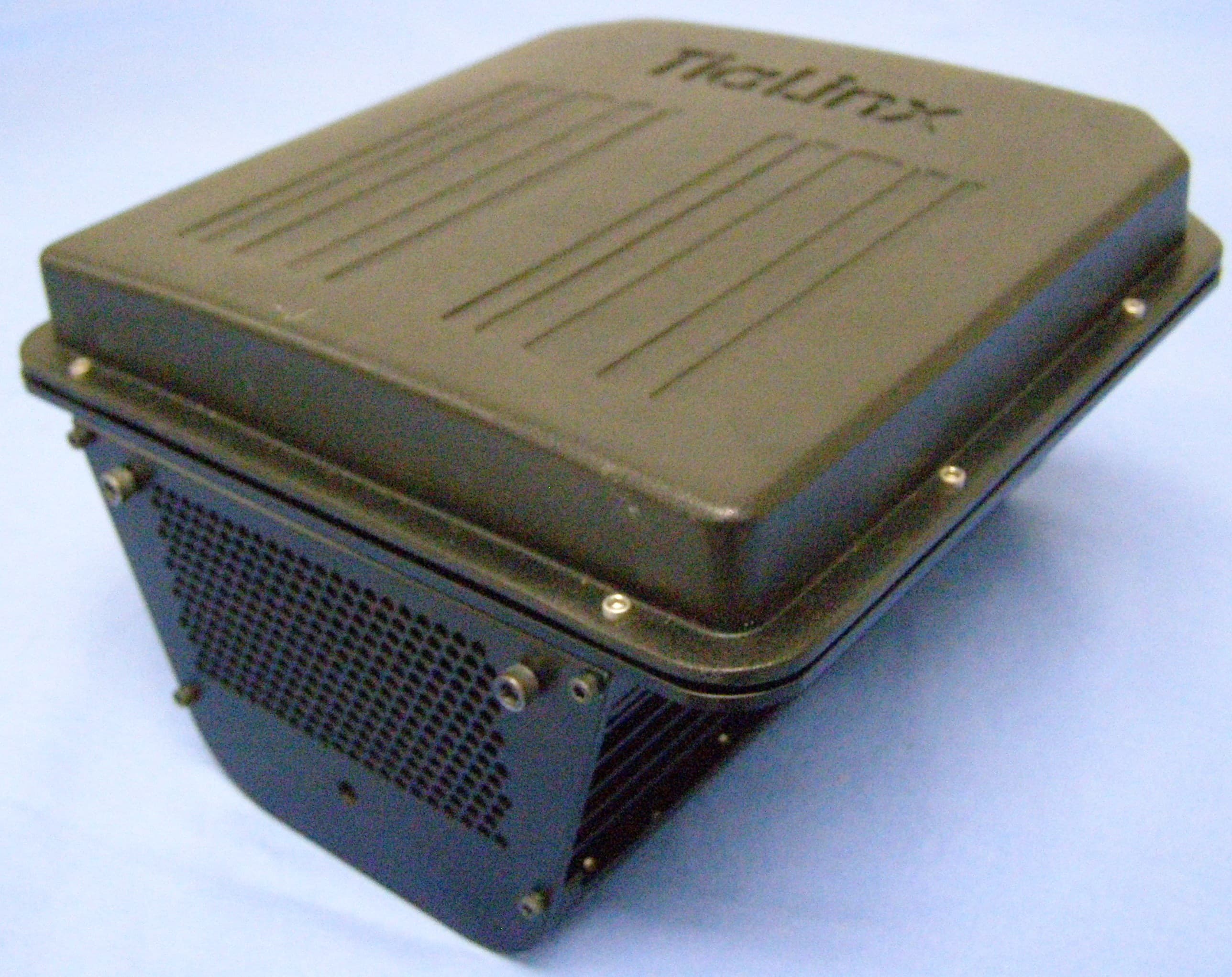

Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 1 of 22 FCC PART 15 SUBPART F SECTION 15.510 TEST REPORT for Through D-Wall Imaging System MODEL: Eagle5-N Prepared for TIALINX 2151 MICHELSON DRIVE, SUITE 232 IRVINE, CALIFORNIA 92612 Prepared by:_____________________ MATT HARRISON Approved by:____________________ JOSH HANSEN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 589-0700 DATE: JULY 19, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 24 19 71 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration 9 4.2 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 5.3 EMI Measurement and Control Software Information 13 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. TEST PROCEDURES 15 7.1 RF Emissions 15 7.1.1 Conducted Emissions 15 7.1.2 Radiated Emissions 16 7.1.3 UWB Bandwidth 18 7.1.4 Radiated Emissions In GPS Band1164-1240MHz & 1559-1610MHz 19 7.1.5 Peak Radiated Emissions in a 50MHz BW 20 7.1.6 Voltage Fluctuations 20 7.1.7 EIRP Calculations 21 7.1.8 Measurement Calculations 21 8. TEST PROCEDURE DEVIATIONS 22 9. CONCLUSIONS 22 Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Radiated Emissions Photos  Antenna and Amplifier Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Below 1GHz 3 Plot Map And Layout of Test Site Above 1GHz Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Through D-Wall Imaging System Model Number: Eagle5-N S/N: E5-1-1.77 Product Description: This is a through wall D-Wall Imaging System. Modifications: The EUT was modified during the testing. See list located in Appendix B. Manufacturer: Tialinx 2151 Michelson Drive, Suite 232 Irvine, California 92612 Test Dates: May 29, 2013 Test Specification: EMI requirements CFR Title 47, FCC Part 15, Subpart B, Subpart C and Subpart F (15.510) Test Procedure: ANSI C63.4 & ANSI C63.10 Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the limits of CFR Title 47, Part 15 Subpart B, Section 15.107 & Subpart C, Section 15.207 2 Radiated RF Emissions, 30 – 1000 MHz Complies with the limits of CFR Title 47, Part 15 Subpart B Section 15.109 3 Radiated RF Emissions, 9 kHz– 960 MHz Complies with the limits of CFR Title 47, Part 15 Subpart C Section 15.209 4 UWB Bandwidth Complies with the requirements of CFR Title 47, Part 15, Subpart F, section 15.503 [d] 5 Radiated RF Emissions, 960 MHz – 40 GHz Complies with the limits of CFR Title 47, Part 15, Subpart F, section 15.510 [d] 7 Radiated Emissions in GPS Band 1164 – 1240 MHz & 1559 – 1610 MHz Complies with the limits of CFR Title 47, Part 15, Subpart F, section 15.510 [d] 8 Peak Emissions within a 50 MHz Bandwidth Complies with the limits of CFR Title 47, Part 15, Subpart F, section 15.510 [d] Report Number: D30529R1 FCC Part 15 Subpart F Test Report FCC ID: 2AAD6EAGLE5N Eagle 5 Model: EAGLE5-N 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 6 of 22 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Through D-Wall Imaging System Model Number: EAGLE5-N. The EMI measurements were performed according to the measurement procedure described in ANSI C63.10 The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart F – Ultra-Wideband Operation, sections 15.503…
